Genie Super Tower ST-20 User manual

Genie Super Tower Part No. 32950
Operator's Manual First Edition • Seventh Printing
Copyright © 1994 by Genie Industries
First Edition: Seventh Printing, February 2009
"Genie" is a registered trademark of
Genie Industries in the U.S.A. and many other
countries. "Super Tower" is a trademark of
Genie Industries.
Printed on recycled paper
Printed in U.S.A.
Important
Read,understandandobey thesesafety rulesand
operatinginstructionsbeforeoperatingthismachine.
Onlytrainedandauthorizedpersonnelshallbe
permitted to operate this machine. This manual should
beconsidereda permanent partofyour machine and
should remain with the machine at all times. If you have
any questions, call Genie Industries.
Contents
Page
Safety ........................................................................ 1
Legend ....................................................................... 6
Pre-operationInspection ............................................ 7
Function Tests........................................................... 9
WorkplaceInspection................................................ 12
OperatingInstruction................................................. 13
LoadCapacityCharts................................................ 15
TransportInstructions ............................................... 17
Decals ...................................................................... 18
Specifications ........................................................... 21
Contact us:
Internet:http://www.genielift.com
e-mail:[email protected]

PartNo.32950 GenieSuperTower 1
Operator's ManualFirst Edition • Seventh Printing
Safety Rules
Warning
Failure to obey the instructions and
safety rules in this manual may
result in death or serious injury.
Do Not Operate Unless:
You learn and practice the principles of safe
machineoperationcontainedinthisoperator's
manual.
1 Avoidhazardoussituations.
Knowandunderstandthesafetyrules
before going on to the next section.
2 Alwaysperformapre-operation
inspection.
3 Always perform the function tests prior to
use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
Youread, understandandobeythe
manufacturer'sinstructionsand safetyrules—
safetyandoperator'smanualsandmachine
decals.
Youread,understandandobeyemployer's
safety rules and worksite regulations.
Youread,understandandobeyallapplicable
governmentalregulations.
Youare properlytrained tosafely operate the
machine.

2 GenieSuperTower PartNo.32950
Operator's Manual First Edition • Seventh Printing
Fall Hazards
Do not use as a personnel lifting platform or step.
Do not stand on the forks.
Do not climb on the mast.
Tip-over Hazards

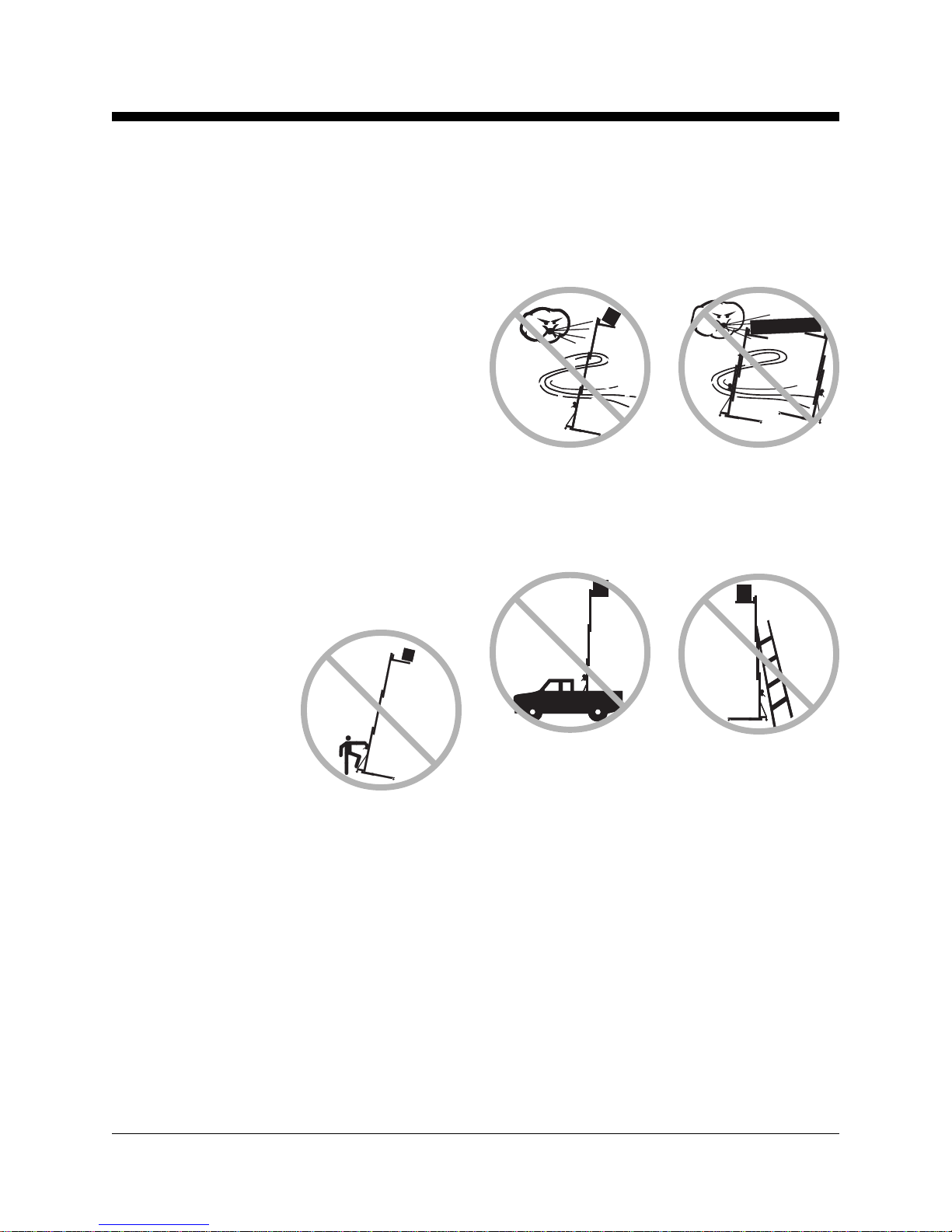

Donot operatea GenieSuper Towerunless allfour
outriggersareproperlyinstalledin thebase
sockets, the screw jack pads are in firm contact
with the ground and the base is level.
Donot operate themachine unlessalloutrigger
lock pins are in place and properly inserted into
eachoutrigger.
Do not raise the load unless the machine is level.
Do not set the machine up on a surface where it
cannot be leveled using only the leveling jacks.
Do not move the machine
with a raised load, except
forminorpositioning.
Do not leave the load
raisedwiththeoutrigger
casters contacting the
ground.
Do not adjust or remove
theoutriggerswhilethe
load is raised.
Do not operate the machine in strong or gusty
winds. Increasing the load surface area will
decrease machine stability in windy conditions.
Do not leave a load raised when windy conditions
mayoccur unless the machine(s) areproperly
guy-wired.
Do not use the machine on a moving or mobile
surface or vehicle.
Do not place ladders or scaffolding against any part
of the machine.
Do not exceed the rated load capacity. See Load
Capacity Charts section.
Do not raise unless the load center (balance point)
isproperlypositioned between thecarriageandthe
endof the load handling attachment.See Load
Capacity Charts section.
Prior to use, check the work area for drop-offs,
holes, bumps, debris, unstable or slippery surfaces
orotherpossiblehazardousconditions.
SAFETY RULES

PartNo.32950 GenieSuperTower 3
Operator's ManualFirst Edition • Seventh Printing
SAFETY RULES
Avoiddebris and unevensurfaces while rollingthe
machine with the legs folded up.
Do not replace machine parts critical to stability or
structure with items of different weight or
specification.
Do not cause a horizontal force or side load to the
machine by raising or lowering a fixed or
overhangingload.
Electrocution Hazards
This machine is not electrically insulated and will
not provide protection from contact with or
proximity to electrical current.
Keep away from the
machine if it contacts
energizedpowerlines.
Personnel must not touch
oroperatethemachine
until power lines are shut
off.
Maintain safe distances away from electrical power
linesandapparatusinaccordancewithapplicable
governmentalregulationsandthefollowingchart.
Allow for mast movement and electrical line sway
or sag, and be aware of strong or gusty winds.
Do not use the machine as a ground for welding.
Voltage Minimum Safe
Approach Distance
Phase to Phase Feet Meters
0 to 300V Avoid Contact
300V to 50KV 10 3.1
50KV to 200KV 15 4.6
200KV to 350KV 20 6.1
350KV to 500KV 25 7.6
500KV to 750KV 35 10.7
750KV to 1000KV 45 13.7
Crushing Hazards
Do not release the winch handles until the brake is
locked. The brake is locked when the load will not
cause the winch handles to turn.
Do not raise unless the load center (balance point)
isproperlypositioned between thecarriageandthe
end of the adjustable forks.
Donot standunderor
allowpersonnelunder
themachinewhenthe
load is raised.
Donot stand under the
load. The safety brake
system will allow the
load to drop 1 to 3 feet
beforelockingthe
columns.
Do not raise unless the load is properly secured to
the forks.
Do not lower the load unless the area below is clear
ofpersonnel andobstructions.
Keephandsandfingersaway
from any potential pinch points.
Do not raise the load unless the
snappins are properlyinserted in
the forks.

4 GenieSuperTower PartNo.32950
Operator's Manual First Edition • Seventh Printing
SAFETY RULES
Collision Hazards
Do not tilt the machine back unless the area is
clearofpersonnel andobstructions.
Checkthe work areafor
overheadobstructionsor
otherpossiblehazards.
Usecommon sense and
planningwhentransporting
the machine on an incline
orslope.
Do not load for transport unless the machine and
vehicle are on a level surface. Use proper lifting
techniques to load the machine.
Damaged Machine Hazards
Donot use adamaged or
malfunctioningmachine.
Do not use a machine with a
worn,frayed,kinkedordamaged
cable.
Do not use a machine with less
than 4 wraps of cable on the
winch drum in the stowed
position.
Conductathoroughpre-operation
inspection prior to each use.
Be sure that the operator's manual is complete,
legible and in the storage container located on the
machine.
Be sure all decals are in place and legible.
Maintainproperlubricationonthewinch. See
GenieSuper TowerPartsand ServiceManual .Do
not allow oil or grease on braking surfaces.
Do not use any type of lubrication on the column
surfaces.
Bodily Injury Hazard
Do not grasp the cable.
Lifting Hazards
Use proper lifting techniques to load or tilt the
machine.
Improper Use Hazard
WhenleavingaGenieSuperTowerunattendedwith
aload,securefromunauthorizeduse.Unauthorized
personnelmay attemptto operatethe machine
withoutproperinstruction,creatinganunsafe
condition.

PartNo.32950 GenieSuperTower 5
Operator's ManualFirst Edition • Seventh Printing
SAFETY RULES
Decal Legend
Genie product decals use symbols, color coding
and signal words to identify the following:
Safety alert symbol—used to alert
personneltopotentialpersonal
injury hazards. Obey all safety
messages that follow this symbol
to avoid possible injury or death.
Red—usedtoindicatethe
presence of an imminently
hazardous situation which, if not
avoided, will result in death or
seriousinjury.
Orange—usedtoindicatethe
presence of a potentially
hazardous situation which, if not
avoided, could result in death or
seriousinjury.
Yellow with safety alert symbol—
used to indicate the presence of a
potentiallyhazardoussituation
which, if not avoided, may cause
minorormoderateinjury.
Yellow without safety alert
symbol—used to indicate the
presence of a potentially
hazardous situation which, if not
avoided, may result in property
damage.
Green—usedtoindicateoperation
ormaintenanceinformation.

6 GenieSuperTower PartNo.32950
Operator's Manual First Edition • Seventh Printing

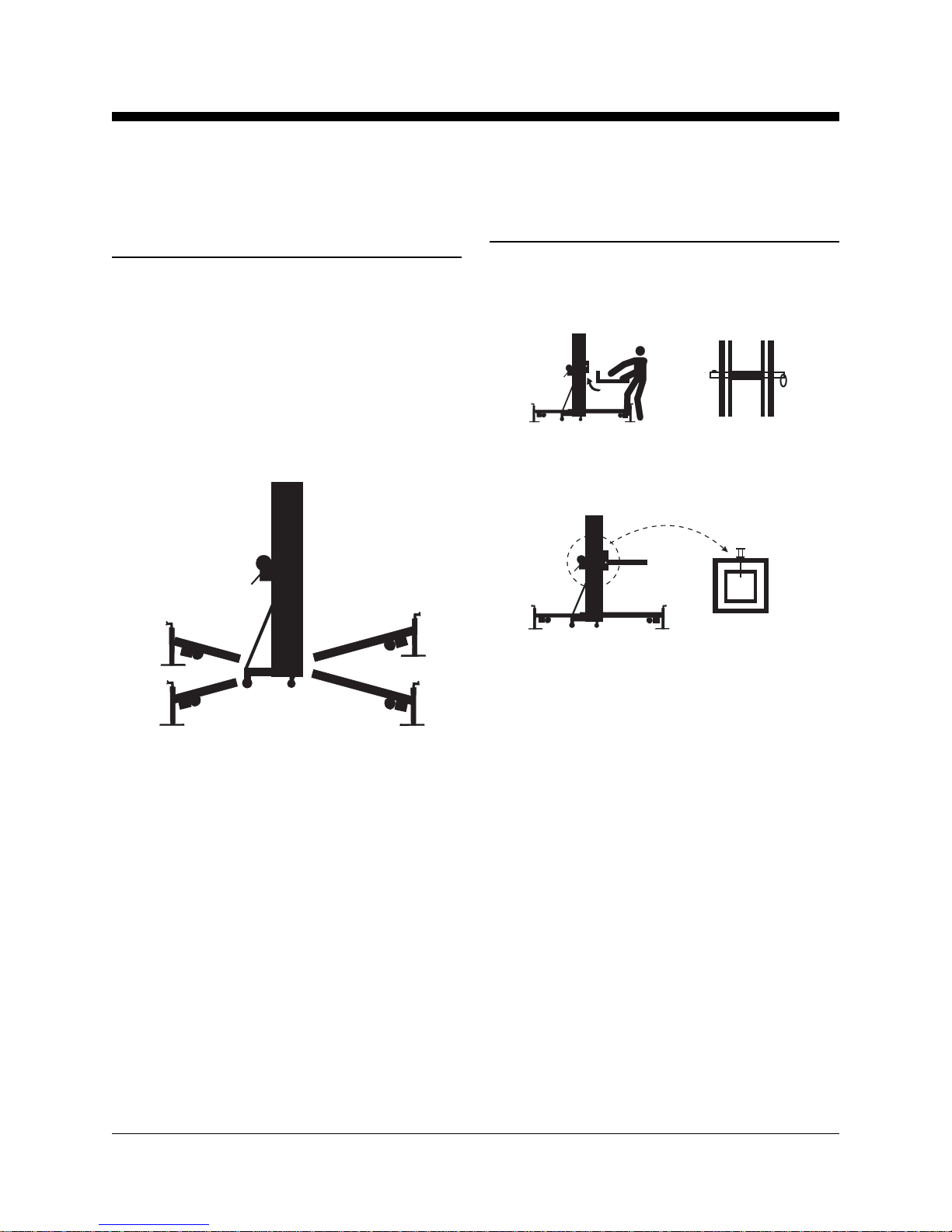

1 2 3 4567
Legend
8
16
17
15
14
10
9
18
1 Loadingwheels/steerhandles
2 Winch
3 Cable
4 Mast
5 Carriage
6 Loadhandlingattachment
retainingpin
7 Adjustablefork
8 Snappin
9 Carriagehold-downlatch
10 Frontoutrigger(long)
11 Outriggerscrewjackhandle
12Outrigger screw jack
13 Outriggerscrewjackpads
14 Outriggercaster
15 Base
16 Base caster
17 Bubblelevel
18 Rearoutrigger(short)
19 Loadingguideblocks
20 Outriggerlockpin
21 Outriggerstoragesockets
11
19
20
21
12
13

PartNo.32950 GenieSuperTower 7
Operator's ManualFirst Edition • Seventh Printing
Do Not Operate Unless:
You learn and practice the principles of safe
machineoperationcontainedinthisoperator’s
manual.
1 Avoidhazardous situations.
2 Alwaysperformapre-operationinspection.
Knowandunderstandthepre-operation
inspection before going on to the next
section.
3 Always perform the function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.

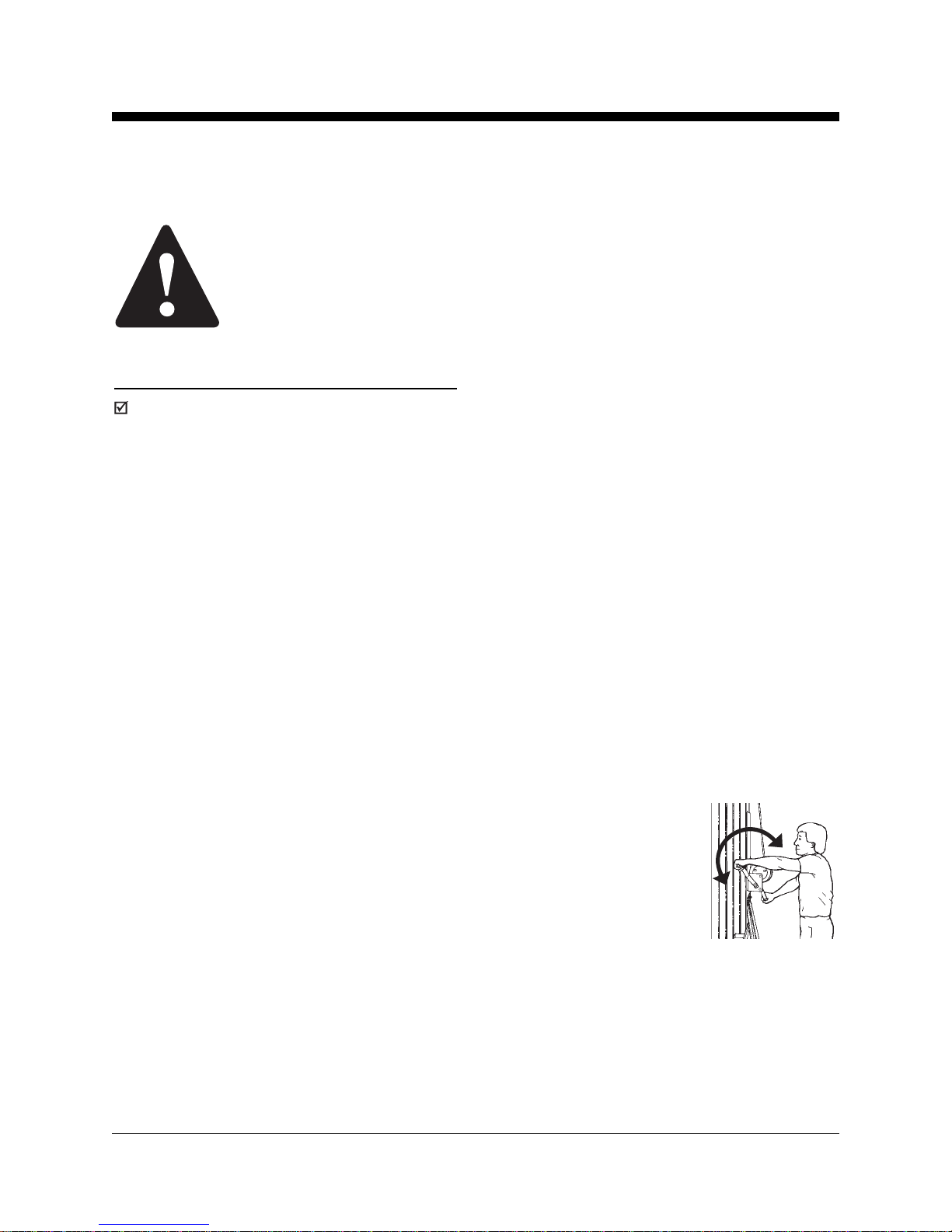

Pre-operation Inspection
Fundamentals
Thepre-operation inspection is a visualinspection
performed by the operator prior to each work shift.
This inspection is designed to discover if anything
isapparently wrongwitha machinebefore the
operator performs the function tests.
Refer to the list on the next page and check each
of the items.
Ifdamageor any unauthorizedvariationfrom
factory delivered condition is discovered, the
machinemust betaggedand removedfrom
service.
Repairs to the machine may only be made by a
qualified service technician, according to the
manufacturer'sspecifications.Afterrepairsare
completed,theoperatormustperformapre-
operationinspectionagainbeforegoingontothe
function tests.

8 GenieSuperTower PartNo.32950
Operator's Manual First Edition • Seventh Printing
PRE-OPERATIONINSPECTION
Pre-operation Inspection
RBe sure that the operator’s manual is complete,
legibleand inthe storagecontainer locatedon
themachine.
RBe sure that all decals are legible and in place.
See Decals section.
Checkthe followingcomponents orareas for
damage,improperly installed ormissing parts and
unauthorizedmodifications:
RWinchandrelatedcomponents
RBasecomponents
ROutriggers,outriggerscrewjacks,outrigger
footpads andoutrigger casters
RMast columns
RExterior plastic shim for safety brake
RCableanchor
RCablesandpulleys
RCarriagehold-downlatch
RWheelsandcasters
RAdjustable forks
RNuts, bolts and other fasteners
RCable (kinks, frays, abrasions)
Check the entire machine for:
RDentsordamage
RCorrosionoroxidation
RCracks in welds or structural components
RBe sure that all structural and other critical
componentsarepresent andallassociated
fastenersand pins arein placeand properly
tightened.
RBe sure that there is a minimum of 4 wraps of
cablearoundthewinchdrumwhenthecarriage
is fully lowered.

PartNo.32950 GenieSuperTower 9
Operator's ManualFirst Edition • Seventh Printing
Function Tests
Do Not Operate Unless:
You learn and practice the principles of safe
machineoperationcontainedinthisoperator's
manual.
1 Avoidhazardous situations.
2 Alwaysperformapre-operationinspection.
3 Alwaysperformfunctiontestspriorto
use.
Knowandunderstandthefunctiontests
before going on to the next section.
4 Inspect the workplace.
5 Only use the machine as it was intended.
Fundamentals
The function tests are designed to discover any
malfunctions before the machine is put into service.
Theoperator must followthe step-by-step
instructions to test all machine functions.
A malfunctioning machine must never be used. If
malfunctions are discovered, the machine must be
tagged and removed from service. Repairs to the
machine may only be made by a qualified service
technician,according tothemanufacturer's
specifications.
Afterrepairs arecompleted, the operatormust
performapre-operationinspectionandfunction
tests again before putting the machine into service.
SymbolsLegend
Indicates that a specific result is expected after
performing a series of steps.

10 GenieSuperTower PartNo.32950
Operator's Manual First Edition • Seventh Printing
FUNCTIONTESTS
Function Tests
1 Position the machine at the desired work site.
Setup
1 Removetheoutriggersfromtheoutrigger
storage sockets.
2 Lay each outrigger near the base where it is to
be installed. The two long outriggers will be
installed into the two front base sockets. The
two short outriggers will be installed into the two
rear base sockets.
3 Select any outrigger. Slide the outrigger all the
way into the base socket until the outrigger lock
pin snaps into the outrigger, locking it in place.
Repeatforeachremainingoutrigger.
4 Adjust the outrigger screw jacks until the base
casters are slightly off the ground.
5 Level the machine with the outrigger screw jacks
by referencing the bubble level located on the
base. Level the machine using only the
outriggers.
LoadHandlingAttachment
AdjustableForks
1 Place the forks inside the carriage.
2 Insertthe retaining pin.
3 Adjust the forks to the desired width and be sure
the snap pins are properly inserted in each fork.

PartNo.32950 GenieSuperTower 11
Operator's ManualFirst Edition • Seventh Printing
FUNCTIONTESTS
TestOne-SpeedWinchOperation
1 Install the adjustable forks.
2 Raisethe carriageby
firmlygrasping the
winchhandlesand
rotatingthemtowards
the mast.
Result:The winch
shouldoperate
smoothly, free of
hesitationorbinding.
3 Lowerthe carriageby firmlygrasping the winch
handles and rotating them away from the mast.
After lowering to the desired position, turn the
winchhandles towardthe mast(raise theload)
1/4turn to set the brakes.
Result: The winch should operate smoothly, free
ofhesitation orbinding.
TestTwo-SpeedWinchOperation
1 Install the adjustable forks.
2 Shift the winch to the slow speed.
3 Raisethecarriage
by firmly grasping
thewinchhandles
androtatingthem
towards the mast.
Result:The winch
shouldoperate
smoothly, free of
hesitationorbinding.
4 Lowerthe carriageby firmlygrasping the winch
handles and rotating them away from the mast.
After lowering to the desired position, turn the
winchhandles towardthe mast(raise theload)
1/4turn to set the brakes.
Result: The winch should operate smoothly, free
ofhesitation orbinding.
5 Shift the winch to the fast speed and repeat
steps 3 and 4.
TestMastSequencing
1 Install the adjustable forks.
2 Raise the carriage to full height by firmly
graspingthewinchhandlesandrotatingthem
towards the mast.
Result: The carriage should rise to the top of the
front mast section, followed in consecutive
order by each mast section.
3 Fully lower the carriage. After lowering to the
desiredposition,turnthewinchhandlestoward
the mast (raise the load) 1/4turn to set the
brakes.
down
up
down
up

12 GenieSuperTower PartNo.32950
Operator's Manual First Edition • Seventh Printing
Workplace Inspection
Fundamentals
Theworkplaceinspectionhelpstheoperator
determine if the workplace is suitable for safe
machineoperation. Itshould beperformed by the
operator prior to moving the machine to the
workplace.
It is the operator's responsibility to read and
remembertheworkplace hazards,thenwatchfor
and avoid them while moving, setting up and
operatingthemachine.
Beawareof andavoidthe following hazardous
situations:
· drop-offsorholes
· bumps,floor obstructions ordebris
· slopes that exceed the machine’s leveling
capability
· unstableor slippery surfaces
· overheadobstructionsandhighvoltage
conductors
· hazardouslocations
· inadequatesurfacesupport towithstandall load
forces imposed by the machine
· windandweatherconditions
· thepresenceofunauthorizedpersonnel
· otherpossibleunsafeconditions
Do Not Operate Unless:
You learn and practice the principles of safe
machineoperationcontainedinthisoperator's
manual.
1 Avoidhazardous situations.
2 Alwaysperformapre-operationinspection.
3 Always perform function tests prior to use.
4 Inspecttheworkplace.
Knowandunderstandtheworkplace
inspection before going on to the next
section.
5 Only use the machine as it was intended.

PartNo.32950 GenieSuperTower 13
Operator's ManualFirst Edition • Seventh Printing
Operating Instructions
Do Not Operate Unless:
You learn and practice the principles of safe
machineoperationcontainedinthisoperator's
manual.
1 Avoidhazardous situations.
2 Alwaysperformapre-operationinspection.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
Fundamentals
TheOperatingInstructions sectionprovides
instructions for each aspect of machine operation.
It is the operator's responsibility to follow all the
safety rules and instructions in the operator's
manual.
Using the machine for anything other than lifting
material is unsafe.
If more than one operator is expected to use a
machine at different times in the same work shift,
each operator is expected to follow all safety rules
andinstructions inthe operator'smanual. That
meanseverynewoperatorshouldperformapre-
operation inspection, function tests and a work
placeinspection before using the machine.
Setup
Position the machine at the desired work site.
Follow the Setup procedures in the Function Tests
section.
Raising and Lowering Load
1 Center the load on the forks. See Load Capacity
Chartssection.
2 Make sure the load is
properlysecuredtothe
forks.
3 Raise the load by firmly
graspingthewinch
handlesandrotating
them toward the mast.
Do not allow the cable
towind unevenlyonto
thedrum.
4 Lower the load by firmly grasping the winch
handles and rotating them away from the mast.
After lowering to the desired position, turn the
winchhandles towardthe mast(raise theload)
1/4turn to set the brakes.
down
up

14 GenieSuperTower PartNo.32950
Operator's Manual First Edition • Seventh Printing
OPERATINGINSTRUCTIONS
Moving Machine with a Load
It is best to move the machine on the worksite with
no load. Moving a raised load should be restricted
to positioning only. If it is necessary to move the
machinewitha raisedload,understandand obey
the following safety rules:
· Make sure the area is level and clear of
obstructions
· Make sure the load is centered on the load
handlingattachment
· Make sure the load is properly secured to the
loadhandlingattachment
· Avoid sudden starts and stops
· Travel with the load in the lowest possible
position
· Keeppersonnelawayfromthemachineand
load
Machine Setup for Moving
Machine with a Load
1 Lower the load to the lowest possible position.
2 Raisethe endof theoutrigger withthe outrigger
screw jack.
3 Pull the snap pin and rotate the caster to the
down position. Be sure the pull pin is properly
inserted.
4 Lower the outrigger until the caster contacts the
ground.
5 Repeatforeachoutrigger.
6 After positioning the load, return the casters to
the stowed position. Level the machine with the
outriggerscrewjacks byreferencingthebubble
level on the base.
After Each Use
TopreparetheGenieSuperTowerforstorage,
followtheSetupprocedureinreverseorder.
Select a safe storage location - firm level surface,
weather protected, clear of obstruction and traffic.

PartNo.32950 GenieSuperTower 15
Operator's ManualFirst Edition • Seventh Printing
Load Capacity Charts
Observe and Obey:
Failure to properly position the load may result in
deathor seriousinjury.
Verify that the load you wish to raise does not
exceed the maximum load for your load center.
See the Load Capacity Chart on the next page.
Tip-overhazard.Raisingaload
that exceeds the machine capacity
may result in death or serious
injury.
A load center is defined as the balancing point
(center of gravity) of a load and must be
positionedwithin theload center zone.
Tip-overhazard.Failuretoposition
the load center within the load
center zone may result in death or
seriousinjury.
Forks
Load Positioning Instructions
1 Determine the weight of the load and the
location of its load center.
2 Measure to the load center from the side of the
load that will be closest to the carriage.
3 Refer to the chart on the next page to determine
if the machine is capable of lifting the weight at
the location on the forks.
4 Place the load so that it rests on the forks, as
close to the carriage as possible.
5 Position the load so that the load center is within
the load center zone.
6 Secure the load to the forks.

16 GenieSuperTower PartNo.32950
Operator's Manual First Edition • Seventh Printing
LOADCAPACITYCHARTS
Maximum Load Center
(measurefrom thefrontof thecarriage)
AdjustableForks: 24in 61 cm
measureto the loadcenter
See Load Capacity Chart for maximum load centers
for adjustable forks.
inches
cm
lbs
kg
lbs
kg
LoadCapacityChart
LoadCenter
18 20 22 24
46 51 56 61
Model
ST-20 800 733 667 600
363 332 303 272
ST-25 650 583 517 450
295 264 235 204
Load Center
Zone

PartNo.32950 GenieSuperTower 17
Operator's ManualFirst Edition • Seventh Printing
Transport Instructions
Transport Instructions
Observe and Obey:
The transport vehicle must be parked on a level
surface.
The transport vehicle must be secured to
preventrolling whilethe machineis being
loaded.
Be sure the vehicle capacity, loading surfaces
and chains or straps are sufficient to withstand
the machine weight. See the serial plate for
machineweight.
The machine must be secured to the transport
vehicle with chains or straps of ample load
capacity.
Loading the Machine
1 Fullylowerthecarriage.
2 Lockthecarriage hold-downlatchover the
carriage.
3 Raise the carriage until it contacts the carriage
hold-downlatch.
4 Removethe outriggersfrom thebase andplace
them in the outrigger storage sockets. Be sure
thesnap pinsareproperly inserted.
5 Adjust the loading wheels to the desired height.
Be sure the pull pin is properly inserted.
6 Place the machine against the vehicle. Use
properlifting techniques to load themachine
into the transport vehicle. Be sure to check that
the carriage is locked in the lowered position.
Loading the Machine
with a Crane
Be sure to place the outriggers in
the outrigger storage sockets. Be
surethe snappins areproperly
inserted.
Be sure to inspect the machine and
removeanyloose orunsecured
items.
Use the lifting bracket on the top of
the rear mast column.
Always place the lifting hook
through the lifting bracket so that it
points away from the machine.

18 GenieSuperTower PartNo.32950
Operator's Manual First Edition • Seventh Printing
Decals
Inspection for Decals with Words
Determinewhetherthedecalsonyourmachine
havewords orsymbols. Usethe appropriate
inspection to verify that all decals are legible and in
place.
Part No. Description Quantity
27865 Label - Bubble Level 1
31072 Label - Operator's Manual Container 1
32770 Notice - Two Speed Shift Instructions 1
32885 Warning - Silent Winch 1
32927 Cosmetic - ST-20 2
32928 Cosmetic - ST-25 2
32929 Warning - Machine Safety & Setup 1
32934 Label - Outrigger Storage Socket 1
32938 Label - Use This Winch 1
32939 Warning - Brake Lock 1
33468 Warning - No Riders 1
33493 Warning - Adjustable Forks Safety/Setup 1
52985 Cosmetic - Genie Super Tower 2
97547 Danger - Electrocution Hazard 2
97529 Caution - Bodily Injury Hazard 1
Note: The serial plate will be found in one of three
locations.
