Genie Superlift Contractor Part No. 33547
Operator's Manual First Edition • Ninth Printing
Copyright © 1995 by Genie Industries
First Edition: Ninth Printing, February 2009
"Genie" and "Superlift Contractor" are
registered trademarks of Genie Industries in
the U.S.A. and many other countries.
Printed on recycled paper
Printed in U.S.A.
Important
Read,understandandobey thesesafety rulesand
operatinginstructionsbeforeoperatingthismachine.
Onlytrainedandauthorizedpersonnelshallbe
permitted to operate this machine. This manual should
beconsidereda permanent partofyour machine and
should remain with the machine at all times. If you have
any questions, call Genie Industries.
Contents
Page
Safety ........................................................................ 1
Legend ....................................................................... 6
Pre-operationInspection ............................................ 7
Function Tests........................................................... 9
WorkplaceInspection................................................ 13
OperatingInstructions............................................... 14
LoadCapacityCharts................................................ 16
Decals ...................................................................... 18
TransportandLifting Instructions .............................. 22
Specifications ........................................................... 23
Contact us:
Internet:http://www.genielift.com
e-mail:[email protected]

PartNo.33547 GenieSuperliftContractor 1
Operator'sManualFirst Edition • Ninth Printing
Safety Rules
Warning
Failure to obey the instructions and
safety rules in this manual may
result in death or serious injury.
Do Not Operate Unless:
You learn and practice the principles of safe
machineoperationcontainedinthisoperator's
manual.
1 Avoidhazardoussituations.
Knowandunderstandthesafetyrulesbefore
going on to the next section.
2 Alwaysperformapre-operation
inspection.
3 Always perform the function tests prior to
use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
Youread, understandandobeythe
manufacturer'sinstructionsand safetyrules—
safetyandoperator'smanualsandmachine
decals.
Youread,understandandobeyemployer's
safety rules and worksite regulations.
Youread,understandandobeyallapplicable
governmentalregulations.
Youare properlytrained tosafely operate the
machine.

2 GenieSuperliftContractor PartNo.33547
Operator'sManual First Edition • Ninth Printing
Fall Hazards
Do not use as a personnel lifting platform or step.
Do not stand on the load handling attachments.
Do not climb on the mast.
Tip-over Hazards
Do not raise the load unless the stabilizers (if
equipped)andlegshavebeenfullyloweredand
locked and the casters are in full contact with the
ground.
Do not raise the load unless
theleg retainer pinsare
properlyinsertedthrough
the leg and the base.
Do not remove the leg
retainerpinswhilethe
machineisloadedand/or
raised.
Do not raise the load unless the machine is on a
firm, level surface.
Prior to use, check the work area for drop-offs,
holes, bumps, debris, unstable or slippery surfaces
orotherpossiblehazardousconditions.
SAFETY RULES
Do not raise the load unless
theloadhandling
attachmentisproperly
secured to the machine.
Do not use blocks to level
themachine.
Do not move the machine
with a raised load, except
forminorpositioning.
Do not operate the machine in strong or gusty
winds. Increasing the load surface area will
decrease machine stability in windy conditions.
Do not leave a load raised when windy conditions
mayoccur unless themachine(s) are properlyguy-
wired.
Do not exceed the rated load capacity. See Load
Capacity Charts section.
Avoid debris and uneven surfaces while rolling a
machine with the legs folded up.
Do not replace machine parts critical to stability or
structure with items of different weight or
specification.
Do not cause a horizontal force or side load to the
machine by raising or lowering a fixed or
overhangingload.

PartNo.33547 GenieSuperliftContractor 3
Operator'sManualFirst Edition • Ninth Printing
SAFETY RULES

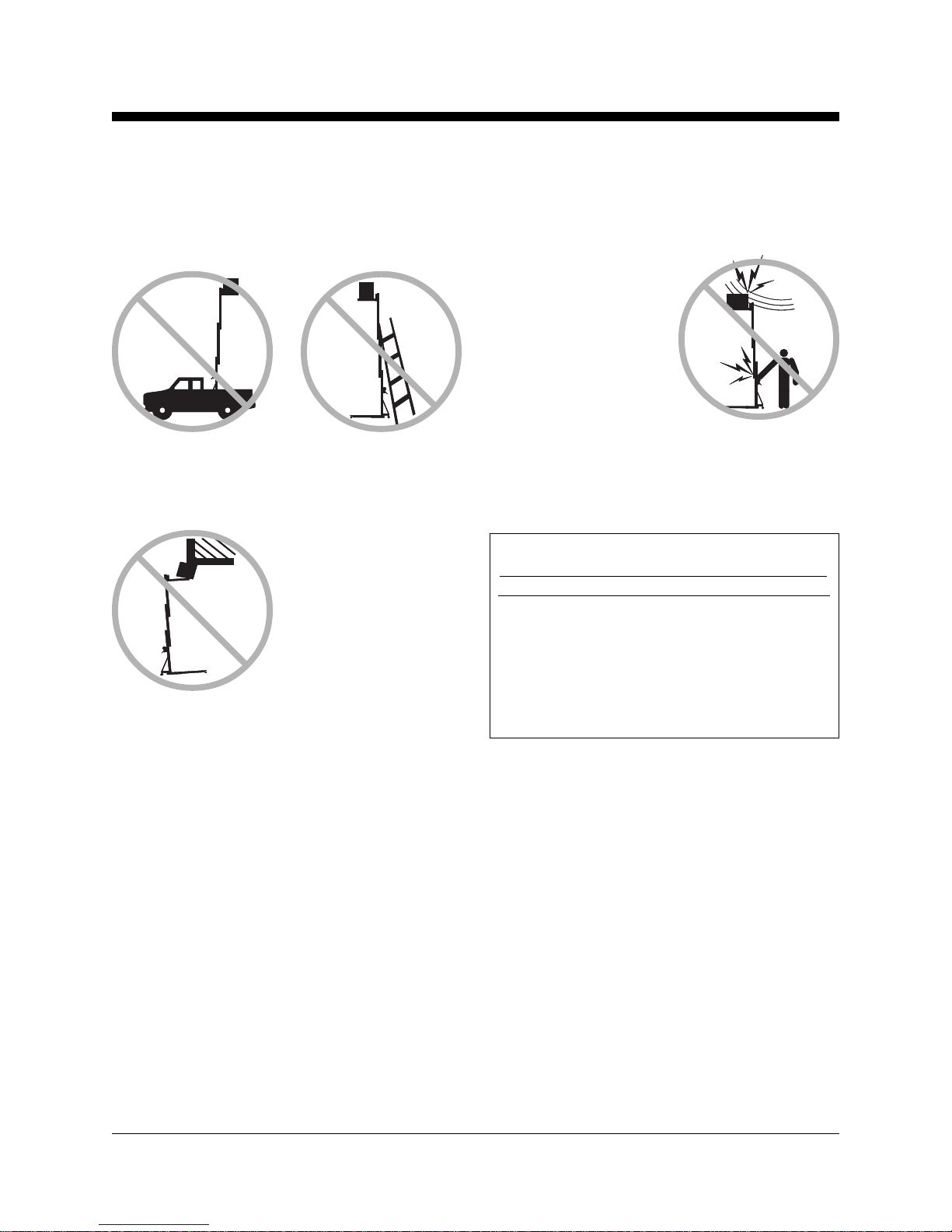

Electrocution Hazards
This machine is not
electricallyinsulatedand
willnotprovideprotection
from contact with or
proximity to electrical
current.
Keep away from the
machine if it contacts
energizedpower lines.Personnel mustnot touch or
operate the machine until power lines are shut off.
Maintain safe distances away from electrical power
linesandapparatusinaccordancewithapplicable
governmentalregulationsandthefollowingchart.
Allow for mast movement and electrical line sway
or sag, and be aware of strong or gusty winds.
Do not use the machine as a ground for welding.
Do not place ladders or scaffolding against any part
of the machine.
Do not use the machine on a moving or mobile
surface or vehicle.
Collision Hazards
Checkthe work areafor
overheadobstructions
orotherpossible
hazards.
Do not tilt the machine
back unless the area is
clearofpersonneland
obstructions.
Usecommonsenseandplanningwhentransporting
the machine on an incline or slope.
Do not load for transport unless the machine and
vehicle are on a level surface. Use proper lifting
techniques to load the machine.
Lifting Hazards
Use proper lifting techniques to load or tip the
machine.
Useproperliftingtechniques wheninstallingor
removingtheloadhandlingattachments.
Voltage Minimum Safe
Approach Distance
Phase to Phase Feet Meters
0 to 300V Avoid Contact
300V to 50KV 10 3.1
50KV to 200KV 15 4.6
200KV to 350KV 20 6.1
350KV to 500KV 25 7.6
500KV to 750KV 35 10.7
750KV to 1000KV 45 13.7

4 GenieSuperliftContractor PartNo.33547
Operator'sManual First Edition • Ninth Printing
SAFETY RULES

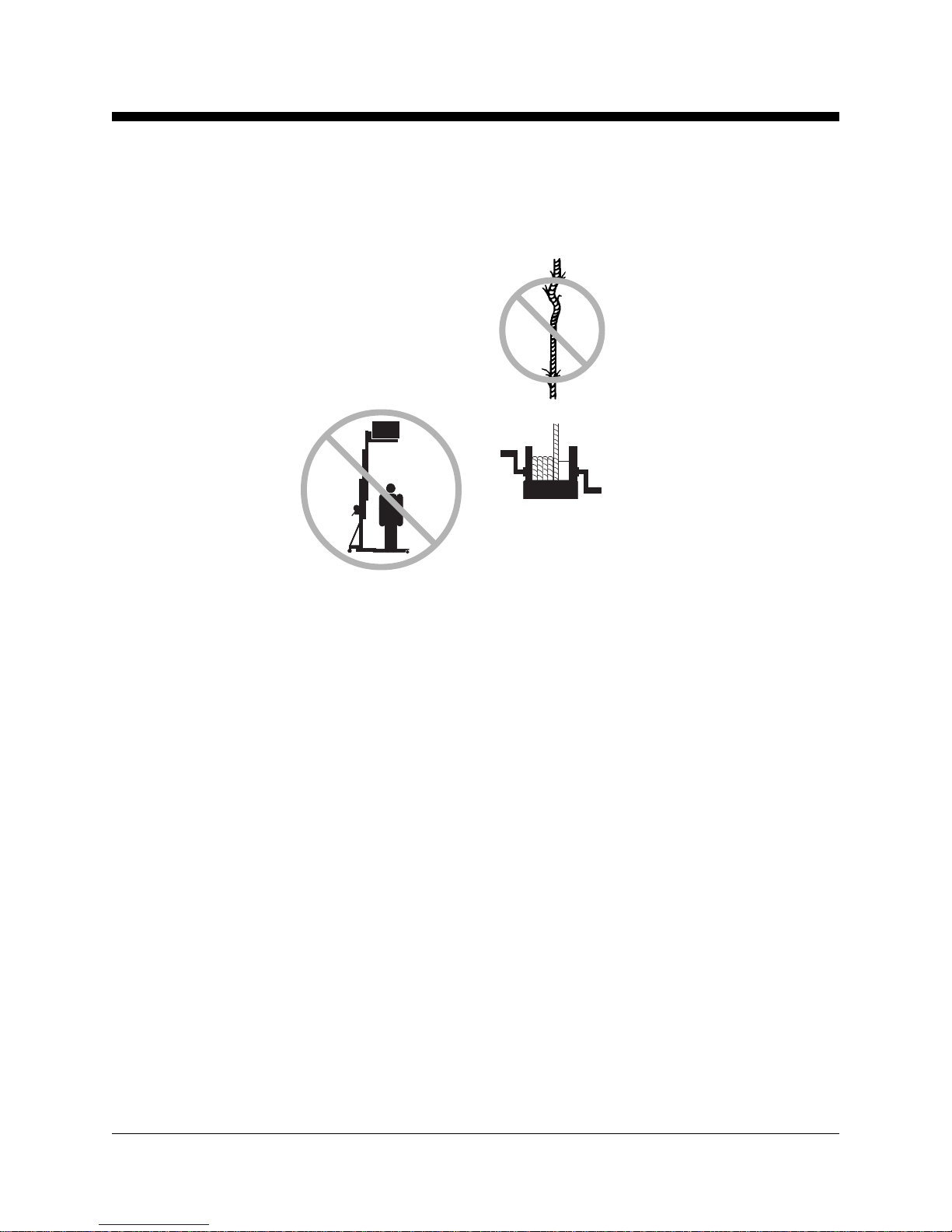

Crushing Hazards
Keep hands and fingers away from folding legs and
otherpotential pinchpoints.
Do not raise if the load is not properly centered on
theloadhandlingattachment.
Do not raise unless the load is properly secured to
theloadhandlingattachment.
Donot standunderor
allowpersonnelunder
themachinewhenthe
load is raised.
Donot lowerthe load
unless the area below is
clearofpersonneland
obstructions.
Do not stand under the load. The safety brake
system (if equipped) will allow the load to drop 1 to
3 feet / 30 to 91 cm before locking the columns.
Maintain a firm grasp on the stabilizer when the
lock plates are released. The stabilizer will drop.
Maintain a firm grasp on the leg when the retaining
pin is removed. The leg will drop.
Maintain a firm grasp on the winch handles until the
brake is locked. The brake is locked when the load
will not cause the winch handles to turn.
Damaged Machine Hazards
Donot use adamaged or
malfunctioningmachine.
Do not use a machine with a
worn,frayed, kinkedor
damagedcable.
Do not use a machine with less
than four wraps of cable on the
winchdrumwhenthecarriage
is fully lowered.
Conductathorough
pre-operationinspectionpriorto
each use.
Be sure all decals are in place and legible.
Besure the operator'smanual is complete,legible
and in the storage container located on the
machine.
Maintainproperlubricationonthewinch.See
Genie
SuperliftContractor Parts and ServiceManual for
details. Do not allow oil or grease on braking
surfaces.
Do not use any type of lubrication on the column
surfaces.
Bodily Injury Hazard
Do not grasp the cable.
Improper Use Hazard
Neverleave amachine unattendedwith a load.
Unauthorizedpersonnelmayattempttooperatethe
machinewithoutproperinstruction,creatingan
unsafecondition.

PartNo.33547 GenieSuperliftContractor 5
Operator'sManualFirst Edition • Ninth Printing
SAFETY RULES
Decal Legend
Genie product decals use symbols, color coding
and signal words to identify the following:
Safety alert symbol—used to alert
personneltopotentialpersonal
injury hazards. Obey all safety
messages that follow this symbol
to avoid possible injury or death.
Red—usedtoindicatethe
presence of an imminently
hazardous situation which, if not
avoided, will result in death or
seriousinjury.
Orange—usedtoindicatethe
presence of a potentially
hazardous situation which, if not
avoided, could result in death or
seriousinjury.
Yellow with safety alert symbol—
used to indicate the presence of a
potentiallyhazardoussituation
which, if not avoided, may cause
minorormoderateinjury.
Yellow without safety alert
symbol—used to indicate the
presence of a potentially
hazardous situation which, if not
avoided, may result in property
damage.
Green—usedtoindicateoperation
ormaintenanceinformation.

6 GenieSuperliftContractor PartNo.33547
Operator'sManual First Edition • Ninth Printing
1
Legend
7
9
2 3 4 5 6
8
14161718
21
22
7
24
25
15
20
11
7
10
12
7
19
1 Winch
2 Liftingbracket
3 Cable
4 Mast
5 Carriage
6 Standardforks
7 Loadhandlingattachment
retainingpin
8 Adjustable forks
9 Snappin
10 Boom
11 Shackle
12 Forkextension
13 Pipecradle
14 Leg swivel caster
15 Leg
16 Hold-downbar
17 Legretainingpin
18 Stabilizer(ifequipped)
19 Stabilizer caster
20 Base
21 Stabilizerbrace
22 Base swivel/lock caster with
brake
23 Transportwheel
24 Mastbrace
25 Loadingwheels/steer
handles
23
13

PartNo.33547 GenieSuperliftContractor 7
Operator'sManualFirst Edition • Ninth Printing
Do Not Operate Unless:
You learn and practice the principles of safe
machineoperationcontainedinthisoperator's
manual.
1 Avoidhazardous situations.
2 Alwaysperformapre-operation
inspection.
Knowandunderstandthepre-operation
inspection before going on to the next
section.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
Fundamentals
Thepre-operation inspection is a visualinspection
performed by the operator prior to each work shift.
This inspection is designed to discover if anything
isapparently wrongwitha machinebefore the
operator tests it.
Refer to the list on the next page and check each
of the items.
Ifdamageor any unauthorizedvariationfrom
factory delivered condition is discovered, the
machinemust betaggedand removedfrom
service.
Repairs to the machine may only be made by a
qualified service technician, according to the
manufacturer'sspecifications.Afterrepairsare
completed,theoperatormustperformapre-
operationinspectionagainbeforegoingontothe
function tests.
Pre-operation Inspection

8 GenieSuperliftContractor PartNo.33547
Operator'sManual First Edition • Ninth Printing
PRE-OPERATIONINSPECTION
Pre-operation Inspection
RBe sure that the operator’s manual is complete,
legibleand inthe storagecontainer locatedon
themachine.
RBe sure that all decals are legible and in place.
See Decals section.
Checkthe followingcomponents orareas for
damage,improperly installed ormissing parts and
unauthorizedmodifications:
RWinchandrelatedcomponents
RBasecomponents
RLegs
RStabilizers and latch plates (if equipped)
RMast columns
RCarriagehold-downbar
RCableanchor
RCableandpulleys
RWheelsandcasters
RLoadhandlingattachments
RNuts, bolts and other fasteners
RCable (kinks, frays, abrasions)
Check the entire machine for:
RDentsordamage
RCorrosionoroxidation
RCracks in welds or structural components
RBe sure that all structural and other critical
componentsarepresent andallassociated
fastenersand pins arein placeand properly
tightened.
RBe sure there is a minimum of 4 wraps of cable
around the winch drum when the carriage is fully
lowered.

PartNo.33547 GenieSuperliftContractor 9
Operator'sManualFirst Edition • Ninth Printing
Function Tests
Do Not Operate Unless:
You learn and practice the principles of safe
machineoperationcontainedinthisoperator's
manual.
1 Avoidhazardous situations.
2 Alwaysperformapre-operation
inspection.
3 Alwaysperformfunctiontestspriorto
use.
Knowandunderstandthefunctiontests
before going on to the next section.
4 Inspect the workplace.
5 Only use the machine as it was intended.
Fundamentals
The function tests are designed to discover any
malfunctions before the machine is put into service.
Theoperator must followthe step-by-step
instructions to test all machine functions.
A malfunctioning machine must never be used. If
malfunctions are discovered, the machine must be
tagged and removed from service. Repairs to the
machine may only be made by a qualified service
technician,according tothemanufacturer's
specifications.
Afterrepairs arecompleted, the operatormust
performapre-operationinspectionandfunction
tests again before putting the machine into service.

10 GenieSuperliftContractor PartNo.33547
Operator'sManual First Edition • Ninth Printing

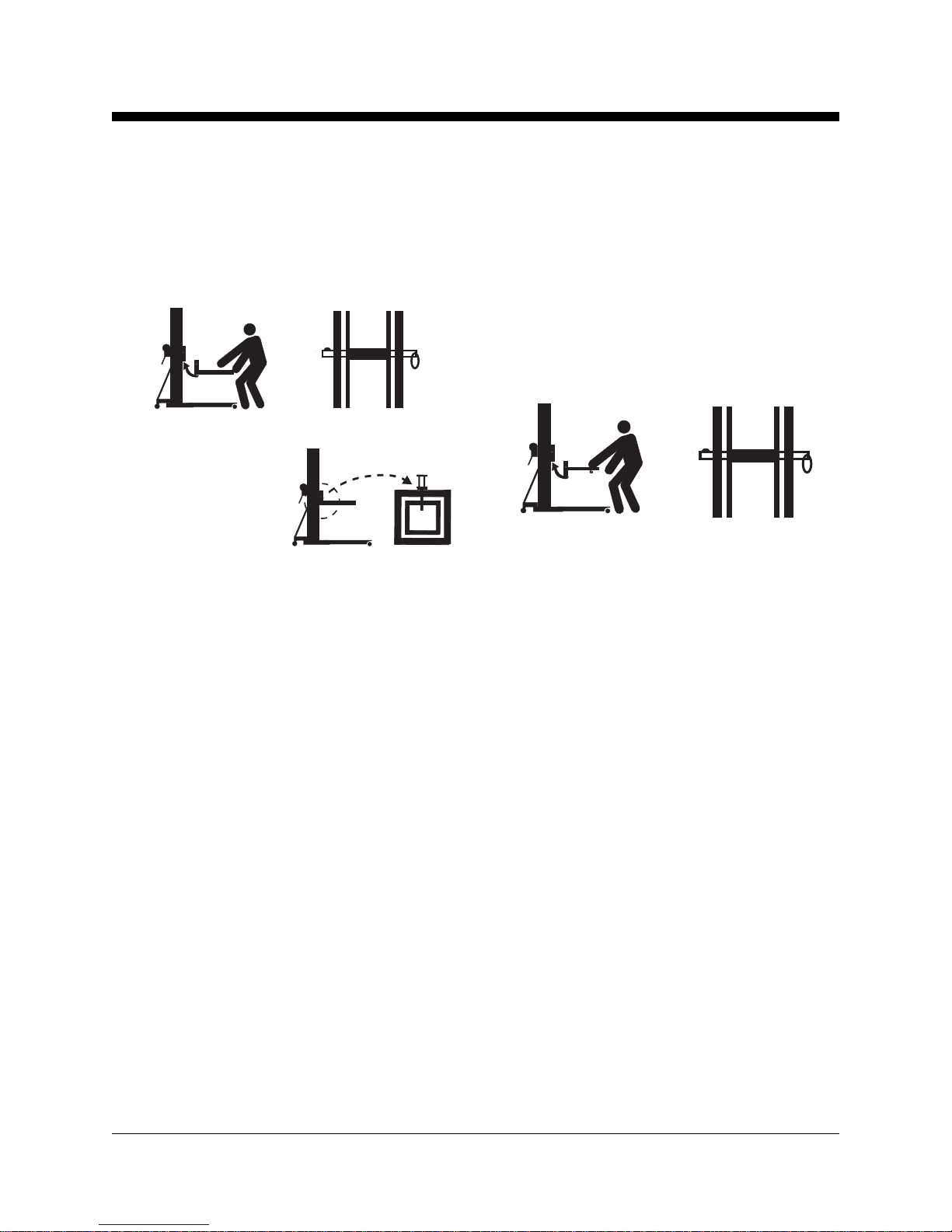

LoadHandlingAttachments
StandardForks andStandardFork Options
1 Place the forks inside the carriage.
2 Insertthe retaining pin.
LoadPlatformwithStandardForks
1 Place the load platform securely on the standard
forks.
PipeCradle
1 Attach the pipe cradles to the forks. Be sure the
fastenersaretightened.
ForkExtension
1 Slide each extension tube onto the fork.
2 Adjust to the desired position and insert the
retainingpins.
Function Tests
1 Select a test area that is firm, level and free of
obstructions.
Setup
MachinesWithoutStabilizers
1 Remove the leg retainer pin and lower the leg to
the down position. Insert the pin through the leg
andbase.
MachinesWithStabilizers
1 Push down to release the
stabilizer lock plates and
lower the stabilizers until the
casters are in full contact
with the ground. Be sure the
stabilizers are locked in the
downposition.
2 Remove the leg retainer pin and lower the leg to
the down position. Insert the pin through the leg
andbase.
FUNCTIONTESTS

PartNo.33547 GenieSuperliftContractor 11
Operator'sManualFirst Edition • Ninth Printing
FUNCTIONTESTS
AdjustableForkandAdjustableForkOptions
1 Place the forks inside the carriage.
2 Insertthe retaining pin.
3 Adjust the forks to
thedesiredwidth
andbe sure the
snappins are
properlyinserted.
LoadPlatform with AdjustableForks
1 Adjust the forks to a width of 23 inches /
58.4 cm.
2 Place the load platform on the adjustable forks.
PipeCradle
1 Attach the pipe cradles to the forks. Be sure the
fastenersaretightened.
ForkExtension
1 Slide each extension tube onto the fork.
2 Adjust to the desired position and insert the
retainingpins.
StandardBoom
1 Place the boom inside the carriage.
2 Insertthe retaining pin.
3 Attach the lifting shackle at the desired hole on
theboom.

12 GenieSuperliftContractor PartNo.33547
Operator'sManual First Edition • Ninth Printing
FUNCTIONTESTS
TestOne-SpeedWinchOperation
1 Install a load handling attachment.
2 Raisethe carriageby
firmlygrasping the
winchhandlesand
rotatingthemtowards
the mast.
Result:The winch
shouldoperate
smoothly, free of
hesitationorbinding.
3 Lowerthe carriageby firmlygrasping the winch
handles and rotating them away from the mast.
After lowering to the desired position, turn the
winchhandles towardthe mast(raise theload)
1/4turn to set the brake.
Result: The winch should operate smoothly, free
ofhesitation orbinding.
TestTwo-SpeedWinchOperation
1 Install a load handling attachment.
2 Shift the winch to the slow speed.
3 Raise the carriage by firmly grasping the winch
handlesandrotating
themtowardsthe
mast.
Result:The winch
shouldoperate
smoothly, free of
hesitationorbinding.
4 Lowerthecarriageby
firmlygrasping the
winchhandles and rotating them awayfrom the
mast. After lowering to the desired position, turn
the winch handles toward the mast (raise the
load) 1/4turn to set the brake.
Result: The winch should operate smoothly, free
ofhesitation orbinding.
5 Shift the winch to the fast speed and repeat
steps 3 and 4.
TestMastSequencing
1 Install a load handling attachment.
2 Raise the carriage to full height by firmly
graspingthewinchhandlesandrotatingthem
towards the mast.
Result: The carriage should raise to the top of
the front mast section, followed in consecutive
order by each mast section.
3 Fully lower the carriage. After lowering to the
desiredposition,turnthewinchhandlestoward
the mast (raise the load) 1/4turn to set the
brake.
down
up
down
up

PartNo.33547 GenieSuperliftContractor 13
Operator'sManualFirst Edition • Ninth Printing
Workplace Inspection
Fundamentals
Theworkplaceinspectionhelpstheoperator
determine if the workplace is suitable for safe
machineoperation. Itshould beperformed by the
operator prior to moving the machine to the
workplace.
It is the operator's responsibility to read and
remembertheworkplace hazards,thenwatchfor
and avoid them while moving, setting up and
operatingthemachine.
Do Not Operate Unless:
You learn and practice the principles of safe
machineoperationcontainedinthisoperator's
manual.
1 Avoidhazardous situations.
2 Alwaysperformapre-operation
inspection.
3 Always perform function tests prior to use.
4 Inspecttheworkplace.
Knowandunderstandtheworkplace
inspection before going on to the next
section.
5 Only use the machine as it was intended.
Beawareof andavoidthe following hazardous
situations:
· drop-offsorholes
· bumpsandfloor obstructions
· debris
· overheadobstructionsandhighvoltage
conductors
· hazardouslocations
· slopedsurfaces
· unstableor slippery surfaces
· inadequatesurfacesupportto withstandall
load forces imposed by the machine
· windandweatherconditions
· all other possible unsafe conditions

14 GenieSuperliftContractor PartNo.33547
Operator'sManual First Edition • Ninth Printing
Operating Instructions
Do Not Operate Unless:
You learn and practice the principles of safe
machineoperationcontainedinthisoperator's
manual.
1 Avoidhazardous situations.
2 Alwaysperformapre-operation
inspection.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
Fundamentals
TheOperatingInstructions sectionprovides
instructions for each aspect of machine operation.
It is the operator's responsibility to follow all the
safety rules and instructions in the operator's
manual.
Using the machine for anything other than lifting
material is unsafe.
If more than one operator is expected to use a
machine at different times in the same work shift,
each operator is expected to follow all safety rules
andinstructions inthe operator'smanual. That
meanseverynewoperatorshouldperformapre-
operation inspection, function tests and a workplace
inspectionbefore using themachine.

PartNo.33547 GenieSuperliftContractor 15
Operator'sManualFirst Edition • Ninth Printing
OPERATINGINSTRUCTIONS
Moving Machine with a Load
It is best to move the machine on the worksite with
no load. Moving a raised load should be restricted
to positioning for loading and unloading. If it is
necessary to move the machine with a raised load,
understandand obeythe following safety rules:
· Make sure the area is level and clear of
obstructions.
· Make sure the load is centered on the load
handlingattachment.
· Make sure the load is secured to the load
handlingattachment.
· Avoid sudden starts and stops.
· Travel with the load in the lowest possible
position.
· Keeppersonnelawayfromthemachineand
load.
After Each Use
Toprepare themachine forstorage, follow the
Setupprocedureinreverseorder.
Select a safe storage location - firm level surface,
weather protected, clear of obstruction and traffic.
Setup
Select an area that is firm, level and free of
obstructions.
Follow the Setup procedures in the Function Tests
section.

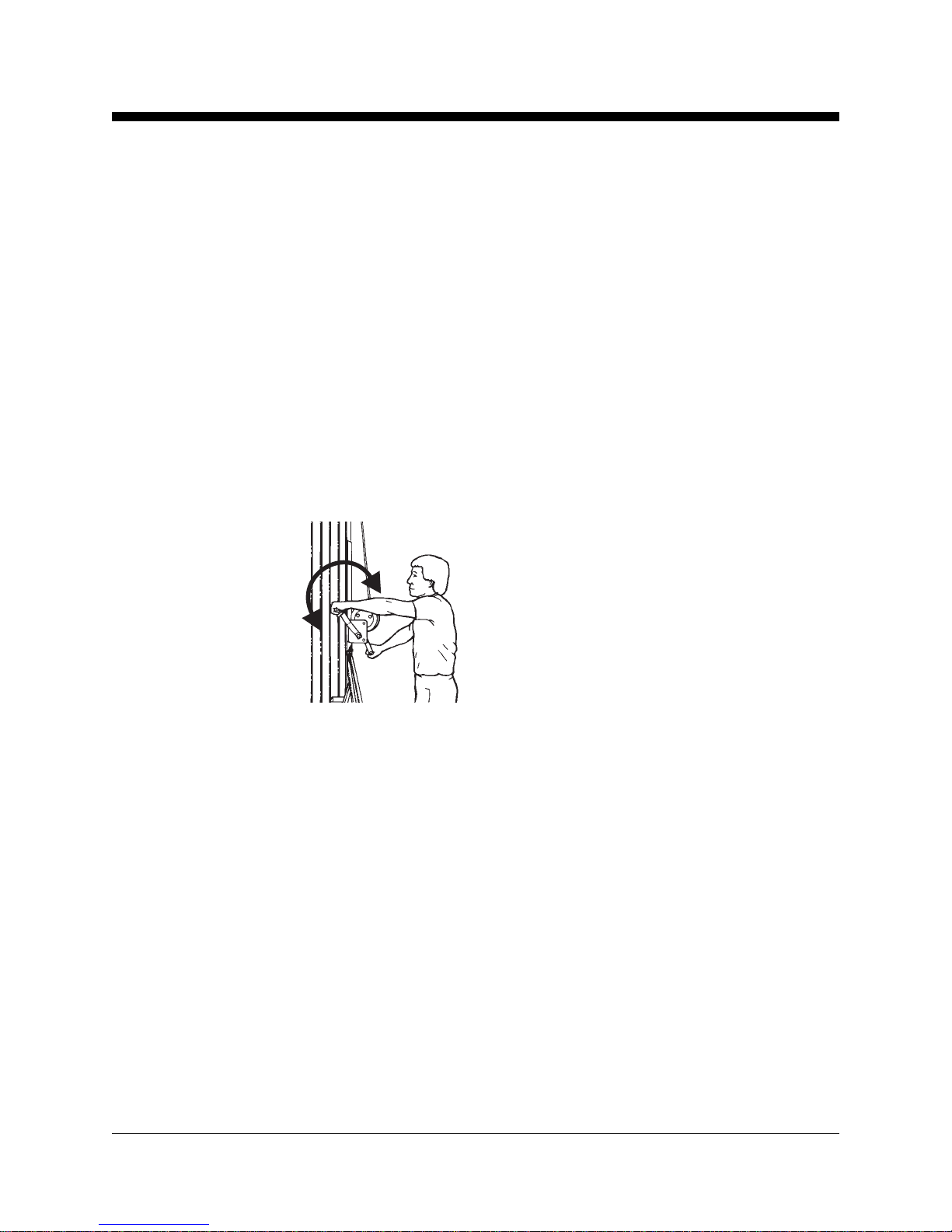

Raising and Lowering Load
1 Centertheload ontheload handlingattachment.
See Load Capacity Charts section.
2 Make sure the load is properly secured to the
loadhandlingattachment.
3 Raise the load by
firmlygrasping the
winchhandlesand
rotatingthemtoward
the mast. Do not
allow the cable to
windunevenlyonto
thedrum.
4 Lowertheload by
firmlygrasping the
winchhandlesand
rotating them away from the mast. After
lowering to the desired position, turn the winch
handles toward the mast (raise the load) 1/4turn
to set the brake.
down
up

16 GenieSuperliftContractor PartNo.33547
Operator'sManual First Edition • Ninth Printing
Load Capacity Charts
Observe and Obey:
Failure to properly position the load may result in
deathor seriousinjury.
Verify that the load you wish to raise does not
exceed the maximum load for your load center.
SeeLoad Capacity Chartsection.
Tip-overhazard.Raisingaload
that exceeds the machine's
capacity may result in death or
seriousinjury.
A load center is defined as the balancing point
(center of gravity) of a load and must be
positionedwithin theload center zone.
Tip-overhazard.Failuretoposition
the load center within the load
center zone may result in death or
seriousinjury.
Forks
Load Positioning Instructions
1 Determine the weight of the load and the
location of its load center.
2 Measure to the load center from the side of the
load that will be closest to the carriage.
3 Refer to the chart on the next page to determine
if the machine is capable of lifting the weight at
the location on the forks.
4 Place the load so that it rests on the forks, as
close to the carriage as possible.
5 Position the load so that the load center is within
the load center zone.
6 Secure the load to the forks.
measureto the loadcenter
See the chart on the next page for maximum load
centers for standard forks and adjustable forks.
Load Center
Zone

PartNo.33547 GenieSuperliftContractor 17
Operator'sManualFirst Edition • Ninth Printing
LOADCAPACITYCHARTS
lbs
kg
lbs
kg
lbs
kg
lbs
kg
SLC-6
SLC-12
SLC-18
SLC-24
inches
cm
LoadCapacityChart
LoadCenter
14 16 18 20 22 24 26 28 30 32 34 36 38 40 42
36 41 46 51 56 61 66 71 76 81 86 91 97 102 107
Model 650 610 565 515 470 425 385 350 315 285 260 235 215 195 180
295 277 256 234 213 193 175 159 143 129 118 107 98 89 82
650 610 565 515 470 425 385 350 315 285 260 235 215 195 180
295 277 256 234 213 193 175 159 143 129 118 107 98 89 82
650 610 565 515 470 425 385 345 310 275 250 225 200 180 160
295 277 256 234 213 193 175 157 141 125 113 102 91 82 73
650 610 565 515 470 425 385 345 310 275 250 225 200 180 160
295 277 256 234 213 193 175 157 141 125 113 102 91 82 73
Boom
Load Positioning Instructions
1 Determine the weight of the load and the
location of its load center.
2 Refer to the chart below to determine if the
machine is capable of lifting the weight at the
location on the boom.
3 Secure the load to the lifting shackle on the
boom.
measureto the loadcenter
18 in
46 cm 24 in
61 cm 42 in
107 cm
32 in
81 cm
Maximum Load Centers
(measurefrom thefrontof thecarriage)
StandardForks 24 in 61 cm
AdjustableForks 24 in 61 cm
Boom 42 in 107 cm
LoadPlatform 24 in 61 cm
PipeCradle 18 in 46 cm
Fork Extensions 42 in 107 cm

18 GenieSuperliftContractor PartNo.33547
Operator'sManual First Edition • Ninth Printing
Decals
Inspection for Decals with Words
Determinewhetherthedecalsonyourmachine
havewords orsymbols. Usethe appropriate
inspection to verify that all decals are legible and in
place.
Part No. Description Quantity
31072 Label - Operator's Manual Container 1
32687 Warning - Standard Forks Safety/Setup 1
32714 Warning - Adjustable Forks Safety/Setup 1
32716 Notice - Boom Setup 1
32717 Warning - Boom Safety 1
32770 Notice - Two-Speed Shift Instructions 1
32775 Warning - Fall Hazard, Load Platform 1
32885 Warning - Silent Winch 1
32938 Label - Use This Winch 1
32939 Warning - Brake Lock 1
33468 Warning - No Riders 1
33545 Warning - Machine Safety & Setup
(before serial number 9596-5288) 1
Part No. Description Quantity
40513 Warning - Machine Safety & Setup
(after serial number 9596-5287) 1
52675 Caution - Damaged Machine Hazard 1
52984 Cosmetic - Superlift Contractor Logo 2
52992 Cosmetic - SLC-6 2
52993 Cosmetic - SLC-12 2
52994 Cosmetic - SLC-18 2
52995 Cosmetic - SLC-24 2
97529 Caution - Bodily Injury Hazard 1
97547 Danger - Electrocution Hazard 2
