Getac MB800 User manual

Manufacturer
Hersteller
Fabricante
Fabricant
Produttore
Getac Technology Corporation
5F., Building A, No. 209, Sec.1, Nangang Road
Nangang Dist., Taipei City 11568
Taiwan
MB800
Battery Charger
User Guide
Benutzerhandbuch
Guía del usuario
Guide d’utilisation
Guida per l’utente

English............................................1
Deutsch ..........................................4
Español...........................................6
Français ..........................................8
Italiano .........................................10

1
English
Product Specifications
Item Specifications
AC adapter AC input: 100-240V, 4.2A, 50-60Hz
DC output: 19.5V 16.9A
Charging time Maximum 5 hours for 8 battery packs,
at 25 °C (77 °F)
Operating
temperature 5 °C (41 °F) ~ 40 °C (104 °F)
Dimensions 465 × 245 × 95.3~111.3 mm (18.3 x 9.7
x 3.8~4.4 inches), depending on
models
Weight 4.7 kg (10.4 lb)
Regulations EMC: CE, FCC
Safety: CB, UL
Green
product
coverage
RoHS: 6 European Union RoHS
banned materials
Others: 12 universal GP product
banned materials
MB800 comes in different models for different
battery packs.
Battery pack support:
Battery pack model
names For
BP3S1P2160-S F110 main battery
BP3S1P2100-S V110 main battery
BP2S2P2100S T800 main battery
BP3S3P2900 B300 main battery
BP3S3P2900-2 B300 second battery
BP-S410-Main-32/2040 S S410 main battery
BP-S410-2nd-32/2040 S S410 second battery
BP4S1P2100-S RX10 main battery
BP4S2P2900-P RX10 high capacity battery
BP3S1P3220-P A140 main battery
BP3S1P2100S-01 K120 main battery
BP4S1P3450P-01 K120 high capacity battery
BP3S2P2100S-01 UX10 main battery
BP3S3P3450P-03 UX10 high capacity battery
BP3S1P2100S-02 B360 main battery
BP3S2P3450P-01 B360 high capacity battery
BP1S1P4990B ZX10 main battery
BP1S2P4990B ZX10 high capacity battery

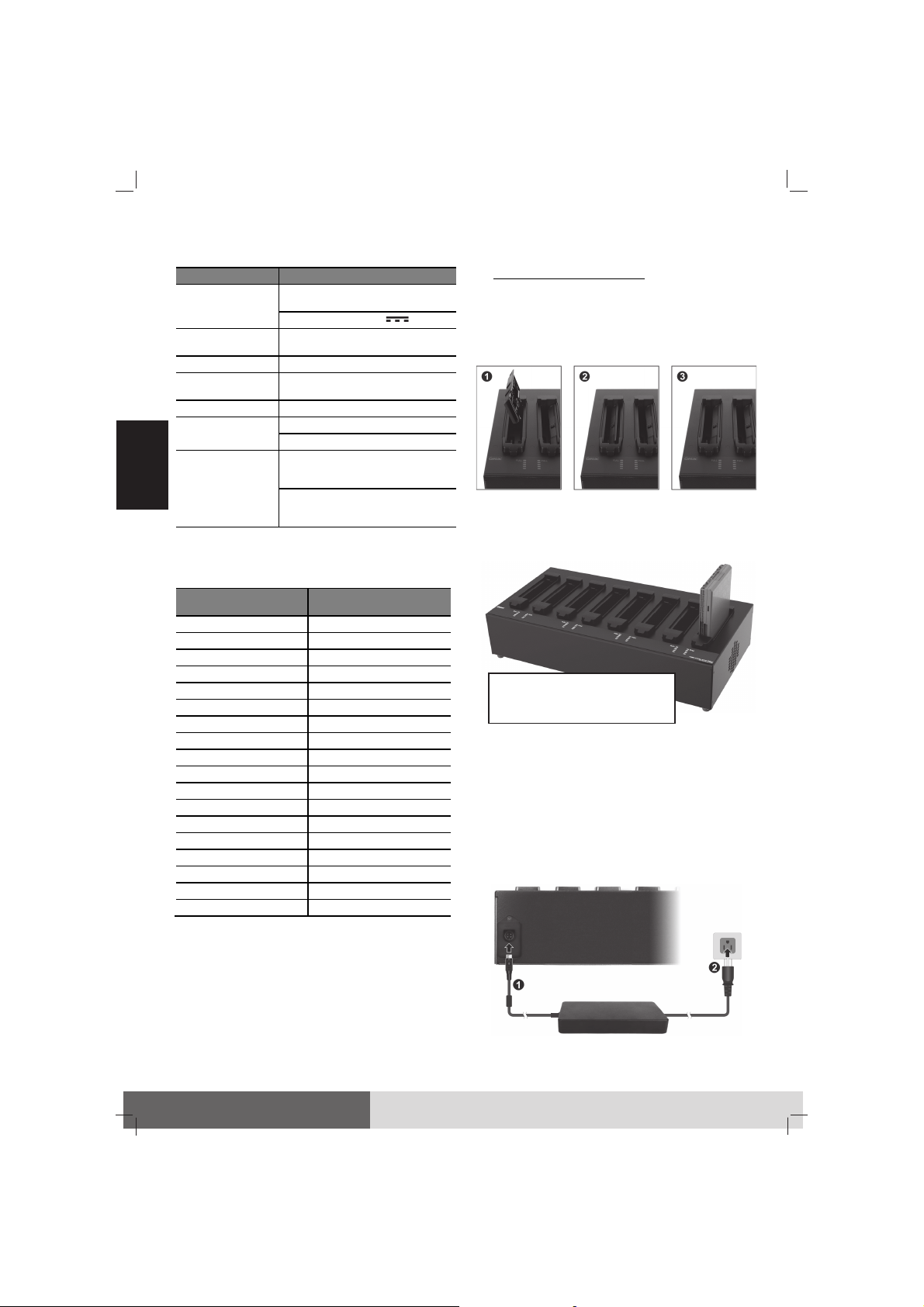

Charging Battery Pack(s)
1. Select Models Only: The main battery pack
of K120 requires installation of a guide plate.
Insert the guide plate to the right side of the
battery slot at an angle (as shown by and
below) and then push it toward the right
to engage it (as shown by below).
2. Align the battery pack’s connector with the
battery bay’s connector and insert the battery
pack into the bay. (No particular order is re-
quired.)
CAUTION: When inserting or removing the battery
pack, be sure to do it in a straight up or down
manner. Never insert or remove the battery pack
in a slanted way because this can damage the
connector pins.
3. Plug the DC cord of the AC adapter to the
power connector (). Plug the female end
of the AC power cord to the AC adapter and
the male end to an electrical outlet ().
Different MB800 models have
different type battery bays.
Shown here is one of them as
the example.

2
English
4. For each battery pack inserted, the correspond-
ing FULL indicator will light up in green to
show the charging progress. Starting from
the bottom bar, one green bar represents
20% charge. When fully charged, only the
highest bar glows.
When multiple battery packs are inserted,
they are charged in parallel.
Troubleshooting
• If the bottom bar of a FULL indicator flashes
red, it means there is an overheating problem
with the particular battery bay and charging
for this bay is stopped. In this case, check if
any ventilation openings are blocked. Discon-
nect the power cord and wait for the charger
to cool down. If the problem persists, please
contact Getac service center for repair.
•If the bottom bar of a FULL indicator flashes
amber, it means the battery pack in the par-
ticular battery bay has a problem and charging
for this bay is stopped. Check if the battery
pack is abnormal.
Safety Instructions
• If a ground/earth pin attachment plug on the
AC power cord is provided, always plug the
cord into a grounded/earthed outlet. Do not
disable ground/earth pin of the plug/cord.
•Avoid placing the charger in a location subject
to high humidity, extreme temperatures, me-
chanical vibration, or heavy dust.
•Do not cover or block any ventilation openings
on the charger. For example, do not place the
charger on a bed, sofa, rug, or other similar
surface. Otherwise, overheating may occur
that results in damage to the charger.
•Do not place the product on an unsteady sur-
face.
•To avoid hastening the deterioration of the
battery pack thereby prolonging its useful
life, minimize the number of times you charge
it so as not to frequently increase its internal
temperature.
•The charger will stop charging when input
voltage from the AC power line is unstable.
•Avoid touching any connectors.
•Avoid exposing the charger to water or an
electric shock may occur.
•Disconnect the power cord from the charger
when not in use. When the charger is con-
nected with AC power, it is still in standby
mode even if the battery is fully charged.
•The AC adapter is designed for use with your
battery charger. Connecting the AC adapter
to another device can damage the adapter
or device.
Related documents (including this one) are
available at the Getac website:
https://support.getac.com/Portal/Page/809
Regulatory Information
Europe
Getac hereby declares that this pro-
duct complies with the EU Directive
2014/30/EU and 2014/35/EU. The full
text of the EU declaration of conform-
ity is available at:
https://support.getac.com/Portal/Page/809
Warning: This is a Class A product. In a domestic
environment this product may cause radio inter-
ference in which case the user may be required
to take adequate measures.
Company name Getac Technology GmbH.
Address Kanzlerstrasse 4
40472 Dusseldorf, Germany
Phone [phone]
EU RoHS
Getac products meet the requirements of
Directive 2011/65/EU on the restriction of the
use of certain hazardous substances in electrical
and electronic equipment. For more information
about RoHS, go to:
https://www.getac.com/us/environment/
Waste Electrical and Electronic Equipment (WEEE)
This symbol means that according to local laws
and regulations your product shall be disposed of
separately from household waste. When this pro-
duct reaches its end of life, take it to a collection
point designated by local authorities. Proper re-
cycling of your product will protect human health
and the environment.
Company name Getac UK Ltd.
Address Getac House, Stafford Park 12,
Telford, Shropshire, TF3 3BJ, UK
Phone [phone]
FULL

3
English
USA
Federal Communications Commission Radio
Frequency Interference Statement
NOTE:
This equipment has been tested and found to
comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not
installed and used in accordance with the instruct-
tions, may cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the equip-
ment off and on, the user is encouraged to try to
correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equip-
ment and receiver.
•Connect the equipment into an outlet on a
circuit different from that to which the re-
ceiver is connected.
•Consult the dealer or an experienced radio/TV
technician for help.
Any changes or modifications not expressly
approved by the manufacturer could void the
user’s authority to operate the equipment.
Please note:
The use of a non-shielded interface cable with
this equipment is prohibited.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interfer-
ence.
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
Company name Getac Inc.
Address 15495 Sand Canyon Rd., Suite 350
Irvine, CA 92618 USA
Phone [phone]
Canada
Canadian ICES-003
CAN ICES-3(B)/NMB-3(B)
This device contains licence-exempt transmitter(s)/
receiver(s) that comply with Innovation, Science
and Economic Development Canada’s licence-
exempt RSS(s). Operation is subject to the follow-
ing two conditions: (1) This device may not cause
interference. (2) This device must accept any
interference, including interference that may
cause undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu
dans le présent appareil est conforme aux CNR
d’Innovation, Sciences et Développement écono-
mique Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée
aux deux conditions suivantes : 1) L’appareil ne
doit pas produire de brouillage; 2) L’appareil
doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
