About This Device
Intended Use
The G-ST Perimeter+ G3 hardware platform is
particularly suitable for use in medium-sized systems
and in networked branches or subsidiaries. The device
supports direct recording and playback of network
cameras.
Intended use also includes that you have read and
understood these instructions and in particular the safety
instructions in full.
About This Instructions for Use
These instructions for use contain important information
on the safe and appropriate commissioning and use of
the G-ST Perimeter+ G3hardware platform.
The hardware platform has been developed and
manufactured according to the generally accepted rules
of technology and in compliance with acknowledged
valid standards and regulations.
Observe the safety instructions in these instructions to
avoid damage to persons and property.
Read these instructions completely and thoroughly
before working with the hardware platform.
Keep these instructions in a location where they are
always accessible to all users.
Always include the operating instructions when you
pass the hardware platform on to third parties.
Validity of the Documentation
This documentation is applicable for the hardware
platform G-ST Perimeter+ G3.
These instructions represent the technical status of the
device at the time of publication. Errors and omissions
excepted.
Geutebrück reserves the right to make changes without
prior notice.
EU Declaration of Conformity
This device complies with requirements according to the
following EUregulations:
Regulation for electromagnetic compatibility (EMC)
2014/30/EU
Low Voltage Regulation 2014/35/EU
RoHS-Regulation 2011/65/EU
The currently valid version of the EU
Declaration of Conformity can be found
here:
https://t1p.de/l7klm
G-ST Perimeter+ G3
Instructions for Use
G-ST Perimeter+ G3 (0.60360)
User Manual G-ST Perimeter+ G3
A user manual with a description of the device and additional information on its use can be found here:
Installation Manual G-ST Software
Installation manual with information on how to install the individual software components can be found here:
https://manuals.geutebrueck.com/
Transport and Storage
The device is shipped from the factory in a shipping box
with a special cushion packing. If possible, always use
the original packaging.
Transport and Storage Conditions:
Temperature: -25°C to +55°C
Relative humidity: 10% to 90% (without
condensation)
Disposal
Dispose of the device properly. Carless disposal of the
device could lead to pollution of the environment.
This symbol on the product or product
packaging indicates that the product
must not be treated as household
waste according to Directive WEEE II
Directive 2012/19/EU.
https://manuals.geutebrueck.com/
It must be handed in at the appropriate collection points
for the recycling of electrical and electronic waste.
Alternatively, Geutebrück grants the end customer the
option of returning the delivered hardware to Geutebrück
for disposal after the end of use. The standard RMA
procedure of Geutebrück GmbH is used toprocess the
return.
Compliance is evidenced by written declaration from our
suppliers, assuring that any potential trace contamination
levels of restricted substances are below the maximum
level set by EU Directive 2011/65/EU, or are exempted
due to their application.
G-ST Software
G-ST Software Online Documentation
The installation instructions with information on how to
install or set up the individual software components can
be found here:
G-Core
Video Management Software
Order No. 3.06750
G-SIM
Security Information Management
Order No. 3.06135
G-Health
Monitoring Software
Order No. 3.06520
G-Link
Integration Server
Order No. 3.06530
https://manuals.geutebrueck.com/
https://manuals.geutebrueck.com/
https://shop.geutebrueck.com

Instructions for Use G-STPerimeter+ G3

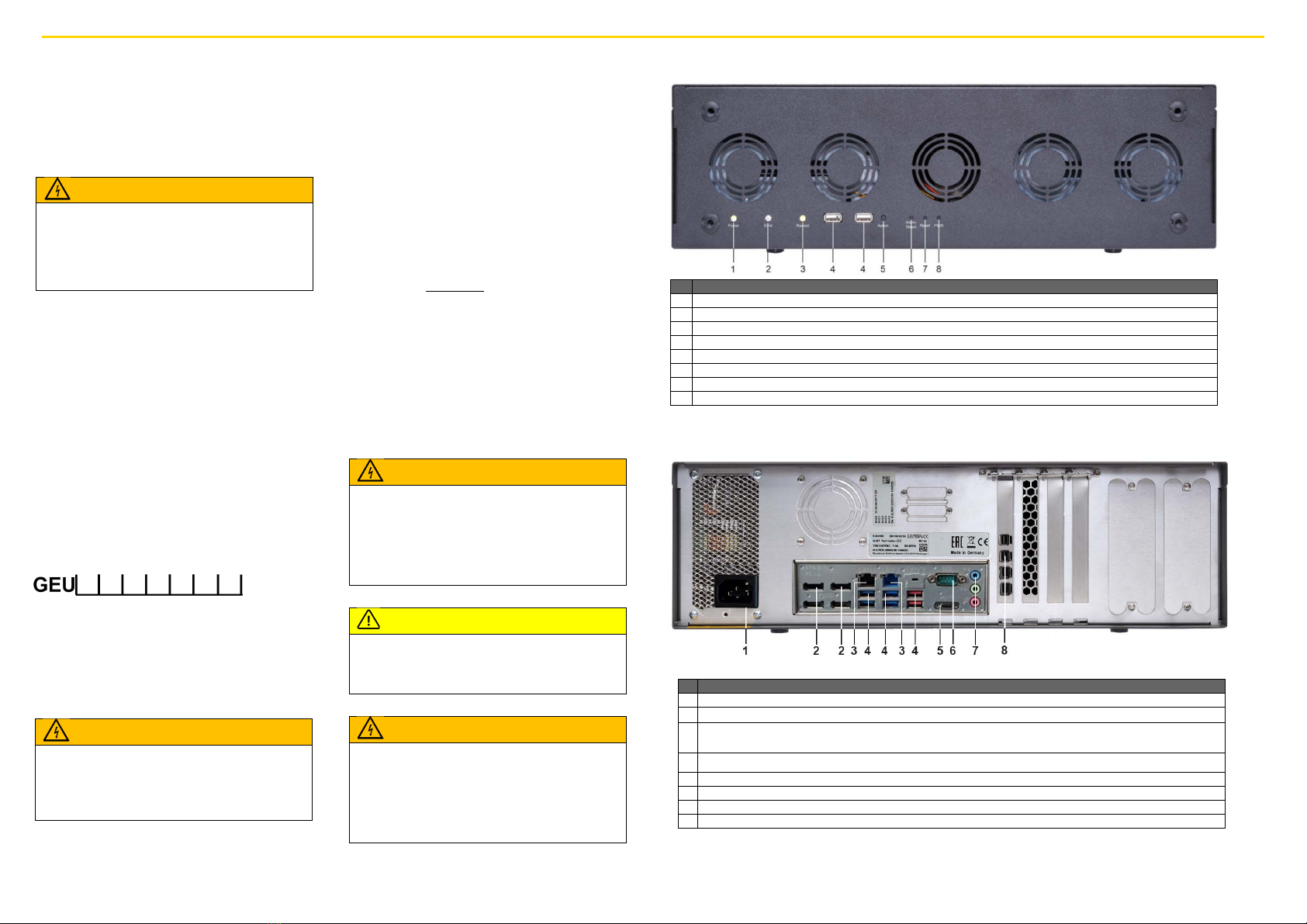

Front View (Without Cover)
No. Element
1 Operation indicator LED Power (white).
2 Error: No function
3 Recording LED Record HDD (white).
4 USB ports.
5 Trigger key Action (can be operated with a finger).
6 Alarm Reset key (can be operated with 2 mm stylus).
7 Reset key (can be operated with 2 mm stylus).
8 Power key PWR (can be operated with 2 mm stylus).
Rear View
General Safety Instructions
Commissioning
The device may only be commissioned by qualified
personnel who are familiar with the device and the
technology.
Make sure that all applicable safety requirements are
fulfilled.
WARNING
Electrical voltages!
Personal and property damage
► All connection work should only be performed
on the device when it is switched off.
► Do not remove the housing cover.
WARNING
Electrical voltages!
Personal and property damage
► Do not use the device if it is damaged.
► Disconnect the device from the power supply.
Do not use the supply cable for purposes for which it is
not intended. Protect the cable from heat, oil, and sharp
edges.
In dangerous situations or in case of malfunctions,
disconnect the device from the power supply immediately.
Repair and Maintenance
Ensure that the device is repaired professionally. Mark
the defect clearly and disconnect the power plug so that
no accidents or damage can occur due to a defective
device or be caused by it until the device is repaired.
Do not remove the housing cover! There are only
maintenance-free components inside the device.
WARNING
Electrical voltages!
Personal and property damage
► Disconnect the device from the power supply
during all repair and maintenance work.
► Work on the electrical equipment may only be
performed by a qualified electrician.
CAUTION
Danger due to the use of non-original parts!
Personal and property damage
► Only use original spare parts.
WARNING
Explosion hazard!
If the mainboard battery is replaced by an unsuitable
battery type, explosions may occur.
► Make sure that a suitable battery type is used.
► Dispose the battery according to the valid legal
requirements and local regulations.
For the connection of control lines, please refer to the
instructions in the user manual.
Use a socket with a protective contact to connect the
power-supply unit.
Ensure a power supply of 110 VAC to 230 VAC. When
connecting external contacts, do not apply voltages above
3.3 V, this may cause damage.
The operating system is precisely preconfigured for your
device.
Important Notice for Product Usage:
Please be aware that the device name must not be altered,
as system licensing is directly tied to the device name.
Post-licensing is no longer possible if the device name is
changed, and the proper operation of the system cannot be
guaranteed.
However, if you still need to change the device name, we
strongly recommend that you make a note of the original
device name and keep it in a well-known and secure
location. This ensures that you can access the original
license information if needed.
Operation
When operating the device, the local applicable laws, other
regulations, standards, and rules of technology must be
observed. In the interest of a safe work process, operating
company and supervisors are responsible for their
compliance. During all work, check the device for any
damage. All parts must be correctly mounted and fulfill all
conditions to ensure proper operation.
Password disclosure:
,QWKH:LQGRZV/RJLQ dialog box, enter the following:
Then assign your own new password and write it down!
The password must be at least six characters long.
The password must contain characters from three of the
following categories:
Upper case letters (A to Z)
Lowercase letters (a through z)
Numbers in base 10 (0 to 9)
Non-alphabetic characters (for example !, $, #, %)
Please note that this is the Windows system
password, it is not possible to recover the password if
it is lost! The user profile Administrator allows full
access to your G-ST.
Confirm with the "ENTER" key.
Administrator User name:
Pass word: Pa$$w0rd
No. Element
1 Connection for power supply
2 Display port (4x) for connecting a PC monitor
3
2x Ethernet ports 10/100/1000 MBit/s base-TX iAMT interface and 10/100/1000/2500 MBit/s
base-TX interface
4 4x USB 3.2 (Gen1), 2x USB 3.2 (Gen2)
5
Serial RS-232 interface COM1 (9-pin Sub-D connector)
6
USB-C 3.2 (Gen2)
7Audio connections
4 mini display port outputs for connecting a PC monitor8
