Gewiss Chorus GW 14 764H Owner's manual

GW 10 764H GW 12 764H GW 14 764H
MANUA E DI PROGRAMMAZIONE
PROGRAMMING MANUAL - MANUE DE PROGRAMMATION
MANUAL DE PROGRAMACIÓN - PROGRAMMIERHANDBUCH
Cronotermostato/Programmatore T+H Easy - da incasso
Timed thermostat / Programmer T+H Eas - flush-mounting
Thermostat programmable / Programmateur T+H Easy - à encastrer
Cronotermostato/Pro ramador T+H Easy - de empotrar
Chronothermostat/Programmierer T+H Easy - für den Unterputz

CONTENTS
E
N
G
L
I
S
H
3
pa e
GENERAL DESCRI TION
Briefly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Position of the commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Description of the commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Control modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Operating mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Timed thermostat operation statuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
USER INSTRUCTIONS
Normal operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Setting the parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Hourly profile programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Operation with battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Pre-set programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
F.A.Q. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

This manual explains the steps for setting the timed thermostat parameters.
All the information concerning the technical data of the product, the connection diagrams,
the descriptions of the commands, and the instructions for correct assembly are
contained in the installation manual supplied with the product and which can also be
downloaded from the website www.gewiss.com.
More information about the programming of the timed thermostat with the Easy
Configurator is given in the Programming Manual of Easy devices with Easy Controller
(which can be downloaded from the website www.gewiss.com).
4
Briefly
GENERAL DESCRIPTION

GENERAL DESCRIPTION
E
N
G
L
I
S
H
5
osition of the commands
The timed thermostat is equipped with a backlit CD display and four command push-
buttons that can always be accessed.
9
10
8
7
2
1
3
4
6
18
5
16
17
11
15
12
14
13
19
20
21
22 23 24 25
26
27
28
29
Description of the commands
ATTENTION!
If the display backlighting is enabled, only the screen will light up when any one of the
4 front button keys is pressed for the first time; press the keys again to implement the
required command.
COMMAND USH-BUTTONS Symbol
Select operating mode / Confirm
Adjust temperature (+) / Visualise pages
Adjust temperature (-) / Visualise pages
Parameter setting
햲
햳
햴
햵

INFORMATION ON THE DIS LAY Symbol
Time of day / Variable value of the hourly profile / Value shown on the humidity page
(Hr = relative humidity; HA = specific humidity; tr = dew point temperature)
Day of the week
Programming mode
Settings menu
Battery charge level
if the profile flashes: device powered from batteries alone (no BUS)
Heating activation
if it flashes: no/incorrect reception of heatin solenoid valve alert
Cooling activation
if it flashes: no/incorrect reception of coolin solenoid valve alert
Type of operation: heating (winter)
if it flashes: floor temperature alarm in pro ress
Type of operation: cooling (summer)
Party function
Holiday function
Non-workday program
Remote command enabling
if it flashes: operation on basis of a remote command
Selection of display page to be viewed
Fan coil operating mode
- speed OFF
- speed 1 (automatic / manual)
- speed 2 (automatic / manual)
- speed 3 (automatic / manual
if the fan flashes: no/incorrect reception of fan coil speed alert
if the se ments flash: the speed set (manually or by al orithm) is waitin to be activated
Hourly profile visualised (for hourly timer only)
Timed thermostat in “Master” mode
Temperature measured / Time of day / Relative humidity value measured /
Specific humidity value / Dew point temperature value
if it flashes: manual forcin of the setpoint, or end of humidity probe monitorin time
Temperature measurement unit
Indication of auxiliary input status (I = contact closed, O = contact open)
Thermal gradient self-learning function
Thermal residual current device
Timed thermostat mode
- Economy (in heating mode) - Comfort (in cooling mode)
- Pre-comfort (in heating mode and cooling mode)
- Comfort (in heating mode) - Economy (in cooling mode)
- Anti-freeze/High temperature protection (OFF) or Automatic (AUTO)
if the se ments flash: the setpoint is temporarily forced
Hourly timer mode
- Variable value 1 of hourly profile
- Variable value 2 of hourly profile
- Variable value 3 of hourly profile
- Variable value 4 of hourly profile
Visualise hourly program
GENERAL DESCRIPTION
6
햶
햷
햸
햹
햺
햻
햽
햾
햿
헀
헁
헂
헃
헄
헅
헆
쎻
쎻
쎻
쎻
쎻
쎻
쎻
쎻
쎻
21
22
23
24
25
26
27
28
29

GENERAL DESCRIPTION
E
N
G
L
I
S
H
7
The timed thermostat can be set with 2 different control modes:
•Master: the timed thermostat sets the type, operating mode or setpoint of the devices
configured as Slaves (e.g. the Easy flush-mounting thermostats GW1x765H). In the first case
(mode), the thermostats use the setpoints set locally. The fixed temperature setpoint can be
temporarily forced (max. variation ±3°C), but the operating mode cannot be altered. The forced
setpoint will remain valid until the master device sends a new operating mode. In the second
case (set-points), the thermostats use the setpoint received from the Master device (which can
always be altered locally with a max. variation of ±3°C).
•Autonomous: the timed thermostat type and operating mode can be set locally. Operation is
not dependent on any other device. In the autonomous control mode, you can alter the setpoint
as you wish, and enable the timed thermostat to receive remote commands to modify the mode
setpoint (OFF/Economy/Pre-comfort/Comfort) and set the type (Heating/Cooling) received from
other devices such as a push-button or the Easy GSM remote control.
The timed thermostat has 5 different operating modes:
• AUTOMATIC
• ECONOMY
• PRE-COMFORT
• COMFORT
• OFF - ANTIFREEZE/HIGH TEMPERATURE PROTECTION
In any control mode (autonomous or master), to switch from one HVAC mode (economy, pre-
comfort, comfort, off) to another, use the button key: each time it is pressed, the
corresponding setpoint is shown (flashing) for a moment.
In automatic operation mode, the timed thermostat uses a
program that can be differentiated for each day of the week.
The display shows the word AUTO, the detected room
temperature, and the symbol of the setpoint for the current
quarter hour period. In the hourly profile, the column relating
to the current hour flashes, showing the current setpoint.
In the economy, pre-comfort and comfort operating modes,
the timed thermostat always uses the corresponding
temperature set-points.
The display shows the detected room temperature and the
, or symbol.
Control modes
Operating modes

GENERAL DESCRIPTION
8
MEANING OF
The anti-freeze function is only active in heating mode,
when the temperature adjustment system is switched OFF.
In this case, the timed thermostat uses the fixed anti-freeze
temperature setpoint, only reactivating the heating system
if the room temperature falls below TANTIGE O (Tanti-freeze).
The display shows the word OFF, along with the detected
room temperature.
The high temperature protection function is only active
in cooling mode, when the temperature adjustment system
is switched OFF.
In this case, the timed thermostat uses the fixed high
temperature
protection setpoint, only reactivating the cooling system if
the room temperature exceeds THIGH TEMPERATURE PROTECTION.
The display shows the word OFF, along with the detected
room temperature.
In the Master control mode, the display shows the
temperature and the symbol. The slave devices use the
operating mode or the setpoint value received from the
timed thermostat (master device) via the BUS.

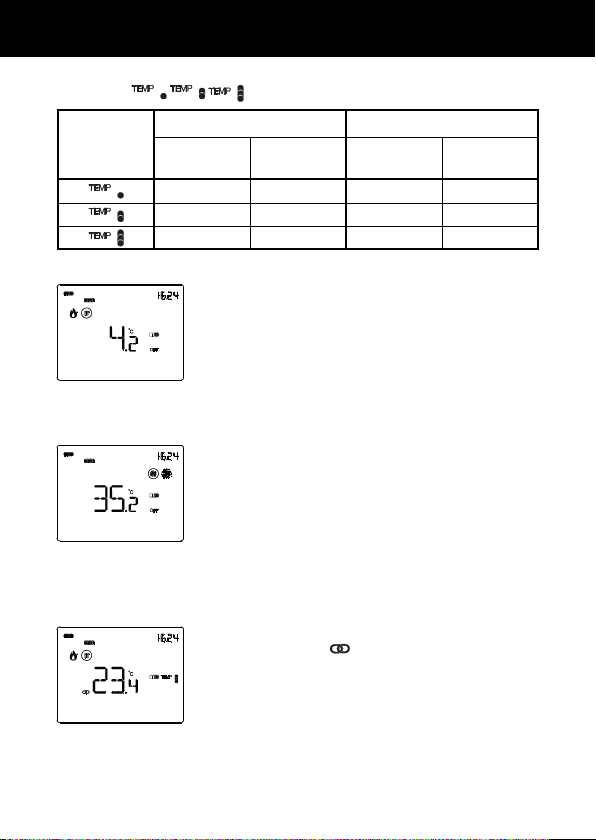

Symbol
Heating Cooling
Setpoint Operatin mode Setpoint Operatin mode
TECONOMY Economy TCOMFORT Comfort
TPRE-COMFORT Pre-comfort TPRE-COMFORT Pre-comfort
TCOMFORT Comfort TECONOMY Economy

GENERAL DESCRIPTION
E
N
G
L
I
S
H
9

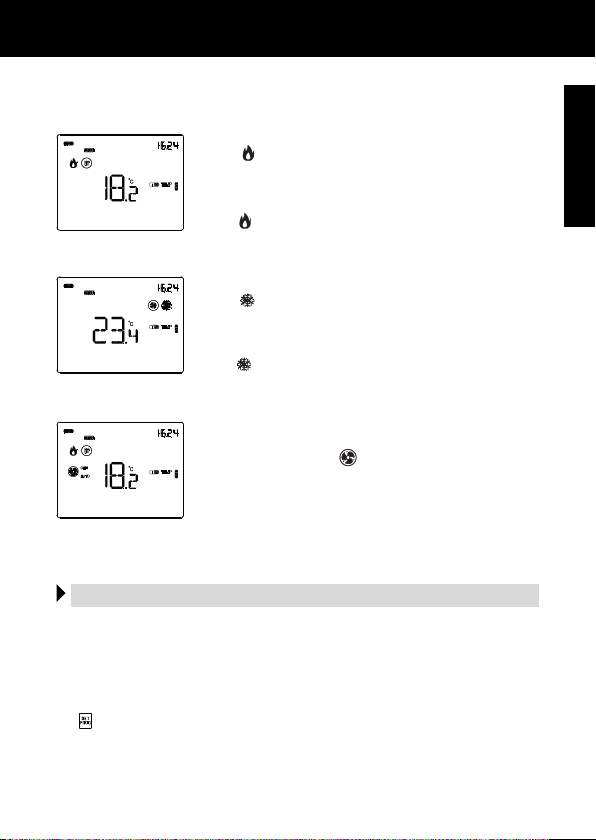

During operation, the activation of the heating or cooling mode is indicated in the
following way:
Heating
The symbol indicates that the activation command has
been sent to the command actuator of the boiler or area
solenoid valve. If the timed thermostat does not receive
confirmation of effective implementation from the actuator,
the symbol will begin to flash. Subsequently, the timed
thermostat sends the activation command every 60 seconds
until it receives confirmation.
Cooling
The symbol indicates that the activation command has
been sent to the command actuator of the air-conditioner or
area solenoid valve. If the timed thermostat does not receive
confirmation of effective implementation from the actuator,
the symbol will begin to flash. Subsequently, the timed
thermostat sends the activation command every 60 seconds
until it receives confirmation.
Operation with active fan coil control
If the fan coil control function has been activated, the
display will show the symbol. In addition, you will be
offered the page on which you can manually alter the fan
coil speed or set the AUTO mode (whereby the fan coil
speed is automatically adjusted on the basis of the
difference between the setpoint fixed on the device and the
detected temperature).
Timed thermostat operation statuses
The timed thermostat has four distinct operation statuses:
- Normal operation
- Parameter setting
- Hourly profile programming
- Easy channel localisation mode
When it is switched on, the timed thermostat goes into “normal operation” status. Using
the button key, you can switch from one status to another. The switchover from
“parameter setting” status, “hourly profile programming” status” or “Easy channel
localisation mode” to “normal operation” status also comes about automatically, 30
seconds after the last pressure on the button keys.

USER INSTRUCTIONS
10
Normal operation
In normal operating conditions, the pages containing information about the timed
thermostat are visualised. If the sections relating to the hourly timer and humidity were
enabled during programming, the relative pages will also be shown.
Choosing the page you want to see
To access the screen listing the pages that can be viewed
(relating to the timed thermostat, hourly timer and
humidity), press the button key and keep it pressed until
the symbol appears.
Use the or button key to scroll through the sequence
(if there are no hourly profiles - P01, P02, P03, etc. - and no
humidity section, the main timed thermostat page will be
displayed). To confirm a page, press the button key or
wait for the 30-second time-out period to elapse.
ages relating to the timed thermostat
Choosing the HVAC mode (auto, pre-comfort, comfort,
economy or OFF)
If the visible page relates to the timed thermostat, press the
button key to select the required HVAC mode (Auto, ,
, or ).
Each time the button key is pressed, the setpoint of the
selected HVAC mode is shown for a moment.
Forcing the setpoint manually
If the displayed page relates to the timed thermostat and
any HVAC mode other than OFF is active, press the or
button key to temporarily modify the setpoint of the active
HVAC mode, then confirm with the button key or wait for
the 5-second time-out period to elapse. The use of the
forcing option is indicated by the flashing of the , ,
symbols. It remains active until the active HVAC mode is
modified or until the profile is altered (if the mode is Auto).

USER INSTRUCTIONS
E
N
G
L
I
S
H
11
Choosing the fan coil speed
If the displayed page relates to the timed thermostat and any HVAC
mode other than OFF is active, press or simultaneously
to access the selection page (the control algorithm of the
heating/cooling function must be set on “fan coil”). Use the or
button key to select the required fan coil setting ( ,,
or ), then confirm with the button key or wait for the 30-
second time-out period to elapse.
arty function
In the Auto, Economy, Pre-comfort and Comfort modes, the Party
function allows you to temporarily exclude the set operating mode
and activate the Comfort mode with an adjustable setpoint, for a
period of time between 1 and 23 hours. This function can be used,
for instance, to obtain a more appropriate temperature during a
dinner, party, etc.
If the visible page relates to the timed thermostat and any HVAC
mode other than OFF is active, keep the button key pressed to
activate the Party function. The display will show the symbol,
and the Tcomfort value will flash for a few seconds. Press the
and button keys to set the required temperature then, while the
setpoint values are flashing, press the button key and then the
and button keys to set the number of hours you want the
Party function to remain active (1-23). Confirm with the button
key or wait for the 5-second time-out period to elapse.
When this function is active, the values of the setpoint and
activation period can be modified by means of the and button
keys. The hour count is decreased during this period. The Party
function remains active until the end of the set period, after which
it deactivates automatically and the timed thermostat returns to the
former operating mode.
To deactivate the Party function in advance, press the button
key and keep it pressed until the unit has returned to normal
operation.

Holiday function
In the Auto, Economy, Pre-comfort and Comfort modes, the
Holiday function allows you to temporarily exclude the set
operating mode and activate the Economy mode with an
adjustable setpoint, for a period of time between 1 and 99 days.
This function can be used, for instance, to set the economic
operation of the temperature adjustment system during a
holiday or a long period of absence, being sure of having the
required temperature on the day you return home.
If the visible page relates to the timed thermostat and any HVAC
mode other than OFF is active, keep the button key pressed
to activate the Party function. Press the button key again
briefly to activate the Holiday function. The display will show
the symbol, and the Teconomy value will flash for a few
seconds. Press the and button keys to set the required
temperature then, while the setpoint values are flashing, press
the button key and then the and button keys to set the
number of days you want the Holiday function to remain active
(1-99). Confirm with the button key or wait for the 5-second
time-out period to elapse.
When this function is active, the values of the setpoint and
activation period can be modified by means of the and
button keys.
The day count is decreased during this period. The Holiday
function remains active until the end of the set period, which
ends at midnight. When calculating the days, always include
the current day. For example, if you want to set the Holiday
function on Friday evening, so it ends at midnight on Sunday,
you must set 3 days (Friday, Saturday and Sunday). The Holiday
function remains active until the end of the set period, after
which it deactivates automatically and the timed thermostat
returns to the former operating mode. To deactivate the Holiday
function in advance, press the button key to return to normal
operation.
USER INSTRUCTIONS
12

Copying the holiday program
In Auto mode, you can copy the profile of the holiday day
onto any day of the week. This function can be activated up to
6 days ahead of the chosen day. It is especially useful when a
holiday day falls during the week.
Press the and button keys simultaneously to copy the
profile of the holiday day: on the display, the symbol and the
bar of the holiday day will flash. Use the or button key
to select the day of the week onto which you want to copy the
profile, then confirm with the button key.
During the set day, the symbol will be lit up with a fixed light.
This function is temporary: at midnight on the selected day, the
unit returns to its programmed weekly profile. If you want to
deactivate the function (or modify the day of the week), press
the and button keys then select the holiday day (or
the new day of the week). Press to confirm the new setting.
ages relating to the hourly timer

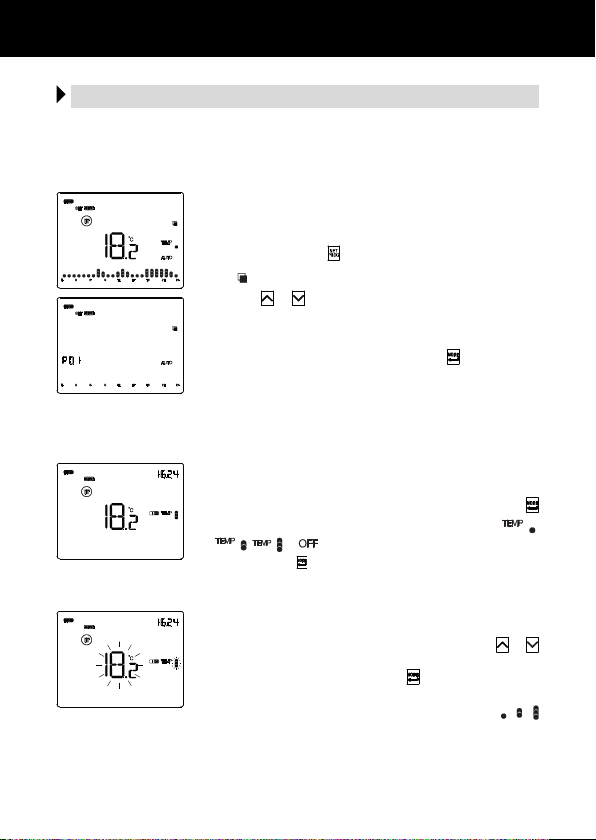

Viewing the hourly profiles
NB: the hourly profiles of the timer are only active and visible
on the display when their respective channels are included in a
function with the relative actuator channel, during programming
with Easy Controller.
If the visible page relates to an hourly profile, press the
button key to activate (Auto) or deactivate (OFF) the profile. If
an hourly profile is set (via the Easy configurator) in order to
manage an Easy probe, keep the button key pressed to
temporarily visualise the input data (type of operation, HVAC
mode, active setpoint and temperature measured) from the
device controlled by the profile.
USER INSTRUCTIONS
E
N
G
L
I
S
H
13

arameter setting
ages relating to the humidity section
V ew the hum d ty parameters
NB: the pages relating to humidity are only active and visible
on the display when the relative channel is included in a function
with the channel of a humidity sensor (e.g. GW1x762H), during
programming with Easy Controller.
If the page displayed relates to the humidity section, press the
or button key to view the relative humidity value Hr,
specific humidity HA and dew point temperature tr.
To return to the screen listing the pages that can be viewed,
keep the button key pressed.
Use the or button key to scroll through the sequence. To
confirm a page, press the button key or wait for the 30-
second time-out period to elapse.
To set the operating parameters of the device, bring up the main timed thermostat page
or the general hourly timer profile or the humidity page on the screen, then press the
button key.
To quit the parameter setting procedure without saving the modifications made on the
current page, just press the button key again or wait 30 seconds from the last pressure
on the button keys. The parameters that can be modified will depend on the page you
are viewing in normal operation status: if the visible page relates to the timed thermostat,
the Set menu concerning the timed thermostat will be shown; if the visible page is that
of a general hourly timer profile, the Set menu concerning the selected profile will be
shown; if the visible page relates to the humidity section, the Set menu concerning the
selected humidity threshold will be shown.
The parameters relating to the timed thermostat / hourly timer / humidity are collected
into three functional groups: general parameters, operating parameters, and control
parameters.
USER INSTRUCTIONS
14

E
N
G
L
I
S
H
15
USER INSTRUCTIONS

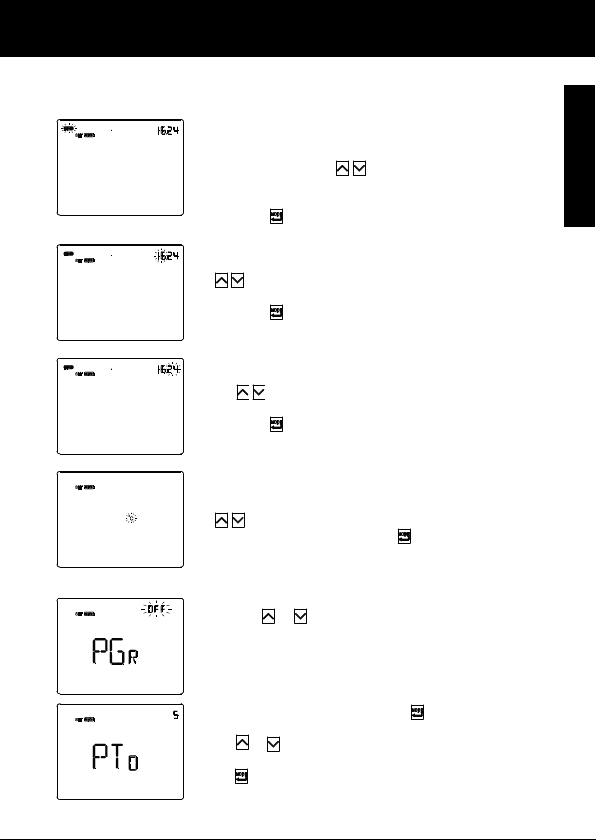

General parameters
Setting the day
Access to the Set menu is indicated by the word SET on the
display, and by the flashing of the day of the week. Set the
day by means of the button keys (MON, TUE, WED,
THU, FRI, SAT, SUN).
To confirm your choice and move on to the next parameter,
press the button key within 30 seconds.
Setting the hour
When the hour figures are flashing, set the hour using the
button keys.
To confirm the set value and move on to the next parameter,
press the button key within 30 seconds.
Setting the minutes
When the minute figures are flashing, set the minutes using
the button keys.
To confirm the set value and move on to the next parameter,
press the button key within 30 seconds.
Setting the temperature measurement unit
When the °C or °F temperature symbol begins flashing,
select the temperature measurement unit by means of the
button keys. To confirm your choice and move on to
the next parameter, press the button key within 30
seconds.
Returning to the main page
Use the or button key to set the main page that the
device must automatically visualise at the end of a period of
inactivity by the user (OFF = function disabled; TIMED
THERMOSTAT = main page of the timed thermostat; PRO01,
PRO02 ... PRO07 = pages relating to hourly profiles, if
enabled; Hr = pages relating to humidity, if enabled).
If this function is enabled, press the button key to access
the page for setting the duration of the inactivity period. Use
the or button key to set the gap (5 - 120 seconds). To
confirm your choice and move on to the next parameter, press
the button key within 30 seconds.

16

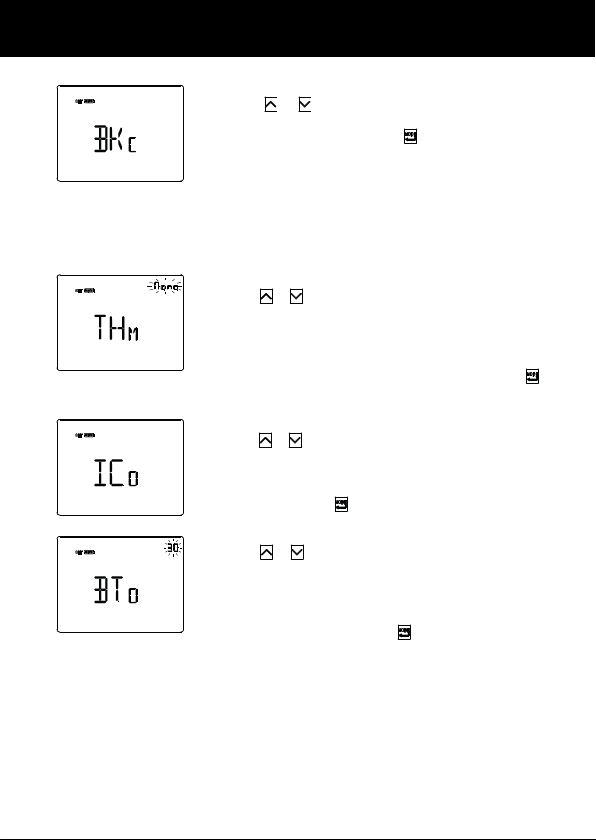

Back-lighting colour
Use the or button key to modify the colour of the
display back-lighting. To confirm your choice and move on
to the next parameter, press the button key within 30
seconds.
NB: if red/blue is chosen, the timed thermostat background
will be white during the idle phase (heating and cooling
valves deactivated) of normal operation, turning red when
the heating system is activated or blue when the cooling
system is activated.
Icons theme
Use the or button key to modify the colour themes for
representing the various icons shown on the display (MONO
= single-colour theme; TH1, TH2, TH3, TH4, TH5 = colour
themes) when the backlighting is active. The screen is only
visible if the back-lighting colour is white. To confirm your
choice and move on to the next parameter, press the
button key within 30 seconds.
Single-colour theme for icon colour
Use the or button key to modify the colour of the icons
within a single-colour theme. This parameter is only visible
if the icon theme is single-colour and the back-lighting is
active. To confirm your choice and move on to the next
parameter, press the button key within 30 seconds.
Back-lighting timing
Use the or button key to set the minimum duration of
the inactivity time of the user before the back-lighting is
automatically deactivated (the gap can be set from 10 to
180 seconds). This parameter is only visible if the back-
lighting is active. To confirm your choice and move on to
the next parameter, press the button key within 30
seconds.
USER INSTRUCTIONS
E
T
S
L
E
S
N
O

E
N
G
L
I
S
H
17
Back-lighting intensity
Use the or button key to choose how to manage the
back-lighting intensity (MAN = fixed value; SENS = light
sensitive sensor). This parameter is only visible if the back-
lighting is active. If the type of management is MAN, use
the or button key to choose the required percentage
of light intensity (the gap can be set from 30 to 100%).
If the type of management is SENS, use the or button
key to increase (+10%), decrease (-10%) or leave unaltered
(0%) the intensity value detected by the built-in light-
sensitive sensor. To confirm your choice and move on to
the next parameter, press the button key within 30
seconds.
External temperature probe sensor
Use the or button key to set the function of the NTC
temperature probe sensor connected to the timed
thermostat (OFF = disabled; TEMP = enabled as
temperature probe; F O = enabled as underfloor probe). To
confirm your choice and move on to the next parameter,
press the button key within 30 seconds.
Impact of the external temperature probe sensor on the
measured temperature calculation
Use the or button key to set the weight (%) of the
external temperature probe sensor in the calculation of the
temperature measured by the timed thermostat (the value
can be set from 10% to 100%, in steps of 10). This
parameter is only visible if the NTC temperature probe
sensor connected to the timed thermostat has been enabled
as a temperature probe on the previous screen. To confirm
your choice and move on to the next parameter, press the
button key within 30 seconds.
USER INSTRUCTIONS

18
Setting the alarm threshold temperature
Use the or button key to set the maximum floor-level
temperature above which the timed thermostat suspends heating
to prevent any possible damage (the value is expressed as tenths
of °C, and can be set from 150 to 1000 in steps of 100). This
parameter is only visible if the NTC temperature probe sensor
connected to the timed thermostat has been enabled as a
temperature probe (TEMP).
To confirm your choice and move on to the next parameter,
press the button key within 30 seconds.

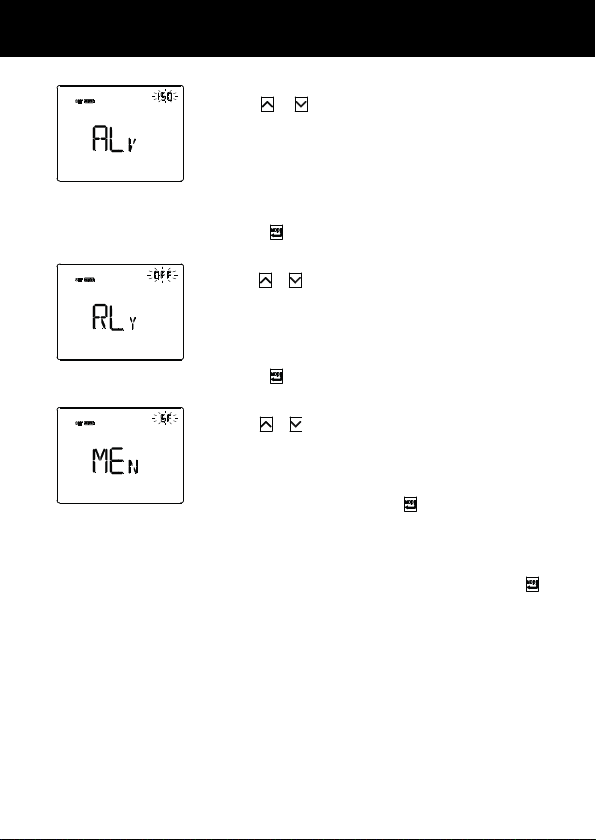

Setting the local relay
Use the or button key to set the operating mode of the
relay on the timed thermostat (OFF = disabled, HEAT =
management of heating valve, COO = management of
cooling valve, BOTH = management of heating+cooling
valves).
To confirm your choice and move on to the next parameter,
press the button key within 30 seconds.
Enabl ng the supplementary parameter pages
Use the or button key to enable/disable the three sets
of functions that the device configuration parameters are
divided into (G = General parameters, GF = General +
Operating parameters, GFC = General + Operating +
Control parameters). To confirm your choice and move on
to the next parameter, press the button key within 30
seconds.
If the local modification function has been enabled from the
“Enabling the supplementary parameter pages” menu for
the General Parameters group only (option G), press the
button key to return to the start of the parameter
configuration menu. Otherwise, continue with the
configuration of the next group of parameters.
USER INSTRUCTIONS

Operating parameters
White balancing
Use the button keys or to set the weight of the red
component (RED) in the backlighting of the display (value
can be set between 1 and 63). The regulation only applies
to the white colour of the screen.
To confirm the selection and continue with the next
parameter, press the button key within 30 seconds.
Use the button keys or to set the weight of the green
component (GRE) in the backlighting of the display (value
can be set between 1 and 63). The regulation only applies
to the white colour of the screen.
To confirm the selection and continue with the next
parameter, press the button key within 30 seconds.
Use the button keys or to set the weight of the blue
component (B U) in the backlighting of the display (value
can be set between 1 and 63). The regulation only applies
to the white colour of the screen.
To confirm the selection and continue with the next
parameter, press the button key within 30 seconds.
Heating / cooling selection
Use the or button key to select the operating type
( = heating; = cooling). To confirm your choice and
move on to the next parameter, press the button key
within 30 seconds.
E
N
G
L
I
S
H
19
USER INSTRUCTIONS

USER INSTRUCTIONS
20
If the displayed page relates to the timed thermostat
(type of operation: heating)

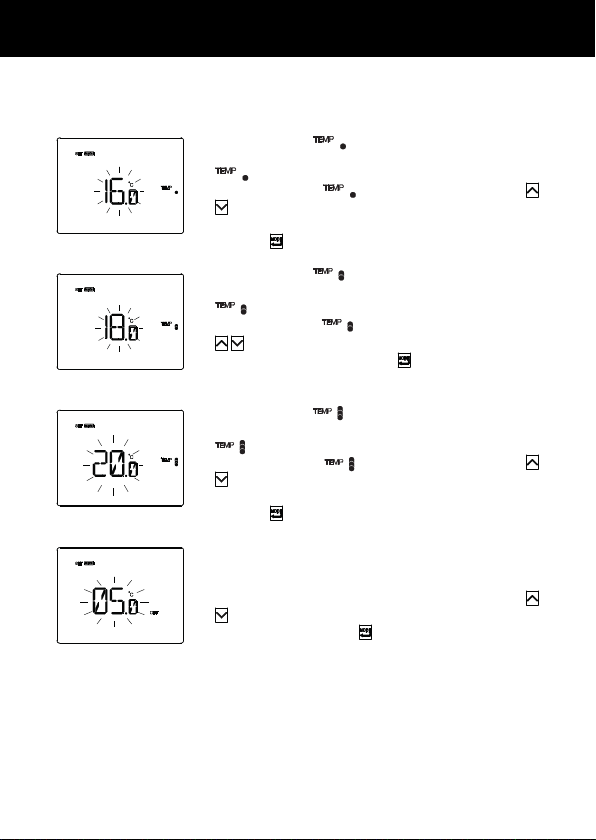

Setpoint setting
Used to modify the temperature value associated with the
setpoint.
Adjust the value of (TECONOMY) with the aid of the
button keys.
To confirm the set value and move on to the next parameter,
press the button key within 30 seconds.
Setpoint setting
Used to modify the temperature value associated with the
setpoint.
Adjust the value of (TPRE-COMFORT) with the aid of the
button keys. To confirm the set value and move on to
the next parameter, press the button key within 30
seconds.
Setpoint setting
Used to modify the temperature value associated with the
setpoint.
Adjust the value of (TCOMFORT) with the aid of the
button keys.
To confirm the set value and move on to the next parameter,
press the button key within 30 seconds.
Setting the anti-freeze temperature value
Used to modify the temperature value associated with the
(TOFF) setpoint.
Adjust the anti-freeze temperature value (TOFF) using the
button keys. To confirm the set value and move on to the
next parameter, press the button key within 30 seconds.
