Geyser Classic User manual
GEYSER-
CLASSIC
MODEL TYPES
HOUSING COLOUR
for soft water
for hard water
for water with high iron content
for complex water treatment
white
STATIONARY WATER
FILTER
MANUAL
Operational and installation
2
Our technologies and developments provide water of perfect quality in your house.
This manual describes all Geyser lter functional capabilities and lter set-up.
Read carefully and keep to refer it in future.
Everything for lter usage just after its set-up is packed.
CONTENT:
...................................................................................... 3
.................................................................................................... 3
................................................................................................ 3
............................................................................................. 5
Connection .................................................................................................... 5
Start up ......................................................................................................... 8
......................................................................................... 8
Regeneration ................................................................................................. 9
........................................................................................11
3
GEYSER TECHNOLOGIES
Aragon is revolutionary new, unique ltering polymer combining three ltration methods:
sediment, sorptive and ion-exchange.
The main peculiarity of Aragon is its complex purication efciency. It removes all harmful
impurities and also hepatitis A viruses, noroviruses, rotaviruses from water entirely.
Advantages of Aragon:
(recovering) enhances its capacity and service life signicantly
- ltering material’s complex labyrinth structure detains all impurities
(anti-discharge)
- reduction of water flow in a tap shows that cartridge capacity comes
to the end.
Indelible is baked in a cartridge and causes safe bacteriostatic effect.
Aragonite – during ltration through Aragon cartridge, water is lled with healthy
calcium Aragoite (heart disease prevention).
BAF cartridge is a universal cartridge having 12000 liter capacity. Multi-component media
contains Catalon (Patent №253829) - brous ion-exchange new-generation sorbent.
is a monoblock unit having double sealing.
Enhanced capacity of BAF cartridge is up to 12 000 l.
water flow direction can be changed easily by means of the patented
system of a cartridge mounting (Patent №2014135903).
Safety – all the materials used in Geyser systems are certicated to contact with drinking
water and products.
APPLICATION
Stationary water lters Geyser-Classic are used for municipal water purication from
harmful impurities (chlorine, heavy metals, nitrates, pesticides, etc.), suspended solids,
hardness salts surplus and also for correcting of water mineral composition.
SPECIFICATIONS
Water lter housing sizes assembled, max 390x295x110 mm
Recommended ltration rate, max 3 l/min
Maximum working pressure 7 bar
BS cartridge regeneration frequency (in case hardness is 6-4 mg-equiv./l) 200-400 l
Temperature of water puried +4...+40 °С
Weight w/o package, max. 6,5 kg
MODEL TYPES OF GEYSER-CLASSIC AND ITS COMPLEMENT WITH
CARTRIDGES
First stage Second stage Third stage
for soft water РР, РРY, PFM Aragon S+В(Ca) BAF
for hard water РР, РРY, PFM Aragon 2 BAF
for water with high iron content BA Aragon BAF
Super hard water Aragon 2 BS BAF
4
FILTERING MATERIALS AND CARTRIDGES
is made of polypropylene (PFM, РР, PPY). It removes dirt, suspended
solids and insoluble impurities >5 µm from water
Aragon is micro-porous ion-exchange polymer. It removes a wide range of harmful
impurities from water: hardness salts, iron, manganese, heavy metals, chlorine, solids and
organic compounds.
Aragon is recommended for areas having water with high iron content. It contains special
material for iron removal and pH correction.
Aragon S is a cartridge for soft water. It removes harmful impurities fully and in addition
it saves healthy calcium salts. Moreover, a micro-element batcher B(Ca) can be mounted
into Aragon S.
Aragon 2 is a cartridge for hard and ferriginous water. This compound Aragon- and
ion-exchange-based cartridge increases the capacity for removal of hardness salts,
manganese, iron (saluted and colloidal), heavy metals (cadmium, lead, etc.) signicantly.
BAF cartridge contains multi-component media on the basis of sorbents and ion-
exchange materials. It removes chlorine and organic impurities from water, reduces heavy
metals content.
BS cartridge is for hard water. It contains ion-exchange resin of drinking class to soften
water (to remove hardness salts). This cartridge is movable and can be re-used after
regeneration (recovery of ltering properties) many a time.
BA cartridge is for water with high iron content (ferriginous). Into a cartridge there is
catalytic media (calcspar) for saluted and suspended iron removal from water. It reduces
water pH, hastens oxidation process of saluted iron and other metal compounds. So that,
appeared residual matter is kept inside a cartridge.
MAJOR CONTAMINANTS PURIFICATION EFFICIENCY
Suspended solids > 0.4 µm (rust, sand, algae, other insoluble particles ) 100%
Heavy and radioactive metals (lead, cadmium, copper, strontium-90, cesium) up to 99%
Chlorine up to 99%
Organic up to 92%
Hardness salt up to 85%
Microorganisms and E.coli 99%
CARTRIDGES AVERAGE LIFETIME AND CAPACITY
Cartridge
РР, РРY, PFM 12 up to 7000
Aragon-S 12 up to 7000
Aragon 2 12 up to 7000**
Aragon 12 up to 7000**
BS 12 up to 4000**
BAF 18 up to 12000**
BA 6-8 up to 2000**
*depends on the level of source water contamination
** in case the hardness is up to 3 mg-eq/l, iron content is up to 1 mg/l in water
5
CONNECTION
GUIDELINES FOR CONNECTION AND USE
The connection should be fullled by a qualied specialist or a manufacturer’s representative!
If you connect a lter independently, follow the prompts accurately
All lter housing underwent tightness and hydro shock tests, so that there is could be
water inside lter housings
It’s not recommended to disassemble factory connections if not urgent
PREPARATION TO CONNECTION
1. Before set-up, keep the lter for min.3 hours at room
temperature

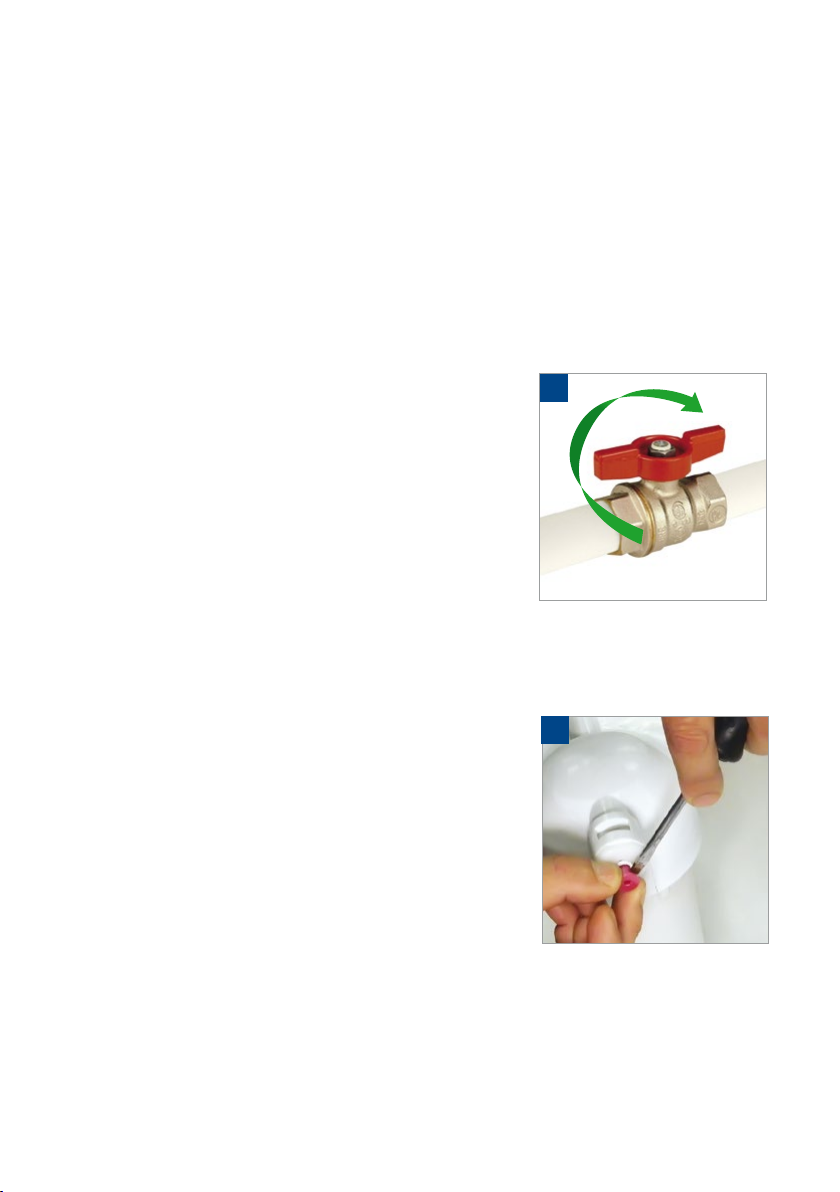

2. Before the works start, shut off the water feed to the
place of connection (g.1) and depressurize, having
opened a faucet.
3. Before the installation, make sure that housings are
safely tighten up*. In case needed tight them up.
4. Check that inlet and outlet ttings are set correctly (facet
for a wrench is vertical). If necessary, turn ttings to x
them into the housing.
1
* The manufacturer reserves the right to make design and packaging of a minor improve without showing in this manual.
SCOPE OF SUPPLY
Assembled lter
Wrench for a housing
Wrench for a bottom valve
Pure water tap with everything for
connection
Connection pipe 1/4”
Triple adaptor
Manual
Package
* Check reliability of housings tightness periodically. In case needed they should be tighten.
Warning! The position of a vertical label in the center of a lter face surface doesn’t guarantee the leak-tightness
of the connection. The label position may change when the threaded connection of the housing is tightened.
HOW TO CONNECT
The system is connected to a cold water main line.
1. Extract the lter from the packing case.
2. Remove shipping plugs. Press the plastic ring at the
connecter with a screw-driver end and easily extract
the plug (Fig. 1).
3. Cut a connection pipe from a complement in two and
connect each half to a lter inlet and outlet.
4. Fix a lter to a place convenient for usage. It is
recommended to x a lter on vertical surface at a
height of min. 15 cm from a floor to replace cartridges
easily.
1
6
1
5
6
3
4
8
10
2
7
11
9
12
12 Grommet
CONNECTION DIAGRAM
1Cover (monoblock)
2Housings with cartridges
3Triple adapter with a tap
4Connection pipe 1/4”
5Insert to x a cartridge
7Tap
8Decorative bowl
9Rubber gasket
10 Plastic washery kit
11 Fastening nut with a washery kit
6Collet clamp screw 1/4’’ JG
System is connected to cold
water pipe
7
CONNECTION TO WATER PIPE
Make sure that water feed to a place of connection is shut off!

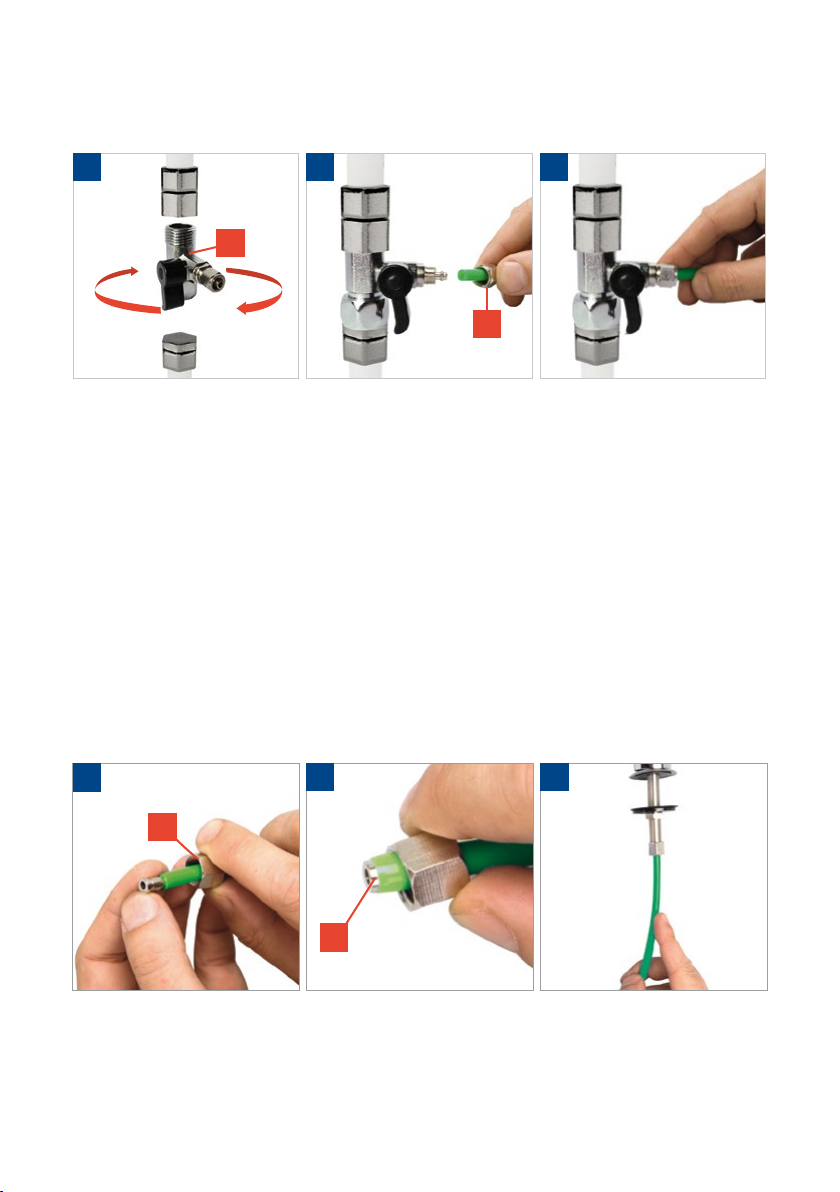

1. Fix a triple adapter (A) to the cold water main line, making the connections tight (Fig. 1).
31
А
2
В
2. Insert a plastic pipe (Fig. 2) into a screw (В). Insert a pipe into a tting of a ball valve until
it stops and tighten a screw (рис. 3).
PURE WATER TAP CONNECTION
1. Drill the hole of 12 mm in a kitchen sink.
2. Assemble the tap as follows (ref. Connection diagram on page 5):
tap
decorative washer kit
rubber gasket
plastic washer kit
metal washer kit
screw
3. Secure a tap on a kitchen sink:
Thread a plastic pipe (Fig.1) into a screw (E)
Put the grommet (Н) inside a pipe until it stops (Fig.2)
Spin a screw over a threaded rod of the tap (Fig.3)
3
2
H
1
Е
DETAILS OF CONSTRUCTION
The patented (Paten №2014135903) cartridge mounting system provides easy change
of water flow direction.

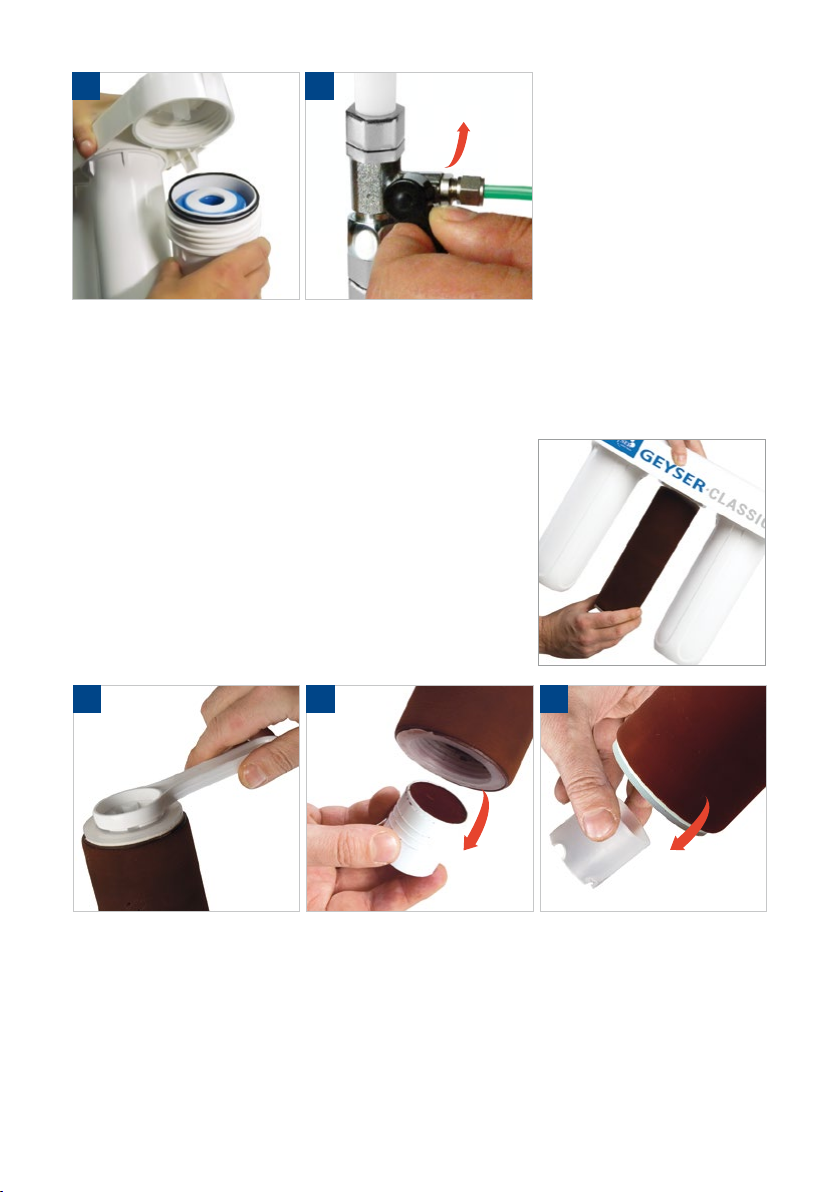

Undo a housing and take an insert out (item 5 page 5), flip it through 180° and x it
8
Turn water off at the inlet (Fig. 1). Open pure water tap to release the pressure inside the
system (Fig. 2). Remove the housing with the help of the wrench (Fig. 3), check and replace
3
1 2
FILTER MAINTENANCE
Cartridge
Noticeable reduction of ltration
rate
Aragon-М, Aragon,
Aragon-2
Mechanical cleaning,
regeneration
Scale and foggy lm formation
on water during its boiling
Aragon-2
BS
Regeneration (removal of
hardness salts)
Water quality reducing РР, РРY, PFM, BAF, BА Replacement
Cartridges should be replaced upon the expiration of their capacity or service life.
direct water
flow
1
1reverse water flow
2
START UP
Before usage, rinse a lter with water during 2-5 minutes.
Filter is also should be washed after its cartridges replacement and after long (more
than 5 days) break in operation.
into a cap at this level (Fig.
2). For convenient lter
set-up (right or left water
supply), all three inserts
can be flipped through
180° simultaneously, rst
and the last cartridges
can be exchanged. So that
water flow will be changed
(inlet and outlet will be
exchanged).
Only Geyser cartridges are recommended to use in replacement of the used ones.
Failure to comply with this instruction may change a lter functions and
specications.
9
4 5 (if necessary) the sealing ring;
then replace the corresponding
cartridge (Fig. 4).
Sealing ring is
recommended to be greased
with food silicon or Vaseline
(do not use sealant!) prior to
reassembly.
Return the housing to its
position and tight with the
wrench. Open water at the inlet
and check the leak-tightness
of the system (Fig. 5).
Using the wrench, unscrew the housing with Aragon
cartridge (from standard equipment) and get the cartridge
out. Pour water from it, clean its external surface with a soft
brush (e.g. clothes one) under water stream.
Using the wrench for the bottom valve, unscrew the
bottom valve out the cartridge (Fig.1) and extract the used
insert (Fig.2).
Take a cap off from a new insert and place it with its
open side up. Screw the bottom valve. Assemble the lter in
reversed order and wash it for 1-2 minutes.
123
Insert B
ARAGON CARTRIDGE CLEANING AND REGENERATION
Pour 40 gr of citric acid, 30 gr (2 tea spoons) of baking soda and 1 l of water into a
1.5 – 2 l holding capacity. Water should be poured slowly to prevent foaming (carbon
dioxide emission).
Install a cartridge into a housing and ll the housing with the salt solution till its top
(ca. 0.6 l). Let it stay for 8-10 hours. Afterwards, extract the cartridge from the housing
cautiously and let the salt solution pour out. Place it into the wash-bowl and pour 3.0 l
of solution through its threaded throat, then let it drain completely.
Wash the solution residue out of the cartridge in two steps. Firstly, pour 3 l water
10
to the top of the cartridge through its threaded throat
portionwise. Then wrap its throat with overwrap and
x it with an elastic or a string. Turn the cartridge
upside down and unscrew a bottom valve with the
corresponding wrench. Put it into a kitchen sink in the
same bind vertically and pour 3 more liter water through
it, as aforesaid. Take the overwrap off and return the
bottom valve to its place. Assemble the lter in reversed
order, open a pure water tap and wash the lter with the
1-1.5 l/min.rate for 3 minutes.
Make 3 liters of 3% citric acid (30 gr or 2 tea spoons in 1 liter if water) solution in enameled
or glass ware.
Put the Aragon cartridge into a kitchen sink or a holding capacity and pour this solution
through the cartridge throat portionwise until the outlet solution becomes transparent.
Upon that, ll the cartridge with pure water and then let it drain.
Make 0.6 liters of 2% soda solution (1 tea spoon in 0.6 liter of water). Install the cartridge
into the housing and ll the housing with the solution till the top. In an hour, pour the solution
out and assemble the lter in reversed order, open a pure water tap and wash the lter for 5
minutes. The lter is ready to work.
Turn water off near a lter and open a pure water tap to release the pressure inside the
system. Remove the housing with the help of the wrench from the lter complement. Get a
BS cartridge out of the housing. Turn a cartridge cap off and pour its media into a glass or
plastic container with minimum volume of 2 liters.
Make 1 liter of uniodized kitchen salt saturated solution (300 gr of salt per liter of water)
and pour it over the cartridge media.
It is normal for the liquid to have bubbles when the salt solution is poured
through; air is coming from the layer of resin
Mix the media with the solution and remain it for 1-2 hours with stirring it occasionally.
Pour the salt solution out accurately. Pour cold water over the resin, stir it and pour water
out. Repeat this operation twice more. Pour the resin into the cartridge housing and screw
it with the cap. Insert the cartridge into the lter housing. If necessary, replace the sealing
ring. Sealing ring is recommended to be greased with food silicon or Vaseline (do not use
sealant!) prior to reassembly.
Place the lter housing back and screw it with the wrench. Open water at the inlet and
check the leak-tightness of the system. Wash the lter for 2-5 minutes and then it is ready
for use.
During the regeneration avoid eyes contact with the solution because it may
cause painful sensations.
In case of eyes contact, wash them carefully with water!
11
WARRANTY CERTIFICATE
Release date
Date of sale
Shop stamp
WARRANTY LIABILITIES
Guaranteed use period of lter operation is 3 years from the sale date. In case the
date and the seal of trading organization are missing the warranty dates from the lter
release day. The warranty does not apply to the cartridge, its capacity is indicated on page
4. Cartridge replacement in case they have manufacturing defects is fullled only after
service representatives execute its examination.
The producer disclaims responsibility for the operation of the lter and possible
implications in case if:
The lter and its components have mechanical damages.
The requirements of the given instruction were not followed during the connection and
operation
Cartridges worked out their capacity
The lter was not used to design purpose (for ltering aggressive liquids).
Average use period of the lter is 10 years. Technical maintenance and post warranty
repairs are done by the manufacturer or its local representatives.
Within 6 months, the service department guarantees to eliminate all faults in lter
connections and fastenings, caused by representative-manufacturer during the works on
lter installation free of charge.
The system should be protected against shocks, falls, direct sunlight and freezing
temperatures. The transportation of the lter is allowed in any covered transports (except
unheated plane sections) according to the rules and norms of transportation by every type
of transport.
The lter is stored inside the package at the distance at least 1 meter from the heating
devices under the temperature +4°С - +40 °С.
Aerosols, aggressive and smelly materials impact is prohibited.
12
MADE IN RUSSIA
aquachiief
Water treatment system
for cottages
unique solution:
Iron and hardness salts (scale) removal by single ltering
Ecotar media.
profitable and simple usage
To recover media, expensive chemical agents are not
required. Regeneration is made just by sodium chloride.
Drainage waters are safe for septic tanks.
House space saving
Geyser AquaChief occupies two times less
space than system working with standard
whelmed media.
individual attention
It is very easy to tune up Geyser AquaChief to
purify water in different regions with the variety
of Ecotar media types.
Registered address:
69 Shosse Revolyutsii, build. 6, lit. A,
Saint Petersburg, Russia 195279
Telephone/Fax: +7 (812) 605-00-55 (multichannel)
195279, St. Petersburg, p/o box 379
e-mail: ofce@geizer.com
GEYSER D.O.O.
Južni Bulevar 136
111 18 Belgrade, Srbija
Phone: +381 141 744 20 77
e-mail: serbia@geizer.com
TIRAIS UDENS SIA
Salamandras iela 1, Riga, LV-1024 Latvia
Phone: +371 675-653-00
e-mail: oss@geizer.com
GEYSER FILTRY. S R.O.
Sokolovská 1276 / 152
180 00 PRAHA 8, Сeská republika
Phone: +420 222 368 239
e-mail: ofce@geyser.cz
www.geyser.pro
www.geizer.eu
www.geizer.com
Table of contents
Other Geyser Water Filtration System manuals
Popular Water Filtration System manuals by other brands
Davco
Davco DIESEL PRO 243 Technical manual
Watts
Watts PWDWUFKC3 PURE WATER Installation, operation and maintenance manual
Livpure
Livpure Envy user manual
Davey
Davey aquashield centurion ASC50 Installation and operating instructions
AquaMaster
AquaMaster AMF2000 Installation and service guide
Sabiana
Sabiana CRYSTALL CDS.C Instructions for installation, use and maintenance
