GFW NEW YORK NYO150BLK User manual

GFW Limited
2015.01
Page 1 of 18
NYO150BLK/NYO150BRW/NYO150WHT NEW YORK OTTOMAN TV BED KING SIZE
NEW YORK OTTOMAN TV BED
ASSEMBLY INSTRUCTION
KING: 235.5 x 160 x 101.5_78 CM (LWH_H)
150102

Assembly me: 1.5 Hours
Safety and Care Advice
IMPORTANT - READ CAREFULLY - RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Due to the size of this product we recommend that it is assembled in the room intended for use.
Maximum TV Dimensions: 70 Wide x 39 High x 6cm Deep.
When you are ready to start, make sure that you have the right tools, plenty of space and a clean,
dry area for assembly.
Unwrap all packaging materials and place the components on top of the carton box or on a clean floor
to prevent it from scratching.
Check the pack and make sure you have all the parts listed.
Ensure that this product is fully assembled and secured as illustrated before use.
Check all screws or bolts are tightened and inspect regularly.
This product should only be used on firm, level ground.
Please dismantle for transportation
This product complies with the essential requirements of the EMC Directive 2004/108/EC and
Low Voltage Directive 2006/95/EC
Keep away from temperatures over 35℃.
Only use recommended accessories.
Tools not included unless stated in the parts list..
WARNINGS
This product is intended for a maximum person’s weight of 100kg per side. Do not exceed this weight.
Keep small parts out of reach of children.
Make sure the legs remain in contact with the ground.
Do NOT use power tools to construct this product.
Do NOT tighten screws until fully assembled.
Do NOT over tighten screws or bolts.
Do NOT use this product if parts are missing, damaged or worn.
Do NOT stand on the product
Please pay particular attention when children or animals are present to ensure that no accidental
entrapment occurs whilst operating this product.
DO NOT expose this product to dripping or splashing, rain or areas with heavy moisture.
DO NOT place any objects filled with liquids, such as vases, on the product.
DO NOT place the product in direct sunlight, open flames such as candles or heat, such as radiators.
Keep away from temperatures over 35°C.
DO NOT insert foreign objects into the product.
DO NOT attempt to repair this unit by yourself.
CARE INFORMATION
Never use scourers, abrasives or chemical cleaners.
To clean wipe with a sponge and warm soapy water. Do not use solvent based cleaners or detergents
as they can bleach or damage the product.
GFW Limited
2015.01
Page 2 of 18
NYO150BLK/NYO150BRW/NYO150WHT NEW YORK OTTOMAN TV BED KING SIZE

Safety and Care Advice
Before using the unit, please read these instructions carefully.
Unplug the unit during lightning storms or when unused for long periods of time.
The unit should be powered off before plugging the product into the power outlet. This unit should be
powered off before unplugging the product. Install this unit so that the power cord can be unplugged
from the socket immediately if any problems occur.
Never try to repair this product yourself, take it to an authorized technician. Trying to remove panels
or repairing the unit yourself could result in an electric shock. Servicing is required when the unit has
been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or
objects have fallen onto the unit, the unit has been exposed to rain or moisture or does not operate
normally.
In order to prevent injury, never attempt to remove the cover or any other components.
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning the use of the appliance by a person responsible for their safety.
Children (under the age of 13) should be supervised to ensure that they do not play with the appliance.
WARNINGS - ELECTRICAL COMPONENTS
GFW Limited
2015.01
Page 3 of 18
NYO150BLK/NYO150BRW/NYO150WHT NEW YORK OTTOMAN TV BED KING SIZE

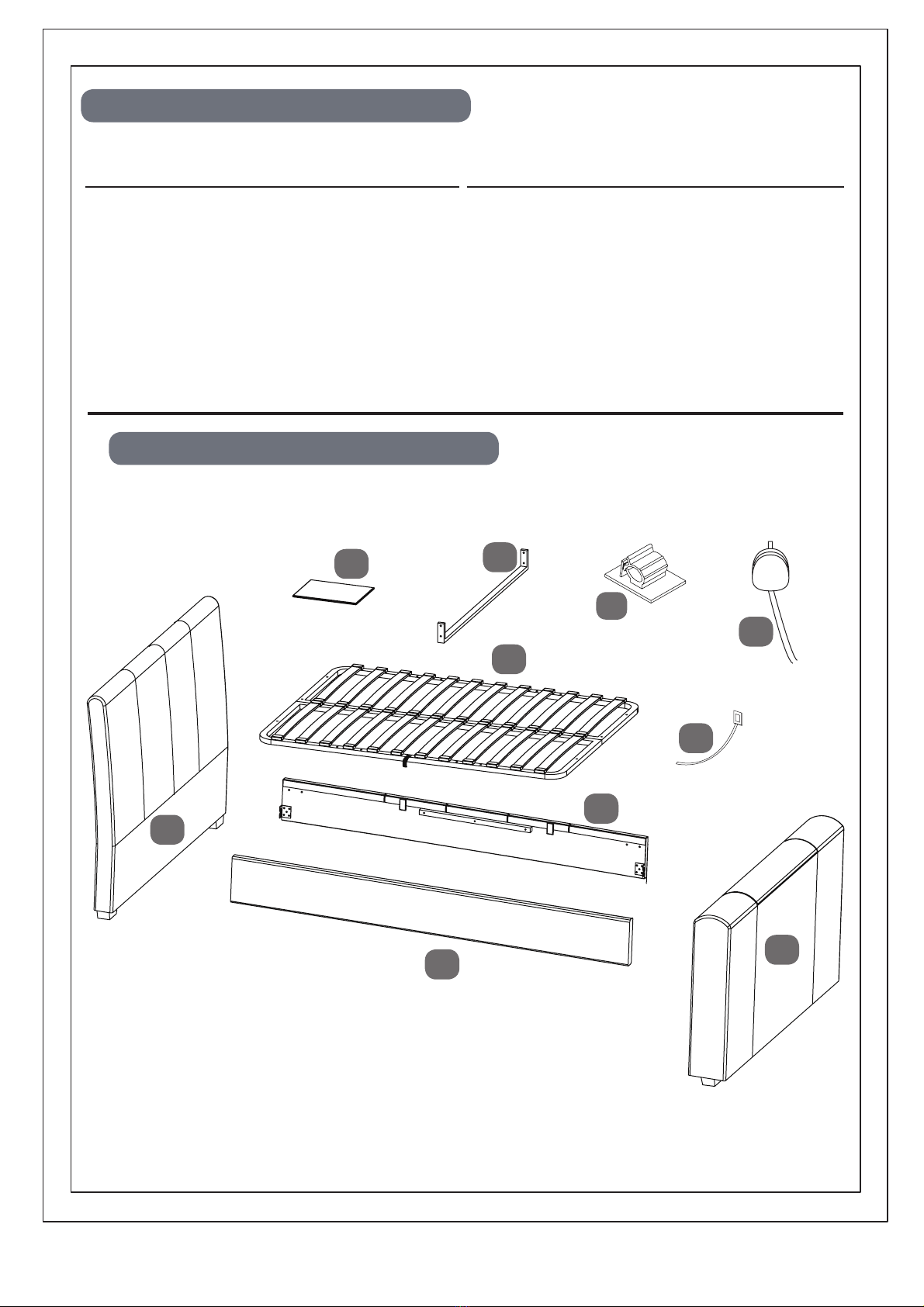

Parts Identification
Parts Checklist
2
4
5
1
6
7
8
9
3
3
3
3
Cable Tie
Cable Clip
3mt Power Lead
Cable Clip
Cable Tie
5
Ref. Qty
Ref. Description
Metal Slat-Frame 1
1
Qty
1
2
3
Headboard
Footboard
Side Panel
1
1
2
Description
4
Base Fabric Cover
61
'U' shaped bar
9
7
1
8
3mt Power Lead
GFW Limited
2015.01
Page 4 of 18
NYO150BLK/NYO150BRW/NYO150WHT NEW YORK OTTOMAN TV BED KING SIZE

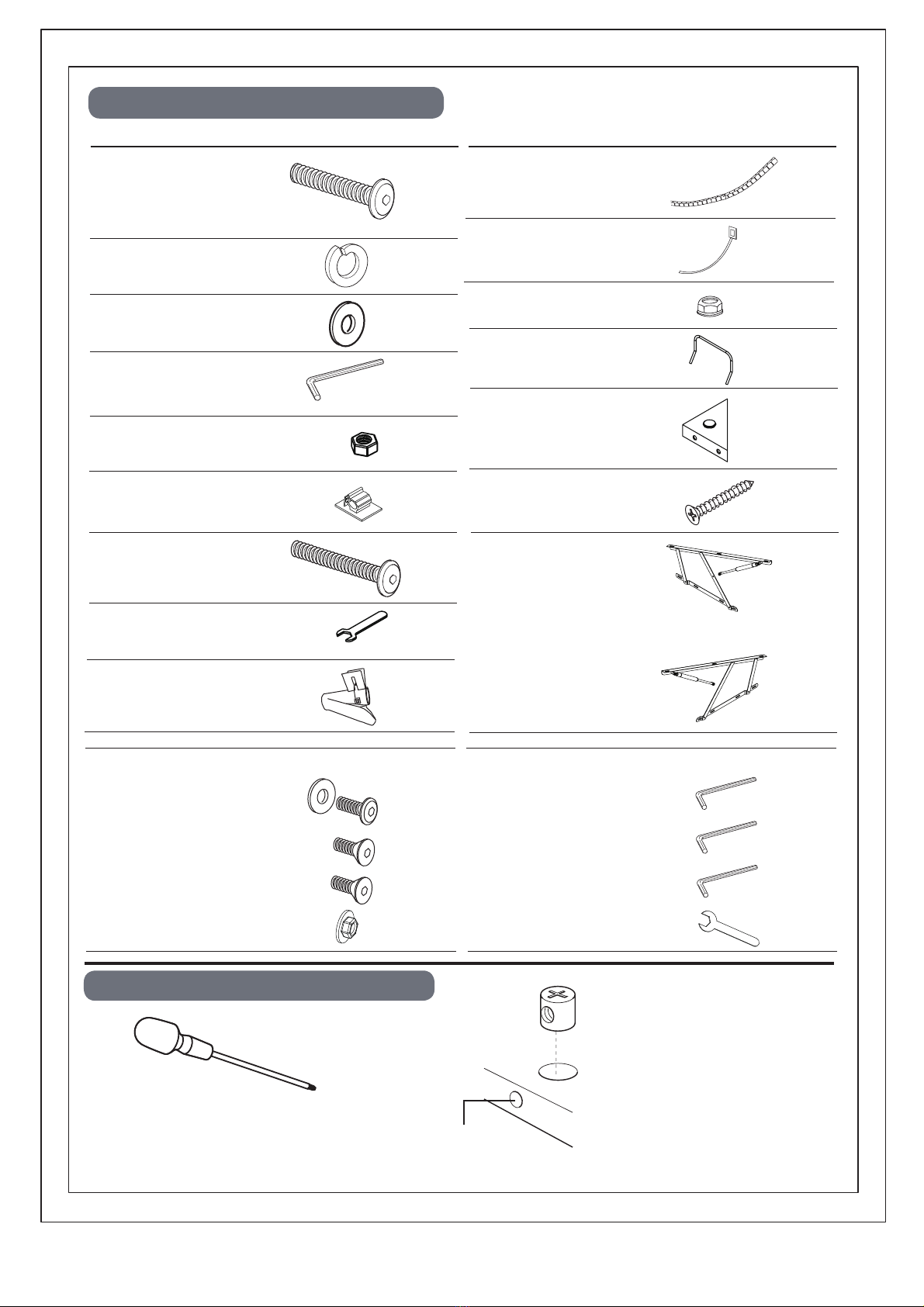

Fittings Checklist
Additional Tools Required
Intersecting
Hole
Crosshead Screwdriver
We recommend the bed is
assembled in the room it will
be located in.
When they are supplied and are part
of the assembly of this bed, ensure
that barrel nuts are fitted the correct
way so the hole is facing towards the
intersecting hole.
J
K
Cable Manager Clip
Cable Manager Tube
x1
x1
TV INSTALLATION KIT
N
Nuts- Washer set (M6)
x2
x4
Screw-Washer set (M8)
x1
Allen Key (5mm)
LM
x1
Allen Key (4mm)
x1
x1
Allen Key (3mm)
(M6)
x4
x4
Counter- Sunk Screw
(M4)
Counter- Sunk Screw
Spanner for Nuts (N)
P
Cable Clip
x3
F
Q
Cable Tie
x3
Qty
Code Description
Ax32
C
x38
Spring Washer
D
Flat washer (17x8mm)
Hx1
Spanner
For holding nuts (F)
Ex6
Qty
Code Description
B
x6
x2
R
Flange Lock-Nut (M6)
G
Allen Key (5mm)
x1 x2
S
Angle Bracket
x4
x44
T
V (a)
Lift Mechanism
x1
Bolt (M8x30mm)
Fitting side panel (3), corner
brackets (L) & lift mechanisms (V) to
headboard & footboard (1&2)
Bolt (M8x45mm) Fitting
gas-lift mechanism (V) to
metal slat-frame (4)
Nut (M8) Fitting gas-lift
mechanism (V) to metal
slat-frame (4)
x1
V (b)
x4
Screw (4x50mm)
U
fitting 'U' shaped bar (6)
to side panel (3)
Mattress Stopper
GFW Limited
2015.01
Page 5 of 18
NYO150BLK/NYO150BRW/NYO150WHT NEW YORK OTTOMAN TV BED KING SIZE

1
2
Bed Assembly
Stage
1
Stage
1A
x8 Bx8
ACx8
V (a) x1
Dx1
CHOOSE WHICH SIDE YOU WANT TO LIFT UP
V (b) x1
ALIGN WITH BLUE LABELS
MAKE SURE FIXING BOLTS ARE IN THE
CENTRE OF THE LONG HOLES

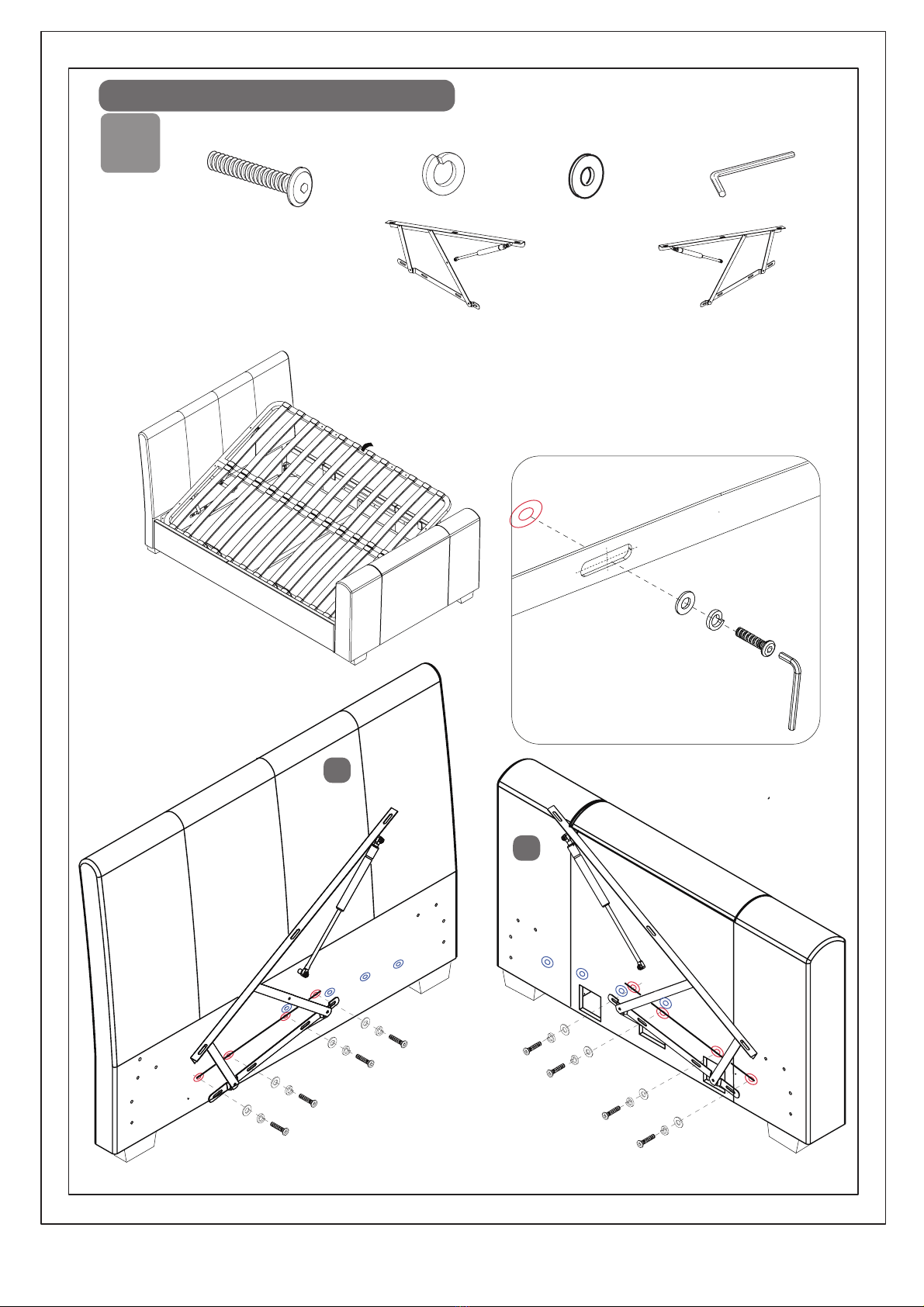

CHECK THIS DIAGRAM AND IF ACCESS IS NEEDED FROM
LEFT SIDE OF BED, FIT THE PAIR OF LIFT MECHANISMS TO
RIGHT SIDE OF THE BED.
BOLT INTO THE HOLES MARKED (R) WITH BLUE LABELS.
THE MECHANISMS ARE LABELED V (a) & V (b) - PLEASE
CAREFULLY FOLLOW THE DIAGRAM BELOW.
LEFT
B
A
C
D
R
F
I
T
H
E
R
E
.
V (b) V (a)
R
F
I
T
H
E
R
E
L
F
I
T
H
E
R
E
R
F
I
T
H
E
R
E
R
F
I
T
H
E
R
E
BLUE
R
F
I
T
H
E
R
E
L
F
I
T
H
E
R
E
L
F
I
T
H
E
R
E
L
F
I
T
H
E
R
E
R
F
I
T
H
E
R
E
L
F
I
T
H
E
R
E
L
F
I
T
H
E
R
E
L
F
I
T
H
E
R
E
L
F
I
T
H
E
R
E
R
F
I
T
H
E
R
E
R
F
I
T
H
E
R
E
R
F
I
T
H
E
R
E
BLUE
BOLTS SHOULD BE IN CENTRE
OF LONG HOLES
GFW Limited
2015.01
Page 6 of 18
NYO150BLK/NYO150BRW/NYO150WHT NEW YORK OTTOMAN TV BED KING SIZE

Bed Assembly
Stage
1
Stage
1B
x8 Bx8
ACx8
V (a) x1
Dx1
CHOOSE WHICH SIDE YOU WANT TO LIFT UP
V (b) x1
CHECK THIS DIAGRAM AND IF ACCESS IS NEEDED
FROM RIGHT SIDE OF BED, FIT THE PAIR OF LIFT
MECHANISMs TO LEFT SIDE OF THE BED.
BOLT INTO THE HOLES MARKED (L) WITH RED LABELS.
THE MECHANISMS ARE LABELED V (a) & V (b) - PLEASE
CAREFULLY FOLLOW THE DIAGRAM BELOW.
L
F
I
T
H
E
R
E
RIGHT
B
A
C
D
1
2
V (a) V (b)
R
F
I
T
H
E
R
E
L
F
I
T
H
E
R
E
L
F
I
T
H
E
R
E
R
F
I
T
H
E
R
E
L
F
I
T
H
E
R
E
L
F
I
T
H
E
R
E
L
F
I
T
H
E
R
E
R
F
I
T
H
E
R
E
R
F
I
T
H
E
R
E
R
F
I
T
H
E
R
E
L
F
I
T
H
E
R
E
L
F
I
T
H
E
R
E
L
F
I
T
H
E
R
E
R
F
I
T
H
E
R
E
R
F
I
T
H
E
R
E
RED
F
R
F
I
T
H
E
R
E
RED
ALIGN WITH RED LABELS
MAKE SURE FIXING BOLTS ARE IN THE
CENTRE OF THE LONG HOLES
.
BOLTS SHOULD BE IN CENTRE
OF LONG HOLES
GFW Limited
2015.01
Page 7 of 18
NYO150BLK/NYO150BRW/NYO150WHT NEW YORK OTTOMAN TV BED KING SIZE

x8 Bx8
AC
x16 x16
ACx8
A
BC
Bx16
Dx1
T
D

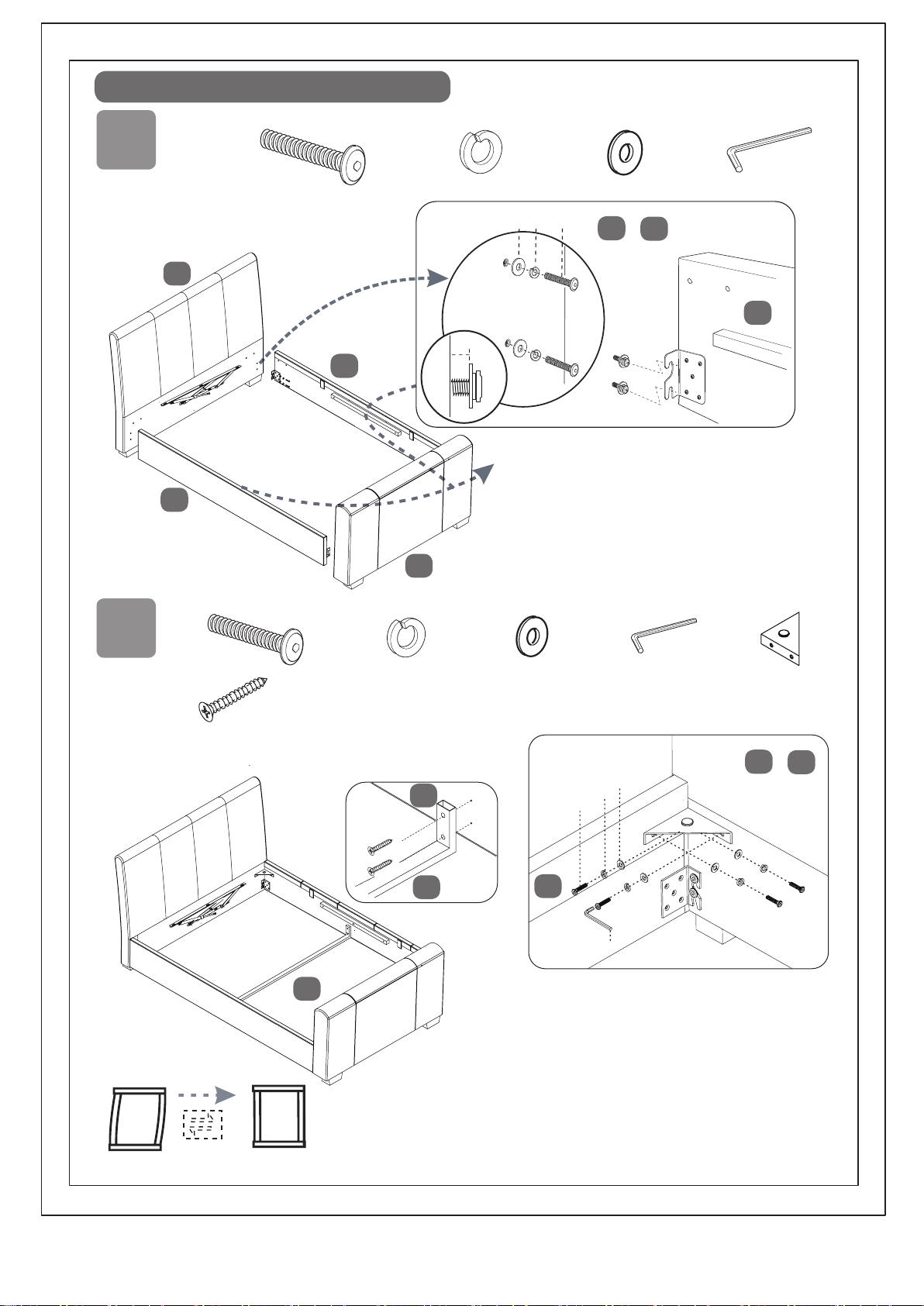

Fit the angle brackets (T) into the corners of the
Headboard & Footboard (1&2) and Side Panels (3).
Fit
the bolts (A) with washers (B&C) through holes in angle
brackets (T) as shown. Fit all four brackets but do not
tighten bolts yet.
Dx1 Tx4
A
B
C
10mm
&
MAKE CERTAIN THE BED IS SQUARE AS SHOWN.
Fit the bolts (A) spring washers (B) & flat washers
(C) to the holes in the headboard and footboard
(1&2). Note: Do not fully locate the bolts, but leave
10mm protruding.
Fit the side panels (3) to the headboard and
footboard locating the brackets behind the flat
washers - make sure they are placed as shown.
Note: THEN tighten all bolts 100% using allen key (D)
U
U
Fit the 'U' shaped bar (6) to
centre of side panels using
screws (U).The marks on the
side panels should be lined up
with the screw holes.
Ux4
Bed Assembly
Stage
1
Stage
2
Stage
1
Stage
3
2
1
6
3
3
3
12
6
3
&
12
3
GFW Limited
2015.01
Page 8 of 18
NYO150BLK/NYO150BRW/NYO150WHT NEW YORK OTTOMAN TV BED KING SIZE

Turn bed on its side and attach base fabric cover (5) to bottom
of side-panels, headboard & footboard with the velcro tape.
Make sure fabric is fixed evenly all round.
Bed Assembly
Stage
1
Stage
4
5
GFW Limited
2015.01
Page 9 of 18
NYO150BLK/NYO150BRW/NYO150WHT NEW YORK OTTOMAN TV BED KING SIZE

Stage
5
TV mounting bracket is factory fitted. If
your TV has a 75 x 75mm VESA fixing -
remove it & fit TV directly to column
bracket.
For 100x100mm or 200x100 VESA,
use the TV mounting bracket. Fit to TV
first making sure it is level. Use screws
supplied with TV or from TV installation
kit in main hardware pack. For any
other Vesa mounting, please use an
adaptor plate that can be purchased
from an on-line store.
PREPARE TO INSTALL TV
Before fitting the television to the TV lift, please check below:
Width 70 cm
Depth 6 cm
Height 39 cm
=
=
=
Maximum dimensions of TV that can be used in this bed:
Max 3 cm
BOTTOM OF TV
SHOULD BE LEVEL
WITH LIP.
Max Height is 39 cm

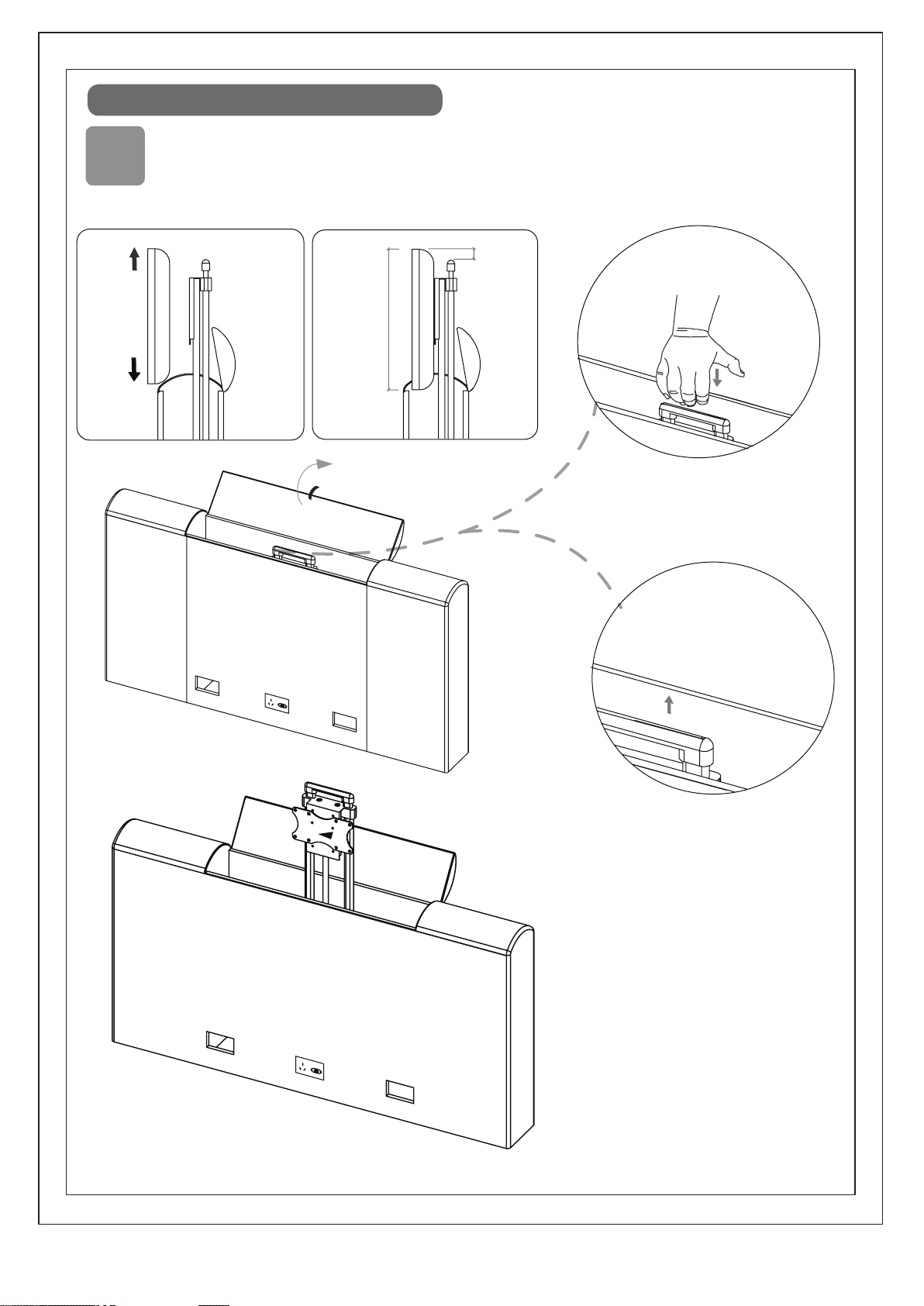

STEP 1:
PUSH DOWN WITH PALM
TO RELEASE LOCK
STEP 2:
LET LIFT RISE TO THE TOP
GFW Limited
2015.01
Page 10 of 18
NYO150BLK/NYO150BRW/NYO150WHT NEW YORK OTTOMAN TV BED KING SIZE

a
Stage
6a
TV INSTALLATION KIT
x4
x1
L
M
Screw-Washer set (M8/M6/M4)
Allen Key (5mm/4mm/3mm)

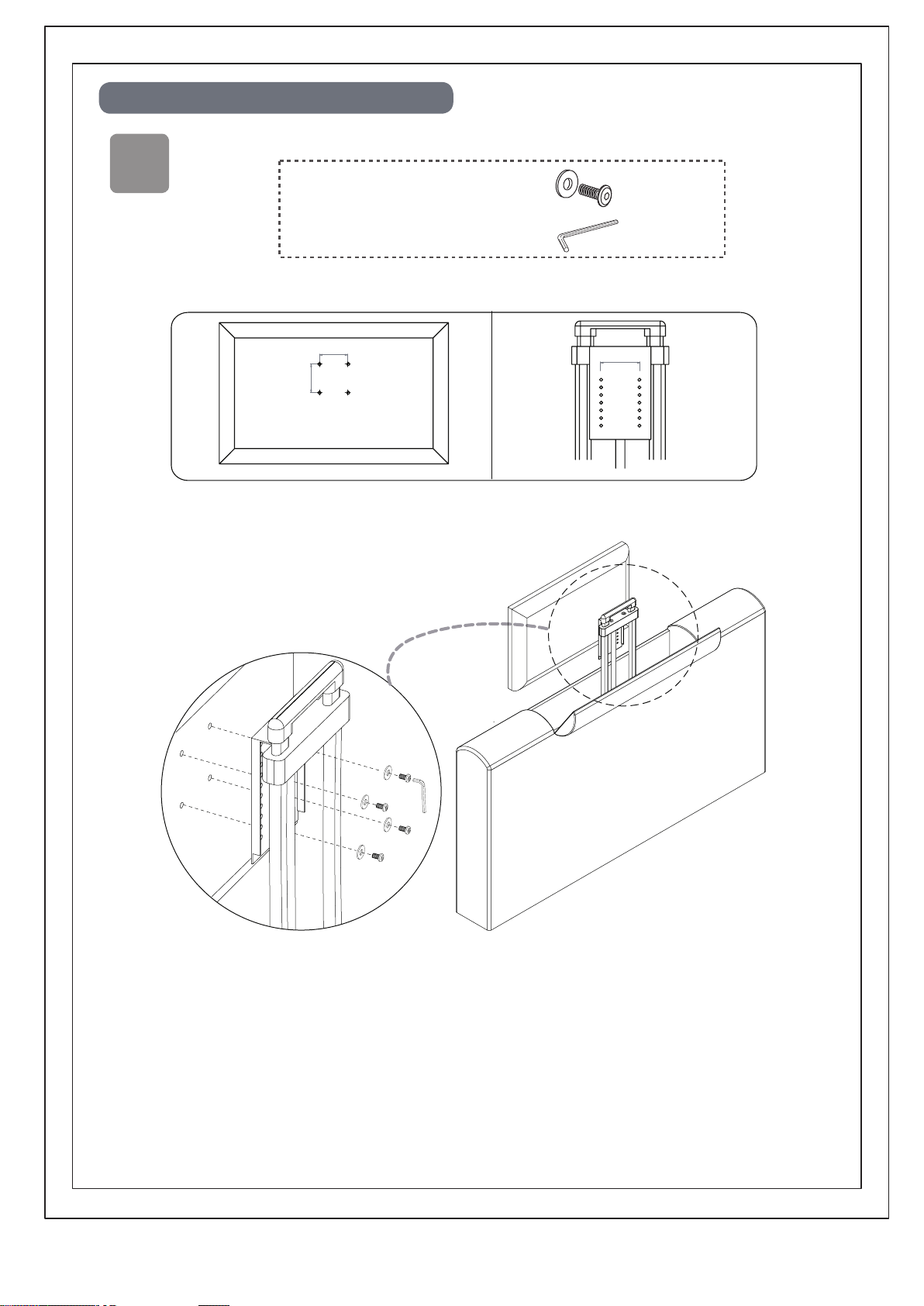

Fitting TV - Vesa 75x75
75mm
75mm
75mm
L
M
GFW Limited
2015.01
Page 11 of 18
NYO150BLK/NYO150BRW/NYO150WHT NEW YORK OTTOMAN TV BED KING SIZE

or
100mm
100mm
200mm
100mm
a
Stage
6b TV INSTALLATION KIT
x4
x1
L
M
Screw-Washer set (M8/M6/M4)
Allen Key (5mm/4mm/3mm)
N
Nuts- Washer set (M6)
x2
x1
Spanner for Nuts
P
NOTE THAT THE BRACKET CAN BE TURNED
UP-SIDE DOWN IF NECESSARY
Fitting TV - Vesa 100x100 or 200x100
N
P
N
L
M
L
M
or
HH
GFW Limited
2015.01
Page 12 of 18
NYO150BLK/NYO150BRW/NYO150WHT NEW YORK OTTOMAN TV BED KING SIZE

7
Stage
x1
M
Allen Key (4mm)

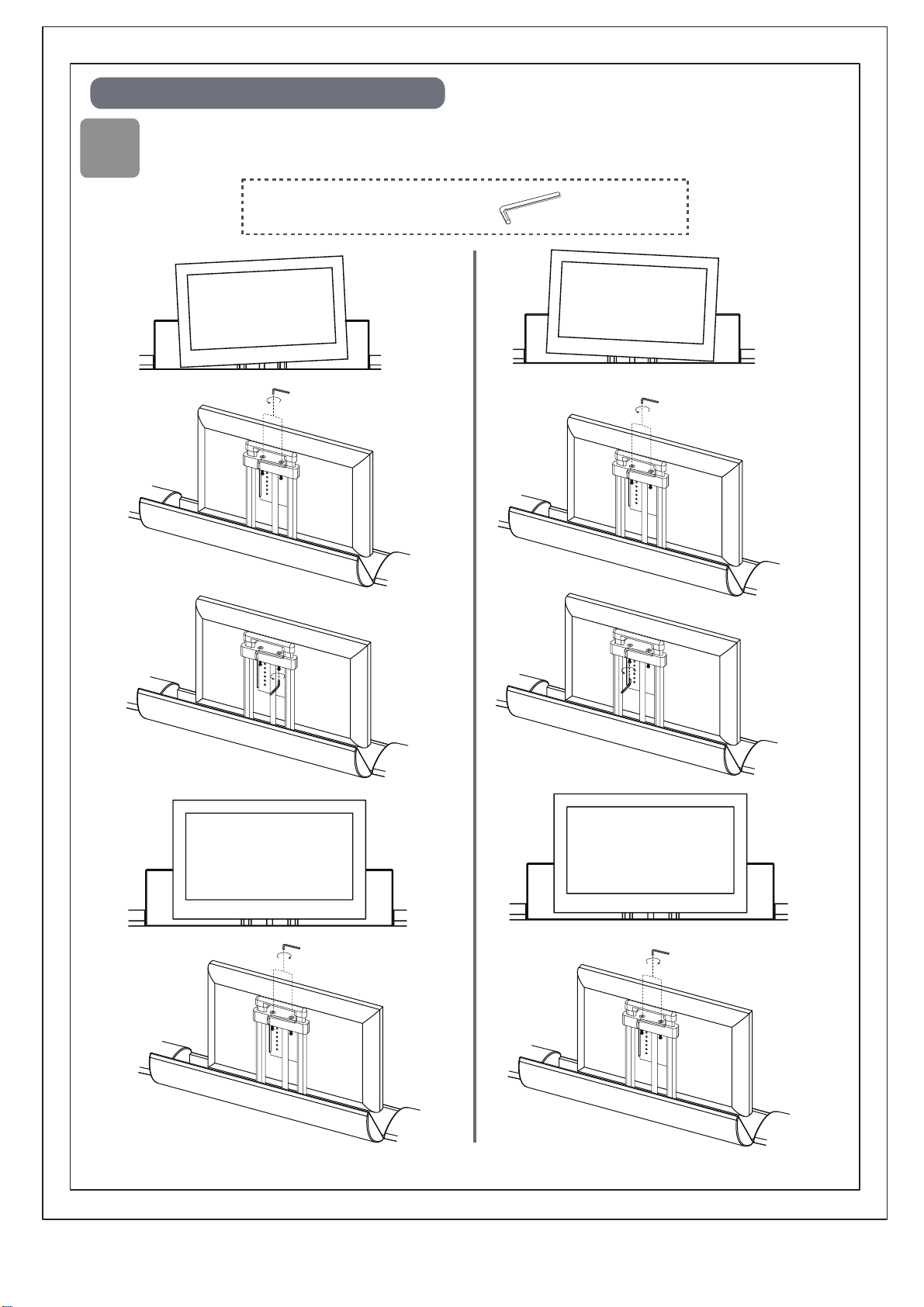

TV BRACKET IS LEVELLED DURING MANUFACTURE - IF YOU NEED TO DO IT AGAIN, FOLLOW THIS METHOD.
TV Levelling Adjustment
M
MM
M
MM
UNLOCK SCREWS
ADJUST SCREW
WHEN TV IS LEVEL
- LOCK SCREWS
GFW Limited
2015.01
Page 13 of 18
NYO150BLK/NYO150BRW/NYO150WHT NEW YORK OTTOMAN TV BED KING SIZE

8
Stage
TV
HDMI 1
Aerial Lead Supplied
by yourself
HDMI Lead Supplied
by yourself
JK
x1 x1
HDMI Aerial
TV Power Cable
(Supplied with TV)
TV
1
23
J
K
Feed tube in this direction-hold clip firmly in place
TV Power Cable
Aerial
HDMI
Close to TV, place the the cable
manager clip over the cables.
TV
TV
Fitting Cables
GFW Limited
2015.01
Page 14 of 18
NYO150BLK/NYO150BRW/NYO150WHT NEW YORK OTTOMAN TV BED KING SIZE

TV power cable
supplied with your TV
TV power cable
supplied with your TV
3 Mt Power Lead
9

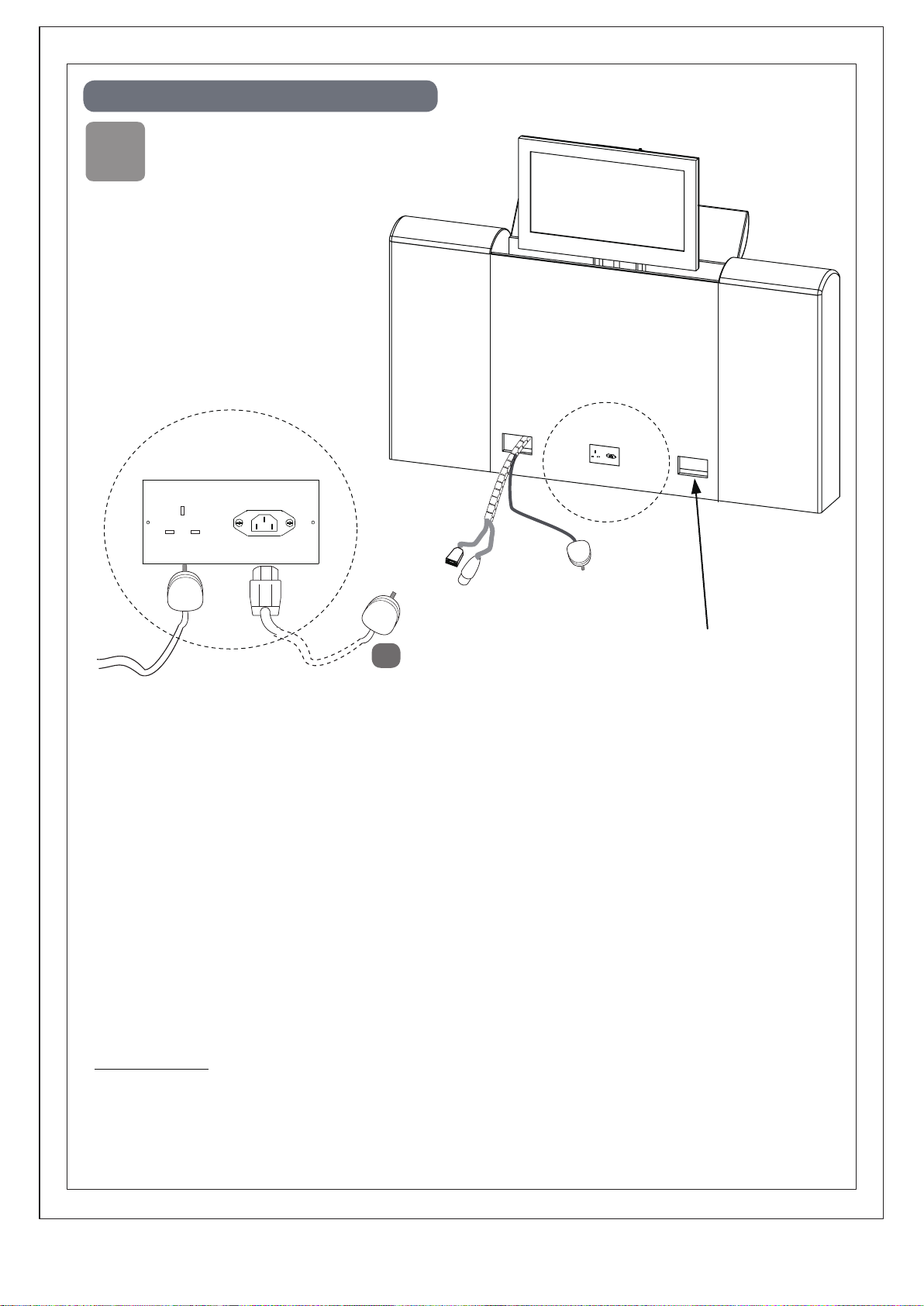

Connect the power lead plug (9) into the
socket located at the bottom of the footboard
(2), then connect to your wall socket.
Note that the plug has an earth blade and the
wall socket must have an earth terminal too.
The plug connection must be easy to reach if
you need to disconnect the power.
Use left or right duct, depending
on the ports that are on your TV -
take the shortest route.
9
Stage
is pushed out of flex.
Connect Power Lead
Plug the TV power cable into the socket at bottom of footboard then connect your own media cables
as required.
Connect the cables to the television & media equipment making sure the cables are
not loose. If necessary use cable ties & cable clips to route cables safely (10&11).
The television can now be operated following the TV Operation Manual.
To lower the television back into the footboard, push TV lift down until it locks - note
when TV is fitted, it is easier to push due to balance of the weight.
When down, power for TV turns off automatically.
When TV is raised, power turns back on automatically.
Trouble shooting
If your television does not operate please check all the power connections, both
to the wall and to the socket in the footboard. Make sure TV is switched on.
Note: TV will only work when it is in the up position.
GFW Limited
2015.01
Page 15 of 18
NYO150BLK/NYO150BRW/NYO150WHT NEW YORK OTTOMAN TV BED KING SIZE

Each lift up mechanism has x3
holes for the M8 x 50mm bolts
Metal Slat-Frame
PLEASE NOTE: MAKE SURE THE HOLES FOR MATTRESS
STOPPERS ARE ON THE CORRECT SIDE OF THE SLAT-FRAME
BEFORE BOLTING TOGETHER.
Bed Assembly
10
Stage
4
1
2
GFW Limited
2015.01
Page 16 of 18
NYO150BLK/NYO150BRW/NYO150WHT NEW YORK OTTOMAN TV BED KING SIZE

D
G
C
E
B
C
H
Use fixings (E), (C), (B) & (G)- tighten the bolt by using allen key (D) with spanner (H).
NOTE: Do not fully tighten all the bolts before confirming the metal frame is in correct position.
Frame must be in the centre of bed in length & width. Check frame is not likely to touch either
headboard or footboard when lifting or closing. Tie lifting strap to opening side.
Make sure the x3 SETS of bolts are connected as shown.
Once everything has been assembled, tighten all the bolts 100%.
D
H
E
B
G
x6
C
x12 x1
x6
x6
x1
PLEASE NOTE: MAKE SURE
THERE IS AN EVEN GAP ALL
ROUND, IN-BETWEEN THE
SLAT-FRAME & THE BED.
------
Bed Assembly
11
Stage
GFW Limited
2015.01
Page 17 of 18
NYO150BLK/NYO150BRW/NYO150WHT NEW YORK OTTOMAN TV BED KING SIZE

SPACE

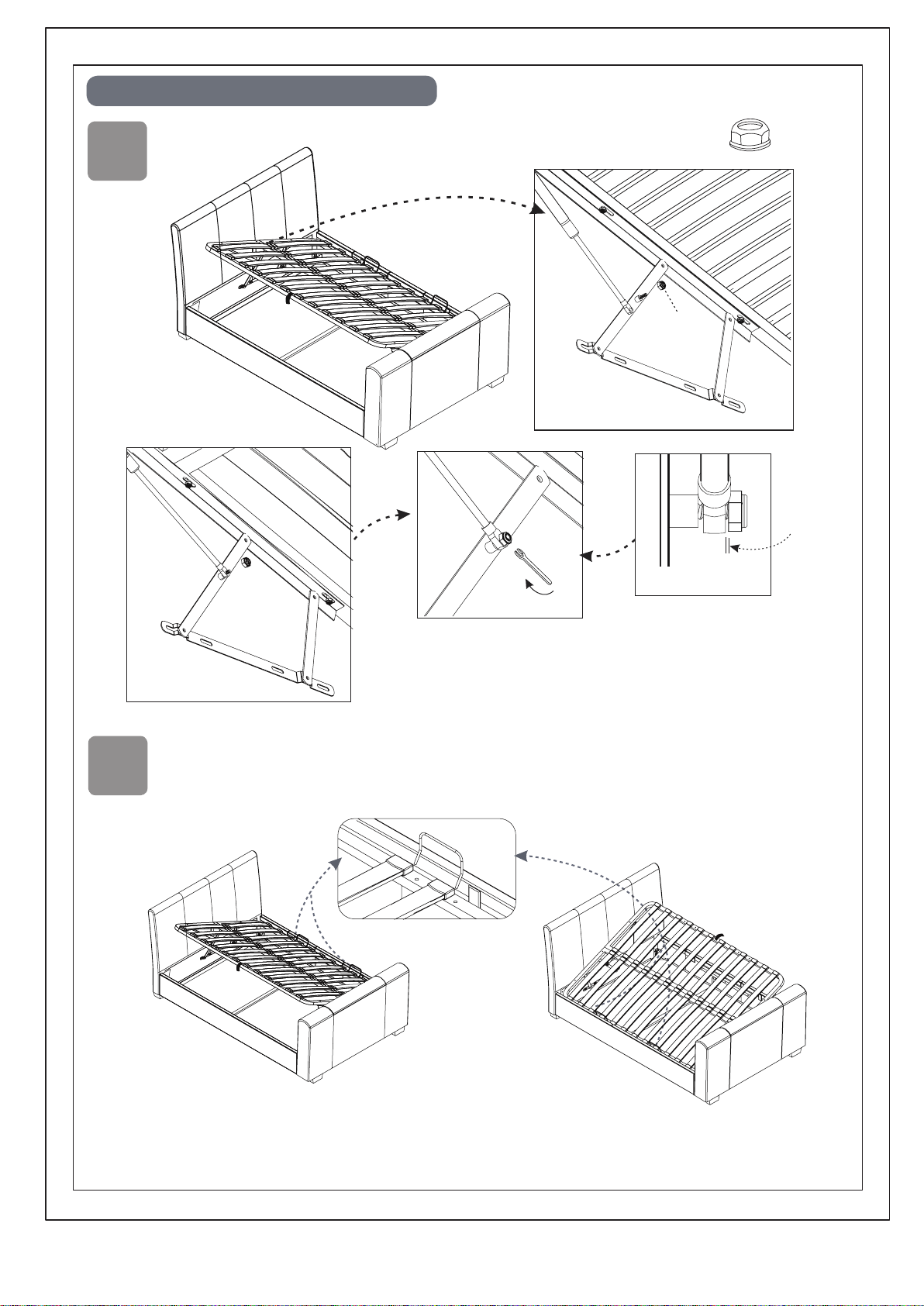

Frame should be held up by an assistant and gas-lifts fitted.
1. Release gas-lifts pistons letting then dangle downwards.
2. Remove flange lock-nut (R) from threaded axle.
3. Fit stem of gas-lift piston to axle and re-fit nut.
4. Tighten nut making sure it is not over-tightened.
There is a small gap so stem can move - see diagram above-right.
NOTE: Place mattress on slat-frame when frame is down. Lift with strap & close with strap which should always be
accessible. Slowly lift frame by the lifting strap taking care to not lean over the bed because if the mattress is thin & light,
frame will rise quickly. To close bed, push gently away from lifting strap side and down at the same time. The frame will
close, speed of closing depends on weight of mattress so always keep fingers well clear of the metal frame.
Push mattress stoppers x2 (S) into slat-frame.
R
S
x2
R
R
Bed Assembly
12
Stage
13
Stage
GFW Limited
2015.01
Page 18 of 18
NYO150BLK/NYO150BRW/NYO150WHT NEW YORK OTTOMAN TV BED KING SIZE
