Ghibli & Wirbel RACER R 85 FD 65 User guide

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
RACER
RANGER
R 85 FD 65
R 85 FD 75
R 115 FD 75
R 115 FD 85
EN
Use and Maintenance
49.0296.00
ed. 04/2021
49029600_Copertina RACER_RANGER_3ed_04-2021.indd 149029600_Copertina RACER_RANGER_3ed_04-2021.indd 1 23/03/2021 13:46:4523/03/2021 13:46:45

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
2
2%
MADE IN ITALY
IPX3
Scrubber Dryer
GVW: ...........
Mod: ..................................
Battery: .................................... Art.: ..................
Charging: ................................
Year: ..............
s/n: ...........................
2%
MADE IN ITALY
IPX3
Scrubber Dryer
GVW: ..........
Mod: ................................
Battery: ........V .............W Art.: ..................
Charging: .......................................
Year: .............
s/n: .........................
1
2
3
4
8
7
6
95
49029600_Copertina RACER_RANGER_3ed_04-2021.indd 249029600_Copertina RACER_RANGER_3ed_04-2021.indd 2 23/03/2021 13:46:4723/03/2021 13:46:47

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
3
1 2 3
IT Produttore Caratteristiche elettriche N° Matricola
EN Manufacturer Electrical characteristics Serial N°
FR Producteur Caractéristiques électriques N° Matricule
DE Hersteller Elektrische Eigenschaften Serien-Nr.
ES Fabricante Características eléctricas N° Matrícola
PT Produtor Características elétricas Número de série
NL Producent Elektrische eigenschappen Serienummer
CS Výrobce Elektrické údaje Výrobní č.
RU Изготовитель Электрические характеристики Заводской №
PL Producent Specykacja elektryczna Numer seryjny
AR   
4 5 6
IT Grado di protezione Peso in ordine di marcia Anno di costruzione
EN Degree of protection Weight in running order Year of manufacture
FR Degré de protection Poids en ordre de marche Année de construction
DE Schutzgrad Gewicht bei Betrieb Baujahr
ES Grado de protección Peso en orden de marcha Año de fabricación
PT Grau de protecção Peso em ordem de marcha Ano de construção
NL Beschermingsgraad Gewicht in rijklare toestand Bouwjaar
CS Úroveň ochrany Hmotnost v provozním stavu Rok výroby
RU Βαθμός προστασίας Βάρος στην λειτουργία Έτος κατασκευής
PL Stopień zabezpieczenia Ciężar podczas eksploatacji Rok produkcji
AR   
7 8 9
IT Codice articolo Modello Massima pendenza superabile
EN Item code Model Maximum superable slope
FR Référence de l’article Modèle Pente maximum surmontable
DE Artikelnummer Modell Maximal befahrbare Steigung
ES Código del artículo Modelo Máxima pendiente que se puede superar
PT Código do artigo Modelo Máximo declive transponível
NL Artikelcode Model Maximaal berijdbare hellingsgraad
CS Kód položky Model Maximální překonatelný sklon
RU Код изделия Модель Максимальный преодолимый наклон
PL Kod artykułu Model Maksymalne superable stoku
AR   
49029600_Copertina RACER_RANGER_3ed_04-2021.indd 349029600_Copertina RACER_RANGER_3ed_04-2021.indd 3 23/03/2021 13:46:4723/03/2021 13:46:47

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
4
49029600_Copertina RACER_RANGER_3ed_04-2021.indd 449029600_Copertina RACER_RANGER_3ed_04-2021.indd 4 23/03/2021 13:46:4723/03/2021 13:46:47

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
5
EN English .............................................................................................................EN - 1
(Translation of original instructions)
49029600_Copertina RACER_RANGER_3ed_04-2021.indd 549029600_Copertina RACER_RANGER_3ed_04-2021.indd 5 23/03/2021 13:46:4723/03/2021 13:46:47

49029600_Copertina RACER_RANGER_3ed_04-2021.indd 649029600_Copertina RACER_RANGER_3ed_04-2021.indd 6 23/03/2021 13:46:4723/03/2021 13:46:47

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
ENGLISH - 1
Dear Customer,
Thank you for choosing one of our cleaning products.
The floor scrubber dryer that you have purchased has been designed to satisfy the user
in terms of ease of use and reliability over time.
We are aware that in order for a good product to stay that way, over time, it requires
continuous updates aimed at meeting the expectations of those who use it on a daily
basis. For this reason, we hope that you will not only be a satisfied customer but also a
partner who does not hesitate to give us your opinions and ideas originating from your
personal day-to-day experience.
49029600_Manuale RACER_RANGER_3ed_04-2021.indd 149029600_Manuale RACER_RANGER_3ed_04-2021.indd 1 23/03/2021 13:49:2723/03/2021 13:49:27

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
ENGLISH - 2
INDEX
INDEX ............................................................................................................................................. 2
TECHNICAL DATA ......................................................................................................................... 3
1.1 - INTRODUCTION.................................................................................................................. 5
1.1.a - Operator position .......................................................................................................... 5
1.1.b - General warnings while using the machine .................................................................. 5
1.2 - NON-INTENDED MACHINE USE........................................................................................ 5
2.1 - GETTING TO KNOW THE MACHINE (Fig. A).................................................................... 5
3.1 - UNPACKING (Fig. B) .......................................................................................................... 5
3.1.a - Battery installation (Fig. A)............................................................................................ 6
3.1.b - Unloading the machine from the wooden pallet (Fig. B)............................................... 6
4.1 - ASSEMBLY COMPONENTS............................................................................................... 6
4.1.a - Squeegee installation (Fig. C) ...................................................................................... 6
5.1 - CHARGING THE BATTERY............................................................................................... 6
5.1.a - Charging the battery with an external battery charger (Fig. G) .................................... 7
5.1.b - Battery charging with on-board battery charger (if present) (Fig. G) ............................ 7
6.1 - MACHINE CONTROLS ....................................................................................................... 7
6.1.a - Control panel (Fig. F).................................................................................................... 7
6.1.b - Accelerator pedal (Fig. A) ........................................................................................... 10

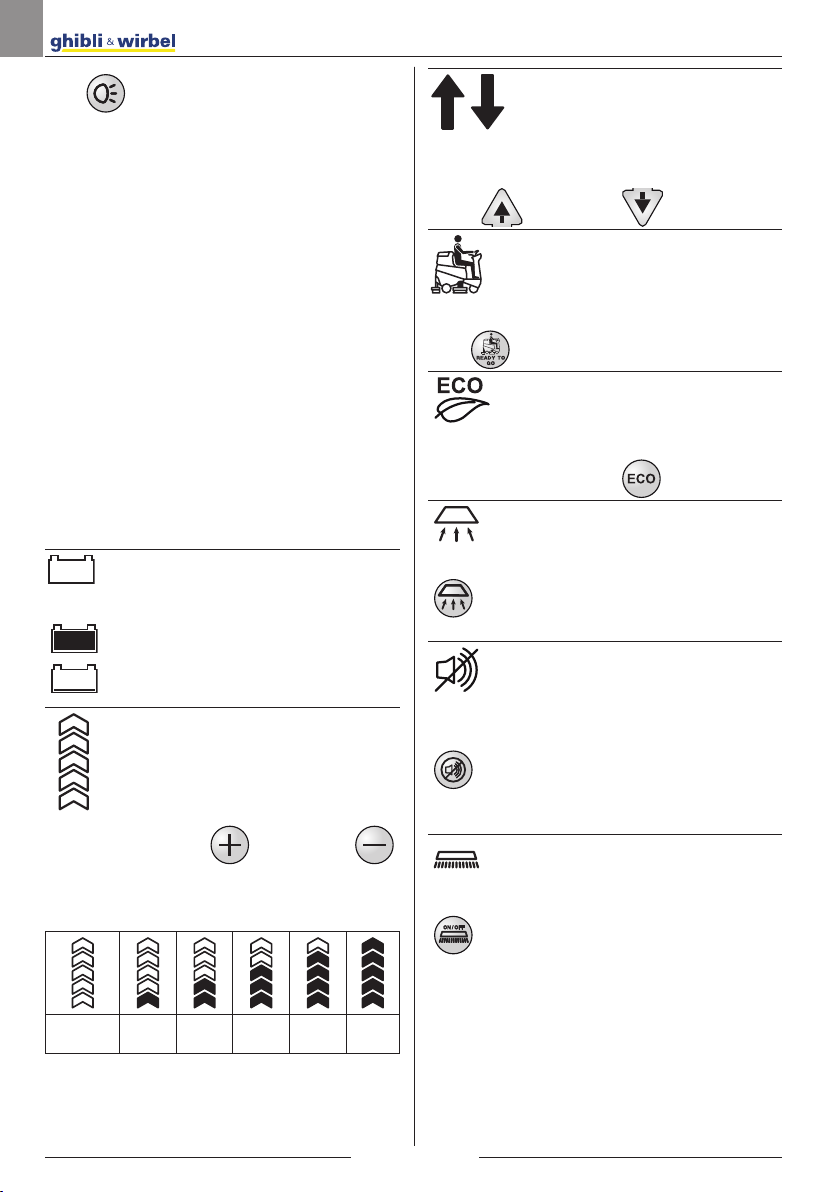

7.1 - DISPLAY (Fig. F) ............................................................................................................... 10
8.1 - EMERGENCY .................................................................................................................... 11
9.1 - SAFETY DEVICES (Fig. A) ............................................................................................... 11
10.1 - FILLING THE TANK (Fig. D) ............................................................................................ 12
10.2 - DETERGENT CHEMICAL TANK (Fig. E) (if present)...................................................... 12
11.1 - OPERATION (Fig. A-F)...................................................................................................... 12
11.1.a - Checks before use...................................................................................................... 12
11.1.b - Preparing the machine and choosing the cycle.......................................................... 12
11.1.c - Using the machine...................................................................................................... 13
11.1.d - End of use and shutdown ........................................................................................... 14
12.1 - DRAINING THE RECOVERY WATER (Fig. H) ................................................................. 14
13.1 - MAINTENANCE AND CLEANING .................................................................................... 14
13.2 - OPERATIONS TO PERFORM DAILY ............................................................................... 14
13.2.a - Emptying and cleaning the clean water tank (Fig. I)................................................... 14
13.2.b - Cleaning the recovery water tank (Fig. J)................................................................... 15
13.2.c - Squeegee cleaning (Fig. K) ........................................................................................ 15
13.3 - OPERATIONS TO BE PERFORMED EVERY 3 MONTHS ............................................... 15
13.3.a - Check the wear status of the steering chain (Fig. L) .................................................. 15
13.4 - OPERATIONS TO PERFORM WHEN NECESSARY........................................................ 15
13.4.a - Replacing the brushes (Fig. M) .................................................................................. 15
13.4.b - Replacing the squeegee rubber blades (Fig. K) ......................................................... 16
13.4.c - Adjusting the pressure of the squeegee (Fig. N) ........................................................ 16
13.4.d - Cleaning the clean water lter (Fig. O) ....................................................................... 16
13.4.e - Checking the wear status of the three wheels (Fig. A) ............................................... 16
14.1 - PARAMETER SETTING (Fig. F) ....................................................................................... 17
14.1.a - OPERATOR parameters............................................................................................. 17
15.1 - FUSE CHECK/REPLACEMENT........................................................................................ 19
16.1 - ALARMS DURING THE FUNCTIONING (Fig. F).............................................................. 19
17.1 - TROUBLESHOOTING....................................................................................................... 22
18.1 - DEMOLITION OF THE MACHINE .................................................................................... 23
19.1 - WIRING DIAGRAM ........................................................................................................... 24
49029600_Manuale RACER_RANGER_3ed_04-2021.indd 249029600_Manuale RACER_RANGER_3ed_04-2021.indd 2 23/03/2021 13:49:2723/03/2021 13:49:27

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
ENGLISH - 3
TECHNICAL DATA
RACER R 85 RANGER R 115
FD 65 FD 75 FD 75 FD 85
Driving type Ride-on
Features
Operation and Supply Battery 24 V
Type of batteries
N° 2 - 12V 105Ah (C5) N° 4 - 6V 240Ah (C5)
N° 4 - 6V 180Ah (C5) N° 1 - 24V 320Ah (C5)
- -
Installed power 2160 W 2210 W
Running time 2 h (105Ah)
4 h (180Ah)
5 h (240Ah)
7 h (320Ah)
Advancement Forward / reverse drive
Washing track width 650 mm 750 mm 750 mm 850 mm
Suction width 850 mm 950 mm 950 mm 1050 mm
Productivity theoretical 4000 m2/h 4500 m2/h 4500 m2/h 5000 m2/h
Productivity practical 2400 m2/h 2700 m2/h 2700 m2/h 3000 m2/h
Hand-arm vibration system 1,70 m/s2
Whole body vibration 0,63 m/s2
Sound pressure (LpA) 68 dB(A) 67 dB(A)
Sound pressure in silent mode 59 dB(A)
Uncertainty KpA 0,75 dB(A)
IP code IPX3
Brushes
Diameter / pad / number 330 mm /
13” / 2
380 mm /
15” / 2
380 mm /
15” / 2
430 mm /
17” / 2
Motor power / number 500 W / 2
Brush speed 165 rpm
Specific pressure 30 gr/cm221 gr/cm221 gr/cm217 gr/cm2
Specific pressure (extra pressure) 46 gr/cm232 gr/cm243 gr/cm234 gr/cm2
Traction
Maximum slope of use during work 2 %
Maximum slope when empty (*) 12 %
Drive motor power 600 W
Maximum forward speed 6 km/h
49029600_Manuale RACER_RANGER_3ed_04-2021.indd 349029600_Manuale RACER_RANGER_3ed_04-2021.indd 3 23/03/2021 13:49:2723/03/2021 13:49:27

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
ENGLISH - 4
RACER R 85 RANGER R 115
FD 65 FD 75 FD 75 FD 85
Suction
Motor power 550 W
Depression (water column) 125 mbar / 1250 mmH2O
Air flow 30 l/sec
Tank
Typology Double tank
Solution capacity 80 l 110 l
Recovery capacity 85 l 115 l
Dimensions
Machine dimensions
(length x width x height) 1375 x 705 x 1230 mm 1470 x 770 x 1365 mm
Machine width - Brushes deck 715 mm 785 mm 785 mm 890 mm
Machine width - squeegee 885 mm 950 mm 950 mm 1055 mm
Battery compartment dimensions
(length x width x height) 380 x 540 x 310 mm 380 x 625 x 440 mm
Weight
Empty weight 213 kg 246 kg
Weight with Gel 12V 105Ah batteries 285 kg -
Weight with Gel 6V 180Ah batteries 333 kg -
Weight with Gel 6V 240Ah batteries - 432 kg
Weight with Pb Wet 24V 320Ah battery - 506 kg
Gross vehicle weight (GVW) 490 kg 691 kg
(*) The machine was tested under the following conditions:
• Standard battery
• Empty tanks
• Raw concrete ramp
• Ramp length 15 m
• 75 kg of operator
1 -
49029600_Manuale RACER_RANGER_3ed_04-2021.indd 449029600_Manuale RACER_RANGER_3ed_04-2021.indd 4 23/03/2021 13:49:2723/03/2021 13:49:27

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
ENGLISH - 5
1.1 - INTRODUCTION
NOTE:
The numbers and the figure references
shown in brackets refer to the components
indicated in the annexed illustrative sheet.
DANGER:
Before using the machine carefully
read the “SAFETY WARNINGS FOR
FLOORS WASHER-DRYER” manual
annexed to this one and the additions
indicated below.
1.1.a - Operator position
The operator, during the machine use is sit-
ting on the seat with his hands on the steer-
ing wheel.
1.1.b - General warnings while us-
ing the machine
- DO NOT leave the machine unattended
on inclined surfaces.
- It is absolutely forbidden to turn while on
ramps; danger of tipping/overturning.
- Avoid using the machine in environments
where there is a risk of falling objects.
1.2 - NON-INTENDED
MACHINE USE
- Do not operate the machine with the re-
covery tank open.
- Hands and feet must be kept on board
while the machine is in motion.
- Do not make sudden turns, especially dur-
ing downhill movements.
WARNING:
Only ONE PERSON at a time is to be
permitted on board the machine.
2 -
2.1 - GETTING TO KNOW THE
MACHINE (Fig. A)
(1) Steering-wheel
(2) Dashboard
(3) Seat
(4) Operator presence sensor
(5) EMERGENCY push-button, to stop im-
mediately all functions
(6) Foot rest
(7) Accelerator pedal
(8) Rear wheels
(9) Operating light (optional)
(10)Flashing light (optional)
(11) Recovery water tank
(12)Recovery water tank cover
(13)Clean water tank
(14)Plug
(15)Recovery water drain hose
(16)Squeegee water aspiration hose
(17)Clean water drain hose
(18)Clean water tank level tube
(19)Brushes deck
(20)Squeegee
(21)Document compartment
(22) Water lter
(23)Traction and directional wheel
(24)Squeegee support hook
(25)Recovery tank support peg
3 -
3.1 - UNPACKING (Fig. B)
Once the packaging has been removed as
indicated in the instruction sheet on the pack-
aging itself, check the integrity of the ma-
chine and all the components supplied.
If any obvious damage is found, contact your
local dealer and carrier within 3 days of re-
ceipt.
- Remove the envelope and boxes (26)
containing the supplied accessories:
• (20) Squeegee.
• (32) N ° 2 brushes.
- Lift the tank unit and take the documenta-
tion from the appropriate envelope:
• (33) Machine use and maintenance
manual.
• (34) Battery charger instruction manual
(if present).
49029600_Manuale RACER_RANGER_3ed_04-2021.indd 549029600_Manuale RACER_RANGER_3ed_04-2021.indd 5 23/03/2021 13:49:2823/03/2021 13:49:28

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
ENGLISH - 6
3.1.a - Battery installation (Fig. A)
- Lift the recovery tank carefully (11).
- Depending on the conguration (4 6 V
batteries, 2 12 V batteries, 1 package of
24 batteries), position and connect the
batteries as shown in gure, using the ca-
bles and plugs provided.
- Lower the recovery water tank carefully
(11).
NOTE:
The batteries must be installed and connect-
ed by qualified personnel.
3.1.b - Unloading the machine from
the wooden pallet (Fig. B)
- Remove the wooden block (27) positioned
in front of the front wheel.
- Place the ramp (28) in front of the wooden
pallet as indicated in the instruction sheet
on the packaging.
- Sit on the seat (3) in driving position.
- Turn the key (29) on “ON”.
- Press the travel direction button (31a) “
” (forward travel), then carefully
press the accelerator pedal (7) and step
o󰀨 the pallet.
4 -
4.1 - ASSEMBLY
COMPONENTS
4.1.a - Squeegee installation (Fig.
C)
- Insert the squeegee (20) into its support
plate (35) and fasten it by tightening the
two knobs (36).
- Connect the suction tube (16) to the
squeegee’s intake opening (37).
4.1.b - Brushes installation
- See procedure in the “13.4.a - Brushes re-
placement (Fig. M)” paragraph.
5 -
5.1 - CHARGING THE
BATTERY
DANGER:
Charge the batteries in rooms which
are well-ventilated and comply with
applicable regulations in the country
of use.
For safety-related information, follow
what is described in chapter 1 of this
manual.
WARNING:
For information and warnings about
the battery and on board battery
charger (if present) follow what is de-
scribed in the battery charger manual
enclosed with this document.
WARNING:
When the machine leaves the factory,
it is calibrated to operate with gel bat-
teries. If other types of batteries are
installed, see the paragraph “Param-
eter setting”.
The use of gel batteries with calibra-
tion for acid or other batteries is pro-
hibited.
NOTE:
10 hours are needed for complete battery
charging. Avoid partial recharges.
Charge the batteries at the end of each job or
at least when the battery symbol “ ” on
the display (41 Fig. F) starts ashing.
- Drive the machine to the battery charging
station.
- Lift the recovery water tank (11) making
sure it is empty.
49029600_Manuale RACER_RANGER_3ed_04-2021.indd 649029600_Manuale RACER_RANGER_3ed_04-2021.indd 6 23/03/2021 13:49:2823/03/2021 13:49:28

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
ENGLISH - 7
5.1.a - Charging the battery with
an external battery charger
(Fig. G)
- Check the function of the battery charger
consulting the corresponding Manual.
- The nominal voltage of the battery charg-
er must be equal to 24 V.
- Take connector (39) from the appropriate
housing (38) and connect it to the external
battery charger.
- Connect the battery charger to the electri-
cal network.
- When the recharging is nished, discon-
nect the battery charger from the network
and from connector (39).
- Lower the recovery water tank carefully
(11).
5.1.b - Battery charging with on-
board battery charger (if
present) (Fig. G)
- From the appropriate housing (38), take
and connect the plug of the battery charg-
er cable (40) to the electrical network (the
network voltage and frequency must be
the same as the corresponding values
of the battery charger, shown in the ma-
chine’s registration plate).
NOTE:
When the battery charger is connected to the
electrical mains, all machine functions are
automatically disabled.
- On the display (41 Fig. F), when the seg-
ments light up in sequence on the bat-
tery symbol , this means that the battery
charger is charging the batteries.
- When all the segments in the battery
symbol are lighted up steadily, the battery
charging cycle has ended.
- Disconnect the battery charger cable (40)
from the electrical network and insert it
into the appropriate housing (38).
- Lower the recovery water tank carefully
(11).
6 -
6.1 - MACHINE CONTROLS
6.1.a - Control panel (Fig. F)
(29) Ignition key
- Turned in a clockwise direction to “ON” it
powers the circuits, enabling machine op-
eration.
- Turned in an anti-clockwise direction to
“OFF” it disconnects power to the circuits
and can be removed.
(30) Buttons for maximum speed
adjustment
It is possible to adjust the maximum travel
speed using buttons (30a) “ ” and (30b)
“ ”.
- Pressing the accelerator pedal (7) com-
pletely, the speed will be adjusted propor-
tionally to the maximum set value.
- When all speed symbols “ ” are lighted
on the display (41), the accelerator pedal
(7) is inhibited and the machine remains
stopped.
(31) Travel direction buttons
- When the forward button (31a) “ ” is
pressed, the machine travels forward; the
icon “ ” shows up on the display.
- When the backward button (31b) “ ”
is pressed, the machine travels backward
and the backward motion buzzer is actu-
ated; the icon “ ” shows up on the dis-
play.
NOTE:
The maximum backward speed can be set,
as in the forward travel, with buttons (30).
49029600_Manuale RACER_RANGER_3ed_04-2021.indd 749029600_Manuale RACER_RANGER_3ed_04-2021.indd 7 23/03/2021 13:49:2923/03/2021 13:49:29

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
ENGLISH - 8
(41) Display
- See the specic chapter.
(42) “Ready to go” button
- Pressing the button (42) on the display,
the icon “ ” shows up and the follow-
ing functions are started according to a
standard setting:
• Lowering of the brushes deck and rota-
tion of the brushes.
• Lowering of the squeegee and starting
of the suction device.
• Work speed = 3^ notch (3,6 km/h).
• Water ow = 3^ notch.
• Chemical agent = 3^ notch (1%).
• Suction = normal (100%).
• Brushes pressure = normal.
- With this standard function activated it is
possible to press any work button for any
modication or adjustment.
If necessary, when a modication is set in the
work functions, it is possible to save it acting
as indicated below:
- Press and keep pressed the button (42)
for 3 seconds; the saving conrmation is
indicated on the display (41) by the ash-
ing of “UPLOADED”.
- To deactivate the new setting and return
to the standard setting values, press
again and keep pressed the button (42)
for 3 seconds; the conrmation is indicat-
ed on the display (41) by the ashing of
“RESET”.
(43) ECO button
- When pressing the button (43) on the
display in the work phase, the icon “ ”
shows up, the parameters of water, chem-
ical agent, suction and holder pressure
assume the following values:
• Water ow = 3^ notch.
• Chemical agent = 3^ notch (1%).
• Suction = silent (50%).
• Brushes pressure on the oor = nor-
mal.
(44) Suction button
- Pressing the button (44) the suction de-
vice turns on and the icon “ ” shows up
on the display and, if the forward gear is
engaged or if the machine is in neutral,
the squeegee lowers.
- Press the button (44) again and the suc-
tion will stop and the squeegee lifts.
- If the machine is still, the squeegee is low-
ered and the key (29) is on “ON” after a
certain period of inactivity the squeegee
will automatically lift.
(45) Silent operation button
- Pressing the button (45) reduces the
speed of the suction turbine, signicantly
reducing the noise emitted by the ma-
chine; with the function enabled, the “
icon appears on the display.
- Pressing the button (45) again disables
the function and the machine resumes op-
erating in standard mode, the “ ” icon
turns o󰀨 and the “ ” icon appears on
the display.
NOTE:
When turning o the aspiration turbine with
“silent operation” mode enabled, the opera-
tion of the turbine will automatically switch
to “standard operation” mode for the entire
shut-o delay time.
(46) Brushes button
- Pressing the button (46), the brushes
deck lowers and the icon “ ” shows up
on the display.
- The brushes start rotating when the accel-
erator pedal is pressed, they stop when
the accelerator pedal is raised.
49029600_Manuale RACER_RANGER_3ed_04-2021.indd 849029600_Manuale RACER_RANGER_3ed_04-2021.indd 8 23/03/2021 13:49:3123/03/2021 13:49:31

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
ENGLISH - 9
NOTE:
The brushes rotate both in forward and re-
verse mode and with speed adjustment (30)
at “0”.
- When the machine is still, with the head
lowered, the brushes still and the key (29)
on “ON” position, after a certain period of
inactivity the head will automatically lift.
- If you press the button (46) while the
brushes are rotating, they’ll stop, the unit
lifts and the symbol “ ” on the display
turns o󰀨.
(47) Brushes extra pressure
button
With the brush deck lowered it is possible to
adjust the pressure of the brush on the oor.
- Pressing the button (47) activates the ex-
tra pressure; with the function enabled,
the icon “ ” shows up on the display.
- By pressing the button (47) again the
pressure on the oor returns to normal
and the icon “ ” shows up on the display.
NOTE:
Each time the brushes deck lifts (rest posi-
tion), the brushes pressure sets at the mini-
mum value.
NOTE:
The extra pressure function is equipped with
a safety system that automatically recog-
nises an excessive current absorption of the
brushes motors and it’s able to automatically
change the lowered brushes pressure taking
it to the most useful position.
(48) Chemical agent dosing but-
ton (if present)
- Pressing the button (48) the icon “ ”
shows up on the display, and the dosing of
the chemical agent is prepared. The dos-
ing pump operation is commanded by the
accelerator pedal pressed.
- Pressing the button (48) repeatedly, the
quantity of chemical agent increases; up
to the maximum quantity viewed on the
display of icon “ ”. By pressing the but-
ton (48) the function is deactivated and
the icon turns o󰀨 on the display.
NOTE:
In case of emptying of the chemical agent
dosing system, after replacing the tank, hold
and hold the button (48) pressed for at least
5 seconds to activate the air purge proce-
dure lasting about 40 seconds; this function
is activated only with the machine stopped,
the key (29) in the “ON” position and with the
speed adjustment (30) at “0”.
(49) Water ow button
- Pressing the button (49), the icon “ ”
shows up on the display and the opening
of the water solenoid valve is prepared.
The operation of the same is commanded
by the accelerator pedal pressed.
- Repeatedly press the button (49) to in-
crease the water quantity; when the maxi-
mum quantity is reached, it’ll be shown on
the display by the icon “ ”. If the button
(49) is pressed again the function will be
disabled.
(50) Acoustic warning button
(51) Rotating ashing light but-
ton
49029600_Manuale RACER_RANGER_3ed_04-2021.indd 949029600_Manuale RACER_RANGER_3ed_04-2021.indd 9 23/03/2021 13:49:3323/03/2021 13:49:33

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
ENGLISH - 10
(52) Operating light button
6.1.b - Accelerator pedal (Fig. A)
- Pressing the accelerator pedal (7), the
machine moves either forward or back-
ward, according to the travel direction but-
ton that was pressed.
- The speed can be adjusted by a higher or
lower pressure on the accelerator pedal.
- Release the accelerator pedal (7) to slow
down the machine until it stops. After a
few seconds after the machine is still the
parking brake automatically activates; this
brake will be disabled when the accelera-
tor pedal (7) is pressed with forward or re-
verse motion on.
7 -
7.1 - DISPLAY (Fig. F)
With the machine running, the following
icons show up on the display (41):
Battery
Indicates the charge status of the batteries:
Battery charged
Battery discharged
Maximum advance speed
With buttons (30a) “ ” and (30b) “ ”
the maximum speed attainable by the ma-
chine is set with the accelerator pedal (7)
completely pressed:
km/h - 0 1,2 2,4 3,6 4,8 6,0
Travel direction
The travel direction arrow indicates the se-
lected advance function by acting on buttons
(31a) “ ” and (31b) “ ”.
“Ready to go”
It is viewed on the display when the button
(42) “ ” is pressed.
ECO mode
Is shown when the ECO function is active
through the button (43) “ ”.
Suction device working
Is viewed on the display when the button (44)
“” is pressed, indicating that the suction
device is on and the squeegee is low.
Silent operation
With the suction device on.
Is viewed on the display when the button (45)
“” is pressed, indicating that the suction
device is working with a reduced rotation re-
gime.
Preparation of brushes rota-
tion
Is viewed on the display when the button (46)
“” is pressed, indicating that the brush
rotation is enabled.
49029600_Manuale RACER_RANGER_3ed_04-2021.indd 1049029600_Manuale RACER_RANGER_3ed_04-2021.indd 10 23/03/2021 13:49:3523/03/2021 13:49:35

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
ENGLISH - 11
Extra-pressure
Is viewed on the display indicating the brush
operation pressure.
Press the button (47) “ ” to change the
work pressure.
Detergent dispenser (if pre-
sent)
Is viewed on the display when the button (48)
“ ” is pressed.
Press the button to increase or reduce the
percentage of detergent being dosed:
0,2% 0,5% 1% 2% 3%
Preparation of the water ow
Is viewed on the display when the button (49)
“” is pressed, indicating that the water
ow solenoid valve is enabled.
When the water level in the tank is at a mini-
mum, the icon “ ” is viewed in full screen
combined with the acoustic signal.
Replenish the water tank (13) as indicated
in the specic paragraph, then turn o󰀨 and
restart the machine
Absence of the operator on
the driver’s seat
This icon warns when the operator is not cor-
rectly seated on the driver’s seat and blocks
all the machine functions.
Maximum liquid level in re-
covery tank
This displays when the uid in the recovery
tank has reached the maximum level.
Accelerator pedal pressed
This icon inserts when the machine starts
indicating a wrong starting operation se-
quence, to remove the alarm release the ac-
celerator pedal (7 Fig. A).
8 -
8.1 - EMERGENCY
The emergency button (5 Fig. A) is located in
an easily accessible position for the operator.
It must be rmly pressed in case of an im-
mediate need to stop the machine in all its
functions.
To reactivate the machine functionality, pull
the emergency button until it disengages and
resets.
WARNING:
Only press the emergency button (5)
with the machine running in case of a
real need, do not use this procedure
to stop the machine, this may cause
also serious faults in the same.
9 -
9.1 - SAFETY DEVICES (Fig. A)
The machine is equipped with the following
safety functions:
Operator presence sensor (4)
It blocks all the machine functions when the
operator is not present in the driving seat.
Anti-skid safety system
This system reduces the speed when turning
and when the machine tilts laterally to avoid
sudden skids, this increasing the machine
stability in any condition.
Electromagnetic brake
It is built-in the rear driving wheels (23) and
keeps the machine braked when the ma-
chine is off or stopped.
10 -
49029600_Manuale RACER_RANGER_3ed_04-2021.indd 1149029600_Manuale RACER_RANGER_3ed_04-2021.indd 11 23/03/2021 13:49:3723/03/2021 13:49:37

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
ENGLISH - 12
10.1 - FILLING THE TANK
(Fig. D)
WARNING:
Only add clean mains water to the
tank at a temperature no greater than
50°C.
- Using the extractable pipe (52) ll water
into the tank (13) until it is replenished.
- Or, if available, open cap (14) and use the
acquastop intake (53, if present).
- At the end of the tank replenishment close
the cap (14).
NOTE:
For machines without the chemical kit, ll the
tank (13) with clean water and mix it with the
chemical detergent.
Always follow the dilution instructions indi-
cated in the label of the chemical product
packaging, to prepare the detergent solution.
10.2 - DETERGENT CHEMICAL
TANK (if present) (Fig. E)
NOTE:
Use non-foamy detergents only. For the
quantities, follow the instructions provided by
the detergent manufacturer according to the
type of dirt.
- Raise the recovery tank (11).
- Check that in the tank (54) there’s the
product necessary for the working day.
In case of tank replacement work as indicate
below:
- Remove the cap (55), extract the tank (54)
and insert a new 5 litres one then insert
the cap (55) using the small suction pipe.
DANGER:
In case of contact of the detergent
with the eyes and skin, or in case of
ingestion, please refer to the safety
and application bulletin of the deter-
gent manufacturer.
NOTE:
The tanks (54) to use are the standard 5 li-
tres type which can be found on the market.
- Lower the recovery water tank carefully
(11).
- Carry out the air purge (see the procedure
on item “Chemical agent dosing button”).
11 -
11.1 - OPERATION (Fig. A-F)
11.1.a - Checks before use
- Check that the recovery tank’s drain-
age tube (15) is properly connected and
sealed.
- Check that the squeegee’s water suction-
ing tube (16) is properly inserted into the
recovery tank.
- Check that the coupling (37) on the
squeegee (20) is not obstructed and that
the tube (16) is properly connected.
- Check the charge status of the batteries
by turning the key (29) to its “ON” position
and checking the charge indication on the
display (41).
11.1.b - Preparing the machine and
choosing the cycle
- Sit on the driving position.
- The machine can perform 4 working cy-
cles:
49029600_Manuale RACER_RANGER_3ed_04-2021.indd 1249029600_Manuale RACER_RANGER_3ed_04-2021.indd 12 23/03/2021 13:49:3723/03/2021 13:49:37

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
ENGLISH - 13
Washing, brushing, drying cycle:
- Press the button “Ready to go” (42) “ ”
to prepare the detergent ow, the brushes
rotation and the start of the suction device.
Drying only cycle:
- To perform only the drying cycle press the
button (44) “ ”, the aspirator activates.
Brushing only cycle:
- To perform only the brushing cycle press
the button (46) “ ”, the brushes rota-
tion is prepared.
- Brushes rotation starts when the machine,
with the accelerator (7) pressed, starts
moving forward or backward, or with the
accelerator pressed and setting the for-
ward speed to “0”.
Washing, brushing cycle:
- Press the button (46) “ ”to prepare
brushes rotation and press the button (49)
“ ” to prepare water supply.
- The brush rotation and the water ow start
when the accelerator pedal is pressed
with the forward or backward gear, or with
the setting of the advance speed at least
on the 1st notch.
11.1.c - Using the machine
DANGER:
Be extremely careful when using the
machine on ramps in order to avoid
roll over or situations which may
cause the machine to lose its bal-
ance.
DANGER:
Avoid sudden sharp turns. Turn the
wheel from lock to lock only at low
speed, always considering ground
conditions.
- Turn the key (29) to “ON”; in the rst 2
second after turning on, the display (41)
indicates the type of batteries installed
and the machine work time.
- Select the type of work cycle to be fol-
lowed.
- Insert the desired work speed acting on
buttons (30).
- Activate the ashing light (10, optional)
and the work light (9, optional).
- Use the accelerator (7) to begin the clean-
ing operations.
NOTE:
Release the accelerator to stop the rotation
of the brushes and the dispensing of water.
NOTE:
Proper floor cleaning and drying is performed
by driving the machine forwards. When driv-
ing in reverse, the squeegee is raised and
the suction unit, for removing the water from
the floor, is deactivated.
- Adjust the washing solution quantity with
the button (49) “ ” if its necessary.
- Check the charge status of the batteries
on the display (41).
49029600_Manuale RACER_RANGER_3ed_04-2021.indd 1349029600_Manuale RACER_RANGER_3ed_04-2021.indd 13 23/03/2021 13:49:3723/03/2021 13:49:37

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
ENGLISH - 14
11.1.d - End of use and shutdown
- Once all of the cleaning operations have
been completed, shut o󰀨, in sequence,
the rotation of the brushes and the suction
unit, using the relative controls according
to the type of cycle being employed.
- Turn the key (29) to its “OFF” position.
- The parking brake automatically activates.
- Empty and wash out the recovery tank
and the solution tank as indicated in the
relative sections.
NOTE:
When the operator gets out of the machine
the parking brake automatically activates.
DANGER:
It is forbidden to park the machine on
ramps.
12 -
12.1 - DRAINING THE
RECOVERY WATER (Fig. H)
DANGER:
Before lifting the recovery water tank
(11) make sure it is empty.
At the end of the washing cycle or when the
recovery water tank (11) is full, it is necessary
to empty the tank by proceeding as follows:
NOTE:
To dispose of the recovery water, comply
with the standards in force in the country in
which the machine is used..
- Position the machine near to a drain out-
let.
- Detach the pipe (15) from its proper hook,
descending it to the oor over the dis-
charge drain.
- Unscrew the cap (56) and discharge com-
pletely the recovery water contained in the
tank.
NOTE:
The amount of water that comes out can be
modulated by pressing on the end of the tube
(15).
- Tighten the cap (56) and replace the pipe
(15) on its corresponding support.
13 -
13.1 - MAINTENANCE AND
CLEANING
WARNING:
For information and warnings related
to maintenance and cleaning opera-
tions please follow what is indicated
in the “SAFETY WARNINGS FOR
FLOORS WASHER-DRYER” annexed
to this one.
13.2 - OPERATIONS TO
PERFORM DAILY
13.2.a - Emptying and cleaning the
clean water tank (Fig. I)
WARNING:
At the end of the washing operations,
it is compulsory to drain and clean
the clean water tank (13) to prevent
deposits or scaling.
After draining the recovery water tank, drain
the clean water tank (13) as follows:
- Position the machine over a drain outlet.
- Remove the hose (17) from the holding
hooks and lay it down on the drain outlet;
remove the cap (57) and drain all the wa-
ter contained in the tank.
- Wash the inside of the tank, leaving the
drain hose open and adding clean water
through the top opening.
49029600_Manuale RACER_RANGER_3ed_04-2021.indd 1449029600_Manuale RACER_RANGER_3ed_04-2021.indd 14 23/03/2021 13:49:3723/03/2021 13:49:37
