Gigaset Gigaset SX790 ISDN User manual

SX790ISDN
GIGASET. INSPIRING CONVERSATION.
Gigaset Communications GmbH
Frankenstr. 2a, D-46395 Bocholt
Manufactured by Gigaset Communications GmbH
under trademark license of Siemens AG.
As of 1 Oct. 2011 Gigaset products bearing the
trademark 'Siemens' will exclusively use the trademark 'Gigaset'.
All rights reserved. Subject to availability.
www.gigaset.com
© Gigaset Communications GmbH 2010

1
Gigaset SX790 ISDN – More than just a telephone
SX790/795 ISDN / IM-Nord EN / A31008-N415-R201-1-SM19 / introduction.fm / 18.08.2010
Version 4.1, 21.11.2007
Gigaset SX790 ISDN – More than just a telephone
Your ISDN connection offers you two telephone lines simultaneously.
Your telephone sets new standards for the way you communicate at home.
The configuration and user interface of the cordless phone are excellent,
providing you with first-class voice quality in handsfree mode, while the USB port
offers you enormous flexibility.
The large TFT display, user-friendly keypad and clearly laid out menu are very sim-
ple to use.
Your phone can do a whole lot more:
uUse your Gigaset as a PABX and register up to six handsets. Assign each handset
its own phone number (MSN).
uIt is easy to configure your Gigaset thanks to the wizards: these determine the
MSNs for your ISDN connection (provider-specific) and assist you with assigning
send and receive MSNs to the handsets (¢page 16).
uYou can synchronise your directories on your telephone, mobile phone and PC
via the USB port using the Gigaset QuickSync software (¢page 83).
uYou can save appointments (¢page 57) and anniversaries, e.g., birthdays
(¢page 43), in your phone and it will remind you of them in advance.
uYou can designate important people as VIPs to identify important calls from the
ringtone (¢page 40).
uYou can assign a picture to entries in the directory – in future, the picture will
appear every time you receive a call from this number (¢page 40).
uIf you do not want to take calls where the caller has withheld their number, just
set your handset to only ring if Calling Line Identification has not been withheld
(¢page 68).
uIf you do not wish to be disturbed, you can simply set up a time control so that
your phone will only ring when it is convenient (¢page 67). VIP calls are still put
through.
uYou can assign important numbers to the number keys on your phone.
The number is then dialled by simply pressing a key (¢page 64).
uAdapt your Gigaset to suit your handsfree requirements (¢page 67) and adjust
the brightness of your keypad to suit you (¢page 66).
uView your personal pictures as a screensaver slide show (¢page 65).
uSet the display to the large font to increase legibility in particularly important
screens e.g., the directory and lists (¢page 65).
uGigaset Green Home – Be environmentally aware when using your phone.
Details about our ECO DECT products can be found at www.gigaset.com/service
Further information about your phone can be found at
www.gigaset.com/gigasetsx790isdn
Have fun using your new phone!

2
Handset at a glance
SX790/795 ISDN / IM-Nord EN / A31008-N415-R201-1-SM19 / overview.fm / 18.08.2010
Version 4.1, 21.11.2007
Handset at a glance
Base
1Display in idle status
2Battery charge status (¢page 15)
3Side keys
Set call (¢page 66) or ringtone volume
(¢page 67)
4Display keys (¢page 24)
5Message key (¢page 46)
Access to call and message lists;
Flashes: new message or new call
6End call key, On/Off key
End call, cancel function, go back one menu
level (press briefly), back to idle status
(press and hold), activate/deactivate handset
(press and hold in idle status)
7Hash key
Keypad lock on/off (press and hold in
idle status);
toggles between upper/lower case and digits
8Mute key (¢page 34)
Muting the microphone
9Microphone
10 Recall key
- Recall (flash)
- Insert a dialling pause (press and hold)
11 Star key
Activate/deactivate ringtone (press and hold);
text input: open table of special characters
12 Headset socket (¢page 21)
13 Key 1
Select network mailbox (press and hold)
14 Talk key
Flashes: incoming call;
Accept a call; open redial list (press briefly);
start dialling (press and hold)
15 Handsfree key
Switch between earpiece and handsfree mode
16 Control key (¢page 23)
17 Signal strength (¢page 15)
Green: Eco Mode (¢page 56) activated
iV
07:15
INT 1 14 Oct
Calls SMS
2
4
6
5
7
8
16
14
9
1
15
17
11
13
3
10
12
Registration/
Paging key
(¢page 60)
Please note
To change the display language, proceed as
described on page 65.

3
Handset at a glance
SX790/795 ISDN / IM-Nord EN / A31008-N415-R201-1-SM19 / overview.fm / 18.08.2010
Version 4.1, 21.11.2007
Understanding the display icons
The following icons are displayed dependent on the settings and the operating status of your
telephone:
Ø«Ú
Signalling
External call (¢page 32)
ØåÚ
Internal call (¢page 61)
ió˝
Û08:00 07:15
INT 1 14 Oct
Ù¾
02 10 09 08
Calls SMS
ØðÚ
Anniversary (¢page 57)
ØìÚ
Alarm (¢page 59)
Signal strength i(¢page 56)
or Eco Mode+ icon ¼(¢page 56)
Ringtone switched off (¢page 68)
Keypad lock switched on (¢page 26)
ØáÚ
Appointment (¢page 57)
Batteries are charged (¢page 15)
Charge status of the batteries (¢page 15)
Alarm clock switched on and wake-up time set (¢page 59)
Current time (¢page 14)
Current day and month (¢page 14)
Name of the handset (¢page 62)
Number of new messages:
uÃon the network mailbox (¢page 46)
u™in the missed calls list (¢page 46)
u¾in the SMS list (¢page 49)
uin the missed alarms list (¢page 46)
V

4
Contents
SX790/795 ISDN / IM-Nord EN / A31008-N415-R201-1-SM19 / SX790_ISDNIVZ.fm / 18.08.2010
Version 4.1, 21.11.2007
Contents
Gigaset SX790 ISDN – More than just a telephone . . . . . . . . . . . . . . . . . . . 1
Handset at a glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Understanding the display icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Following safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
First steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

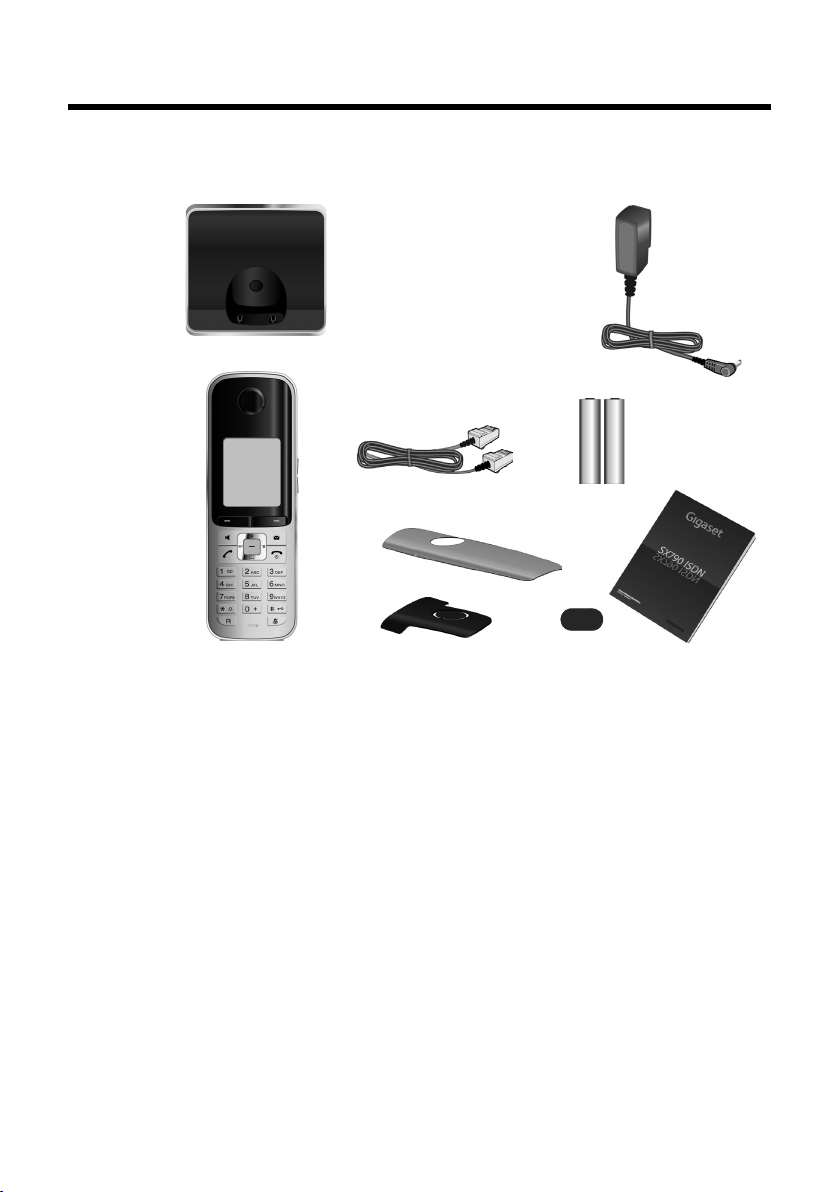

Checking the package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installing the base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connecting the base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Setting up the handset for use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Changing the display language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Setting the date and time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setting up the telephone – installation wizard . . . . . . . . . . . . . . . . . . . . . 16
ISDN wizard – assigning/entering the connection's MSNs . . . . . . . . . . . . . . . . . . . . . 16
Connection assistant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Connecting the headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Connecting the USB data cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
What would you like to do next? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Using the phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Using the control key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Using the display keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Using keys on the keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Using side keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Correcting incorrect entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Menu guidance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Activating/deactivating the handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Activating/deactivating the keypad lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Understanding the operating steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Menu tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Making calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Making an external call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Ending a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Accepting a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Rejecting a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Displaying the caller's number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Notes on calling line display (CLIP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Using handsfree mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Muting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Ringback when busy (CCBS) / when the call is not answered (CCNR) . . . . . . . . . . . 34
Configuring settings for the next call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

5
Contents
SX790/795 ISDN / IM-Nord EN / A31008-N415-R201-1-SM19 / SX790_ISDNIVZ.fm / 18.08.2010
Version 4.1, 21.11.2007
Functions during a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Making a call to multiple participants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Transferring calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Dealing with a waiting external call – CW (Call Waiting) . . . . . . . . . . . . . . . . . . . . . . . 39
Using the directory and lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Using the redial list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Using the SMS incoming list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Using the call lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Opening lists with the message key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Using the missed alarms list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Sending SMS (text messages) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Writing/sending SMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Receiving an SMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
SMS with vCard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Receiving notifications via SMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Setting SMS centres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
SMS messages to a PABX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Activating/deactivating the SMS function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Troubleshooting SMS problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Using the network mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Configuring fast access for the network mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Viewing the network mailbox message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
ECO DECT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Setting an appointment (calendar) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Displaying missed appointments, anniversaries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Setting the alarm clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Using multiple handsets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Registering handsets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
De-registering handsets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Locating a handset (paging) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Changing the base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Making internal calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Changing the name of a handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Changing a handset's internal number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Using a handset as a room monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

6
Contents
SX790/795 ISDN / IM-Nord EN / A31008-N415-R201-1-SM19 / SX790_ISDNIVZ.fm / 18.08.2010
Version 4.1, 21.11.2007
Handset settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Quick dialling numbers and functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Changing the display language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Setting the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Setting keypad illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Activating/deactivating auto answer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Changing the handsfree/earpiece volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Setting a handsfree profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Changing ringtones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Resource Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Activating/deactivating advisory tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Setting your own area code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Restoring the handset default settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Making ISDN settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Setting up/changing/deleting ISDN phone numbers (MSNs) . . . . . . . . . . . . . . . . . . 70
Assigning send and receive MSNs to internal parties . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Setting up a busy signal for when the MSN is being used (Busy on Busy) . . . . . . . 72
Activating/deactivating call waiting – CW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Anonymous calling – withholding caller ID (CLIR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Diverting calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Activating/deactivating call transfer – ECT (Explicit Call Transfer) . . . . . . . . . . . . . . 73
Activating/deactivating music on hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Activating repeater support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Protecting against unauthorised access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Resetting the base to the default settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Connecting the base to the PABX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Saving an access code (outside line code) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Transferring a call – activating/deactivating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Centrex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Dialling options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Customer Service & Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Questions and answers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Authorisation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Caring for your telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Contact with liquid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Writing and editing text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Accessing additional functions via the PC interface . . . . . . . . . . . . . . . . . 83
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Mounting the base on the wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

7
Following safety precautions
SX790/795 ISDN / IM-Nord EN / A31008-N415-R201-1-SM19 / security.fm / 18.08.2010
Version 4.1, 21.11.2007
Following safety precautions
Warning
Be sure to read this user guide and the safety precautions before using your telephone.
Explain their content and the potential hazards associated with using the telephone to your
children.
Use only the power adapter supplied, as indicated on the underside of the base.
Use only rechargeable batteries that correspond to the specification provided on
page 81, as this could otherwise result in significant health risks and personal injury.
Using your telephone may affect nearby medical equipment. Be aware of the tech-
nical conditions in your particular environment e.g., doctor's surgery.
Do not hold the rear of the handset to your ear when it is ringing or when handsfree
mode is activated. Otherwise, you risk serious and permanent damage to your hear-
ing.
Your Gigaset is compatible with the majority of digital hearing aids on the market.
However, perfect function with all hearing aids cannot be guaranteed.
The handset may cause an unpleasant humming or whistling noise in hearing aids
or cause them to overload. If you require assistance, please contact your hearing aid
supplier.
Do not install the base or charger in bathrooms or shower rooms. The base and
charger are not splashproof (¢page 80).
Do not use your phone in environments with a potential explosion hazard
(e.g., paint shops).
If you give your phone to a third party, make sure you also give them the user guide.
Remove faulty bases from use or have them repaired by our Service team, as they
could interfere with other wireless services.
Please note
Not all functions described in this user guide are available in all countries or with all network
providers.
$
ƒ

8
First steps
SX790/795 ISDN / IM-Nord EN / A31008-N415-R201-1-SM19 / starting.fm / 18.08.2010
Version 4.1, 21.11.2007
First steps
Checking the package contents
1One Gigaset SX790 ISDN base
2One power adapter
3One Gigaset S79H handset
4One ISDN phone cord
5Two batteries
6One battery cover
7One belt clip
8One plastic headset socket cover
9One user guide
21
345
7
6
8
9

9
First steps
SX790/795 ISDN / IM-Nord EN / A31008-N415-R201-1-SM19 / starting.fm / 18.08.2010
Version 4.1, 21.11.2007
Installing the base
The base is designed for use in closed, dry rooms with a temperature range of +5°C
to +45°C.
¤Set up the base at a central point in the building on a level, non-slip surface or
mount the base on the wall (¢page 87).
The phone's feet do not usually leave any marks on surfaces. However, due to the
multitude of different varnishes and polishes used on today's furnishings, the
occurrence of marks on the surfaces cannot be completely ruled out.
Please note:
uNever expose the telephone to the influence of heat sources, direct sunlight or
other electrical devices.
uProtect your Gigaset from moisture, dust, corrosive liquids and fumes.
Connecting the base
¤First, connect the
telephone jack 1
and insert the cables
into the cable ducts.
¤Then connect the
power adapter 2.
Please note:
uThe power adapter must always be connected, as the phone will not operate
without a mains connection.
uUse only the power adapter and phone cord supplied.
Please note
Pay attention to the range of the base.
This is up to 300 m in unobstructed outdoor areas and up to 50 m inside build-
ings. The range is reduced when Eco Mode is activated (¢page 56).
1
2
1
1

10
First steps
SX790/795 ISDN / IM-Nord EN / A31008-N415-R201-1-SM19 / starting.fm / 18.08.2010
Version 4.1, 21.11.2007
Setting up the handset for use
The display and keypad are protected by plastic films.
Remove the protective films!
Inserting the batteries and closing the battery cover
Warning
Use only rechargeable batteries (¢page 81) recommended by Gigaset Com-
munications GmbH i.e., never use a conventional (non-rechargeable) battery, as
this could result in significant health risks and personal injury. For example, the
outer casing of the batteries could be damaged or the batteries could explode.
The phone could also malfunction or be damaged as a result of using batteries
that are not of the recommended type.
¤Insert the batteries with
the polarity in the
correct direction.
The polarity is indicated
in/on the battery com-
partment.
¤First, align the protrusions
on the side of the battery
cover with the notches on
the inside of the casing.
¤Then press the cover until
it clicks into place.
To open the battery cover, for
instance to replace the batter-
ies, insert a coin into the cavity
on the left-hand side of the cas-
ing, then pull the battery cover
in an upward direction.

11
First steps
SX790/795 ISDN / IM-Nord EN / A31008-N415-R201-1-SM19 / starting.fm / 18.08.2010
Version 4.1, 21.11.2007
¤Insert the plastic cover provided for the
headset socket to ensure optimum sound
in speaker mode.
Attaching the belt clip
The handset has notches on each side to attach the belt clip.
¤To attach – press the belt clip
onto the back of the handset so
that the protrusions on the belt
clip engage with the notches.
¤To remove – press the centre of
the belt clip firmly with your right
thumb, push the fingernail of
your left index finger up between
the clip and the housing and pull
the clip in an upward direction.
Placing the handset on the base
¤Place the handset in the base with its display facing forward.
Each handset is registered with the base at the factory. You do not need to register
the handset again. If you wish to use your handset with a different base or use addi-
tional handsets with your base, you have to register the handset manually
¢page 59.
To charge the batteries, leave the handset in the base.
Please note
The handset may only be placed in the base provided for it.

12
First steps
SX790/795 ISDN / IM-Nord EN / A31008-N415-R201-1-SM19 / starting.fm / 18.08.2010
Version 4.1, 21.11.2007
Initial charging and discharging of the batteries
The correct charge level can only be displayed if the batteries are first fully charged
and discharged.
¤Charge the handset for 8.5 hours in the base.
¤Then remove the handset
from the base and do not
replace it until the batteries
are fully discharged.
8.5 hrs
Please note
uAfter the first battery charge and discharge, you may replace your handset
in its base after every call.
uAlways repeat the charging and discharging procedure if you remove the
batteries from the handset and reinsert them.
uThe batteries may warm up during charging. This is not dangerous.
uAfter a while, the charge capacity of the batteries will decrease for technical
reasons.

13
First steps
SX790/795 ISDN / IM-Nord EN / A31008-N415-R201-1-SM19 / starting.fm / 18.08.2010
Version 4.1, 21.11.2007
Changing the display language
Change the display language if you do not understand the language currently set.
¤Press and hold the end call key ato return to idle status.
Language
Deutsch ±
English Ø
Francais ±
Italiano ±
Espanol ±
Back Change
O5
¤Press right on the control key.
¤Press keys Oand 5slowly one
after the other.
The display for setting languages appears.
The current language (e.g., English) is
selected.
¤Press down on the control key s...
... until the language you wish to use is
displayed e.g., French.
¤Press the right display key to select the
language.
The selection is marked with Ø.
Deutsch ±
English Ø
Francais ±
English ±
Francais Ø
Italiano ±
±

14
First steps
SX790/795 ISDN / IM-Nord EN / A31008-N415-R201-1-SM19 / starting.fm / 18.08.2010
Version 4.1, 21.11.2007
Setting the date and time
Set the date and time so that the correct date and time can be assigned to incoming
calls, and so that the alarm can be used.
Please note
Your telephone updates the date and time from the ISDN network the first time
you make an external call.
Date/Time
Date:
14.10.2010
Time:
00:00
Back Save
¤Press the key below §Time§ on the dis-
play screen to open the input field.
(If you have already set the time and
date, open the input field via the menu
¢page 31.)
The Date/Time submenu is shown on the
display.
¤The active input position flashes.
Enter day, month and year as an
8-digit number via the keypad,
e.g., 4Q
2QQfor 14/10/2010.
Date/Time
Date:
31.01.2010
Time:
00:00
Back Save
Calls Time
Press the right or left control key
to change the input position and
correct an entry.
¤Enter the hours and minutes in
4-digit format via the keypad,
e.g., QM5for 07:15 am.
Change the input position with
the control key if necessary.
¤Press down on the control key to switch
to the time input field.

15
First steps
SX790/795 ISDN / IM-Nord EN / A31008-N415-R201-1-SM19 / starting.fm / 18.08.2010
Version 4.1, 21.11.2007
Display in idle status
Once the phone is registered and the time set, the idle status is shown as in this
example.
Displays
uReception between the base and the handset:
– Good to poor: ÐiÑÒ
–Noreception:|flashes
Green: Eco Mode activated (¢page 56)
uCharge status of the batteries:
–yy{{(empty to full)
–yflashes red: batteries almost empty
–xyx{x{(charging)
uINT 1
Internal name of the handset (¢page 62)
If Eco Mode+ (¢page 56) is activated, the ¼icon is displayed in the top left corner
of the display.
¤Press the key below §Save§ on the dis-
play screen to confirm your entry.
The display shows Saved. You will hear a
confirmation tone and the handset
automatically reverts to idle status, or
returns to the Settings menu if the set-
ting was made via the menu.
Back Save
Date/Time
‰
Saved
i V
07:15
INT 1 14 Oct
Calls SMS

16
Setting up the telephone – installation wizard
SX790/795 ISDN / IM-Nord EN / A31008-N415-R201-1-SM19 / starting.fm / 18.08.2010
Version 4.1, 21.11.2007
Setting up the telephone – installation wizard
A few settings are needed before you start using your telephone. The installation
wizard is designed to help you with this.
If you start the ISDN wizard first, the connection assistant starts automatically.
If you place the first handset in the base before the MSN settings have been made,
the message key begins to flash after a short time (¢page 2).
¤Press the message key fto start the ISDN wizard.
You can also call up the ISDN wizard at any time via the menu (¢page 31).
Please note:
uIf the installation wizard is activated, no other handset can access the Settings
menu.
uTo quit the installation wizard before the process is complete, press and hold
the end call key a. Changes you have already saved using §OK§ are retained.
uTo skip a setting, press the display key §No§.
ISDN wizard – assigning/entering the connection's MSNs
Several numbers (MSNs) were provided by the network provider when you
received your ISDN connection confirmation. You can save up to ten numbers
(MSNs) on your phone. If there is no MSN entered, you can do the following with the
ISDN wizard:
uAssign the MSNs for your connection i.e., call these up from the exchange
(automatic MSN assignment) or enter these manually.
Please note: Not every ISDN provider supports automatic MSN assignment.
If this feature is not supported, then you must enter the MSNs for your connec-
tion manually (¢page 70).
uSet the receive MSN
uSet the send MSN
¤Press the display key §Yes§ to start
installation.
ISDN Wizard
?
Start ISDN
installation wizard?
No Yes

17
Setting up the telephone – installation wizard
SX790/795 ISDN / IM-Nord EN / A31008-N415-R201-1-SM19 / starting.fm / 18.08.2010
Version 4.1, 21.11.2007
¤Press the display key §OK§ to start
automatic MSN assignment. This
process will take some time.
A corresponding message is shown
in the display.
After the MSNs have been successfully
assigned, a list containing the MSNs is
displayed.
¤Press the display key §OK§ to close the
ISDN wizard.
The display shows ISDN installation
complete.
ISDN Wizard
i
This wizard helps
you to detect and
configure your ISDN
phone numbers
(MSNs).
OK
ISDN Wizard
i
MSN Assignment:
MSN 1: 12345601
MSN 2: 12345602
MSN 3: 12345603
Change OK
Please note
uIf MSNs cannot be assigned, you are requested to enter your MSNs manually
(¢page 70).
uYou can change the names of the MSNs (¢page 70).

18
Setting up the telephone – installation wizard
SX790/795 ISDN / IM-Nord EN / A31008-N415-R201-1-SM19 / starting.fm / 18.08.2010
Version 4.1, 21.11.2007
Connection assistant
The connection assistant will start automatically as soon as the ISDN wizard is
complete. You can use the connection assistant to assign the previously configured
numbers to internal parties as send and receive connections, if necessary.
uReceive connections are numbers (MSNs) on which you can be called. You can
assign the MSNs for internal parties as the receive connection. Incoming calls are
only forwarded to the internal parties to which the relevant receive connection
has been assigned.
uSend connections are the numbers (MSNs) that are sent to the called party. The
network provider calculates charges based on the send connections. You can
assign a fixed MSN as a send connection to each internal party.
uEvery MSN can be both a send and receive connection. You can assign each MSN
to multiple handsets.
After registration/getting started, the handsets are assigned all MSNs as receive
connections. The base number (usually MSN1) is assigned to the devices as a send
connection.
¤Press the §Yes§ display key if you
wish to display or amend the send
and receive connection settings for
internal parties (here INT 1).
¤Press the §No§ display key if you wish
to switch to the next internal party.
The list of receive connections cur-
rently assigned is displayed.
Press the bottom of the control key s
to scroll through the complete list if
necessary.
¤Press the display key §Change§, if you
wish to change the setting for the
receive connections.
¤Press the display key §OK§, if you do
not wish to change the setting.
Connection Assist.
?
Assign connections
to handset
INT 1?
No Yes
Receive Connections
i
INT 1
receives calls for
MSN 1: 12345601
MSN 2: 12345602
MSN 3: 12345603
Change OK

19
Setting up the telephone – installation wizard
SX790/795 ISDN / IM-Nord EN / A31008-N415-R201-1-SM19 / starting.fm / 18.08.2010
Version 4.1, 21.11.2007
Press §OK§ to skip the next two steps and continue with the send connection
settings.
Press §Change§ to display the following:
If you do not want incoming calls to
MSN1 indicated:
¤Press right on the control key v
to set to No.
¤Press down on the control key s
to switch to the next MSN. Select
either Yes or No as described
above.
¤Repeat the steps for each MSN.
¤Press the display key §Save§ to con-
figure the settings.
The updated list of receive connections is displayed one more time for you to
check.
¤Press the display key §OK§ to confirm the assignment.
The current send connection is dis-
played.
¤To change the setting, press the
display key §Change§.
¤Press the display key §OK§, if you do
not wish to change the setting.
Skip the following step.
INT 1
Receive calls for
MSN 1
<Yes >
Receive calls for
MSN 2
Yes
Back Save
INT 1
Receive calls for
MSN 1
No
Receive calls for
MSN 2
<Yes >
Back Save
Send Connection
i
INT 1
sends calls with
MSN 1
12345601
Change OK
