GILANI ENGINEERING GE-HY803 User manual

Transfer chair
User manual
Model: GE-HY803
Gilani Engineering Pty Ltd

Contents
I. Parts introduction..............................................................................................1
II. Technical specification.....................................................................................1
III. Installation instructions....................................................................................2
IV. User guide.......................................................................................................4
V. Troubleshooting................................................................................................6
VI. Warranty...........................................................................................................6

- 1 -
I. Parts introduction
1、Backrest；2、Right armrest；3、Left armrest；4、Ring；5、Cushion；
6、3" front wheel；7、Support leg；8、Right rear wheel support；9、4’’Rear
wheel；10、Pedal；11、Battery；12、Connecting rod；13、Castor mat;
14、Left rear wheel support；15、Screw；16、Sleeve；17、Lifting frame
18、Controller box/ Motor；19、Handle；20/21；Bedpen/ Bedpen support；22，
Support；23、Long hinge；24、Short hinge；25、Controller
II. Technical specification
Overall size: 900x676x870mm
Rated power: 100~240Vac
50/60Hz 72VA
Net weight: 45 Kg
Voltage: DC 24V±1
Lifting range: 0~250mm
Storage temperature: －5~50℃
Lifting speed: 7.6mm/s
Work temperature: 5~40℃
Motor: DC24V actuator motor
Relative humidity: ≤85％RH
Charger: AC220V/50Hz
Barometric pressure: 86~106kPa
Loading capacity: 150Kg
Waterproof: IPX4
Noise: 65（dB）
Lifting times per full charge: 60 Times

- 2 -
III. Installation instructions
1. Parts

- 3 -
2. Installation steps
Step 1：install arm-brace
①Take out the body ②unfold the arm-brace ③Untie the strap, unfold the support leg
④Insert the long bolt into ⑤Install bolts on both sides ⑥Fold the arm-brace
the hole of the same operation
Step 2：Install armrest
①Distinguish the left and right ②Insert the two armrests into the
armrests. main frame.
③Insert the short bolt into the hole ④complet


-4-
IV. User guide
1. How to use the controller panel
Press the up and down button to control the machine, release the button to stop the
movement.
UP
Down
Power
2. Emergency stop
The emergency stop button is used to interrupt and turn on the power. so that the
motor will stop working immediately in the case of danger.Stop working immediately
in case of danger.
(Close: Press the red button, stop working.①)
Open：Rotate the red button clockwise,normal working.②
Suggestion：If the machine has not been used for more than 3 days, push this
button to protect the battery.
1②
3. Control device connection
4. Front wheel brake
Brake pedal

-5-
5. Operation of the transfer chair.
6. Storage of transfer chair
Folding steps:
1. Sit on the cushion
②．Push into , fasten the 4 rings
③. Install backrest, adjust the
height
Shower
Toilet
Tread left: open
Tread right: close

-6-

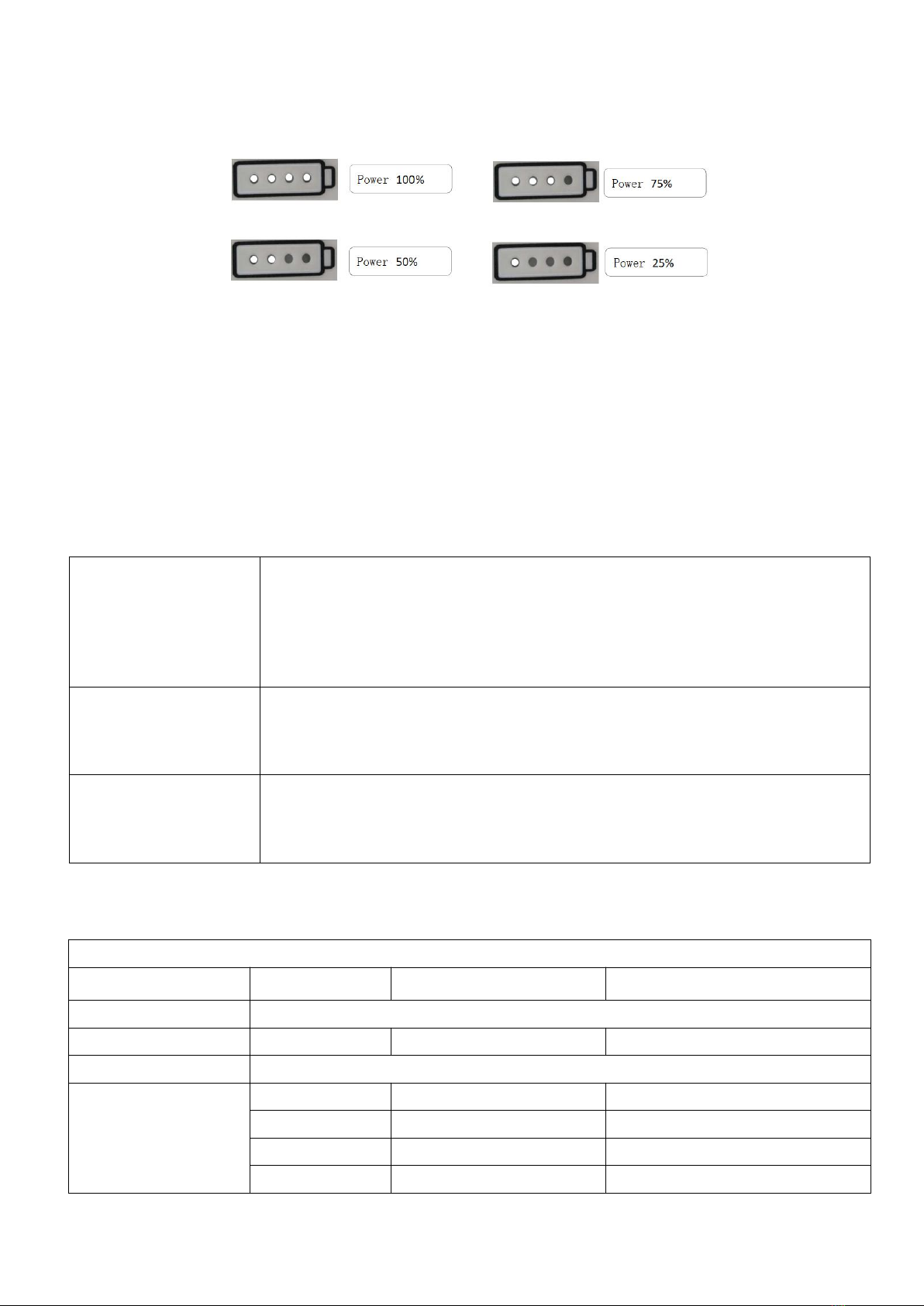

7. Battery charge.
When the battery power is only 1 grid, it needs to be charged immediately. If not,
the motor will stop working.
Notes：
1.Please close the emergency button and turn off the machine when charging.
2.It is generally charged once every month when the machine is not used
for a long time.
3. Do not charge in a humid environment.
4. If the shifter is not used every day, it is recommended to close the
emergency stop button.
V. Troubleshooting
Couldn’t lift or land
1. Check whether the emergency stop button is pressed
2. Check whether the wire of is connected correctly
3. Check battery power
4. Check whether the battery contact panel has problems or damages
5. If the electric shift machine is not working, please contact the after-
sales service
Charging failure
1. Check whether the charger is plugged into the socket
2. Check the battery contact panel for problems or damage
3. If the charger still does not charge, please contact after-sales service
It stops while lifting
1. Check whether the emergency stop button is pressed
2. Use an emergency descent device
3. If the electric shift machine is not working, please contact the after-
sales service.
VI. Warranty
Warranty Card
User Name
Phone
Address
Product Name
Model
Serial Number
Maintenance
Record
Date
Causes and Handing
Repairer
