Giltrap Construction 17 Application guide

Construction Trailer

Part Number: 13008

Operation & Parts Manual

AUSTRALIA

GILTRAP AG EQUIPMENT PTY LTD

105-117 Boundary Road

Laverton North

Melbourne

Vic 3026

TEL: +61 3 936 96 548

FAX: +61 3 936 96 549

FREE: 1800 127 030 (AU ONLY)

SALES: [email protected]

PARTS: [email protected]

WEBSITE: www.giltrapag.com.au

NEW ZEALAND (HEAD OFFICE)

GILTRAP ENGINEERING LTD

7 Main North Road

PO Box 83

Otorohanga

TEL: +64 7 873 4199

FAX: +64 7 873 8131

FREE: 0800 804 458 (NZ ONLY)

GENERAL: [email protected]

PARTS: [email protected]

WEBSITE: www.giltrapag.co.nz

Page 2

Construction Trailer Operation & Parts Manual

Disclaimer

While every attempt has been made to ensure that information and diagrams in this

manual are correct, Giltrap Engineering Limited will not be responsible for any damage

or consequential loss arising out of misinterpretation or failure to follow recommended

procedures; nor will it be liable for any damage caused by or arising out of modification

or misuse of its product.

For parts or service enquiries, please use the applicable contacts on the previous page.

Printed January 2020

Printed in New Zealand

pictorial content, in any manner, is prohibited.

Page 3
Construction Trailer Operation & Parts Manual

Table of Contents
Disclaimer........................................................................................................................2
Table of Contents ............................................................................................................3
Introduction......................................................................................................................4
Warranty..........................................................................................................................5
Serial Number Identification.............................................................................................6
General Safety.................................................................................................................7
Pre-Service Guidelines & Settings.................................................................................10
Greasing & Lubrication..................................................................................................11
Installation .....................................................................................................................13
Operation.......................................................................................................................13
Hydraulic Requirements ................................................................................................13
Parts Section .................................................................................................................14

Page 4

Construction Trailer Operation & Parts Manual

Introduction

Thank you for purchasing a Giltrap product. Giltrap Engineering Ltd has enjoyed a

long-standing success with their machinery. We would like you to enjoy the benefits of

owning a Giltrap too. By following the guidelines laid out in this book, you will ensure

trouble free, low maintenance operating for years.

Giltrap Engineering Ltd is a progressive company which continually strives to satisfy

your needs, so we welcome any feedback which you can provide to help us improve our

products and services and to ensure that they perform to your expectations. Any

constructive comments about this operator’s manual are also welcome.

Your machine has been designed to perform its task efficiently and with a minimum of

maintenance. This handbook provides safety guidelines, instructions, maintenance

requirements and parts listings. We recommend that you read the entire handbook,

before operating the machine as this will enable you to take full advantage of your new

machine’s considerable potential.

Manual Evaluation

We update our operating manuals regularly. Your suggestions for improvement help us

to create even more user friendly manuals. Send your suggestions by email to

[email protected].

Delivery and Warranty

Before you begin to use your machine, please check it to make sure there is no delivery

damage. If damage is evident, contact the dealer who supplied the machine so that

they can make the appropriate claims.

If you have any other queries, please contact your dealer or Giltrap Engineering Ltd

(0800 80 GILTRAP).

All Giltrap products are covered by a 24-month warranty on parts and labour, subject to

normal use.

Please fill in the details below for future reference.

Model:

Serial No:

Delivery Date:

Dealer:

Page 5

Construction Trailer Operation & Parts Manual

Warranty

The Goods specified in the Price List as designed and supplied by Giltrap Engineering

Ltd are warranted against faulty workmanship and defective materials for a period of 24

months from the date of purchase. In addition to the primary 24 month warranty for

Giltrap products, there is a further 12 month structural warranty for the goods, against

faulty workmanship and/or defective materials for structural items only. The structural

warranty does not apply to electronics or component parts.

Such warranty is subject to the following conditions:

1. This warranty covers the repair or replacement of parts or machinery sold by the

manufacturer and damaged as a result of the faulty workmanship or materials in such

parts or machinery. It does not extend to any other loss or damage including

consequential loss or damage or loss to other property or persons.

2. Without limiting the generality of paragraph 1 above, this warranty does not cover the

following:

(a) Travel expenses.

(b) Damaged caused by accident, misuse or abuse.

the manufacturer or its authorised agent.

(d) Damage or loss to the goods due to their unsuitability for any particular use or for

using with any particular tractor except where such use or tractor had been specifically

approved by the manufacturer.

(e) Damage or loss where the fitting and installation of the goods were not carried out

by the manufacturer or its authorised dealer.

3. Procedure for recovery under warranty.

No loss or damage will be covered by this warranty unless the loss or damage is

reported immediately to the dealer (who will contact the distributor who will advise

whether it is covered by the warranty and undertake the necessary action).

No warranty repair work is to be undertaken prior to an order number being obtained.

This warranty shall be interpreted according to the laws of New Zealand and the parties

agree to submit to the jurisdiction of the Courts of New Zealand.

Warranty Claims

If you wish to make a claim under warranty:

Immediately stop using the machine.

List details of the machine and damaged item including serial numbers and date

of purchase.

Consult with your Giltrap dealer (supplier) and have him forward your claim and

the damaged item to Giltrap Engineering Ltd.

No warranty to be undertaken unless an order number is obtained from the Seller

(Giltrap Engineering Ltd) prior to any work being done.

Page 6

Construction Trailer Operation & Parts Manual

Serial Number Identification

Before ordering any parts, check the serial number and the delivery

date of the machine and include this information with all orders.

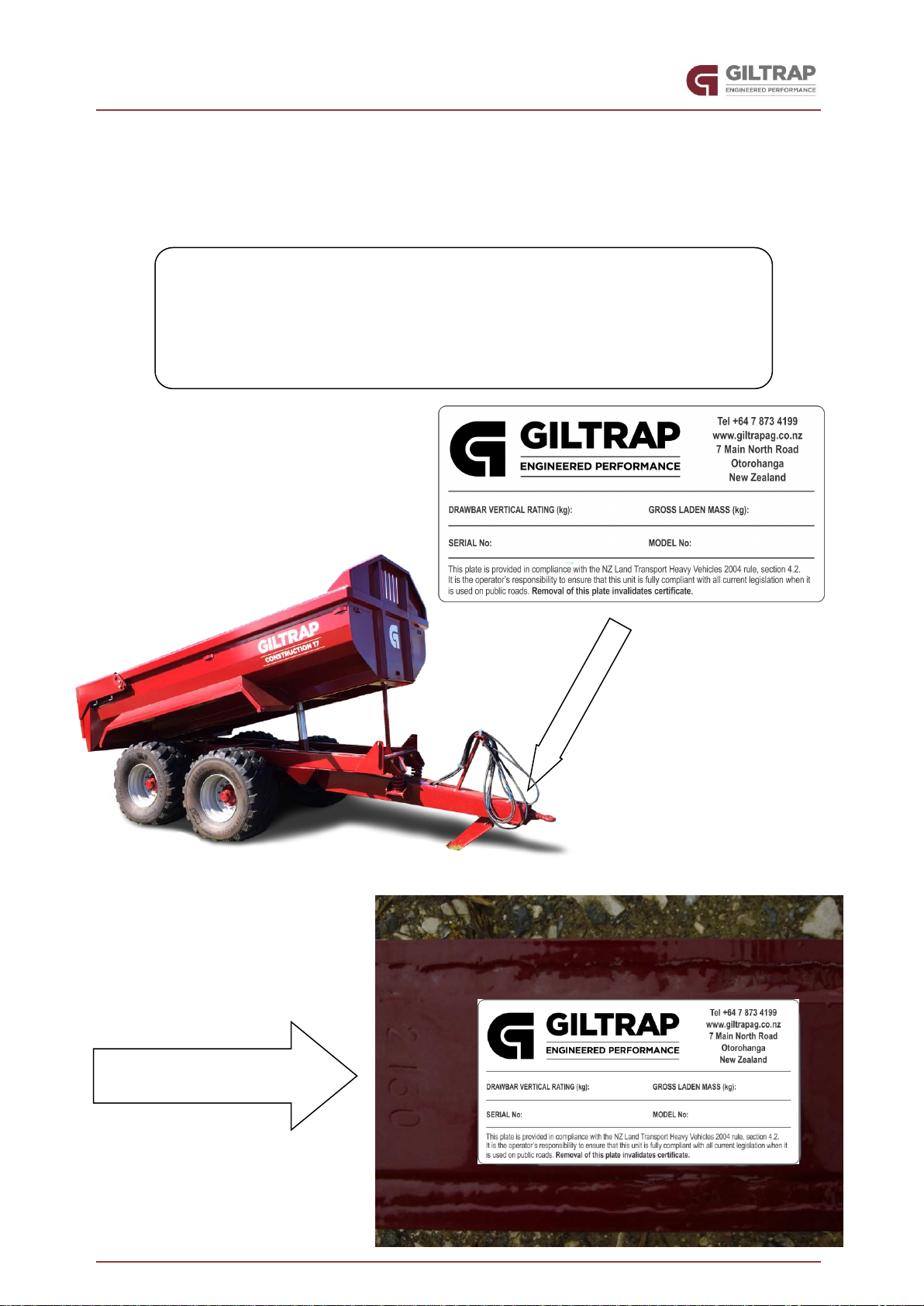

If the Serial Number Plate is missing, the serial number will be

stamped on the front of the drawbar.

Serial number stamped

onto chassis here

Page 7

Construction Trailer Operation & Parts Manual

General Safety

For the safety of others and yourself, please read and follow the precautions in this

operator’s manual. Pay particular attention to the following safety aspects of operating

machinery.

Do not ride on or allow passengers on the machine.

Always use a recognised hitch pin with a safety

clip to hook trailed implements on behind the

tractor.

Always ensure when using a quick hitch that the

locking tab has come out and is in the locked

position before moving.

Do Not operate tractor –trailer combination outside of manufacturers recommended

drawbar loading.

Page 8

Construction Trailer Operation & Parts Manual

Carry a suitable fire extinguisher.

A fire can ignite under certain conditions, so please take the following precautions:

After running your machine for a short time, check for defective

bearings. A faulty bearing can become very hot, eventually

discolouring, requiring immediate replacement.

Do not allow combustible material to accumulate inside guards or

around rollers and other moving parts.

If your machine becomes blocked, stop immediately and remove

the obstruction.

Be careful when operating in hot or dry conditions or on extreme

fire risk days.

Never operate your machine without the safety

guards in place.

All chains should be properly

adjusted and replaced when

necessary.

Page 9

Construction Trailer Operation & Parts Manual

Release all hydraulic pressure from

implements before commencing service

work. Never look for suspected oil leaks

with your hands or body - use a piece of

cardboard instead.

Any fluid that penetrates the skin will

have to be removed immediately by a

medical expert. Seek specialist advice

on this type of injury.

Never attempt to unblock equipment while it is

still operating.

Always disengage power take-off, hydraulics and

shut down engine before removing materials,

checking or servicing.

Failure to follow these precautions is likely to

result in serious injury.

Wear proper protective clothing. Loose attire can easily

be snagged by rotating machinery resulting in serious

injury or death.

Page 10

Construction Trailer Operation & Parts Manual

Wheel Nut Recommended Torque Settings

M18 200 ft/lbs or 270Nm

M20 280 ft/lbs or 380Nm

Axle Mounting Bolt Recommended Torque Settings

M16 180 ft/lbs or 245Nm

M20 355 ft/lbs or 480Nm

Recommended Tyre Pressures

11.5/80-15.3 60psi 4.1 bar

400/60-15.5 65psi 4.5 bar

15.0/70-18 62psi 4.25 bar

385/65-22.5 (15RX22.5) 79psi 5.5 bar

500/45-22.5 52psi 3.6 bar

500/60-22.5 40psi 2.8 bar

560/45R22.5 58psi 4.0 bar

560/60R22.5 58psi 4.0 bar

650/55R26.5 58psi 4.0 bar

Pre-Service Guidelines & Settings

Prior to delivering your machine, your dealer should have completed a pre-delivery

check.

It is beneficial to check the following points before using the machine for the first time.

CHECK ALL WHEEL NUTS ARE SUFFICIENTLY TIGHT.

CHECK ALL TYRE PRESSURES ARE CORRECT.

CHECK ALL AXLE MOUNTING BOLTS AND NUTS ARE SUFFICIENTLY

TIGHT.

THERE ARE SEVERAL GREASE POINTS on all Giltrap trailers. Check the

yellow label on the side of your machine to see how many grease points there

are. You should fully grease everything before running it for the first time. See

page 11-13 for greasing and lubrication details.

Page 11

Construction Trailer Operation & Parts Manual

Greasing & Lubrication Schedule

Axle Bushes –Grease every second day

Tailgate Pivot Pin –Grease weekly

Lift Ram Pivot –Grease weekly

Ram Cradle Mounts –Grease weekly

Lift Ram Top Pin –Grease weekly

Deck pivot Pin –Grease weekly

Drawbar Pins –Grease weekly

Swivel Tow Eye –Grease monthly

Wheel Hubs –Grease every 3 months

Brake Rod –Grease every 3 months

Greasing & Lubrication

Oil & Grease

Grease Grade Recommended

NLGI 2 oil based

Wheel Hub

Axle Bushes

Axle Shaft

Brake Rod

Page 12

Construction Trailer Operation & Parts Manual

Check the tyres regularly for correct pressure and check all bolts etc. for tightness

Swivel Tow

Eye

Ram Pin

Tailgate

pivot Pin

Ram cradle

Mounts

Upper

Ram pin

Drawbar Pins

Bin pivot Pin

Page 13

Construction Trailer Operation & Parts Manual

Installation

Connect the trailer to the tractor drawbar. Ensure that the tractor drawbar is the correct

height so the trailer deck is close to horizontal.

Check that there are no hydraulic leaks in the hoses and fittings.

Check operation of brakes and ensure they are correctly adjusted.

Be aware of hazards and dangers before operating the equipment.

Be sure that the tractor is the correct size in relation to the trailer.

Operation

Do Not operate tractor –trailer combination outside of manufacturers recommended

drawbar loading.

Ensure jack is raised before moving off

Fill trailer evenly where possible

When tipping, raise tailgate before lifting deck

Lift main deck. Easing forward as the load empties will speed up the process.

Lower the tailgate. Do not leave the tailgate in ‘float.’

Hydraulic Requirements

Page 14
Construction Trailer Operation & Parts Manual

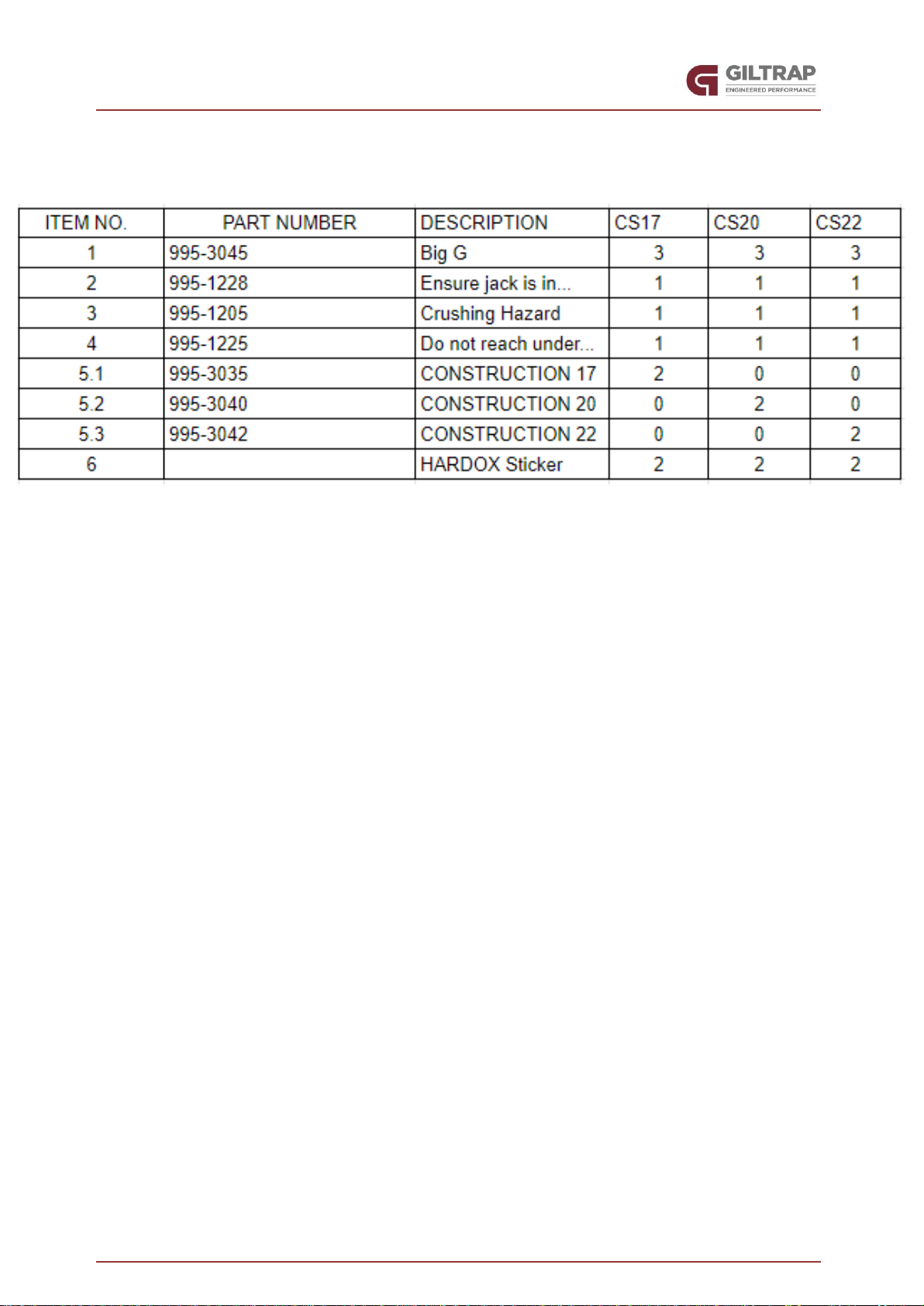

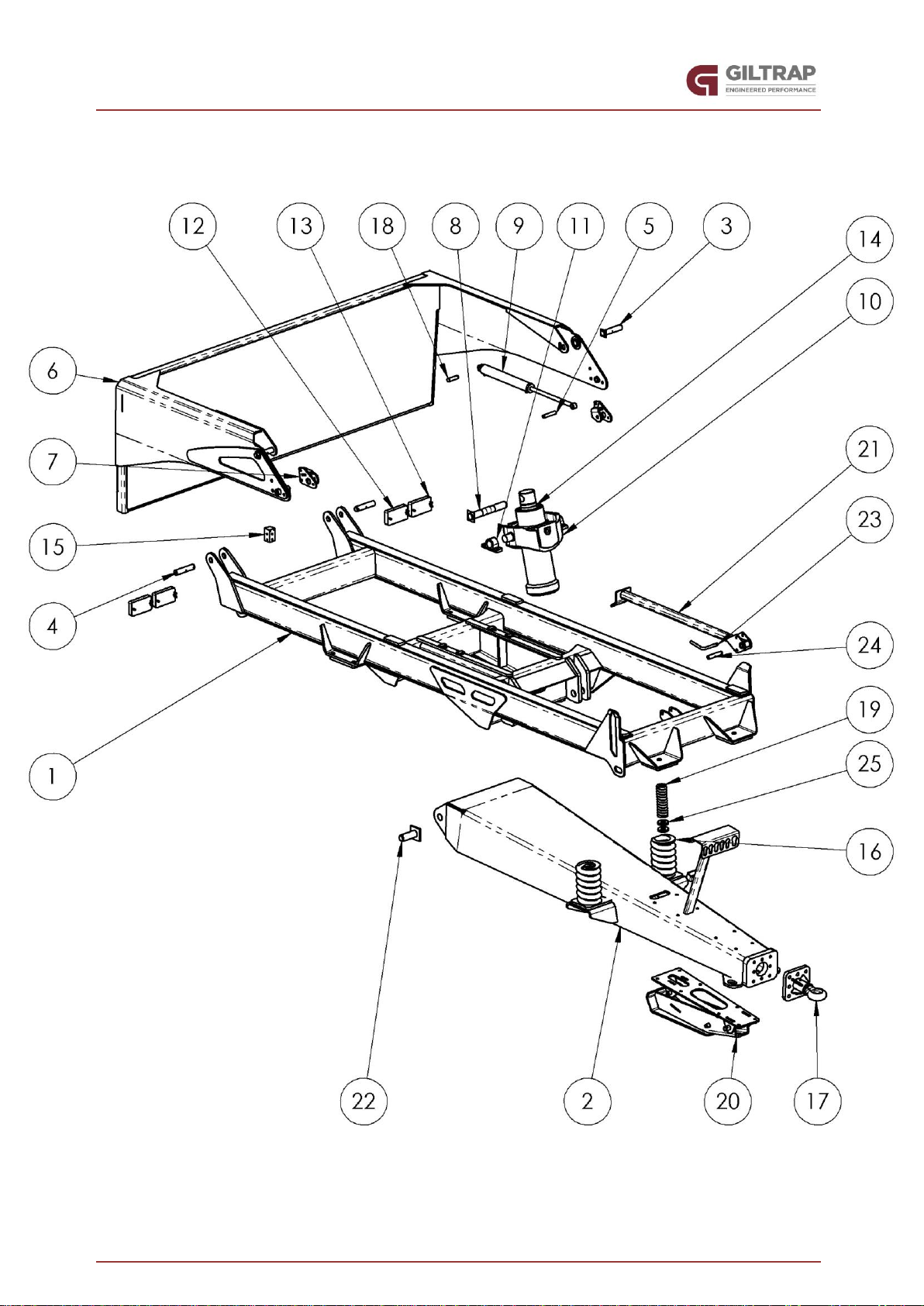

Parts Section

Parts Section .................................................................................................................14
TRANSFERS &DECALS ..................................................................................................15
CS17 ASSEMBLY..........................................................................................................16
CS20 ASSEMBLY..........................................................................................................18
CS22 ASSEMBLY..........................................................................................................20
CS17 AND CS20 AXLE ASSEMBLY.................................................................................22
CS22 AXLE ASSEMBLY..................................................................................................23
JACK ASSEMBLY ...........................................................................................................24
ADR 21.5T SPRUNG BOGIE ..........................................................................................25
ADR 130mm Axle Brake Configuration....................................................................26
ARD 1360 8 Leaf Bogie...........................................................................................27
ARD 1500 9 Leaf Bogie...........................................................................................28
ARD Steering Axle Assembly ..................................................................................29
Steering Axle parts list.............................................................................................30
ADR 100mm............................................................................................................32
