Gimenez Ganga PS-25 R User manual

ENG
PS-25 R
CUTTING AND ASSEMBLY MANUAL

INDEX
01 CUTTING OF SLATS 04
02 CURTAIN FABRICATION 07

4
01 CUTTING OF SLATS
STEP 1
To ensure that all the perforations are aligned correctly
on the curtain, insert the tool between the 4th and 5th
perforations on the slats (Max. 5 slats).

CUTTING AND ASSEMBLY MANUAL PS-25 R
5
STEP 2
EXAMPLES
The cutting of the slats should be marked to ensure that
the curtains are fabricated symmetrically.
To do this we will need the number of perforations
= L/145 mm, with L being the Length of the curtain, and
we will round up the total.
Then we check whether the number of perforations is even
or odd and place ourselves in the middle of the number of
perforations.
If the number of perforations is even, we will place
ourselves in the middle of the partition and proceed
to measure and mark half the length of the curtain on
both sides.
Length of curtain: 2,000 mm
Number of perforations: L/145 = 2,000/145 = 13.79 = 14
(Number of perforations is even).
Number of perforations/2: 14/2 = 7
(So we will count 7 whole perforations and place
ourselves in the centre of the partition).
L/2 = 2,000/2 = 1,000 mm left and right.
Length of curtain: 3,000 mm
Number of perforations: L/145 = 3,000/145 = 20.68 = 21
(Number of perforations is even).
Number of perforations/2: 21/2 = 10,5
(So we will count 10.5 perforations (10 whole plus one
half) and we will place ourselves at the centre of the per-
foration).
Next we will measure L/2 on both sides and mark the
slat. L/2 = 3,000/2 = 1,500 mm left and right.
We will place ourselves in the middle of the perforation
and proceed to measure and mark half the length of the
curtain on both sides.

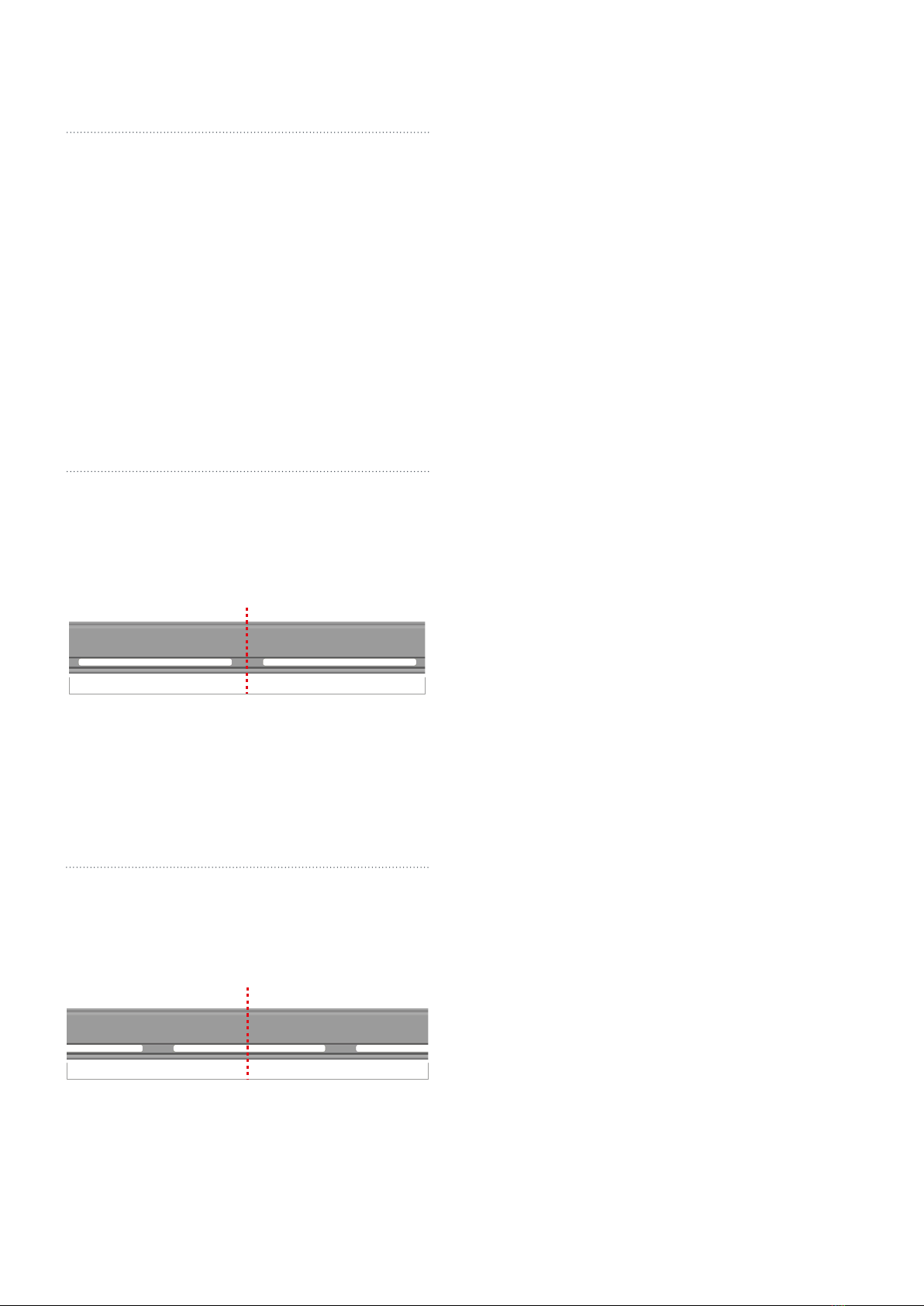

A. NUMBER OF PERFORATIONS IS EVEN:
B. NUMBER OF PERFORATIONS IS ODD:
L/1 L/2
L/1 L/2

6
STEP 3
Support the slats and tool on the cutting machine pro-
file to align the slats. Introduce a second tool to align
them correctly and apply shrink film in the cutting are-
as and intermediate areas to prevent the profiles from
getting damaged during cutting.
STEP 4
Make sure that the cutting mark of the slats is aligned
with the cutting disc before proceeding with the first cut.
Once the first cut has been made, do not move the slats
and mark the position of the tool on the cutting ma-
chine, by doing this, whenever we use the tool in the 4th
and 5th perforations on the slats, we can make sure we
get the same slat cutting measurement to produce
the same curtain. For other curtain sizes carry out the
same process.
REPEAT THE PROCESS
FOR THE FOLLOWING
MACHINED SLATS.
IMPORTANT
Once the first and second cuts have been made, check that the curtain is symmetrical before continuing
with the fabrication.

CUTTING AND ASSEMBLY MANUAL PS-25 R
7
IMPORTANT
The bottom rail requires a cutting reduction of - 8 mm with respect to the total width of the curtain with
caps included, since it does not have caps and it is installed with:
- 2 WASHERS DIN 125 A2 3.2 M3 code: 507505.
- Fixed with 2 SCREWS DIN 7982 2.9x16 mm A2 code: 507502.
02 CURTAIN FABRICATION
CALCULATING THE NUMBER OF PROFILES REQUIRED
To calculate the number of profiles required and im-
prove winding, you will need the following assembly
programme, starting from the bottom in this order:
TRAMO CODE DESCRIPTION QUANTITY COVERAGE
1
026058
Rubber 1050 1 6
2
505057
PS-25 R BLIND BOTTOM RAIL
(take away 8 mm from the width of the curtain) 1 43.5
3
505083
PS-25 R MACHINED SLAT **
(take away 10 mm from the width of the curtain) N 25
4
505056
PS-25 R BLIND SLAT **
(From the height of the opening inside the drawer) 2 25
5
505059
Set of caps PS-25 R With Screws N -
6
507502
Screw DIN 7982 H 2.9x16 mm N -
7
507505
Washer DIN 125 A2 3.2 M3 2 -
Dimensions in mm
**As many PS-25 R sets of caps with screw code: 505059 will be installed as the total number of PS-25 R slats, except for
the last slat inside the box.
503157
Curtain PS-25 R
3
4
6
5
17
2

gimenezganga.com
MK0729 • ENG • 01 • 0919
