AC MOTOR CONTROLLER
98GC74
INSTALLATION and PROGRAMMING GUIDE
Rev.12282015
RV AWNING PRODUCTS
1361 CALLE AVANZADO, SAN CLEMENTE, CA 92673 [phone] FAX [phone]
www.girardrv.com

2
Girard Systems awnings may be operated in light wind and rain
conditions. When periods of heavy rain and or high wind are expected
the awning must be closed. Never leave the Awning open and
unattended.
Damage caused by wind and rain is not covered by warranty.
All awnings must be closed prior to moving the vehicle for any reason.
As an extra safety precaution a visual check that every awning is fully
closed is required.
Damage caused by failure to comply with these instructions is
not covered by warranty.
Before using your awning, ensure that the area into which the awning
will be deployed is free of obstructions (Trees, walls, pillars, posts,
other vehicles etc.)
Damage caused by collisions with any of the above or similar is
not covered by warranty.
Before using your awning make sure that all of your electrical circuits
are operating correctly. Recreational Vehicles can generate AC power
from three separate sources. The electrical system transfer switch in
your vehicle will select power for the awning as follows:
Shore Power – if connected;
Generator Power – if the generator is running;
Inverter Power – batteries must be charged for inverter operation.
Girard Systems awnings are supplied with an electric motor appropriate to the
product.

3
CONTENTS
Product description ……………………………………………………………………………………. 3
Installation Wiring Diagram ………………………………………………………………………… 4
Pairing With Remote Devices ……………………………………………………………………... 5
98GC229 Single channel wall switch ……………………………………………………………. 5
Pairing with a Motion Sensor ……………………………………………………………………... 7
THE G–LINK SYSTEM
The G-Link motors and control modules provided by Girard Systems communicate by
use of RF signals on a frequency of 433.92 MHZ. This eliminates the need for wiring
and the drilling of holes in the vehicle. These components must be electronically
matched, programmed or paired before use. This is usually done at the Girard Systems
factory. Should the need arise for the user to pair a device with the motor controller
they must refer to the appropriate manual for the devices applicable to their particular
installation.
PRODUCT DESCRIPTION
The 98GC74 is a 110V AC Motor Control Module which requires a 15 Amp Circuit
breaker or fuse protected power supply, designed to control a single awning motor. The
BLACK and WHITE wires are the module’s input power supply which should be
connected to the vehicle’s Power distribution panel. The RED and BROWN wires are the
module’s output which should be connected to the awning motor. The longer BLACK
wire is the modules RF antenna. The 98GC74 has an operating frequency of 433Mhz,
and a range of up to 650’ in the open or 110’ where there are obstructions. This module
can be paired with up to 20 compatable RF remote devices. If additional devices are
paired with the 98GC74, previously paired devices will be overwritten in turn from the
second device onward.

4

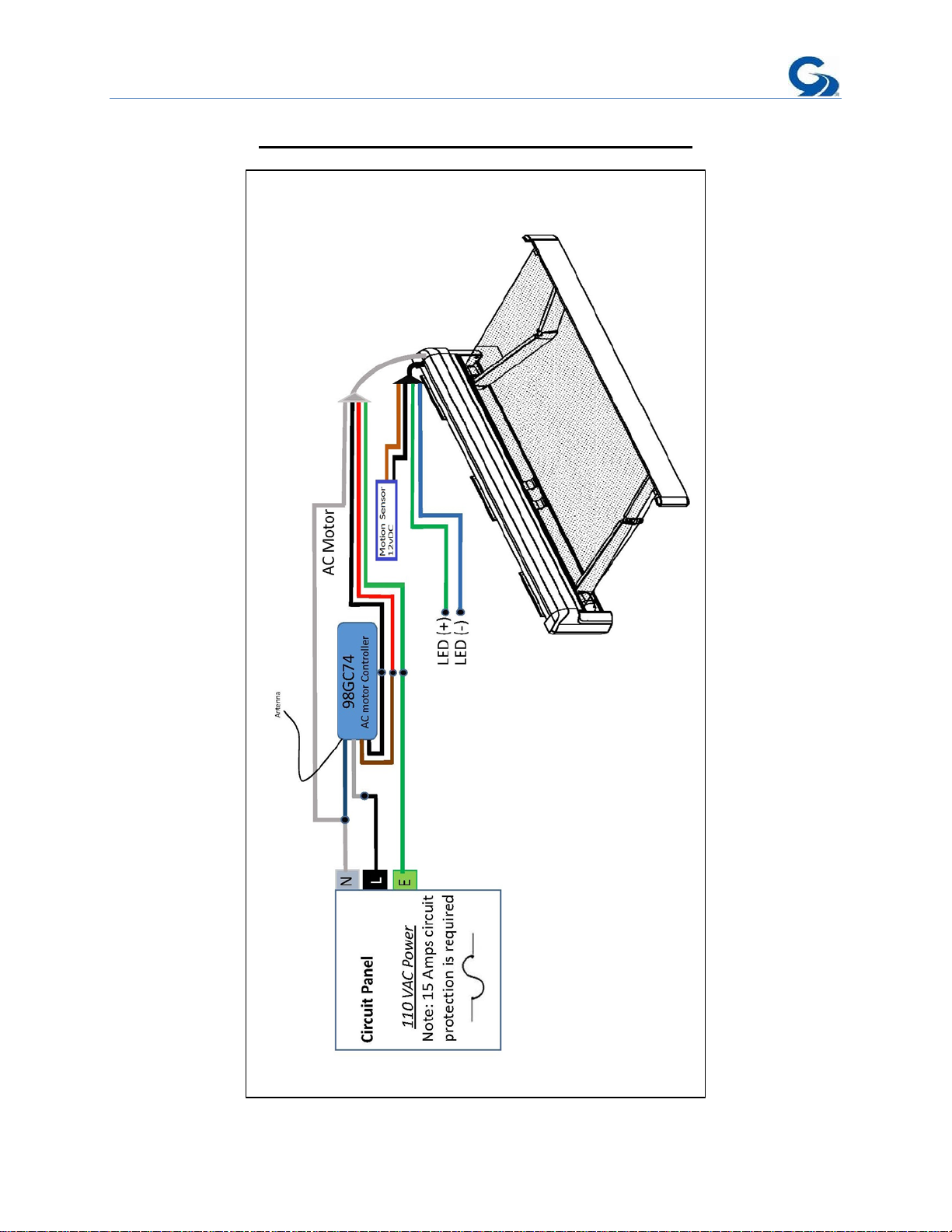

INSTALLATION WIRING DIAGRAM

5
PAIRING WITH REMOTE DEVICES
The following pages give instructions on how to pair the 98GC74 Motor controller with
the remote control devices in this electronics package. Please ensure that the
instructions are followed carefully.
98GC229 SINGLE CHANNEL WALL SWITCH
The faceplate can be removed easily by holding the module firmly in one hand at the
left and right edges and push the STOP button with two fingers of your other hand.
Fig.1 below shows how the batteries must be inserted.
Fig.1

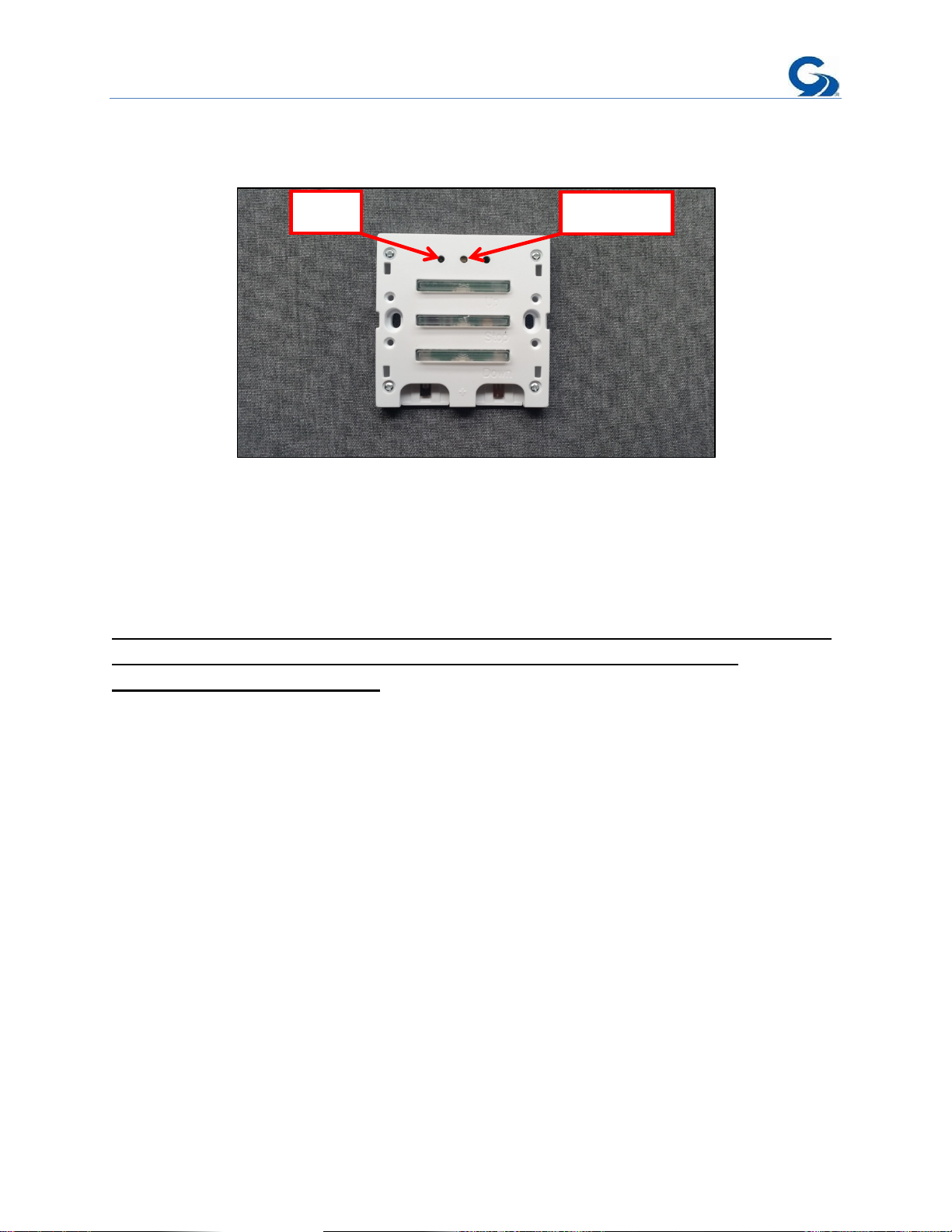

The module has three circular holes above the IN button as shown in Fig.2 below. The
hole on the right serves no purpose, behind the center hole is the P2 button used for
WARNING
ALL ELECTRICAL WORK MUST CONFORM TO APPLICABLE
ELECTRICAL CODES AND STANDARDS.
•Turn off power before beginning any electrical work.
•Please consult your RV’s wiring diagram to locate any wiring
prior to any drilling or any installation procedures.
•Ensure that placement of controls, cables, and wires are not
in any way obstructed. This can damage the components and
obstruct electrical current.
•Use only certified components.

6
pairing the module with a motor controller and behind the hole on the left is a Red LED
which will illuminate when any of the buttons are pressed.
Fig.2
When pairing with the 98GC74 it is advised that the awning to be controlled is manually
extended couple of feet to enable the programmer to see if the awning is responding in
the correct direction when the buttons on the wall switch are pressed.
The programming window for this module is only 6 seconds so please ensure
that the programming instructions are read and understood before
attempting to execute them.
1) Supply power to the motor control module. (It will beep ONCE )
2) Press the P2 button on the wall switch TWICE. (The motor controller will beep
with each press)
3) Press the IN button on the wall switch. (The awning should retract)
If the awning extends at this point instead of retracting, press the STOP button
immediately, then remove the power supply to the motor controller for at least 10
seconds.
Next repeat steps 1 and 2 above then press the OUT button on the wall switch to
complete the programming procedure.
Ensure that the awning responds correctly to the wall switch by pressing the OUT,
STOP and IN buttons alternately.
P2 Button
L.E.D

7
PAIRING WITH A MOTION SENSOR
Identify the Primary remote which operates the Motor controller for the awning on
which the motion sensor is to be mounted. There may be more than one on the vehicle.
Prepare the Motion Sensor for pairing by carrying out the following procedure.
Remove the 2 small
Phillips screws which
secure the motion sensor
to the mounting bracket.
The base of the module
is magnetized so will
need to be gently lifted
off.
Fig.1
Then turn it over.
Fig.2

8

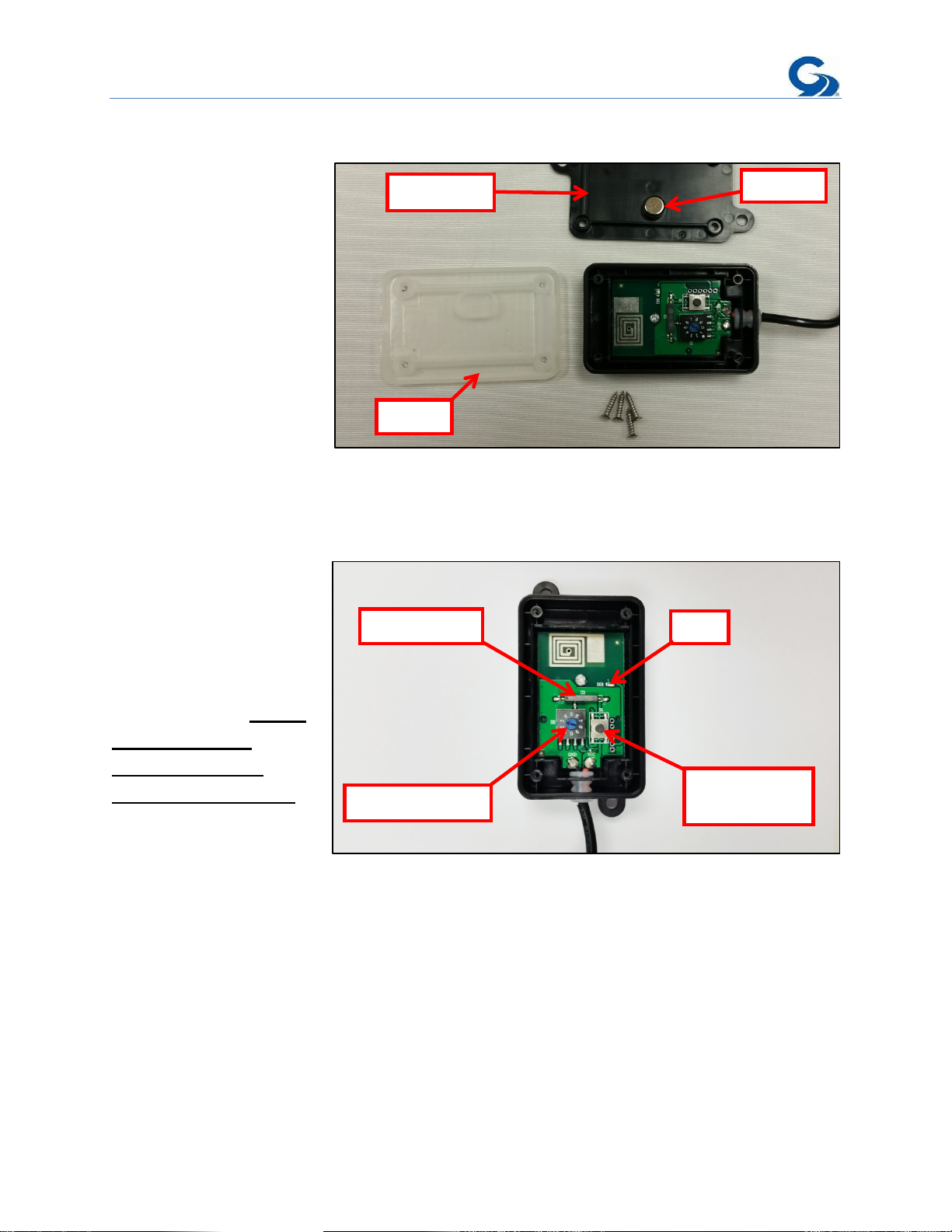

Remove the 4 Phillips
screws holding the
module together.
Remove the base plate
and silicone insert.
Fig.3
Turn the base plate over
(Magnet down). Then
place the motion sensor
on top of it so that the
magnet is aligned with
the reed switch. If this
is not done the
default program
cannot be changed.
Fig.4
Fully extend the awning to ensure smooth operation, and then retract the awning
leaving it partially open (about 3 feet).
Locate the P2 Button on the wall switch.
Base Plate
Magnet
Insert
Reed Switch
Adjustment Dial
Programming
Button
LED

9
Note; when carrying out this part of the procedure each step must be
executed within 6 seconds of the previous one or the module will revert to
factory settings. It is highly recommended that you read and understand the
following sequence before attempting to execute it.
a. Set the Motion sensor Adjustment Dial to 0. (See Fig.4).
b. Connect the GC779G Motion sensor to a 12volt DC circuit. At this point the
Purple LED will illuminate and then begin to blink. If it does not, the unit is not
receiving the correct power. Ensure that the magnet and reed switch are aligned
and verify the electrical connection before proceeding.
c. Using an appropriate tool, press the P2 Button on the wall switch TWICE. The
98GC74 will bleep ONCE with each press.
d. Press the programming button on the GC779G Motion sensor ONCE (See Fig.4).
The 98GC74 will bleep several times to indicate that the program has been
accepted.
e. Ensure that the signal was accepted by pressing the Program button on the
GC779G Motion sensor again. The Awning should make a small step IN or OUT.
Or shake the motion sensor and the Awning will fully retract.
f. If the Awning does not retract, repeat steps a. to d.
g. Set the Adjustment Dial to the desired sensitivity level 1 to 5. Never set higher
than 5. (The factory setting is 3).
Once programming is complete, reassemble the Motion sensor module and mount it on
the awning lead rail.
For queries or assistance with programming any of your G-Link devices
please call Girard Systems TOLL FREE on 800–382–8442 between 7:30am
and 5:00pm P.S.T.

DRY CONTACT MODULE
GC1149A
INSTALLATION GUIDE
RV AWNING PRODUCTS
1361 CALLE AVANZADO, SAN CLEMENTE, CA 92673 [phone] FAX [phone]
www.girardrv.com

2
Girard Systems awnings may be operated in light wind and rain
conditions. When periods of heavy rain and or high wind are expected
the awning must be closed. Never leave the awning open and
unattended.
Damage caused by wind and rain is not covered by warranty.
All awnings must be closed prior to moving the vehicle for any reason.
As an extra safety precaution a visual check that every awning is fully
closed is required.
Damage caused by failure to comply with these instructions is
not covered by warranty.
Before using your awning, ensure that the area into which the awning
will be deployed is free of obstructions (Trees, walls, pillars, posts,
other vehicles etc.)
Damage caused by collisions with any of the above or similar is
not covered by warranty.
Before using your awning make sure that all of your electrical circuits
are operating correctly. Recreational Vehicles can generate AC power
from three separate sources. The electrical system transfer switch in
your vehicle will select power for the awning as follows:
Shore Power – if connected;
Generator Power – if the generator is running;
Inverter Power – batteries must be charged for inverter operation.
Girard Systems awnings are supplied with an electric motor appropriate to the
product.

3
CONTENTS
Product Description …………………………………………………………………………. 4
Modes of operation …………………………………………………………………………. 5
Programming Steps ……………………………………………………………………… 6-7
THE G–LINK SYSTEM
The G-Link motors and control modules provided by Girard Systems communicate by
use of RF signals on a frequency of 433.92 MHZ. This eliminates the need for wiring
and the drilling of holes in the vehicle. These components must be electronically
matched, programmed or paired before use. This is usually done at the Girard Systems
factory. Should the need arise for the user to pair a device with the motor controller
they must refer to the appropriate manual for the devices applicable to their particular
installation.

4
PRODUCT DESCRIPTION
The GC1149A Dry Contact Module allows the user to interface their Dry Contact
Systems (Crestron, Switch Input or RV-C) with our G-link Controllers. This module will
accept Retract, Stop and Extend commands from the Dry Contact System and send an
RF signal to any programmed G-link Controller or Remote Motor. Using this module the
user will be able to operate their Girard awnings with their smart system.
Fig.1
Technical Specification
•Input voltage：12V/24V
•Transmitting frequency：433MHz
•Transmitting power：10 milliwatts
•Transmitting distance：500 Feet open area
•120 feet on two walls

5
MODES OF OPERATION
The GC1149A has 3 modes of operation;
1. Continuous Mode (Default) – A single press of a command button will allow the
awning to fully extend or retract unless interrupted by the STOP button.
2. Step Mode (Selected) – The command button must be held down to allow the
awning to fully extend or retract. The motor will stop as soon as the command
button is released.
3. Secondary Continuous Mode (Selected) – A single press of a command button will
allow the awning to fully extend or retract unless interrupted by pressing either the
same command button or the stop button.

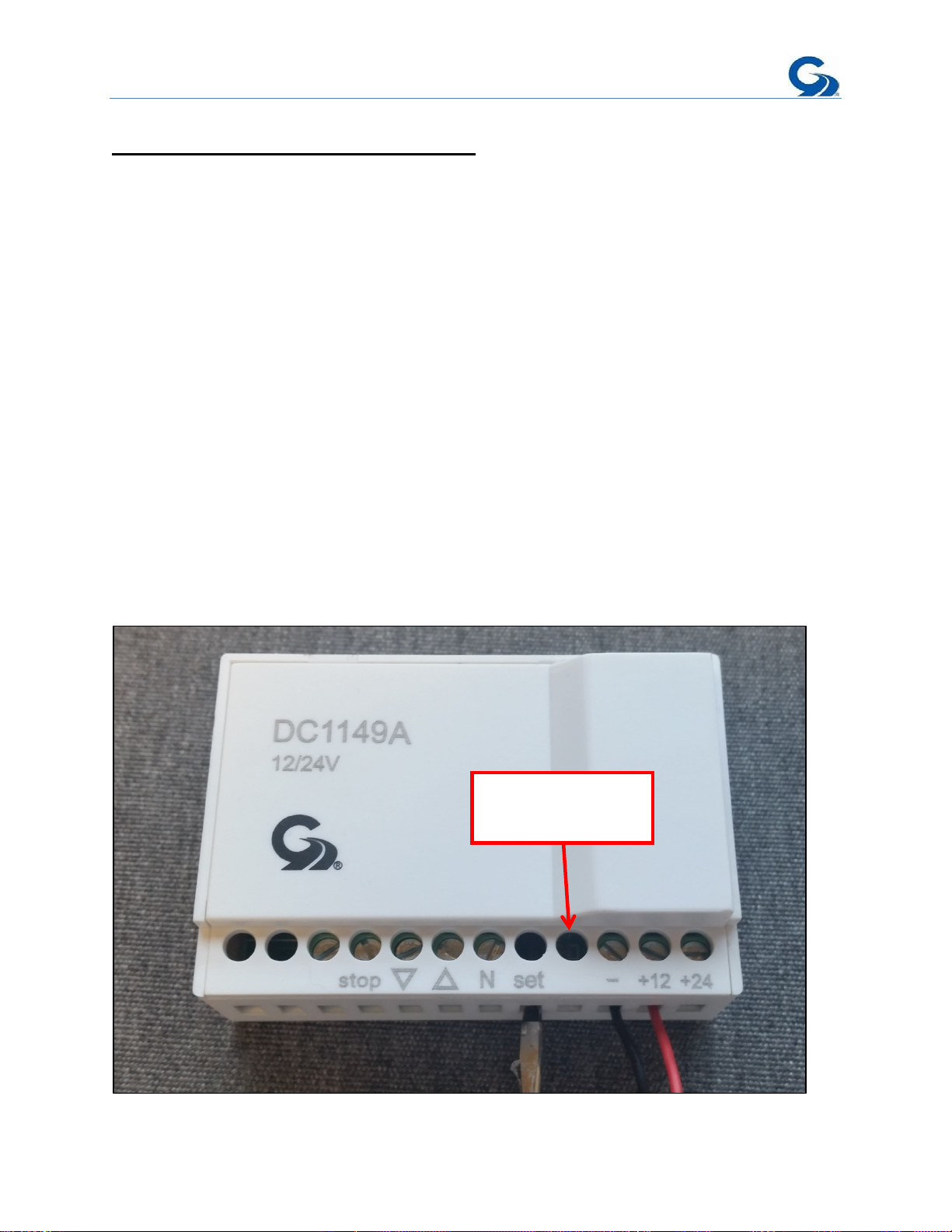

To select each mode the module must be connected to a 12v power supply.
•Use a small screwdriver or similar tool to press and hold the SET button, a
blue/purple LED next to the set button will begin to flash 5 times slowly and then
ONCE quickly to indicate the DEFAULT mode.
•Continue to hold the set button (for about 12 seconds) until the LED flashes TWICE
quickly. This will select the STEP mode.
•Continue to hold the set button (for about 20 seconds) until the LED flashes 3
TIMES quickly. This will select the secondary continuous mode.
The LED will be
seen flashing here

6
PROGRAMMING STEPS
NOTE:
•Before starting this procedure the Receiver must be without power
(OFF) for at least 10 seconds.
•During the programming function the interval between each step
required must be less than 10 seconds
1. PROGRAMMING THE GC1149A TO A RECEIVER(GC136, GC154 or GC274A)

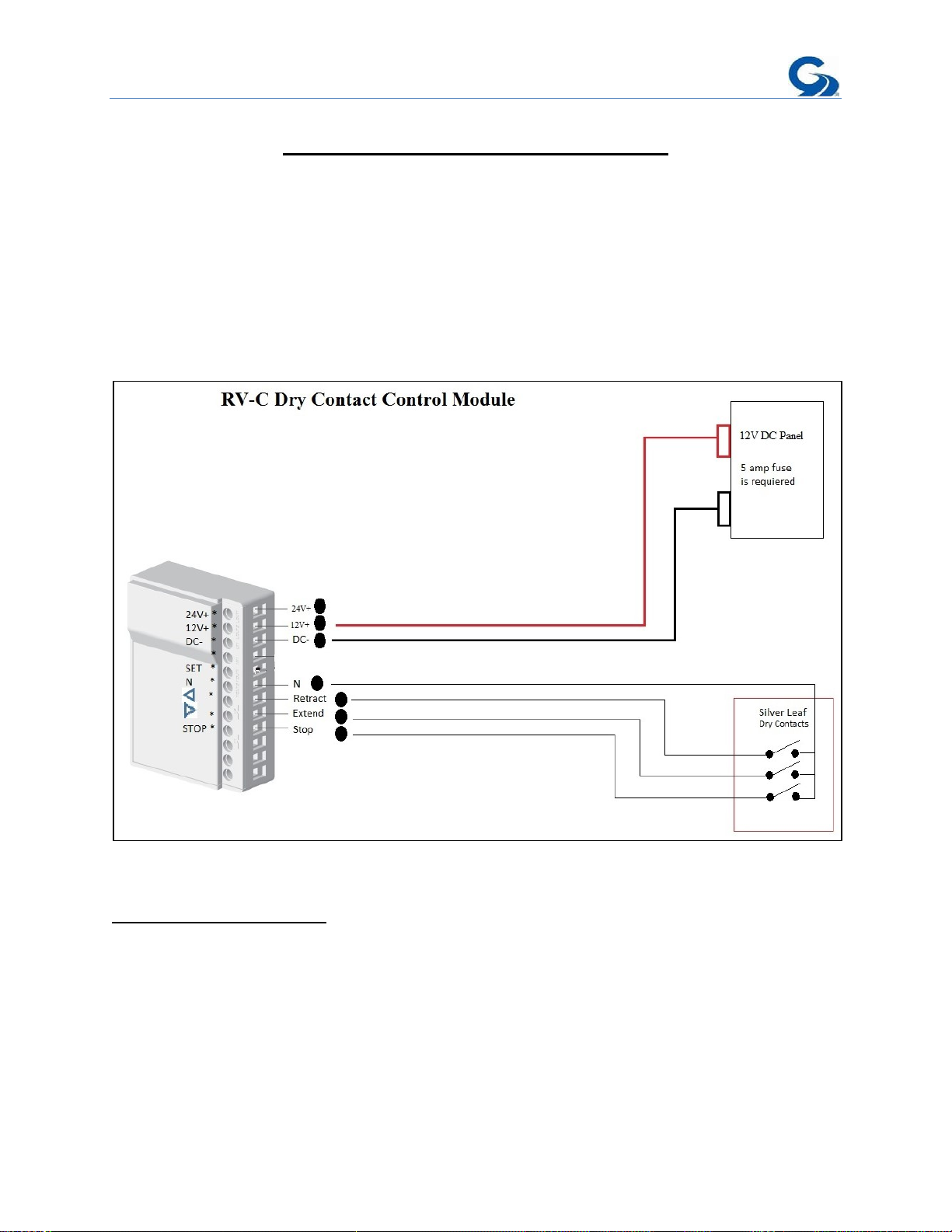

a. Connect the Dry Contact Control Module (GC1149A) to 12 Volts DC (Fig.1)
b. Make sure that the Receiver is powered ON
c. Press the program button on the Receiver: the Green LED of the Receiver
will start blinking
d. Press STOP on the Receiver: The Green LED will stop blinking and remain
illuminated.
e. Press the Retract button on the dry contact or using a small jumper from
Common to Retract, which will link the GC1149A to the motor controller: The
Green LED will turn off.
f. Note: Blue / purple light will flash on the GC1149A every time it transmits.
g. Try to operate the Awning by using the system or by using small jumpers
from common to retract terminal. If the Awning does not move, repeat steps
“a” to “e”.
2. Programming the 98GC1149A to the GC732G (DC Motor Control)
a. Connect the Dry Contact Control Module (GC1149A) to 12 Volts DC (Fig.1)
b. Supply power to the GC 732G: The unit will start beeping for least 5
seconds.
c. Press the Programming button for at least 3 seconds. (Red LED will turn ON
after 3 seconds).
d. Press the Retract button on the dry contact or using a small jumper from
Common to Retract terminal, which will link the GC1149A to the motor
controller: The Green LED will turn off.
e. Try to operate the Awning by using the system or by using small jumpers
from common to retract terminal. If the Awning does not move, repeat steps
“a” to “e”.

7
3. Programming the 98GC1149A to a Remote Motor
a. Connect the Dry Contact Control Module (GC1149A) to 12 Volts DC (Fig.1)
b. Turn on the power to the Remote Motor: a soft beep will be emitted by the
RF receiver in the unit.
c. Press the P2 button twice, (A beep will be emitted by the RF receiver with
each press)
d. Press the Retract button on the dry contact or using a small jumper from
Common to Retract, which will link the GC1149A to the motor.
e. Try to operate the Awning by using the system or by using small jumpers
from common to retract terminal. If the Awning does not move, repeat steps
“a” to “e”.
Note: If the motor turns in the opposite direction, repeat “a to e’ but now
use Extend instead of Retract.
For queries or assistance with programming any of your G-Link devices
please call Girard Systems TOLL FREE on 800–382–8442 between 7:30am
and 3:30pm P.S.T.

12V MOTION SENSOR
98GC779G
INSTALLATION & PROGRAMMING GUIDE
RV AWNING PRODUCTS
1361 CALLE AVANZADO, SAN CLEMENTE, CA 92673 [phone] FAX [phone]
www.girardrv.com

2
Girard Systems awnings may be operated in light wind and rain
conditions. When periods of heavy rain and or high wind are expected
the awning must be closed. Never leave the awning open and
unattended.
Damage caused by wind and rain is not covered by warranty.
All awnings must be closed prior to moving the vehicle for any reason.
As an extra safety precaution a visual check that every awning is fully
closed is required.
Damage caused by failure to comply with these instructions is
not covered by warranty.
Before using your awning, ensure that the area into which the awning
will be deployed is free of obstructions (Trees, walls, pillars, posts,
other vehicles etc.)
Damage caused by collisions with any of the above or similar is
not covered by warranty.
Before using your awning make sure that all of your electrical circuits
are operating correctly. Recreational Vehicles can generate AC power
from three separate sources. The electrical system transfer switch in
your vehicle will select power for the awning as follows:
Shore Power – if connected;
Generator Power – if the generator is running;
Inverter Power – batteries must be charged for inverter operation.
Girard Systems awnings are supplied with an electric motor appropriate to the
product.
