Glacier bay ARAGON HD67090W-6B10H Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
ARAGON 4 IN. CENTERSET 2-HANDLE
LOW-ARC BATHROOM FAUCET
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this lavatory
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
2/2023 REV.01THD
Model#
HD67090W-6B01
HD67090W-6B10H
HD67090W-5501
HD67090W-5510H
SKU#
1002974548
1009351604
1002974554
1009352155
Internet#
309237983
324555823
309237988
324555858

2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Package Contents ..................................3
Installation................................................4
Care and Cleaning ....................................8

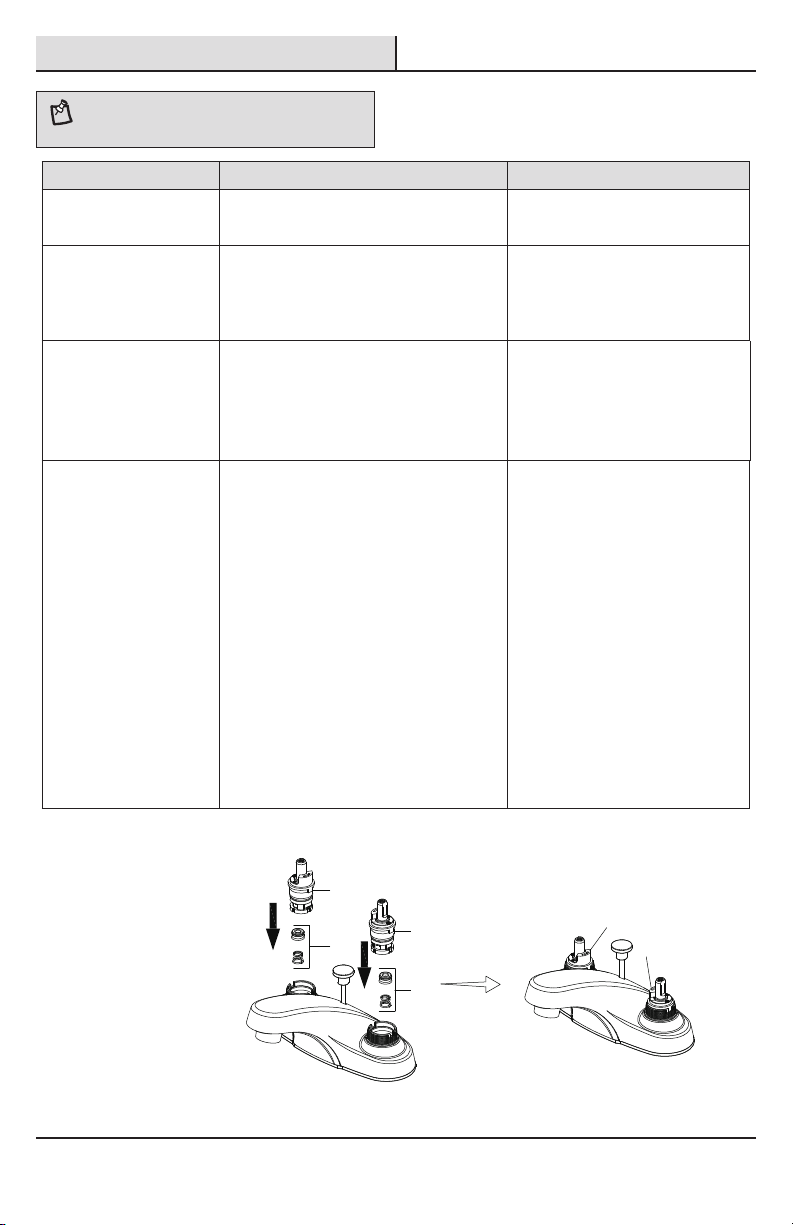

Troubleshooting........................................9
Service Parts ........................................... 10
Important Information
□ Observe all local plumbing and building codes.
□ Cover the sink drain to avoid losing any parts.
□ Review the care and cleaning section included in this guide.
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact Customer Service
for replacement parts.
TOOLS AND HARDWARE REQUIRED
Adjustable
wrench
Safety
goggles
(2) Supply
lines
SILICONE
Silicone
sealant
Tools and Hardware Required ...............2

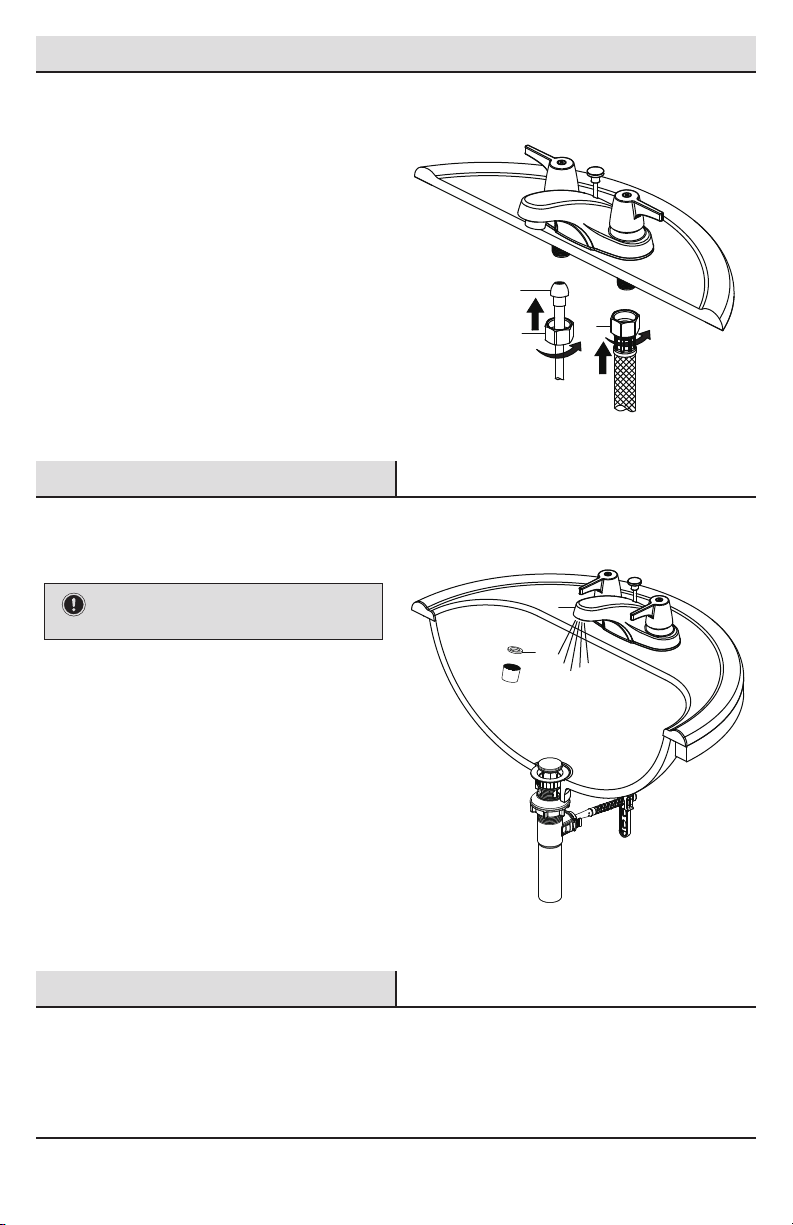

Operation...................................................8
HacksawPliers
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial and business usage, whose purchasers are hereby extended
a ve year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Contact the Customer Service Team at 1-855-434-5224 or visit www.HomeDepot.com.

3
Pre-Installation (continued)

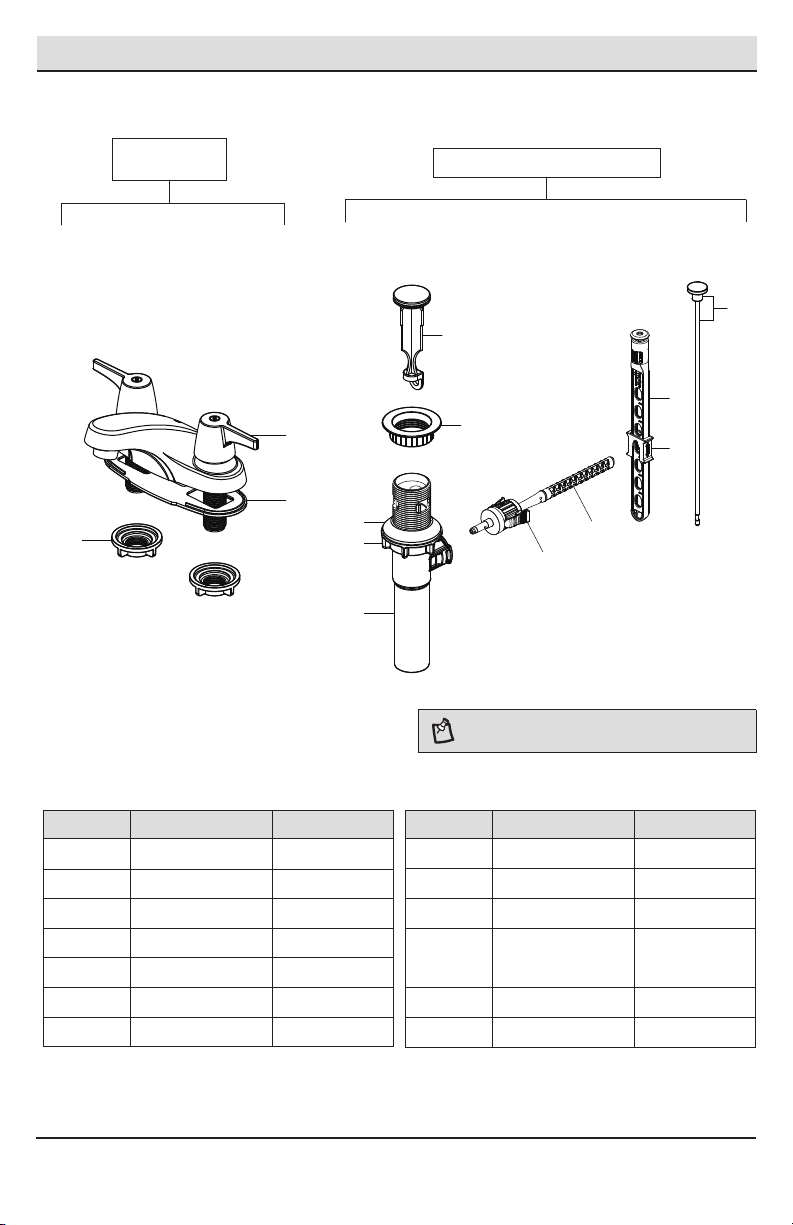

PACKAGE CONTENTS
Part Description Quantity
A 1Faucet
B 1Gasket
C 2Mounting nut
D 1Pop up stopper
E 1Pop-up ange
F 1Rubber washer
G 1Lock nut
H 1Drain body
I 1Joint
J 1Horizontal rod
K 1Lift rod strap
M 1Lift rod
L 1Clip
Part Description Quantity
Faucet Assembly ClickInstall Drain Assembly
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
NOTE: *Items D - H come pre-assembled.
D*
E*
F*
G*
K
L
H*
I
J
M
A
B
C

Installation
4
1 Installing the faucet assembly
CAUTION: Always shut off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□Shut off the water supply. Remove the old
faucet.
□Ensure the gasket (B) is on the bottom of the
new faucet (A).
□Place the faucet (A) through the mounting
holes in the sink.
2 Preparing the pop-up assembly
□Remove the pop-up stopper (D) and drain
ange (E) from the drain body (H).
□Secure the faucet (A) to the sink using the
mounting nuts (C) provided. Hand-tighten only.
NOTE: Silicone sealant is required under the gasket (B).
□Clean the mounting surface.
D
E
H
A
B
C
SILICONE

5
Installation (continued)

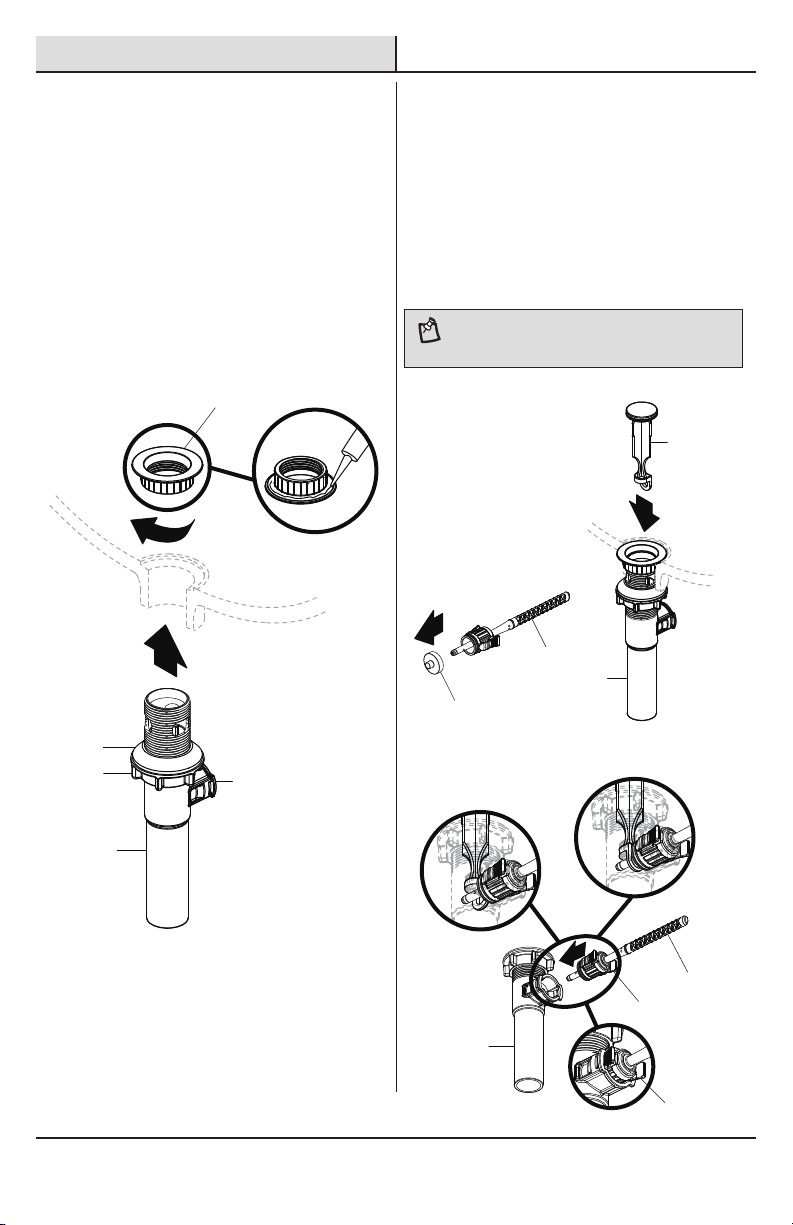

3 Installing the drain body
□Apply silicone sealant (not included) under the
drain ange (E) and place the drain ange (E)
into the drain hole of the sink.
□From underneath the sink, screw the drain
body (H) onto the drain ange (E). Ensure that
the opening (1) for the ball rod on the drain
body (H) faces towards the rear of the sink.

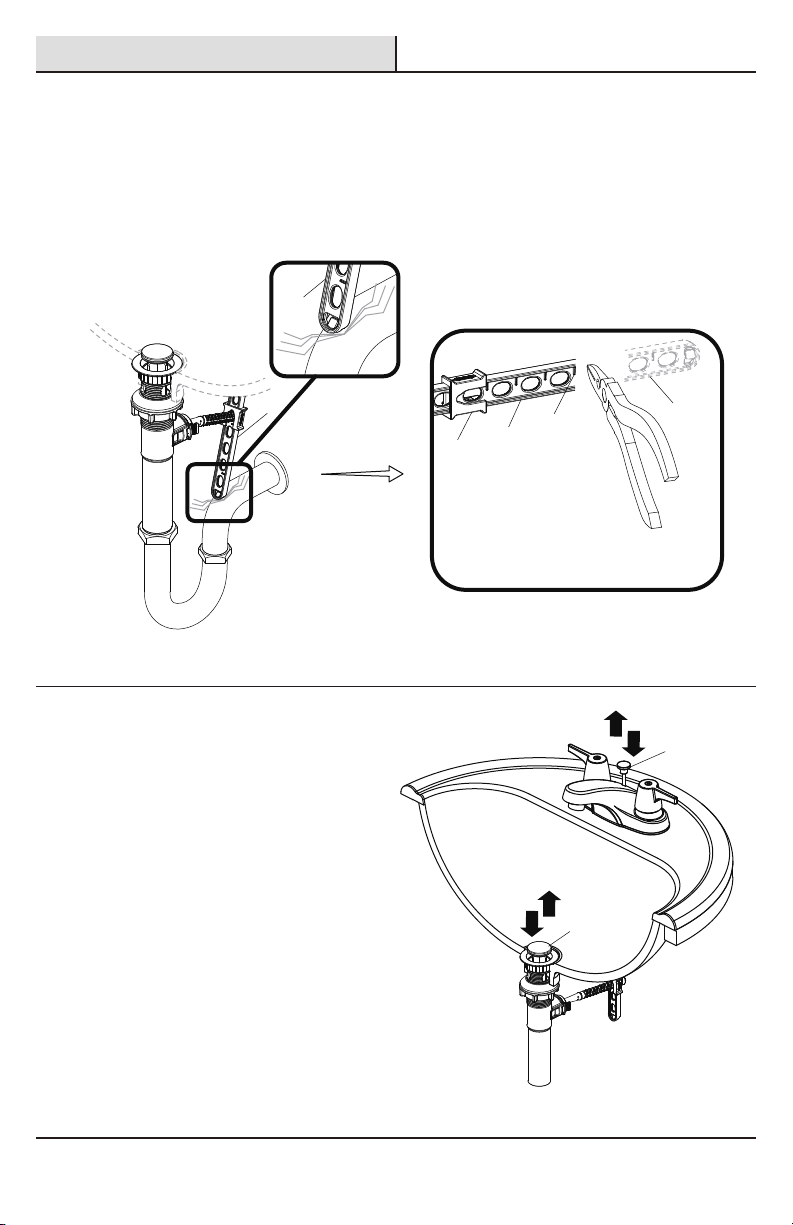

4 Installing the stopper and
horizontal rod
□ Tighten the rubber washer (F) and lock nut (G)
on the drain body (H). Hand-tighten only.
□Insert the stopper (D) into the drain hole in the sink.
□Before installation, unscrew the protective cap (1)
from the horizontal rod (J).
□Insert the horizontal rod (J) into the drain body (H)
and through the hole of the stopper (D) until you
hear a click. See insert 2. You can press the two
sides of the joint (I) to remove the horizontal rod (J).
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
NOTE: For easier removal and cleaning, rotate the stopper
(D) 90 degrees so that the horizontal rod (J) does not go
through the hole in the stopper (D). See insert 3.
1
2
E
F
G
SILI
H
1
1
1
J
2
H
D
3
Insert 3
Insert 2
I
J
H
I
