Glenmac Harley Pro 6 User manual

(03/2005)SN: P65F001
by
Glenmac Inc
1805 2nd Avenue SW
Jamestown, ND 58401
701-252-9300 tel
701-252-1978 fax
701-952-9307 parts fax

1PN-P970620 (03/2005)
INTRODUCTION
This Safety-Alert Symbol indicates a hazard and means
ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!
DANGER Indicates an imminently hazardous situation that, if not avoided,
will result in death or serious injury.
WARNING Indicates a potentially hazardous situation that, if not avoided,
could result in death or serious injury, and includes hazards that
are exposed when guards are removed.
CAUTION Indicates a potentially hazardous situation that, if not avoided,
may result in minor or moderate injury.
GLENMAC, INC., based in Jamestown, North Dakota, along with your authorized Harley dealer, are
proud that you chose to purchase a Harley Power Rake. Equipment under the Harley name has been built
and sold worldwide for over 35 years. GLENMAC, INC. specializes in the manufacturing of construction
and landscape attachments designed to make your job more efficient, cleaner, and easier regardless of the
complexity of the job. The Harley Power Rake brings state-of-the-art design, ruggedness, and
maneuverability to jobs such as: landscaping, seedbed preparation, site development, rock raking and
picking, golf course construction, ball field renovation and maintenance, liner installation, horse track
screening, sod farm ground work, beach cleaning - and the job for which you purchased your Harley.
This manual will provide you, the operator, with instructions for proper safety, assembly, and operation
procedures so you can benefit from the equipment’s optimum level of performance. Successful operation
and long-life of your Harley Power Rake depends on you. As owner and operator of your new Harley, it
is your responsibility to become familiar with the proper operation and care required to operate it safely
and efficiently and to maintain the equipment in top condition.
To keep your Harley equipment at peak performance, please READ THIS MANUAL CAREFULLY
several times and follow the directions as specified for each operation. Correct operation and maintenance
will save you time and expense.
REMINDER: Fill in the warranty card and mail within 10 days of your purchase date. While filling in the
card with the correct information, put the date purchased and serial number on the front cover of this
manual. Should you need to call your dealer or GLENMAC, INC., this information will help them to more
quickly provide accurate service for you.
Thank you for purchasing a Harley Power Rake.
For more information, contact your local Harley dealer or call:
GLENMAC INC
PO Box 2135
Jamestown ND 58402-2135 U.S.A.
TEL: [phone]
TEL: [phone]
FAX: [phone]
DEALER NAME:
_____________________________
_____________________________
_____________________________
_____________________________
_____________________________

2PN-P970620 (03/2005)
Introduction ...........................................................................1
Specifications ........................................................................ 2
Owner Assistance .................................................................. 3
General Information .............................................................. 4
Bolt Size Chart ....................................................................... 4
Bolt Torque Chart ...............................................................5-6
Safety Rules........................................................................6-9
Safety Decals .................................................................. 10-11
Operation........................................................................ 12-16
Maintenance ................................................................... 17-25
Trouble Shooting................................................................. 20
Assembly ........................................................................ 26-27
Parts Identification and Drawings .................................. 28-37
Warranty .............................................................................. 38
Raking Width .............................................................................. 72 Inches
Roller Type ............................................. Bar Roller Standard 7" Diameter
Roller Angle ................................................... 15 Degrees Both Directions
Roller Gap (Bar to Smooth Roller) ...................... 1/4" - 1-1/2" Adjustable
Tires ......................................................................................... 16.5 x 6.5-8
Tire Pressure ...................................................................................... 45 psi
Weight ............................................................................................. 995 lbs
Oil Capacity of Chain Case .................................. Approximately 1.5 Pints
Tractor Three-Point Attachment ........................................................ Cat. 1
PTO Drive ................................................................................... 540 RPM
Tractor Hydraulic System............................................. One Remote Valve
Tractor PTO HP ......................................................................... 25 - 40 HP
TABLE OF CONTENTS
SPECIFICATIONS

3PN-P970620 (03/2005)
GLENMAC, INC. and your authorized Harley Dealer want you to be completely satisfied with your investment.
Sometimes, however, misunderstandings can occur. To resolve any problem that may occur, please follow the
instructions below.
1. If you did not purchase your Power Rake from an authorized Harley Dealer, go to number 2 below.
A. Contact the Service Manager of the dealership, explain the problem, and request assistance.
If additional assistance is needed, your dealer has direct access to our home office.
B. If your problem has not been handled to your satisfaction, contact:
CUSTOMER SERVICE (8:00 am - 5:00 P.M. CT)
GLENMAC INC
PO BOX 2135
JAMESTOWN ND 58402-2135
701/252-9300
800/437-9779
C. Please be prepared to provide the following information:
•Your name, address, and telephone number,
•Machine model and SERIAL NUMBER,
•Dealership name and address,
•Machine purchase date,
•Nature of problem.
Your problem will likely be resolved in the dealership using the dealer’s facilities, equipment, and personnel.
Therefore, it is important that your initial contact be with the dealer.
2. If you did not purchase your equipment from an authorized dealer, call GLENMAC, INC. (see “B” above).
There may be a new dealer in your area since you purchased your Harley Power Rake. If there is no dealer in
your area, our Customer Services Department can and will help you obtain the parts and information you may
need. Please be prepared to provide the information requested under “C” above.
OWNER ASSISTANCE

4PN-P970620 (03/2005)
The purpose of this manual is to assist you in operating
and maintaining your Power Rake. Read it carefully.
It furnishes information and instructions that will help
you achieve years of dependable performance. These
instructions have been compiled from extensive field
experience and engineering data. Some information
may be general in nature due to unknown and varying
operating conditions. However, through experience
and these instructions, you should be able to develop
procedures suitable to your particular situation.
The illustrations and data used in this manual were
current at the time of printing, but due to possible in-
line production changes, your machine may vary
slightly in detail. We reserve the right to redesign
and change the machines as may be necessary without
notification.
Throughout this manual, references are made to front,
back, right and left directions. These are determined
by sitting in the operator’s seat of the skid-steer.
BOLT SIZE CHART
NOTE: Chart shows bolt thread sizes and corresponding head (wrench) sizes for standard SAE and Metric Bolts.
SAE Bolt Thread Sizes
5/16 3/8 1/2 5/8 3/4 7/8
Metric Bolt Thread Sizes
8MM 10MM 12MM 14MM 16MM 18MM
GENERAL INFORMATION

5PN-P970620 (03/2005)
After every ten (10) hours of operation, check all hardware and tighten where required.

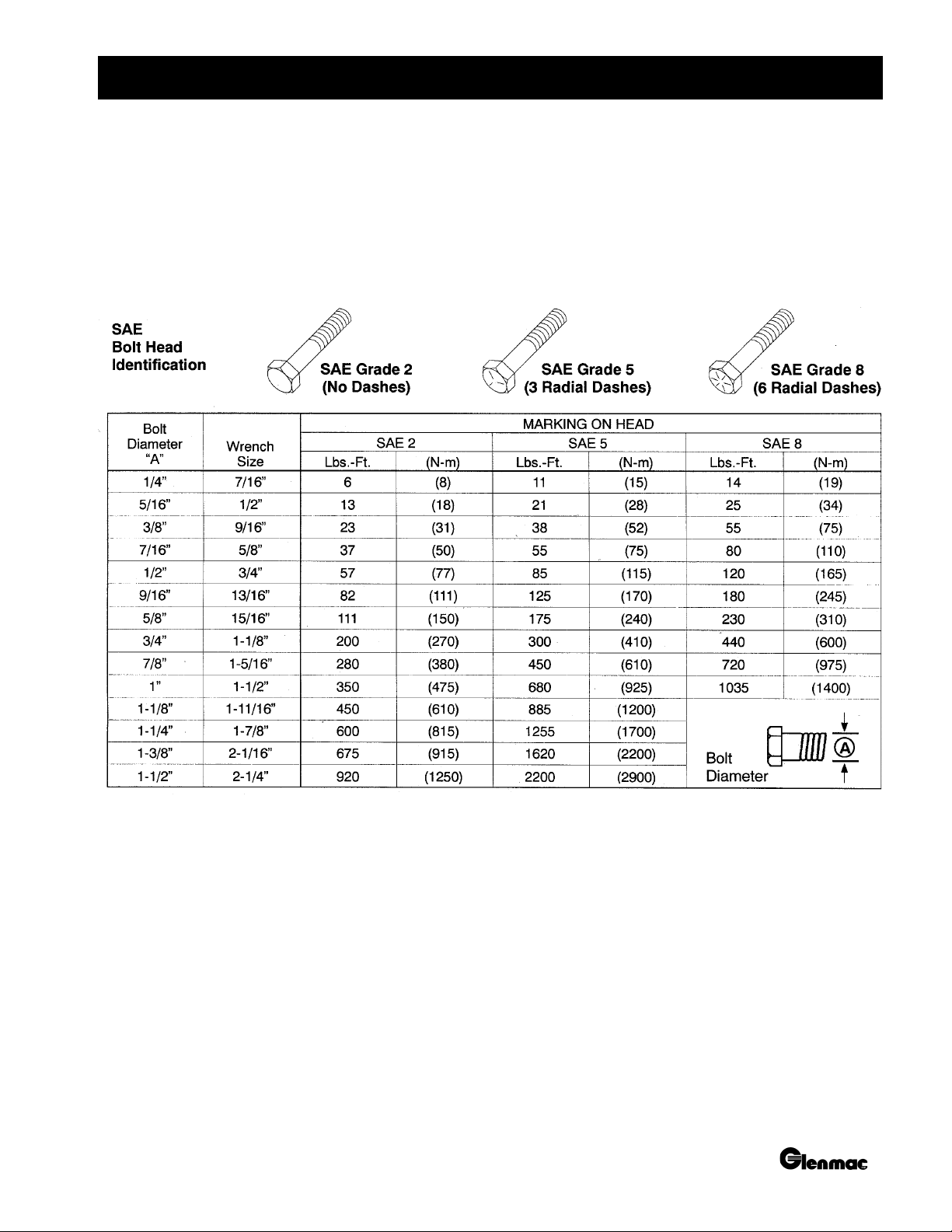

SAE Series Torque Chart
DO NOT use these values if a different torque value or tightening procedure is listed for a specific application.
Torque values listed are for general use only.
Fasteners should be replaced with the same grade.
Make sure fastener threads are clean and you properly start thread engagement. This will prevent them from failing
when tightening.
BOLT TORQUE CHART

6PN-P970620 (03/2005)
Metric Series Torque Chart
Use only metric tools on metric hardware. Other tools may not fit properly. They may slip and cause injury.
DO NOT use these values if a different torque value or tightening procedure is listed for a specific application.
Torque values listed are for general use only.
Fasteners should be replaced with the same grade.
Make sure fastener threads are clean and you properly start thread engagement. This will prevent them from failing
when tightening.
Safety is a primary concern in the design and
manufacture of our products. Unfortunately, our
efforts to provide safe equipment can be wiped out
by a single careless act of an operator. In addition
to the design and configuration of equipment, hazard
control and accident prevention are dependent upon
the awareness, concern, prudence and proper
training of personnel involved in the operation,
transport, maintenance and storage of equipment.
It has been said, “The best safety device is an
informed, careful operator.” We ask you to be that
kind of operator.
The designed and tested safety of this equipment
depends on it being operated within the limitations as
explained in this manual.
TRAINING
• Safety instructions are important! Read all
attachment and power unit manuals; follow all
safety rules and safety decal information.
(Replacement manuals are available from dealer
or, in the United States and Canada, call 1-800-
437-9779.) Failure to follow instructions or safety
rules can result in serious injury or death.
• If you do not understand any part of this manual
and need assistance, see your dealer.
• Know your controls and how to stop engine and
attachment quickly in an emergency.
• Operators must be instructed in and be capable of
the safe operation of the equipment, its attachments
and all controls. Do not allow anyone to operate
this equipment without proper instructions.
BOLT TORQUE CHART
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
SAFETY RULES
After every ten (10) hours of operation, check all hardware and tighten where required.

7PN-P970620 (03/2005)
• Keep hands and body away from pressurized lines.
Use paper or cardboard, not body parts to check
for leaks. Wear safety goggles. Hydraulic fluid
under pressure can easily penetrate skin and will
cause serious injury or death.
• Make sure that all operating and service personnel
know that in the event hydraulic fluid penetrates
skin, it must be surgically removed as soon as
possible by a doctor familiar with this form of
injury, or gangrene, serious injury or death will
result. CONTACT A PHYSICIAN
IMMEDIATELY IF FLUID ENTERS SKIN
OR EYES. DO NOT DELAY.
• Do not allow children or untrained persons to
operate equipment.
PREPARATION
• Air in hydraulic systems can cause erratic operation
and allows loads or equipment components to drop
unexpectedly. Before operating or allowing
anyone to approach the equipment, purge any air
in the system by operating all hydraulic functions
several times after connecting equipment,
connecting hoses, or doing any hydraulic
maintenance.
• Check that all hardware is tight and properly
installed. always tighten to torque chart
specifications.
• Before starting tractor, check all equipment driveline
guards for damage and make sure they rotate freely
on all drivelines. Replace any damaged guards. If
guards do not rotate freely on drivelines, repair and
replace bearings before operating.
• Make sure driveline is correct length to prevent
bottoming out or pulling apart during the full lift
range of the hitch.
• Make sure spring-activated locking pin or collar
slides freely and is seated firmly in tractor PTO
splined groove.
•After connecting hoses, check that all control lever
positions function as instructed in the Operator’s
Manual. Do not operate until control lever and
equipment movements are correct.
• Make sure all hydraulic hoses, fittings, and valves
are in good condition and not leaking before starting
power unit or using equipment. Check and route
hoses carefully to prevent damage. Hoses must
not be twisted, bent sharply, kinked, frayed,
pinched, or come into contact with any moving
parts. Operate moveable components through full
operational range to check clearances. Replace any
damaged hoses immediately.
Always wear relatively tight and belted clothing
to avoid entanglement in moving parts. Wear
sturdy, rough-soled work shoes and protective
equipment for eyes, hair, hands, hearing and head.
•Ensure implement is properly attached, adjusted
and in good operating condition.
•Power unit must be equipped with ROPS (Roll Over
Protection Structure) or ROPS CAB and seat belt/
operator restraint. Keep seatbelt/operator restraint
securely fastened/engaged. Falling off power unit
can result in death from being run over or crushed.
Keep ROPS systems in “locked up” position at all
times.
Remove accumulated debris from this equipment,
tractor, and engine to avoid fire hazard.
A minimum 20% of tractor and equipment weight
must be on tractor fron wheels with attachments
in “transport” position. Without this weight,
tractor could tip over causing personal injury or
death. The weight may be attained with a loader,
front wheel weights, ballast intires, or front tractor
weights. When attaining the minimum 20%
weight on the front wheels you must not exceed
the Roll Over Protection Structure (ROPS) weight
certification. Weigh the tractor and equipment.
Do not estimate.
• Ensure all safety decals are installed. Replace if
damaged. (See Safety Decals section for location.)
• Ensure shields and guards are properly installed and
in good condition. Replace if damaged.
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
SAFETY RULES

8PN-P970620 (03/2005)
OPERATIONAL SAFETY
•Consult local utilities before digging. Know location
and depth of, and avoid contacting, all underground
cables, pipelines, and other hazards in working area.
•Do not allow other people in the area when
operating, attaching, removing, assembling, or
servicing equipment.
•Only engage power when equipment is at ground
operating level. Always disengage power when
equipment is raised off the ground.
•Do not disconnect hydraulic lines until all system
pressure is relieved. Lower unit to ground, stop
engine, and operate all hydraulic control levers.
•Keep bystanders away from equipment while it is
in operation.
•Never go underneath equipment lowered to the
ground or raised. Never place any part of the body
underneath equipment or between moveable parts
even when the engine has been turned off.
Hydraulic system leak-down, hydraulic system
failures, mechanical failures, or movement of
control levers can cause equipment to drop or rotate
unexpectedly and cause severe injury or death.
•Service work does not require going underneath
equipment.
•Read Operator’s Manual for service instructions
or have done by a qualified dealer.
•Never direct discharge toward people, animals, or
property.
•Do not operate equipment while under the
influence of alcohol or drugs.
•Operate only in daylight or good artificial light.
•Keep hands, feet, hair, and clothing away from
equipment while engine is running. Stay clear of
all moving parts.
•Always comply with all state and local lighting
and marking requirements.
•No riders are allowed on equipment.
•Always sit in tractor seat when operating controls
or starting engine. Securely fasten seat belt, place
transmission in neutral, engage brake, and ensure
all other controls are disengaged before starting
tractor engine.
•Operate tractor PTO at RPM speed stated in
“Specifications” section.
•Do not operate tractor PTO during transport.
•Stop tractor and implement immediately upon
striking an obstruction. Turn off engine, remove
key, inspect, and repair any damage before
resuming operation.
•Before dismounting tractor or performing any
service or maintenance, disengage power to
implement, lower the 3-point hitch and all raised
components to the ground, operate valve levers to
release any hydraulic pressure, stop engine, set
parking brake, remove key, and unfasten seat belt.
•Lower implement to ground or block securely, turn
tractor engine off, remove key, and disconnect
driveline from tractor PTO before performing any
service or maintenance.
•Never go underneath equipment lowered to the
ground or raised. Never place any part of the body
underneath equipment or between moveable parts
even when the engine has been turned off.
Hydraulic system leak-down, hydraulic system
failures, mechanical failures, or movement of
control levers can cause equipment to drop or rotate
unexpectedly and cause severe injury or death.
Service work does not require going underneath.
•Look down and to the rear and make sure area is
clear before operating in reverse.
•Use extreme care when working close to fences,
ditches, other obstructions, or on hillsides.
•Do no operate on steep slopes.
•Do not stop, start, or change directions suddenly
on slopes.
•Use extreme care and reduce ground speed on
slopes and rough terrain.
•Watch for hidden hazards on the terrain during
operation.
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
SAFETY RULES

9PN-P970620 (03/2005)
MAINTENANCE SAFETY
•Your dealer can supply original equipment,
hydraulic accessories and repair parts. Substitute
parts may not meet original equipment
specifications and may be dangerous.
•Always wear relatively tight and belted clothing
to avoid entanglement in moving parts. Wear
sturdy, rough-soled work shoes, and protective
equipment for eyes, hair, hand, hearing, and head.
•Before dismounting tractor or performing any
service or maintenance, disengage power to
implement, lower the 3-point hitch and all raised
components to the ground, operate valve levers to
release any hydraulic pressure, stop engine, set
parking brake, remove key, and unfasten seat belt.
•Lower implement to ground or block securely, turn
tractor engine off, remove key, and disconnect
driveline from tractor PTO before performing any
service or maintenance.
•Do not allow other people in the area when
operating, attaching, removing, assembling, or
servicing equipment.
•Do not modify or alter, or permit anyone else to
modify or alter, the equipment or any of its
components in any way.
•Never go underneath equipment lowered to the
ground or raised. Never place any part of the body
underneath equipment or between moveable parts
even when the engine has been turned off.
Hydraulic system leak-down, hydraulic system
failures, mechanical failures, or movement of
control levers can cause equipment to drop or rotate
unexpectedly and cause severe injury or death.
•Service work does not require going underneath
equipment.
•Read Operator’s Manual for service instructions
or have done by a qualified dealer.
•Ensure implement is properly attached, adjusted,
and in good operating condition.
•Never perform service or maintenance with engine
running.
•Keep all persons away from operator control area
while performing adjustments, service, or
maintenance.
•Tighten all bolts, nuts, and screws to torque chart
specifications. Check that all cotter pins are
installed securely to ensure equipment is in a safe
condition before operating.
•Ensure all safety decals are installed. Replace if
damaged. (See “Safety Decals” section for
location.)
•Ensure shields and guards are properly installed
and in good condition. Replace if damaged.
•Do not disconnect hydraulic lines until all system
pressure is relieved. Lower unit to ground, stop
engine, and operate all hydraulic control levers.
STORAGE
•Follow manual instructions for storage.
•Keep children and bystanders away from storage
area.
NOTES
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
SAFETY RULES

10 PN-P970620 (03/2005)
#4 - PN: P970100
#1 - PN: P970400
#2 - PN: P970300
#5 - PN: P970200
#3 - PN: P970301
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
SAFETY DECALS
Replace Immediately If Damaged!

11PN-P970620 (03/2005)
Figure 1
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
SAFETY DECALS
Replace Immediately If Damaged!

12 PN-P970620 (03/2005)
Safety is a primary concern in the design and
manufacture of our products. Unfortunately, our efforts
to provide safe equipment can be wiped out by a single
careless act of an operator.
In addition to the design and configuration of equipment,
hazard control and accident prevention are dependent
upon the awareness, concern, prudence, and proper
training of personnel involved in the operation, transport,
maintenance, and storage of equipment.
It has been said, “The best safety device is an informed,
careful operator.” We ask you to be that kind of an
operator.
The operator is responsible for the safe operation of
this equipment. Operators must be instructed in and
be capable of the safe operation of the equipment, its
attachments, and all controls. Do not allow anyone to
operate this equipment without proper instructions.
The power rake is designed for removing dirt, and small
debris, and for thatching. This manual contains
information for the Pro-6 model. Refer to the
information in this manual for specifications, parts,
assembly, and adjustment.
WARNING
•Safety instructions are important! Read all
attachment and power unit manuals; follow all
safety rules and safety decal information.
(Replacement manuals are available from
dealer or, in the United States and Canada, call
1-800-437-9779.) Failure to follow instructions
or safety rules can result in serious injury or
death.
•Do not allow children or untrained persons to
operate equipment.
•Power unit must be equipped with ROPS or
ROPS CAB and seat belt. Keep seat belt
securely fastened. Falling off power unit can
result in death from being run over or crushed.
Keep foldable ROPS systems in “locked up”
position at all times.
•Do not allow other people in the area when
operating, attaching, removing, assembling, or
servicing equipment.
•Never go underneath equipment lowered to the
ground or raised. Never place any part of the
body underneath equipment or between
moveable parts even when the engine has been
turned off. Hydraulic system leak-down,
hydraulic system failures, mechanical failures,
or movement of control levers can cause
equipment to drop or rotate unexpectedly and
cause severe injury or death.
•Service work does not require going
underneath equipment.
•Read Operator’s Manual for service
instructions or have done by a qualified
dealer.
•Before dismounting tractor or performing any
service or maintenance, disengage power to
implement, lower the 3-point hitch and all
raised components to the ground, operate valve
levers to release any hydraulic pressure, stop
engine, set parking brake, remove key, and
unfasten seat belt.
•Ensure implement is properly attached,
adjusted, and in good operating condition.
ATTACHING POWER RAKE TO TRACTOR
Move tractor into position in front of the power rake.
Move back slowly and carefully, not allowing anyone
to be between the tractor and the rake. Turn off tractor
engine. Attach the two lower arms of the 3-point hitch
with the two hitch-pin assemblies.
Attach the tractor center link to the upper hitch point
of the power rake. Use either the “lock-out” setting or
the “float” feature depending on your application.
Attach the front PTO from the power rake to the tractor.
Slide the front section of the PTO into the back section
and attach to the PTO shaft at the rear of the tractor.
Wrap driveline storage chain around hitch tube and
secure it so that it will not contact PTO driveline.
OPERATION

13PN-P970620 (03/2005)
IMPORTANT
•If the PTO is too long, severe PTO and gearbox
damage is possible when hooking up the PTO
from the power rake to the tractor. The front
PTO is long enough to fit a variety of tractors.
It is possible that the front PTO will need to
be cut. There will be NO benefit by cutting
only one telescoping section. Both sections of
the PTO must be cut. DO NOT FORCE THE
PTO TO FIT.
•WARRANTY IS VOID IF THE PTO IS
TOO LONG, resulting in gearbox, PTO, yoke,
or cross bearing damage.
The PTO, when attached to the tractor and gearbox,
must not extend so there is less than five inches of
overlap within the PTO.
Attach the two hydraulic lines on the rake to the two
female hydraulic couplers on the tractor. The hydraulic
hose ends on the power rake are ISO male couplers,
which are compatible with newer tractors.
Raise jackstand and secure in operating position.
IMPORTANT
•• Always clean connector ends prior to attaching.
Dirt could contaminate hydraulic fluid and
damage the hydraulic system.
POWER RAKE FUNCTION
The tractor PTO drives the two rollers. The lower
roller digs in the ground pulling up rocks and debris.
The clean soil goes between the rollers and the rock,
and the debris works to the side in a windrow. The
scarifier also brings up debris from below the ground
and loosens the soil so the rollers can function more
efficiently.
Maximum safe PTO operating speed is 540 RPM.
PRE-OPERATION CHECK LIST
___ Review and follow all safety rules and safety decal
instructions on pages 6 through 11.
___ Check that all safety decals are installed and in
good condition. Replace if damaged.
___ Check that all shields and guards are properly
installed and in good condition. Replace if
damaged.
___ Check that all hardware and cotter pins are
properly installed and secured.
___ Check that equipment is properly and securely
attached to tractor.
___ Make sure driveline spring-activated locking pin
or collar slides freely and is seated firmly in
tractor PTO spline groove.
___ Before starting tractor, check all equipment
driving guards for damage and make sure they
rotate freely on all drivelines. Replace any
damaged guards. If guards do not rotate freely
on drivelines, repair and replace bearings before
operating.
___ Do not allow riders.
___ Check for and keep all bystanders away from
equipment working area.
___ Make sure gearbox is filled to the correct level
with high quality 80W-90 gear oil.
___ Check all lubrication points and grease as
instructed in “Maintenance, Lubrication”
information.
___ Check that all hydraulic hoses and fittings are
in good condition and not leaking before starting
tractor. Check that hoses are not twisted, bent
sharply, kinked, frayed, or pulled tight. Replace
any damaged hoses immediately.
___ Make sure tractor ROPS or ROPS CAB and seat
belt are in good condition. Keep seat belt
securely fastened during operation.
___ Check tire pressure and service if necessary.
OPERATION

14 PN-P970620 (03/2005)
With the power rake angle cylinder connected to a
tractor hydraulic control valve, move tractor control
valve to select the desired angle. Return the tractor
control to neutral to maintain the selected angle.
The hydraulics allow the operator to change the angle
of the rake by just moving the hydraulic control on the
tractor. It also allows the operator to raise or lower
the scarifier from the tractor seat by just moving the
same hydraulic control lever.
Both of these functions are possible using the manual
directional valve mounted on the power rake. The bi-
angle function can be activated by placing the handle
in its staight forward position. To allow actuation of
the scarifier cylinders, rotate the handle 90 degrees.
Power Rollers
The roller should be level with the ground. To level
the rake from side to side, adjust one of the tractor 3-
point lower lift arms.
The power rake should be level front to back. Level
the rake using the tractor 3-point top link, the 3-point
lift arms, or the gauge wheels.
To allow the roller to penetrate deeper into the ground,
loosen the handle and raise the gauge wheels. To
achieve the opposite, lower the gauge wheels.
Be sure to check the air pressure in each tire regularly
so that an even, consistent grade will be maintained.
The normal gap between the rollers for average
conditions is about 1 inch. This gap can be adjusted
either wider or narrower by turning the adjusting nuts
on rods at each end of the roller. A wider opening will
allow more dirt and rock to pass through the rollers.
For finer raking, reduce the gap between the rollers.
(Be careful not to let the two rollers hit.) The gap
between the rollers should be the same all the way
across. Roller adjustment is shown in Figure 2, pg.16.
Scarifier-Tines
The function of the tines is to loosen rock and debris
below the ground surface. They should be allowed to
run in the dirt 2 to 3 inches deep. Tine shovels are
reversible and replaceable when worn.
OPERATING INSTRUCTIONS
Read and understand the power rake and tractor
Operator’s Manuals before operating the power rake.
Failure to do so may result in death, serious personal
injury, or property damage.
Never raise the power rake more than a few inches off
the ground when traveling from job site to job site.
Shut off the engine, set brake, remove key, and remove
seat belt. Dismount the tractor.
WARNING
•Look down and to the rear and make sure area
is clear before operating in reverse.
•Never direct discharge toward people, animals,
or property.
•Only engage power when equipment is at ground
operating level. Always disengage power when
equipment is raised off the ground.
Start-Up Sequence
WARNING
•Only engage power when equipment is at ground
operating level. Always disengage power when
equipment is raised off the ground.
Start tractor engine.
Lower power rake slowly to the ground.
Engage tractor PTO.
Increase engine rpm to give desired rpm at the roller.
Normal operating speed must not exceed 540 rpm. If
operating in heavy rock, reduce the speed slightly.
Move the tractor forward. Select a slow tractor speed
and increase slightly until operation is satisfactory.
Ground Speed
Ground speed should be between 3 mph and 5 mph
under normal conditions. In heavy rock, reduce the
ground speed to 1 mph to 3 mph.
Power Rake Angle Adjustment and Scarifier
Control
The power rake may be angled up to 15 degrees left or
right for placing material in a windrow.
OPERATION

15PN-P970620 (03/2005)
Operating Depth
When power raking, the depth will determine how
much dirt is carried ahead of the rollers. The ideal
depth will vary with conditions and can be anywhere
from skimming the surface to about 3 inches deep.
See instructions in “Power Rollers” pg. 14, to set roller
depth.
When making the first windrow, the level of dirt may
be halfway up on the top roller. When moving the
windrow two or three times, the level of the dirt may
be to the top of the top roller. However, try to prevent
material from flowing over the top.
The power rake allows fast raking of large areas of
ground by being able to move windrows several times.
Of course, the volume or density of the material being
raked will dictate how many times a windrow can be
moved.
Soil can be removed from the windrow by moving it
back and forth a few times onto the clean area. If dirt
clods are a problem, running the tractor tire over the
windrow and then moving it a final time will help to
break up and cut down on dirt clods.
Operator Production
Successful operation of the power rake will come with
operator experience. The rake’s performance also
depends on the type and size of the tractor it’s mounted
on.
An operator that masters the technique of adjusting
the angle of attack of the roller against the soil will
also find ideal settings under various conditions to give
the desired results.
IMPORTANT
•Do not drop power rake to the ground with the
roller turning. Sudden high-speed jolts
multiply stress to the driveline and can cause
extreme damage.
Shutting Down
Stop equipment.
Lower the lift arms and power rake to the ground.
Purge any air in the system. Hydraulic system leak-
down, hydraulic system failures, mechanical failures,
or movement of control levers can cause equipment to
drop or rotate unexpectedly.
Shut off engine, set brake, remove key, and remove
seat belt before leaving the tractor operator’s seat.
WARNING
•Do not disconnect hydraulic lines until all
system pressure is relieved. Lower unit to
ground, stop engine, and operate all hydraulic
control levers.
REMOVING POWER RAKE FROM TRACTOR
WARNING
•Do not allow other people in the area when
operating, attaching, removing, assembling, or
servicing equipment.
Lower jackstand to “storage” position.
On a hard level surface, lower attachment to the ground.
Shut off engine, set brake, remove key, and remove
seat belt before leaving the tractor operator’s seat.
WARNING
•Do not disconnect hydraulic lines until all
system pressure is relieved. Lower unit to
ground, stop engine, and operate all hydraulic
control levers.
Disconnect driveline from tractor PTO shaft and
support with storage chain.
Disconnect 3-point upper and lower links from power
rake.
Disconnect hydraulic hoses from quick couplers.
Install dust plugs for storage.
Move to tractor seat and start engine. Release brake
and drive tractor forward until it is disengaged from
the attachment. The attachment should rest in a stable
position for storage.
OPERATION

16 PN-P970620 (03/2005)
STORAGE
Make sure the disconnected power rake is stored on a
hard, level surface.
CAUTION
•Keep children and bystanders away from
storage area.
Figure 2
OPERATION

17PN-P970620 (03/2005)
The information in this section is written for operators
who possess basic mechanical skills. Should you need
help, your dealer has trained service technicians
available. For your protection, read and follow all
safety information in this manual.
Regular preventive maintenance and immediate repair
of broken or worn parts will ensure maximum
efficiency and long life.
Because of the nature of the jobs the power rake does,
such as site preparation and rock raking, the power
rake is constantly vibrating and shaking. Parts may
loosen up as it is used. One of the most important
functions an operator can perform is observing and
inspecting the equipment for loose or worn parts to
prevent further damage or excessive downtime.
WARNING
•Never go underneath equipment lowered to the
ground or raised. Never place any part of the
body underneath equipment or between
moveable parts even when the engine has been
turned off. Hydraulic system leak-down,
hydraulic system failures, mechanical failures,
or movement of control levers can cause
equipment to drop or rotate unexpectedly and
cause severe injury or death.
•Service work does not require going
underneath equipment.
•Read Operator’s Manual for service
instructions or have done by a qualified
dealer.
•Before dismounting tractor or performing any
service or maintenance, disengage power to
implement, lower the 3-point hitch and all
raised components to the ground, operate valve
levers to release any hydraulic pressure, stop
engine, set parking brake, remove key, and
unfasten seat belt.
•Do not allow other people in the area when
operating, attaching, removing, assembling, or
servicing equipment.
•Never perform service or maintenance with
engine running.
•Ensure shields and guards are properly installed
and in good condition. Replace if damaged.
•Keep hands and body away from pressurized
lines. Use paper or cardboard, not body parts
to check for leaks. Wear safety goggles.
Hydraulic fluid under pressure can easily
penetrate skin and will cause serious injury or
death.
WARNING
•Make sure that all operating and service
personnel know that in the event hydraulic fluid
penetrates skin, it must be surgically removed
as soon as possible by a doctor familiar with
this form of injury, or gangrene, serious injury,
or death will result. CONTACT A
PHYSICIAN IMMEDIATELY IF FLUID
ENTERS SKIN OR EYES. DO NOT DELAY.
•Make sure all hydraulic hoses, fittings, and
valves are in good condition and not leaking
before starting power unit or using equipment.
Check and route hoses carefully to prevent
damage. Hoses must not be twisted, bent
sharply, kinked, frayed, pinched, or come into
contact with any moving parts. Operate
moveable components through full operational
range to check clearances. Replace any
damaged hoses immediately.
CAUTION
•Your dealer can supply original equipment
hydraulic accessories and repair parts.
Substitute parts may not meet original
equipment specifications and may be
dangerous.
•Always wear relatively tight and belted clothing
to avoid entanglement in moving parts. Wear
sturdy, rough-soled work shoes, and protective
equipment for eyes, hair, hand, hearing, and
head.
WARNING
•Do not modify or alter, or permit anyone else
to modify or alter, the equipment or any of its
components in any way.
•Ensure all safety decals are installed. Replace
if damaged. (See “Safety Decals” section for
location.)
MAINTENANCE

18 PN-P970620 (03/2005)
DAILY MAINTENANCE
When operating the power rake, check the tractor
hydraulic system to be sure the level of hydraulic oil
is adequate. If necessary, add hydraulic oil as
recommended in your tractor operator’s manual.
Repair hydraulic oil leaks promptly to avoid loss of
oil and serious personal injury from escaping oil.
After every 10 hours of operation, check all hardware
and tighten where required.
WEEKLY MAINTENANCE
Lightly lubricate bearing at each end of the rollers (1-2
pumps). Use a lithium grease of #2 consistency with a
MOLY (molybdenum disulfide) additive for all locations.
Be sure to clean fittings thoroughly before attaching
grease gun. See Figure 3.
Lubricate all pivot points. Use a lithium grease of #2
consistency with a MOLY (molybdenum disulfide)
additive for all locations. Be sure to clean fittings
thoroughly before attaching grease gun. See Figure 3.
Check tire pressure. Maintain 60 psi cold.
Lubricate driveline universal joints.
MONTHLY MAINTENANCE
Inspect drive chain.
Inspect and clean safety decals. Replace if damaged.
(See “Safety Decals” section for location.)
Check oil level in chain case.
Check gearbox oil level.
QUARTERLY MAINTENANCE
Change oil in chain case and add 1.5 pints of 85W 140
wt. lube.
PRELIMINARY CHECK
The best maintenance is regular preventive checks,
particularly when the machine is new. Check that all
nuts and bolts are tight.
CHAIN MAINTENANCE
The drive chain should be inspected weekly. New
chain has a tendency to stretch, so it is necessary to
check the chain tension to prevent flopping around,
thus causing potential problems.
The adjustment for chain tension is in the chain case.
To tighten the chain, loosen jam nut (#63) and turn the
adjusting bolt (#61) clockwise until the chain is snug.
Let the spring give the desired tension.
NOTE: The tension spring should be compressed to
4-3/4 inches for proper tension.
IMPORTANT
•Replacement chain should be only high quality
original equipment chain for longer life.
When being stored for a long period or at end of season,
change the oil, adding EP 85W 140 wt. oil, and rotate
the roller several times allowing the chain to be coated
with oil, enhancing chain life. Rotate the roller
periodically to maintain lubrication.
SPROCKETS
Sprockets should be checked to be sure slotted hex
nut is tight, the cotter pin is in place, and the sprocket
cannot move on shaft.
PTO DRIVE LINES
Periodically check the yoke on both ends of the front
PTO to the tractor. Make sure the set screws/jam nuts
are tight and the yoke is not moving on the shaft. PTO
shafts and U-joints should be sparingly lubricated
weekly.
GEARBOX
The gearbox is almost maintenance-free, but should
be checked monthly to be sure that the oil level is
maintained at half full. EP 80-90 wt. gear lube is rec-
ommended for use in the gearbox. Oil should be
changed after the first 100 hours or 30 days of operat-
ing. Then, normal change intervals of 1,000 hours or
12 months of operation should be adequate. In the
case of seasonal usage, it is best to change the oil at
the end of the season to remove moisture and corro-
sive contaminants.
It should be noted that the gearbox only exceeds its
thermal capacity when the oil temperature exceeds
200°F.
MAINTENANCE
