Global Contract Compile User manual

Installation
Manual
Visit us on the Internet at globalcontract.com • [phone]
ISO 9001:2015OHSAS 18001:2007 ISO 14001:2015 Global Contract Inc. 565 Petrolia Road
North York, Ontario, M3J 2X8
Compile 2017
REVISED: FALL 2017

Page • globalcontract.com1
• Summer 2017
GLOBALContract
TABLE OF CONTENTS
Panels
Quick Connect Clips
Lock Clips
Panel Trims
CAPAS Privacy Glass
Post Base Covers
Electrical
Power Distribution Harness
Installing Through Corners
Ceiling Feed
Post Extension
Raceway Covers without Knockouts
Raceway Covers with Knockouts
Raceway Knockout Covers
Cantilevers Corner Brackets
Mid Span Support Bracket
Worksurface Mounting Option
CHMEG Metal End Gable
Centre Mounted Overhead
Pedestal Brackets
Overhead Storage Bins
Low Profile Shelves
Tackboards
Load Bar
ADA Overhead
Mid Run Panel Removal & Top Horizontal Replacement
Core Replacement
Chicago J-Box
Module replacement
End Panel
Accessory Retainer
01
02
02
02
03
04
04
05
05
06
06
07
07
07
08
08
08
09
10
11
12
13
14
14
15
15
16
16
17
18
19
Compile P.01
Safety Glasses
Allen Key
Wrench
Flathead Screwdriver
Phillips Screwdriver
Measuring Tape
Required Tools
NOTE: Any alterations to listed components will void the manufacturer’s warranty.
The manufacturer will not be responsible for any damage or bodily harm caused
by alterations in accordance with national or local electrical codes and manufac-
turer’s specifications. In accordance with the manufacturer’s policy of continual
product improvement, the product presented in this document is subject to
change without notice or obligation.
Please contact your Global Contract Service Representative at 416-739-5000 for
any questions or concerns.
Panels
PANELS come from the factory with the “Quick Connect” clips pre-installed on both
sides of the panels. One side is pointing up and the other side is pointing down.
UNIVERSAL CORNER POSTS come from the factory with the “Quick Connect”
clips pre-installed on 3 sides. One side is pointing down, and 2 adjacent sides are
pointing up.
Slide connections together, and press firmly in place. Do not use hammer to try
to secure panels.
Leveling Tip:
• If panels don’t line up exactly, please lower the glide on the lower panel to level
the panels.
Corner Post Tips:
• Align the “Quick Connect” clips on the first panel of a run so both sides point UP.
This will allow the Corner Post to be dropped onto one side, and the adjacent
panels to also be dropped on. Then the rest of the panels in the run can be easily
dropped onto each other.
• For 2 ways, remove one set of clips by loosening the set screw, and slide up and
out, through the channel. Snap in 2 Post Trim Strips to finish 2 open sides.
• For 3-ways, snap in Post Trim Strip to finish 4th side.
• For 4-ways, install the clips on the 4th side facing up, so the panel can be
dropped on.

•Pageglobalcontract.com 2
• Summer 2017
GLOBALContract
Quick Connect Clips
Lock Clips
Add or remove “Quick Connect” clips with a Phillips screwdriver, by loosening the
screw enough to allow the clip to slide freely.
To remove clip, lift tab on top of panel and slide clips out of groove.
To change clip orientation, use the following hole configurations.
• Top hole to have clip point down.
• Bottom hole to have clip point up.
Post: (a)
Put the lock clip in such a way that the short end of the clip is over the top connector
and the longer side is facing the panel (even if it’s on an angle). Using a mallet and a
flat screwdriver, hammer the lock clip down until you feel it catch the lower screw.
Between Panels: (b)
Put the lock clip in such a way that the short end of the clip is over the top connector
and the longer side is facing the panel. Using a mallet and a flat screwdriver, hammer
the lock clip down until you feel it catch the lower screw.
Releasing the lock clip:
Pull the leveler (sdjustor) downat the panel that it’s connector is on top and push the
other panel down.
INSTALLATION GUIDELINES
Panel Trims
Panel / Post Trims can snap or slide into place, to finish panel End of Runs, 2-way,
3-way and step down-variable height connections.
NOTE: End of Run Trims are approximately 5” longer than Post Trims.
a
b

Page • globalcontract.com3
• Summer 2017
GLOBALContract
INSTALLATION GUIDELINES
STEP 1: Open the clamps.
STEP 2: Remove the pin.
STEP 3: Measure 5” from the edge.
STEP 4: Drill directly into the top of the panel. (use the provided #10 1 1/2” pan head
square drive type A screw.)
STEP 5: Use the thicker rubber pad if two different size pads are provided in the box.
STEP 6: Leave the clamps loose, carefully slide the glass in and then tighten both
clamps evenly so the glass is snug and vertical. the middle set screw will control the
pitch.
CAPAS Privacy Glass
1
2
3
4
5”
5
6
6

•Pageglobalcontract.com 4
• Summer 2017
GLOBALContract
INSTALLATION GUIDELINES
Post Base Covers
STEP 1: Slide Post Base Cover into bottom of Universal Corner Post.
STEP 2: Secure into place on 2 sides, with two small black screws.
Electrical - Adding Power Distribution Housing
Align Power Distribution Housing so the bottoms tabs drop into the pre-cut slots in the
panel base. Be sure to align the spring clips on top, so they are facing you.
Rotate Power Distribution Harness into place until the spring snap securely into
place.
Included cable managers can be slid to the side, or removed.
2
1

Page • globalcontract.com5
• Summer 2017
GLOBALContract
INSTALLATION GUIDELINES
Electrical - Power Distribution Harness and Duplexes
Electrical - Installing Through Corners
STEP 1: Plug Jumper into Power Distribution Harness, until it clicks firmly into place.
The arrow above the embossed “N”, should be pointing up.
STEP 2: Slide Duplex into place, until it clicks firmly into place.
Power Distribution Harness has two
ports on each side to plug in additional
Jumpers or Ceiling Feeds.
Installation Tip: When routing jumpers around corners, in a 2-way, 3-way or
4-way connection.
Bend connection of 17” flexible Mesh Jumper downward, at a 90 degree angle.
Slide connector through opening and pass through openings in both panels.
Straighten connector.
1
2

•Pageglobalcontract.com 6
• Summer 2017
GLOBALContract
INSTALLATION GUIDELINES
STEP 1: Disconnect clamp at top of ceiling feed, and remove, tape the wires together.
STEP 2: Lay the Universal Corner Post on the floor. Slide top of ceiling feed
through Universal Corner Post, starting at the bottom of the post.
STEP 3: Lay Post Extension inline with the Universal Corner Post. Slide Ceiling
Feed through the Post Extension. Attach Post Extension connector plates as
indicated in Post Extension instructions, on this page, below.
STEP4: Reattach connector clamp to top of ceiling feed. Install completed Power
Pole onto panels, and into ceiling.
* THESE ARE GUIDELINES ONLY, ACTUAL NUMBERS MAY VARY BASED ON SITE
CONDITIONS AND CLIENT REQUIREMENTS *
With Power
Pass Through Cable
Power Feed
(0.73” dia)
Post
Panel Frame
Without Power
Pass Through Cable
25x CAT6 Cables
0.25” dia
20x CAT6 Cables
0.25” dia
Post
Panel Frame
Typical application, recommended maximum
Electrical - Ceiling Feed
Electrical - 90 degree post cable capacity
Post Extension
STEP 1: Drill a 6mm hole, screw bottom of attachment plates into universal
corner post. Use two plates, opposite to each other for each post extension.
STEP 2: Slide Post Extension Post between attachment plates.
STEP 3: Drill a 6mm hole. Screw top of attachment plates into post extension.
STEP 4: Snap Trims into grooves on all 4 sides of Post Extension. Trim dimension
matches post dimension.
1
1
2
3
4
2
• Summer 2017 rev:Winter 2018

Page • globalcontract.com7
• Summer 2017
GLOBALContract
INSTALLATION GUIDELINES
STEP 1: Orient Raceway Cover until it is almost VERTICAL and insert top of cover
into groove on panel.
STEP 2: Raceway Cover can be lifted up at 90 degrees, and pushed slightly into
panel, to lock in place.
STEP 3: Snap bottom corners of Raceway Covers, to secure into place.
STEP 1: Orient Raceway Cover until it is almost VERTICAL and insert top of cover
into groove on panel.
STEP 2: Raceway Cover can be lifted up at 90 degrees, and pushed slightly into
panel, to lock in place.
STEP 3: Snap bottom corners of Raceway Covers, to secure into place.
STEP 4: Raceway Covers lock securely in place on both ends, securing over black
tabs in panels.
Snap Raceway Knockout Covers into openings where duplexes are not being used.
Raceway Covers without Knockouts
Raceway Covers with Knockouts
Raceway Knockout Covers
1
1
2
2
3
3

•Pageglobalcontract.com 8
• Summer 2017
GLOBALContract
INSTALLATION GUIDELINES
Cantilevers / Corner Brackets
Installation Tip:
• Build from the BOTTOM....UP!
• Slide all Worksurface Supports and Brackets into place...FIRST. Tackboards/Write-
boards /Load Bars, SECOND. Overhead Storage / Shelves, THIRD.
STEP 1: Slide worksurface supports, with connection plate and screws attached,
into groove on side of panel.
STEP 2: Make sure that the screws are flush, and do not protrude through the
connection plate.
STEP 3: Securely attach all screws using a #4 ALLEN BIT, or TORX T25 HEAD BIT.
Gauges are provided with every cantilever and corner bracket.
Mid Span Support Brackets (Can ONLY be used with Segmented Panels)
STEP 1: Insert bottom portion of Mid Span Support bracket into segmentation
channel, below worksurface height.
STEP 2: Lift bracket to secure it into segmentation channel.
STEP 3: Secure bracket to worksurface using short wood screws.
STEP 4: Mid Span Support Brackets can be used as additional support for longer
worksurfaces or to create an off-module connection, as shown.
Adjacent Worksurface Mounting
Two Cantilevers, leveled side-by-side with Flat Plate to align front edges of
worksurfaces.
One Corner Bracket, plus (2) Mid-Span Support Brackets (using Segmented
Panels ONLY) to create an off-module worksurface connection.
1
3
1
2
3
4

Page • globalcontract.com9
• Summer 2017
GLOBALContract
INSTALLATION GUIDELINES
CHMEG Metal End Gable
STEP 1: Engage the leg into the panel’s rail by rotating it into place.
STEP 2: Install the worksurface while making sure the leg is perpendicular to the panel.
1
2

•Pageglobalcontract.com 10
• Summer 2017
GLOBALContract
INSTALLATION GUIDELINES
Centre Mounted Overhead
1. Install the corner brackets so they align with the very top of the panel.
2. Measure and centre the overhead on top of the panel.
3. While someone holds it in place, fasten the overhead to the brackets with the
provided screws.
1
1
2
3

Page • globalcontract.com11
• Summer 2017
GLOBALContract
INSTALLATION GUIDELINES
Compile Pedestals come shipped with cardboard protection on top, bottom and all four
corners, and then shrink wrapped.
Compile Pedestals may be stacked up to 3 high, in the shipping trailer, during
delivery.
All Worksurface Supporting Pedestals ship with holes punched in the tops, on all
four corners, to allow simple attachment to worksurfaces., using wood screws
less than 1” long.
Compile Pedestals ship with leveling glides on all four corners. Please use a drill,
with standard drill bit extension, to level pedestal to proper height, prior to attach-
ing screws to worksurface.
Ensure that all panels are leveled and securely connected before proceeding with
installation of worksurfaces supports.

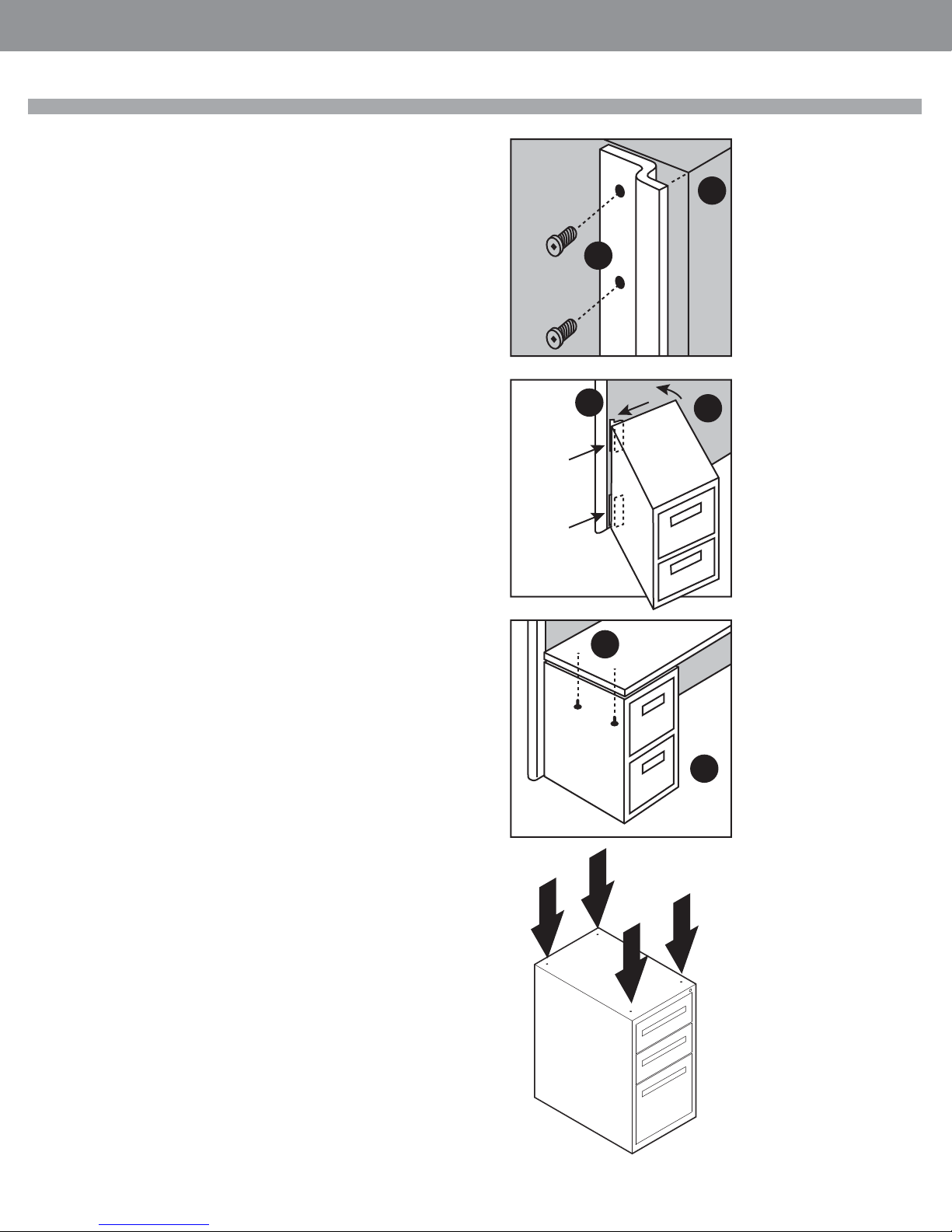

STEP 1: Align the first bracket’s edge with pedestal’s top corner and rear vertical edge
as illustrated.
STEP 2: Secure the top bracket with supplied, self-drilling, counter-sunk head screws.
STEP 3: Align the second bracket’s bottom edge with pedestal’s bottom corner and
rear vertical edge and secure it with supplied, self-drilling, countersunk head screws.
(Not shown).
STEP 4: Angle the pedestal on the floor and insert bracket ends into panel’s vertical
side groove.
STEP 5: Rotate the pedestal while making sure that both brackets remain securely
engaged inside the panel’s vertical side groove. Install worksurface support on the
opposite side of the worksurface as specified. Rest worksurface on both supports.
STEP 6: Adjust pedestal’s levelers to level the worksurface and ensure that the pedes-
tal’s side is perpendicular to the panel.
NOTE: Read before you proceed with the next step! If you use a full depth pedestals
( 24” deep pedestal under 24” deep worksurface) to secure worksurfaces to a panel
with optional Panel cable manager, do not bolt the pedestal to the worksurface yet.
You may have to angle and slide the pedestal partially out in order to gain an access
to the panel’s cable manager. In this case, the following step (#7) should be done at
the end of the installation, after all cables had been tucked away in the Panel cable
manager.
STEP 7: Remove drawers, pre-drill the pedestal top and drive two wood screws
through the pedestal top, into the worksurface. Replace the drawers and secure the
opposite side of the worksurface to its support.
TOP
BRACKET
BOTTOM
BRACKET
Pedestal Bracket / Corner Plate
1
2
45
6
7

•Pageglobalcontract.com 12
• Summer 2017
GLOBALContract
INSTALLATION GUIDELINES
Overhead Storage Bins
STEP 1: Slide overhead side supports, with connection plate and screws attached,
into groove on side of panel.
STEP 2: Align top of overhead side support with top of panel.
STEP 3: Securely attach all screws using a #4 ALLEN BIT, or TORX T25 HEAD BIT.
STEP 4: Place bottom shelf on top of bottom brackets.
STEP 5: Securely attach all screws using a #2 Phillips bit.
STEP 6: Place top shelf, with door attached, on top of brackets.
STEP 7: Securely attach all screws using a #2 Phillips bit.
STEP 8: Oblong holes in door slider hardware ,allow door to be centered on cabinet.
4
5
6
7
8
1
2
3

Page • globalcontract.com13
• Summer 2017
GLOBALContract
INSTALLATION GUIDELINES
Low Profile Shelves
STEP 1: Slide Low Profile side supports, with connection plate and screws at-
tached, into groove on side of panel.
STEP 2: Align bottom of Low Profile side support with bottom of Overhead Stor-
age Cabinet, if applicable, use the supplied shelf gauge
STEP 3: Securely attach all screws using a #4 ALLEN BIT, or BALL TORX T25 BIT,
on one side only.
STEP 4: Securely attach ONE screw using a #4 ALLEN BIT, or BALL TORX T25
BIT, on second side only.
STEP 5: Place bottom shelf on top of bottom brackets.
STEP 6: Using a level, hold second shelf side, loosen screw. Align shelf side until level.
STEP 7: Remove bottom shelf and securely attach all cap nuts.
STEP 8: Replace bottom shelf on top of bottom brackets.
STEP 9: Securely attach all screws using a #2 Phillips bit.
1
2
3
5
6
7
8
9

•Pageglobalcontract.com 14
• Summer 2017
GLOBALContract
INSTALLATION GUIDELINES
Tackboards
STEP 1: Slide universal brackets, with connection plate and screws attached, into
grooves on each side of panel.
STEP 2: Securely attach all screws using a #4 ALLEN BIT, or TORX T25 HEAD BIT.
STEP 3: Hang tackboard hooks, into notches on universal bracket.
Load Bar
STEP 1: Attach universal brackets, with connection plate and screws attached,
into groove on back of Load Bar.
STEP 2: Attach end caps to both sides, to secure the Load Bar to the universal
brackets.
STEP 3: Slide Load Bar with bracket assembly into grooves on sides of panels.
STEP 4: Position Load Bar into desired position, using a level.
STEP 5: Securely attach all screws using a #4 ALLEN BIT, or TORX T25 HEAD BIT.
1
1
2
2
3
3
4
5
6

Page • globalcontract.com15
• Summer 2017
GLOBALContract
INSTALLATION GUIDELINES
ADA Overhead
Mid Run Panel Removal & Top Horizontal Replacement
STEP 1: Slide down the supplied 2 - two hole sliders into the side groves of the
panel to their position using a gauge. Typical installation is 15” from the top of
the panel.
STEP 2: Slide the ADA from top down until you meet with the 2 hole sliders
already installed.
STEP 1: Insert the crowbar under the bottom of the vertical and lift until the con-
nectors at the top disengage.
STEP 2: Repeat the above step and release the panel from the row.
STEP 3: Screw out the two screws (each side) and release the top horizontal.
Replace with the new top horizontal.
STEP 4: Drop down one side of the panel then drop down the following side into
the connectors. (Use clamp vise grips to bring the panels close to each other
while the drop down panel is raised above the connectors.)
1
1
2
1
3

•Pageglobalcontract.com 16
• Summer 2017
GLOBALContract
INSTALLATION GUIDELINES
Chicago J-Box
Core Replacement
STEP 1: Insert the crowbar under the bottom of the vertical and lift until the con-
nectors at the top disengage. Repeat for the other side and release the panel from
the row.
STEP 2: Unscrew both side verticals and the bottom 2 screws
STEP 3:Slide out the core and replace with new fabric one.
STEP 4: Screw back all the vertical side and 2 bottom screws
STEP 5: Drop down one side of the panel then drop down the following side into
the connectors. (Use clamp vise grips to bring the panels close to each other
while the drop down panel is raised above the connectors.)
2
1
3
2
5
STEP 1: Insert the bottom bracket into the power distribution slot.
STEP 2: Insert the top bracket into the inner groove and place it in front of the
bottom bracket.
STEP 3: Take the Junction Box and attach it to the two brackets with supplied hex
screws.
3

Page • globalcontract.com17
• Summer 2017
GLOBALContract
Module Replacement
Applies to: fabric or laminate replacement. Conversion from glass to fabric, or
fabric to glass.
STEP 1: Remove the square #1 screws along the vertical part of the panel frame.
*DO NOT remove the Philllips screws found at the bottom!
STEP 2: Carefully remove the piece without causing ant damage.
STEP 3: If replacing a fabric module, remove the screws on the other side of the
panel, then slide the fabric module out.
*Steps 4 and 5 are for glass modules. If replacing fabric, skip to step 6.
STEP 4: Slide the glass out.
STEP 5: Carefully pry the glass frame off using a pick or a screwdriver.
*avoid damaging the panel components!
STEP 6: Slide the new fabric module in.
STEP 7: Carefully reattach the vertical part of the panel frame and gently close any
visible gaps between the pieces.
STEP 8: Reinstall all the screws and check for any gaps around the panel frame.
Reinstall all the screws and check for any gaps around the panel frame.
STEP 9: If the new screws were shipped along with the new fabric module, install
them as well.
INSTALLATION GUIDELINES

•Pageglobalcontract.com 18
• Summer 2017
GLOBALContract
INSTALLATION GUIDELINES
End Panel
STEP 1: Align the holes of the worksurface brackets (1) with the pilot holes (2)
on the top of the end panel (3). Drive the supplied screws into the end panel but
do not over tighten.
STEP 2: Attached the panel mounting brackets (4) to the end panel, while align-
ing the bracket holes with the pilot holes of the end panel.
STEP 3: Attach the end panel to the Compile panel’s vertical rail (5). Put it on an
angle then rotate it into its place.
STEP 4: Adjust the levelers as needed, making sure the end panel will keep the
worksurface level.
STEP 5: Proceed with the installation of the worksurfaces.
Installation Tip: Identify correct setting
of worksurface mounting brackets (left
and right, single or supporting adjacent
worksurface) and install the panel
mounting bracket accordingly.
4
2
2
1
1
3
5

Page • globalcontract.com19
• Summer 2017
GLOBALContract
INSTALLATION GUIDELINES
1
2
Accessory Retainer
STEP 1: Mount the accessory on the load bar.
STEP 2: Push the accessory retainer (1) into the gap above the accessory (2) to
lock it into place.
3” black rubber retainer for use with
paper management accessories.
This locks and prevents accessories
from falling off the load bar.
