INSTALLATION GUIDELINES
NOTE: Any alterations to listed components will void the manufacturer’s warranty.
The manufacturer will not be responsible for any damage or bodily harm caused
by alterations in accordance with national or local electrical codes and manufac-
turer’s specifications. In accordance with the manufacturer’s policy of continual
product improvement, the product presented in this document is subject to
change without notice or obligation.
Please contact your Global Contract Service Representative at 416-739-5000 for
any questions or concerns.
Assembly Hardware
Pre-Drilling Sheet
L2DRxxxxFB
L2DR-FB
L2DR-BL
L2DRHxxxxBR
L2ERxxxxFL
L2ERH-FL
L2GRxx
L2GB
L2GBxxL
L2GD
L2GDP
L2CRSxxxx
L2CRSHxxxx
L2RCxxxxL
L2RCHxxxxL
L2RCxxxxC
L2RCHxxxxC
L2ER R / L2ER L
L2ERH-L
L2Bxxxx
L2ECxxxxxxR
L2CC
L2CCxxxxxx
L2CK
L2CHK
L2TDHxxxxxx
L2TDxxxxxx
L2TCDxxxxxx
L2FDxxxxxx
L2PBBFxx
L2HHxxHxx
L2B2Hxxxx
L2BC2Hx02
04
06
08
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
61
89
90
92
94
Table Of Contents
Flip Top Tables
viceversa Tables
Kadin Tables
FreeFit
Tackboards
Grommet Cut
Dimensions
Dimension Chart
Product Installation
P.01
P.74
P.78
P.72
P.82
P.97
P.96
P.62
P.05

•Pageglobalcontract.com 2
GLOBALContract • Fall 2017
INSTALLATION GUIDELINES
Assembly Hardware - Modular Connectors
Assembly Hardware - Blum Connectors
Modular Connector (clip) and Shoulder Screw
• This connector offers a hidden connection between two panels.
• The modular connector and a connector screw are used in combination to
assemble panels.
• The modular connector is always pre-installed by the factory.
• The modular connector is always installed with the WIDE opening oriented at the
bottom of the part.
• The connecting shoulder screw is field installed, based on the application of
components.
Steps to install modular connectors:
STEP 1: Install connecting shoulder screws at the pre-drilled location as per configuration.
STEP 2: Line up shoulder screws to the modular connector in another component.
STEP 3: Push components together and push down to lock component in place,
using a rubber mallet, if necessary.
STEP 1: Install Blum Connector screws into the pre-drilled holes.
STEP 2: Line Blum connector screws to the exposed Blum Connectors
STEP 3: On the bottom of the surface turn the screw on Blum Connector ¼ turn, do
not over tighten.
Modular Connector (clip)
Shoulder Screw
Assembly Hardware - Handels, Elbow Catch
Door / Drawer Handle
Install the handle(s) in the predrilled holes on the
doors or drawers by using the screws provided.
Elbow Catch
Install the elbow catch on the left hand door at
the upper right corner with the screws provided.
Assembly Hardware - Joint Conncetor
This type of connector is used to attach the extrusion to the 1” end gables.
Steps to install connectors:
STEP 1: Press nut connector into pre-drilled hole of end gable from the exterior side
of the end gable.
STEP 2: Push bolt into extrusion holes.
STEP 3: Screw the nut and bolt together.
Joint Connector Nut
Joint Connector Bolt
1
1
2
3
2
3

Page • globalcontract.com3
• Fall 2017
GLOBALContract
Assembly Hardware - Hinges
Hinge & Mounting Plate with Euro Screws
• The hinge is a tool-free attachment of hinge to door.
• Individual components and fittings do not need to be assembled until they reach
their final destination.
• The mounting plate with Euro screws is easy to install.
• The spring loaded clip makes a simple connection between the door and the end
panel or divider.
Steps to install hinges:
STEP 1: Install all mounting plates using the predrilled holes of end panel and/or
dividers by fastening with the Euro screws.
Note: The mounting plate should be oriented with the arrow pointing towards
exterior of the unit.
STEP 2: Place the door face down. With the lever open press hinge into the pre-
drilled holes. Press the lever on the hinge down with your thumb. By closing the
lever, the hinge is held firmly in place.
STEP 3: Align hinges to mounting plates and push in until a click is heard.
STEP 4: Use adjusting screws on the hinge to level the door.
STEP 1: Press the cam into the faceboard.
STEP 2: Insert the dowel into the side panel.
STEP 3: Assemble the panels.
STEP 4: Tighten the cam to lock the dowel.
STEP 5: Assemble the panels.
Assembly
Removal
Height AdjustmentDepth Adjustment Side Adjustment
Assembly Hardware For Storage Components - Titus Connectors
1
1
2
3
4
3
5
4
2
Universal Cam Quickfit - TL Dowel
START MIN MAX
LOCK
INSTALLATION GUIDELINES

•Pageglobalcontract.com 4
GLOBALContract • Fall 2017
INSTALLATION GUIDELINES

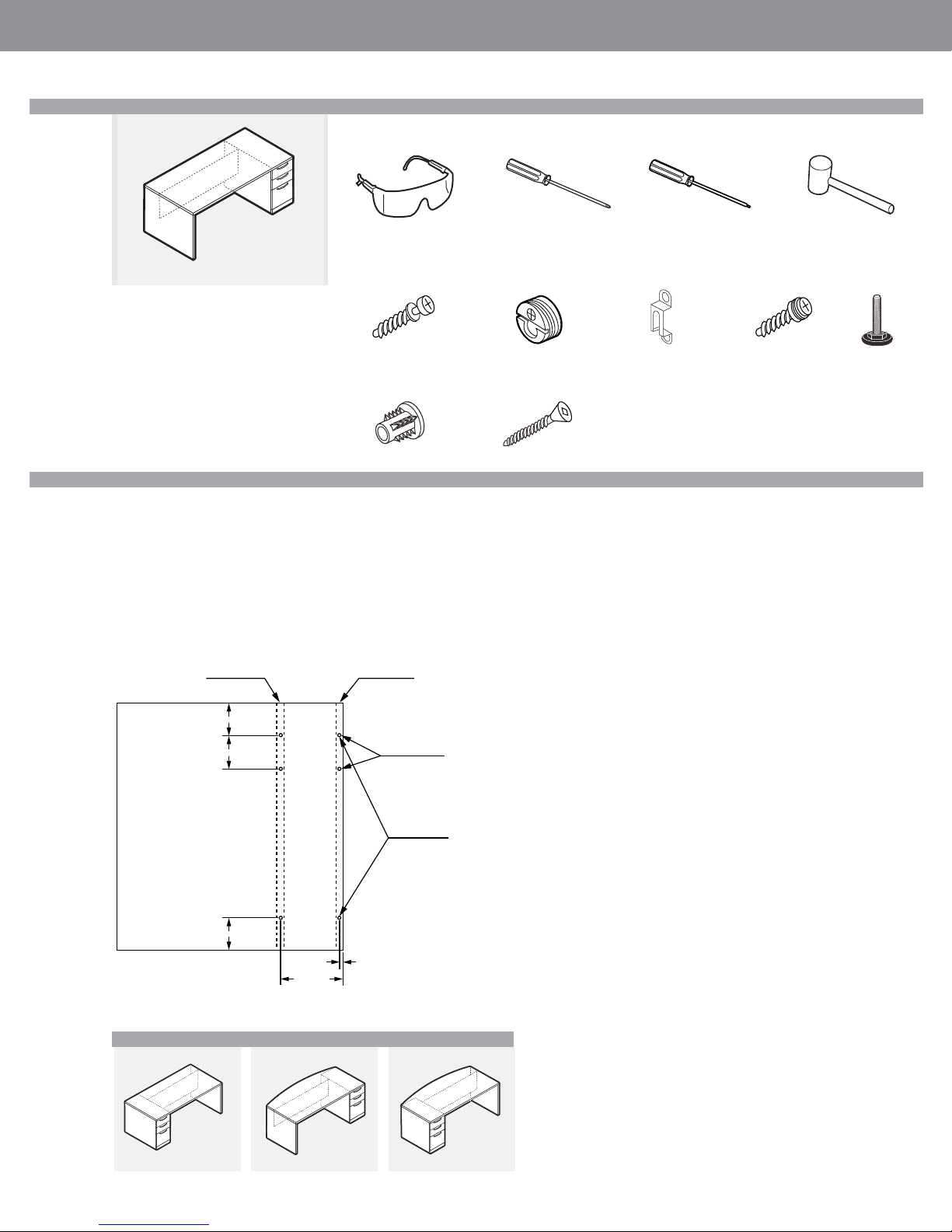

Pre-Drilling Location Sheet L2
92.2mm
96mm
102.7mm
9.5mm
162mm
FULL HEIGHT
MODESTY
HALF HEIGHT
MODESTY
FLUSH MOD6” REC MOD
Template for predrilling the hole location on the pedestals for use with modesty panels.
L2ER - BL/BR
L2DR - BL/BR
L2DR - FB/BF

Page • globalcontract.com5
• Fall 2017
GLOBALContract
INSTALLATION GUIDELINES

•Pageglobalcontract.com 6
GLOBALContract • Fall 2017
L2DRxxxxFB
Safety Glasses
Required Tools
Screwdriver #2 Phillips Rubber Mallet
NOTE: Open and assemble only one product
at a time to avoid a potential mix-up of parts
and hardware.
It is adviseable to assemble the unit on a
carpet to avoid scratches.
Assembly
Included Hardware
Blum Connector
(installed) L005650061
Modular Screw
L007250001
Wood Screw #8 3/4
L007250032
L2DRxxxxBF L2DBxxxxFB L2DBxxxxBF
STEP 1: Unpack and inspect individual pieces for damages or missing hardware
STEP 2: Pick a clean unobstructed area to assemble desk. It is advisable to
assemble of this product upright.
STEP 3: Handles for pedestals are shipped installed on the inside of the cabinet.
Remove handle from the inside of the cabinet and re-install with the same screws
on the front of cabinet.
a. Levellers for pedestals are shipped inside the unit. These levellers should
be installed prior assembling complete unit.
STEP 4: Arrange Pedestals as per the final configuration of the product.
a. Using a 1/8” drill bit, drill though holes into side of pedestal according to
the provided template on the side of the pedestal exposed to the underside
of the desk. For this application, use the half modesty and recessed panel location.
b. Modular screws are to be installed into these holes.
STEP 5: The modesty panel comes with Modular connectors installed on each
end of the panel.
On the top edge of the modesty panel, install Blum Connector screws into the
pre-drilled holes.
a. Attach the modesty panel to the pedestals by lining up modular con
nectors to screws installed on the pedestals, lift modesty and slide into
position ensuring to engage connectors to screws. You can use a mallet
to securely seat the modesty panel into position. Do this on both sides
STEP 6: To install the worksurface top.
The worksurface comes with Blum Connectors pre-installed on the bottom of
the surface. Lift worksurface over the assembly and line up Blum connectors to
the installed Blum connector screws on the back of the modesty panel. Turn the
screw on Blum Connector ¼ turn, do not over tighten.
a. You must also secure the worksurface top to the pedestals. Line up
the top flush to the side and front of the pedestals. Use #8 x 3/4 wood
screws provided, screw through the mounting bar on the pedestal to
secure the top. Note: Drawers need to be removed to access drilling location.
STEP 7: When final position has been located, level the unit with the levellers
installed on both pedestals.
LevelScrewdriver Roberson
Installation For Similar Products
Leveler
L007250037
Blum Connector
Screw L005650060
Modular Connector
(installed) L004250001
92.2mm
96mm
102.7mm
9.5mm
162mm
FULL HEIGHT
MODESTY
HALF HEIGHT
MODESTY
FLUSH MOD6” REC MOD
FF PED
BBF PED
FULL MODESTY
WORKSURFACE
INSTALLATION GUIDELINES

Page • globalcontract.com7
• Fall 2017
GLOBALContract
INSTALLATION GUIDELINES
6
5
4

•Pageglobalcontract.com 8
GLOBALContract • Fall 2017
INSTALLATION GUIDELINES
L2DR-FB Double Pedestal Desk
Safety Glasses
Required Tools
Screwdriver #2 Phillips Rubber Mallet
NOTE: Open and assemble only one product
at a time to avoid a potential mix-up of parts
and hardware.
It is adviseable to assemble the unit on a
carpet to avoid scratches.
Assembly
Included Hardware
Modular Screw
L007250001
Wood Screw #8 3/4
L007250032
L2DRxxxxBF L2DBxxxxFB L2DBxxxxBF
STEP 1: Unpack and inspect individual pieces for damages or missing hardware
STEP 2: Pick a clean unobstructed area to assemble desk. It is advisable to as-
sembly of this product upright.
STEP 3: Handles for pedestals are shipped installed on the inside of the cabinet.
Remove handle from the inside of the cabinet and re-install with the same screws
on the front of cabinet.
a. Levellers for pedestals are shipped inside the unit. These levellers should
be installed prior assembling complete unit.
STEP 4: Arrange Pedestals as per the final configuration of the product
a. Using a 1/8” drill bit, drill though holes into side of pedestal according to
the provided template on the side of the pedestal exposed to the underside
of the desk. For this application, use the half modesty and recessed panel location
b. Modular screws are to be installed into these holes
STEP 5: The modesty panel comes with Modular connectors installed on each end
of the panel. On the top edge of the modesty panel, install Blum Connector screws
into the pre-drilled holes.
a. Attach the modesty panel to the pedestals by lining up modular con
nectors to screws installed on the pedestals, lift modesty and slide into
position ensuring to engage connectors to screws. You can use a mallet to
securely seat the modesty panel into position. Do this on both sides
STEP 6: To install the worksurface top. The worksurface comes with Blum Connec-
tors pre-installed on the bottom of the surface. Lift worksurface over the assembly
and line up Blum connectors to the installed Blum connector screws on the back of
the modesty panel. Turn the screw on Blum Connector ¼ turn, do not over tighten.
a. You must also secure the worksurface top to the pedestals. Line up the
top flush to the side and front of the pedestals. Use #8 x 3/4 wood screws
provided, screw through the mounting bar on the pedestal to secure the
top. Note: Drawers need to be removed to access drilling location.
7. When final position has been located, level the unit with the levellers installed on
both pedestals.
LevelScrewdriver Roberson
Installation For Similar Products
Leveler
L007250037
Blum Connector
Screw L005650060
92.2mm
96mm
102.7mm
9.5mm
162mm
FULL HEIGHT
MODESTY
HALF HEIGHT
MODESTY
FLUSH MOD6” REC MOD
Blum Connector
(installed) L005650061
Modular Connector
(installed) L004250001
FF PED
BBF PED
HALF MODESTY
WORKSURFACE

Page • globalcontract.com9
• Fall 2017
GLOBALContract
INSTALLATION GUIDELINES
6
5
4

•Pageglobalcontract.com 10
GLOBALContract • Fall 2017
INSTALLATION GUIDELINES
Included Hardware
L2DR-BL Single Pedestal Desk
Safety Glasses Rubber Mallet
Required Tools
NOTE: Open and assemble only one product
at a time to avoid a potential mix-up of parts
and hardware.
It is adviseable to assemble the unit on a
carpet to avoid scratches.
Screwdriver #2 Phillips
Assembly
“T” Nut Insert
L007250039
STEP 1:Unpack and inspect individual pieces for damages or missing hardware.
STEP 2: Pick a clean unobstructed area to assemble desk. It is advisable to as-
sembly of this product upright.
STEP 3: Handles for Pedestals are Shipped Installed on the inside of the cabinet.
Remove handle from the inside of the cabinet and re-install with the same screws
on the front of cabinet.
a. Levellers for pedestals are shipped inside the unit. These levellers should
be installed prior assembling complete unit.
L2DRHxxxxBL L2DBHxxxxBR L2DBxxxxBL
Modular Screw
L007250001
STEP 4: IArrange Pedestal and gable as per the final configuration of the product.
a. Using a 1/8” drill bit, drill though holes into side of pedestal according to
the provided template on the side of the pedestal exposed to the underside
of the desk. For this application, use the full modesty and recessed panel
location.
b. Modular screws are to be installed into these holes
STEP 5: Gable has Blum connectors pre-installed. Orient gable with Blum Connec-
tors facing inside of desk.
Install levelers into T nut inserts on the bottom of the Gable.
a. Install Blum Connector screws into pre-drilled holes on top edge of the gable
STEP 6: The modesty panel comes with Modular connectors installed on to con-
nect to the Pedestal.
On the top edge of the modesty panel, install Blum Connector screws into the pre-
drilled holes.
On side of Modesty panel lining up with the gable, install Blum Connector screws
into pre-drilled holes.
• There are 2 holes here, select hole closest to underside of assembly to
correctly line up with the Blum Connectors.
a. Attach the modesty panel to the pedestals by lining up modular con
nectors to screws installed on the pedestal, lift modesty and slide into
position ensuring to engage connectors to screws. You can use a mallet to
securely seat the modesty panel into position.
b. Connect the gable to the modesty panel by lining up Blum Connector
screws to the Blum connectors. Turn the screw on Blum Connector ¼ turn,
do not over tighten.
STEP 7: To install the worksurface top. The worksurface comes with Blum Connec-
tors pre-installed on the bottom of the surface. Lift worksurface over the assembly
and line up Blum connectors to the installed Blum connector screws on the mod-
esty panel and gable. Turn screw on Blum Connector ¼ turn, do not over tighten.
a. You must also secure the worksurface top to the pedestal. Line up the
top flush to the side and front of the pedestal. Use #8 x 3/4 wood screws
provided, screw through the mounting bar on the pedestal to secure the
top. Note: Drawers need to be removed to access drilling location.
STEP 8: When final position has been located, level the unit with the levellers
installed on Gable and pedestal
Level
Installation For Similar Products
Leveler
L007250037
Blum Connector
Screw L005650060
92.2mm
96mm
102.7mm
9.5mm
162mm
FULL HEIGHT
MODESTY
HALF HEIGHT
MODESTY
FLUSH MOD6” REC MOD
Back Panel
Top Underside
Wood Screw #8 3/4
L007250032
Blum Connector
(installed) L005650061
Modular Connector
(installed) L004250001

Page • globalcontract.com11
• Fall 2017
GLOBALContract
INSTALLATION GUIDELINES
5
LEFT HAND RIGHT HAND
Connection for pedestal
Connection for gable
6
7
GABLE
BBF PED
FULL MODESTY
WORKSURFACE

•Pageglobalcontract.com 12
GLOBALContract • Fall 2017
INSTALLATION GUIDELINES
STEP 1: Unpack and inspect individual pieces for damages or missing hardware
STEP 2: Pick a clean unobstructed area to assemble desk. It is advisable to assem-
bly of this product upside down.
STEP 3: Handles for Pedestals are Shipped Installed on the inside of the cabinet.
Remove handle from the inside of the cabinet and re-install with the same screws
on the front of cabinet.
a. Levellers for pedestals are shipped inside the unit. These levellers should
be installed prior assembling complete unit.
STEP 4: Arrange Pedestal and gable as per the final configuration of the product.
a. Using a 1/8” drill bit, drill though holes into side of pedestal according to
the provided template on the side of the pedestal exposed to the underside
of the desk. For this application, use the full modesty and recessed panel location.
b. Modular screws are to be installed into these holes
STEP 5: Gable has Blum connectors pre-installed. Orient gable with Blum Con-
nectors facing inside of desk.
Install levellers into T nuts, using mallet install into pre-drilled holes on the bot-
tom of gable.
a. Install Blum Connector screws into pre-drilled holes on top edge of the gable.
STEP 6: The modesty panel comes with Modular connectors installed on to
connect to the Pedestal. On the top edge of the modesty panel, install Blum Con-
nector screws into the pre-drilled holes. On side of Modesty panel lining up with
the gable, install Blum Connector screws into pre-drilled holes.
• There are 2 holes here, select hole closest to underside of assembly to
correctly line up with the Blum Connectors.
a. Attach the modesty panel to the pedestals by lining up modular con
nectors to screws installed on the pedestal, lift modesty and slide into po
sition ensuring to engage connectors to screws. You can use a mallet to
securely seat the modesty panel into position.
b. Connect the gable to the modesty panel by lining up Blum Connector
screws to the Blum connectors. Turn the screw on Blum Connector ¼
turn, do not over tighten
STEP 7: To install the worksurface top. The worksurface comes with Blum
Connectors pre-installed on the bottom of the surface. Lift worksurface over the
assembly and line up Blum connectors to the installed Blum connector screws on
the modesty panel and gable. Turn screw on Blum Connector ¼ turn, do not over
tighten.
a. You must also secure the worksurface top to the pedestal. Line up the
top flush to the side and front of the pedestal. Use #8 x 3/4 wood screws
provided, screw through the mounting bar on the pedestal to secure the
top. Note: Drawers need to be removed to access drilling location
STEP 8: When final position has been located, level the unit with the levellers
installed on Gable and pedestal.
L2DRHxxxxBL L2DBHxxxxBR L2DBxxxxBL
L2DRHxxxxBR • Single Pedestal Desk Resessed Half Modesty
NOTE: Open and assemble only one product
at a time to avoid a potential mix-up of parts
and hardware.
It is adviseable to assemble the unit on a
carpet to avoid scratches.
Assembly
Safety Glasses
Required Tools
Screwdriver #2 Phillips
Included Hardware
Modular Screw
L007250001
Rubber Mallet
Screwdriver Roberson
92.2mm
96mm
102.7mm
9.5mm
162mm
FULL HEIGHT
MODESTY
HALF HEIGHT
MODESTY
FLUSH MOD6” REC MOD
Installation For Similar Products
Leveler
L007250037
“T” Nut Insert
L007250039
Blum Connector
Screw L005650060
Wood Screw #8 3/4
L007250032
Blum Connector
(installed) L005650061
Modular Connector
(installed) L004250001

Page • globalcontract.com13
• Fall 2017
GLOBALContract
INSTALLATION GUIDELINES
5
6
7
LEFT HAND RIGHT HAND
Connection for pedestal
Connection for gable
GABLE
BBF PED
TOP
HALF MODESTY

•Pageglobalcontract.com 14
GLOBALContract • Fall 2017
INSTALLATION GUIDELINES
NOTE: Open and assemble only one product
at a time to avoid a potential mix-up of parts
and hardware.
It is adviseable to assemble the unit on a
carpet to avoid scratches.
Assembly
STEP 1: Unpack and inspect individual pieces for damages or missing hardware
STEP 2: Pick a clean unobstructed area to assemble desk. It is advisable to as-
sembly of this product upright.
STEP 3: Handles for Pedestals are Shipped Installed on the inside of the cabinet.
Remove handle from the inside of the cabinet and re-install with the same screws
on the front of cabinet.
a. Levellers for pedestals are shipped inside the unit. These levellers should
be installed prior assembling complete unit.
STEP 4: Arrange Pedestal and gable as per the final configuration of the product.
a. Using a 1/8” drill bit, drill though holes into side of pedestal according to
the provided template on the side of the pedestal exposed to the underside
of the desk. For this application, use the full modesty and flush panel location.
b. Modular screws are to be installed into these holes.
STEP 5: The modesty panel comes with Modular connectors installed to connect to
the Pedestal.
On the top edge of the modesty panel, install Blum Connector screws into the pre-
drilled holes. There are 2 holes here, select hole closest to underside of assembly to
correctly line up with the Blum Connectors.
STEP 6: Attach the modesty panel to the pedestals by lining up modular connectors
to screws installed on the pedestal, lift modesty and slide into position ensuring to
engage connectors to screws. You can use a mallet to securely seat the modesty
panel into position.
STEP 7: To install the worksurface top. The worksurface comes with Blum Connec-
tors pre-installed on the bottom of the surface. Lift worksurface over the assembly
and line up Blum connectors to the installed Blum connector screws on the mod-
esty panel. Turn screw on Blum Connector ¼ turn, do not over tighten.
a. You must also secure the worksurface top to the pedestal. Line up the
top flush to the side and front of the pedestal. Use #8 x 3/4 wood screws
provided, screw through the mounting bar on the pedestal to secure the
top. Note: Drawers need to be removed to access drilling location.
8. This unit is intended to be attached to an adjoining assembled unit at the open
end using the provided Flat Brackets. The Flat Brackets are screwed into ganged
assemblies at the worksurface joint using #8 x ¾ wood screws.
9. When final position has been located, level the unit with the levellers installed on
the pedestal.
L2DRxxxxFR L2ERxxxxBL L2ERxxxxBR
Safety Glasses
Required Tools
Screwdriver #2 Phillips Rubber MalletScrewdriver Roberson Level
L2ERxxxxFL
Included Hardware
Modular Screw
L007250001
Back Panel
Top Underside
Installation For Similar Products
Leveler
L007250037
Blum Connector
Screw L005650060
Flat Bracket
L005650025
92.2mm
96mm
102.7mm
9.5mm
162mm
FULL HEIGHT
MODESTY
HALF HEIGHT
MODESTY
FLUSH MOD6” REC MOD
Wood Screw #8 3/4
L007250032
Blum Connector
(installed) L005650061
Modular Connector
(installed) L004250001

Page • globalcontract.com15
• Fall 2017
GLOBALContract
INSTALLATION GUIDELINES
FF PED
FULL MODESTY
WORKSURFACE
3
5
4
6

•Pageglobalcontract.com 16
GLOBALContract • Fall 2017
INSTALLATION GUIDELINES
NOTE: Open and assemble only one product
at a time to avoid a potential mix-up of parts
and hardware.
It is adviseable to assemble the unit on a
carpet to avoid scratches.
Assembly
L2ERHxxxxFR L2ERHxxxxBL L2ERxxxxBR
STEP 1: Unpack and inspect individual pieces for damages or missing hardware
STEP 2: Pick a clean unobstructed area to assemble desk. It is advisable to as-
sembly of this product upright.
STEP 3: Handles for Pedestals are Shipped Installed on the inside of the cabinet.
Remove handle from the inside of the cabinet and re-install with the same screws
on the front of cabinet.
a. Levellers for pedestals are shipped inside the unit. These levellers should
be installed prior assembling complete unit.
STEP 4: Arrange Pedestal and gable as per the final configuration of the product.
a. Using a 1/8” drill bit, drill though holes into side of pedestal according to
the provided template on the side of the pedestal exposed to the underside
of the desk. For this application, use the half modesty and flush panel location.
b. Modular screws are to be installed into these holes.
STEP 5: The modesty panel comes with Modular connectors installed to connect
to the Pedestal. On the top edge of the modesty panel, install Blum Connector
screws into the pre-drilled holes.
• There are 2 holes here, select hole closest to underside of assembly to
correctly line up with the Blum Connectors.
STEP 6: Attach the modesty panel to the pedestals by lining up modular con-
nectors to screws installed on the pedestal, lift modesty and slide into position
ensuring to engage connectors to screws. You can use a mallet to securely seat
the modesty panel into position.
STEP 7: To install the worksurface top. The worksurface comes with Blum
Connectors pre-installed on the bottom of the surface. Lift worksurface over the
assembly and line up Blum connectors to the installed Blum connector screws on
the modesty panel. Turn screw on Blum Connector ¼ turn, do not over tighten
a. You must also secure the worksurface top to the pedestal. Line up the
top flush to the side and front of the pedestal. Use #8 x 3/4 wood screws
provided, screw through the mounting bar on the pedestal to secure the
top. Note: Drawers need to be removed to access drilling location.
STEP 8: This unit is intended to be attached to an adjoining assembled unit at the
open end using the provided Flat Brackets. The Flat Brackets are screwed into
ganged assemblies at the worksurface joint using #8 x ¾ wood screws.
STEP 9: When final position has been located, level the unit with the levellers
installed on the pedestal.
L2ERH-FL
Safety Glasses
Required Tools
Screwdriver #2 Phillips Rubber Mallet Level
Included Hardware
Modular Screw
L007250001
Wood Screw #8 3/4
L007250032
Screwdriver Roberson
92.2mm
96mm
102.7mm
9.5mm
162mm
FULL HEIGHT
MODESTY
HALF HEIGHT
MODESTY
FLUSH MOD6” REC MOD
Installation For Similar Products
Leveler
L007250037
Blum Connector
Screw L005650060
Flat Bracket
L005650025
Blum Connector
(installed) L005650061
Modular Connector
(installed) L004250001
FF PED
HALF MODESTY
L2ERHxxxxBL
WORKSURFACE

Page • globalcontract.com17
• Fall 2017
GLOBALContract
INSTALLATION GUIDELINES
6
5
4
3

•Pageglobalcontract.com 18
GLOBALContract • Fall 2017
INSTALLATION GUIDELINES
NOTE: Open and assemble only one product
at a time to avoid a potential mix-up of parts
and hardware.
It is adviseable to assemble the unit on a
carpet to avoid scratches.
L2GRxx
Safety Glasses
Required Tools
Screwdriver #2 Phillips Rubber MalletScrewdriver Roberson Level
Included Hardware
Blum Connector
(installed) L005650061
Assembly
STEP 1: Unpack and inspect individual pieces for damages or missing hardware
STEP 2: Pick a clean unobstructed area to assemble desk. It is advisable to as-
sembly of this product upright.
STEP 3: Install provided levellers into T nut inserts on the bottom of both left and
right hand end panels as well as half gable. Install T nuts, using mallet install into
pre-drilled holes on the bottom of gable. On the back and top edge of the end
panels, install Blum connector screws in pre-drilled holes.
STEP 4: On the worksurface, install Blum Connector screws in pre-drilled holes on
the back and side edges.
STEP 5: Lay the back panel on clean unobstructed surface with Blum Connectors
facing up. On the bottom edge, install the levellers into the T nut inserts. On the
top edge, install Blum connector screws into pre-drilled holes.
a. To attach the half gable mid support, install 2 modular connector screws in the
holes provide along center line. The half gable will connect to the back panel by
lining up modular connectors to the connector screws and slide down to engage. A
mallet may be used to properly seat the half gable.
STEP 6: lay either left or right end panel on the ground with exposed Blum connec-
tors facing up. Connect the side of worksurface by lining up the Blum connector
screws to the Blum connectors. Tighten screws on Blum Connectors ¼ turn, do not
over tighten.
a. with the assistance of another person, turn assembly upright and con-
nect opposite end panel by connecting Blum Connector screws.
STEP 7: Pick up assembly of the worksurface and end gables and line up Blum
Connector screws along the back end to the Blum connectors on the Back panel.
Tighten Blum Connector screws ¼ turn, Do not over tighten. Stand Assembly
upright.
STEP 8: To install transaction top, line the Blum Connectors installed on the bottom
of the top and line up with Blum connecting screws installed on the top edges of the
assembly. Tighten Blum Connector screws ¼ turn, Do not over tighten.
STEP 9: When in final position, level the unit.
Leveler
L007250037
Blum Connector
Screw L005650060
“T” Nut Insert
L007250039
Modular Connector
(installed) L004250001
HALF GABLE GABLE
TRANSACTION TOP
BACK PANEL
WORKSURFACE
Modular Screw
L007250001

Page • globalcontract.com19
• Fall 2017
GLOBALContract
INSTALLATION GUIDELINES
4
6
5
6a
7
8
9
