INSTALLATION GUIDELINES
NOTE: Any alterations to listed components will void the manufacturer’s warranty.
The manufacturer will not be responsible for any damage or bodily harm caused by
alterations in accordance with national or local electrical codes and manufacturer’s
specifications. In accordance with the manufacturer’s policy of continual
product improvement, the product presented in this document is subject to
change without notice or obligation.
Please contact your Global Contract Service Representative at (905) 470 - 0010 for
any questions or concerns.
ACTxxxxHxx - Occasional table
ARxx32 - Peninsula table
ARTxxxx - Freestanding work table
ACMPWxxHxx - Modesty panel
ARxx32 & APxxLB32 - Peninsula table with low base (LB) pedestal 32”D
ARxx32 & APxxHB32 - Peninsula table with high base (HB) pedestal 32”D
ASxx & ACxxLB/ACxxHB - Stack-on bookcase with credenza
02
02
02
03
04
05
06
PRODUCT INSTALLATION

• Pageglobalcontract.com 2
GLOBALContract
• Corby
Descor Collection • January 2018
INSTALLATION GUIDELINES
ACTxxxxHxx - OCCASIONAL TABLE / ARxx32 - PENINSULA TABLE / ARTxxxx - FREESTANDING WORK TABLE
Safety glasses
Required tools
Cordless drill
NOTE: Open and assemble one product at a time
to avoid potential mix-up of parts and hardware.
It is advisable to assemble the unit on a clean
padded surface to avoid scratches.
CAUTION: Do not drag the assembled
furniture across the floor. Lift the unit completely
off the floor, and move it to the desired location.
ASSEMBLY [freestanding wOrk table shOwn as an example]
Included hardware
STEP 1: Place the worksurface upside down on a clean padded surface.
Bit #2 Robertson Screwdriver #2 Robertson
Countersunk FH screw
1/4-20 x 3/4
STEP 2: Position the preassembled legs to align the holes in the bracket with
the preinstalled inserts in the worksurface. Secure each bracket to
the worksurface with the provided countersunk-
FH screws
(1/4-20 x 3/4, Qty. 20).
Fluid leveler
STEP 3: Flip the assembled table upright. Adjust the glides to level the worksurface.
ACTxxxxHxx - Occasional table ARxx32 - Peninsula table ARTxxxx - Freestanding work table
NOTE: Occasional tables and Freestanding work tables have four legs.
Peninsula tables have two legs.
Fully assembled leg

Page • globalcontract.com3
Descor Collection • January 2018
GLOBALContract
• Corby
INSTALLATION GUIDELINES
Safety glasses
Required tools
Measuring tape Cordless drill
NOTE: Open and assemble one product at a time
to avoid potential mix-up of parts and hardware.
It is advisable to assemble the unit on a clean
padded surface to avoid scratches.
CAUTION: Do not drag the assembled
furniture across the floor. Lift the unit completely
off the floor, and move it to the desired location.
ASSEMBLY [freestanding wOrk table shOwn as an example]
Included hardware
STEP 1: Place the modesty panel flat on a clean padded surface. Attach brackets to
the modesty panel with provided screws.
(#8 x 5/8”, Qty. 6)
(Pilot holes on modesty panel indicate the location)
Bit #2 Robertson
Screwdriver #2 Robertson
BOTTOM VIEW
Modesty panel bracket
Qty. 1 set
LH RH
Robertson PH screw
#8 x 1”, Qty. 6
Robertson PH screw
#8 x 5/8”, Qty. 6
STEP 4: Mount screws
(#8 x 1”, Qty. 6) through the brackets into the bottom
surface of the table.
STEP 2: Place the assembled table upside down on a clean padded surface.
STEP 3: Place the assembled modesty panel on the bottom surface of the table.
Align the modesty panel 6” inset from the edge and ensure equal spacing on
either side.
STEP 5: Flip the assembled table upright. Adjust the glides to level the worksurface.
Fluid leveler
6” inset
=
=
ACMPWxxHxx - MODESTY PANEL

• Pageglobalcontract.com 4
GLOBALContract
• Corby
Descor Collection • January 2018
INSTALLATION GUIDELINES
ARxx32 & APxxLB32 - PENINSULA TABLE WITH LOW BASE (LB) PEDESTAL 32”D
Required tools
NOTE: Open and assemble one product at a time
to avoid potential mix-up of parts and hardware.
It is advisable to assemble the unit on a clean
padded surface to avoid scratches.
CAUTION: Do not drag the assembled
furniture across the floor. Lift the unit completely
off the floor and move it to the desired location.
ASSEMBLY
Included hardware
Phillips PH screw
1/4-20 x 11/4, Qty. 2
Washer plate
Ø 1/4”, Qty. 2
Double-sided adhesive tape
Qty. 1
Riser box ( sold separately)
Qty. 1
STEP 1: Clean the top surface of the pedestal with a damp cloth, followed by a soft
dry cloth in the direction of grain.
STEP 2: Place the peninsula table upside down on a clean padded surface.
STEP 3: Attach the riser box to the peninsula table with Phillips PH screws
(1/4-20 x 11/4 , Qty. 2) and washer plates (Ø 1/4”, Qty. 2) . Apply double-sided adhesive tape to the
bottom of the riser box.
Safety glasses Cordless screwdriverBit #6 Phillips Screwdriver #6 Phillips Fluid leveler
OUTSIDE RISER BOX OPENING INSIDE RISER BOX OPENING
STEP 4: Flip the assembled peninsula table and the riser box and set them on the low base (LB) pedestal as per chosen configuration (see below). Apply moderate pressure
from the top of the peninsula table (at least one minute for the pressure sensitive double sided tape to adhere).
FLUSH CONFIGURATION
STEP 5: Adjust the glides to level the assembled unit. (Configuration shown for outside riserbox opening)
OFFSET CONFIGURATION
FLUSH CONFIGURATION OFFSET CONFIGURATION
or

Page • globalcontract.com5
Descor Collection • January 2018
GLOBALContract
• Corby
INSTALLATION GUIDELINES

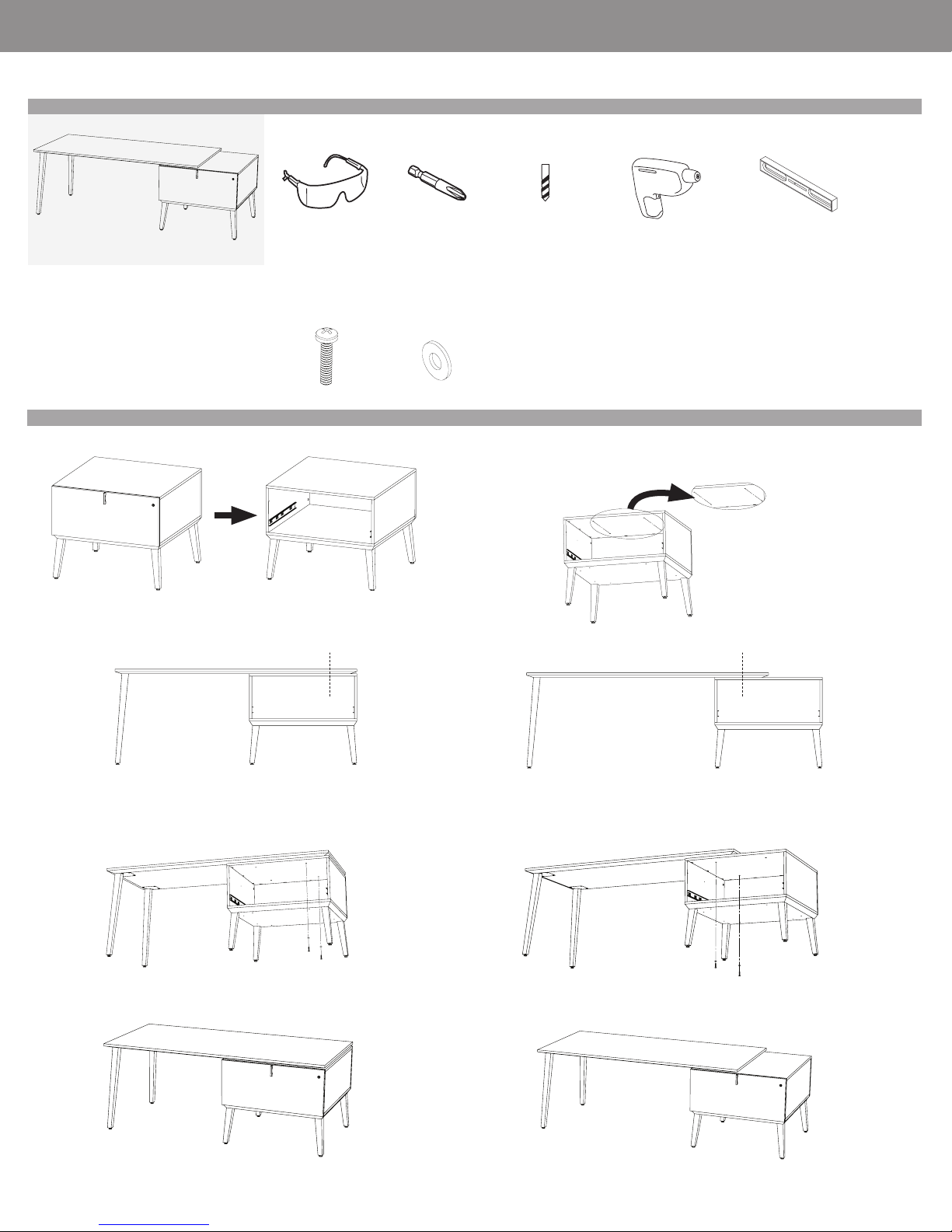

ARxx32 & APxxHB32 - PENINSULA TABLE WITH HIGH BASE (HB) PEDESTAL 32”D
Required tools
NOTE: Open and assemble one product at a time
to avoid potential mix-up of parts and hardware.
It is advisable to assemble the unit on a clean
padded surface to avoid scratches.
CAUTION: Do not drag the assembled
furniture across the floor. Lift the unit completely
off the floor and move it to the desired location.
ASSEMBLY
Included hardware
Phillips PH screw
1/4-20 x 11/4, Qty. 2
Washer plate
Ø 1/4”, Qty. 2
STEP 1: Remove the drawer from the pedestal (if any). STEP 2: Four (4) predrilled holes in the pedestal top are provided.
Depending on the configuration
(as shown in step 3) , two (2) holes
must be drilled all the way through the top of the unit.
STEP 3: Type of configuration
Safety glasses Cordless drill/screwdriverBit #6 Phillips Drill bit 10mm Fluid leveler
FLUSH CONFIGURATION OFFSET CONFIGURATION
STEP 4: Place the peninsula table on the pedestal to align the two (2) predrilled holes in the pedestal with the two (2) inserts installed in the bottom of the worksurface.
Mount Phillips PH screws
(1/4-20 x 11/4 , Qty. 2) through the bottom of the pedestal top.
FLUSH CONFIGURATION
STEP 5: Slide the drawers back into the pedestal (if any). Adjust the glides to level the assembled unit.
OFFSET CONFIGURATION
FLUSH CONFIGURATION OFFSET CONFIGURATION

• Pageglobalcontract.com 6
GLOBALContract
• Corby
Descor Collection • January 2018
INSTALLATION GUIDELINES
ASxx & ACxxLB/ACxxHB - STACK-ON BOOKCASE WITH CREDENZA
Required tools
NOTE: Open and assemble one product at a time
to avoid potential mix-up of parts and hardware.
It is advisable to assemble the unit on a clean
padded surface to avoid scratches.
CAUTION: Do not drag the assembled
furniture across the floor. Lift the unit completely
off the floor and move it to the desired location.
ASSEMBLY
Included hardware
L- bracket
Qty. 2
Robertson PH screw
#8 x 5/8, Qty. 8
Double sided adhesive tape
Qty. 1
STEP 1: Clean the top surface of the credenza with a damp cloth, followed by a soft
dry cloth in the direction of grain. Adjust the glides to level the unit.
STEP 2: Place the stack-on bookcase flat on a clean padded surface.
STEP 3: Apply double sided adhesive tape to the bottom edges of stack-on bookcase
Safety glasses Cordless screwdriverBit #2 Robertson Measuring tape
STEP 5: Apply moderate pressure from the top of the stack-on bookcase (at least
one minute for the pressure sensitive double sided tape to adhere).
STEP 7: Re-level the unit if necessary.
STEP 4: Align the stack-on bookcase on the credenza on any desired corner.
STEP 6: [OPTIONAL] To further secure stack-on bookcase, optional
L-bracket may be installed using screws
(#8 x 5/8, Qty. 8)
Front view Side view
Optional hardware

Page • globalcontract.com7
