Explanation of the symbols.
Start-Up Indicatons
15 sec sleep mode
Display backlight will go to sleep mode after 15 seconds of inactivity.
Once connected, a height read-out should appear on the display.
Menu mode
Memory
Error codes
Reset
Homing Mode
Imperial, Inch
Thermometer
Metric, Centimeter
Height Reading
M
Installation
Connect
Button Guide
Symbol Guide
Start Up
Attach the handset to the underside of the table top using the two provides screws. If the
worksurface thickness is less than 18mm (3/4”) use shorter screws (not provided).
Explanation of the display.
Connect the handset cable to one of the columns connetor ports. The second port on the
handset can be used to connect other devices.
Adjust the table upwards.
Adjust the table downwards.
Three dashes.
Or with a slave number such as.
Height reading.
- Memory - set or adjust memory
position.
M
USER GUIDE
1
73.8

•Pageglobalcontract.com 3
• March 2019
GLOBALContract
M
M
M
M
M
M
USER GUIDE
Preform Reset / Homing
Memory Position
Accessign memory Positions1-3
Setting memory Position 1-3
Use Preset Heights
Critical Step. At installation or if a critical component such as a column or mo-
tor is changed or disconnected, a Reset must be performed.
Note: Ensure that the area around and under the table are clear.
Set/Adjust a quick memory position. THere is a quick memory position option
to set the Up and Down buttons to move the desk to a predefined height. To set
the predefined height for a button:
Set/Adjust a quick memory position. THere is a quick memory position option
to set the Up and Down buttons to move the desk to a predefined height. To set
the predefined height for a button:
and
or
or
or
or
or
Press and hold the Up and Down buttons
at the same time.
Adjust the table to the preferred height to
be stored as a memory position.
Move the table to desired height.
Press and hold either the Up or Down
button to move the desk to the quick
memory position, the desk will stop at
the preset height. Release the button.
immediately press the Up or Down but-
ton to store the current height as a quick
memory position to the selected button.
Press the M button to save current
height.
Press and hold the same button as previ-
ously to bypass the desks preset height.
Press the M button, and release.
Hold the M button for at least 3 seconds
Press and hold the M button while the
table moves to the stored memory
position.
Use the Up or Down button to choose
stored position 1, 2, or 3
Press the M button, for at least 3
seconds.
Press the M button to select
Use the Up or Down button to select
position to store the height to 1, 2 or 3
1,2 or 3
1,2 or 3
Use the Down button to navigate to SET.Hold the buttons pressed at least 8
seconds.
Release the Up and Down buttons.
Release the Down button.
The reset process is completed
The three dashes on the display will be
replaced by a height reading.
Immediately press and hold the Down
button - the display will indicate reset
mode with three dashes and a house
in the lower left corner - until the desk
reaches its lowest position and stops
moving.
8 seconds
Release
Release
Complete
Height
Adjustment

Page • globalcontract.com4
• March 2019
GLOBALContract
USER GUIDE

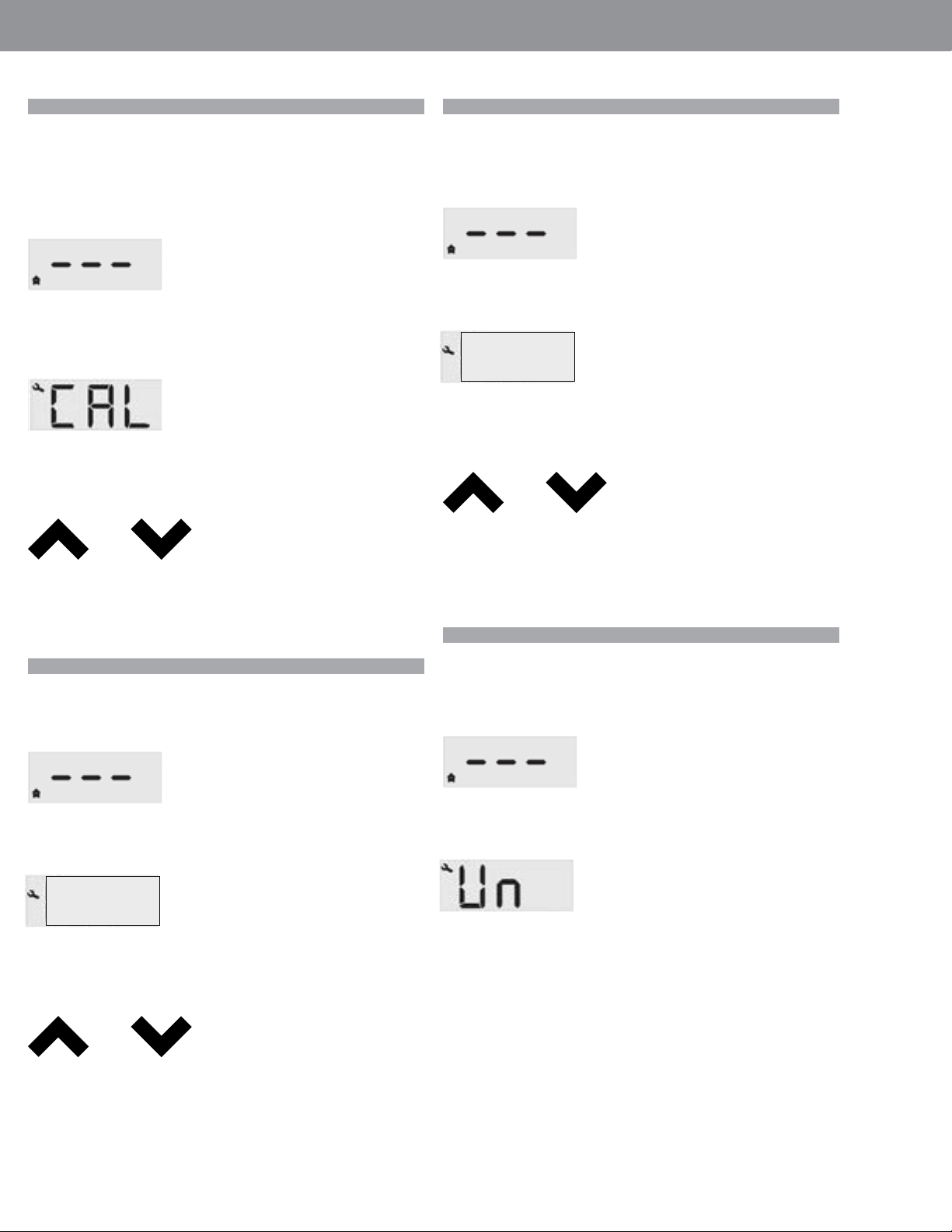

Calibrate
Upper Limit
Lower Limit
Units
if the height reading displays incorrect height, the height from the table top
needs to be calibrated.
Measure the distance between the floor and the top of the table top.
Set an Upper Limit when planning over-head storage.
Set an Lower Limit when planning storage under the table.
Change between metric or imperial units.
or
or
or
Change the current height reading by
using the Up or Down button to the
measured height.
Store the current height reading and
return to Menu by pressing the m button.
Select by pressing the M button.
Select by pressing the M button.
Select by pressing the M button.
Select value and return to Menu by press-
ing the M button.
Select value and return to Menu by press-
ing the M button.
Select value and return to Menu by press-
ing the M button.
Press and hold M button for at least 8
seconds...
... until three dashes are displayed.
Press and hold M button for at least 8
seconds...
... until three dashes are displayed.
Press and hold M button for at least 8
seconds...
... until three dashes are displayed.
Calibrate Upper Limit by using the Up or
Down buttons.
Calibrate Upper Limit by using the Up or
Down buttons.
Choose CM (centemeter) or “ (inch) with
the Up or Down button.
Press the “M” button for at least 8
seconds...
...until three dashes are displayed.
Select by pressing the M button.
M
M
M
M
M
M
M
M
M
M
M
M
Release the M button.
Release the M button.
Release the M button.
Release the M button.
Use the Up or Down button to navigate
to U.L. (Upper Limit)
Use the Up or Down button to navigate
to L.L. (Lower Limit)
Use the Up or Down button to navigate
to Un (Units).
Use the Up or Down button to navigate
to CAL (Calibrate)
Release
Release
Release
Release
CM or “
U.L.
L.L.

•Pageglobalcontract.com 5
• March 2019
GLOBALContract
USER GUIDE

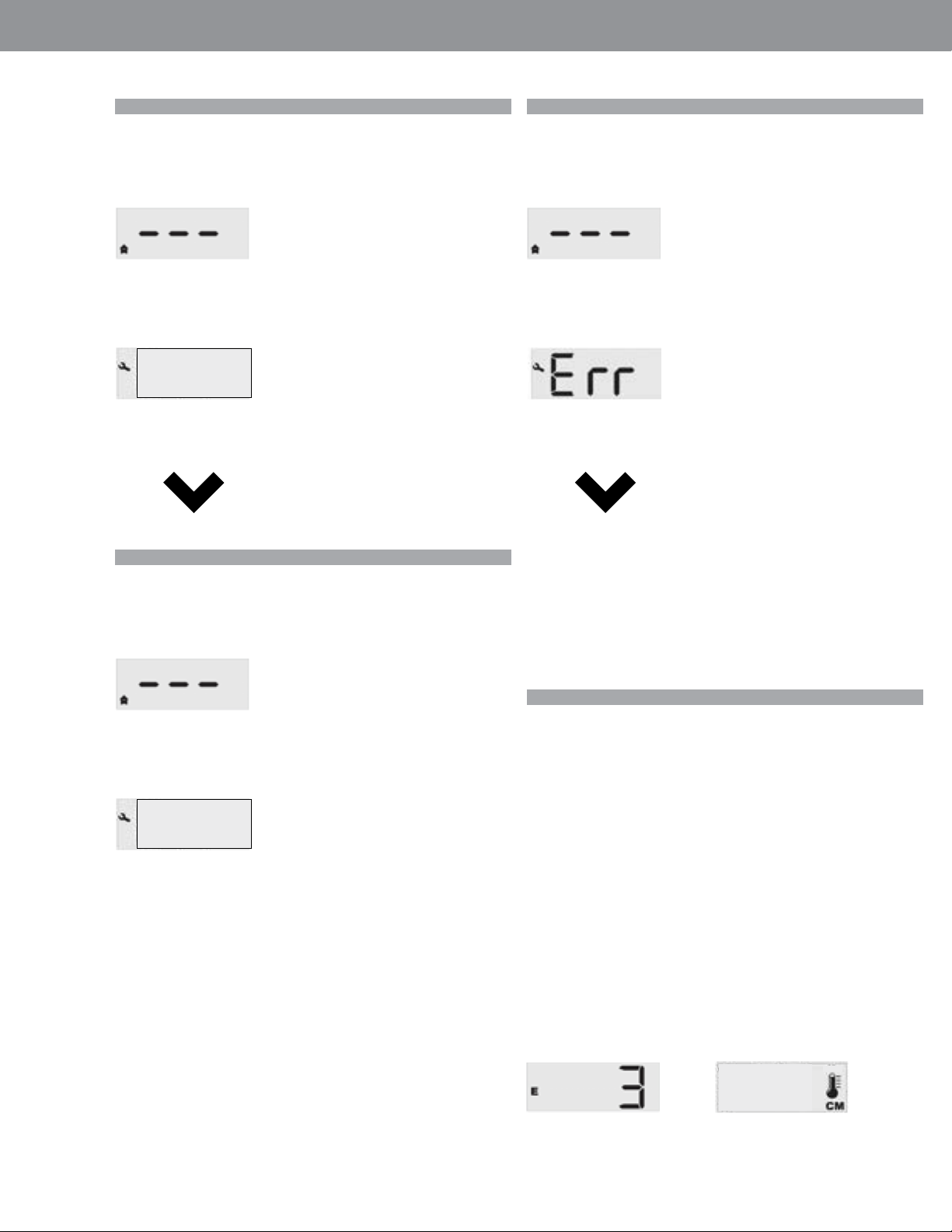

Preforming a Forced Reset Error Logs
Software Version
Error Codes
If Standard Reset (page 6) does not initiate a reset, preform a Forced Reset. Shows the number of times each error has occurred since start-up or last reset.
1 Hard stop
2 Back off
3 Soft stop
4 Waiting for button
5 Waiting for button release
6 Motor lost
7 Overcurrent
8 Overheating: Thermometer flashing, wait 10 minutes
for motor cooling.
9 Low voltage: (under 16vdc)
10 High voltage: (over 40vdc)
11 Out of sync / legs too far apart
12 Destination above upper limit
13 Destination below lower limit
14 Internal error
15 Collision detected by CDS
16 Wrong number of motors connected
17 Destination above upper motor limit
18 Destination below lower motor limit
19 Slave lost / Disconnected
20 Motor not moving
Display Software Version
Select by pressing the M button. Select by pressing the M button.
Select by pressing the M button.
Return to Menu by pressing the M button.
Activate Reset / Homing by pressuring the
Down button.
Navigate with the Up or Down button to
the error number you want to view.
Software Version will appear on the
display.
Software Version Displayed
Return to Menu by pressing the M button.
Default error code example Error code 8, flashing
thermometer
Press and hold M button for at least 8
seconds...
... until three dashes are displayed.
Press and hold M button for at least 8
seconds...
... until three dashes are displayed.
Press and hold M button for at least 8
seconds...
... until three dashes are displayed.
M M
M
M
M
M M
M
Release the M button. Release the M button.
After 1 second of inactivity, the number
of times that error has occured will
display.
Release the M button.
Use the Up or Down button to navigate
to RES (Reset).
Use the Up or Down button to navigate
to Err.
Use the Up or Down button to navigate
to SOF (Software Version).
Release Release
Number of times
the error occured
displayed
Release
RES
123
SOF

Page • globalcontract.com6
• March 2019
GLOBALContract

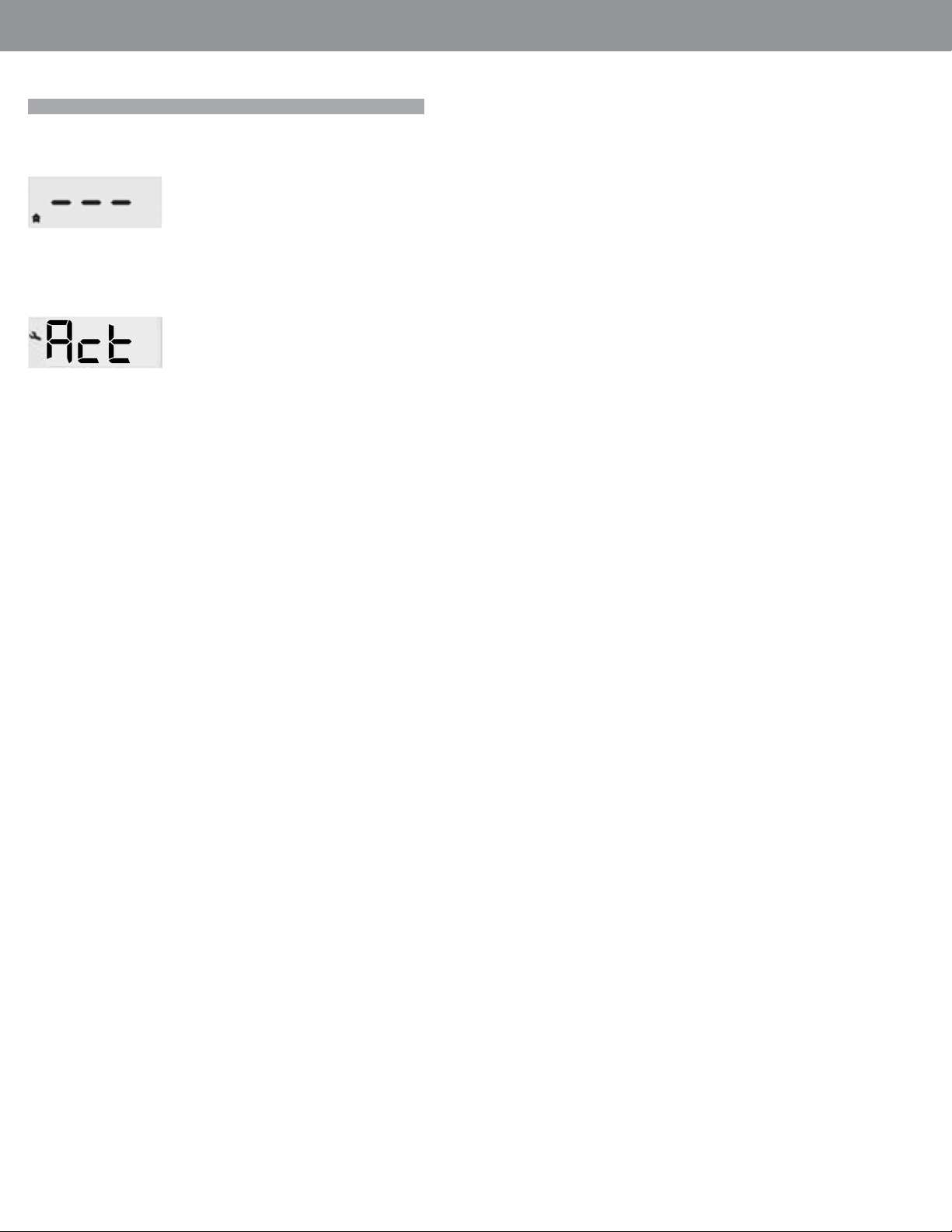

Actuator Versions
Select by pressing the M button.
Return to Menu by pressing the M button.
navigate with the Up or Down button to
see the oldest Firmware Version.
Software Version Displayed
Press and hold M button for at least 8
seconds...
... until three dashes are displayed.
M
M
M
Release the M button.
Use the Up or Down button to navigate
to Act (Actuator / Columns)
Release
USER GUIDE

•Pageglobalcontract.com 7
• March 2019
GLOBALContract
USER GUIDE

Page • globalcontract.comH.14
• July 2012
