Global Contract Free Fit User manual

Free Fit
Installation
Manual
2019
Visit us on the Internet at globalcontract.com • [phone]
Global Contract Inc., 565 Petrolia Road
North York, Ontario, M3J 2X8
REVISED: OCTOBER 2019
ISO 9001:2015 ISO 14001:2015 ISO 45001:2018

Page • globalcontract.com1
• August 2018
GLOBALContract
INSTALLATION GUIDELINES
NOTE: Any alterations to listed components will void the manufacturer’s warranty.
The manufacturer will not be responsible for any damage or bodily harm caused
by alterations in accordance with national or local electrical codes and manufac-
turer’s specifications. In accordance with the manufacturer’s policy of continual
product improvement, the product presented in this document is subject to
change without notice or obligation.
Please contact your Global Contract Service Representative at 416-739-5000 for
any questions or concerns.
Electrical System

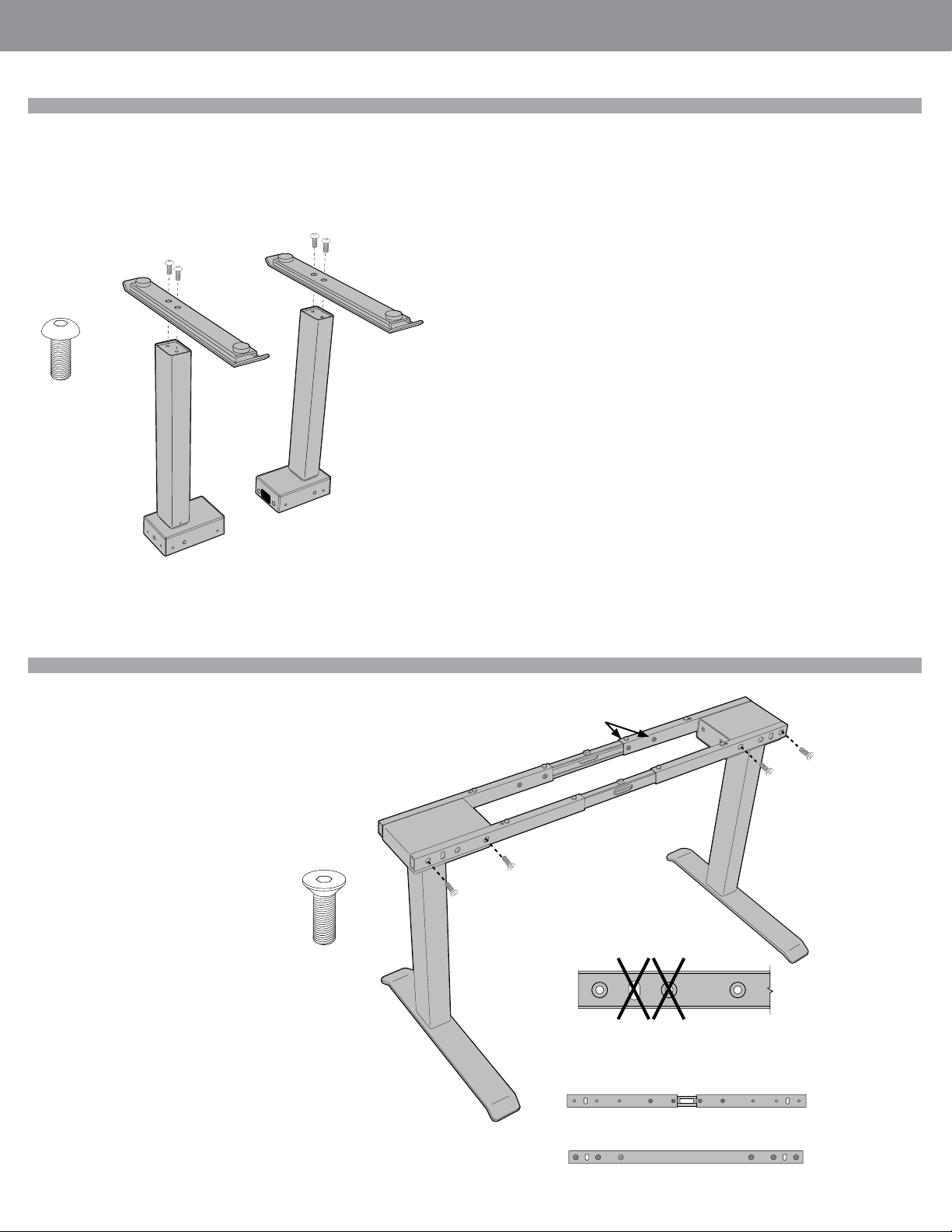

Feet
Crossbars

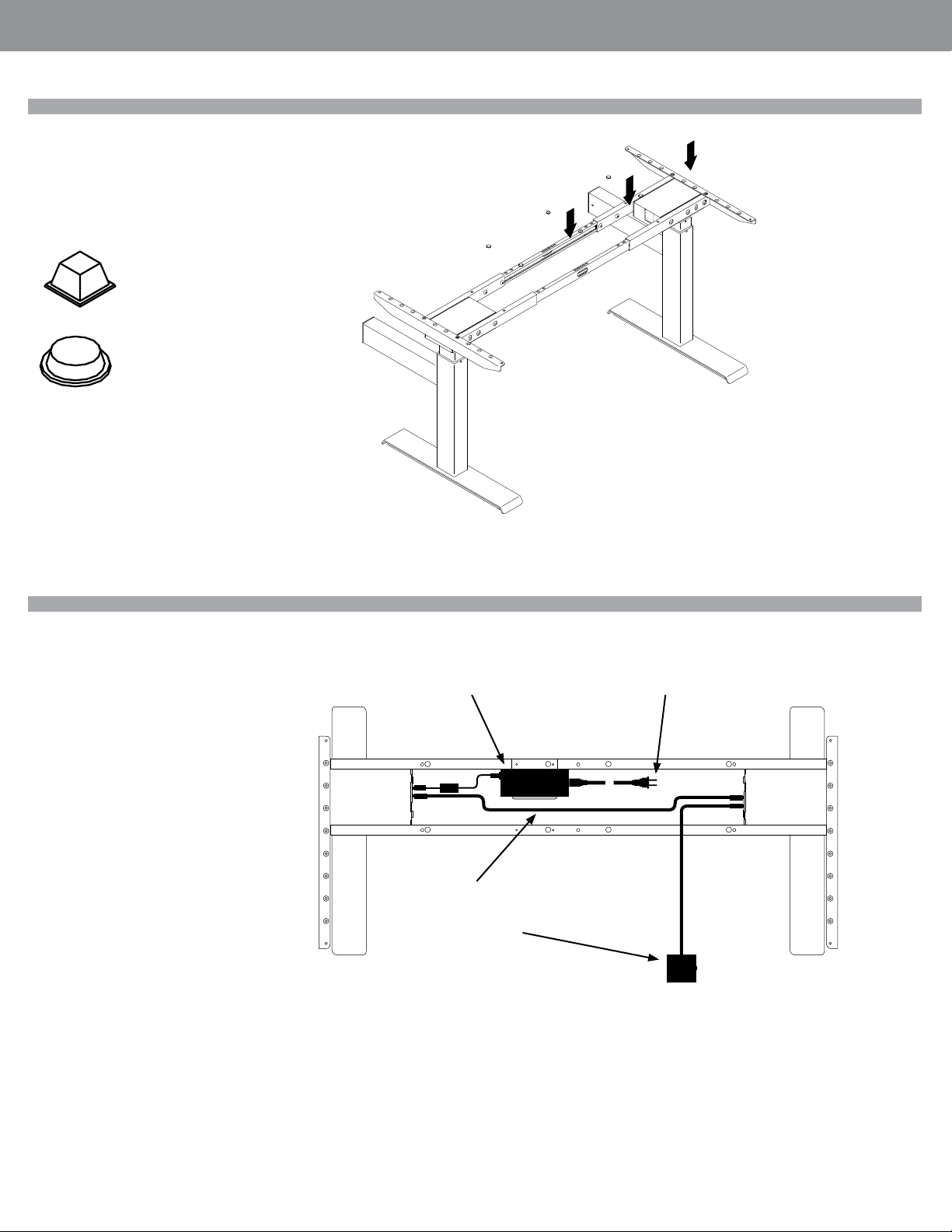

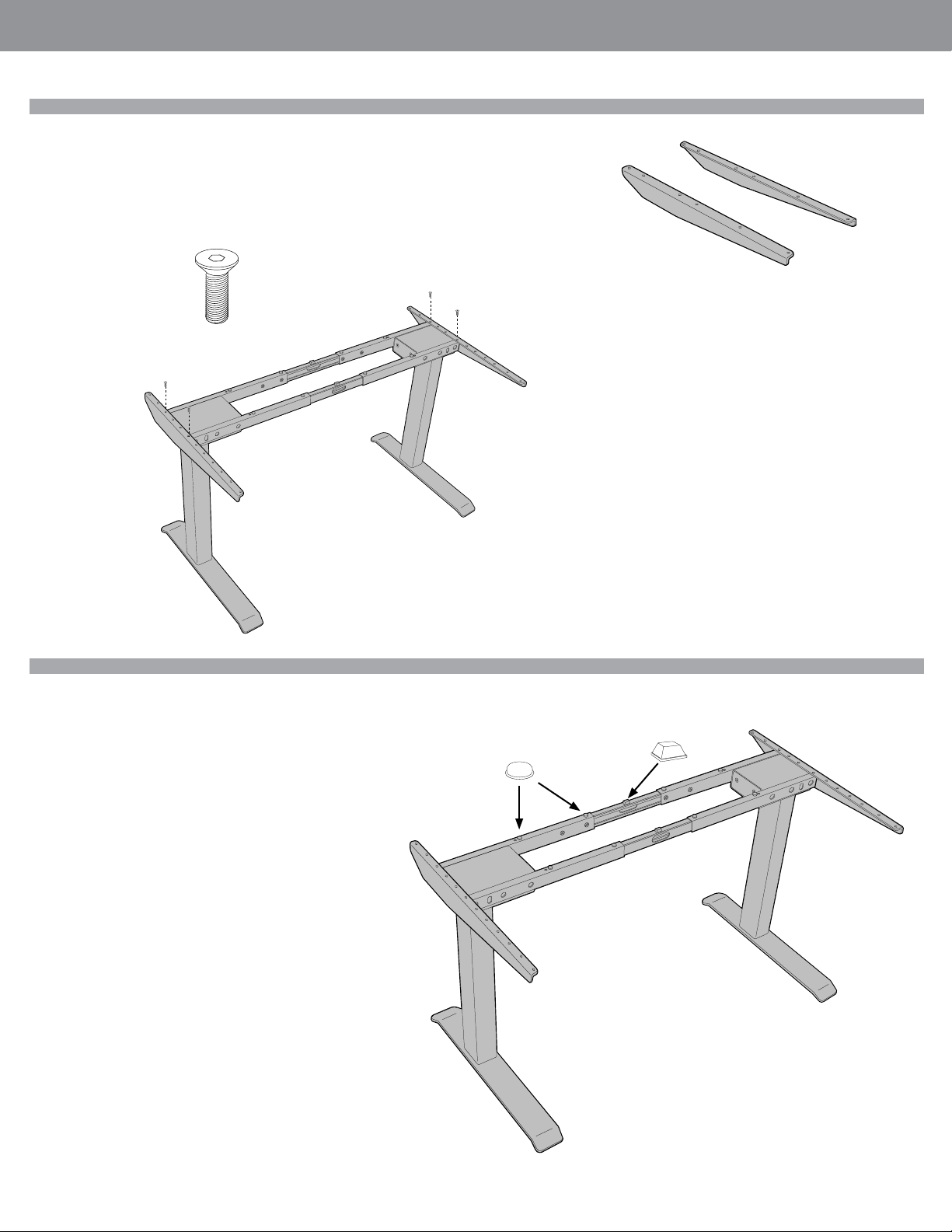

Sidebars
Bumpers
3-Column 90º Telescopic Crossbars
3-Column 90º Fixed Crossbars

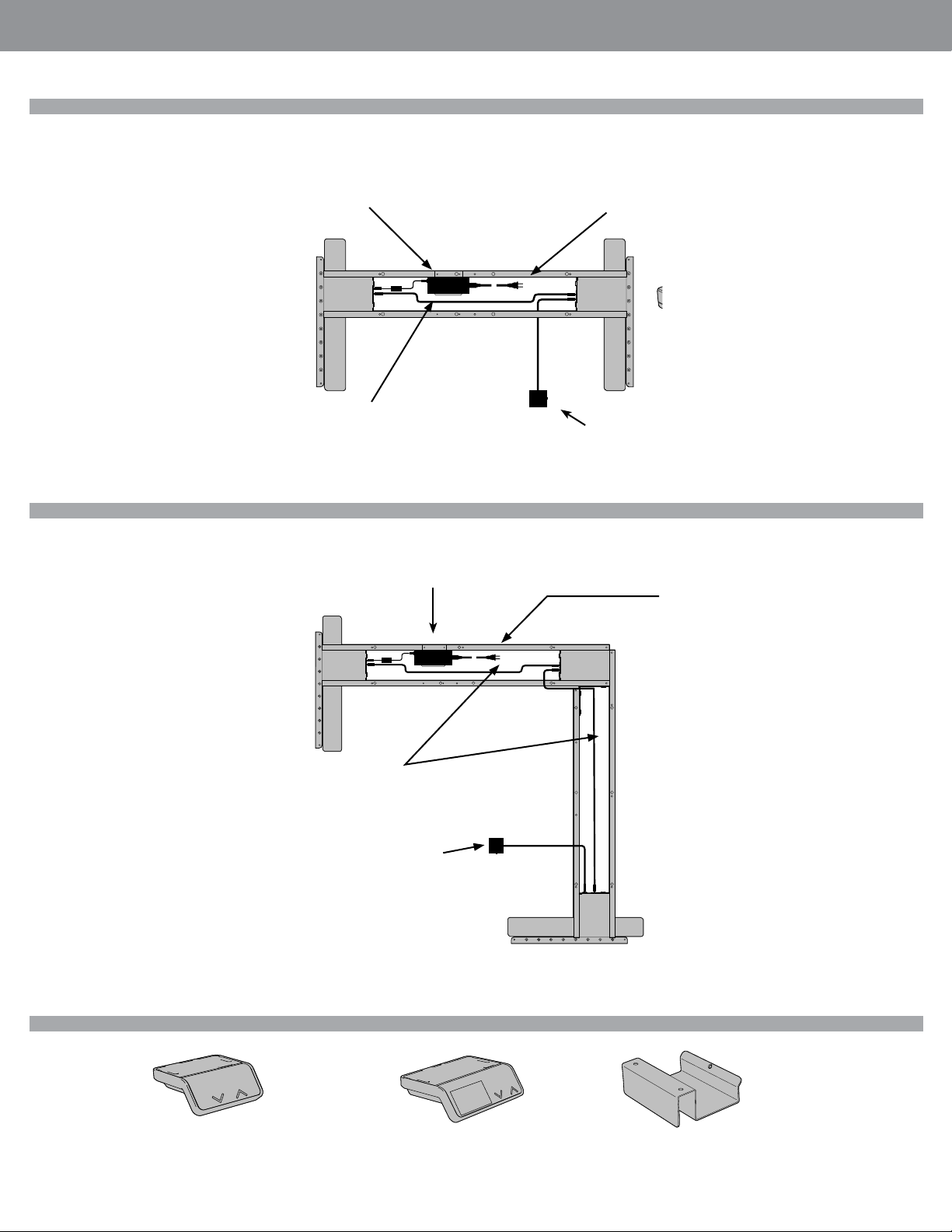

Electrical 2-Column
Electrical 3-Column
Height Adjustable Back to Back Table - Feet
Column Cross Beam
Back to Back Crossbars and Sidebars
Back to Back Bumpers
Back-2-back trough
BWATTC Table to Table Connector
Height Adjustable Single Table - Feet
Column cross beam
Crossbars
Sidebars
Bumpers
Electrical 2-Column
Single table trough
BWAECF Ceiling Feed Post
BWAEFF Floor Feed Housing
Device Holder • Access Door Modules:
Worksurfaces
Cable Snake
Cable trough covers
BWAPCH PC Holder
BWAPCH PC Holder Adjustment
Cable Tray Access Door Modules with Cable Tray:
Power Bar all GAADxxxx Access Door Modules
BWATMGD Table Mounted Glass Divider
Stationary Divider Assembly
Stationary Divider Install
Table Mounted Framed Dividers
PET Felt Carrel
Back-2-Back FreeFit to Bridges Connector
Flow Ease Installation / Operation
02
03
03
04
04
05
05
06
06
07
08
09
10
11
12
13
13
14
14
15
15
16
17
18
19
20
21
22
23
23
24
25
26
27
28
31
32
33
36
Table Of Contents P.01

•Pageglobalcontract.com 2
GLOBALContract • August 2018
INSTALLATION GUIDELINES
FreeFit
Global Contract
Murano Chair Disassembly
Required Tools:
Note: Chair can be disassembled in 5 minutes or less
VERSION 2 03/18/10
Safety Glasses
Rubber Mallet
Flathead Screw
driver
Actuator
Pliers
10 mm Hex Bit
Phillips Bit
T-25 Torx Bit
Bit Adaptor /
Handle
Socket Wrench
13 mm Socket
Adaptor
Global Contract
Murano Chair Disassembly
Required Tools:
Note: Chair can be disassembled in 5 minutes or less
VERSION 2 03/18/10
Safety Glasses
Rubber Mallet
Flathead Screw
driver
Actuator
Pliers
10 mm Hex Bit
Phillips Bit
T-25 Torx Bit
Bit Adaptor /
Handle
Socket Wrench
13 mm Socket
Adaptor
Global Contract
Murano Chair Disassembly
Required Tools:
Note: Chair can be disassembled in 5 minutes or less
VERSION 2 03/18/10
Safety Glasses
Rubber Mallet
Flathead Screw
driver
Actuator
Pliers
10 mm Hex Bit
Phillips Bit
T-25 Torx Bit
Bit Adaptor /
Handle
Socket Wrench
13 mm Socket
Adaptor

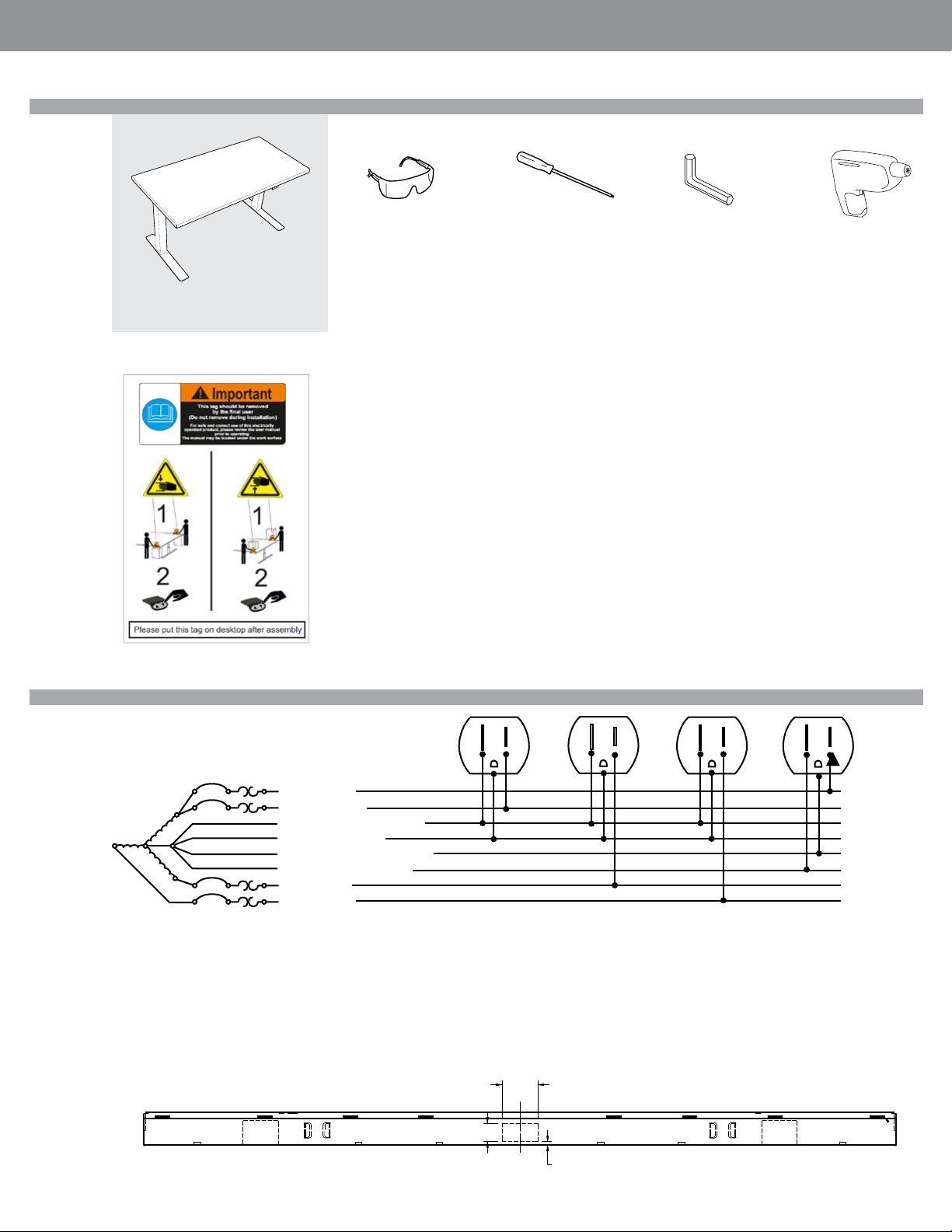

Safety Glasses Allenkeys Drill with Roberson BitRobertson Screwdriver
Required Tools
Warning leaflet and user manual should be left on the table after completed installation.
Electrical System
An 8-wire, 4-circuits, 3+1 electrical systems complies with UL 1286
8 Wires 4 Circuits Receptacles Specifications
4 Lines (12ga.) 3 Utility Circuit Duplex - Up to 12 duplex receptacles per circuit 120 VAC system rated at 20A (15 CSA)
2 Neutrals 1 Isolated Circuit
2 Grounds (12ga.)
Data knockout is located in the centre of the trough with a dimension : 2.68” x 1.37”
LINE - 4 PINK
LINE - 1 BLACK
NEUTRAL - 1 WHITE/BLACK
GROUND - 1 GREEN
GROUND - 2 GREEN YELLOW
NEUTRAL - 2 WHITE/RED
LINE - 2 RED
LINE - 3 BLUE
12 GAUGE
12 GAUGE
10 GAUGE
12 GAUGE
12 GAUGE
10 GAUGE
12 GAUGE
12 GAUGE
#2
#1 #4
I.G.
#3
FRONT VIEW
C
L
2.680
1.370
.260

Page • globalcontract.com3
• August 2018
GLOBALContract
INSTALLATION GUIDELINES
Feet
Crossbars
Screw Socket Round UNC 5/16- 18x5/8” Zn
Loosen screws to adjust crossbar length.
Screw socket CSK UNC
5/16 - 18x1” Zn
Do not use the two middle holes of the crossbars.
Adjustable crossbar
Fixed crossbar
Assemble the feet on the columns. Tighten screws firmly.
IMPORTANT: Make sure the correct screws are used. Using too
long screws may destroy internal parts in the column.
• August 2018 rev: March2019

•Pageglobalcontract.com 4
GLOBALContract • August 2018
INSTALLATION GUIDELINES
Sidebars
Bumpers
Screw socket CSK UNC
1/4-20x5/8” Zn
Bumper ø 1/2”x 1/8”
Transparent
Bumper 1/2”x 1/2”x1/4”
Transparent
Right Hand / Left Hand
Sidebars
Fasten sidebars in threaded holes on top of crossbars with countersunk screws.
Various types of sidebars exist, some of which can be placed in optional positions.
The holes closest to the ends of the sidebar are dedicated for fixing of work top but
any available hole can be used for this purpose.
The work top is resting on the sidebars and on self-adhesive
rubber bumpers placed on the crossbars. The bumpers should
be placed as close to the fixing screws for the work top as pos-
sible to keep the work top from bending.
The rubber bumpers come in two thicknesses. The thicker ones
are used on the C-channel. On fixed crossbars the thick bumpers
are not used.
Two sizes of wood screws for the work top are included
in the assembly kit. Wood Screw Round 8x3/4” Zn Wood
screw CSK 10x2-3/8” Zn
The shorter screws through sidebars. The longer screws
through crossbars.
Place the thin bumpers on the
tube next to the screw hole
and next to the tube edge.
Place the thick bumpers on
the C-channel next to the
screw hole.

Page • globalcontract.com5
• August 2018
GLOBALContract
INSTALLATION GUIDELINES
Screw socket CSK
UNC 5/16-18x1-
3/8” Zn
Screw socket CSK
UNC 5/16-18x1-
3/8” Zn
3 Regular fixed crossbar.
Regular fixed crossbar 6” shorter
than the other three crossbars.
Assembly Kit PR25 90º Angle
3 Regular telescopic crossbars.
1 Special Telescopic crossbar.
No additional assembly kit.

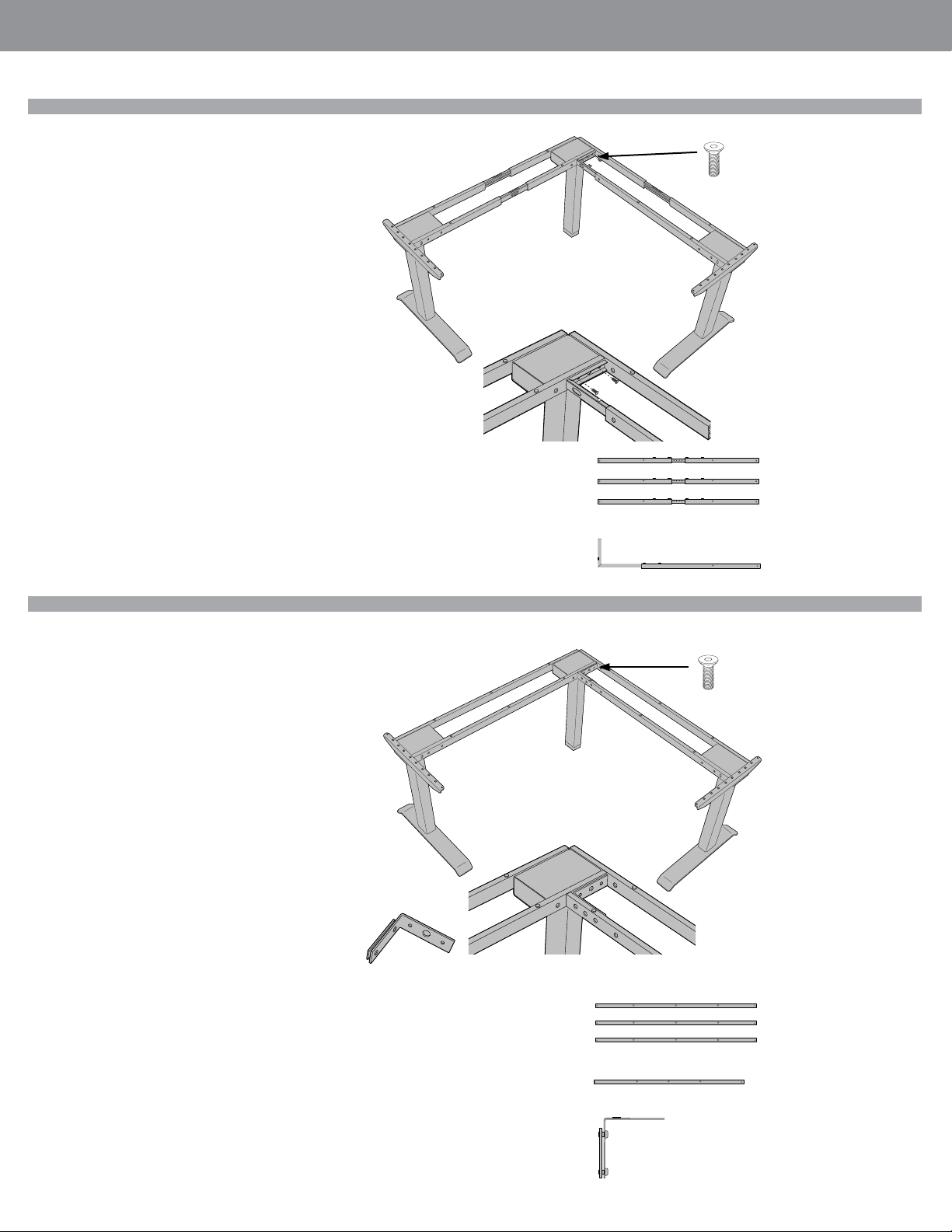

3-Column 90° Telescopic Crossbars
3-Column 90° Fixed Crossbars
Attach the crossbars on the long side of the housings. Tighten
screws firmly. IMPORTANT: Do not use the two middle holes of the
crossbars. Do not insert any object in the two middle holes as this
can damage electronic components.
Loosen the round headed screws on the cross-bars and adjust the
frame to desired width.
Fasten the screws on the crossbars.
3 regular telescopic crossbars and 1 special telescopic crossbar
with an angled C-channel are used.
3-Column 90º Table, Fixed Crossbars 3 regular fixed crossbars
together with 1 regular fixed crossbar 6” shorter than the other
three are used.
The assembly procedure is the same as for a 2-column table with
the exception that the angled C-channel mounts to the middle house
with one extra-long screw 1-3/8”.

•Pageglobalcontract.com 6
GLOBALContract • August 2018
INSTALLATION GUIDELINES
Electrical 2-Column
Electrical 3-Column
Cable USA 2-pol IEC C7
Cable USA 2-pol IEC C7
ASM Light Handset Holder for power supply, hooks over crossbar or
screws into worksurface.
Handset w Display
The handset is mounted at the front edge of the work top, screwed
to the underside with screws supplied with the unit.
Connect cables and power supply according to
ASM Light Handed w/Screws
ASM Light Handed w/Screws
Cable LinBus iDrive
Cable LinBus iDrive
Power Supply D04 35V/2, 12A AC input 110-240V, 50-60Hz
Power Supply D04 35V/2, 12A AC input 110-240V, 50-60Hz

Page • globalcontract.com7
• August 2018
GLOBALContract
INSTALLATION GUIDELINES
Height Adjustable Back to Back Table - Feet
BWA2DxxxxA9, BWAG2DxxxxA9, BWA2DxxxxA8, BWAG2DxxxxA8
Assemble the feet on the columns. Tighten the screws firmly.
IMPORTANT: Make sure the correct screws are used. Using too long screws may destroy the
internal parts in the column.
Screw socket round UNC5/16- 18x5/8” Zn

•Pageglobalcontract.com 8
GLOBALContract • August 2018
INSTALLATION GUIDELINES

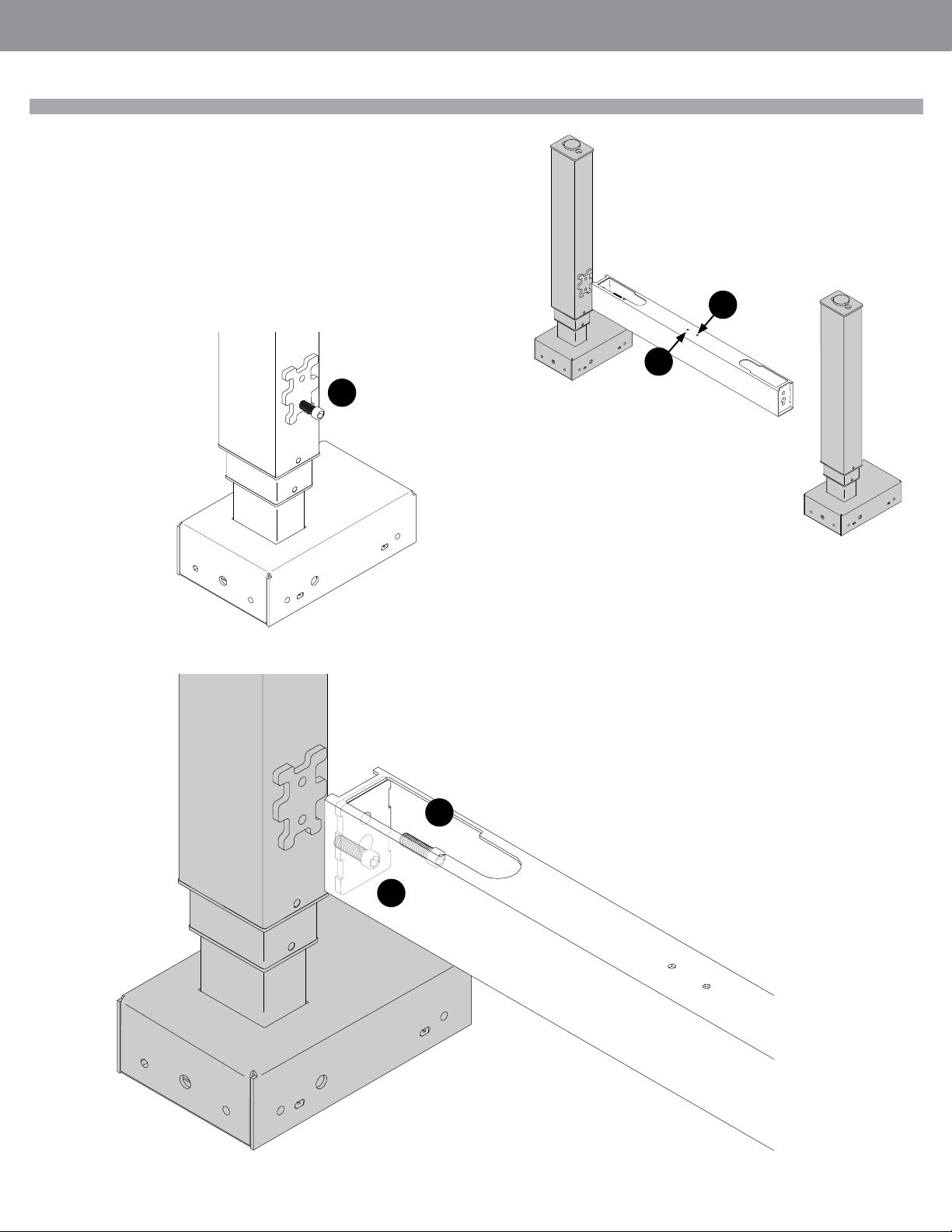

Column cross beam
Secure the column cross beam to the columns.
STEP 1: Drive one socket head screws 5/16-18 x 1” into column as illus-
trated. Do not tighten.
STEP 2: Position the column cross beam’s key-hole over the preinstalled
socket head screw and drive in the second socket head screw.
Note: When the column cross beam orientation is completed, one pair of the
holes will end up at the beam’s bottom (A) and the second pair of holes (B)
will point toward the centre of the table.
STEP 3: Tighten all socket head screws to ensure firm and safe column – to -
column cross bar connection.
1
2
3
A
B

Page • globalcontract.com9
• August 2018
GLOBALContract
INSTALLATION GUIDELINES

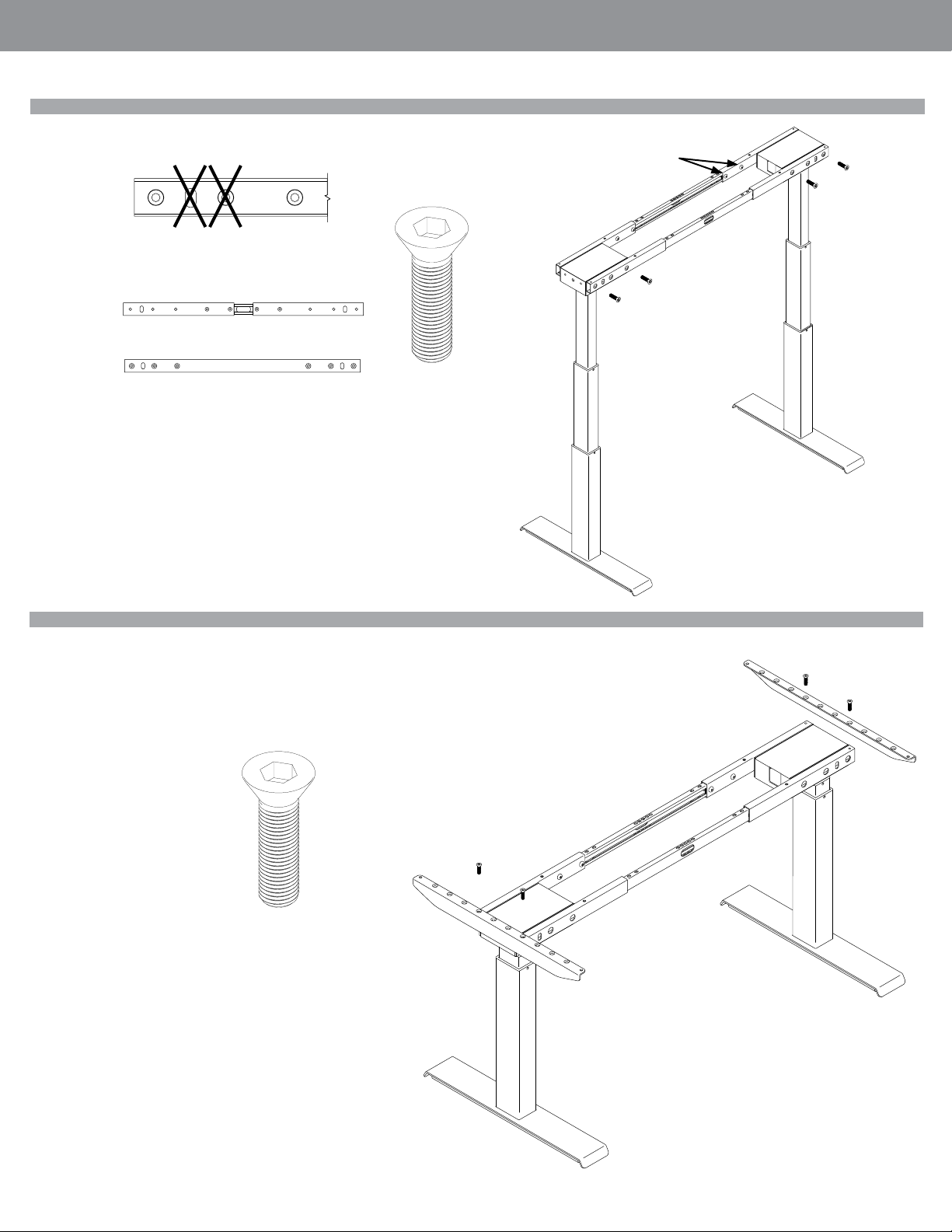

Crossbars and Sidebars
Fasten sidebars in threaded holes on top of crossbars with countersunk screws.
There are various types of sidebars , some of which can be placed in optional
positions. The holes closest to the ends of the sidebar are dedicated for fixing the
worksurface but any other available hole can be used for the same purpose.
Screw socket CSK UNC
1/4 - 20x5/8” Zn
Screw socket CSK UNC
5/16 - 18x1” Zn
Loosen screws to adjust crossbar length
Do not use the two middle
holes of the crossbars.
Do not use the two middle holes of the crossbars.
Adjustable Crossbar
Fixed Crossbar
Right hand Sidebar
Left hand
Sidebar

•Pageglobalcontract.com 10
GLOBALContract • August 2018
INSTALLATION GUIDELINES

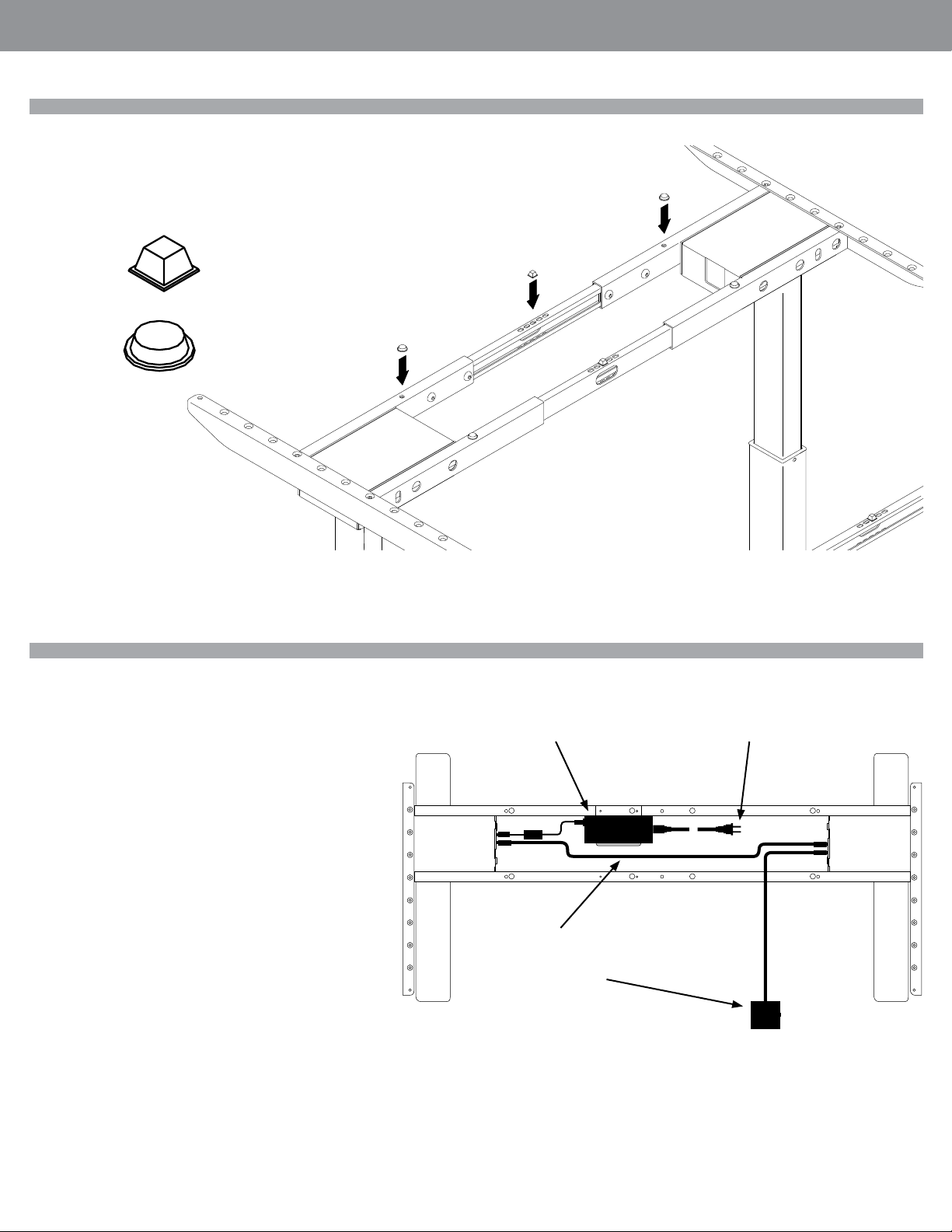

Bumpers
The worksurface is resting on the sidebars and on shelf-adhesive rubber
bumpers placed on the crossbars. These bumpers should be placed close to
the fixing screws to avoid the worksurface being bended.
The rubber bumpers come in two thicknesses. The thicker ones are used on
the C-channel and not on the fixed crossbars
Two sizes of wood screws for the work top are included in the assembly kit:
Wood screw round 8x3/4” Zn
Wood screw CSK 10x2-3/8” Zn
The shorter screws go through the sidebars. The longer screws go through the crossbars.
Place the thin bumpers on the
tube next to the screw hole and
next to the tube edge.
Place the thick bumpers on the C-channel next
to the screw hole.
Bumper ø 1/2”x 1/8”
Transparent
Bumper 1/2”x 1/2”x1/4”
Transparent
Electrical 2-Column
The handset is mounted at the front edge of the worksurface, screwed to the
underside with the screws supplied.
Connect cables and power supply according to:
Power Supply D04 35V/2, 12A AC input 110-240V, 50-60Hz Cable USA 2-pol IEC C7
Cable LinBus iDrive
ASM Light handed w/screws

Page • globalcontract.com11
• August 2018
GLOBALContract
INSTALLATION GUIDELINES

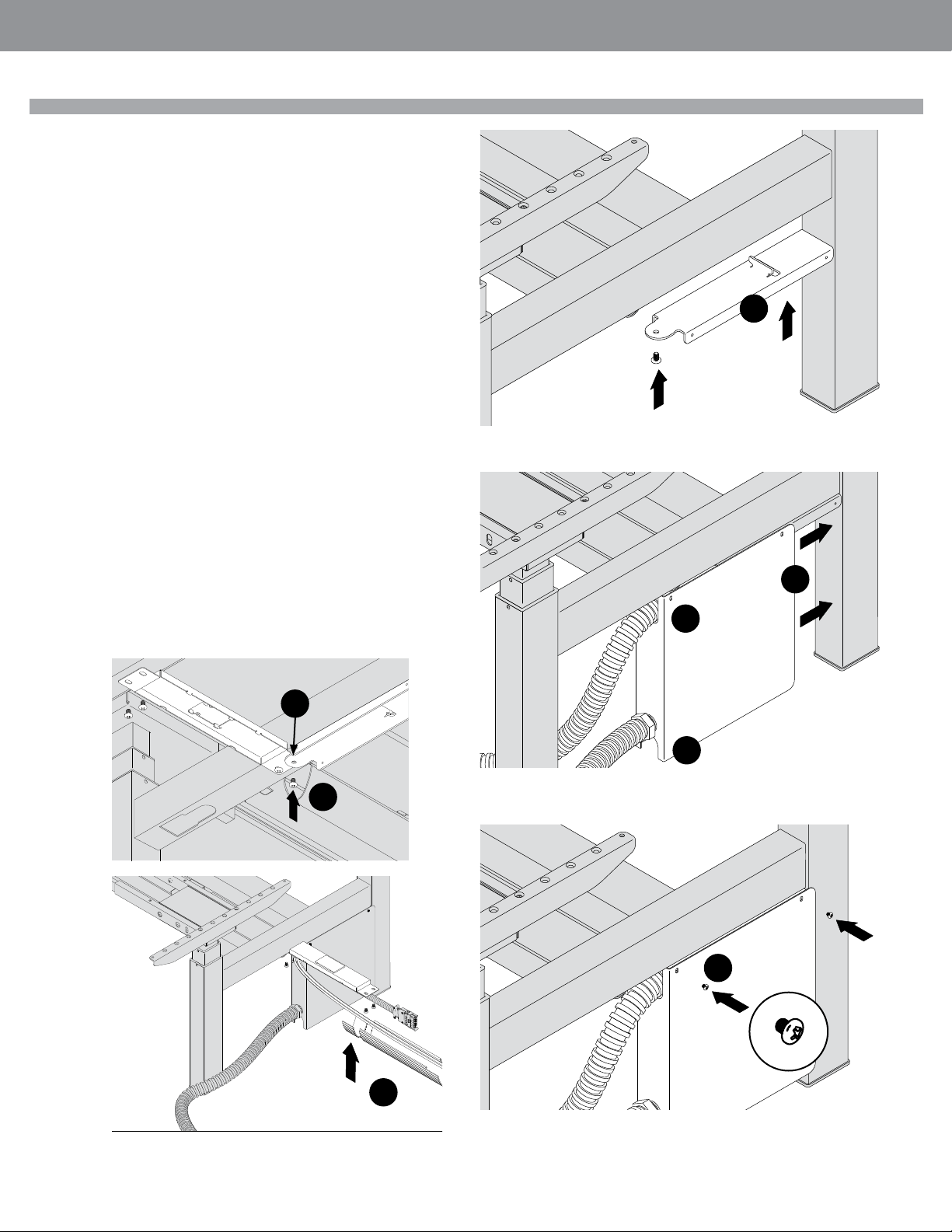

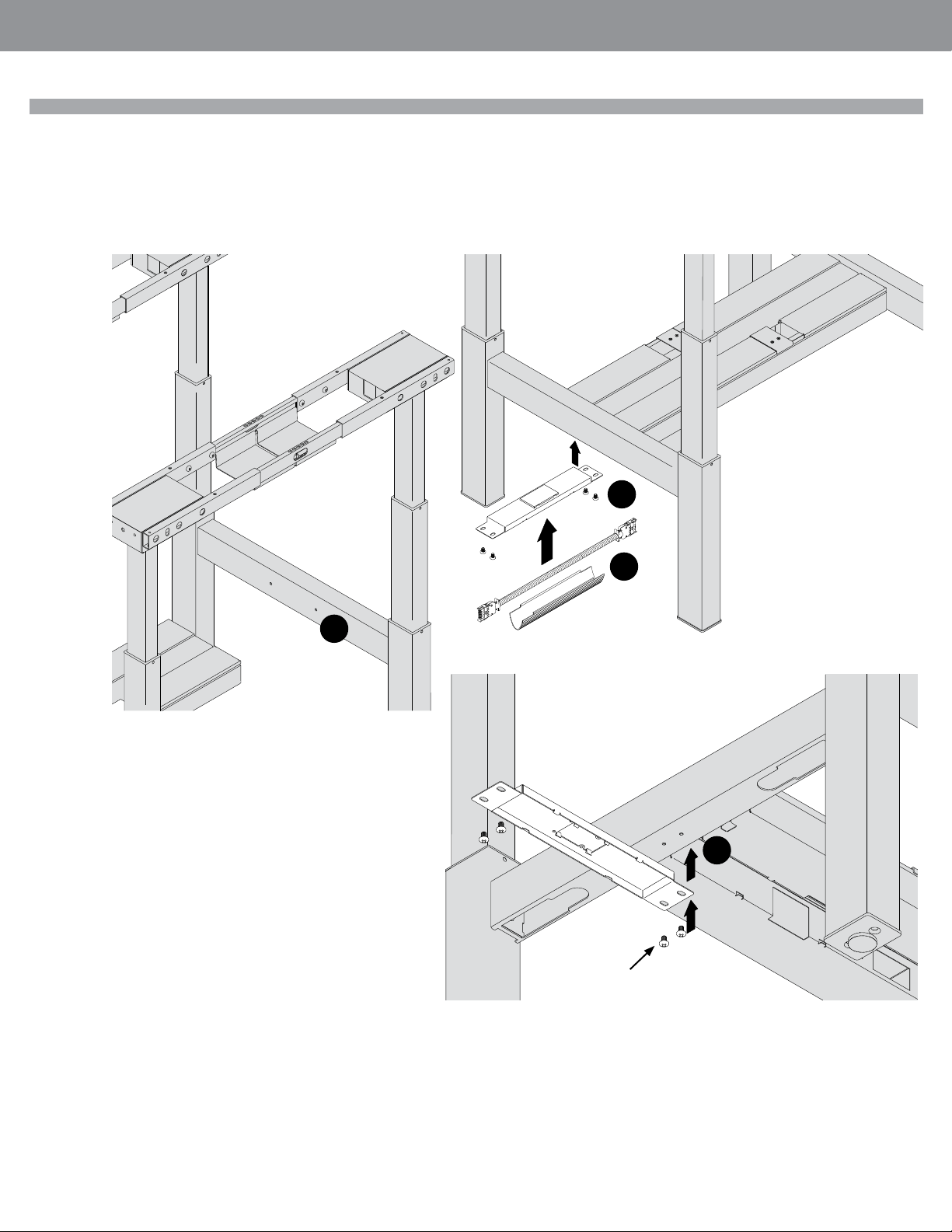

Back-2-back trough
Secure the column cross beam to the columns.
STEP 1: Drive twos head screws 5/16-18 x 1” into the column cross beam as illustrated. Do
not tighten.
STEP 2: Drop in the trough and guide slots over the preinstalled socket head screws.
Note: Check if the installation calls for central, shared divider. If so, install the divider’s bottom
brackets now, before tightening the socket screws. If not, proceed to step 3.
STEP 3: Tighten all socket head screws.
STEP 4: Install the power distribution components and data cables before
snapping into the bottom trough channel.
1
3
2
4

•Pageglobalcontract.com 12
GLOBALContract • August 2018
INSTALLATION GUIDELINES
BWATTC Table to Table Connector

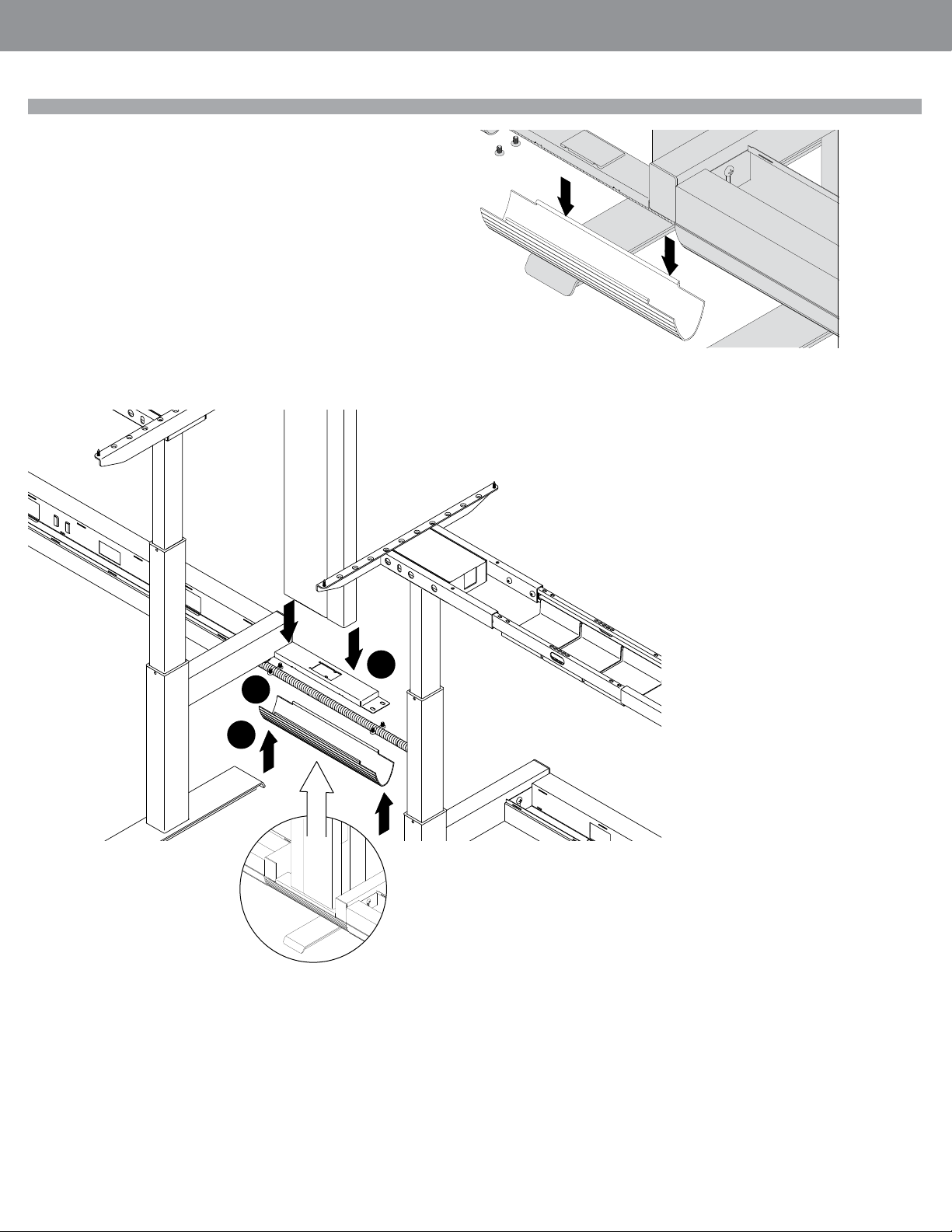

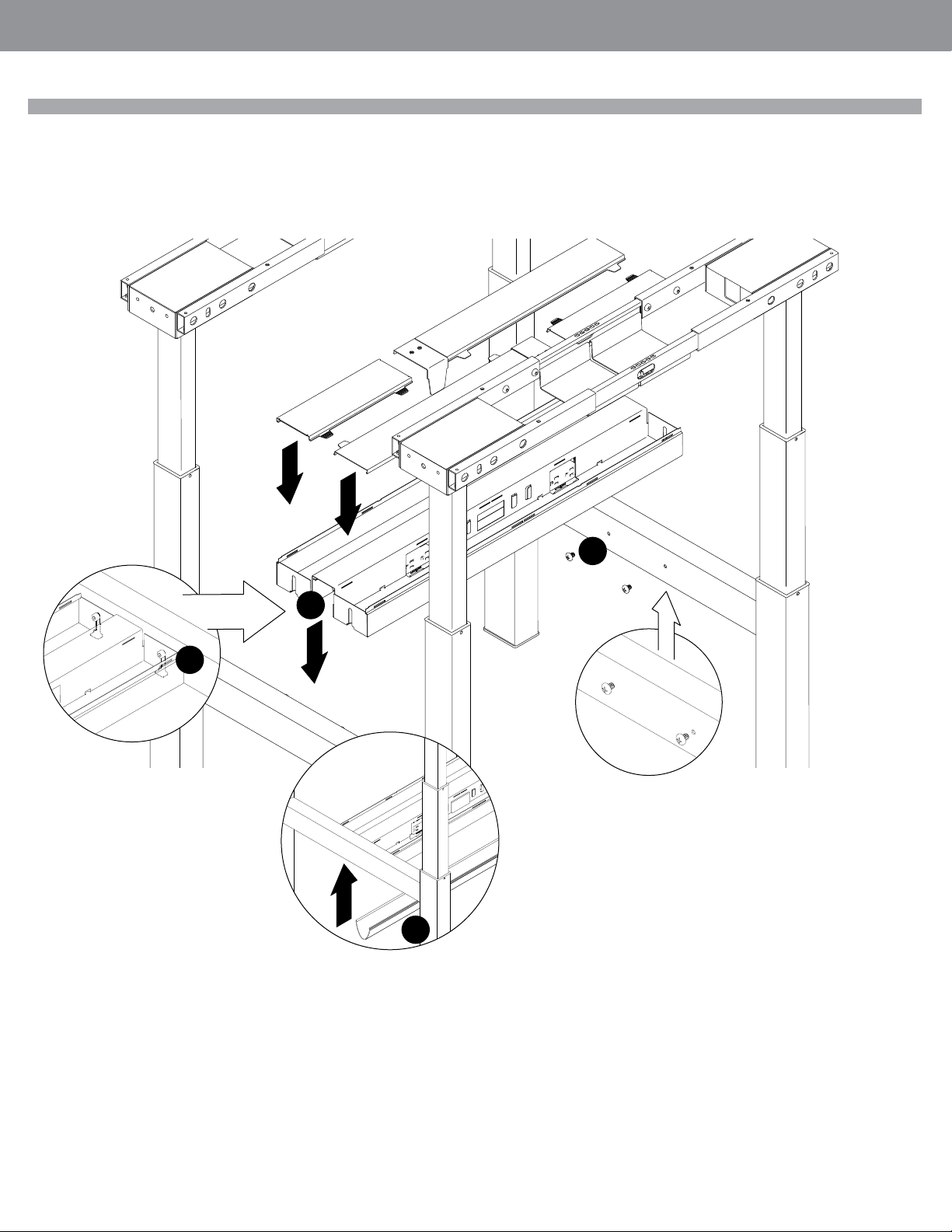

Continue with assembling all the remaining table structures, including power
troughs and place them in their desired location. Proceedfrom the first table
assembly at the beginning of a run and install the table to table connector to
organize cables and establish an accurate distance.
STEP 1: Position the table to table connector under the column cross beam
and align its holes with threaded holes in the bottom of the column cross
beam. Secure with two supplied machine screws.
STEP 2: Finalize adjacent table assembly, align the adjacent column cross beam holes with the
holes on the opposite side of the table to table connector.
STEP 3: Secure the table to table connector with two supplied machine screws.
STEP 4: Install the power distribution components and data cables before snapping them into
the bottom trough channel.
1/4-20x0.5” pan head
machine screw x4
1
2
3
4

Page • globalcontract.com13
• August 2018
GLOBALContract
INSTALLATION GUIDELINES
Height Adjustable Single Table - Feet
BWA2DxxxxA9, BWAG2DxxxxA9, BWA2DxxxxA8, BWAG2DxxxxA8
Assemble the feet on the columns. Tighten screws firmly.
IMPORTANT: Make sure the correct screws are used. Using too long screws may
destroy the internal parts in the column.
Screw socket round UNC 5/16 - 18x5/8” Zn
Column cross beam
Secure the column cross beam to the columns.
STEP 1: Drive one Socket head screws 5/16-18 x 1” into column as illustrated. Do not
tighten.
STEP 2: Position the column cross beam’s key-hole over the preinstalled socket
head screw and drive in the second socket head screw. Once the column cross beam
orientation is completed, one pair of holes will end up at the beam’s bottom (A) and
the second pair (B) will point toward the centre of the table.
STEP 3: Tighten all socket head screws to ensure a firm and safe column – to - col-
umn cross bar connection.
1
2
3B
A

•Pageglobalcontract.com 14
GLOBALContract • August 2018
INSTALLATION GUIDELINES
Do not use the two middle holes of the crossbars.
Adjustable Crossbar
Fixed Crossbar
Screw socket CSK UNC
5/16 - 18x1” Zn
Crossbars
Loosen screws to
adjust crossbar length
Sidebars
Fasten sidebars in threaded holes on top of crossbars with countersunk
screws.
There are various types of sidebars, some of which can be placed in optional
positions. The holes closest to the ends of the sidebar are dedicated for
fixing the worksurface but any other available hole can be used for the same
purpose.
Screw socket CSK UNC
1/4 - 20x5/8” Zn Right hand
sidebars
Left hand
sidebars

Page • globalcontract.com15
• August 2018
GLOBALContract
INSTALLATION GUIDELINES
Bumpers
The work top is resting on the sidebars and on shelf-adhesive rubber bumpers placed on
the crossbars. The bumpers should be placed close to the fixing screws so as to avoid the
worksurface from being bended.
The rubber bumpers come in two thicknesses. The thicker ones are used on the C-channel and
not on the fixed crossbars.Place the thin bumpers on the tube next to the screw hole and next
to the tube edge.
Two sizes of wood screws for the work top are included in the assembly kit. Wood Screw
Round 8x3/4” Zn Wood screw CSK 10x2-3/8” Zn
The shorter screws through sidebars. The longer screws through crossbars.
Bumper ø 1/2”x 1/8”
Transparent
Bumper 1/2”x 1/2”x1/4”
Transparent
Place the thin bumpers on the
tube next to the screw hole and
next to the tube edge.
Place the thick bumpers on the C-channel next
to te screw hole.
Electrical 2-Column
The handset is mounted at the front edge of the work top, screwed to the underside with the
screws supplied.
Connect cables and power supply according to
Power Supply D04 35V/2, 12A AC input 110-240V, 50-60Hz Cable USA 2-pol IEC C7
Cable LinBus iDrive
ASM Light handed w/screws

•Pageglobalcontract.com 16
GLOBALContract • August 2018
INSTALLATION GUIDELINES
Single table trough
STEP 1: Drive two socket head screws 5/16-18 x 1” into the Single table
column cross beam as illustrated. Do not tighten.
STEP 2: Drop in the single-sided trough and guide slots over the preinstalled
socket head screws.
STEP 3: Tighten all socket head screws.
STEP 4: Install the power distribution components and data cables before
snapping in the bottom trough channel.
1
2
3
4

Page • globalcontract.com17
• August 2018
GLOBALContract
INSTALLATION GUIDELINES
BWAECF Ceiling Feed Post
Proceed with the installation of the ceiling feed power pole only after all the table
assemblies and interconnecting trough bridges had been installed and their position
finalized.
STEP 1: Remove bottom trough channel.
STEP 2: Align screw ports on ceiling feed pole extrusion with holes in the trough
bridge.
STEP 3: Secure the pole to the trough bridge with the supplied screws.
STEP 4: Install the power distribution components and data cables before snapping
them into the bottom trough channel.
1
2
3
4

•Pageglobalcontract.com 18
GLOBALContract • August 2018
INSTALLATION GUIDELINES
BWAEFF Floor Feed Housing
STEP 1: Rotate the base feed mounting bracket into the bottom slot in the
column cross beam.
STEP 2: Push the bracket against the leg column, align the bracket round
hole with threaded hole in the bottom of the column cross beam. (The
bracket shares screws with the trough bridge which needs to be installed
first,followed by the base feed mounting bracket .) screw ports on Ceiling
feed pole extrusion with holes in Trough bridge. (??)
STEP 3: Secure the base feed mounting bracket with the supplied 1/4-20
screw.
STEP 4: Position the base feed cover in place
A) connect Base feed’s connector to adjacent power distribution Module.
B) Tuck-in the data cable bundle so that it enters the cover through the front
bottom hole and exits through the top front hole and into the power trough.
STEP 5: Close the cover, align the holes.
STEP 6: Secure the cover with four supplied machine screws.
STEP 7: Complete the installation of the power distribution components and
data cables before snapping them into the bottom trough channel.
STEP 8: Normally symmetrical bottom trough channel associated with the
trough bridge needs to be trimmed on the adjacent side of the Base feed:
A: To avoid the bottom trough channel extrusion to interfere with the power
and data conduits from the existing base feed, please cut it off at one notch
down as illustrated.
B: Completed installation.
8
6
4
B
A
3
2
1

Page • globalcontract.com19
• August 2018
GLOBALContract
INSTALLATION GUIDELINES

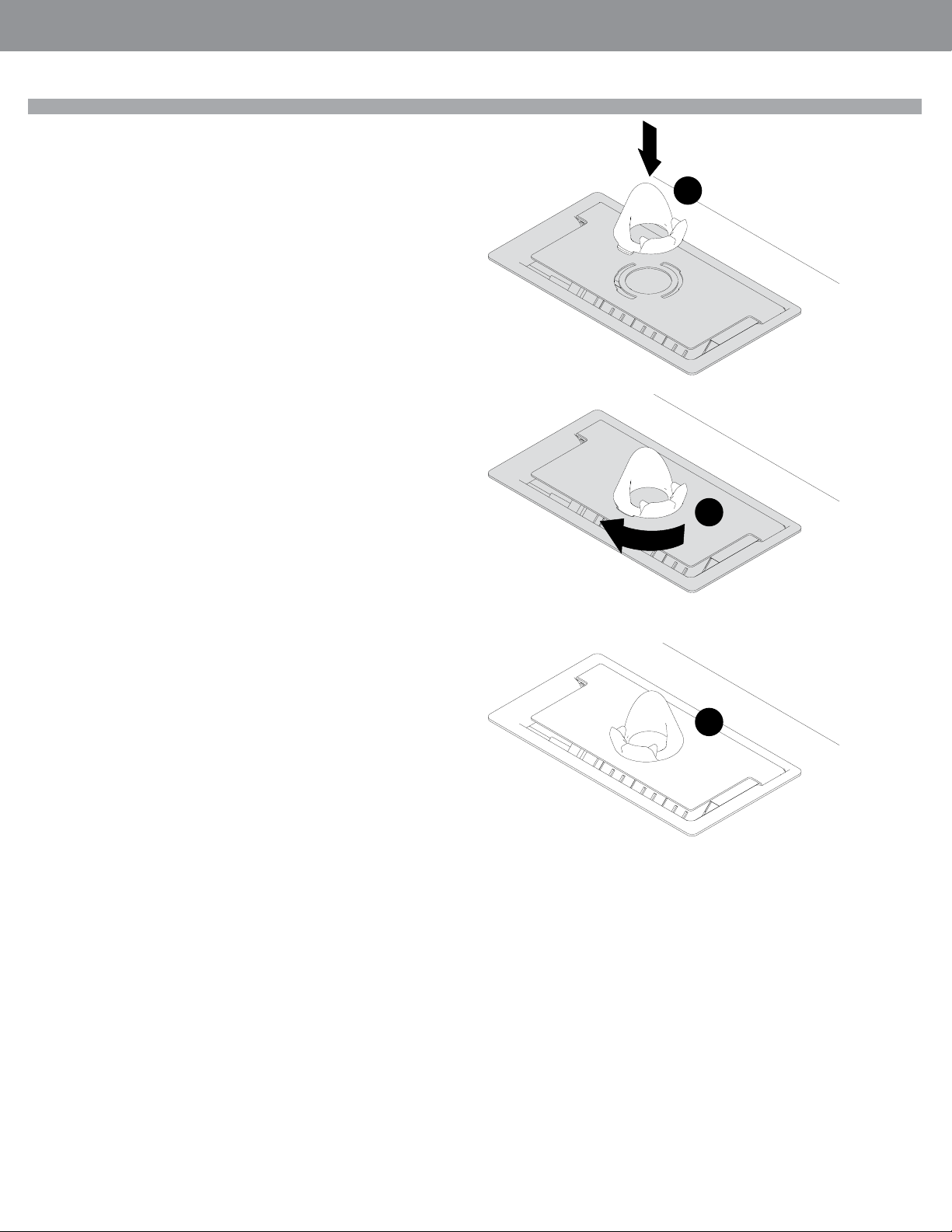

Device Holder • Access Door Modules:
GAADGDH, GAADCTDH, GAADCTPDDH
STEP 1: Insert two device holder tabs into the cutouts of the Access door.
STEP 2: Rotate the device holder 90° clock-wise.
STEP 3: Ensure that the Ddvice holder is properly fixed/installed and able to sup-
port phones and tablets.
1
2
3
