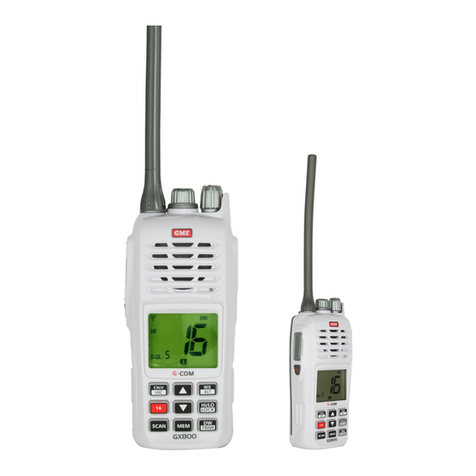

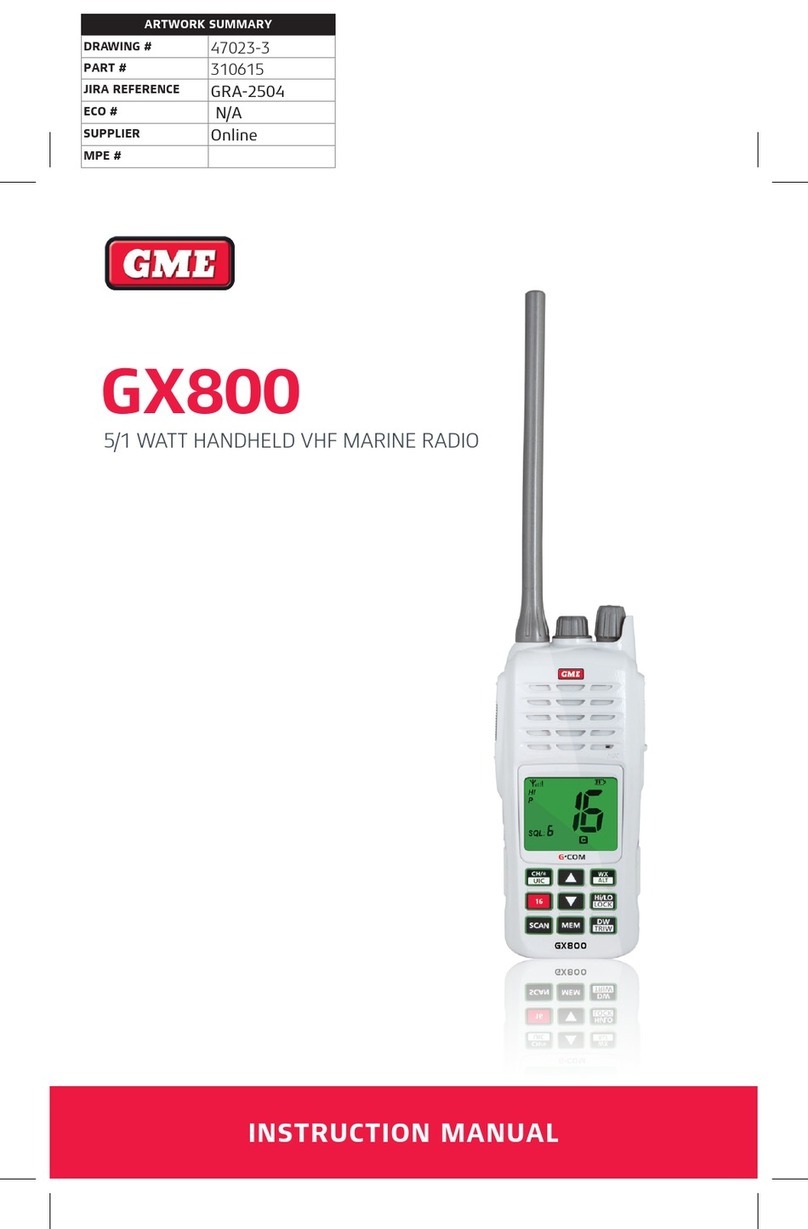

GME G-COM GX800W User manual

GX800 INSTRUCTION MANUAL 1
Print: CMYK on 90 gsm gloss art both sides
Flat Size: 266 x 157 folded to 133 (w) x 157 (h) mm, stitch with 2 wires.
24 pages
Part Number: 310615 Drawing Number: 47023-1
INSTRUCTION MANUAL

2 INSTRUCTION MANUAL GX800
CONTENTS
FEATURES.......................................................................... 2
SUPPLIED WITH.................................................................. 2
OPTIONAL ACCESSORIES.................................................... 2
INTRODUCTION ................................................................. 3
CAUTION ........................................................................... 3
RF RADIATION INFORMATION............................................ 3
OPERATING RULES............................................................. 4
Radio Licences ................................................................. 4
RANGE .............................................................................. 4
CONTROLS......................................................................... 5
LCD ICONS ........................................................................ 6
KEY FUNCTIONS ................................................................ 6
GENERAL OPERATION........................................................ 7
Power On/Off Volume Control........................................... 7
Squelch............................................................................ 7
Channel-Set..................................................................... 7
Channel Selection ............................................................ 7
16 Key ............................................................................. 8
Priority Channel 16 .......................................................... 8
Second Priority Channel ................................................... 8
Hi/Lo Power ..................................................................... 8
Key Lock .......................................................................... 8
Backlight ......................................................................... 8
Scanning.......................................................................... 8
Dual Watch...................................................................... 9
Triple Watch..................................................................... 9
Time Out Timer............................................................... 10
ATIS Operation............................................................... 10
Charging the Battery...................................................... 11
INTERNATIONAL MARINE VHF CHANNELS
AND FREQUENCIES.......................................................... 12
US MARINE VHF CHANNELS AND FREQUENCIES .............. 14
CANADIAN MARINE VHF CHANNELS AND FREQUENCIES... 17
SPECIFICATIONS .............................................................. 21
SC CONTRACT WARRANTY AGAINST DEFECTS................. 23
FEATURES
• Waterproof to IP67
•5/1 watt Switchable Power
•Large LCD
•Private Channel Facility
•Programmable Scan, Priority Scan, Dual and Tri Watch
•All International, US and Canadian Marine VHF Channels
•Weather channels on US and Canadian bands
•Integrated 1700 mAh Lithium Polymer Battery
SUPPLIED WITH
• GX800 Handheld Marine Radio
• Belt Clip
• 240V AC Charger
• Wrist Strap
• High Gain Flexible Antenna
• Instruction Manual
OPTIONAL ACCESSORIES
• MB046 – Belt Clip
• PSK20U – Plug Pack for 9V1A
• AE4024 – Flexible Antenna
• CSGX800 – Cap and Seal
• LS800 – Programming Lead

GX800 INSTRUCTION MANUAL 3
INTRODUCTION
Congratulations on purchasing this GME fully featured VHF
marine radio. Your GX800 has been built to offer excellent
value by combining advanced features, great design and
manufacturing quality. To ensure you are familiar with the
operation and features of your radio, and in order to obtain
the best performance, please read this manual thoroughly
before operation.
CAUTION
RF RADIATION INFORMATION
RF RADIATION PROFILE
Your radio is designed and tested to comply with a number
of national and international standards and guidelines
(listed below) regarding human exposure to radio frequency
electromagnetic energy. This radio complies with the IEEE
and ICNIRP exposure limits for occupational/controlled RF
exposure environment at operating duty factors of up to 50%
transmitting and is authorised by the FCC for occupational
use only. In terms of measuring RF energy for compliance
with the FCC exposure guidelines, your radio radiates
measurable RF energy only while it is transmitting (during
talking in PTT mode), not when it is receiving (listening) or
in standby mode.
The device complies with SAR and/or RF field strength limits
of RSS-102 requirements.
RF RADIATION SAFETY
In order to ensure user health, experts from relevant
industries including science, engineering, medicine and health
work with international organizations to develop standards
for safe exposure to RF radiation. These standards consist of:
• United States Federal Communications Commission,
Code of Federal Regulations; 47CFR part 2 sub-part J;
• American National Standards Institute (ANSI)/Institute of
Electrical and Electronic Engineers (IEEE) C95. 1-1992;
•Institute of Electrical and Electronic Engineers (IEEE) C95.
1-1999;
• International Commission on Non-Ionizing Radiation
Protection (ICNIRP) 1998;
FCC Regulations
Federal Communication Commission (FCC) requires that all
radio communication products should meet the requirements
set forth in the above standards before they can be marketed
in the US, and the manufacturer shall post a RF label on the
product to inform users of operational instructions, so as to
enhance their occupational health against exposure to RF energy.
Part 15 Compliance
This equipment has been tested and found to comply with
IMPORTANT: READ ALL INSTRUCTIONS carefully and
completely before operating your radio and retain this
manual for future reference.
To maintain the waterproof integrity of the radio;
• ENSURE the antenna and the connector cover are
both firmly tightened against the rubber seal (refer to
the diagram on page 5).
• NEVER attempt to disassemble the radio.
NEVER: connect the radio to a power source other than
the supplied battery. This may damage your product.
NEVER: operate your radio with the antenna less than
5 cm from exposed parts of the body.
NEVER: use or charge your radio in a potentially
explosive atmosphere.
DO NOT:use your radio with a damaged antenna.
DO NOT: attempt to modify your radio in any way.
ALWAYS: charge your radio at normal room temperature.
ALWAYS: switch off your radio where notices restrict the
use of two-way radio or mobile telephones.
AVOID: storing or charging your radio in direct sunlight.
AVOID: storing or using your radio where temperatures
are below -20º C or above +60º C.

4 INSTRUCTION MANUAL GX800
the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult your dealer or an experienced radio/TV technician
for help.
NOTE: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
EU Regulatory Conformance
As certified by the qualified laboratory, the product is in
compliance with the essential requirements and other
relevant provisions of the Directive 1999/5/EC. Please note
that the above information is applicable to EU countries only.
OPE R ATING RULES
Priorities
• Read all rules and regulations pertaining to priorities and
keep an up-to-date copy handy. Safety and distress calls
take priority over all others.
• You must monitor Channel 16 when you are not operating
on another channel.
• False or fraudulent distress calls are prohibited under law.
Privacy
• Information overheard but not intended for you cannot
lawfully be used in any way.
• Indecent or profane language is prohibited.
RADIO LICENCES
Ship Station License
When your craft is equipped with a VHF FM radio, you must
have a current radio station licence before using the radio.
It is unlawful to operate a ship station which is not licensed.
Inquire through your dealer or the appropriate government
agency for a Ship-Radiotelephone license. This license
includes the call sign which is your craft’s identification for
radio purposes.
Operators License
A restricted Radiotelephone Operator Permit is the license
most often held by small vessel radio operators when a
radio is not required for safety purposes. The restricted
Radiotelephone Operator Permit must be posted near the
radio or be kept with the operator.
Only a licensed radio operator may operate a radio. However,
non-licensed individuals may talk over a radio if a licensed
operator starts, supervises, ends the call and makes the
necessary log entries.
A current copy of the applicable government rules and
regulations is only required to be on hand for vessels in which
a radio telephone is compulsory. However, even if you are
not required to have these on hand it is your responsibility
to be thoroughly acquainted with all pertinent rules and
regulations.
RANGE
The range of VHF transmissions depends on antenna height,
transmitter power and the terrain over which the signals
pass. For a 5 watt handheld radio like the TX800, ship to
ship communications up to 5 nautical miles should be
possible. Using an external antenna should allow ship to ship
communication of 8 nautical miles or more. Ship to shore
ranges will often be greater due to the increased height of
the shore antenna.

GX800 INSTRUCTION MANUAL 5
CONTROLS
ANTENNA
CONNECTOR
COVER
RUBBER
SEAL
PUSH TO
TALK
SQUELCH
PRIVATE CHANNELS/
CHANNEL SET
CH 16
SCAN
MEMORY DUAL WATCH /
TRIPLE WATCH
DOWN
HI / LO POWER
KEY LOCK
WEATHER / ALERT
UP
DISPLAY
VOLUME
ON/ OFF
WX
UIC

6 INSTRUCTION MANUAL GX800
UIC
M
WXALT
A
B
TX BUSY ATIS
HILOW
PSCAN
DUALW
TRIW
MEM
SQL:
KEY FUNCTIONS
KEY SHORT PRESS LONG PRESS
Hi/LO [LOCK] TX Power Hi/Low Key Lock
16 Channel 16 Secondary Priority Channel
DW [TRIW] Dual Watch Mode Triple Watch Mode
WX/ALT Weather Channel Weather Alert
SCAN Scan Priority Scan
MEM Memory Mode Save/Delete Memory Channel
Up/ Down Channel Up/Down Fast Up/Down
CH/*/UIC Private Channel Band Selection
SQL Squelch Level Setting
ROTARY CONTROL
Volume Power On/Off and Adjust Volume
RX SIGNAL
TX POWER
PRIORITY SCAN
DUAL WATCH
SQUELCH LEVEL
KEY LOCK
US BAND INTERNATIONAL
BAND
CANADIAN
BAND
TRIPLE WATCH
WEATHER
ALERT
CHANNEL
DESIGNATORS
MEMORY
WEATHER
CHANNELS
EXTERNAL
POWER
BATTERY
STATUS
ATIS
SYSTEM
RX BUSY
TX
INDICATOR
LCD ICONS

GX800 INSTRUCTION MANUAL 7
GENERALOPER ATION
POWER ON/OFF VOLUME CONTROL
Turn the Volume control clockwise past the ‘click’ to turn the
radio on. Continue turning the control clockwise to increase
the volume.
Turn the control counter-clockwise to reduce the volume.
Continue turning the control counter clockwise past the ‘click’
to turn the radio off.
SQUELCH
To adjust the Squelch, briefly press the SQL key. The present
Squelch level will flash. Use the or keys to adjust
the squelch level from 0 (min) to 9 (max).
Press the SQL key again to save the new setting.
CHANNEL-SET
The GX800 supports the International, US and Canadian
channel sets. When operating outside the US or Canada the
International channel-set should be selected.
To select the desired channel-set, press and hold the
key. The radio will beep and the selected channel-set icon
will be displayed below the channel display
ICON CHANNEL SET
UUS
IINTERNATIONAL
CCANADA
CHANNEL SELECTION
Briefly press the key to step upwards one channel or
the key to step downwards one channel. Press and hold
the or keys to scroll quickly through the channels
at a faster rate. When the keys are released the channel
scrolling stops.
Weather Channels (US & Canadian Channel Set)
The US NOAA weather channels are available only when
the US or Canadian Channel Sets are selected. Weather
channels are not available on the International marine
channels. To access the weather channels while on the US or
Canadian channel sets, briefly press the WX key. The radio
will switch to the weather channels and the ‘WX’ icon will
appear. Weather channels are numbered 01 – 10 and are
selected using the or keys. To return to the normal
communications channels briefly press the WX key again.
NOTE: Weather channels provide a receive-only weather
information service in and around the US and Canada. You
cannot transmit on the weather channels.
Weather Alert Function (US & Canada)
When a weather warning is issued in your area the NOAA
weather service will transmit a weather alert tone on the
local weather channel. If you have enabled the weather alert
function on your radio, the reception of this tone will cause
a short alarm tone to sound and the radio will automatically
tune to the selected weather channel. The weather alert
should be detected in all the modes of operation including
Standby, Dual and Tri-watch and Scan etc.
To use the Weather Alert Function;
1. Briefly press the WX key to select the weather channels.
‘WX’ is displayed.
2. Use the or keys to select the local weather
channel that you wish to monitor for alerts.
3. Press and hold the WX key to enable the weather alert
function. ‘ALT’ will appear in the lower right of the display.
4. Briefly press the WX key again to return to normal
operation.
When the weather alert function is enabled the radio will
check the selected weather channel every 4 seconds for a
weather alert tone. If an alert tone is detected, the radio will
sound a short alarm, the ‘WX’ and ‘ALT’ icons will flash and
the radio will automatically tune to the selected weather
channel to allow you to hear the weather warning.
To disable weather alerts, press and hold the WX key.
The radio will beep and the ‘ALT’ icon will disappear
from the display.

8 INSTRUCTION MANUAL GX800
Private Channels
The GX800 can be programmed with private channels for use
by organisations that have been officially allocated special
frequencies within the VHF Marine band. To access private
channels programmed into the radio briefly press the
key then press the or keys.
NOTE: This feature is not available to users in Australia and
New Zealand. If the key is pressed, an error beep will be
heard and ‘– –‘ will be displayed. Press the key again
to return to normal operation.
16 KEY
The GX800 supports two priority channels.
PRIORITY CHANNEL 16
To switch to Channel 16, briefly press the key. All
previous functions such as scanning or low power will be
cancelled and Hi transmit power will be selected. When
the key is used to select channel 16, ‘P’ is displayed.
Briefly press the key again to return to the last selected
channel or press the or keys to switch to the next
channel in sequence.
SECOND PRIORITY CHANNEL
To select the second priority channel press and hold the
key. The radio will switch to the second priority channel and
‘P’ will be displayed.
The second priority channel can be user-programmed to any
of the standard marine channels. To program your preferred
channel into the second priority channel;
1. Press and hold the key. The radio will switch to the
present second priority channel and ‘P’ will be displayed
2. Press and hold the key again. ‘P’ will disappear and
the channel number will flash.
3. Select the required channel using the or keys.
4. Press and hold the key again. The displayed channel
will be stored as your new second priority channel.
HI/LO POWER
Briefly press the key to toggle high or low transmitter
power. The display will show ‘HI’ or ‘LOW’ to confirm the
selected power setting.
NOTE: Some channels may be permanently limited to HI or
LOW power by default. If any of these channels are selected
you will not be able to change the power setting for that
channel. However, for some channels you are allowed to
overrule this restriction temporarily – e.g. channels 13 & 67
in the US channel set.
To temporarily select HI power on these channels, hold the
PTT then hold the key. The radio will switch to HI
power. Now while still holding the key, release the PTT
followed by the key. The channel will stay on HI power
for as long as you remain on that channel.
KEY LOCK
Press and hold the key to lock the keypad. The
icon will be displayed when the keypad is locked and all keys
except the PTT and any Distress related keys will be locked.
To unlock the keypad, press and hold the key again. The
icon will disappear.
BACKLIGHT
The backlight operates automatically whenever any key
(except the PTT) is pressed and switches off a few seconds
after the last key press. The backlight provides lighting for the
display and keypad.
SCANNING
Basic Scan
The basic scan function allows the radio to scan all channels
for signals. When a signal is detected the scan pauses to
allow the signal to be heard. Once the signal has gone the
scan resumes.
To activate the scan function, briefly press the key.
‘SCAN’ appears on the display and the channel numbers
change rapidly as the radio scans for signals.
To deactivate the scan function, briefly press the key
again. ‘SCAN’ disappears from the display.

GX800 INSTRUCTION MANUAL 9
Priority Scan
Priority scan is similar to the basic scan except it regularly
inserts channel 16 into the scan. Signals received on channel
16 have priority over signals received on other channels.
To activate the Priority scan function, press and hold the
key. ‘PSCAN’ appears on the display and the channel numbers
change rapidly with channel 16 appearing predominantly in
the channel display area.
To deactivate the Priority scan function, briefly press the
key. ‘PSCAN’ disappears from the display.
Memory Scan
Memory Scan allows you to program a select group of
channels for scanning.
To Program Memory Channels
1. Use the or keys to select the required channel.
2. Press and hold the key. The icon appears to the
right of the selected channel to confirm the channel is
in Memory.
3. Repeat steps 1 and 2 to add further channels to the
Scan Memory.
NOTE: Separate Memories can be stored for US, International
and Canadian bands.
To Activate the Memory Scan
1. Briefly press the key. ‘MEM’ will appear to the left of
the display to confirm the radio is now in Memory mode
and the channel display will switch to a Memory channel
(only Memory channels are displayed while in Memory
mode).
2. Briefly press the key. The radio will begin scanning the
Memory channels.
3. To stop scanning; briefly press the key again.
4. To exit the Memory mode, briefly press the key.
‘MEM’ will disappear from the display and the radio will
return to the last selected channel.
Reviewing Memory Channels
To quickly determine which channels are stored in the
Memory;
1. Briefly press the key. ‘MEM’ will appear to the left of
the Channel display.
2. Press the or keys to quickly step through the
Memory channels. Only channels stored in the Memory will
be displayed.
3. To exit from the Memory channels, briefly press the
key again. ‘MEM’ will disappear from the display.
NOTE: You cannot add or remove channels from the Memory
while in the Memory mode. You must exit the Memory
mode first.
DUAL WATCH
The Dual Watch function is a 2 channel scan feature where
the radio switches between Channel 16 and any other
selected channel. This allows you to monitor a working
or club channel while still being able to receive important
broadcasts on Channel 16.
To use the Dual Watch function
1. Press the or keys to select your preferred
working channel.
2. Briefly press the key to activate Dual Watch. ‘DUALW’
will be displayed and the channel number will quickly
alternate between 16 and the selected channel.
• If a signal is received on the selected channel, the Dual
Watch will pause to allow the signal to be heard but will
continue to monitor channel 16 every 2 seconds resulting
in short breaks in the conversation. Once the signal has
gone, Dual Watch continues.
• If a signal appears on channel 16 the radio it will lock
onto channel 16 and take priority over any signals on the
selected channel.
To cancel Dual Watch, briefly press the key.
TRIPLE WATCH
The Triple Watch function is a 3 channel scan feature where
the radio switches between Channel 16, a selected channel
and the second priority channel. This allows you to monitor
2 channels while still being able to receive important
broadcasts on Channel 16.

10 INSTRUCTION MANUAL GX800
NOTE: Prior to using Triple Watch ensure you have
programmed your second priority channel.
To use the Triple Watch Function
1. Press the or keys to select your preferred
working channel.
2. Press and hold the key to activate Triple Watch.
‘TRIW’ will be displayed and the channel numbers will
quickly switch between 16, the second priority channel
and the selected channel.
If a signal is received on either the selected channel or
the second priority channel, the Triple Watch will pause to
allow the signal to be heard but will continue to monitor
channel 16 every 2 seconds resulting in short breaks in
the conversation. Once the signal has gone, Triple Watch
continues.
If a signal appears on channel 16 it will take priority over any
signals on the other two channels.
To cancel Triple Watch, briefly press the key.
TIME OUT TIMER
The radio has a built-in time out timer that automatically
limits transmissions to a maximum of 5 minutes of
continuous operation. This feature is required to prevent
accidental blocking of the frequency should your PTT become
jammed or be otherwise pressed accidentally.
When the time out timer activates, the transmission will stop,
and the radio will return to receive mode. Normal operation
will be restored once the PTT is released.
ATIS OPERATION
ATIS stands for Automatic Transmitter Identification System.
ATIS is used to identify a ship or vessel that has made a radio
transmission. The identity of the vessel is sent digitally each
time the radio operator releases the PTT after transmitting.
ATIS is generally used in the inland waterways of Europe
and is only available when the International channel set is
selected.
The use of ATIS requires a unique 9 digit Maritime Mobile
Service Identity or MMSI (note that the ATIS MMSI is
completely separate to the MMSI required for the DSC
functionality included in DSC compatible radios). Radio
operators in Europe who require the ATIS function should
obtain their unique ATIS MMSI from their local Maritime
Authority.
IMPORTANT: Once the ATIS ID has been programmed
into the radio, the ATIS function is enabled and becomes a
permanent part of the radio’s operation. It cannot be disabled
by the user.
Programming the ATIS ID
1. Switch the radio Off.
2. Hold the key while switching the radio On. The
display will show ‘1 –‘ where the left character shows the
position of the ATIS digit within the ATIS ID (e.g. position 1
of 9) and the right flashing character shows the currently
selected value of the ATIS ID digit at that position.
ATIS
ATIS ID
DIGIT VALUE
ATIS ID
DIGIT POSITION
Eg. for ATIS ID 342985532
DIGIT
POSITION 123456789
DIGIT
VALUE 342985532

GX800 INSTRUCTION MANUAL 11
3 Press the or keys to select the value of the
flashing digit (0 – 9).
4. Press the key to confirm the selection and move
to the next digit.
5. Repeat steps 3 & 4 to enter the entire 9 digit ATIS ID.
6. When the last digit is entered you will be prompted
to enter the ATIS ID again (this is to avoid entering an
invalid entry).
7. After entering the correct ATIS ID for the second time,
the ATIS ID will flash then the radio will revert to normal
operation.
NOTE: If the second ATIS entry doesn’t match the first, the
operation will be cancelled and you will need to start again.
CHARGING THE BATTERY
The battery is a built-in design and is not user serviceable. If
the battery requires replacing, the radio should be returned
to GME for service to ensure the waterproof integrity of the
radio is maintained.
To Charge the Battery
Pull the connector cap on the top panel (between the Volume
control and the antenna) to expose the charging socket. Plug
the supplied AC adaptor into the 240V power then connect
the adaptor’s charger plug into the socket on the top of
the radio.
While the charger is connected the display will show the
battery charging state by animating the battery icon.
IMPORTANT: The connector used to charge the GX800 is a
Mini USB type charging at 8V (instead of the customary 5V
normally associated with this connector).
For this reason,
• Do not connect your GX800 charger to other mini USB
devices as damage may occur to your device.
• Do not remove the warning label fi tted to the charging
lead on the GX800 charger.
Eg. for ATIS ID 342985532
DIGIT
POSITION 123456789
DIGIT
VALUE 342985532
2. PLUG SUPPLIED
AC CHARGER
INTO SOCKET
1. PULL CONNECTOR
CAP AWAY FROM
TOP PANEL
LIFT CAP

12 INSTRUCTION MANUAL GX800
INTERNATIONAL MARINE VHF CHANNELS AND FREQUENCIES
CH TX Freq RX Freq Simplex Use
01 156.050 160.650 Public Correspondence, Port Operations and Ship Movement
02 156.100 160.700 Public Correspondence, Port Operations and Ship Movement
03 156.150 160.750 Public Correspondence, Port Operations and Ship Movement
04 156.200 160.800 Public Correspondence, Port Operations and Ship Movement
05 156.250 160.850 Public Correspondence, Port Operations and Ship Movement
06 156.300 156.300 X Intership 1
07 156.350 160.950 Public Correspondence, Port Operations and Ship Movement
08 156.400 156.400 X Intership
09 156.450 156.450 X Intership, Port Operations and Ship Movement
10 156.500 156.500 X Intership, Port Operations and Ship Movement 2
11 156.550 156.550 X Port Operations and Ship Movement
12 156.600 156.600 X Port Operations and Ship Movement
13 156.650 156.650 X Intership Safety, Port Operations and Ship Movement 3
14 156.700 156.700 X Port Operations and Ship Movement
15 156.750 156.750 X Intership and On-board Communications at 1W only 4
16 156.800 156.800 X Distress, Safety and Calling
17 156.850 156.850 X Intership and On-board Communications at 1W only 4
18 156.900 161.500 Public Correspondence, Port Operations and Ship Movement
19 156.950 161.550 Public Correspondence, Port Operations and Ship Movement
20 157.000 161.600 Public Correspondence, Port Operations and Ship Movement
21 157.050 161.650 Public Correspondence, Port Operations and Ship Movement
22 157.100 161.700 Public Correspondence, Port Operations and Ship Movement
23 157.150 161.750 Public Correspondence, Port Operations and Ship Movement
24 157.200 161.800 Public Correspondence, Port Operations and Ship Movement
25 157.250 161.850 Public Correspondence, Port Operations and Ship Movement
26 157.300 161.900 Public Correspondence, Port Operations and Ship Movement
27 157.350 161.950 Public Correspondence, Port Operations and Ship Movement
28 157.400 162.000 Public Correspondence, Port Operations and Ship Movement
60 156.025 160.625 Public Correspondence, Port Operations and Ship Movement
61 156.075 160.675 Public Correspondence, Port Operations and Ship Movement
62 156.125 160.725 Public Correspondence, Port Operations and Ship Movement
63 156.175 160.775 Public Correspondence, Port Operations and Ship Movement
64 156.225 160.825 Public Correspondence, Port Operations and Ship Movement

GX800 INSTRUCTION MANUAL 13
INTERNATIONAL MARINE VHF CHANNELS AND FREQUENCIES
CH TX Freq RX Freq Simplex Use
01 156.050 160.650 Public Correspondence, Port Operations and Ship Movement
02 156.100 160.700 Public Correspondence, Port Operations and Ship Movement
03 156.150 160.750 Public Correspondence, Port Operations and Ship Movement
04 156.200 160.800 Public Correspondence, Port Operations and Ship Movement
05 156.250 160.850 Public Correspondence, Port Operations and Ship Movement
06 156.300 156.300 X Intership 1
07 156.350 160.950 Public Correspondence, Port Operations and Ship Movement
08 156.400 156.400 X Intership
09 156.450 156.450 X Intership, Port Operations and Ship Movement
10 156.500 156.500 X Intership, Port Operations and Ship Movement 2
11 156.550 156.550 X Port Operations and Ship Movement
12 156.600 156.600 X Port Operations and Ship Movement
13 156.650 156.650 X Intership Safety, Port Operations and Ship Movement 3
14 156.700 156.700 X Port Operations and Ship Movement
15 156.750 156.750 X Intership and On-board Communications at 1W only 4
16 156.800 156.800 X Distress, Safety and Calling
17 156.850 156.850 X Intership and On-board Communications at 1W only 4
18 156.900 161.500 Public Correspondence, Port Operations and Ship Movement
19 156.950 161.550 Public Correspondence, Port Operations and Ship Movement
20 157.000 161.600 Public Correspondence, Port Operations and Ship Movement
21 157.050 161.650 Public Correspondence, Port Operations and Ship Movement
22 157.100 161.700 Public Correspondence, Port Operations and Ship Movement
23 157.150 161.750 Public Correspondence, Port Operations and Ship Movement
24 157.200 161.800 Public Correspondence, Port Operations and Ship Movement
25 157.250 161.850 Public Correspondence, Port Operations and Ship Movement
26 157.300 161.900 Public Correspondence, Port Operations and Ship Movement
27 157.350 161.950 Public Correspondence, Port Operations and Ship Movement
28 157.400 162.000 Public Correspondence, Port Operations and Ship Movement
60 156.025 160.625 Public Correspondence, Port Operations and Ship Movement
61 156.075 160.675 Public Correspondence, Port Operations and Ship Movement
62 156.125 160.725 Public Correspondence, Port Operations and Ship Movement
63 156.175 160.775 Public Correspondence, Port Operations and Ship Movement
64 156.225 160.825 Public Correspondence, Port Operations and Ship Movement
INTERNATIONAL MARINE VHF CHANNELS AND FREQUENCIES cont.
CH TX Freq RX Freq Simplex Use
65 156.275 160.875 Public Correspondence, Port Operations and Ship Movement
66 156.325 160.925 Public Correspondence, Port Operations and Ship Movement
67 156.375 156.375 X Intership, Port Operations and Ship Movement 2
68 156.425 156.425 X Port Operations and Ship Movement
69 156.475 156.475 X Intership, Port Operations and Ship Movement
71 156.575 156.575 X Port Operations and Ship Movement
72 156.625 156.625 X Intership
73 156.675 156.675 X Intership 2
74 156.725 156.725 X Port operations and Ship Movement
75 156.775 156.775 X See Note 5
76 156.825 156.825 X See Note 5
77 156.875 156.875 X Intership
78 156.925 161.525 Public Correspondence, Port Operations and Ship Movement
79 156.975 161.575 Public Correspondence, Port Operations and Ship Movement
80 157.025 161.625 Public Correspondence, Port Operations and Ship Movement
81 157.075 161.675 Public Correspondence, Port Operations and Ship Movement
82 157.125 161.725 Public Correspondence, Port Operations and Ship Movement
83 157.175 161.775 Public Correspondence, Port Operations and Ship Movement
84 157.225 161.825 Public Correspondence, Port Operations and Ship Movement
85 157.275 161.875 Public Correspondence, Port Operations and Ship Movement
86 157.325 161.925 Public Correspondence, Port Operations and Ship Movement
87 157.375 157.375 X Port Operations and Ship Movement
88 157.425 157.425 X Port Operations and Ship Movement
Intership channels are for communications between ship stations.
Intership communications should be restricted to Channels 6, 8, 72 and
77. If these are not available, the other channels marked for Intership
may be used. Channel 70 is used exclusively for Digital Selective
Calling (DSC) and is not available for regular voice communications.
NOTES
1. Channel 06 may also be used for communications between ship
stations and aircraft engaged in coordinated search and rescue
operations. Ship stations should avoid harmful interference to such
communications on channel 06 as well as to communications between
aircraft stations, ice breakers and assisted ships during ice seasons.
2. Within the European Maritime Area and in Canada, channels 10,
67 and 73 may also be used by the individual administrations
concerned for communication between ship stations, aircraft stations
and participating land stations engaged in coordinated search and
rescue and anti-pollution operations in local areas. Channels 10 or
73 (depending on location) are also used for the broadcast of Marine
Safety Information by the Maritime and Coast Guard Agency in the
UK only.
3. Channel 13 is designated for use on a worldwide basis as a navigation
safety communication channel, primarily for intership navigation safety
communications.
4. Channels 15 and 17 may also be used for on-board communications
provided the effective radiated power does not exceed 1 watt.
5. The use of Channels 75 and 76 should be restricted to navigation
related communication only and all precautions should be taken to avoid
harmful interference to channel 16. Transmit power is limited to 1 watt.

14 INSTRUCTION MANUAL GX800
US MARINE VHF CHANNELS AND FREQUENCIES
CH TX Freq RX Freq Simplex Use
01A 156.050 156.050 X Port Operations and Commercial, VTS. Available only in New
Orleans / Lower Mississippi area.
05A 156.250 156.250 X Port Operations or VTS in the Houston, New Orleans and Seattle
areas
06 156.300 156.300 X Intership Safety
07A 156.350 156.350 X Commercial
08 156.400 156.400 X Commercial (Intership only)
09 156.450 156.450 X Boater Calling. Commercial and Non-Commercial
10 156.500 156.500 X Commercial
11 156.550 156.550 X Commercial. VTS in selected areas
12 156.600 156.600 X Port Operations. VTS in selected areas
13 156.650 156.650 X Intership Navigation Safety (Bridge-to-bridge). Ships >20m length
maintain a listening watch on this channel in US waters.
14 156.700 156.700 X Port Operations. VTS in selected areas
15 -- 156.750 Environmental (Receive only). Used by Class C EPIRBs
16 156.800 156.800 X International Distress, Safety and Calling. Ships required to carry
radio, USCG, and most coast stations maintain a listening watch
on this channel.
17 156.850 156.850 X State & local govt maritime control
18A 156.900 156.900 X Commercial
19A 156.950 156.950 X Commercial
20 157.000 161.600 Port Operations (duplex)
20A 157.000 157.000 X Port Operations
21A 157.050 157.050 X US Coast Guard only
22A 157.100 157.100 X Coast Guard Liaison and Maritime Safety Information Broadcasts.
Broadcasts announced on channel 16.
23A 157.150 157.150 X US Coast Guard only
24 157.200 161.800 Public Correspondence (Marine Operator)
25 157.250 161.850 Public Correspondence (Marine Operator)
26 157.300 161.900 Public Correspondence (Marine Operator)
27 157.350 161.950 Public Correspondence (Marine Operator)
28 157.400 162.000 Public Correspondence (Marine Operator)

GX800 INSTRUCTION MANUAL 15
US MARINE VHF CHANNELS AND FREQUENCIES cont.
CH TX Freq RX Freq Simplex Use
63A 156.175 156.175 X Port Operations and Commercial, VTS. Available only in New
Orleans / Lower Mississippi area.
65A 156.275 156.275 X Port Operations
66A 156.325 156.325 X Port Operations
67 156.375 156.375 X Commercial. Used for Bridge-to-bridge communications in Lower
Mississippi River. Intership only.
68 156.425 156.425 X Non-Commercial
69 156.475 156.475 X Non-Commercial
70 156.525 156.525 X Digital Selective Calling (voice communications not allowed)
71 156.575 156.575 X Non-Commercial
72 156.625 156.625 X Non-Commercial (Intership only)
73 156.675 156.675 X Port Operations
74 156.725 156.725 X Port Operations
77 156.875 156.875 X Port Operations (Intership only)
78A 156.925 156.925 X Non-Commercial
79A 156.975 156.975 X Commercial. Non-Commercial in Great Lakes only
80A 157.025 157.025 X Commercial. Non-Commercial in Great Lakes only
81A 157.075 157.075 X US Government only - Environmental Protection Operations
82A 157.125 157.125 X US Government only
83A 157.175 157.175 X US Coast Guard only
84 157.225 161.825 Public Correspondence (Marine Operator)
85 157.275 161.875 Public Correspondence (Marine Operator)
86 157.325 161.925 Public Correspondence (Marine Operator)
87 157.375 157.375 X Public Correspondence (Marine Operator)
8* 157.425 162.025 Public Correspondence (only near Canadian border)
88A 157.425 157.425 X Commercial, Intership only

16 INSTRUCTION MANUAL GX800
NOAA Weather Channels
WX1 162.550
WX2 162.400
WX3 162.475
WX4 162.425
WX5 162.450
WX6 162.500
WX7 162.525
Channel numbers, e.g. (WX1, WX2) etc. have no special
significance but are often designated this way in consumer
equipment. Other channel numbering schemes are also
prevalent.
The order of channels shown is the order they were established
and is slowly becoming less popular over time than a numerical
ordering of channels.
See NATIONAL WEATHER SERVICE MARINE PRODUCTS
VIA NOAA WEATHER RADIO and the NOAA Weather Radio
Homepage for more information.
Additional Information, Frequencies, and Charts.
Frequencies are in MHz. Modulation is 16KF3E or 16KG3E.
Recreational boaters normally use channels listed as Non-
Commercial: 68, 69, 71, 72, 78A.
Channel 70 is used exclusively for Digital Selective Calling
(DSC) and is not available for regular voice communications.
Channels 75 and 76 are reserved as guard bands for Channel
16 and are not available for regular voice communications.
Note that the letter A indicates simplex use of the ship station
transmit side of an international duplex channel, and that
operations are different than international operations on
that channel.
Some VHF transceivers are equipped with an International
– US switch for that purpose. A channels are generally only
used in the United States, and use is normally not recognized
or allowed outside the US The letter B indicates simplex use
of the coast station transmit side of an international duplex
channel. The US does not currently use B channels for simplex
communications in this band.
Boaters should normally use channels listed as Non-
Commercial. Channel 16 is used for calling other stations or
for distress alerting. Channel 13 should be used to contact a
ship when there is danger of collision. All ships of length 20m
or greater are required to guard VHF channel 13, in addition
to VHF channel 16, when operating within US territorial
waters. Users may be fined by the FCC for improper use of
these channels.

GX800 INSTRUCTION MANUAL 17
CANADIAN MARINE VHF CHANNELS AND FREQUENCIES
CH TX Freq RX Freq EC NL AC GL WC BCC INL
BCC
INL
PRA
Use Restrictions
01 156.050 156.650 X PC None
02 156.100 160.700 X PC None
03 156.150 160.750 X X PC None
04A 156.200 156.200 X X IS, SS,
C, S
DFO/Canadian Coast Guard only in BCC
area. Commercial fishing in ECarea.
05A 156.250 156.250 X X X X X X X SM None
06 156.300 156.300 X X X X X X X X IS, C,
NC, S
May be used for search and rescue
communications between ships and
aircraft.
07A 156.350 156.350 X X X X X X X IS,
SS, C
None
08 156.400 156.400 X X X IS, C,
S
Also assigned for intership in the Lake
Winnipeg area.
09 156.450 156.450 X X X IS, SS,
C, NC,
S, SM
Commercial – BCC area. May be used
to communicate with aircraft and
helicopters in predominantly maritime
support operations.
10 156.500 156.500 X X X IS, SS,
C, NC,
S, SM
Commercial – BCC area. May also be
used for communications with aircraft
engaged in coordinated search and
rescue and antipollution operations.
11 156.550 156.550 X X X IS, SS,
C, NC,
SM
VTS – BCC area. Also used for pilotage
purposes.
12 156.600 156.600 X X X X IS, SS,
C, NC,
SM
VTS – BCC area. Port operations and
pilot information and messages.
13 156.650 156.650 X X X X X X X IS, C,
NC,
SM
VTS – BCC area. Bridge-to-bridge
navigational traffic.
14 156.700 156.700 X X X IS, SS,
C, NC,
SM
VTS – BCC area. Port operations and
pilot information and messages.
15 156.750 156.750 X X X X X X X X IS, SS,
C,
Port operations and Ship Movement
– BCC area. All operations limited to
1 watt maximum power. May also be
used for on-board communications.
16 156.800 156.800 All
areas

18 INSTRUCTION MANUAL GX800
CANADIAN MARINE VHF CHANNELS AND FREQUENCIES cont.
CH TX Freq RX Freq EC NL AC GL WC BCC INL
BCC
INL
PRA
Use Restrictions
17 156.850 156.850 X X X X X X X X IS, SS,
C, NC,
SM
Port operations and Ship Movement
– BCC area. All operations limited to
1 watt maximum power. May also be
used for on board communications.
maximum power. May also be used for
on board communications.
18A 156.900 156.900 X X X X X X X IS,SS, C Towing – BCC area
19A 156.950 156.950 X X X X X X X X IS, SS DFO/Canadian Coast Guard. Pacific
Pilots – BCC area.
20 157.000 161.600 X X X X X X X SS, S,
SM
Port operations only with 1 watt
maximum power.
21A 157.050 157.050 X X X X X X X X IS, SS DFO/Canadian Coast Guard only
21B -------- 161.650 X X X X X X X X S Continuous Marine Broadcast (CMB)
service.
22A 157.100 157.100 X X X X X X X X IS, SS,
C, NC
For communications between Canadian
Coast Guard and non-Canadian Coast
Guard stations only.
23 157.150 161.750 X X SS, PC None
23B -------- 161.750 X S Continuous Marine Broadcast (CMB) service
24 157.200 161.800 X X X X X X X X SS, PC None
25 157.250 161.850 X SS, PC Also assigned for operations in the Lake
Winnipeg area.
25B -------- 161.850 X S Continuous Marine Broadcast (CMB) service
26 157.300 161.900 X X X X X X X X SS, PC None
27 157.350 161.950 X X X SS, PC None
28 157.400 162.000 X SS, S,
PC
None
28B -------- 162.000 X X S Continuous Marine Broadcast (CMB) service
60 156.025 160.625 X SS, PC None
61A 156.075 156.075 X X IS,
SS, C
DFO/Canadian Coast Guard only in BCC
area. Commercial fishing only in ECarea.
62A 156.125 156.125 X X IS,
SS, C
DFO/Canadian Coast Guard only in BCC
area. Commercial fishing only in ECarea.
63A 156.175 156.175 X IS,
SS, C
Tow Boats – BCC area
64 156.225 160.825 X SS, PC None

GX800 INSTRUCTION MANUAL 19
CANADIAN MARINE VHF CHANNELS AND FREQUENCIES cont.
CH TX Freq RX Freq EC NL AC GL WC BCC INL
BCC
INL
PRA
Use Restrictions
64A 156.225 156.225 X IS,
SS, C
Commercial fishing only
65A 156.275 156.275 X X X X X X X X S, IS,
SS, C,
NC
Search and rescue and antipollution
operations on the Great Lakes. Towing
on the Pacific Coast. Port operations
only in the St. Lawrence River areas
with 1 watt maximum power. Intership
in INLD PRA.
66A 156.950 156.950 X X X X X X X IS, SS Port operations only in the St. Lawrence
River/Great Lakes areas with 1–watt
maximum power. 1 watt marina channel
– BCC area.
67 156.375 156.375 X X X X X X X X SS, IS,
,C, NC
May also be used for communications
with aircraft engaged in coordinated
search and rescue and antipollution
operations. Commercial fishing only in
EC and INLD PRA areas. Pleasure craft
– BCC area.
68 156.425 156.425 X X X X X X X X IS, SS,
NC
For marinas, yacht clubs and pleasure
craft.
69 156.475 156.475 X X X X X X X IS, SS,
C, NC
Commercial fishing only – EC area.
Pleasure craft – BCC area.
70 156.525 156.525 Digital Selective Calling for Distress, Urgency,
Safety and Calling
All
Areas
Voice communications prohibited.
71 156.575 156.575 X X X X X X X S, IS,
SS, SM,
C, NC
Ship Movement – BCC area. Marinas
and yacht clubs – EC and on Lake
Winnipeg.
72 156.625 156.625 X X IS, C,
NC
May be used to communicate
with aircraft and helicopters in
predominantly maritime support
operations. Pleasure craft – BCC area.
73 156.675 156.675 X X X X X X X X S, IS,
SS,
May also be used for communications
with aircraft engaged in coordinated
search and rescue and antipollution
operations. Commercial fishing only in
EC and INLD PRA areas.
74 156.725 156.725 X X IS, SS,
SM, C,
NC
VTS and Ship Movement – BCC area
75 156.775 156.775 X X X X X X X X IS, SS,
SM, C
Simplex port operation, ship movement
and navigation related communication
only. 1 watt maximum.

20 INSTRUCTION MANUAL GX800
CANADIAN MARINE VHF CHANNELS AND FREQUENCIES cont.
CH TX Freq RX Freq EC NL AC GL WC BCC INL
BCC
INL
PRA
Use Restrictions
76 156.225 156.225 X IS, SS,
SM, C
Simplex port operation, ship movement
and navigation related communication
only. 1 watt maximum.
77 156.275 156.275 X X X X X X X X S, IS,
SS,
SM,
Pilotage – BCC area; 25 watts. Port
operations only in the St. Lawrence
River/Great Lakes areas with 1 watt
maximum power.
78A 156.950 156.950 X X X X X X X IS,
SS, C
Fishing Industry – BCC area
79A 156.375 156.375 X X X X X X X X SS, IS, Fishing Industry – BCC area
80A 157.025 157.025 X X IS, SS, C Whale Watching – BCC area
81A 157.075 157.075 X X X X X X X S, IS, SS DFO/Canadian Coast Guard use only
82A 157.125 157.125 X X X X X X X IS, SS DFO/Canadian Coast Guard use only
83A 157.175 157.175 X X X IS, SS DFO/Canadian Coast Guard and other
Government agencies.
83B -------- 161.775 X X X S Continuous Marine Broadcast (CMB) Service.
84 157.225 161.825 X SS, PC None
85 157.275 161.875 X X X X SS, PC None
86 157.325 161.925 X SS, PC None
87 157.375 161.375 X X X X IS,SM,
NC
Port operation and ship movement – EC
area. Pleasure craft – BCC area.
87B 161.975 161.975 X X X X X X X X AIS Automatic Ship Identification and
Surveillance System.
88 157.425 157.425 X X X X IS,
SM, C
Port operation and ship movement –
BCC area.
88B 162.025 162.025 X X X X X X X X AIS Automatic Ship Identification and
Surveillance System.
WEATHER CHANNELS
WX-1 -------- 162.550 S Environment Canada Weather Radio
WX-2 -------- 162.400 S Environment Canada Weather Radio
WX-3 -------- 162.475 S Environment Canada Weather Radio
WX-4 -------- 162.425 S Environment Canada Weather Radio
WX-5 -------- 162.450 S Environment Canada Weather Radio
WX-6 -------- 162.500 S Environment Canada Weather Radio
WX-7 -------- 162.525 S Environment Canada Weather Radio
