GME GX625W User manual

VHF Marine Radio
GX625
INSTRUCTION MANUAL
FINAL ARTWORK PROOF
DRAWING # 49418-4
PART # 311032
JIRA REFERENCE GRA-1807
SUPPLIER Shenzhen Jiuzhou Himunication
MPE #
PRINTING SPECIFICATIONS: GX625 IM
Flat size: 296 mm (w) x 180 mm (h) Folded down: 148 mm x 180 mm
Stock: 130gsm + Gloss Laminate
Print: Colour - CMYK
Finishes: Gloss laminate
Part Number:311032 Drawing Number: 49418-4

2
CONTENTS
INTRODUCTION .....................................................................2
CAUTION...............................................................................2
Water Resistance ..............................................................2
RF RADIATION INFORMATION ...............................................3
RF Radiation Profile...........................................................3
RF Radiation Safety...........................................................3
OPERATING RULES.................................................................4
Radio Operator Qualifications............................................4
RANGE ..................................................................................4
CHARGING THE BATTERY PACK.............................................4
CONTROLS.............................................................................5
Key Functions....................................................................6
Key Arrangement .............................................................6
LCD ..................................................................................6
OPERATION ...........................................................................7
Power On/Off....................................................................7
Volume ............................................................................7
Squelch.............................................................................7
Selecting Channels............................................................7
Transmitting .....................................................................7
Transmit Time-out.............................................................7
High/Low Power................................................................7
Back Light.........................................................................7
Priority Channel 16 ...........................................................7
Second Priority Channel ....................................................7
Lock Key ...........................................................................7
Channel Set (UIC Band).....................................................8
Weather Channels (USA and Canada Channels Only).........8
Beep Adjustment ..............................................................8
Memory Channels .............................................................8
Scanning...........................................................................8
Dual Watch.......................................................................9
Triple Watch .....................................................................9
CHANNEL LISTS ...................................................................10
U.S. MARINE VHF CHANNELS AND FREQUENCIES................12
Weather Channels...........................................................14
CANADIAN MARINE VHF CHANNELS AND FREQUENCIES.....14
Weather Channels...........................................................16
SPECIFICATIONS ..................................................................17
SC WARRANTY AGAINST DEFECTS.......................................18
ACCESSORIES SUPPLIED
The GX625 is supplied with the following standard accessories:
•Belt Clip – MB625 •Antenna – AE4027
•Charging cradle – BCD625 • AC Plug Pack – PS004
•Battery Pack – BP025
INTRODUCTION
Congratulations on purchasing this fully featured GME VHF
Marine Radio, complete with Float & Flash technology. Your
GX625 has been built to offer excellent value by combining
advanced features, great design and manufacturing quality.
To ensure you are familiar with the operation and features of
your radio, and in order to obtain the best performance, please
read this manual thoroughly before operation.
CAUTION
IMPORTANT: READ ALL INSTRUCTIONS carefully and
completely before operating your radio and retain this manual
for future reference.
NEVER: connect the radio to a power source other than the
supplied battery. This may damage your product.
NEVER: operate your radio with the antenna less than 5 cm
from exposed parts of the body.
NEVER: use or charge your radio in a potentially explosive
atmosphere.
DO NOT: use your radio with a damaged antenna.
DO NOT: attempt to modify your radio in any way.
ALWAYS: charge your radio at normal room temperature.
ALWAYS: switch off your radio where notices restrict the use
of two-way radio or mobile telephones.
AVOID: storing or charging your radio in direct sunlight.
AVOID: storing or using your radio where temperatures are
below -20º C or above +60º C.
WATER RESISTANCE
This product is an IP66 water resistant design. In order to
achieve the best performance, please ensure:
1. The antenna is firmly attached. The O-ring at the base of
antenna mounting is part of the water resistant design
Please ensure the antenna is firmly attached to ensure the
water resistant properties are maintained.
2. The rubber cap is fully inserted into the ear/mic socket on
the top panel.

3
RF RADIATION INFORMATION
RF RADIATION PROFILE
Your radio is designed and tested to comply with a number
of national and international standards and guidelines
(listed below) regarding human exposure to radio frequency
electromagnetic energy. This radio complies with the IEEE
and ICNIRP exposure limits for occupational/controlled RF
exposure environment at operating duty factors of up to 50%
transmitting and is authorised by the FCC for occupational
use only. In terms of measuring RF energy for compliance with
the FCC exposure guidelines, your radio radiates measurable
RF energy only while it is transmitting (during talking in PTT
mode), not when it is receiving (listening) or in standby mode.
The device complies with SAR and/or RF field strength limits of
RSS-102 requirements.
RF RADIATION SAFETY
In order to ensure user health, experts from relevant industries
including science, engineering, medicine and health work
with international organizations to develop standards for safe
exposure to RF radiation. These standards consist of:
•United States Federal Communications Commission, Code
of Federal Regulations; 47CFR part 2 sub-part J;
•American National Standards Institute (ANSI)/Institute of
Electrical and Electronic Engineers (IEEE) C95. 1-1992;
•Institute of Electrical and Electronic Engineers (IEEE) C95.
1-1999;
•International Commission on Non-Ionizing Radiation
Protection (ICNIRP) 1998;
FCC Regulations
Federal Communication Commission (FCC) requires that all
radio communication products should meet the requirements
set forth in the above standards before they can be marketed
in the US, and the manufacturer shall post a RF label on the
product to inform users of operational instructions, so as to
enhance their occupational health against exposure to
RF energy.
Part 15 Compliance
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and
receiver.
•Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician
for help. Note: ’Changes or modifications to this unit not
expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.’
EU Regulatory Conformance
As certified by the qualified laboratory, the product is in
compliance with the essential requirements and other relevant
provisions of the Directive 1999/5/EC. Please note that the
above information is applicable to EU countries only.

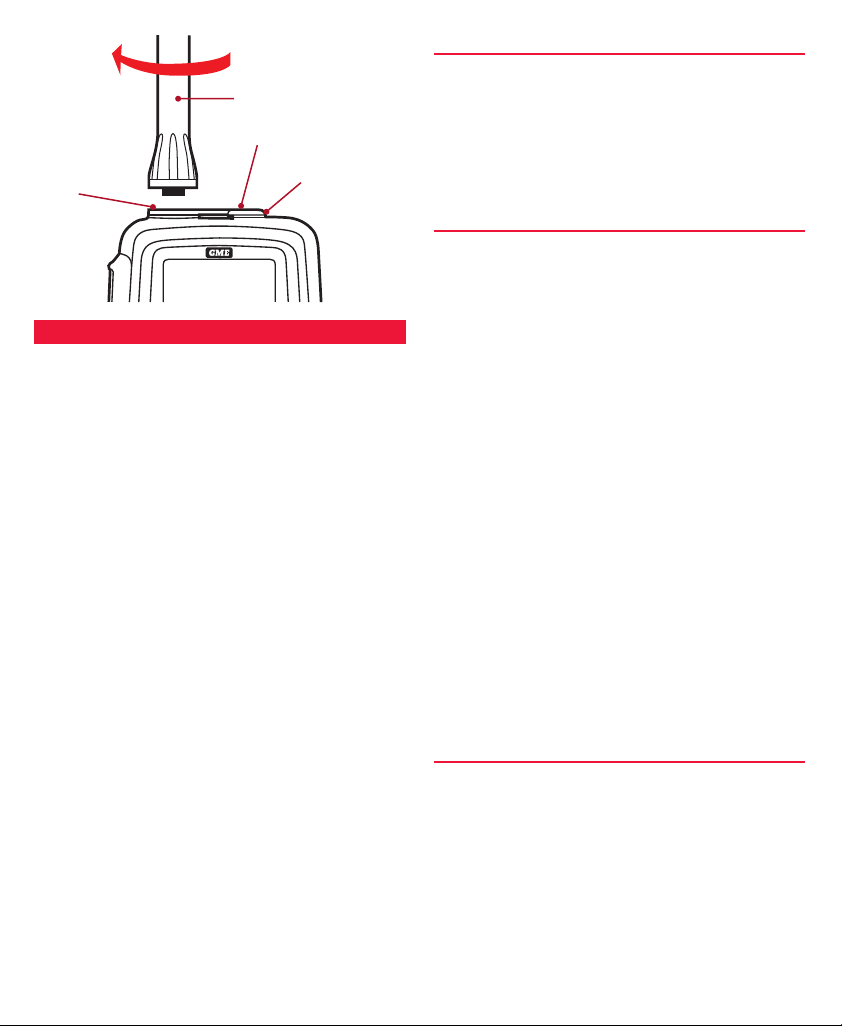

O-ring
Rotate until tight
Antenna
Rubber cap
Ear / mic
accessory jack
(HS014)

4
OPERATING RULES
Priorities
•Read all rules and regulations pertaining to priorities and
keep an up-to-date copy handy. Safety and distress calls
take priority over all others.
•You must monitor Channel 16 when you are not operating
on another channel.
•False or fraudulent distress calls are prohibited under law.
Privacy
•Information overheard but not intended for you cannot
lawfully be used in any way.
•Indecent or profane language is prohibited.
RADIO OPERATOR QUALIFICATIONS
A certificate of proficiency is required to operate a VHF marine
radio. The certificate shows that the holder understands distress
and safety procedures, knows how to respond to an emergency
call and helps to ensure that your messages are understood by
others.
The minimum qualification is generally the Short Range
Operators VHF Certificate of Proficiency (SROCP) however in
Australia a new Australian Waters Qualification (AWQ) has
been introduced for marine radio users who only operate VHF
marine radios in Australian Territorial Waters.
A person who doesn’t hold a certificate may operate a VHF
radio if they are in the immediate vicinity of the certified
operator and radio so that they can step in and take over if
necessary
Persons operating a VHF marine radio without holding an
appropriate qualification or being under the supervision of an
appropriately qualified person, may be breaching the Radio
communications Act.
RANGE
The range of VHF transmissions depends on antenna height,
transmitter power and the terrain over which the signals
pass. For a 5 watt handheld radio like the GX625, ship
to ship communications up to 5 nautical miles should be
possible. Using an external antenna should allow ship to ship
communication of 8 nautical miles or more. Ship to shore
ranges will often be greater due to the increased height of the
shore antenna.
CHARGING THE BATTERY PACK
The GX625 has a rechargeable 1200mAh Li-Ion battery pack.
To charge the battery, plug the AC charger unit into the mains
supply and plug the DC connector into the charging cradle.
Place the GX625 into the cradle for charging. The battery
should charge in around 2 hours.
Removing the battery pack
To remove the battery pack, lift the locking lever at the base of
the battery pack and rotate. Lift the battery pack from the base
of the radio and slide the battery pack away from
the radio.
To re-fit the battery pack, slide the top of the battery pack
in towards the radio then press the base of the battery pack
downwards against the battery contacts. Rotate the battery
lever upwards and press into place so that it clicks firmly.

5
CONTROLS
GX625
Antenna
PTT
Keypad
Microphone
Ear / mic
accessory jack
(HS014)
Display
Power switch
Speaker

6
KEY ARRANGEMENT
LCD
Key Functions
Key Short Press Long Press ( > 3 sec )
HI/LO /Lock TX Power Hi/Low Key Lock
16 CH 16 User Programmable Priority Channel
DW/TRIW Dual Watch mode Triple Watch mode
Power Switch On Off
SCAN All Scan/All Memory Scan Priority all/memory Scan
MEM MEMORY Mode Save/Delete Memory Channel
Up/Down Channel Up/Down Channel Fast Up/Down
CH/WX/UIC Channel/Weather Band Selection
VOL/SQL VOLUME Set SQUELCH Set
Channel/Weather/Band
Up
Channel 16
Down
Scan
Private Scan
Hi/Lo Power
Triple Watch
Dual Watch
Squelch Level
Volume Level
USA/International/Canada
Battery Level
Memory Icon
Lock Icon
Current Channel
Channel Suffix
Weather
Hi/LO Power/Key Lock
Dual Watch/Triple watch
Volume/Squelch
Power ON/OFF
Memory
Channel Prefix Transmit Busy Memory

7
OPERATION
POWER ON/OFF
Press and hold the key to switch the radio ON.
Press and hold the key to switch the radio OFF.
VOLUME
Briefly press the key. The ‘VOL’ level will flash. Press the
or keys to select the required volume level. The
volume can be adjusted from 0 to 9 with 0 being minimum and
9 being maximum volume.
SQUELCH
Press and hold the key until the ‘SQL’ level flashes. Press
the or keys to select the required squelch level.
The squelch can be adjusted from 0 to 9 with 0 being minimum
(open squelch) and 9 being maximum (full squelch).
SELECTING CHANNELS
Briefly press the or keys to select individual
channels. Press and hold the or keys to step
quickly through the channels. Release the keys when the
required channel is displayed.
TRANSMITTING
To transmit, press the PTT button. Hold the radio about 5cm
from your mouth and speak into the microphone in a
normal voice.
When you have finished talking, release the PTT button.
When transmitting the ‘TX’ indicator appears on the display.
TRANSMIT TIME-OUT
The radio has a built-in time out timer that automatically
limits transmissions to a maximum of 5 minutes of continuous
operation. This feature is required to prevent accidental
blocking of the frequency should your PTT switch become
jammed or be otherwise pressed accidentally.
When the time out timer activates, the transmission will stop,
and the radio will return to receive mode. Normal operation will
be restored once the PTT is released.
HIGH/LOW POWER
Briefly press the key to switch the transmitter power
between HIGH power (5 watts) or LOW power (1 watt) on the
selected channel. The corresponding ‘HI’ or ‘LO’ icon will be
displayed on the LCD.
NOTE: Some channels may be permanently restricted to Low
or High power. Pressing the key on these channels will
result in an error beep.
BACK LIGHT
The back light turns on automatically when any key (except the
PTT) is pressed. The back-light will remain on for 6 seconds
then will switch off if no further keys are pressed.
NOTE: If the back light is on, pressing the PTT will switch it off.
PRIORITY CHANNEL 16
Press the key to jump immediately to emergency channel
16. ‘P’ is displayed to indicate Priority channel. Whenever
16 is selected the TX power setting is set to HI and all other
functions (Scan, Dual Watch and Triple Watch) are cancelled.
Briefly press the key again to return to the previously
selected channel or press the or keys to select the
next channel in sequence.
SECOND PRIORITY CHANNEL
The GX625 has a second priority channel. The second priority
channel can be user-programmed to any of the standard
marine channels.
To program your preferred channel into the second
priority channel;
1. Press and hold the key. The radio will switch to the
channel currently stored in the second priority channel
memory and ‘P’ will be displayed.
2. Press and hold the key again. ‘P’ will disappear and
the channel number will flash rapidly.
3. Select the required channel using the or keys.
4. Press and hold the key again to store the displayed
channel as your new second priority channel.
To select the second priority channel at any time, press and
hold the key. The radio will switch to the second priority
channel and ‘P’ will be displayed.
LOCK KEY
The key is also used to lock the keypad to prevent
accidental key presses from changing the settings. When
locked, all keys except the PTT and keys are disabled and
pressing any of the keys will result in an error beep.
Key Functions
Key Short Press Long Press ( > 3 sec )
HI/LO /Lock TX Power Hi/Low Key Lock
16 CH 16 User Programmable Priority Channel
DW/TRIW Dual Watch mode Triple Watch mode
Power Switch On Off
SCAN All Scan/All Memory Scan Priority all/memory Scan
MEM MEMORY Mode Save/Delete Memory Channel
Up/Down Channel Up/Down Channel Fast Up/Down
CH/WX/UIC Channel/Weather Band Selection
VOL/SQL VOLUME Set SQUELCH Set

8
To lock the keypad, press and hold the key until a beep is
heard. The icon will appear on the LCD.
To restore the keypad press and hold the key until a beep
is heard. The icon will disappear on the LCD.
CHANNEL SET (UIC BAND)
The GX625 supports the International, USA and Canadian
channel sets. When operating outside the USA or Canada the
International channel-set should be selected.
To select the desired channel-set, press and hold the key.
The radio will beep and the selected channel-set icon will be
displayed below the channel display. Each press and hold of the
key will step to the next channel set in sequence.
= USA, = International, = Canada
WEATHER CHANNELS
(USA and Canada Channels Only)
Briefly press the key to enter the WX (weather) mode.
Press the or keys to select the required
WX channel.
Briefly press the key again to return to normal channels.
BEEP ADJUSTMENT
By default, the radio will beep whenever a key is pressed.
If you prefer, you can choose to disable the beep.
To switch the beeps off, first switch off the radio, then hold
the key while switching the radio. The key beep will be
disabled.
To restore the beeps, switch off the radio then hold the
key while switching the radio on. The beeps will be re-enabled.
MEMORY CHANNELS
The memory function allows you to store specific channels into
memory for easy access.
Adding channels to the memory:
1. During the normal mode, select the desired channel for
programming using the or keys.
2. Press and hold the key to store the selected channel
as a memory channel. The ‘M’ icon indicates the current
channel has been saved in the memory.
3. Repeat to add other channels.
You can store as many channels as you wish into the memory.
NOTE: Separate memories exist for the USA, International, and
Canadian Frequency bands.
Deleting channels from the memory:
1. During the normal mode, use the or keys to
select the channel to be deleted.
2. Press and hold the key to delete the selected channel
from the memory. The ‘M’ icon will disappear.
3. Repeat to delete other channels.
Accessing memory channels
1. Press the key to enter the memory mode.
‘MEM’ is displayed.
2. Use the or keys to select the required
memory channel.
3. To exit the memory mode, press the key again.
‘MEM’ disappears from the display.
For details on scanning the memory channels, refer to the
Scanning section below.
SCANNING
The scan function allows the radio to scan channels for signals.
When a signal is detected the scan pauses to allow the signal
to be heard. Once the signal has gone the scan resumes.
There are 4 Scan modes available – All Scan, Memory Scan,
Priority All Scan and Priority Memory Scan.
All-Scan
The All Scan function allows the radio to scan all the available
channels for signals.
1 - 2 - 3 - 4 . . . 86 - 87 - 88
To activate All-Scan, briefly press the key while in the
normal mode. ‘SCAN’ appears on the display and the channel
numbers change rapidly as the radio scans for signals.
To deactivate the All-Scan function, briefly press the key
again. ‘SCAN’ disappears from the display.
Memory-Scan
The Memory-Scan function allows the radio to scan all the
channels stored in the memory for signals.

9
M1 - M2 - M3 - M4 ... M86 - M87 - M88
Before scanning, press the key to enter the memory
mode. The ‘MEM’ icon will be displayed. There should be at
least one channel in the memory (please refer to the MEMORY
CHANNELS section above).
To activate the Memory-Scan, press the key. ‘SCAN’
appears on the display and the channel numbers change rapidly
as the radio scans the channels programmed into the memory
for signals.
To deactivate the Memory-Scan, briefly press the key
again. ‘SCAN’ disappears from the display. Press the key
to exit the memory mode. The ‘MEM’ icon will disappear.
Priority All-Scan
The Priority All-Scan function scans all the available channels
for signals while inserting CH16 into the scan every second
channel.
1 - 16 - 2 - 16 ... 87 - 16 - 88 - 16
To activate the Priority All-Scan, press and hold the key
while in the normal mode. ‘PSCAN’ appears on the display and
the channel numbers change rapidly as the radio scans
for signals.
To deactivate the Priority All-Scan function, briefly press the
key again. ‘PSCAN’ disappears from the display.
Priority Memory-Scan
The Priority Memory-Scan function allows the radio to scan all
the channels stored in the memory for signals while inserting
CH16 into the scan every second channel.
1 - 16 - 2 - 16 ... 87 - 16 - 88 - 16
Before scanning, press the key to enter the memory
mode. The ‘MEM’ icon will be displayed. There should be at
least one channel in the memory (please refer to the MEMORY
CHANNELS section on the previous page).
To activate the Priority Memory-Scan, press and hold the
key. ‘SCAN’ appears on the display and the channel numbers
change rapidly as the radio scans the memory channels for
signals.
To deactivate the Priority Memory-Scan, briefly press the
key again. ‘SCAN’ disappears from the display. Press the
key to exit the memory mode.
DUAL WATCH
The Dual Watch function is a 2 channel scan feature where the
radio switches between Channel 16 and any other selected
channel. This allows you to monitor a working or club channel
while still being able to receive important broadcasts on
Channel 16.
To use the Dual Watch function;
1. Press the or keys to select your preferred
working channel.
2. Briefly press the key to activate Dual Watch. ‘DW’ will
be displayed and the channel number will quickly alternate
between 16 and the selected channel.
•If a signal is received on the selected channel, the Dual
Watch will pause on the selected channel to allow the signal
to be heard but will continue to monitor channel 16 every 2
seconds resulting in short breaks in the conversation. Once
the signal has gone, Dual Watch continues.
•If a signal appears on channel 16 the radio will lock onto
channel 16 and signals on channel 16 will have priority over
any signals on the selected channel.
3. To cancel Dual Watch, briefly press the key.
TRIPLE WATCH
The Triple Watch function is a 3 channel scan feature where
the radio switches between Channel 16, your selected channel
and a second priority channel. This allows you to monitor 2
channels while still being able to receive important broadcasts
on Channel 16.
NOTE: Prior to using Triple Watch you will need to have
programmed your second priority channel (see Second Priority
Channel further above).
To use the Triple Watch Function
1. Ensure you have programmed your second priority channel
on the key (see ‘Second Priority Channel’ on page 7).
2. Press the or keys to select your preferred
working channel.

10
3. Press and hold the key to activate Triple Watch. ‘TW’
will be displayed and the channel numbers will quickly
switch between the three channels (16, the second priority
channel and the selected channel).
•If a signal is received on either the selected channel or the
second priority channel, the Triple Watch will pause to
allow the signal to be heard but will continue to monitor
channel 16 every 2 seconds resulting in short breaks in
the conversation. Once the signal has gone, Triple Watch
continues.
•If a signal appears on channel 16 it will take priority over
any signals on the other two channels.
4. To cancel Triple Watch, briefly press the key.
CHANNEL LISTS
INTERNATIONAL MARINE VHF CHANNELS AND FREQUENCIES
CH TX Freq RX Freq Simplex Usage
01 156.050 160.650 Public Correspondence, Port Operations and Ship Movement
02 156.100 160.700 Public Correspondence, Port Operations and Ship Movement
03 156.150 160.750 Public Correspondence, Port Operations and Ship Movement
04 156.200 160.800 Public Correspondence, Port Operations and Ship Movement
05 156.250 160.850 Public Correspondence, Port Operations and Ship Movement
06 156.300 156.300 xInter-ship [1]
07 156.350 160.950 Public Correspondence, Port Operations and Ship Movement
08 156.400 156.400 xInter-ship
09 156.450 156.450 xInter-ship, Port Operations and Ship Movement
10 156.500 156.500 xInter-ship, Port Operations and Ship Movement [2]
11 156.550 156.550 xPort Operations and Ship Movement
12 156.600 156.600 xPort Operations and Ship Movement
13 156.650 156.650 xInter-ship Safety, Port Operations and Ship Movement [3]
14 156.700 156.700 xPort Operations and Ship Movement
15 156.750 156.750 xInter-ship and On-board Communications at 1W only [4]
16 156.800 156.800 xDistress, Safety and Calling
17 156.850 156.850 xInter-ship and On-board Communications at 1W only [4]
18 156.900 161.500 Public Correspondence, Port Operations and Ship Movement
19 156.950 161.550 Public Correspondence, Port Operations and Ship Movement
1019 156.950 156.950 xNew Simplex channel (to be released)
2019 161.550 161.550 xNew Simplex channel (to be released)
20 157.000 161.600 Public Correspondence, Port Operations and Ship Movement
1020 157.000 157.000 xNew Simplex channel (to be released)
2020 161.600 161.600 xNew Simplex channel (to be released)
21 157.050 161.650 Public Correspondence, Port Operations and Ship Movement
