Extreme Series Goal System Instructions
This manual explains the proper
installation, operation and maintenance of
your Goalsetter Goal. Study and
understand these instructions thoroughly
before installing, operating or maintaining
the goal. Failure to do so could result in
serious injury or death and/or equipment
damage. Consult your Goalsetter dealer or
Goalsetter Systems, Inc. if you do not
understand the instructions in this manual
or need additional information.
Goalsetter Systems, Inc. recommends that
you retain this manual for future reference
of operation, maintenance and parts
information.
The instructions, illustrations and
specifications in this manual are based on
the latest information available at the time
of publications. Your goal may have
product improvements and options not yet
contained in this manual.
Goalsetter Systems, Inc. reserves the right
to make changes at any time without
notice or obligation.
Additional copies of these instructions are
available from Goalsetter Systems, Inc.
2 www.goalsettersystems.com 800.362.GOAL (4625)
GOALSETTER®,GOALSETTER SYSTEMS®AND GOALSETTER®logo
are all registered trademarks of Goalsetter Systems, Inc. in the U.S.
and/or other countries.
GS™and BEST IN BASKETBALL™are trademarks of Goalsetter
Systems, Inc.
This product is covered by various U.S. and Canadian patents,
including U.S. Patent #5,211,393.
Patent infringement will be prosecuted.
No part of this manual may be reproduced in any form or by any
means electronic or mechanical, including photocopying, recording,
or by any information storage and retrieval systems without the
express written consent of Goalsetter Systems, Inc.
Copyright 2006.
Revised 6/9/2008.
All Rights Reserved.
Goalsetter Systems, Inc.
Questions? Comments? Contact Us:
Phone: [phone] • Fax: [phone]
Email: [email protected]
www.goalsettersystems.com

Extreme Series Goal System Instructions
TABLE OF CONTENTS
Contact Information ........................................2
Thank You ................................................4
Lay Out Playing Court ......................................4
Court Markings (reference only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Safety Instructions .........................................5
Ground Anchor Installation ..................................6
Call "One-Call" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Required Tools and Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Ground Anchor Placement ..................................7
Installation ...............................................8
Dig Hole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Position Anchor and Fill With Concrete . . . . . . . . . . . . . . . . . . . . . . . .8
Goal Specifications .....................................12-13
Goal Assembly ............................................9
Required Tools and Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Hardware Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-11
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-15
Pole Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16-17
Backboard Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Goal Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Rim Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Height Indicator Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Operation and Maintenance .............................21-22
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Warranties ...............................................23
800.362.GOAL (4625) www.goalsettersystems.com 3

Extreme Series Goal System Instructions
4 www.goalsettersystems.com 800.362.GOAL (4625)
Thank you and congratulations for purchasing a Goalsetter Goal – the finest
basketball goal system on the market today! You will discover that Goalsetter is
unsurpassed in product innovation, quality and integrity in the basketball equipment
industry. We are continually focused on designing, engineering and producing products
that meet and exceed the expectations of today’s toughest playing environments and
demanding players. Please contact us if you have any concerns, questions or suggestions
regarding our products.
THANK YOU!
LAY OUT PLAYING COURT
Consider the following to determine where to install the basketball goal:
•Whether the goal is to be installed into a landscaped area next to the
playing surface or into a hard-surfaced area.
•Backboard size and its extension distance from the structure.
•If court markings are to be used.
•Amount of playing surface desired beneath the goal.
•Other functions of playing surface (such as driveway, tennis court, etc.)
Court Markings (reference only)
6'-0"
19'-9"
50'-0" Optimum Inside Sidelines
15'-0"
19'-0"
25'-0"
63"
15"
12'-0"
4'-0"
Note: Lines are 2" wide.
Regulation Court Lengths:
High School: 84'
College: 94'
Professional: 94'

Extreme Series Goal System Instructions
800.362.GOAL (4625) www.goalsettersystems.com 5
Failure to follow these safety instructions may
result in serious injury or death and/or property
damage.
•Do not install or use this product unless the
instructions within this manual have been
carefully read and understood.
•Consult your Goalsetter dealer or Goalsetter
Systems, Inc. if you do not understand the
instructions in this manual or need additional
information.
•Before digging for the ground anchor, contact
your local One-Call system in your area.
•If using a ladder during assembly, use extreme
caution. Two or three people are recommended
for safe installation and assembly.
•Installation and assembly of this product will
require lifting and bending that may result in injury
to anyone not accustom to this type of activity.
•Ensure there are no overhead power lines within a
20 ft. (7 m.) radius of the goal location.
•Climate, corrosion or misuse could result in
system failure.
•With rim set at 7'-0" playing height, the minimum
operational height is 6'-4" (1.9 m) to the bottom of
the backboard.
•DO NOT HANG on the rim or any part of the goal
system. This includes the backboard, support
braces or net.
•During play, especially when performing dunking
activities, keep the player’s face away from the
backboard, rim and net. Serious injury could result
if teeth/face come in contact with the backboard,
rim or net. Do not wear jewelry or other loose
objects that could become entangled in the net.
•Twice yearly, check the goal system for loose
hardware, excessive wear and signs of corrosion. Repair the system before use.
•Never play on damaged equipment.
SAFETY INSTRUCTIONS

Extreme Series Goal System Instructions
6 www.goalsettersystems.com 800.362.GOAL (4625)
GROUND ANCHOR INSTALLATION
Contacting buried utilities may cause serious injury or death. Before you
start digging, always contact your local One-Call system to help prevent
personal injury, interruption of services, environmental accidents or job
delays.
Electric lines can shock or electrocute. Gas lines can rupture causing
explosion or fire. Laser light in fiber optic cable can cause blindness.
One-Call will notify participating utility companies of your proposed
digging project. Ifyou do not know the number for the local One-Call
in your area, call the National One-Call at 1-888-258-0808 for this
information. After being notified, utility companies will mark their
underground facilities by using the following international marking
codes:
Color Definition
Red Electric
Yellow Gas, Oil or Petroleum
Orange Communication, Telephone, TV
Blue Portable Water
Green/Brown Sewer
White Proposed Excavation
Pink Surveying
Spade
Shovel
Tape Measure
Level
Stir Rod
Auger or Post Hole Digger
10-14, 60 lb. Bags of Dry Concrete Mix
(or 1/4 - 1/3 yard of ready mix concrete
may be substituted for the concrete mix)
Water
Required Tools and Materials

Extreme Series Goal System Instructions
800.362.GOAL (4625) www.goalsettersystems.com 7
GROUND ANCHOR PLACEMENT
Use the following guidelines when installing
ground anchor into a hard-surfaced area:
•Top of ground anchor to be 1"
(25 mm) above playing surface.
•Concrete fill should have top sloped away from
anchor in all directions to shed moisture away.
•Top of ground anchor must be level both
directions across its surface.
•Hinge side of anchor toward playing surface.
•Hinge parallel with playing surface.
•Distance from edge of hole made in playing surface to anchor to be
no less than 6" (152 mm).
•Distance from bottom of ground anchor plate to concrete fill to be
no less than 1" (25 mm).
IMPORTANT – When preparing for ground
anchor, allow at least 6" (152 mm) from all sides
of ground anchor to wall of hole to allow for
sufficient concrete fill around anchor.
Use the following guidelines when installing
ground anchor into a landscaped area next to
the playing surface:
•Top of ground anchor to be flush with or
slightly above playing surface.
•Top of ground anchor must be level both directions across its surface.
•Concrete fill should have top sloped away from anchor in all
directions to shed moistureaway.
•Hinge side of anchor toward playing surface.
•Hinge parallel with playing surface.
•Distance from edge of playing surface to anchor to be no less than 6"
(152 mm).
•Distance from bottom of ground anchor plate to concrete fill to be no
less than 1" (25 mm).
48-50"
(1.2-1.3 m)
1" (25 mm) minimum
18" (0.5 m)
6" (152 mm)
all sides
Playing Surface
48-50"
(1.2-1.3 m)
1" (25 mm)
18" (0.5 m)
6" (152 mm)
all sides
Playing Surface

Extreme Series Goal System Instructions
GROUND ANCHOR INSTALLATION
Dig Hole –When installing goal into a hard-
surfaced area, a minimum of a 18" x 18" (0.5 x
0.5 m) area of the hard surface will need to be
removed.
Step 1 –Once location of goal has been
determined, locate center of ground anchor hole.
Step 2 –Dig a hole approximately 18 " (0.5 m) in
diameter and 48-50" (1.2-1.3 m) deep. Use a
spade, shovel, auger or post hole digger.
Position Anchor and Fill Hole with Concrete Mix –For best
performance, do not fully fill hole with concrete mix beforepositioning
the anchor. Instead, fill base of hole with concrete mix, lower the
ground anchor into the hole, position it and then finish filling with
concrete mix.
Step 1 –Locate and unpack ground anchor. Do not remove plastic
plugs or hinge bolt.
Step 2 –Place 2-3 bags of concrete mix into hole; add water and stir.
Follow concrete mix manufacturer’s instructions for best results.
Step 3 –Position anchor in center of hole with hinge side toward and
parallel with playing surface.
IMPORTANT –As hole is filled with concrete mix, periodically place a
level on top of anchor plate and check that it is level front-to-back and
left-to-right. Also check that the top of anchor is at correct height.
Step 4 –Adjust anchor plate height,
depending upon installation, per
guidelines given in Ground Anchor
Placement.
Step 5 –Continue filling hole with
concrete mix until it is within 1"-1.5"
(25-38 mm) of anchor plate bottom, or
level with landscape – whichever
comes first.
6" (152 mm)
minimum AND
parallel
Check level both
directions
Playing Surface
48-50"
(1.2-1.3 m)
18" (0.5m)
Diameter
8 www.goalsettersystems.com 800.362.GOAL (4625)

Extreme Series Goal System Instructions
800.362.GOAL (4625) www.goalsettersystems.com 9
GOAL ASSEMBLY
IMPORTANT: Concrete must cure a minimum of 48 hours before
installing goal.
IMPORTANT: Safe assembly of the goal requires two to three people
in good physical condition and capable of lifting 80-100 lbs (36-45 kg)
each.
IMPORTANT: Locate and familiarize yourself with all parts of the goal
before beginning assembly.
Level
Rubber Mallet
12' Tape Measure
Phillips Screwdriver
Ratchet
9/16" and 3/4" Sockets
9/16" and 3/4" Wrenches
Required Tools and Materials
HARDWARE IDENTIFICATION
Rim Bolt Assembly
(All Models)
14a 14b 14c 14d
Height Indicator Decal
(All Models)

Extreme Series Goal System Instructions
10 www.goalsettersystems.com 800.362.GOAL (4625)
HARDWARE IDENTIFICATION
Anchor Hinge Bolt
(All Models)
2a 2b
Assembly Lock Plate
(All Models)
NOTE: Refer to page 12-15 for descriptions and quantities.
6a 6b 6b 6d
Jack Lower Pivot Bolt Assembly
6c
Black Touch-Up Paint
Ground Anchor Bolt Assembly
(All Models)
4a 4b

Extreme Series Goal System Instructions
800.362.GOAL (4625) www.goalsettersystems.com 11
HARDWARE IDENTIFICATION
Extension Arm Bolt Assembly
8" (X448 & X454)
10" (X554 & X560)
11" (X660 & X672)
8a 8b 8b 8d
Backboard Bolt Assembly
8" (X448 & X454)
2-1/2" (X554 & X560)
3-1/4" (X660 & X672)
11a 11b 11b 11c
8c
Jack Upper Pivot Bolt Assembly
8" (X448 & X454)
10" (X554 & X560)
11" (X660 & X672)
9a 9b 9e
9c 9b
9d

Extreme Series Goal System Instructions
12 www.goalsettersystems.com 800.362.GOAL (4625)
GOAL SPECIFICATIONS
Model Pole Backboard Weight Weight Height
Size Size With Acrylic With Glass Range (A)
X672 6" x 6" 42" x 72" 475 lbs. 535 lbs. 7'-10'
X660 6" x 6" 38" x 60" 460 lbs. 515 lbs. 7'-10'
X560 5" x 5" 38" x 60" 375 lbs. 430 lbs. 7'-10'
X554 5" x 5" 36" x 54" 360 lbs. 400 lbs. 7'-10'
X454 4" x 4" 36" x 54" 260 lbs. 300 lbs. 7'-10'
X448 4" x 4" 32" x 48" 255 lbs. 285 lbs. 7'-10'
Model Extension Distance (B) at: Rim to Top-of-Goal
Distance (C)
X672 33-3/4"
X660 29-3/4"
X560 29-3/4"
X554 27-3/4"
X454 27-3/4"
X448 23-3/4"
10' 8' 7'
42" 48" 46"
42" 48" 46"
36" 43" 40"
36" 43" 40"
31" 36" 31"
31" 36" 31"
Model Crank Crank (F) Pole
Distance (D) Height (E) (not used) Height (G)
X672 18" 42" – 10'
X660 18" 42" – 10'
X560 18" 42" – 9'-9"
X554 18" 42" – 9'-9"
X454 18" 42" – 9'-9"
X448 18" 42" – 9'-9"

Extreme Series Goal System Instructions
800.362.GOAL (4625) www.goalsettersystems.com 13
B
C
Playing Surface
AG
D
E
5" & 6" - 10",
4"- 6-1/2"

Extreme Series Goal System Instructions
14 www.goalsettersystems.com 800.362.GOAL (4625)
13
PARTS LIST
3
5
NOTE: Refer to page 15
for parts descriptions.
NOTE: Refer to page
9-11 for hardware descriptions.
Backboard
Assembly
Lower
Extension Arm
Assembly Lock
Plate
Pole
10
1
Ground
Anchor
4Hardware
2
Anchor
Hinge Bolt
15 16
Rim & Net
Assembly
and
Hardware
Rim Backplate –
4" poles only
11 Upper
Extension Arm
17 Height
Decal
6
Hardware
7Jack
Assembly
12
Hardware
4 places
–X672
–X660
–X560
–X554
2 places
–X454
–X448
Hardware
8
Hardware
9
14

EXTREME SERIES PARTS DESCRIPTION – page 15
REF X672 X660 X560 X554 X454 X448 DESCRIPTION
111––––Ground Anchor (6" x 6")
––11––Ground Anchor (5" x 5")
––––11Ground Anchor (4" x 4")
2a 11––––Anchor Hinge Bolt, 3/8"-16 UNC x 7"
––11––Anchor Hinge Bolt, 3/8"-16 UNC x 6"
––––11Anchor Hinge Bolt, 3/8"-16 UNC x 5"
2b 111111Nut, 3/8"-16 UNC
311––––Pole (6" x 6")
––11––Pole (5" x 5")
––––11Pole (4" x 4")
4a 555555Bolt, 1/2"-13 UNC x 1-1/4"
4b 555555Lock Washer, 1/2"
5111111Assembly Lock Plate
6a 111111Bolt, 1/2"-13 UNC x 4"
6b 222222Flat Washer, 1/2"
6c 444444Nylon Washer, 1/2"
6d 111111Locknut, 1/2"-13 UNC
7111111Jack Assembly
8a 2 2 – – ––Bolt, 1/2"-13 UNC x 11"
––22––Bolt, 1/2"-13 UNC x 10"
––––22Bolt, 1/2"-13 UNC x 8"
8b 444444Flat Washer, 1/2"
8c 888888Nylon Washer, 1/2"
8d 222222Locknut, 1/2"-13 UNC
9a 1 1 – –––Bolt, 1/2"-13 UNC x 11"
––11––Bolt, 1/2"-13 UNC x 10"
––––11Bolt, 1/2"-13 UNC x 8"
9b 2 2 2 2 2 2 Flat Washer, 1/2"
9c 222222Nylon Washer, 1/2"
9d 2222––Nylon Spacer, 1"
9e 111111Locknut, 1/2"-13 UNC
10 11––––Lower Extension Arm (6")
––11––Lower Extension Arm (5")
– – ––11Lower Extension Arm (4")
11 11––––Upper Extension Arm (6")
––11––Upper Extension Arm (5")
– – – – 1 1 Upper Extension Arm (4")
12a 44––––Bolt, 1/2"-13 UNC x 3-1/4"
––4 4 – – Bolt, 1/2"-13 UNC x 2-1/2"
––––22Bolt, 1/2"-13 UNC x 8"
12b 888844Flat Washer, 1/2", 5/8" for 4" poles
12c 444422 Locknut, 1/2"-13 UNC
13 1–––––Backboard Assy. – 42" x 70"
–11––– Backboard Assy.–38" x 60"
– ––11–Backboard Assy. – 36" x 54"
–––––1 BackboardAssy. – 32" x 48"
14 111111Rim and Net Assembly
15a 444444Bolt, 3/8"-16 UNC x 2"
15b 888888Flat Washer, 3/8"
15c 444444Lock Washer, 3/8"
15d 444444Nut, 3/8"-16 UNC
16 ––––11Rim Backplate
17 111111Decal – Height Indicator

Extreme Series Goal System Instructions
16 www.goalsettersystems.com 800.362.GOAL (4625)
POLE ASSEMBLY
Step 1: Remove five plastic plugs from
threaded holes in ground anchor. Also
remove hinge bolt 3and nut (these will
be used in Step 3.)
NOTE: Use protective padding to
protect pole finish.
Step 2: Unpack pole.
Step 3: Align pole hinge 1with anchor
plate hinge 2and insert bolt 3(#2 in
parts list) and nut.
Step 4: Lift pole to approximately 30º
and attach lock plate 4to ground anchor and pole.
IMPORTANT:The 30º pole installation angle MUST be maintained until
pole is raised in Goal Alignment.
NOTE:For steps 5 and 6, refer to top graphic on facing page.
Step 5: Align lower extension arm 5pivot with lower bushing on pole
6.Attach arm to pole with 1/2" bolt (#8 in parts list), two flat washers,
four nylon washers and locknut.
Hardware Sequence: Bolt passes through flat washer - nylon washer - arm - nylon
washer -pole - nylon washer - arm - nylon washer -flat washer - locknut.
Step 6: Align upper extension arm 7pivot with upper bushing on pole
8.Attach arm to pole with 1/2" bolt (#8 in parts list), two flat washers,
four nylon washers and locknut.
HardwareSequence: Bolt passes through flat washer - nylon washer - arm - nylon
washer -pole - nylon washer - arm - nylon washer -flat washer - locknut.
2
1
4
3

Extreme Series Goal System Instructions
800.362.GOAL (4625) www.goalsettersystems.com 17
POLE ASSEMBLY (continued)
Step 7: Attach lower end of jack 9to bracket on pole 10 with 1/2"
x 4" bolt (#6 in parts list), two flat washers, four nylon washers and
locknut.
NOTE: Jack is packaged with pole on all Extreme models.
HardwareSequence: Bolt passes
through flat washer - nylon washer -
pole bracket - nylon washer -jack
pivot - nylon washer - pole bracket -
nylon washer -flat washer - locknut.
Step 8: Extend jack until
upper jack bracket 11 is
aligned with holes in lower
extension arm.
IMPORTANT: Attach upper
end of jack to lower
extension arm by extending the jack; DO NOT swing arm to make
attachment.
Step 9: Attach upper end of jack 11 to lower extension arm 5with
1/2" bolt (#9 in parts list), two flat washers, two nylon washers, two
spacers and locknut. (No spacers on 4" model.)
Hardware Sequence: Bolt passes through flat washer - nylon washer - arm - spacer
- jack bracket - spacer - arm - nylon washer - flat washer - locknut.
5
8
7
11
6
10
9

Extreme Series Goal System Instructions
18 www.goalsettersystems.com 800.362.GOAL (4625)
BACKBOARD ATTACHMENT
IMPORTANT: Pole MUST be at
original 30º installation angle as
specified in Pole Assembly.
Step 1: Open lid of box
containing backboard1and
position the backboard (without
removing it from box) face down
under lower extension arm 2
with rim mounting plate 3toward
pole.
NOTE: X448 and X454 backboard
uses two 1/2" bolts and four 5/8"
flat washers for attachment; all
others use four. 5/8" washer
needs to be seated properly over
nylon bushing on outside of
backboard H-frame.
Step 2: Align backboard holes 4
with lower extension arm holes
2.Attach backboard to arm with
1/2" bolt (#12 in parts list), two flat
washers and locknut at each
mounting point.
Step 3: Align backboardholes 5
with upper extension arm holes
6.Attach backboard to arm with
1/2" bolt (#12 in parts list), two flat
washers and locknut at each
mounting point.
HardwareSequence for X672 and X660:
Bolt passes through flat washer - arm
bracket - backboard bracket - arm
bracket - flat washer - locknut.
HardwareSequence for X560 and X554:
Bolt passes through flat washer - arm -
backboardbracket - flat washer - locknut.
Hardware Sequence for X454 and X448:
Bolt passes through flat washer - arm -
backboard bracket - backboard bracket -
arm - flat washer - locknut.
1
2
3
6
5
4

Extreme Series Goal System Instructions
800.362.GOAL (4625) www.goalsettersystems.com 19
GOAL ALIGNMENT
IMPORTANT: For safe assembly, do the following:
•Use two or three people to raise the goal assembly and hold it in a
vertical position. They should be in good physical condition and
capable of lifting 80-100 lbs (35-45 kg).
•DO NOT adjust height of backboard or
attach rim until pole is raised and bolted
down.
•Correct sequence of hardware installation
MUST be followed during assembly.

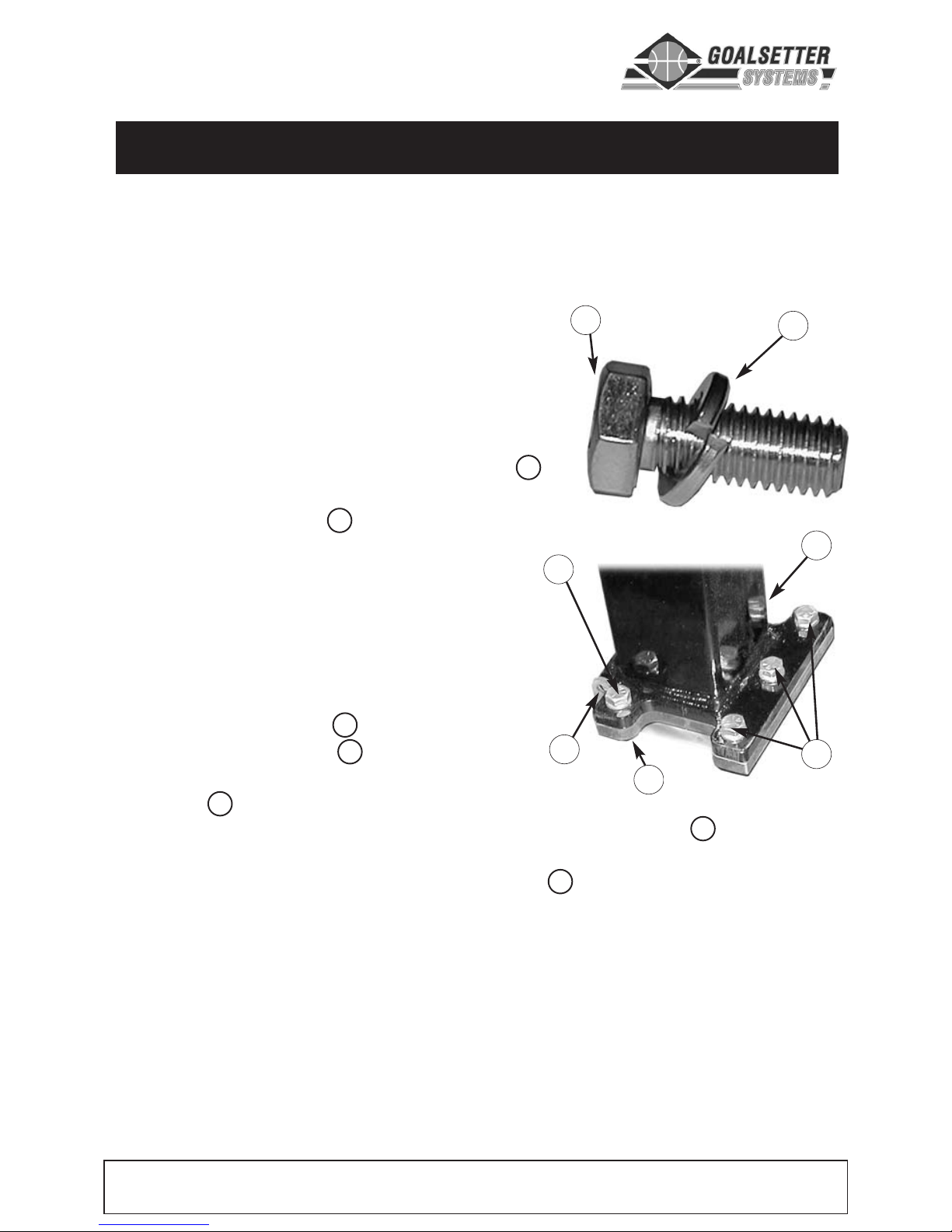

Step 1: Locate five 1/2" x 1-1/4" bolts 1
(#4 in parts list). Prepare them for use by
having lock washer 2slipped on as
shown.
Step 2: Push up on backboard to raise
goal assembly to vertical position. The
assembly lock plate, maintaining pole at
30º installation angle, will fall away. Save
lock plate for future disassembly.
Step 3: Fasten pole 3to threaded
ground anchor plate 4as follows:
•First, install and tighten three back
bolts 5with lock washers.
•Second, remove ground anchor hinge bolt and nut 7 . Save for
futuredisassembly.
•Third, install and tighten two front bolts 6with lock washers.
Step 4: Check goal assembly with a level and inspect visually to
determine if it is parallel and plumb to playing surface.
Step 5: If adjustments are necessary, slightly loosen bolts to rotate
goal or place shims between pole plate and ground anchor plate.
Step 6: Fully tighten five bolts.
IMPORTANT:The bolts must pass all the way through the ground
anchor plate. If they are recessed within the plate when fully
tightened, please contact Goalsetter Systems.
Both Sides
12
3
4
7
6
5

Extreme Series Goal System Instructions
20 www.goalsettersystems.com 800.362.GOAL (4625)
RIM ATTACHMENT
2
3
4
56
7
NOTE: Use all steps of the following instructions
to install a reflex rim. To install a static rim, follow
all steps except #2 and #6.
Step 1: Remove any cardboard edge protectors
and protective sheeting from backboard.
NOTE: Four steel shouldered bushings 1are
factory installed. If loose, make sure to have them
seated properly when tightening rim bolts. If
missing, contact Goalsetter or dealer to get
replacements. DO NOT install rim without
bushings.
Step 2: If not already removed, remove cover plate
screws 6and cover plate 5from rim assembly.
IMPORTANT: Correct sequence of hardware
installation MUST be followed during assembly.
Step 3: Loosely attach rim 4to backboard
through top mounting holes 2with two 3/8" x 2"
bolts, four flat washer, two lock washers and two
nuts. Snug tighten hardware – a 9/16" open-end
wrench may be necessary.
IMPORTANT – X454 & X448 only: When
attaching rim to TOP mounting holes, attach rim
bolt backplate 7at same time.
Hardware Sequence: Bolt passes through flat washer - rim
backplate - backboard bushing - backboard mounting plate - flat
washer - lock washer - nut.
Step 4: Repeat procedure outlined in Step 3 for
lower rim mounting holes 3.
Step 5: Level rim side to side and then fully
tighten hardware.
Step 6: Position cover plate 5and attach with
cover plate screws 6.
Step 7: Attach net to rim.
1
