Golander pump BQ80S V2 User manual

GOLANDER
BQ80S V2
Variable-Speed Peristaltic Pump
Operating Manual

Contents
Safety Precautions ..........................................................................................1
1 Description ...................................................................................................6
2 Functions and Features................................................................................6
3 Components and Connectors.......................................................................7
4 Display Panel and Operating Keypads.........................................................8
4.1 Keypad ...............................................................................................8
4.2 LCD Screen Display...........................................................................9
5 Parameter Settings..................................................................................... 11
6 System Advanced Parameter Settings.......................................................13
7 External Control Interface...........................................................................16
8 Operating Instructions ................................................................................16
8.1 Before Operation..............................................................................16
8.2 Power Connection............................................................................17
8.3 Mode Change...................................................................................17
8.4 Internal Control Mode.......................................................................17
8.5 External Control Mode .....................................................................18
8.6 Time Dispense Mode .......................................................................20
8.7 Logic Level 1 Control Mode (footswitch) ..........................................21
8.8 Logic Level 2 Control Mode (footswitch and direction switch)..........22
8.9 Communication Mode ......................................................................24
8.10 Speed Setting.................................................................................25
9 Maintenance...............................................................................................25
9.1 Warranty...........................................................................................25
9.2 Regular Maintenance .......................................................................26
9.3 Malfunction Solutions .......................................................................26
10 Dimensions...............................................................................................27
11 Naming Rule .............................................................................................28
12 Specifications ...........................................................................................28

BQ80S V2 Variable-Speed Peristaltic Pump
1
Safety Precautions
Danger
•Use the correct voltage indicated on the rating plate label of the pump to
avoid any damage.
•Do not make any unauthorized dismantling, changes or modifications to
the pump which could result in malfunctions or even potential accidents.
•Turn off the pump drive before installing or removing tubing, attempting
any maintenance, cleaning or repair of the drive, connecting or
disconnecting external control devices or a communication interface.
Fingers or loose clothing could get caught in the drive mechanism.
Warning
•Ensure no chemical reactions occur between the handled fluid with the
material of the pump head and tubing before use.
•Tubing should be checked regularly to avoid breakage. Tubing breakage
may result in fluid being sprayed from the pump. Use appropriate measures
to protect the operator and equipment. The operator is solely liable for
damages resulting from tubing breakage, particularly the leakage of toxic
or valuable liquids.
•The pump is provided with a grounded plug which must be well grounded
at all times.
•This device is not designed for nor intended for usage in patient connected
applications, including but not limited to medical and dental use.
•Observe all other applicable regulations concerning working safety,
operational safety, environmental protection and relevant local regulations.

BQ80S V2 Variable-Speed Peristaltic Pump
2
(DE) SICHERHEITSHINWEISE
Gefahr
•Verwenden Sie die richtige Spannung, die auf dem Typenschild der Pumpe
angegeben ist, um Schäden zu vermeiden.
•Nehmen Sie keine unbefugten Demontagen, Änderungen oder Modifikationen an der
Pumpe vor, die zu Fehlfunktionen oder sogar zu Unfällen führen könnten.
•Schalten Sie den Pumpenantrieb aus, bevor Sie Schläuche ein- oder ausbauen,
Wartungs-, Reinigungs- oder Reparaturarbeiten am Antrieb vornehmen oder externe
Steuergeräte oder eine Kommunikationsschnittstelle anschließen oder trennen. Finger
oder lose Kleidungsstücke können sich im Antriebsmechanismus verfangen.
Warnung
•Vergewissern Sie sich vor der Verwendung, dass keine chemischen Reaktionen
zwischen dem Fördermedium und dem Material des Pumpenkopfs und der Schläuche
auftreten können.
•Die Schläuche sollten regelmäßig überprüft werden, um Brüche zu vermeiden. Ein
Schlauchbruch kann dazu führen, dass Flüssigkeit aus der Pumpe spritzt. Ergreifen
Sie geeignete Maßnahmen zum Schutz des Bedieners und der Ausrüstung. Der
Betreiber haftet allein für Schäden, die durch einen Schlauchbruch entstehen,
insbesondere für das Austreten von giftigen oder wertvollen Flüssigkeiten.
•Die Pumpe ist mit einem geerdeten Stecker ausgestattet, der stets korrekt an eine
abgesicherte Netzsteckdose angeschlossen sein muss. Dieses Gerät ist nicht für
Anwendungen ausgelegt oder vorgesehen, die im Zusammenhang mit der
Behandlung von Patienten stehen. Medizinische bzw. zahnmedizinische
Anwendungen sind nicht bestimmungsgemäß.
•Beachten Sie alle anderen geltenden Vorschriften zur Arbeitssicherheit, zur
Betriebssicherheit, zum Umweltschutz sowie die einschlägigen örtlichen Vorschriften.

BQ80S V2 Variable-Speed Peristaltic Pump
3
(FR) CONSIGNES DE SÉCURITÉ
Danger
•Utilisez la tension correcte indiquée sur la plaque signalétique de la pompe afin
d'éviter tout dommage.
•Ne procédez pas à des démontages, changements ou modifications non
autorisés de la pompe qui pourraient entraîner des dysfonctionnements, voire des
accidents.
•Mettez l'entraînement de la pompe hors tension avant d'installer ou de retirer des
tuyaux, d'effectuer des travaux d'entretien, de nettoyage ou de réparation sur
l'entraînement ou de connecter ou déconnecter des dispositifs de commande
externes ou une interface de communication. Des doigts ou des vêtements lâches
pourraient se prendre dans le mécanisme d'entraînement.
Avertissement
•Avant toute utilisation, assurez-vous qu'il n'y a pas de réaction chimique entre le
liquide pompé et le matériau de la tête de pompe et des tubes.
•Les tuyaux doivent être contrôlés régulièrement pour éviter les ruptures. Une
rupture de tuyau peut entraîner des projections de liquide hors de la pompe.
Prenez les mesures appropriées pour protéger l'opérateur et l'équipement.
L'opérateur est seul responsable des dommages causés par une rupture de tuyau,
notamment en cas de fuite de liquides toxiques ou précieux.
•La pompe est équipée d'une fiche de mise à la terre qui doit toujours être bien
reliée à la terre.
•Cet appareil n'est pas conçu ni prévu pour être utilisé en présence de patients, y
compris, mais sans s'y limiter, dans le cadre d'applications médicales et dentaires.
•Respectez toutes les autres réglementations applicables en matière de sécurité
du travail, de sécurité d'exploitation, de protection de l'environnement.

BQ80S V2 Variable-Speed Peristaltic Pump
4
(ES) INSTRUCCIONES DE SEGURIDAD
Peligro
•Utilice la tensión correcta indicada en la placa de características de la bomba para
evitar daños.
•No realice ningún desmontaje, cambio o modificación no autorizada en la bomba
que pueda provocar un mal funcionamiento o incluso accidentes.
•Desconecte el accionamiento de la bomba antes de instalar o retirar las
mangueras, realizar trabajos de mantenimiento, limpieza o reparación en el
accionamiento o conectar o desconectar dispositivos de control externos o una
interfaz de comunicación. Los dedos o la ropa suelta podrían quedar atrapados
en el mecanismo de accionamiento.
Advertencia
•Antes de usarla, asegúrese de que no hay reacciones químicas entre el medio
bombeado y el material de la cabeza de la bomba y las mangueras.
•Las mangueras deben ser revisadas regularmente para evitar roturas. La rotura
de una manguera puede hacer que salga líquido de la bomba. Tome las medidas
adecuadas para proteger al operador y al equipo. El operador es el único
responsable de los daños causados por la rotura de una manguera,
especialmente por la fuga de líquidos tóxicos o valiosos.
•La bomba está equipada con un enchufe con toma de tierra que debe estar
siempre bien conectado a tierra.
•Este aparato no está diseñado ni pensado para su uso en relación con los
pacientes, incluyendo pero sin limitarse a las aplicaciones médicas y dentales.
•Respetar todas las demás normas aplicables en materia de seguridad laboral,
seguridad operativa y protección del medio ambiente.

BQ80S V2 Variable-Speed Peristaltic Pump
5
(IT) ISTRUZIONI DI SICUREZZA
Pericolo
•Usare la tensione corretta indicata sull'etichetta della targhetta della pompa per
evitare qualsiasi danno.
•Non eseguire smontaggi, cambiamenti o modifiche non autorizzati alla pompa che
potrebbero causare malfunzionamenti o addirittura potenziali incidenti.
•Spegnere l'azionamento della pompa prima d'installare o rimuovere tubi, tentare
qualsiasi manutenzione, pulizia o riparazione dell'azionamento, collegare o
scollegare dispositivi di controllo esterni o un'interfaccia di comunicazione. Dita o
indumenti larghi potrebbero rimanere impigliati nel meccanismo di azionamento.
Attenzione
•Assicurarsi che non si verifichino reazioni chimiche tra il fluido trattato e il
materiale della testa della pompa e dei tubi prima dell'uso.
•I tubi devono essere controllati regolarmente per evitare rotture. La rottura del tubo
può provocare spruzzi di fluido dalla pompa. Utilizzare misure appropriate per
proteggere l'operatore e l'attrezzatura. L'operatore è l'unico responsabile dei danni
derivanti dalla rottura dei tubi, in particolare della fuoriuscita di liquidi tossici o
preziosi.
•La pompa è dotata di una spina con messa a terra che deve essere sempre ben
collegata a terra.
•Questo dispositivo non è progettato né destinato all'uso in applicazioni collegate
al paziente, incluso ma non limitato all'uso medico e dentistico.
•Osservare tutte le altre norme applicabili riguardanti la sicurezza sul lavoro, la
sicurezza operativa, la protezione dell'ambiente e le norme locali pertinenti.

BQ80S V2 Variable-Speed Peristaltic Pump
6
1Description
BQ80S V2 variable-speed peristaltic pump provides not only basic functions
such as start/stop, reversible direction and adjustable speed, but also the Time
Dispense Mode and Anti-Drip function. With the MODBUS RS485 interface,
the pump is easy to communicate with external devices, such as PC, HMI or
PLC. Flow rate range 0.004-77 mL/min, working speed 0.1-80 rpm.
2Functions and Features
Peristaltic pumps can handle fluid that is particularly abrasive, corrosive or
viscous. There are no seals in contact with the medium pumped and no valves
to clog. The inner surfaces are smooth and easy to clean. The fluid contacts
only the tubing or tube material. It can handle the most shear sensitive of fluids
like latex or firefighting foam with low shearing. It is capable of running dry and
pumping fluids with high quantities of entrained air, such as black liquor soap.
The high volumetric efficiency allows operation in metering or dosing
applications where high accuracy is required. Tubing and tube materials are
available for food and pharmaceutical use.
•128 x 32 dot matrix LCD, simple and intuitive parameter setting and
status display.
•Membrane keypad.
•Supports blocking alarm.
•Supports acceleration start and deceleration stop functions.
•Reversible direction, start/stop control and adjustable speed.
•Timing function and slow start/stop function for smooth liquid transfer.
•An external logic level signal can control start/stop, direction and
dispense functions; an external analogue signal can adjust the
rotating speed. The signal is optically isolated.
•External control signal supports wide voltage input from 5 to 24 V.
•External speed control signal type (voltage or current) can be
switched via the control panel.
•The RS485 MODBUS interface allows easy communication with
external devices.

BQ80S V2 Variable-Speed Peristaltic Pump
7
•Circuit board with conformal coating to achieve dust and moisture
resistance.
•Anti-electromagnetic interference feature; wide input voltage range for
complex power environment.
•ABS engineering plastic housing, streamlined design

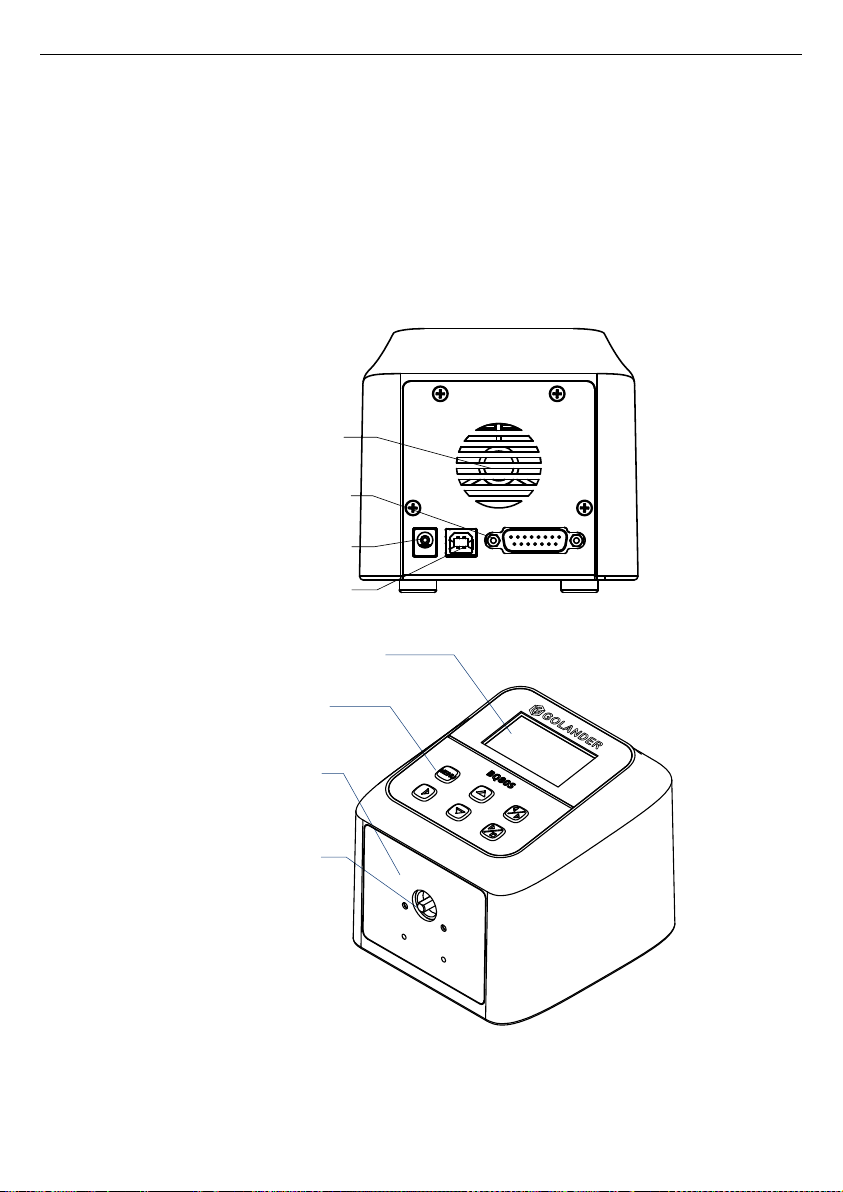

3Components and Connectors
Cooling Fan
Firmware
Update Port
Power Jack
DB15 External
Control Interface
LCD Display
Pump Head
Mounting Plate
Motor Shaft
Keys
Figure 1. Components and Connectors

BQ80S V2 Variable-Speed Peristaltic Pump
8

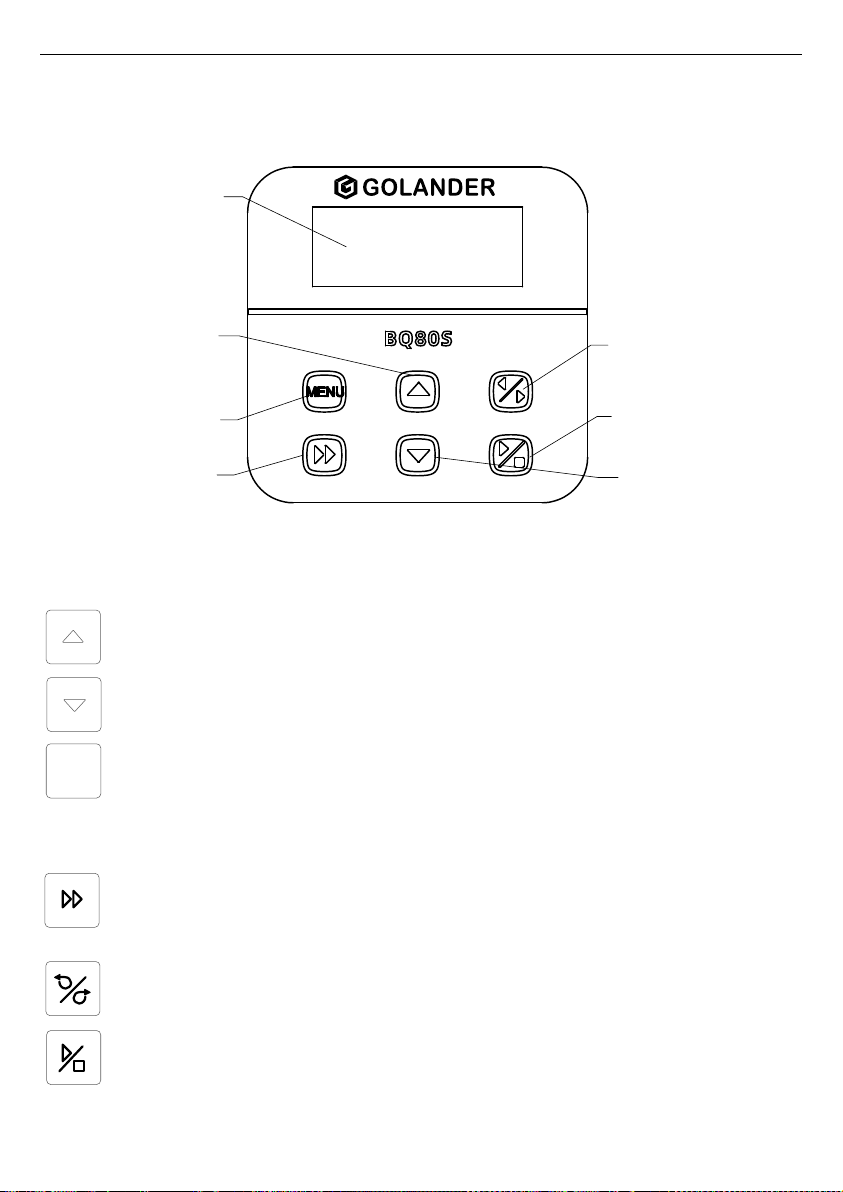

4Display Panel and Operating Keypads
LCD DISPLAY
MENU Key START/STOP
UP
DOWN
DIRECTION
PRIME
Figure 2. Display Panel
4.1 Keypad
UP Key. When pressed shortly, the last digit of the value will increase
by 1. Hold the key to increase the value quickly.
DOWN Key. When pressed shortly, the last digit of the value will
decrease by 1. Hold the key to decrease the value quickly.
MENU Key. When on the main screen, press the MENU key to enter
the setting menu. When on the setting menu, press the MENU key to
switch between the different menus. Press and hold it to return to the
main screen. When the drive is running, this key is disabled.
PRIME key. Press the key to run the pump at the maximum allowed
speed in the direction shown on the display. Press again to return to
the previous state.
DIRECTION Key. Press to key to change the drive rotating direction,
clockwise or counterclockwise.
START/STOP key. Press to start or stop the drive.
MENU

BQ80S V2 Variable-Speed Peristaltic Pump
9

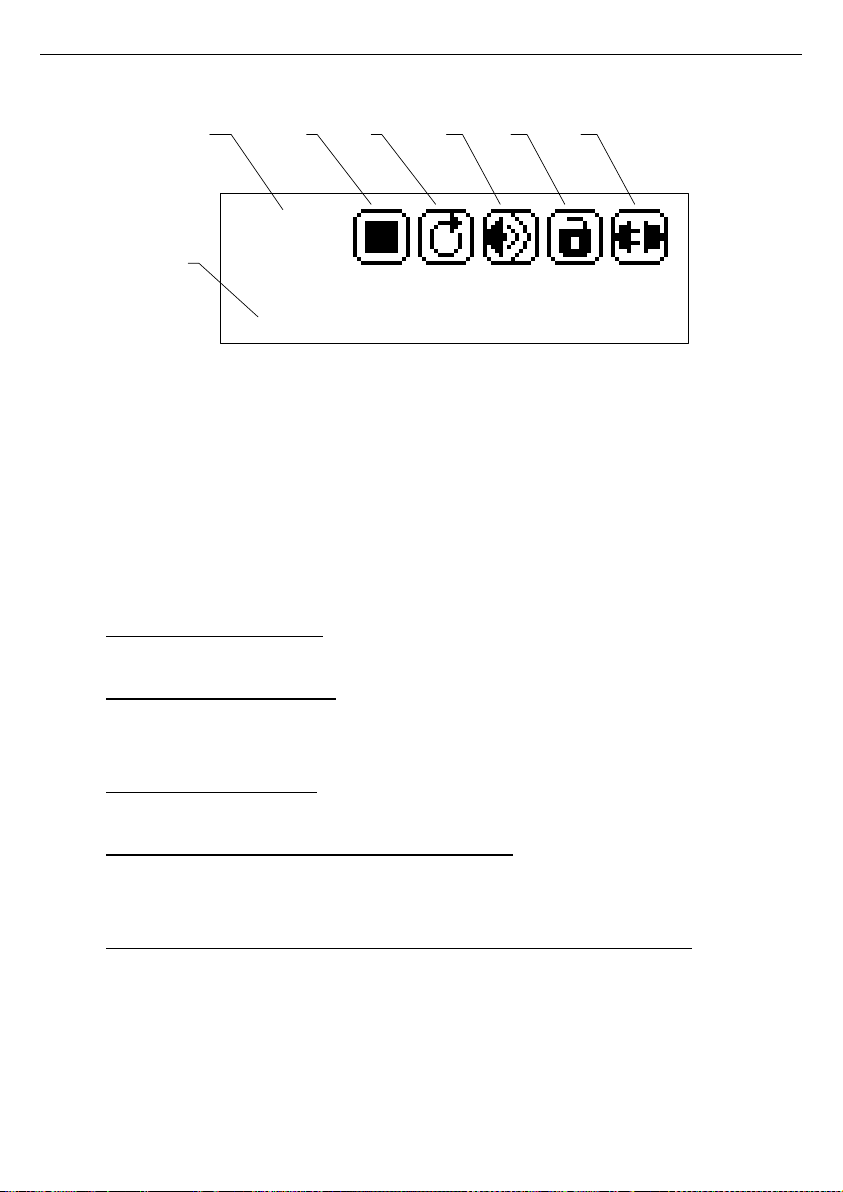

4.2 LCD Screen Display
Int
32.5rpm
A B
G
C D E F
Figure 3. Display screen
4.2.1 A. Control Mode
It displays the current control mode. Press the MENU key, the display will show
“Run Mode”, press the START/STOP key to enter the setting of the control
mode, then use UP/DOWN key to change the control mode: Internal Control
Mode, External Control Mode, Time Dispense Mode, Logic Level 1 Control
Mode or Logic Level 2 Control Mode.
•Internal Control Mode: Use the keypad to operate the pump. Use an
optional external pulse signal to control the start and stop.
•External Control Mode: Use an external analogue signal to control
rotation speed. Use external logic level signal to control direction, start
and stop. The keypad is disabled.
•Time Dispense Mode: Dispense fluid automatically by setting duration
for each dose, the time between doses and the number of cycles.
•Logic Level 1 Control Mode (footswitch): Use an external logic-level
signal to control the start and stop. Use the keypad to control direction
and speed.
•Logic Level 2 Control Mode (footswitch and direction switch): Use
external logic level signal to control start, stop and direction. Use the
keypad to adjust speed.
4.2.2 B. Running State

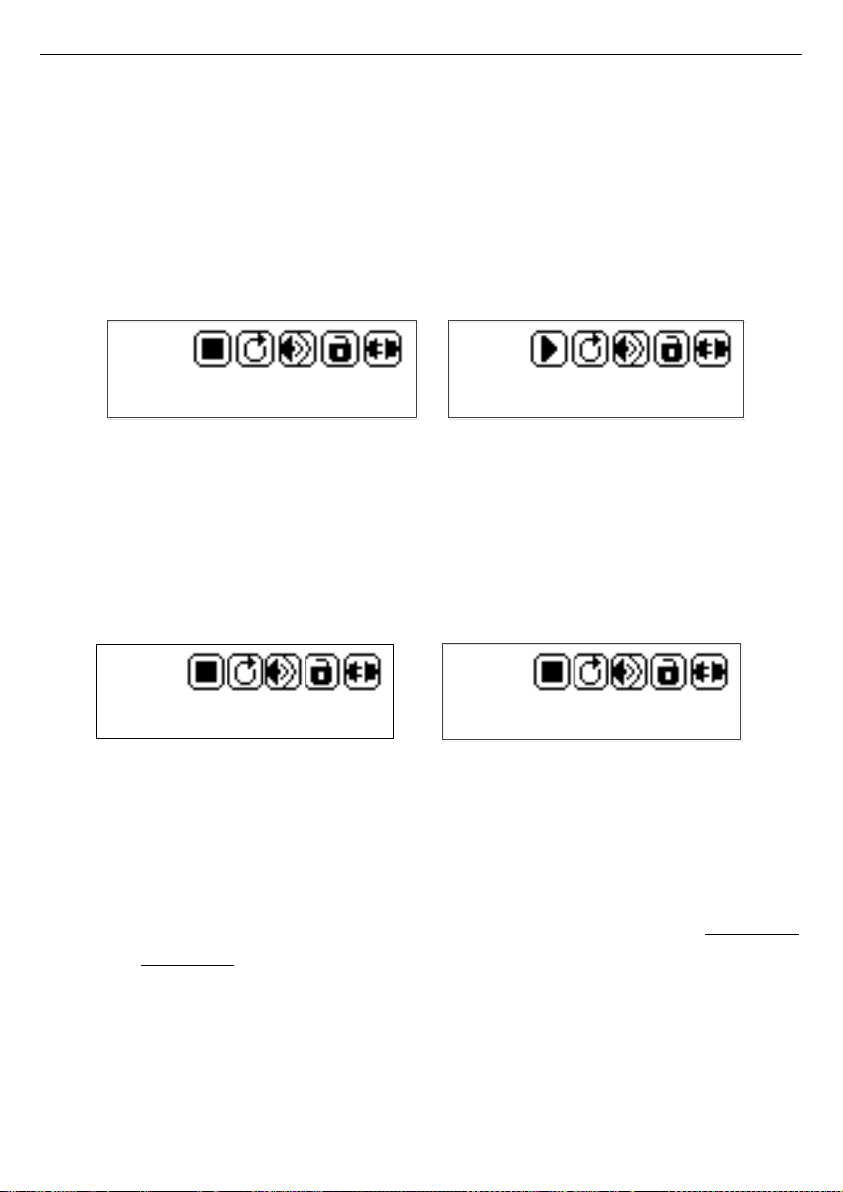

It shows the current drive running state.

BQ80S V2 Variable-Speed Peristaltic Pump
10
Stopped
Running
Paused
Figure 4. Running State
4.2.3 C. Direction State
It shows the current drive direction setting.
Clockwise
Counterclockwise
Figure 5. Direction
4.2.4 Wi-Fi Signal Strength
When Wi-Fi is disabled in System Advanced Parameter Settings, it shows
the state of the key tone, on or off.
Tone on
Tone off
When Wi-Fi is enabled, it shows the Wi-Fi signal strength.
Note: Wi-Fi function is not available for US/European markets.
Excellent
Good
Poor
No Connection
Figure 6. Key Tone State / Wi-Fi Signal Strength
4.2.5 E. Keypad Lock State
It shows the state of the keypad lock. When the keypad is locked, only the
START/STOP key will work. On the main screen, press and hold the

BQ80S V2 Variable-Speed Peristaltic Pump
11
DIRECTION key then release to lock the keypad; press and hold the
DIRECTION key then release to unlock the keypad.
Keypad unlocked
Keypad locked
Figure 7. Keypad Lock
4.2.6 F. Communication State
It shows the current RS485 communication state.
#1
Communication
disconnected
Connected, pump
number is set to 1
Figure 8. Communication state
4.2.7 G. Rotating Speed State
It shows the current rotating speed, rpm. When press the “PRIME: key, the
drive is running at full speed, the display will show “FULL”
.
5Parameter Settings
On the main screen, press the MENU key to enter the setting menu, press
the UP or DOWN key to choose the parameter to adjust, press the
START/STOP key to show the value of the parameter, then use the UP or
DOWN key to adjust the value. Press the START/STOP key to confirm and
back to the setting menu screen. To return the main screen, press and hold
the MENU key or press the MENU key a few times until it goes back to the
main screen.

BQ80S V2 Variable-Speed Peristaltic Pump
12
2.RunTime Unit
Menu
3.Run Time
Menu
4.PauseTime Unit
Menu
Menu
5.Pause Time
6.Cycles
7.Reverse Angle
Menu
Menu
8.Max Speed
Menu
9.Pump NO.
Menu
10.Beep Setting
11.Language
Menu
12.WIFI Reset
Menu
13.Contrast
Menu
14.Reset Circles
Menu
Sec
3.Run Time
4.PauseTime Unit
5.Pause Time
7.Reverse Angle
8.Max Speed
80.0 rpm
9.Pump NO.
# 1
10.Beep Setting
Enable
11.Language
English
12.WIFI Reset
NO
13.Contrast
10
14.Reset Circles
NO
2.RunTime Unit
1.0 Sec
Sec
1.0 Sec
6.Cycles
1
0
Menu
1.Run Mode
Menu
Int
1.Run Mode
Figure 9. Parameter Setting Flow Chart

BQ80S V2 Variable-Speed Peristaltic Pump
13
•1. RunTime Unit: Time unit for the dispense duration of Time Dispense
mode. The unit can be in days, hours, minutes or seconds.
•2. Run Time: Dispense time for Time Dispense mode. It is the dispense
duration for each dose. The range is 0.1-999 seconds/minutes/hours/days.
•3. PauseTime Unit: Time unit for the interval time of Time Dispense mode.
The unit can be in days, hours, minutes or seconds.
•4. Pause Time: Pause time for dispense mode. It is the lag time between
doses when the number of cycles set is more than 1. The range is 0.1-999
seconds/minutes/hours/days.
•5. Cycles: Number of cycles for dispense mode. The range is 0-999 cycles.
When it is set to 0, the dispensing process will keep running until
START/STOP is pressed. When it is set to the other value, the pump will
stop when the set number of dispensing cycles are completed (Figure 17).
•6. Reverse Angle: To minimize the drip after a dispense, the drive can
reverse direction to draw the fluid back at the end of the tubing. The reverse
angle range is 0-720 degrees. When it is set to 0, the anti-drip function is
disabled.
•7. Max Speed: Maximum speed for the External Control Mode. It is the
maximum speed that the external analogue signal can control.
•8. Pump No: It is the pump communication address for the communication
mode. A restart of the drive is required for this to take effect.
•9. Beep Setting: Set the key tone on or off.
•10. Language: System language setting, English or Chinese.
•11. Wifi reset (ignore this setting).
•12. Contrast: LCD backlight contrast setting.
•13. Reset Circles: Recount tubing life after a tubing is installed or replaced.
6System Advanced Parameter Settings
In the main interface, press
MENU
+ key to enter the system parameter
setting interface. In this interface, press key for advanced parameter

BQ80S V2 Variable-Speed Peristaltic Pump
14
selection, press key to enter the submenu, press key to adjust
parameters. To return to the previous menu, press . To return to the main
interface, press
MENU
key.
1.Baud
System
2.Stop Bit
System
3.Parity Mode
System
System
4.Pulse Trigger
5.Level Trigger
6.Ext Control
System
System
7.ACC Time
System
8.DEC Time
System
9.Step-Protect
10.WIFI Set
System
11.Time Set
System
9600
2.Stop Bit
3.Parity Mode
4.Pulse Trigger
6.Ext Control
7.ACC Time
0.5S
8.DEC Time
0.5S
9.Step-Protect
Disable
10.WIFI Set
Disable
11.Time Set
2020/5/6 12:00
1.Baud
1
EVEN
Rising Edge
5.Level Trigger
High level
Voltage 0-5V
System
Figure 10 System advanced parameter setting flow chart

BQ80S V2 Variable-Speed Peristaltic Pump
15
•1. Baud: In the communication mode, set the baud to 4800, 9600, 19200,
38400 (the default is 9600).
•2. Stop Bit: In the communication mode, set the size of the stop bit, which
can be set to 1 and 2 (the default is 1).
•3. Parity Mode: In the communication mode, set the parity type, which can
be set as odd parity, even parity and none parity (the default is even parity).
•4. Pulse Trigger: In Internal Control or Time Dispense mode, set the pulse
trigger type of external control start / stop signal of the driver, which can be
set as rising edge trigger and falling edge trigger (the default is rising edge
trigger).
•5. Level trigger mode: in External Control or Level mode, set the level
trigger type when the driver is controlled externally, which can be set as
high-level trigger and low-level trigger (the default is high-level trigger).
•6. External Control mode: In the External Control mode, set the parameter
type of analog signal to control the driver speed, which can be set to voltage
mode 0-5V, voltage mode 0-10V, and current mode 4-20mA (the driver
speed will change linearly with the change of external control analog signal).
•7. Acceleration time: Set the acceleration time when the drive is started
and running. The unit is seconds (the default value is 0.5 seconds).
•8. Deceleration time: Set the deceleration time when the drive stops
running. The unit is seconds (the default value is 0.5 seconds).
•9. Step-Protect: The setting of step protection is off by default (WIFI version
has this function).
•10. WIFI setting: The WIFI switch of the driver is off by default (WIFI version
has this function).
•11. Time setting: Set the current date and time. Press to change the
set parameters, press to adjust the time, and press to save
and exit.

BQ80S V2 Variable-Speed Peristaltic Pump
16
7External Control Interface
1 2 3 4 5 6 7 8
910 11 12 13 14 15
DB15
Mark
Note
1
ADC_W
Positive of external analogue input
2
B
Communication interface, B pole of
3
A
Communication interface, A pole of
4
VCC_W
External voltage input terminal
5
-
-
6
CW_W
External input signal to control the
7
PWM
Pulse output
8
COM
Ground of external power
9
AGND
Negative of analogue signal input
10
+12V
Positive of internal +12V power
11
GND
Ground of Internal power source
12
CW
Internal direction signal output
13
RS_W
External start/stop signal input
14
-
-
15
-
-
8Operating Instructions
8.1 Before Operation
1) Please check the packing slip to ensure all parts are included and intact
in the package. If there is a problem, please contact the manufacturer
or distributor.
2) Read through the instruction.
3) A minimum of 200 mm space from the back of the pump should be

BQ80S V2 Variable-Speed Peristaltic Pump
17
maintained when it is in operation.
8.2 Power Connection
The voltage of the power supply should match with what is indicated on the
rating plate label of the pump. Please plug the 24V DC power to the
connector on the rear of the pump.
8.3 Mode Change
Power up the pump. The display will show a welcome message then the main
screen. Press the MENU key, the screen will show “Run Mode”, press the
START/STOP key enter the setting for the working mode, then use the UP or
DOWN key to change the working mode (Figure 11).
1.Run Mode
Int
1.Run Mode
Ext
1.Run Mode
Time
1.Run Mode
Lev1
1.Run Mode
Lev2
Int
32.5rpm
1.Run Mode
Int
MENU
1.Run Mode MENU
MENU
Figure 11. Change Working Mode
8.4 Internal Control Mode
Use the keypad to operate the pump. Use an optional external pulse signal to
control the start/stop.

BQ80S V2 Variable-Speed Peristaltic Pump
18
1) Power on the drive. The pump will display the main screen.
2) Use the MENU to change the mode to Internal Control mode (Int shown
on the screen).
3) Press the UP or DOWN key to adjust the speed.
4) Press the DIRECTION key to change the rotating direction.
5) Press the START/STOP key to start or stop the pump.
6) Press the PRIME key, the pump will run at maximum allowed speed.
Int
32.5rpm
Int
FULL
Normal Speed
Priming
Figure 12. Normal vs Priming
8.5 External Control Mode
On this mode, use external logic level signal to control direction, start and stop;
use external analog signal to control rotation speed. The keypad is disabled.
ExtV
0.0rpm
Extl
0.0rpm
For External Voltage Signal
0-5V/0-10V
For External Current Signal
4-20mA
Figure 13. External Control Mode
To control pump by external signal:
1) Power off the pump. Wire the DB15 connector as shown in Figure 14
or Figure 15. Connect it to the DB15 port on the rear of the pump.
