Golander pump BT103S User manual

GOLANDER
BT103S

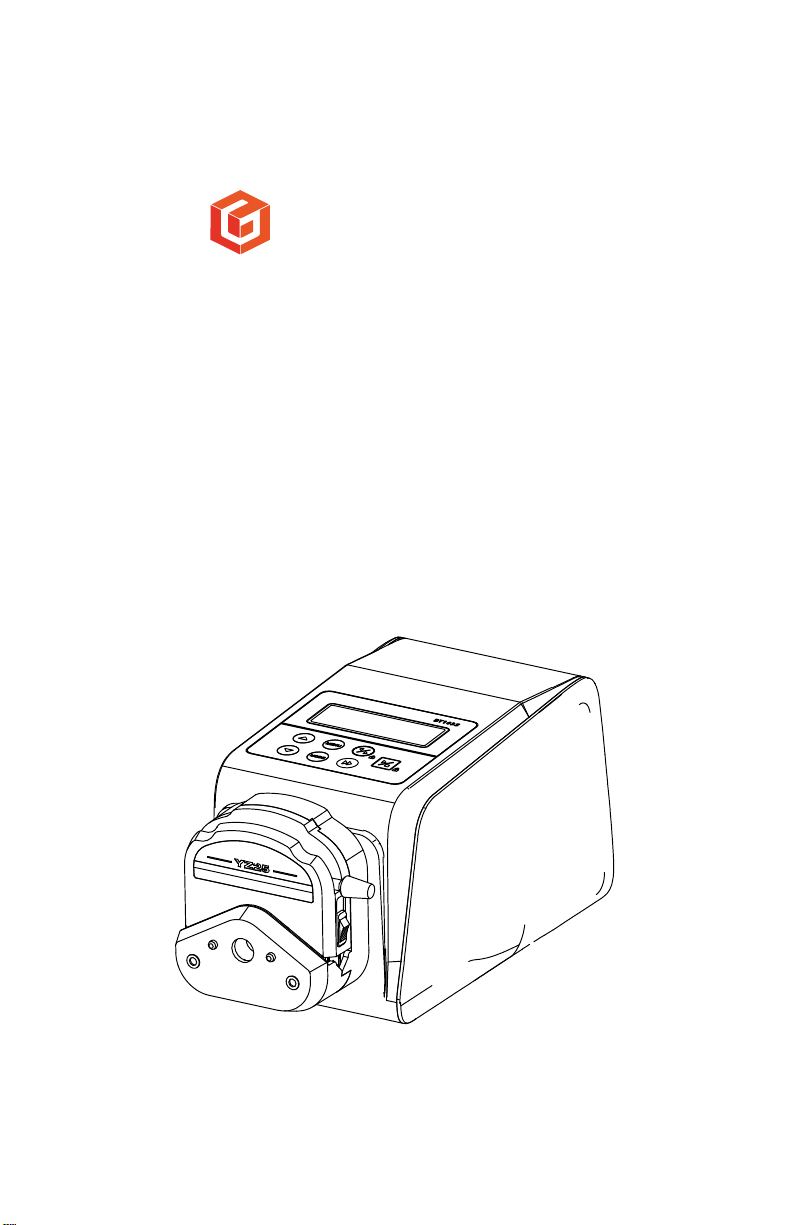

Variable-Speed Peristaltic Pump
Operating Manual

Contents
Safety Precautions................................................................................ 1
1 Description......................................................................................... 6
2 Functions and Features...................................................................... 6
3 Components and Connectors............................................................. 8
4 Display Panel and Operating Keypad................................................. 9
4.1 Keypad..................................................................................... 9
4.2 LCD Screen Display............................................................... 10
5 Parameter Settings .......................................................................... 12
6 External Control Interface................................................................. 15
7 Operation Instructions...................................................................... 15
7.1 Before Operating.................................................................... 15
7.2 Power Connection.................................................................. 16
7.3 Change Control Mode............................................................ 16
7.4 Internal Control Mode............................................................. 16
7.5 External Control Mode............................................................ 17
7.6 Time Dispense Mode.............................................................. 19
7.7 Logic Level 1 Control Mode (footswitch)................................. 20
7.8 Logic Level 2 Control Mode (footswitch and direction switch). 21
7.9 Communication Mode ............................................................ 23
7.10 Set Speed............................................................................ 24
7.11 Wi-Fi Network Setting........................................................... 24
8 Maintenance .................................................................................... 25
8.1 Warranty................................................................................. 25
8.2 Regular Maintenance ............................................................. 25
8.3 Malfunction Solutions............................................................. 26
9 Dimensions...................................................................................... 27
10 Naming Rule .................................................................................. 28
11 Specifications................................................................................. 28

BT103S Peristaltic Pump Manual
1
Safety Precautions
Danger
•Use the correct voltage indicated on the rating plate label of the
pump to avoid any damage.
•Do not make any unauthorized dismantling, changes or
modifications to the pump which could result in malfunctions or
even potential accidents.
•Turn off the pump drive before installing or removing tubing,
attempting any maintenance, cleaning or repair of the drive,
connecting or disconnecting external control devices or a
communication interface. Fingers or loose clothing could get
caught in the drive mechanism.
Warning
•Ensure no chemical reactions occur between the handled fluid
with the material of the pump head and tubing before use.
•Tubing should be checked regularly to avoid breakage. Tubing
breakage may result in fluid being sprayed from the pump. Use
appropriate measures to protect the operator and equipment.
The operator is solely liable for damages resulting from tubing
breakage, particularly the leakage of toxic or valuable liquids.
•The pump is provided with a grounded plug which must be well
grounded at all times.
•This device is not designedfor nor intended for usage in patient-
connected applications, including but not limited to medical and
dental use.
•Observe all other applicable regulations concerning working
safety, operational safety, environmental protection and
relevant local regulations.

BT103S Peristaltic Pump Manual
2
(DE) SICHERHEITSHINWEISE
Gefahr
•Verwenden Sie die richtige Spannung, die auf dem Typenschild der
Pumpe angegeben ist, um Schäden zu vermeiden.
•Nehmen Sie keine unbefugten Demontagen, Änderungen oder
Modifikationen an der Pumpe vor, die zu Fehlfunktionen oder sogar zu
Unfällen führen könnten.
•Schalten Sie den Pumpenantrieb aus, bevor Sie Schläuche ein- oder
ausbauen, Wartungs-, Reinigungs- oder Reparaturarbeiten am Antrieb
vornehmen oder externe Steuergeräte oder eine
Kommunikationsschnittstelle anschließen oder trennen. Finger oder lose
Kleidungsstücke können sich im Antriebsmechanismus verfangen.
Warnung
•Vergewissern Sie sich vor der Verwendung, dass keine chemischen
Reaktionen zwischen dem Fördermedium und dem Material des
Pumpenkopfs und der Schläuche auftreten können.
•Die Schläuche sollten regelmäßig überprüft werden, um Brüche zu
vermeiden. Ein Schlauchbruch kann dazu führen, dass Flüssigkeit aus
der Pumpe spritzt. Ergreifen Sie geeignete Maßnahmen zum Schutz des
Bedieners und der Ausrüstung. Der Betreiber haftet allein für Schäden,
die durch einen Schlauchbruch entstehen, insbesondere für das
Austreten von giftigen oder wertvollen Flüssigkeiten.
•Die Pumpe ist mit einem geerdeten Stecker ausgestattet, der stets korrekt
an eine abgesicherte Netzsteckdose angeschlossen sein muss. Dieses
Gerät ist nicht für Anwendungen ausgelegt oder vorgesehen, die im
Zusammenhang mit der Behandlung von Patienten stehen. Medizinische
bzw. zahnmedizinische Anwendungen sind nicht bestimmungsgemäß.
•Beachten Sie alle anderen geltenden Vorschriften zur Arbeitssicherheit,
zur Betriebssicherheit, zum Umweltschutz sowie die einschlägigen
örtlichen Vorschriften.

BT103S Peristaltic Pump Manual
3
(FR) CONSIGNES DE SÉCURITÉ
Danger
•Utilisez la tension correcte indiquée sur la plaque signalétique de la
pompe afin d'éviter tout dommage.
•Ne procédez pas à des démontages, changements ou modifications
non autorisés de la pompe qui pourraient entraîner des
dysfonctionnements, voire des accidents.
•Mettez l'entraînement de la pompe hors tension avant d'installer ou de
retirer des tuyaux, d'effectuer des travaux d'entretien, de nettoyage
ou de réparation sur l'entraînement ou de connecter ou déconnecter
des dispositifs de commande externes ou une interface de
communication. Des doigts ou des vêtements lâches pourraient se
prendre dans le mécanisme d'entraînement.
Avertissement
•Avant toute utilisation, assurez-vous qu'il n'y a pas de réaction
chimique entre le liquide pompé et le matériau de la tête de pompe et
des tubes.
•Les tuyaux doivent être contrôlés régulièrement pour éviter les
ruptures. Une rupture de tuyau peut entraîner des projections de
liquide hors de la pompe. Prenez les mesures appropriées pour
protéger l'opérateur et l'équipement. L'opérateur est seul responsable
des dommages causés par une rupture de tuyau, notamment en cas
de fuite de liquides toxiques ou précieux.
•La pompe est équipée d'une fiche de mise à la terre qui doit toujours
être bien reliée à la terre.
•Cet appareil n'est pas conçu ni prévu pour être utilisé en présence de
patients, y compris, mais sans s'y limiter, dans le cadre d'applications
médicales et dentaires.
•Respectez toutes les autres réglementations applicables en matière
de sécurité du travail, de sécurité d'exploitation, de protection de
l'environnement.

BT103S Peristaltic Pump Manual
4
(ES) INSTRUCCIONES DE SEGURIDAD
Peligro
•Utilice la tensión correcta indicada en la placa de características de la
bomba para evitar daños.
•No realice ningún desmontaje, cambio o modificación no autorizada
en la bomba que pueda provocar un mal funcionamiento o incluso
accidentes.
•Desconecte el accionamiento de la bomba antes de instalar o retirar
las mangueras, realizar trabajos de mantenimiento, limpieza o
reparación en el accionamiento o conectar o desconectar dispositivos
de control externos o una interfaz de comunicación. Los dedos o la
ropa suelta podrían quedar atrapados en el mecanismo de
accionamiento.
Advertencia
•Antes de usarla, asegúrese de que no hay reacciones químicas entre
el medio bombeado y el material de la cabeza de la bomba y las
mangueras.
•Las mangueras deben ser revisadas regularmente para evitar roturas.
La rotura de una manguera puede hacer que salga líquido de la
bomba. Tome las medidas adecuadas para proteger al operador y al
equipo. El operador es el único responsable de los daños causados
por la rotura de una manguera, especialmente por la fuga de líquidos
tóxicos o valiosos.
•La bomba está equipada con un enchufe con toma de tierra que debe
estar siempre bien conectado a tierra.
•Este aparato no está diseñado ni pensado para su uso en relación
con los pacientes, incluyendo pero sin limitarse a las aplicaciones
médicas y dentales.
•Respetar todas las demás normas aplicables en materia de seguridad
laboral, seguridad operativa y protección del medio ambiente.

BT103S Peristaltic Pump Manual
5
(IT) ISTRUZIONI DI SICUREZZA
Pericolo
•Usare la tensione corretta indicata sull'etichetta della targhetta della
pompa per evitare qualsiasi danno.
•Non eseguire smontaggi, cambiamenti o modifiche non autorizzati alla
pompa che potrebbero causare malfunzionamenti o addirittura
potenziali incidenti.
•Spegnere l'azionamento della pompa prima d'installare o rimuovere
tubi, tentare qualsiasi manutenzione, pulizia o riparazione
dell'azionamento, collegare o scollegare dispositivi di controllo esterni
o un'interfaccia di comunicazione. Dita o indumenti larghi potrebbero
rimanere impigliati nel meccanismo di azionamento.
Attenzione
•Assicurarsi che non si verifichino reazioni chimiche tra il fluido trattato
e il materiale della testa della pompa e dei tubi prima dell'uso.
•I tubi devono essere controllati regolarmente per evitare rotture. La
rottura del tubopuò provocare spruzzi di fluido dalla pompa. Utilizzare
misure appropriate per proteggere l'operatore e l'attrezzatura.
L'operatore è l'unico responsabile dei danni derivanti dalla rottura dei
tubi, in particolare della fuoriuscita di liquidi tossici o preziosi.
•La pompa è dotata di una spina con messa a terra che deve essere
sempre ben collegata a terra.
•Questo dispositivo non è progettato né destinato all'uso in applicazioni
collegate al paziente, incluso ma non limitato all'uso medico e
dentistico.
•Osservare tutte le altre norme applicabili riguardanti la sicurezza sul
lavoro, la sicurezza operativa, la protezione dell'ambiente e le norme
locali pertinenti.

BT103S Peristaltic Pump Manual
6
1Description
The BT103S variable-speed peristaltic pump offers basic functions
such as start/stop, speed control, prime and reversible direction. It
was upgraded with an LCD display, a time dispense mode and an
anti-drip function. With the MODBUS RS 485 interface, it can be
easily controlled by external devices such as PC, HMI or PLC.
BT103S flow range 0.0001-480 mL/min, speed 0.1-100 rpm
2Functions and Features
Peristaltic pumps can handle fluid that is particularly abrasive,
corrosive or viscous. There are no seals in contact with the medium
pumped and no valves to clog. The inner surfaces are smooth and
easy to clean. The fluid contacts only the tubing or tube material.
Suction lift and priming can be up to 8m water column at sea level.
It can handle the most shear sensitive of fluids like latex or
firefighting foam with low shearing. It is capable of running dry and
pumping fluids with high quantities of entrained air, such as black
liquor soap. The high volumetric efficiency allows operation in
metering or dosing applications where high accuracy is required.
Tubing and tube materials are available for food and
pharmaceutical use.
•LCD displays speed and working mode
•Membrane operating keypad.
•Time dispense mode: automatic dispense by setting the
duration for each dose, lag time between doses and the
number of cycles.
•High-precision speed control
•Optional external analog signal controls speed, logic level
signal controls start-stop, and directions. Control signals are

BT103S Peristaltic Pump Manual
7
optically isolated.
•The RS485 MODBUS interface allows easy control
through communication with external devices.
•Internal double-layer isolation structure; circuit board with
conformal coating makes the pump dust- and moisture-
proof.
•Anti-electromagnetic interference feature; wide input
voltage range for complex power environment.
•Plastic housing, easy to clean

BT103S Peristaltic Pump Manual
8
3Components and Connectors
Power Switch
Cooling Fan
DB15 External
Control Interface
Power Connector
LCD Display
Keypad
Pump Head
Mounting Bracket
Coupler

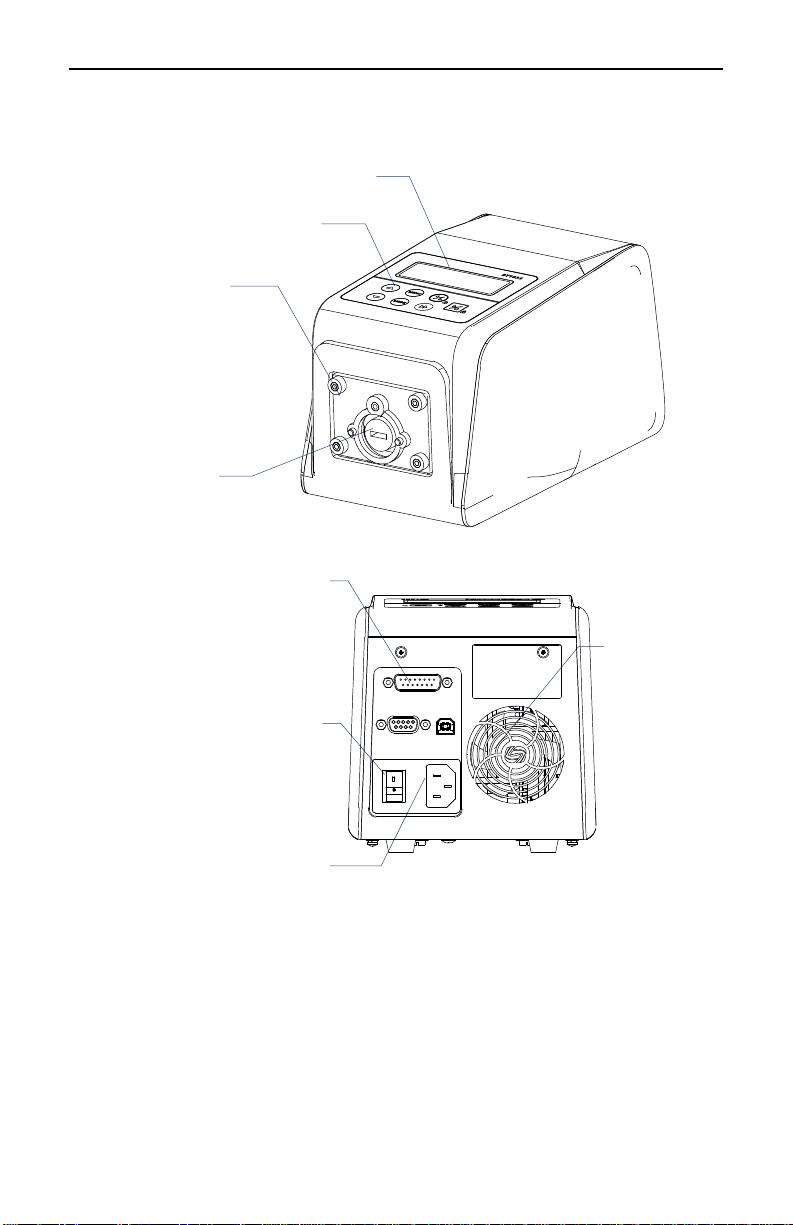

Figure 1. Components and Connectors

BT103S Peristaltic Pump Manual
9
4Display Panel and Operating Keypad
LCD
Display
MENU Key
UP Key
PRIME Key
DIRECTION Key
DOWN Key
MODE Key
START/STOP Key

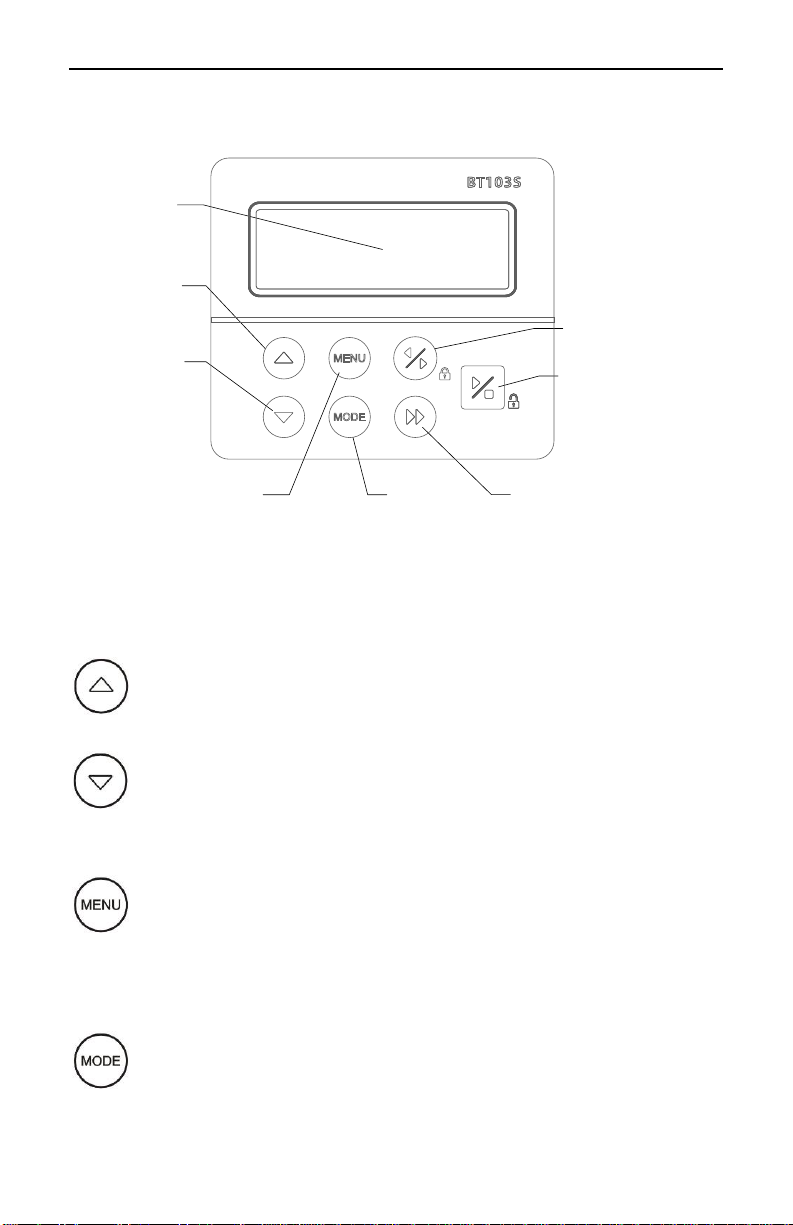

Figure 2. Display Panel
4.1 Keypad
UP Key. When pressing it shortly, the last digit of the value
will increase by 1. Hold the key to increase the value quickly.
DOWN Key. When pressing it shortly, the last digit of the
value will decrease by 1. Hold the key to decrease the value
quickly.
MENU Key. When on the main screen, press the MENU
key to enter the setting menu. When on the setting menu, press
the MENU key to return to the main screen. When the drive is
running, this key is disabled.
MODE key. When the drive is not running, use the MODE
key to change the working mode: Internal Control mode, External

BT103S Peristaltic Pump Manual
10
Control mode, Time Dispense mode, Logic Level 1 control mode
or Logic Level 2 Control mode.
PRIME key. Press the key to run the pump at the maximum
allowed speed in the direction shown on the display. Press again
to return to the previous state.
DIRECTION Key. Press to key to change the drive rotating
direction, clockwise or counterclockwise.
START/STOP key. Control the start and stop of the motor.
When on the setting menu, press this key to enter the submenu.
4.2 LCD Screen Display
Data entry: When the drive is not running, press the number to
input desired value in the pop-up window. See the picture below.
Int 32.5rpm
A B
G
C D E F

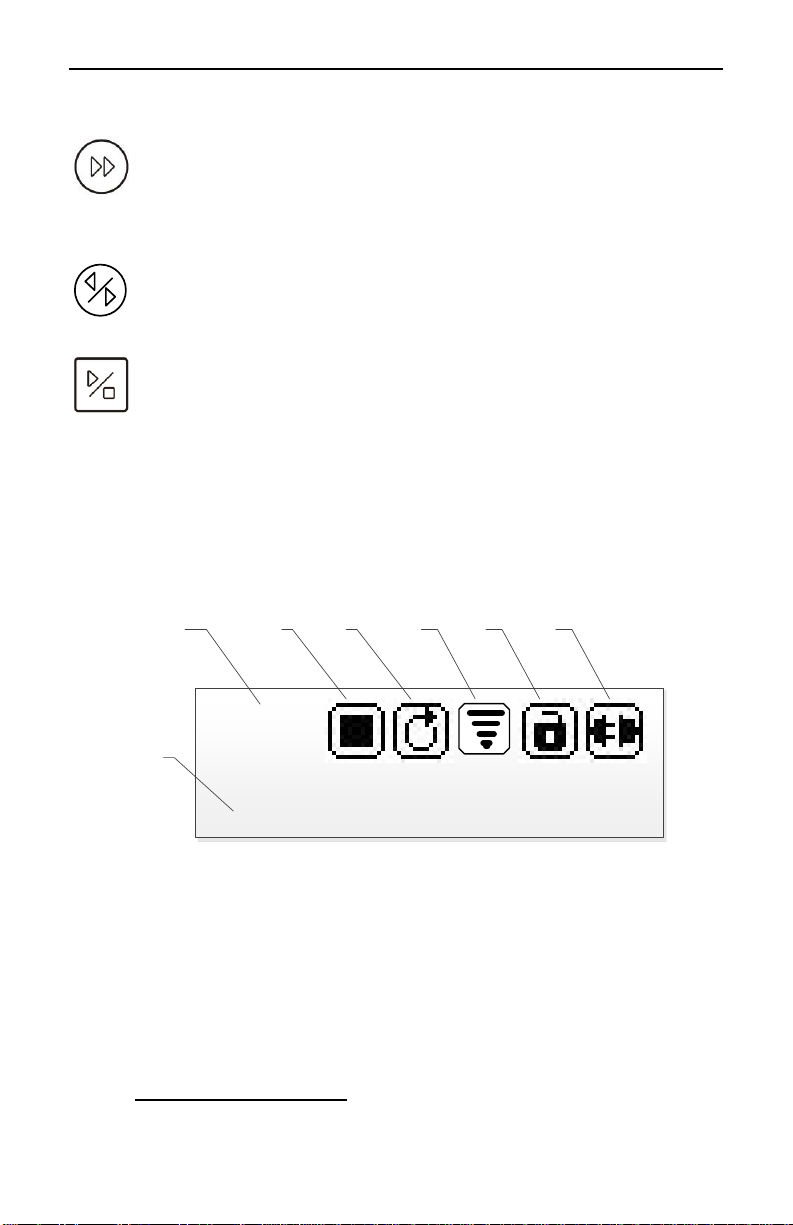

Figure 3. Display screen
4.2.1 A. Control Mode
It displays the current control mode. Press the MODE key to switch
the control mode: Internal Control mode, External Control mode,
Time Dispense mode, Logic Level 1 control mode or Logic Level 2
Control mode.
•Internal Control Mode: Use the keypad to operate the pump.
Use an optional external logic signal to control the start and

BT103S Peristaltic Pump Manual
11
stop.
•External Control Mode: Use an external analog signal to
control rotation speed. Use an external logic signal to control
direction, start and stop. The keypad is disabled.
•Time Dispense Mode: Dispense fluid automatically by setting
the duration for each dose, the time between doses and the
number of cycles.
•Logic Level 1 Control Mode (footswitch): Use an external
logic signal to control the start and stop. Use the keypad to
control direction and speed.
•Logic Level 2 Control Mode (footswitch and direction
switch): Use an external logic signal to control start, stop
and direction. Use the keypad to adjust speed.
4.2.2 B. Running State
It shows the current drive running state.
Stopped
Running
Paused
Figure 4. Running State
4.2.3 C. Direction State
It shows the current drive direction setting.
Clockwise
Counterclockwise
Figure 5. Direction
4.2.4 D. Wi-Fi Signal Strength
Displays the current Wi-Fi signal strength (Wi-Fi function not
available for US and European markets).

BT103S Peristaltic Pump Manual
12
Excellent
Good
Poor
No Connection

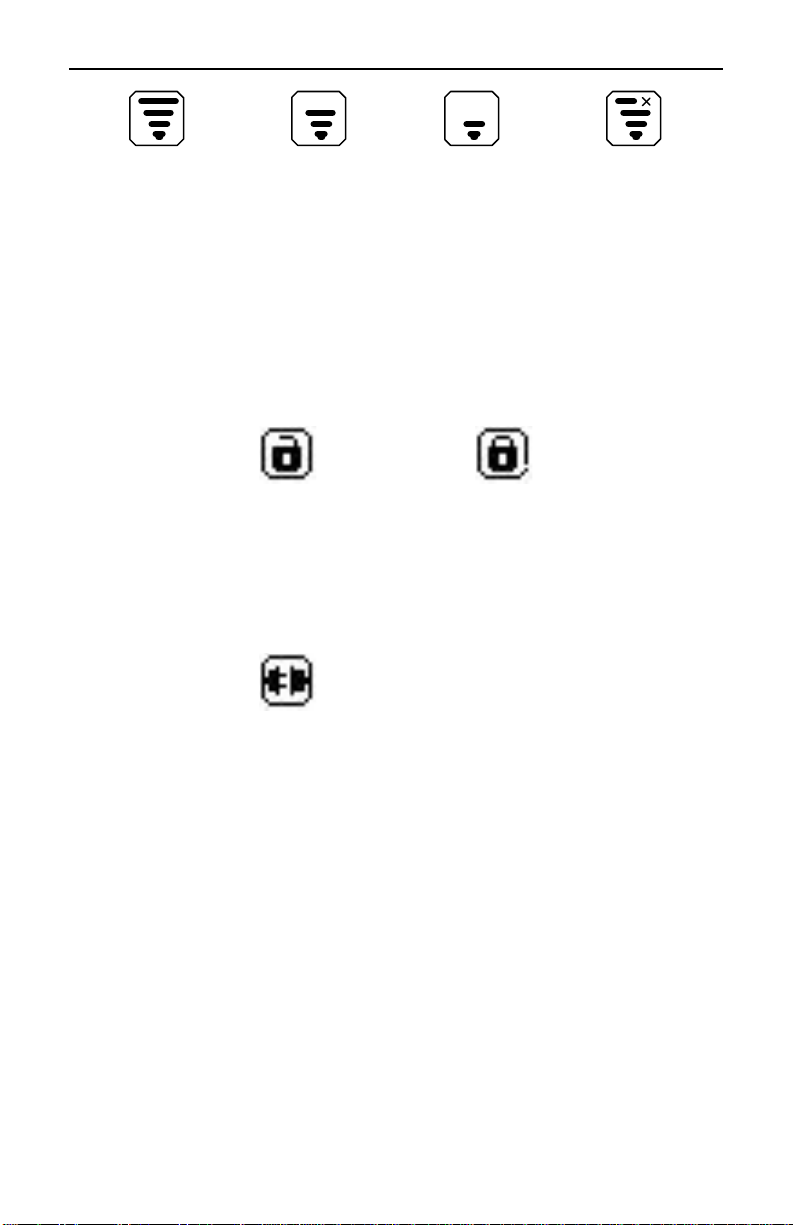

Figure 6. Wi-Fi Signal Strength
4.2.5 E. Keypad Lock Status
It shows the state of the keypad lock. When the keypad is locked,
only the START/STOP key will work. On the main screen, press and
hold the DIRECTION key to lock the keypad; press and hold the
START/STOP key to unlock the keypad.
Keypad unlocked
Keypad locked
Figure 7. Keypad Lock
4.2.6 F. Communication State
It shows the current RS485 Modbus communication state.
#1
Communication
disconnected
Connected, pump
number is set to 1
Figure 8. Communication state
4.2.7 G. Rotating Speed State
It shows the current rotating speed, rpm. When the drive is running
at full speed (prime), the display will be >>>>>>>.
5Parameter Settings
On the main screen, press the MENU key to enter the setting
menu, press the UP or DOWN key to choose the parameter to
adjust, press the START/STOP key to show the value of the
parameter, and use the UP or DOWN key to adjust the value.

BT103S Peristaltic Pump Manual
13
Press the START/STOP key to confirm and back to the setting
menu screen. To return to the main screen, press and hold the
MENU key or press the MENU key a few times until it goes back
to the main screen.
1.Run Time Unit
Menu
2.Disp Time
Menu
3.Pause Time Unit
Menu
Menu
4.Pause Time
5.Cycles
6.Reverse Angle
Menu
Menu
7.Max Speed
Menu
8.Pump NO
Menu
9.Beep Setting
10.Language
Menu
11.WIFI Reset
Menu
12.Contrast
Menu
13.Reset Circles
Menu
Second
2. Disp Time
3.Pause Time Unit
4.Pause Time
6.Reverse Angle
7.Max Speed
600 rpm
8.Pump NO
# 1
9.Beep Setting
Enable
10.Language
English
11.WIFI Reset
NO
12.Contrast
10
13.Reset Circles
NO
1.Run Time Unit
1.0 second
Second
10second
5.Cycles
10
2
Menu
Figure 9. Parameter Setting Flow Chart

BT103S Peristaltic Pump Manual
14
Note 1. Run Time Unit: Time unit for the dispense duration of
Time Dispense mode. The unit can be in days, hours, minutes
or seconds.
Note 2. Disp Time: Dispense time for Time Dispense mode. It
is the dispense duration for each dose. The range is 0.1-999
seconds/minutes/hours/days.
Note 3. Pause Time Unit: Time unit for the interval time of Time
Dispense mode. The unit can be in days, hours, minutes or
seconds.
Note 4. Pause time for dispense mode. It is the interval time
between doses when the number of cycles is set to more than
1. The range is 0.1-999 seconds/minutes/hours/days.
Note 5. Cycle: Number of cycles under the Time Dispense
mode. The range is 0-999 cycles. If it is set to 0, the dispensing
process will keep running until START/STOP is pressed.
Otherwise, the pump will only stop when it finishes dispensing
the set number of cycles (Figure 17).
Note 6. Reverse Angle: To minimize the drip after a dispense,
the drive can reverse direction to draw the fluid back at the end
of the tubing. The reverse angle range is 0-720 degrees. When
it is set to 0, the anti-drip function is disabled.
Note 7. Max Speed: Maximum speed for External Control mode.
It is the maximum speed that the external analog signal can
control.
Note 8. Pump No: It is the pump communication address for
communication mode. When the number is changed, please
restart the pump to apply the setting.
Note 9. Beep Setting: Set the key tone on or off.
Note10.Language: System language setting, English or
Chinese.
Note 11.WIFI Reset: Reset WIFI to link the drive to APP.
Note 12.Contrast: LCD backlight contrast setting.
Note 13.Reset tubing life: after replacing a tubing, the tubing
life needs to be reset and the tubing life will be recounted.

BT103S Peristaltic Pump Manual
15
6External Control Interface
1 2 3 4 5 6 7 8
910 11 12 13 14 15
DB15
Mark
Note
1
ADC_W
Positive of external analog input
2
B
Communication interface, B pole of RS485
3
A
Communication interface, A pole of RS485
4
VCC_W
External DC power input
5
6
CW_W
External input signal to control the direction
7
PWM
Pulse output
8
COM
Ground of external power
9
AGND
Negative of analog signal input
10
+12V
Positive of internal +12V power source
11
GND
Ground of Internal power source
12
CW
Internal direction signal output
13
RS_W
External start/stop signal input terminal
14
PWM_W
External pulse signal input
15
RS
Internal start/stop signal output
7Operation Instructions
7.1 Before Operating
1) Please check the packing slip to ensure all parts are
included and intact in the package. If there is a problem,
please contact the manufacturer or distributor.
2) Read through the instruction.
3) A minimum of 200 mm space from the back of the pump
should be maintained when it is in operation.

BT103S Peristaltic Pump Manual
16
7.2 Power Connection
The voltage of the power supply should match what is indicated on
the rating plate label of the pump. Please plug the power cord into
the IEC Power Connector on the rear of the pump and plug the
opposite end of the power cord into an electrical outlet. Flip the
power switch located on the rear of the pump.
7.3 Change Control Mode
Turn on the power switch. The display will show a welcome
message and then show the main screen. Press the MODE key to
change the working mode (Figure 10).
Int
32.5rpm
ExtV
32.5rpm
Disp
32.5rpm
Lev1
32.5rpm
Lev2
32.5rpm

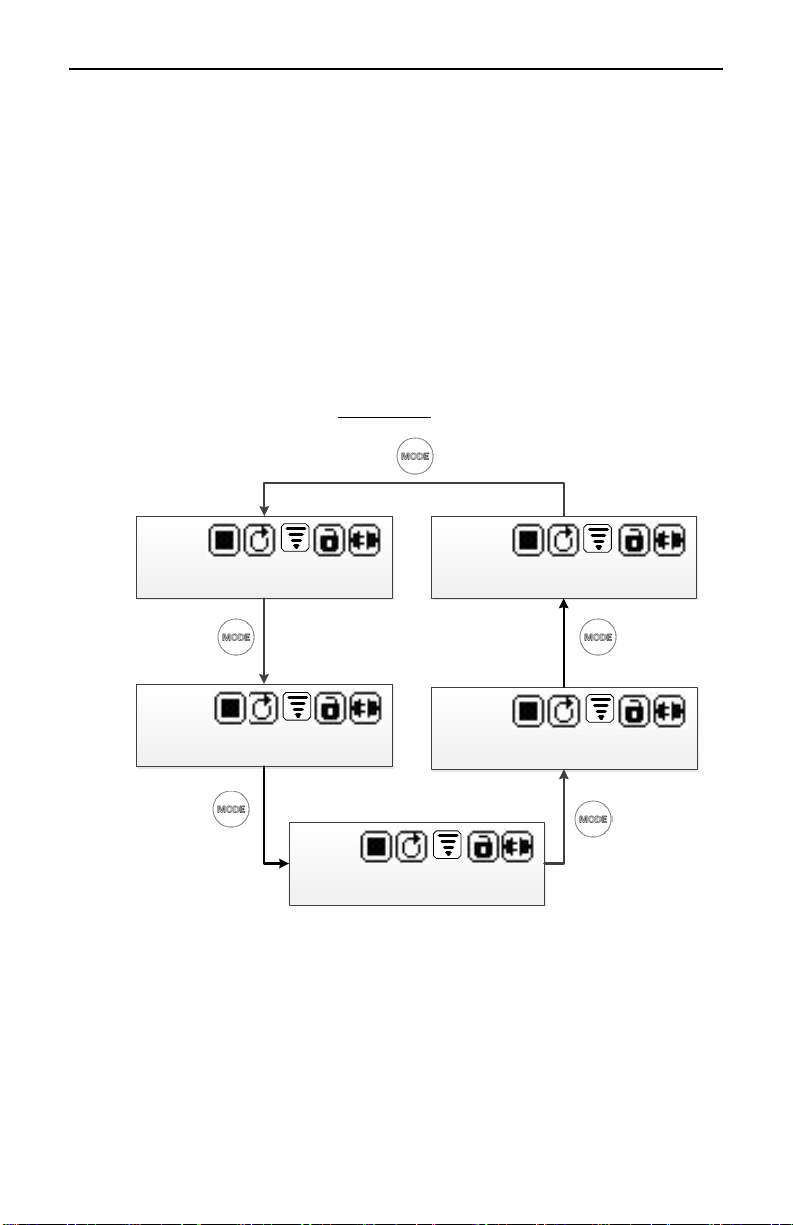

Figure 10. Change Working Mode
7.4 Internal Control Mode
Use thekeypad to operate the pump. Use an optional external pulse
signal to control the start and stop.
1) Turn on the power switch. The pump will display the main
screen.

BT103S Peristaltic Pump Manual
17
2) Press the MODE key to change the mode to Internal Control
mode (Int shown on the screen).
3) Press the UP or DOWN key to adjust the speed.
4) Press the DIRECTION key to change the rotating direction.
5) Press the START/STOP key to start or stop the pump.
6) Press the PRIME key, the pump will run at the maximum
allowed speed.
Int 32.5rpm
Int >>>>>>
Normal Speed
Full Speed
Figure 11. Normal vs Full Speed
7.5 External Control Mode
In this mode, use an external logic level signal to control direction,
start and stop; use an external analog signal to control rotation
speed. The keypad is disabled.
ExtV 0.0rpm
Extl 0.0rpm
For External Voltage Signal
0-5V/0-10V
For External Current Signal
4-20mA
Figure 12. External Control Mode
To control the pump by external signal:
1) Switch the power off. Wire the DB15 connector as shown in
Figure 13 or Figure 14. Connect it to the DB15 port on the
rear of the pump.

BT103S Peristaltic Pump Manual
18
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15
ADC_W AGND
0-5V/0-10V
/4-20mA 12VDC
VCC_W COM
RS_W
CW_W

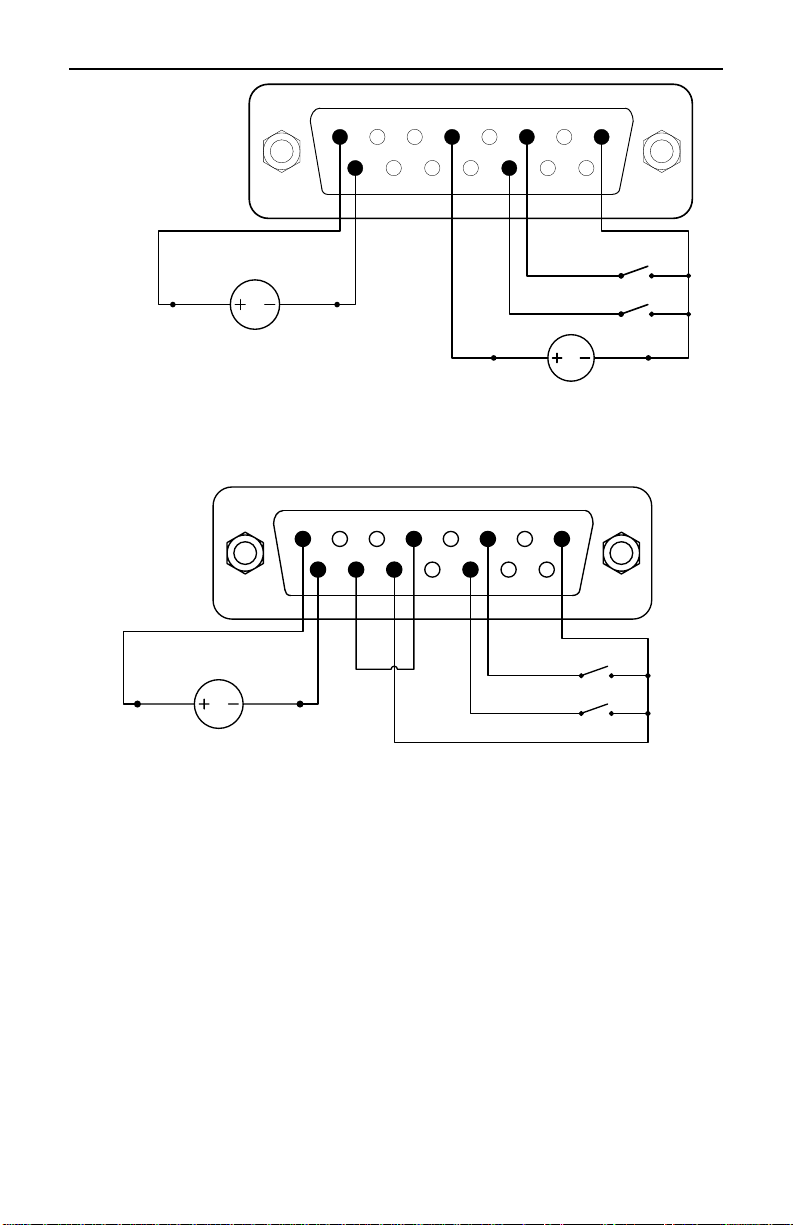

Figure 13. DB15 Wiring with External 12VDC Power Source
1 2 3 4 5 6 7 8
910 11 12 13 14 15
ADC_W AGND
0-5V/0-10V
/4-20mA
RS_W
CW_W
Figure 14. DB15 Wiring with Internal 12VDC Power Source
2) Turn on the power switch. The pump will display the main
screen.
3) Press the MODE key to change the mode to External
Control mode (ExtV or ExtI shown on the screen).
4) Close the external RS_W switch, and turn on the external
analog signal power source. The speed will change
according to the intensity of the input signal. Open the
RS_W to stop the drive.
5) Open the CW_W switch, the pump will run in a clockwise
