Golander pump BT100F User manual

GOLANDER
BT100F/300F/600F
Intelligent Dispensing Peristaltic Pump
Operating Manual

Contents
Safety Precautions ..................................................................................1
1 Description ...........................................................................................6
2 Functions and Features........................................................................6

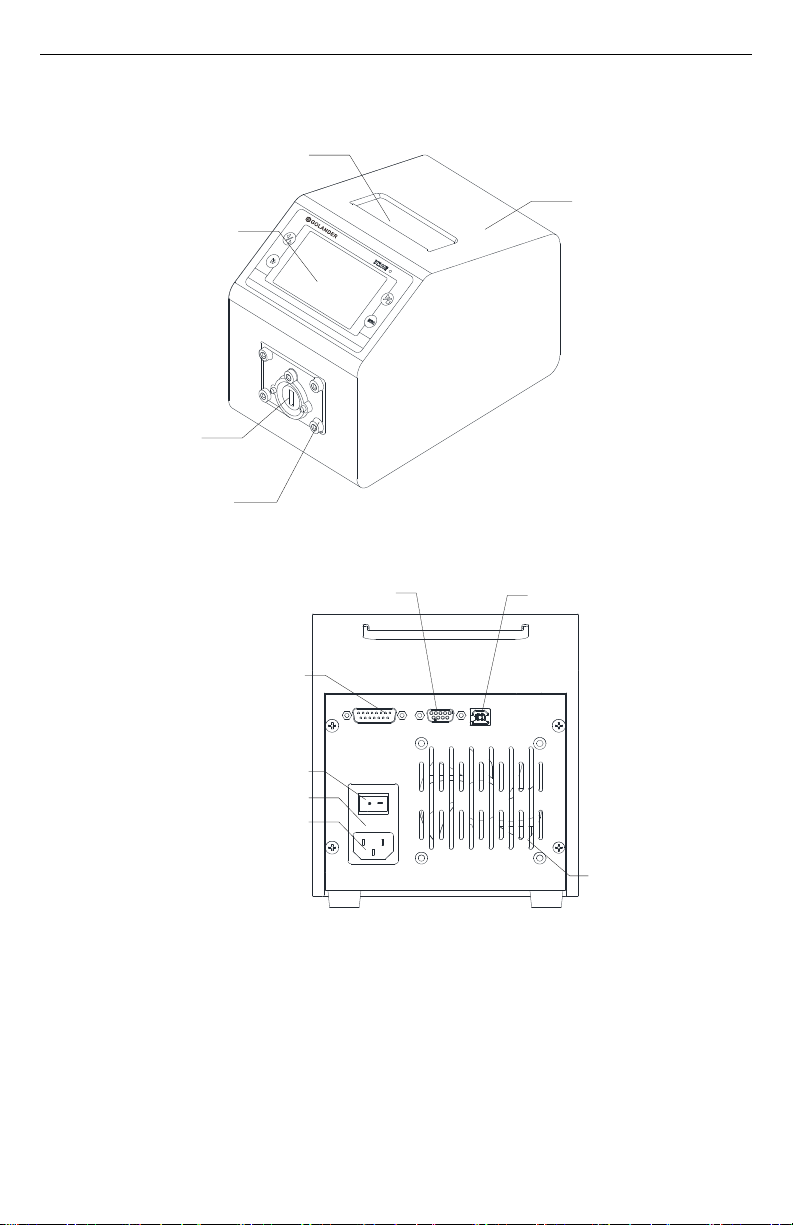

3 Components and Connectors...............................................................8
4 Display Panel and Operating Keypad...................................................9

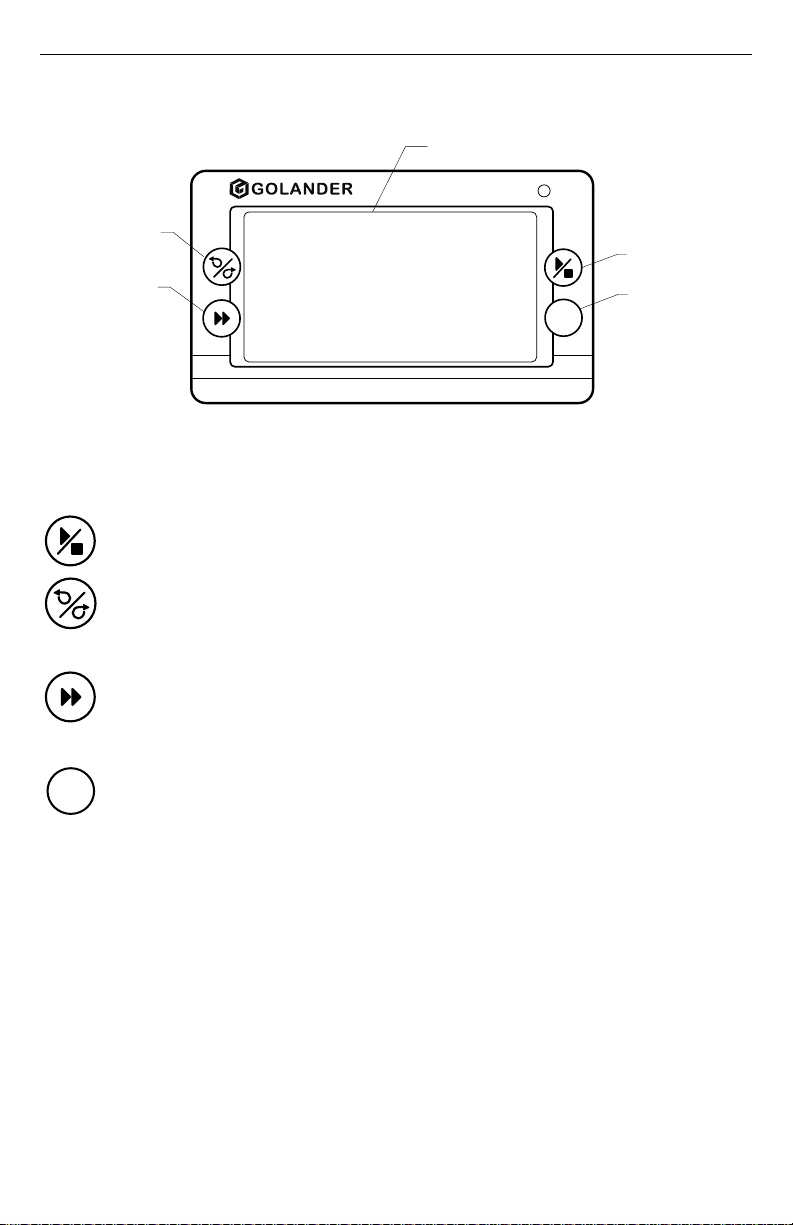

4.1 Keypad .......................................................................................9
4.2 LCD Touch Screen Display ......................................................10

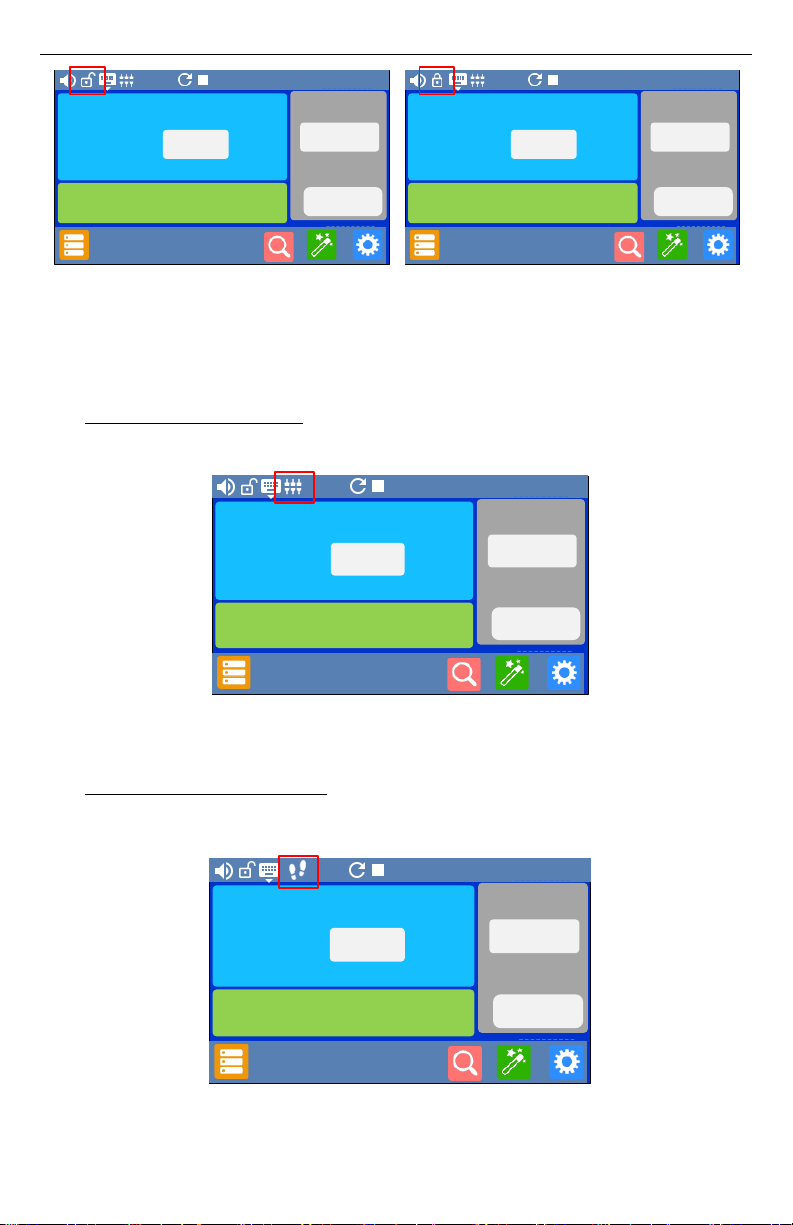

4.3 Status bar.................................................................................10
5 Operation zone...................................................................................14
6 Navigation Buttons .............................................................................15
7 External Control Interface...................................................................25
8 Operation Instructions ........................................................................26
8.1 Before Operation......................................................................26
8.2 Power Connection....................................................................26
8.3 First Run Wizard.......................................................................27
8.4 Working Mode ..........................................................................29
8.5 External Control Mode .............................................................34
8.6 Communication mode ..............................................................36
8.7 Footswitch ................................................................................38
9 Maintenance.......................................................................................40
9.1 Warranty...................................................................................40
9.2 Regular Maintenance ...............................................................40
9.3 Malfunction Solutions ...............................................................40
10 Dimensions.......................................................................................42
11 Naming Rule.....................................................................................42
12 Specifications ...................................................................................43

BT100F/BT300F/BT600F Peristaltic Pump
1
Safety Precautions
Danger
•Use the correct voltage indicated on the rating plate label of the pump
to avoid any damage.
•Do not make any unauthorized dismantling, changes or modifications
to the pump which could result in malfunctions or even potential
accidents.
•Turn off the pump drive before installing or removing tubing,
attempting any maintenance, cleaning or repair of the drive,
connecting or disconnecting external control devices or a
communication interface. Fingers or loose clothing could get caught
in the drive mechanism.
Warning
•Ensure no chemical reactions occur between the handled fluid with
the material of the pump head and tubing before use.
•Tubing should be checked regularly to avoid breakage. Tubing
breakage may result in fluid being sprayed from the pump. Use
appropriate measures to protect the operator and equipment. The
operator is solely liable for damages resulting from tubing breakage,
particularly the leakage of toxic or valuable liquids.
•The pump is provided with a grounded plug which must be well
grounded at all times.
•This device is not designed for nor intended for usage in patient
connected applications, including but not limited to medical and dental
use.
•Observe all other applicable regulations concerning working safety,
operational safety, environmental protection and relevant local
regulations.

BT100F/BT300F/BT600F Peristaltic Pump
2
(DE) SICHERHEITSHINWEISE
Gefahr
•Verwenden Sie die richtige Spannung, die auf dem Typenschild der Pumpe
angegeben ist, um Schäden zu vermeiden.
•Nehmen Sie keine unbefugten Demontagen, Änderungen oder
Modifikationen an der Pumpe vor, die zu Fehlfunktionen oder sogar zu
Unfällen führen könnten.
•Schalten Sie den Pumpenantrieb aus, bevor Sie Schläuche ein- oder
ausbauen, Wartungs-, Reinigungs- oder Reparaturarbeiten am Antrieb
vornehmen oder externe Steuergeräte oder eine
Kommunikationsschnittstelle anschließen oder trennen. Finger oder lose
Kleidungsstücke können sich im Antriebsmechanismus verfangen.
Warnung
•Vergewissern Sie sich vor der Verwendung, dass keine chemischen
Reaktionen zwischen dem Fördermedium und dem Material des
Pumpenkopfs und der Schläuche auftreten können.
•Die Schläuche sollten regelmäßig überprüft werden, um Brüche zu
vermeiden. Ein Schlauchbruch kann dazu führen, dass Flüssigkeit aus der
Pumpe spritzt. Ergreifen Sie geeignete Maßnahmen zum Schutz des
Bedieners und der Ausrüstung. Der Betreiber haftet allein für Schäden, die
durch einen Schlauchbruch entstehen, insbesondere für das Austreten von
giftigen oder wertvollen Flüssigkeiten.
•Die Pumpe ist mit einem geerdeten Stecker ausgestattet, der stets korrekt
an eine abgesicherte Netzsteckdose angeschlossen sein muss. Dieses
Gerät ist nicht für Anwendungen ausgelegt oder vorgesehen, die im
Zusammenhang mit der Behandlung von Patienten stehen. Medizinische
bzw. zahnmedizinische Anwendungen sind nicht bestimmungsgemäß.
•Beachten Sie alle anderen geltenden Vorschriften zur Arbeitssicherheit, zur
Betriebssicherheit, zum Umweltschutz sowie die einschlägigen örtlichen
Vorschriften.

BT100F/BT300F/BT600F Peristaltic Pump
3
(FR) CONSIGNES DE SÉCURITÉ
Danger
•Utilisez la tension correcte indiquée sur la plaque signalétique de la pompe
afin d'éviter tout dommage.
•Ne procédez pas à des démontages, changements ou modifications non
autorisés de la pompe qui pourraient entraîner des dysfonctionnements,
voire des accidents.
•Mettez l'entraînement de la pompe hors tension avant d'installer ou de retirer
des tuyaux, d'effectuer des travaux d'entretien, de nettoyage ou de
réparation sur l'entraînement ou de connecter ou déconnecter des dispositifs
de commande externes ou une interface de communication. Des doigts ou
des vêtements lâches pourraient se prendre dans le mécanisme
d'entraînement.
Avertissement
•Avant toute utilisation, assurez-vous qu'il n'y a pas de réaction chimique
entre le liquide pompé et le matériau de la tête de pompe et des tubes.
•Les tuyaux doivent être contrôlés régulièrement pour éviter les ruptures. Une
rupture de tuyau peut entraîner des projections de liquide hors de la pompe.
Prenez les mesures appropriées pour protéger l'opérateur et l'équipement.
L'opérateur est seul responsable des dommages causés par une rupture de
tuyau, notamment en cas de fuite de liquides toxiques ou précieux.
•La pompe est équipée d'une fiche de mise à la terre qui doit toujours être
bien reliée à la terre.
•Cet appareil n'est pas conçu ni prévu pour être utilisé en présence de
patients, y compris, mais sans s'y limiter, dans le cadre d'applications
médicales et dentaires.
•Respectez toutes les autres réglementations applicables en matière de
sécurité du travail, de sécurité d'exploitation, de protection de
l'environnement.

BT100F/BT300F/BT600F Peristaltic Pump
4
(ES) INSTRUCCIONES DE SEGURIDAD
Peligro
•Utilice la tensión correcta indicada en la placa de características de la bomba
para evitar daños.
•No realice ningún desmontaje, cambio o modificación no autorizada en la
bomba que pueda provocar un mal funcionamiento o incluso accidentes.
•Desconecte el accionamiento de la bomba antes de instalar o retirar las
mangueras, realizar trabajos de mantenimiento, limpieza o reparación en el
accionamiento o conectar o desconectar dispositivos de control externos o
una interfaz de comunicación. Los dedos o la ropa suelta podrían quedar
atrapados en el mecanismo de accionamiento.
Advertencia
•Antes de usarla, asegúrese de que no hay reacciones químicas entre el
medio bombeado y el material de la cabeza de la bomba y las mangueras.
•Las mangueras deben ser revisadas regularmente para evitar roturas. La
rotura de una manguera puede hacer que salga líquido de la bomba. Tome
las medidas adecuadas para proteger al operador y al equipo. El operador
es el único responsable de los daños causados por la rotura de una
manguera, especialmente por la fuga de líquidos tóxicos o valiosos.
•La bomba está equipada con un enchufe con toma de tierra que debe estar
siempre bien conectado a tierra.
•Este aparato no está diseñado ni pensado para su uso en relación con los
pacientes, incluyendo pero sin limitarse a las aplicaciones médicas y
dentales.
•Respetar todas las demás normas aplicables en materia de seguridad
laboral, seguridad operativa y protección del medio ambiente.

BT100F/BT300F/BT600F Peristaltic Pump
5
(IT) ISTRUZIONI DI SICUREZZA
Pericolo
•Usare la tensione corretta indicata sull'etichetta della targhetta della pompa
per evitare qualsiasi danno.
•Non eseguire smontaggi, cambiamenti o modifiche non autorizzati alla
pompa che potrebbero causare malfunzionamenti o addirittura potenziali
incidenti.
•Spegnere l'azionamento della pompa prima d'installare o rimuovere tubi,
tentare qualsiasi manutenzione, pulizia o riparazione dell'azionamento,
collegare o scollegare dispositivi di controllo esterni o un'interfaccia di
comunicazione. Dita o indumenti larghi potrebbero rimanere impigliati nel
meccanismo di azionamento.
Attenzione
•Assicurarsi che non si verifichino reazioni chimiche tra il fluido trattato e il
materiale della testa della pompa e dei tubi prima dell'uso.
•I tubi devono essere controllati regolarmente per evitare rotture. La rottura
del tubo può provocare spruzzi di fluido dalla pompa. Utilizzare misure
appropriate per proteggere l'operatore e l'attrezzatura. L'operatore è l'unico
responsabile dei danni derivanti dalla rottura dei tubi, in particolare della
fuoriuscita di liquidi tossici o preziosi.
•La pompa è dotata di una spina con messa a terra che deve essere sempre
ben collegata a terra.
•Questo dispositivo non è progettato né destinato all'uso in applicazioni
collegate al paziente, incluso ma non limitato all'uso medico e dentistico.
•Osservare tutte le altre norme applicabili riguardanti la sicurezza sul lavoro,
la sicurezza operativa, la protezione dell'ambiente e le norme locali pertinenti.

BT100F/BT300F/BT600F Peristaltic Pump
6
1Description
BT-F series of intelligent dispensing peristaltic pumps are designed for
precise metering and quantitative dispensing of liquids and to realize
high-precision flow transmission. The latest version of this series
adopted a larger true color LCD touch screen to improve the ease of
use and to allow a more comprehensive information display. The new
loop dispense mode enables more complex experimental processes by
customising the cycle control process to meet different experimental
requirements. More settings were added to the RS485 MODBUS
interface for more effective communication with external devices.
BT-F series includes
•BT100F, flow rate: 0.00011-720 mL/min, speed: 0.1-150 rpm
•BT300F, flow rate: 0.006-1600 mL/min, speed: 0.1-350 rpm
•BT600F, flow rate: 0.006-2900 mL/min, speed: 0.1-600 rpm
2Functions and Features
Peristaltic pumps can handle fluid that is particularly abrasive, corrosive
or viscous. There are no seals in contact with the medium pumped and
no valves to clog. The inner surfaces are smooth and easy to clean. The
fluid contacts only the tubing or tube material. Suction lift and priming can
be up to 8m water column at sea level. It can handle the most shear
sensitive of fluids like latex or firefighting foam with low shearing. It is
capable of running dry and pumping fluids with high quantities of
entrained air, such as black liquor soap. The high volumetric efficiency
allows operation in metering or dosing applications where high accuracy
is required. Tubing and tube materials are available for food and
pharmaceutical use.
•Color LCD display, touch screen and operating keypad.
•Reversible direction, start/stop control and adjustable speed.
•0.2% high precision rotating speed control with 0.1 rpm speed

BT100F/BT300F/BT600F Peristaltic Pump
7
•Flow display and calibration.
•Three dispense modes: Time Dispense Mode, Volume Dispense
Mode, Loop Dispense Mode.
•Store 5 groups of working parameters for 4 work modes (flow
mode and three dispense modes)
•Store 30 groups of working parameters for loop dispense mode
•Intelligent temperature control
•WIFI function (optional)
•An external logic level signal can control start/stop, direction and
easy dispense functions; an external analog signal can adjust
the rotating speed. The signal is optically isolated.
•With the RS485 MODBUS interface, the pump can be easily
controlled by external devices.
•Internal double-deck isolation structure; circuit board with
conformal coating for dust- and moisture-proof.
•Anti-electromagnetic interference feature and wide input voltage
range for complex power environment.
•Stainless steel enclosure, easy to clean, resistant to the
corrosion of the acid, alkali, sodium and organic solvents.

BT100F/BT300F/BT600F Peristaltic Pump
8
3Components and Connectors
Handle
Color LCD
Touch Screen
Coupler
Pump Head
Mounting Bracket
Driver
DB15 External
Control Interface
RS232
Power Switch
Fuse
Power Connector
Cooling Fan
USB
Figure 1. Components and Connectors

BT100F/BT300F/BT600F Peristaltic Pump
9
4Display Panel and Operating Keypad
MODE
DIRECTION
PRIME
LCD DISPLAY
MODE
BT600F
START/STOP
Figure 2. Display Panel
4.1 Keypad
START/STOP key. Press to start or stop the pump.
DIRECTION Key. Press to change the drive's rotating direction,
clockwise or counterclockwise.
PRIME key. Press the key to run the pump at full speed. Press it
again to return to the previous state.
M O DE
MODE key. When the pump is not running, use the MODE key to
change the working mode. Use the MODE key to change the
display content when the keypad is locked.

BT100F/BT300F/BT600F Peristaltic Pump
10
4.2 LCD Touch Screen Display
34℃12:35:46
Flow
Delayed Start
Speed rpm
FLOW
9.000 mL/min
150.0
00:00:00
00:00:00
Status bar
Navigation
button
Operation
display
Delayed Stop
Figure 3. Main screen
4.3 Status bar
A. Tone.
34℃12:35:46
9.000
150.0
00:00:00
00:00:00
Flow
Delayed Start
Speed rpm
FLOW
uL/min
Delayed Stop
34℃12:35:46
9.000
150.0
00:00:00
00:00:00
Flow
Delayed Start
Speed rpm
FLOW
uL/min
Delayed Stop
Tone on Tone off
Figure 4 Key Tone
B. Keypad Lock. When the keypad is locked, the control mode and
system parameter settings cannot be changed.

BT100F/BT300F/BT600F Peristaltic Pump
11
34℃12:35:46
9.000
150.0
00:00:00
00:00:00
Flow
Delayed Start
Speed rpm
FLOW
uL/min
Delayed Stop
34℃12:35:46
9.000
150.0
00:00:00
00:00:00
Flow
Delayed Start
Speed rpm
FLOW
uL/min
Delayed Stop
Keypad unlocked Keypad locked
Figure 5 Keypad Lock
C. Control Modes.
Internal Control Mode: The pump is controlled by the keypad and
touch screen.
34℃12:35:46
9.000
150.0
00:00:00
00:00:00
Flow
Delayed Start
Speed rpm
FLOW
uL/min
Delayed Stop
Figure 6 Internal Control Mode
Footswitch Control Mode. A footswitch controls the start/up, while the
keypad and touch screen control other parameters.
34℃12:35:46
9.000
150.0
00:00:00
00:00:00
Flow Delayed Start
Speed rpm
FLOW
uL/min
Delayed Stop
Figure 7 Footswitch Control Mode

BT100F/BT300F/BT600F Peristaltic Pump
12
Current Control Mode: An external 4-20mA analog current signal
controls the flow rate. An external logic level signal controls the
start/stop. The keypad is disabled.
34℃12:35:46
9.000
150.0
0.0
600.0
Flow
4mA Speed
Speed rpm
FLOW
uL/min
20mA Speed
Figure 8 Current Control Mode

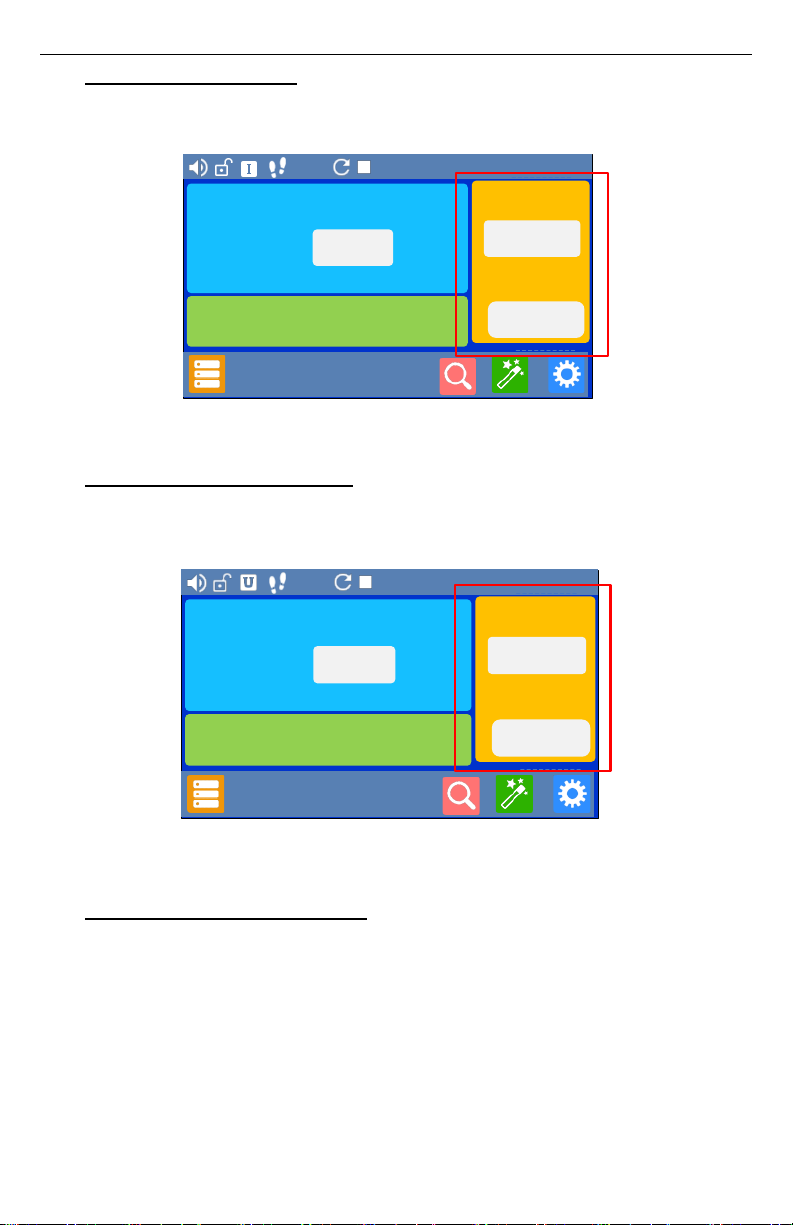

Voltage Control Mode 0-5V: An external 0-5V analog voltage signal
controls the flow rate. An external logic level signal controls the
start/stop and direction. The keypad is disabled.
34℃12:35:46
9.000
150.0
0.0
600.0
Flow
0V Speed
Speed rpm
FLOW
uL/min
5V Speed
Figure 9 0-5V Voltage Control Mode
Voltage Control Mode 0-10V: An external 0-10V analog voltage signal
controls flow rate. External logic level signal controls the start/stop
and direction. The keypad is disabled.

BT100F/BT300F/BT600F Peristaltic Pump
13
34℃12:35:46
9.000
150.0
0.0
600.0
Flow
0V Speed
Speed rpm
FLOW
uL/min
10V Speed
Figure 10 0-10V Voltage Control Mode
D. Communication State.
34℃12:35:46
9.000
150.0
00:00:00
00:00:00
#01
Flow
Delayed Start
Speed rpm
FLOW
uL/min
Delayed Stop
34℃12:35:46
9.000
150.0
00:00:00
00:00:00
Flow
Delayed Start
Speed rpm
FLOW
uL/min
Delayed Stop
Communication Connected Communication Disconnected
Figure 11 Communication State
E. Rotation Direction. When the pump is not running, one of the following
icons is displayed.
34℃12:35:46
9.000
150.0
00:00:00
00:00:00
#01
Flow
Delayed Start
Speed rpm
FLOW
uL/min
Delayed Stop
34℃12:35:46
9.000
150.0
00:00:00
00:00:00
#01
Flow
Delayed Start
Speed rpm
FLOW
uL/min
Delayed Stop
Clockwise Counterclockwise
Figure 12 Direction State

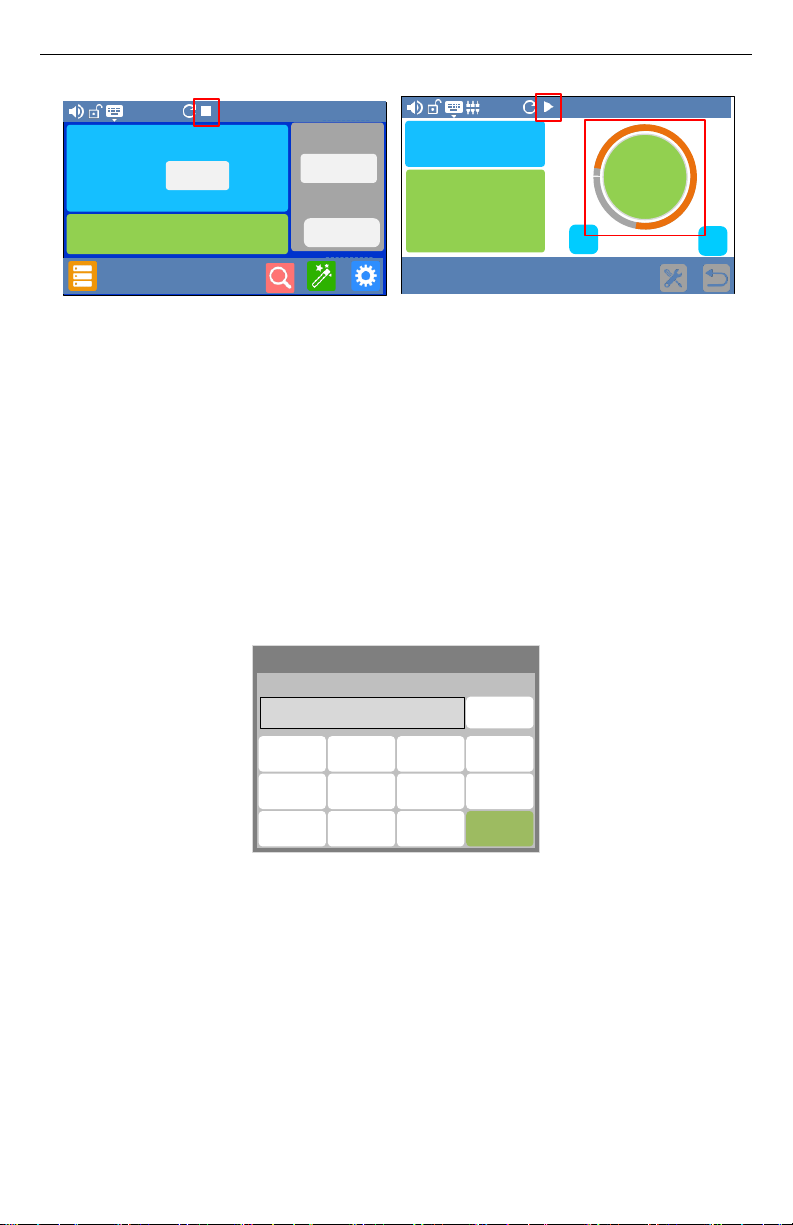

F. When the pump is running, an animation will be displayed as shown

BT100F/BT300F/BT600F Peristaltic Pump
14
below for clockwise rotation.
34℃12:35:46
9.000
150.0
00:00:00
00:00:00
#01
Flow Delayed Start
Speed rpm
FLOW
uL/min
Delayed Stop
34℃12:35:46
Head:
转/分
FLOW
Tube:
Speed:
Elapsed:
Total:
+-
流量
毫升/分
YZ15
13#
150.0 rpm
0.000 uL
00:00:00
13.980 mL
4
9.000
Flow
ul/min
Figure 13 Running Animation
G. Temperature display: display the current temperature of the driver,
such as 34 °C.
H. Time display: display the current time, such as 12:35:46.
5Operation zone
A. Parameters settings: When the pump is not running, press it to
input desired value in the pop-up window. Please pay attention
to the range of the value and flow rate unit.
FLOW
Del
1 2 3 .
4 5 6 0
7 8 9 OK
Max: 9.0mL/min Min: 6.0uL/min
Figure 14 Flow Rate Setting
B. The Unit Settings. When the pump is not running, press it to
change the unit. The allowed units are µL/min, mL/min, and
L/min, as shown in Figure 15.

BT100F/BT300F/BT600F Peristaltic Pump
15

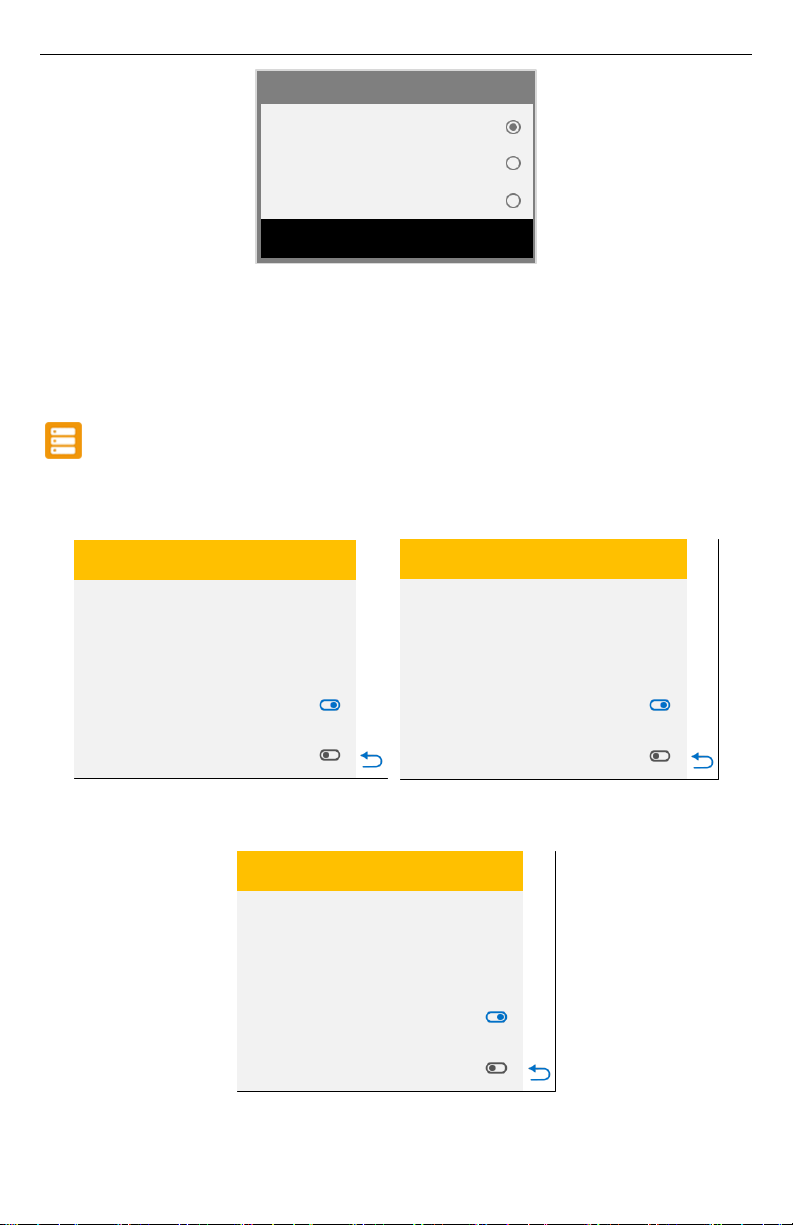

Flow unit Setting
X
uL/min
mL/min
L/min
Figure 15 Choose Flow Rate Unit
6Navigation Buttons
Mode Settings - Set specifics for different operating modes,
including tone on/off and lock on/off.
Mode Settings
Control Mode
Reserved
Sound
Lock
Internal Ctrl
Mode Settings
Dispense
Reserved
Sound
Lock
NO.1
Flow Mode Volume Dispense Mode and
Time Dispense Mode
Mode Settings
TotalSteps
TotalCycles
Sound
Lock
1
1
Loop Dispense Mode
Figure 16 Mode setting

BT100F/BT300F/BT600F Peristaltic Pump
16

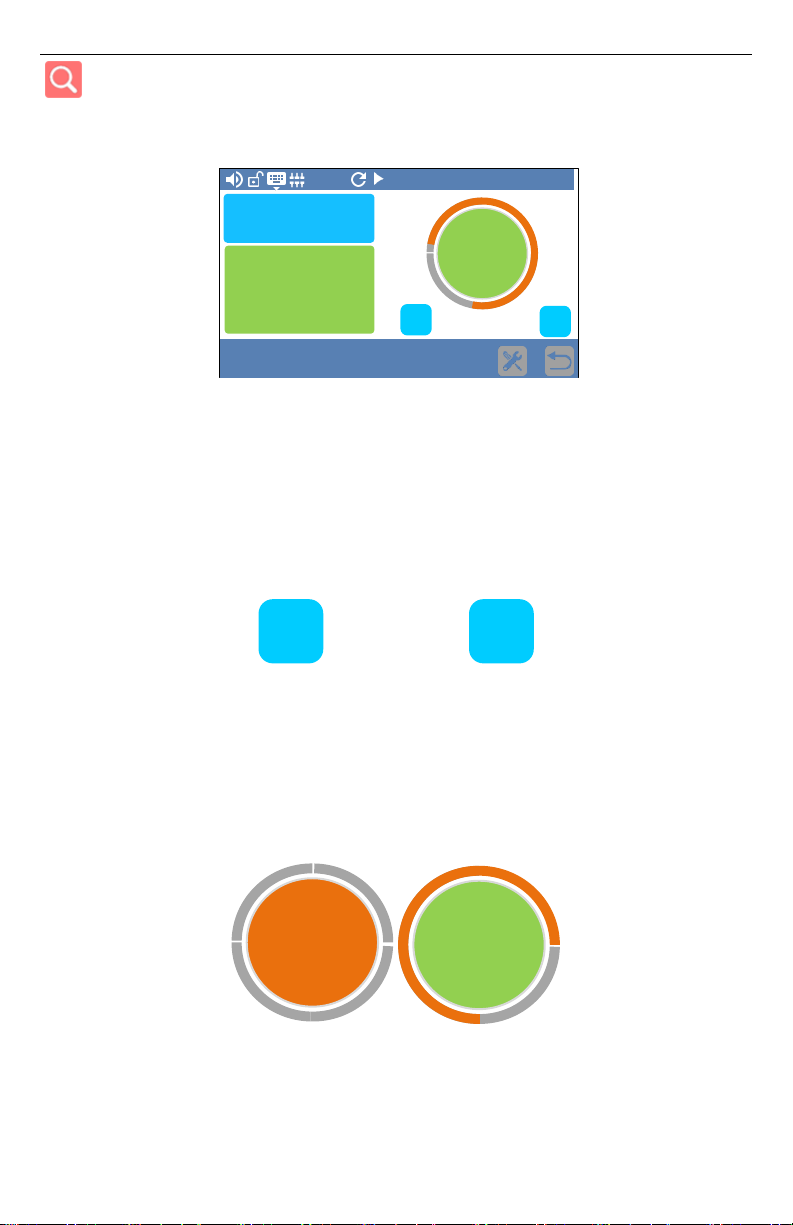

Preview mode - View running status and parameter changes.
The current running parameters display on the left side of the
interface, while the running status is shown on the right side.
34℃12:35:46
Head:
转/分
FLOW
Tube:
Speed:
Elapsed:
Total: +-
流量
毫升/分
YZ15
13#
150.0 rpm
0.000 uL
00:00:00
13.980 mL
4
9.000
Flow
ul/min
Figure 17 Preview Interface
Regardless of whether the peristaltic pump is running or not, the flow rate
can be adjusted in real time by pressing the plus or the minus icon shortly
to increase or decrease the flow rate. Press and hold an icon to change
the value quickly.
+
-
Increase Decrease
Figure 18 Fine Adjustment Button
In the flow mode, red in the center indicates stop, green indicates in
operating, and the current flow is displayed in the middle.
9.000
Flow
mL/min
9.000
Running
State
Stop State
Flow
mL/min
Figure 19 Running Status Display
The rotating ring shows the direction in which the pump operates.

BT100F/BT300F/BT600F Peristaltic Pump
17
9.000
9.000
Flow
mL/min
9.000
Clockwise operation
Counter clockwise operation
9.000
Flow
FlowFlow
mL/min mL/min mL/min
Figure 20 Direction Indication
In the dispense mode, red in the center means stop, green means in
operation, and yellow means pause.
001.00
Set
s
000.38
Run
s
000.45
Delay
s
Stop State Running state Pause State
Figure 21 Dispense Status Indication
Quick Settings - Clear accumulative volume and accumulative
cycles, tone on/off, and lock on/off.
Q uick S e ttings
Cumulative Volume
Cumulative Cycles
Beep
Lock
Figure 22 Quick Settings
Calibrate - Following the wizard prompts, the transferred liquid is
weighed by means of a balance or measuring cylinder so that the
displayed value corresponds precisely to the actual flow rate.

BT100F/BT300F/BT600F Peristaltic Pump
18
Note: If an accurate display of the flow rate is required, a flow rate
calibration must be carried out.
System Menu - When the pump is not running, press the icon to
enter the System Menu.
About Password
Setup SystemCalibrate
Info Return
Figure 23 System Menu
Setup - To set up the general settings, swipe up and down to view the
menu, details as in Figure 24.
General Setting
Pump Head
YZ15
Tubing
13#
Anti-Drip
0°
Anti-Speed
600RPM
General Setting
13#
Anti-Drip
0°
Anti-Speed
Com
600RPM
Figure 24 General Settings
•Pump Head: Choose the model of the installed pump head and
swipe up and down to view the menu, as shown in Figure 25.
