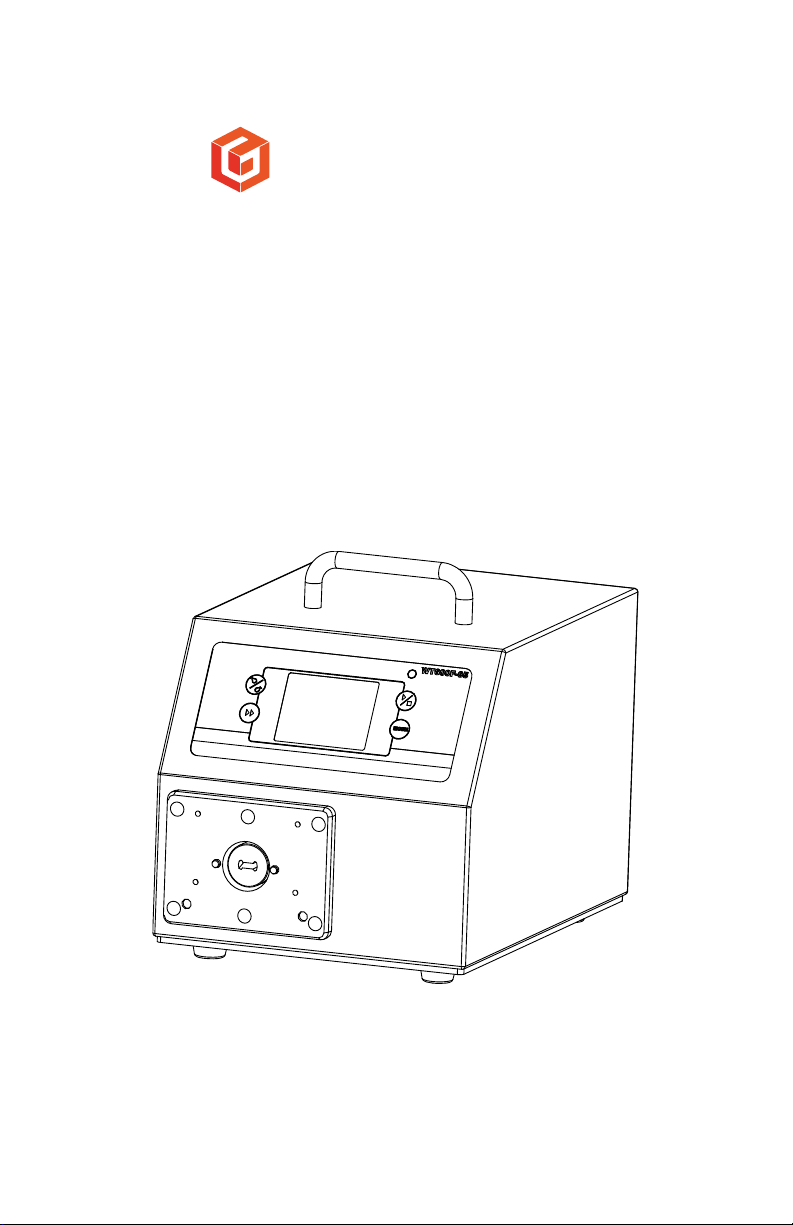

Golander pump WT600F-65 User manual

GOLANDER
WT600F-65
Intelligent Dispensing Peristaltic Pump
Operating Manual

Contents
Safety Precautions ................................................................................ 1
1 Description ......................................................................................... 6
2 Functions and Features...................................................................... 6
3 Components and Connectors............................................................. 8
4 Display Panel and Operating Keypads ............................................... 9
4.1 Keypad..................................................................................... 9
4.2 LCD Touch Screen Display..................................................... 10
4.3 System Settings ..................................................................... 15
5 External Control Interface................................................................. 22
6 Operation Instructions ...................................................................... 22
6.1 Before Operation.................................................................... 22
6.2 Power Connection.................................................................. 23
6.3 First Run Wizard .................................................................... 23
6.4 Flow Rate Calibration ............................................................. 24
6.5 Working Mode ........................................................................ 27
6.6 Run Wizard ............................................................................ 31
6.7 External Control Mode............................................................ 35
6.8 Communication Mode ............................................................ 39
6.9 Footswitch.............................................................................. 40
7 Maintenance .................................................................................... 42
7.1 Warranty................................................................................. 42
7.2 Regular Maintenance ............................................................. 42
7.3 Malfunction Solutions ............................................................. 42
8 Dimensions ...................................................................................... 44
9 Naming Rule .................................................................................... 44
10 Specifications................................................................................. 44

WT600F-65 Intelligent Dispensing Peristaltic Pump
1
Safety Precautions
Danger
•Use the correct voltage indicated on the rating plate label of the pump
to avoid any damage.
•Do not make any unauthorized dismantling, changes or modifications
to the pump which could result in malfunctions or even potential
accidents.
•Turn off the pump drive before installing or removing tubing,
attempting any maintenance, cleaning or repair of the drive,
connecting or disconnecting external control devices or a
communication interface. Fingers or loose clothing could get caught
in the drive mechanism.
Warning
•Ensure no chemical reactions occur between the handled fluid with
the material of the pump head and tubing before use.
•Tubing should be checked regularly to avoid breakage. Tubing
breakage may result in fluid being sprayed from the pump. Use
appropriate measures to protect the operator and equipment. The
operator is solely liable for damages resulting from tubing breakage,
particularly the leakage of toxic or valuable liquids.
•The pump is provided with a grounded plug which must be well
grounded at all times.
•This device is not designed for nor intended for usage in patient
connected applications, including but not limited to medical and dental
use.
•Observe all other applicable regulations concerning working safety,
operational safety, environmental protection and relevant local
regulations.

WT600F-65 Intelligent Dispensing Peristaltic Pump
2
(DE) SICHERHEITSHINWEISE
Gefahr
•Verwenden Sie die richtige Spannung, die auf dem Typenschild der Pumpe
angegeben ist, um Schäden zu vermeiden.
•Nehmen Sie keine unbefugten Demontagen, Änderungen oder Modifikationen
an der Pumpe vor, die zu Fehlfunktionen oder sogar zu Unfällen führen könnten.
•Schalten Sie den Pumpenantrieb aus, bevor Sie Schläuche ein- oder ausbauen,
Wartungs-, Reinigungs- oder Reparaturarbeiten am Antrieb vornehmen oder
externe Steuergeräte oder eine Kommunikationsschnittstelle anschließen oder
trennen. Finger oder lose Kleidungsstücke können sich im Antriebsmechanismus
verfangen.
Warnung
•Vergewissern Sie sich vor der Verwendung, dass keine chemischen Reaktionen
zwischen dem Fördermedium und dem Material des Pumpenkopfs und der
Schläuche auftreten können.
•Die Schläuche sollten regelmäßig überprüft werden, um Brüche zu vermeiden.
Ein Schlauchbruch kann dazu führen, dass Flüssigkeit aus der Pumpe spritzt.
Ergreifen Sie geeignete Maßnahmen zum Schutz des Bedieners und der
Ausrüstung. Der Betreiber haftet allein für Schäden, die durch einen
Schlauchbruch entstehen, insbesondere für das Austreten von giftigen oder
wertvollen Flüssigkeiten.
•Die Pumpe ist mit einem geerdeten Stecker ausgestattet, der stets korrekt an
eine abgesicherte Netzsteckdose angeschlossen sein muss. Dieses Gerät ist
nicht für Anwendungen ausgelegt oder vorgesehen, die im Zusammenhang mit
der Behandlung von Patienten stehen. Medizinische bzw. zahnmedizinische
Anwendungen sind nicht bestimmungsgemäß.
•Beachten Sie alle anderen geltenden Vorschriften zur Arbeitssicherheit, zur
Betriebssicherheit, zum Umweltschutz sowie die einschlägigen örtlichen
Vorschriften.

WT600F-65 Intelligent Dispensing Peristaltic Pump
3
(FR) CONSIGNES DE SÉCURITÉ
Danger
•Utilisez la tension correcte indiquée sur la plaque signalétique de la pompe
afin d'éviter tout dommage.
•Ne procédez pas à des démontages, changements ou modifications non
autorisés de la pompe qui pourraient entraîner des dysfonctionnements,
voire des accidents.
•Mettez l'entraînement de la pompe hors tension avant d'installer ou de retirer
des tuyaux, d'effectuer des travaux d'entretien, de nettoyage ou de
réparation sur l'entraînement ou de connecter ou déconnecter des dispositifs
de commande externes ou une interface de communication. Des doigts ou
des vêtements lâches pourraient se prendre dans le mécanisme
d'entraînement.
Avertissement
•Avant toute utilisation, assurez-vous qu'il n'y a pas de réaction chimique
entre le liquide pompé et le matériau de la tête de pompe et des tubes.
•Les tuyaux doivent être contrôlés régulièrement pour éviter les ruptures. Une
rupture de tuyau peut entraîner des projections de liquide hors de la pompe.
Prenez les mesures appropriées pour protéger l'opérateur et l'équipement.
L'opérateur est seul responsable des dommages causés par une rupture de
tuyau, notamment en cas de fuite de liquides toxiques ou précieux.
•La pompe est équipée d'une fiche de mise à la terre qui doit toujours être
bien reliée à la terre.
•Cet appareil n'est pas conçu ni prévu pour être utilisé en présence de
patients, y compris, mais sans s'y limiter, dans le cadre d'applications
médicales et dentaires.
•Respectez toutes les autres réglementations applicables en matière de
sécurité du travail, de sécurité d'exploitation, de protection de
l'environnement.

WT600F-65 Intelligent Dispensing Peristaltic Pump
4
(ES) INSTRUCCIONES DE SEGURIDAD
Peligro
•Utilice la tensión correcta indicada en la placa de características de la
bomba para evitar daños.
•No realice ningún desmontaje, cambio o modificación no autorizada en la
bomba que pueda provocar un mal funcionamiento o incluso accidentes.
•Desconecte el accionamiento de la bomba antes de instalar o retirar las
mangueras, realizar trabajos de mantenimiento, limpieza o reparación en el
accionamiento o conectar o desconectar dispositivos de control externos o
una interfaz de comunicación. Los dedos o la ropa suelta podrían quedar
atrapados en el mecanismo de accionamiento.
Advertencia
•Antes de usarla, asegúrese de que no hay reacciones químicas entre el
medio bombeado y el material de la cabeza de la bomba y las mangueras.
•Las mangueras deben ser revisadas regularmente para evitar roturas. La
rotura de una manguera puede hacer que salga líquido de la bomba. Tome
las medidas adecuadas para proteger al operador y al equipo. El operador
es el único responsable de los daños causados por la rotura de una
manguera, especialmente por la fuga de líquidos tóxicos o valiosos.
•La bomba está equipada con un enchufe con toma de tierra que debe estar
siempre bien conectado a tierra.
•Este aparato no está diseñado ni pensado para su uso en relación con los
pacientes, incluyendo pero sin limitarse a las aplicaciones médicas y
dentales.
•Respetar todas las demás normas aplicables en materia de seguridad
laboral, seguridad operativa y protección del medio ambiente.

WT600F-65 Intelligent Dispensing Peristaltic Pump
5
(IT) ISTRUZIONI DI SICUREZZA
Pericolo
•Usare la tensione corretta indicata sull'etichetta della targhetta della pompa
per evitare qualsiasi danno.
•Non eseguire smontaggi, cambiamenti o modifiche non autorizzati alla
pompa che potrebbero causare malfunzionamenti o addirittura potenziali
incidenti.
•Spegnere l'azionamento della pompa prima d'installare o rimuovere tubi,
tentare qualsiasi manutenzione, pulizia o riparazione dell'azionamento,
collegare o scollegare dispositivi di controllo esterni o un'interfaccia di
comunicazione. Dita o indumenti larghi potrebbero rimanere impigliati nel
meccanismo di azionamento.
Attenzione
•Assicurarsi che non si verifichino reazioni chimiche tra il fluido trattato e il
materiale della testa della pompa e dei tubi prima dell'uso.
•I tubi devono essere controllati regolarmente per evitare rotture. La rottura
del tubo può provocare spruzzi di fluido dalla pompa. Utilizzare misure
appropriate per proteggere l'operatore e l'attrezzatura. L'operatore è l'unico
responsabile dei danni derivanti dalla rottura dei tubi, in particolare della
fuoriuscita di liquidi tossici o preziosi.
•La pompa è dotata di una spina con messa a terra che deve essere sempre
ben collegata a terra.
•Questo dispositivo non è progettato né destinato all'uso in applicazioni
collegate al paziente, incluso ma non limitato all'uso medico e dentistico.
•Osservare tutte le altre norme applicabili riguardanti la sicurezza sul lavoro,
la sicurezza operativa, la protezione dell'ambiente e le norme locali pertinenti.

WT600F-65 Intelligent Dispensing Peristaltic Pump
6
1Description
WT600F-65 intelligent dispensing peristaltic pump provides flow range
from 0.06 to 6000 mL/min, speed range 0.1-600 rpm. The IP65 case is
dust tight and protected against water projected from a nozzle. It offers
intuitive and clear interface with color LCD touch screen. There are four
operation modes available: Volume Dispense Mode for high accuracy
dispense; Time Dispense Mode for high productive efficiency; Copy
Dispense Mode can separate fluid to number of equal parts; Flow Mode
is for recording the total delivered volume. It adopts intelligent cooling fan
control to minimize working noise. Brushless servo drive with large torque
to work with multiple pump heads. With RS485 MODBUS interface, the
pump is easy to connect to external device, such as computer, human
machine interface or PLC.
2Functions and Features
Advantage of peristaltic pump: Peristaltic pump can handle extremely
viscous fluids, abrasive slurries and corrosive fluids. There is no seals in
contact with the medium pumped and no valves to clog. The inner
surfaces are smooth and easy to clean; fluid contacts only the tubing or
tube material. Suction lift and priming can be up to 8m water column at
sea level. It can handle the most shear sensitive of fluids like latex or
firefighting foam with low shearing. It is capable of running dry and
pumping fluids with high quantities of entrained air, such as black liquor
soap. The high volumetric efficiency allows operation in metering or
dosing applications where high accuracy is required. Tubing and tube
materials are available for food and pharmaceutical use.
•Color LCD display, touch screen and keypad for operating.
•Reversible direction, start/stop control and adjustable speed.
•Precise motor control technology improves dispense accuracy
compared to the traditional time dispense mode.

WT600F-65 Intelligent Dispensing Peristaltic Pump
7
•Brushless servo drive with large torque to work with multiple
pump heads. No maintenance required.
•Anti-drip function ensures dispense accuracy.
•Three dispense mode available. Time Dispense Mode:
automatically dispense by setting the duration for each dose, lag
time between doses and number of cycles. Volume Dispense
Mode: automatically dispense by setting the volume for each
dose, lag time between doses and number of cycles. Copy
Dispense Mode: automatically dispense by setting the total
volume need to dispense, lag time between doses and number
of cycles.
•Store five groups of working parameters for each dispense mode
(power-off memory).
•Flow rate display and control; cumulative dispense volume
display.
•Flow rate calibration.
•0.2% high precision rotating speed control with 0.1 rpm speed
resolution. Professional operating system, configure system with
setup wizard.
•Intelligent temperature control to minimize working noise.
•External logic level signal can control start/stop, direction and
easy dispense functions; external analog signal can adjust the
rotating speed. Signal is optically isolated.
•With RS485 MODBUS interface, easy to be controlled by
external device.
•Internal double-deck isolation structure; circuit board with
conformal coating makes it dust-proof and moisture proof.
•Anti-electromagnetic interference feature, wide input voltage
range for complex power environment.
•Stainless steel enclosure, easy to clean, resistant to the
corrosion of the acid, alkali, sodium and organic solvents.
•IP65 rating.
•Drive multi-channels and various types of pump heads.
•Optional footswitch and remote infrared control.

WT600F-65 Intelligent Dispensing Peristaltic Pump
8

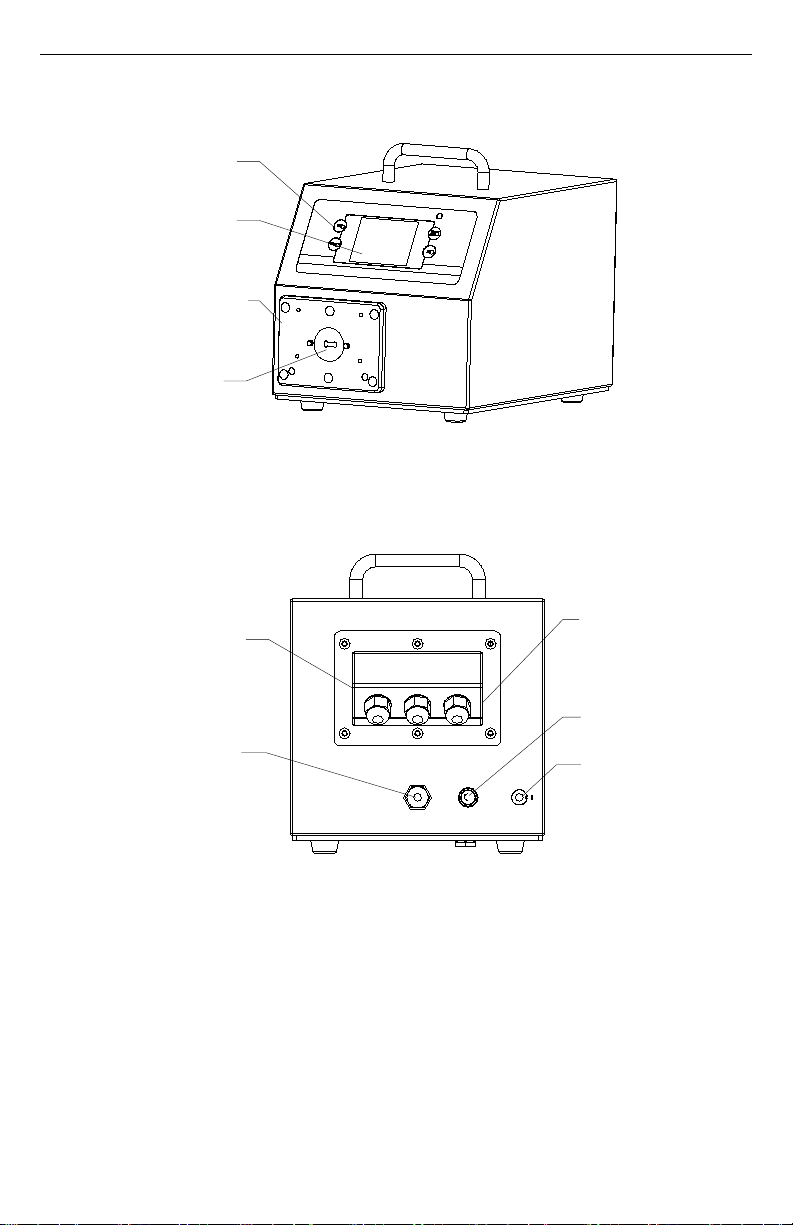

3Components and Connectors
Water-Proof
External Control
Wiring Port
Water-Proof
Junction Box
Power Cord Power Switch
Control Panel
Pump Head Holder
Coupler
Fuse
LCD Touch Screen
Figure 1. Components and Connectors

WT600F-65 Intelligent Dispensing Peristaltic Pump
9
4Display Panel and Operating Keypads
START/STOP
MODE
DIRECTION
PRIME
TOUCH SCREEN
LCD DISPLAY
MODE
WT600F-65
golanderpump.com
GOLANDER
Figure 2. Display Panel
4.1 Keypad
START/STOP key. Press to start or stop the drive.
DIRECTION Key. Press to change the drive rotating direction,
clockwise or counterclockwise.
PRIME key. Press the key to run pump at maximum allowed
speed in the direction shown on the display. Press again to return
to the previous state.
MODE key. When drive is not running, use the MODE key to
change the working mode. When keypad is locked, use the
MODE key to change the display content.
M O DE

WT600F-65 Intelligent Dispensing Peristaltic Pump
10
4.2 LCD Touch Screen Display
9.000mL/min
＋ －
13# 150.0 RPM
A B C D E
F
G
H
I J K L M N
Flow 75 °F
Figure 3. Display screen
4.2.1 A - Keypad Lock
It shows the state of the keypad lock. Press the icon to lock/unlock the
keypad. When the keypad is locked, the control mode and system
parameter settings can not be changed. Press MODE key to change the
display content.
Password can be set to unlock the keypad. It will prevent user from
changing the system parameters accidentally.
9.000mL/min
＋ －
13# 150.0 RPM
75 °F
Flow
9.000mL/min
＋ －
YZ15 150 T
42.385
Flow mL
Keypad unlocked
Keypad locked
Figure 4. Keypad Lock

WT600F-65 Intelligent Dispensing Peristaltic Pump
11

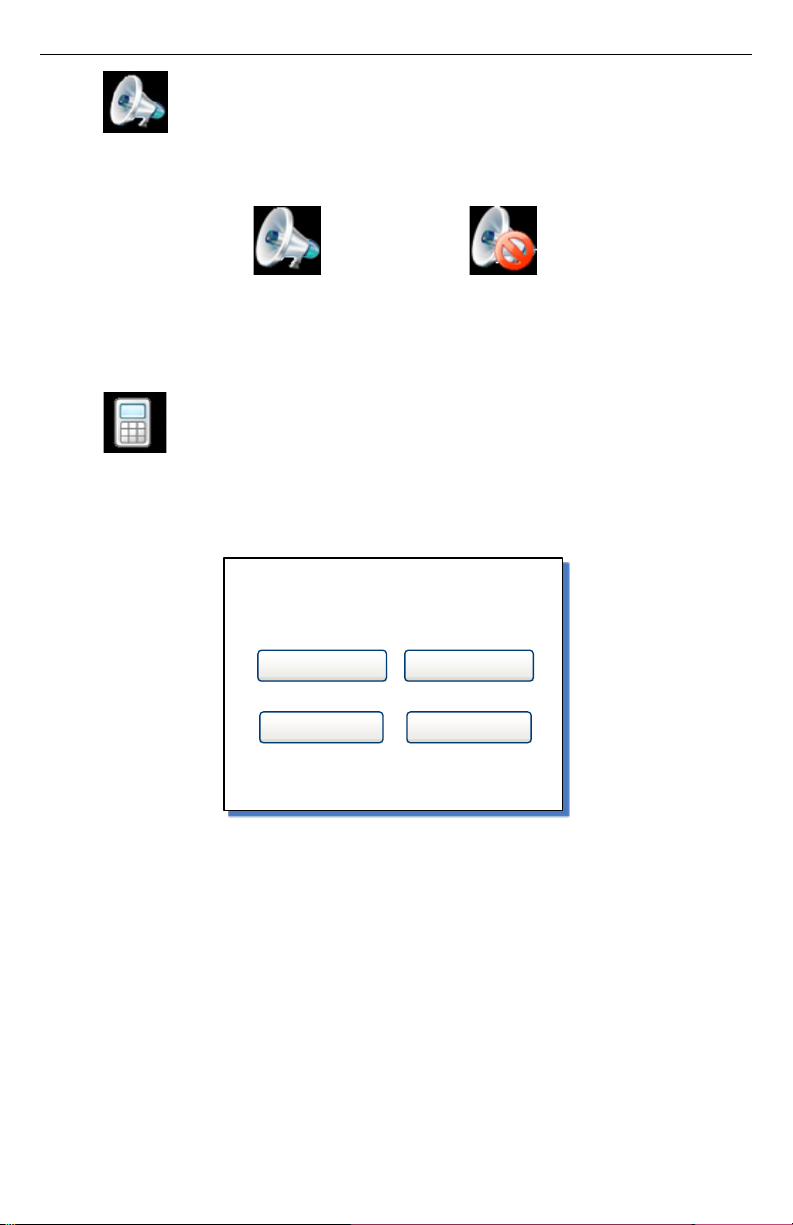

4.2.2 B - Tone Button
Press the icon to turn on/off the key tone.
Tone on
Tone off
Figure 5. Key Tone
4.2.3 C - Control Mode
Press the icon to enter the Control Mode interface. There are four control
modes available.
Control Mode
Internal Ctrl
Current Ctrl
Foot Ctrl
Voltage Ctrl
Figure 6. Control Mode
•Internal Ctrl - Internal Control Mode. Operate pump with keypad
and touch screen.
•Foot Ctrl- Footswitch Control Mode. Footswitch controls start/up.
Use keypad and touch screen for the other operations.
•Current Ctrl- Current Control Mode. External 4-20mA analog
current signal controls rotating speed; external logic level signal
controls start/stop. The keypad is disabled.
•Voltage Ctrl- Voltage Control Mode. External 0-5V or 0-10V

WT600F-65 Intelligent Dispensing Peristaltic Pump
12
analog voltage signal controls rotating speed; external logic level
signal controls start/stop and direction. The keypad is disabled.
Internal Control
Mode
Footswitch
Control Mode
Current Control
Mode
Voltage Control
Mode
Figure 7. Control Mode Icon
4.2.4 D - Quick Settings
Press the icon to enter Quick Settings interface to reset the cumulative
volume and cycles. For Volume Dispense Mode, Time Dispense Mode
and Copy Dispense Mode, there are five groups of preset data. User can
choose one of them to dispense fluid, and the setting on the main screen
will change according to the selected data group.
Quick Settings
Return
Cumulative Volume Clear
Cumulative Cycles Clear
Quick Settings
Return
Cumulative Volume Clear
Cumulative Cycles Clear
No.1: 5.000 mL 001.0s
6.000 mL/min 1 T
NextPrev
Flow Mode
Other Modes
Figure 8. Quick Settings
4.2.5 E - System Settings
Press the icon to enter the System Settings menu, and then change the
parameters shown on the screen.

WT600F-65 Intelligent Dispensing Peristaltic Pump
13

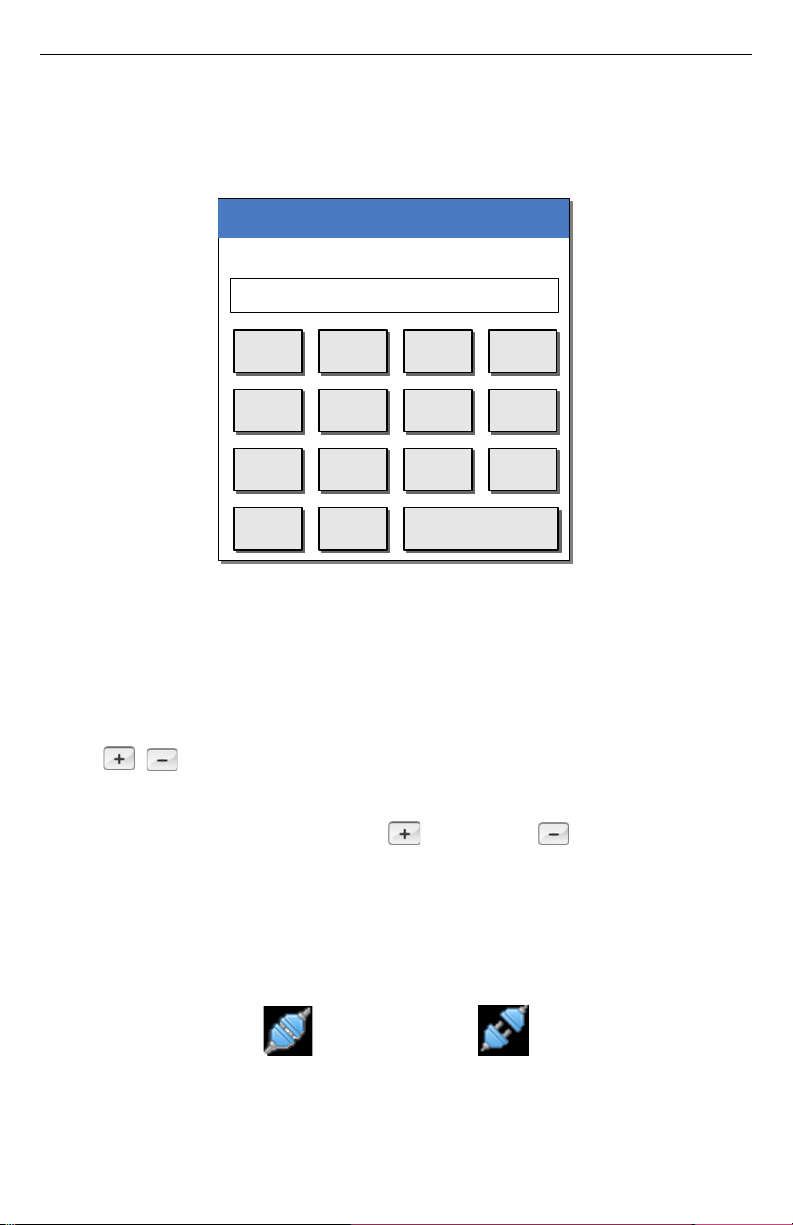

4.2.6 F - Flow Rate Setting
It shows current flow rate setting. When the drive is not running, press it
to input desired value in the pop-up window. Please pay attention to the
range of the value and flow rate unit.
1 -32
.
7
4
8
->65
9
0
ESC
OK
0.9
Max:9.0ml/min Min:0.6ul/min
Figure 9. Flow Rate Setting
4.2.7 G - Flow Rate Unit
It shows current flow rate unit. When the drive is not running, press it to
change the unit. The allowed units are µL/min, mL/min and L/min.
4.2.8 H - Fine Adjustment Button
When the drive is running, press the fine adjustment button to adjust the
flow rate in real time. Press the button or button shortly to
increase or decrease the flow rate. Press and hold the buttons to change
the value quickly.
4.2.9 I - Communication State
It shows current RS485 communication state.
Communication
connected
Communication
disconnected

WT600F-65 Intelligent Dispensing Peristaltic Pump
14
Figure 10. Communication State

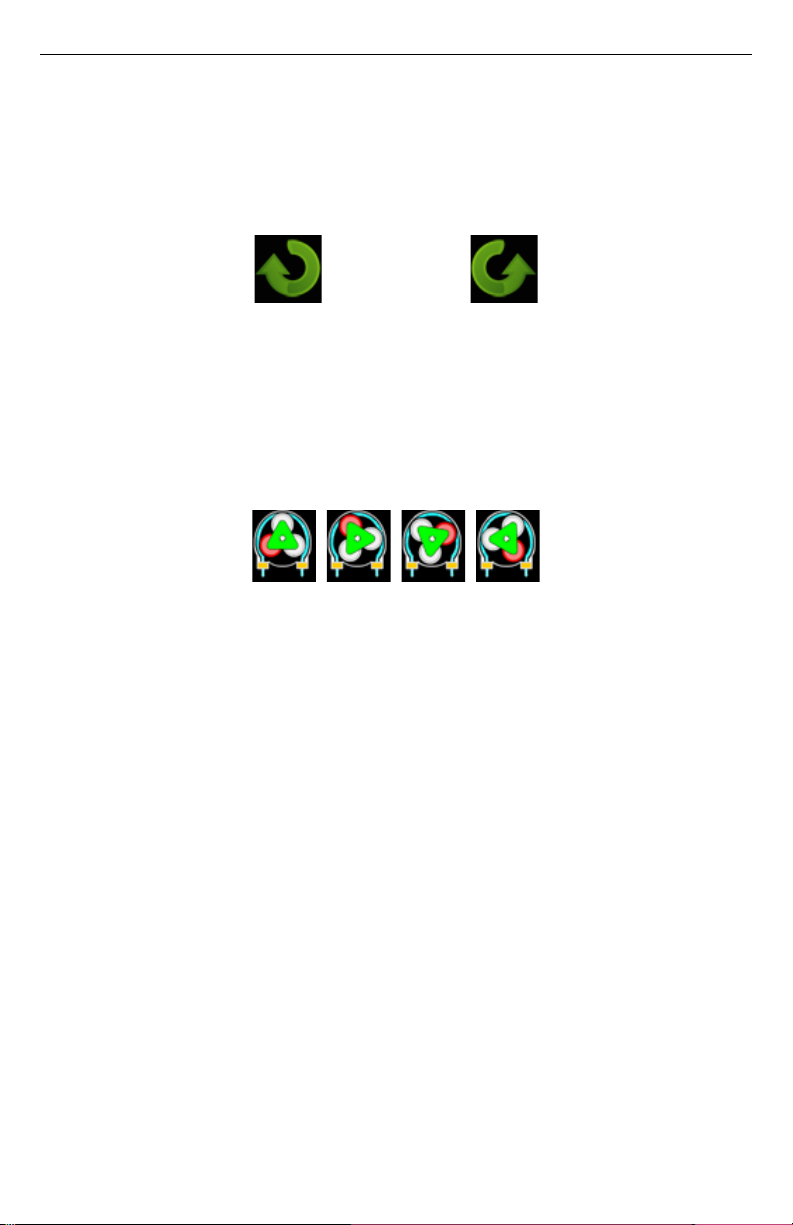

4.2.10 J - Rotation Direction
It shows current rotation direction. When the drive is not running, it will
show one of the following icon.
Clockwise
Counterclockwise
Figure 11. Direction State
When the drive is running, it will change to an animated icon as shown
below.
Figure 12. Running Animation
4.2.11 K - Tubing or Pump Head
It shows current configured tubing size or pump head model.
•17# means the tubing size is 17#.
•ID0.13 means the internal diameter of the tubing is 0.13mm.
•YZ15 means the pump head is YZ15.
4.2.12 L - Working Mode
It shows current working mode, such as Flow Mode, Volume Dispense
Mode, Time Dispense Mode or Copy Dispense Mode.
4.2.13 M - Speed or Cumulative Cycles
It shows current speed or cumulative dispense cycles, switched by
pressing MODE key. If the speed is higher than the maximum allowed
speed, it will show U_Overflow; if the speed is lower than the minimum
allowed speed, it will show D_Overflow. The cumulative cycles can be

WT600F-65 Intelligent Dispensing Peristaltic Pump
15
reset on Quick Settings menu.
4.2.14 N - Internal Temperature or Cumulative Volume
It shows the temperature inside the drive or cumulative volume that the
pump has delivered. The cumulative volume can be reset on Quick
Settings menu.
The default display temperature is in Fahrenheit. To change display
temperature in Celsius, please go to System Information window (see
Figure 23), press the “75 °F” area, the display will change to Celsius,
which is 24 °C. Press the “24 °C” again, the display will switch back to
Fahrenheit.
4.3 System Settings
When the drive is not running, press the icon to enter System
Settings menu.
Wizard Calibrate Setup
Info About Return
Figure 13. System Settings
4.3.1 Wizard
A wizard to set up the parameters. The system will select appropriate
tubing and pump head for you.

WT600F-65 Intelligent Dispensing Peristaltic Pump
16
4.3.2 Calibrate
Pump will accurately show current flow rate/volume after Flow Rate
Calibration.
Note: The calibration is necessary to display flow rate precisely.
4.3.3 Setup
General Settings
PumpHead
Tubing
IrDA
Language
Remote
Com
Anti-Drip
Return
Figure 14. General Settings
•PumpHead - Choose the model of the installed pump head.
Pump Head Setup
YZ15
OK
YZ15
YZ25
DG
Please choose pump head.
Figure 15. Pump Head Select
•Tubing - Choose the appropriate tubing size for selected pump
head.

WT600F-65 Intelligent Dispensing Peristaltic Pump
17
Tubing Setup
13#
OK
13#
14#
19#
Min 6.0 µL/min
Max 9.0mL/min
Figure 16. Tubing Select
•IrDA - Turn on/off the infrared control function.
IrDA Setup
Return
This function is to turn on/off
IrDA control.
Enable
Figure 17. IrDA Setup
•Language - Choose display language, Chinese or English.
语言选择
English
Language Select
中文
Figure 18. Language Select

WT600F-65 Intelligent Dispensing Peristaltic Pump
18
•Remote
It is the setting for external control mode: Logic Level control mode or
Pulse control mode. When it is set to Logic Level, pump state will
change when external switch is closed or open. It is designed for a
maintained switch. When it is set to Pulse, pump state will change
when the switch is closed then open again. It is designed for a
normally open momentary switch.
Remote Control
OK
Please choose remote control
by logic level or pulse input.
Pulse
Figure 19. Remote Control Mode
•Com
It is the setting for RS485 MODBUS communication including baud
rate, transmission mode and pump address. To change the address,
click the address number on the screen, then input the value in the
pop-up window. Restart the pump to apply the settings.
Baud(bps):
Return
Mode:
4800
19200
9600
38400
Pump No. 1
Computer
PLC
Figure 20. Communication Settings
