Golander pump BT-F NEW User manual

GOLANDER PUMP
BT-F NEW Operation Manual
For Intelligent Dispensing Peristaltic Pump

Contents
Safety Cautions..................................................................................... 1
1 Description......................................................................................... 1
2 Functions and Features...................................................................... 2
3 Components and Connectors............................................................. 4
4 Display Panel and Operating Keypads............................................... 5
4.1 Keypad..................................................................................... 5
4.2 LCD Touch Screen Display....................................................... 6
4.3 Status bar................................................................................. 6
5 Operation zone..................................................................................11
6 Navigation button............................................................................. 12
7 External Control Interface................................................................. 23
8 Operation Instructions...................................................................... 24
8.1 Before Operation.................................................................... 24
8.2 Power Connection.................................................................. 24
8.3 First Run Wizard .................................................................... 24
8.4 Working Mode........................................................................ 27
8.5 External Control Mode............................................................ 32
8.6 Communication mode ............................................................ 34
8.7 Footswitch.............................................................................. 36
9 Maintenance .................................................................................... 37
9.1 Warranty................................................................................. 37
9.2 Regular Maintenance............................................................. 38
9.3 Malfunction Solutions............................................................. 38
10 Dimensions.................................................................................... 40
11 Naming Rule................................................................................... 40
12 Specifications................................................................................. 41

BT-F NEW Intelligent Dispensing Peristaltic Pump
1
Safety Cautions
Danger: Please use correct AC power voltage source shown on
the sticker on the equipment to avoid any damage.
Please do not open the case. High voltages exist and are
accessible. Use extreme caution when servicing internal components.
For maintenance, please contact the manufacturer or distributor directly.
Danger: Turn drive off before removing or installing tubing. Fingers or
loose clothing could get caught in drive mechanism.
Warning: Tubing breakage may result in fluid being sprayed
from pump. Use appropriate measures to protect operator and
equipment.
Warning: Remove power from pump before attempting any maintenance
or any cleaning operation is started.
Warning: Remove power from pump before connecting or disconnecting
the external control device or communication interface.
Warning: Pump is provided with a grounded plug, it must be well
grounded at all times.
Warning: This product is not designed for, nor intended for use in patient
connected applications; including, but not limited to, medical and dental
use.
1Description
BT/F new type intelligent dispensing peristaltic pump suitable for
Measured accurately and dosing certain volume liquid to realize high
accuracy flow rate control. Compared with the previous version, it adopts
larger color LCD touch screen, more convenient and show more
information. Added recycle dispense mode can realize complex
experimental process and different Lab requirements.RS485
communication adds more settings on the basis of MODBUS to meet
different communication equipment requirements.
This pump series includes:
•BT100F, flow rate: 0.00011-720 mL/min, speed: 0.1-150 rpm

BT-F NEW Intelligent Dispensing Peristaltic Pump
2
•BT300F, flow rate: 0.006-1600 mL/min, speed: 0.1-350 rpm
•BT600F, flow rate: 0.006-2900 mL/min, speed: 0.1-600 rpm
2Functions and Features
Advantage of peristaltic pump: Peristaltic pump can handle extremely
viscous fluids, abrasive slurries and corrosive fluids. There is no seals in
contact with the medium pumped and no valves to clog. The inner
surfaces are smooth and easy to clean; fluid contacts only the tubing or
tube material. Suction lift and priming can be up to 8m water column at
sea level. It can handle the most shear sensitive of fluids like latex or
firefighting foam with low shearing. It is capable of running dry and
pumping fluids with high quantities of entrained air, such as black liquor
soap. The high volumetric efficiency allows operation in metering or
dosing applications where high accuracy is required. Tubing and tube
materials are available for food and pharmaceutical use.
•Color LCD display, touch screen and keypad for operating.
•Reversible direction, start/stop control and adjustable speed.
•0.2% high precision rotating speed control with 0.1 rpm speed
•Flow display and calibrate.
•Three dispense mode available. Time Dispense Mode: Volume
Dispense Mode: Cycle Dispense Mode.
•Store 5 groups of working parameters for flow mode and
dispense mode.
•Store 30 groups of working parameters for cycle dispense mode.
•Intelligent temperature control.
•WIFI control function (optional)
•External logic level signal can control start/stop, direction and
easy dispense functions; external analog signal can adjust the
rotating speed. Signal is optically isolated.
•With RS485 MODBUS interface, easy to be controlled by
external device.

BT-F NEW Intelligent Dispensing Peristaltic Pump
3
•Internal double-deck isolation structure; circuit board with
conformal coating makes it dust-proof and moisture proof.
•Anti-electromagnetic interference feature, wide input voltage
range for complex power environment.
•Stainless steel enclosure, easy to clean, resistant to the
corrosion of the acid, alkali, sodium and organic solvents.

BT-F NEW Intelligent Dispensing Peristaltic Pump
4
3Components and Connectors
Handle
Color LCD
Touch Screen
Coupler
Pump Head
Mounting Bracket
Driver
DB15 External
Control Interface
RS232
Power Switch
Fuse
Power Connector
Cooling Fan
USB
Figure 1. Components and Connectors

BT-F NEW Intelligent Dispensing Peristaltic Pump
5
4Display Panel and Operating Keypads
MODE
DIRECTION
PRIME
LCD DISPLAY
MODE
BT600F
START/STOP
Figure 2. Display Panel
4.1 Keypad
START/STOP key. Press to start or stop pump.
DIRECTION Key. Press to change the drive rotating direction,
clockwise or counterclockwise.
PRIME key. Press the key to run pump at full speed. Press again
to return to the previous state.
MODE
MODE key. When pump is not running, use the MODE key to
change the working mode. When keypad is locked, use the MODE key to
change the display content.

BT-F NEW Intelligent Dispensing Peristaltic Pump
6
4.2 LCD Touch Screen Display
34℃12:35:46
Flow
Delayed Start
Speed rpm
FLOW
9.000mL/min
150.0
00:00:00
00:00:00
Status bar
Navigation
button
Operation
display
Delayed Stop
Figure 3. Main screen
4.3 Status bar
A. Tone Button status, the icon show the key tone on/off.
34℃12:35:46
9.000
150.0
00:00:00
00:00:00
Flow Delayed Start
Speed rpm
FLOW
uL/min
Delayed Stop
34℃12:35:46
9.000
150.0
00:00:00
00:00:00
Flow Delayed Start
Speed rpm
FLOW
uL/min
Delayed Stop
Tone on Tone off
Figure 4 Key Tone

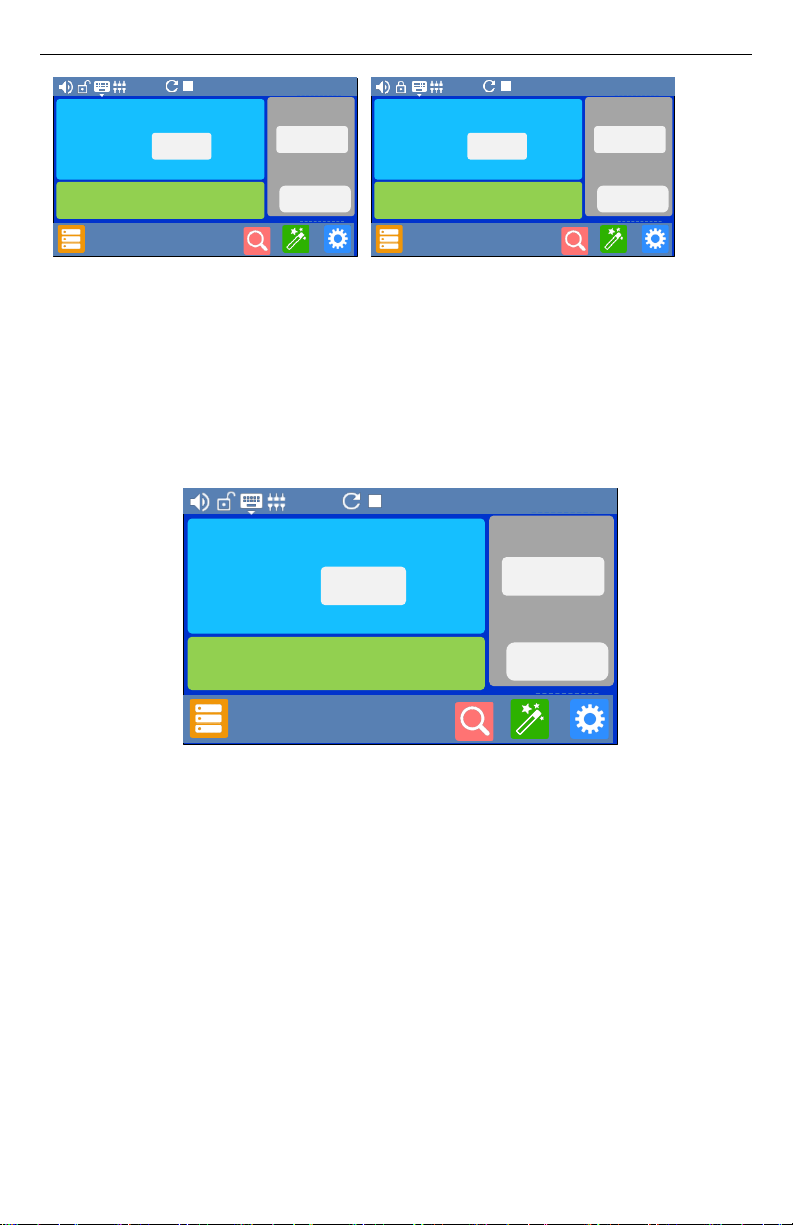

B. Keypad Lock. Shows the state of the keypad lock. When the keypad is
locked, the control mode and system parameter settings cannot be
changed.

BT-F NEW Intelligent Dispensing Peristaltic Pump
7
34℃12:35:46
9.000
150.0
00:00:00
00:00:00
Flow Delayed Start
Speed rpm
FLOW
uL/min
Delayed Stop
34℃12:35:46
9.000
150.0
00:00:00
00:00:00
Flow Delayed Start
Speed rpm
FLOW
uL/min
Delayed Stop
Keypad unlocked Keypad locked
Figure 5 Keypad Lock
C. Control Mode, display control way the details as below:
Internal Control Mode: Pump is controlled by keypad and touch
screen.
34℃12:35:46
9.000
150.0
00:00:00
00:00:00
Flow
Delayed Start
Speed rpm
FLOW
uL/min
Delayed Stop
Figure 6 Internal Control Mode
Footswitch Control Mode. Footswitch controls start/up, the other
parameters controlled by keypad and touch screen.

BT-F NEW Intelligent Dispensing Peristaltic Pump
8
34℃12:35:46
9.000
150.0
00:00:00
00:00:00
Flow
Delayed Start
Speed rpm
FLOW
uL/min
Delayed Stop
Figure 7 Footswitch Control Mode

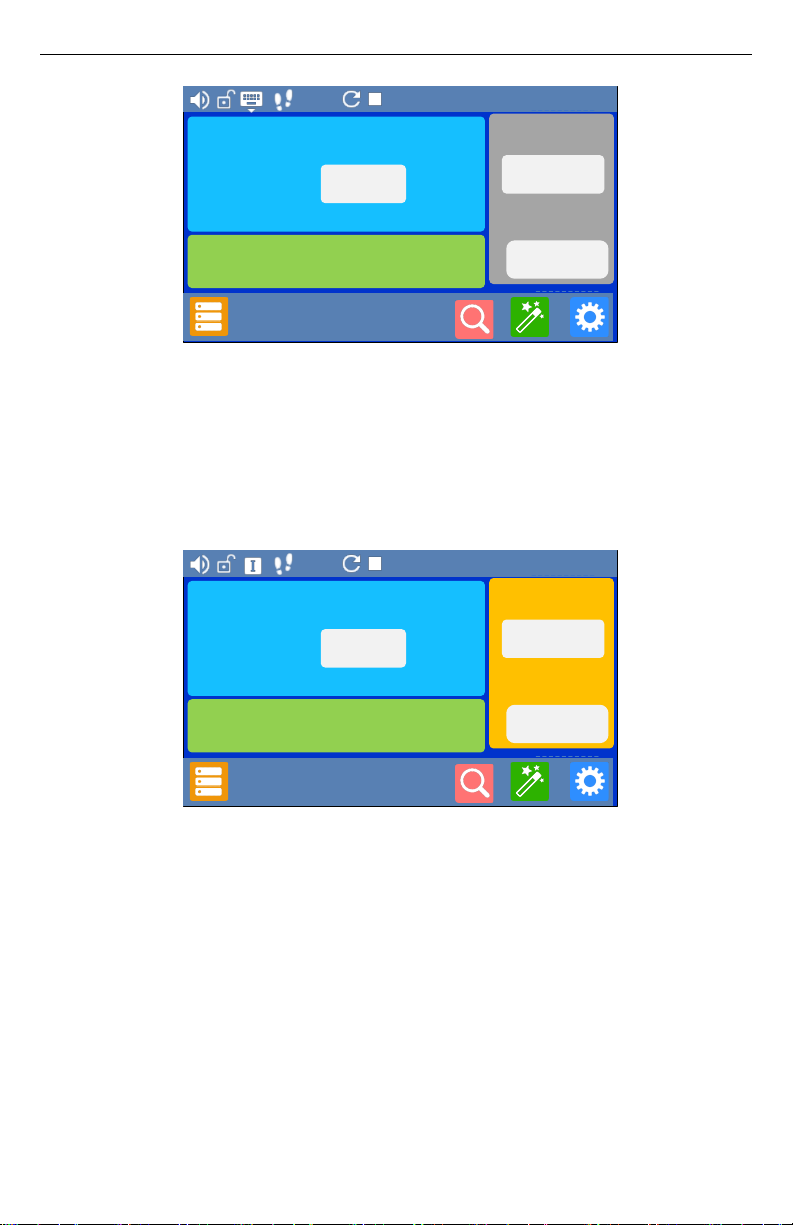

Current Control Mode: External 4-20mA analog current signal
controls flow rate, external logic level signal controls start/stop.
Keypad is disabled.
34℃12:35:46
9.000
150.0
0.0
600.0
Flow
4mA Speed
Speed rpm
FLOW
uL/min
20mA Speed
Figure 8 Current Control Mode
Voltage Control Mode 0-5V: External 0-5V analog voltage signal
controls flow rate. External logic level signal controls start/stop and
direction. Keypad is disabled.

BT-F NEW Intelligent Dispensing Peristaltic Pump
9
34℃12:35:46
9.000
150.0
0.0
600.0
Flow
0V Speed
Speed rpm
FLOW
uL/min
5V Speed
Figure 9 Voltage Control Mode
Voltage Control Mode 0-10V: External 0-10V analog voltage signal
controls flow rate. External logic level signal controls start/stop and
direction. Keypad is disabled.
34℃12:35:46
9.000
150.0
0.0
600.0
Flow
0V Speed
Speed rpm
FLOW
uL/min
10V Speed
Figure 10 Voltage Control Mode
D. Communication State, It shows current communication on/off.

BT-F NEW Intelligent Dispensing Peristaltic Pump
10
34℃12:35:46
9.000
150.0
00:00:00
00:00:00
#01
Flow
Delayed Start
Speed rpm
FLOW
uL/min
Delayed Stop
34℃12:35:46
9.000
150.0
00:00:00
00:00:00
Flow
Delayed Start
Speed rpm
FLOW
uL/min
Delayed Stop
Communication connected communication disconnected
Figure 11 Communication State
E. Rotation Direction. It shows current rotation direction. When pump is
not running, it will show one of the following icon.
34℃12:35:46
9.000
150.0
00:00:00
00:00:00
#01
Flow
Delayed Start
Speed rpm
FLOW
uL/min
Delayed Stop
34℃12:35:46
9.000
150.0
00:00:00
00:00:00
#01
Flow
Delayed Start
Speed rpm
FLOW
uL/min
Delayed Stop
Clockwise Counterclockwise
Figure 12 Direction State
F. When the pump is running, it will change to an carton icon as shown
below.
34℃12:35:46
9.000
150.0
00:00:00
00:00:00
#01
Flow Delayed Start
Speed rpm
FLOW
uL/min
Delayed Stop

BT-F NEW Intelligent Dispensing Peristaltic Pump
11
34℃12:35:46
Head:
转/分
FLOW
Tube:
Speed:
Elapsed:
Total: +-
流量
毫升/分
YZ15
13#
150.0 rpm
0.000 uL
00:00:00
13.980 mL
4
9.000
Flow
ul/min

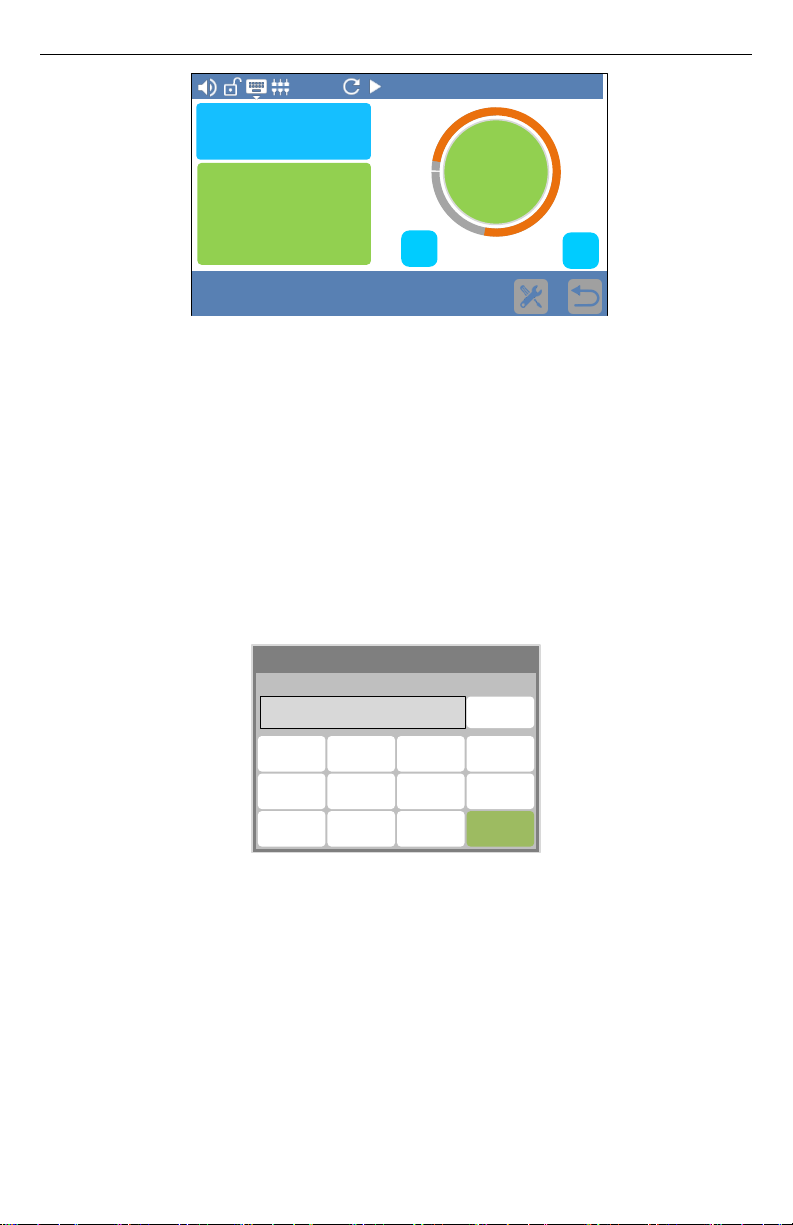

Figure 13 Running Animation
G.Temperature display: display current degree of driver, such as 34 °C.
H. Time display: display current time, such as12:35:46
5Operation zone
A. Parameters settings: When the pump is not running, press it to input
desired value in the pop-up window. Please pay attention to the range
of the value and flow rate unit.
FLOW
Del
1 2 3 .
4 5 6 0
789OK
Max: 9.0mL/min Min: 6.0uL/min
Figure 14 Flow Rate Setting
B. The Unit Settings. When the pump is not running, press it to change
the unit. The allowed units are µL/min, mL/min, L/min, as shown in
Figure 15.

BT-F NEW Intelligent Dispensing Peristaltic Pump
12
Flow unit Setting
X
uL/min
mL/min
L/min
Figure 15 Choose Flow Rate Unit
6Navigation button
Mode setting - Set the specific control mode in different working
modes, the prompt tone is on/off, and the lock is on/off.
Mode Settings
Control Mode
Reserved
Sound
Lock
InteralCtrl
Mode Settings
Dispense
Reserved
Sound
Lock
NO.1
Flow mode Volume dispense mode and
Time dispense mode
Mode Settings
TotalSteps
TotalCycles
Sound
Lock
1
1
Cycle dispense mode
Figure 16 Mode setting interface

BT-F NEW Intelligent Dispensing Peristaltic Pump
13

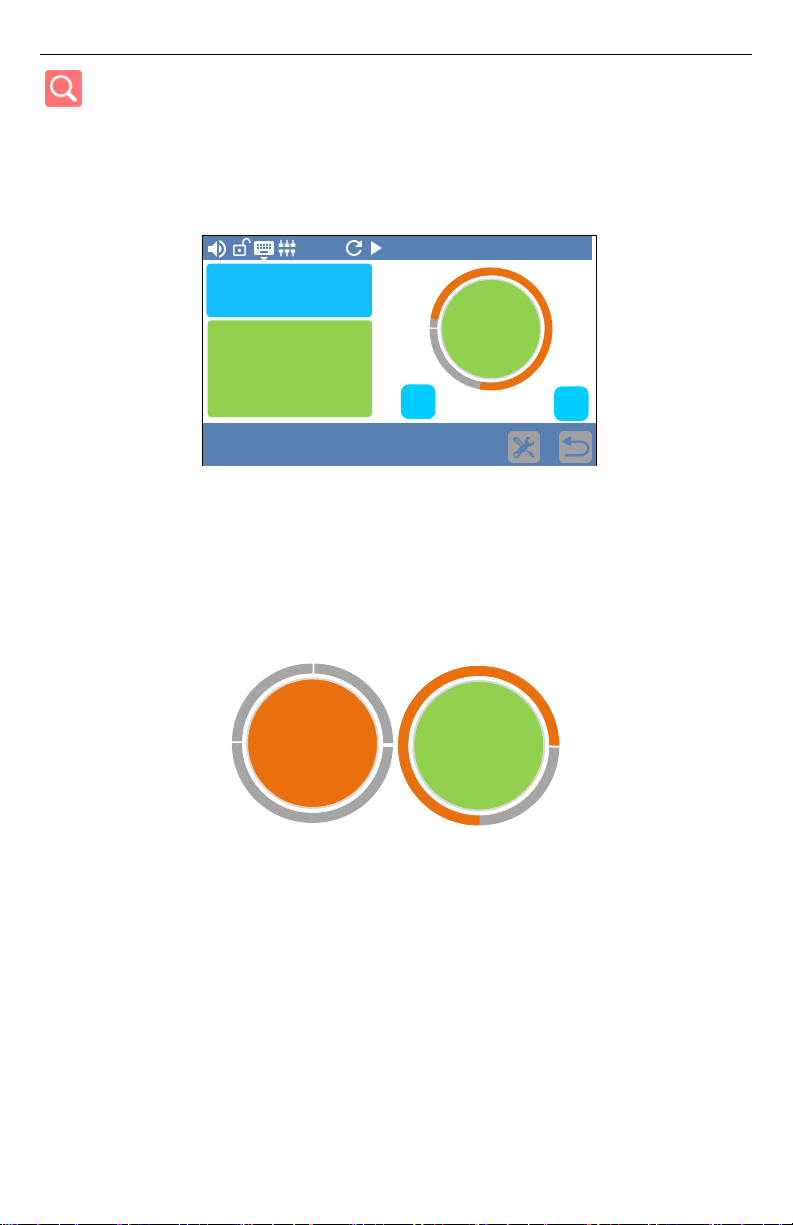

Preview mode - View running status, parameter changes.
Among them, the current running parameter appears on the left side of
the interface, and the running status is displayed on the right side.
34℃12:35:46
Head:
转/分
FLOW
Tube:
Speed:
Elapsed:
Total:
+-
流量
毫升/分
YZ15
13#
150.0 rpm
0.000 uL
00:00:00
13.980 mL
4
9.000
Flow
ul/min
Figure 17 Preview interface
In flow mode, orange indicates the stop state, green indicates the
running state, and the current flow is displayed in the middle.
9.000
Flow
mL/min
9.000
Running
State
Stop State
Flow
mL/min
Figure 18 Running status display
The direction in which the ring rotates indicates the direction in which
the pump operates

BT-F NEW Intelligent Dispensing Peristaltic Pump
14
9.000
9.000
Flow
mL/min
9.000
Clockwise operation
Counter clockwise operation
9.000
Flow
FlowFlow
mL/min mL/min mL/min
Figure 19 Direction indication
In dispense mode, orange is the stop state, green is the running state,
and yellow is the pause
001.00
Set
s
000.38
Run
s
000.45
Delay
s
Stop State Running state Pause State
Figure 20 Dispense status indication
Quick setting - zero clearing accumulative fluid and accumulative
times, prompt tone open / close, lock open / close.
Quick Settings
Cumulative Volume
Cumulative Cycles
Beep
Lock
Figure 21 Quick settings interface

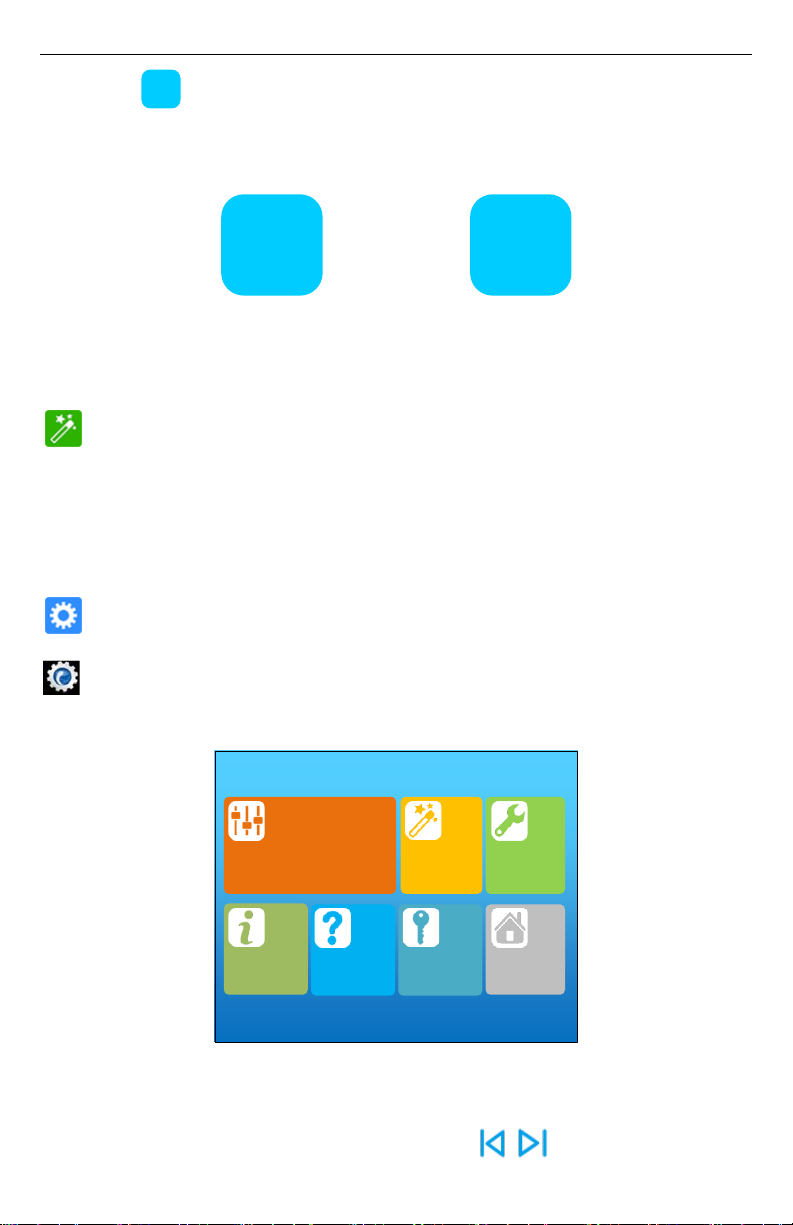

Fine Adjustment Button .When the pump is running/stop, press the fine
adjustment button to adjust the flow rate in real time. Press the
+

BT-F NEW Intelligent Dispensing Peristaltic Pump
15
button or
-
button shortly to increase or decrease the flow rate. Press
and hold the buttons to change the value quickly.
+
-
Increase key Decrease key
Figure 22 Fine Adjustment Button
Calibrate - Pump will accurately show current flow rate/volume by
measuring the weight or volume of the transferred fluid through balance
or cylinder.
Note: The calibration is necessary to display flow rate precisely.
System Settings - When the pump is not running, press the icon
to enter System Settings menu.
About Password
Setup SystemCalibrate
Info Return
Figure 23 System Settings

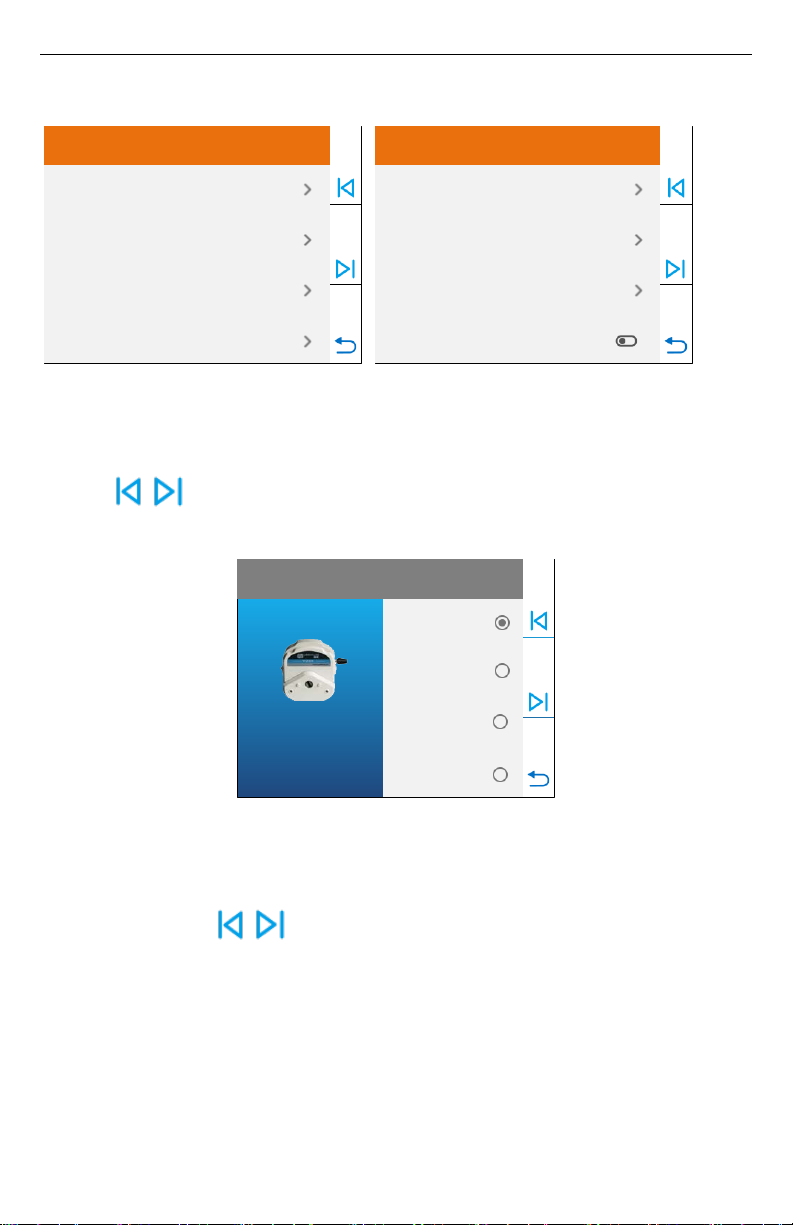

Setup: To set up the general settings, use to view the menu,

BT-F NEW Intelligent Dispensing Peristaltic Pump
16
details as Figure 24.
GeneralSettings
PumpHead
YZ15
Tubing
13#
Anti-Drip
0°
Com
GeneralSettings
Tubing
13#
Anti-Drip
0°
Com
Irda
Figure 24 General Settings interface
•Pump Head: Choose the model of the installed pump head, use
buttons to view the menu, as shown in Figure 25.
PumpHead
YZ15
YT15
WMD15
YZ25
Suitable for wall
thickness 1.6mm
tubing.
Figure 25 Pump Head Select

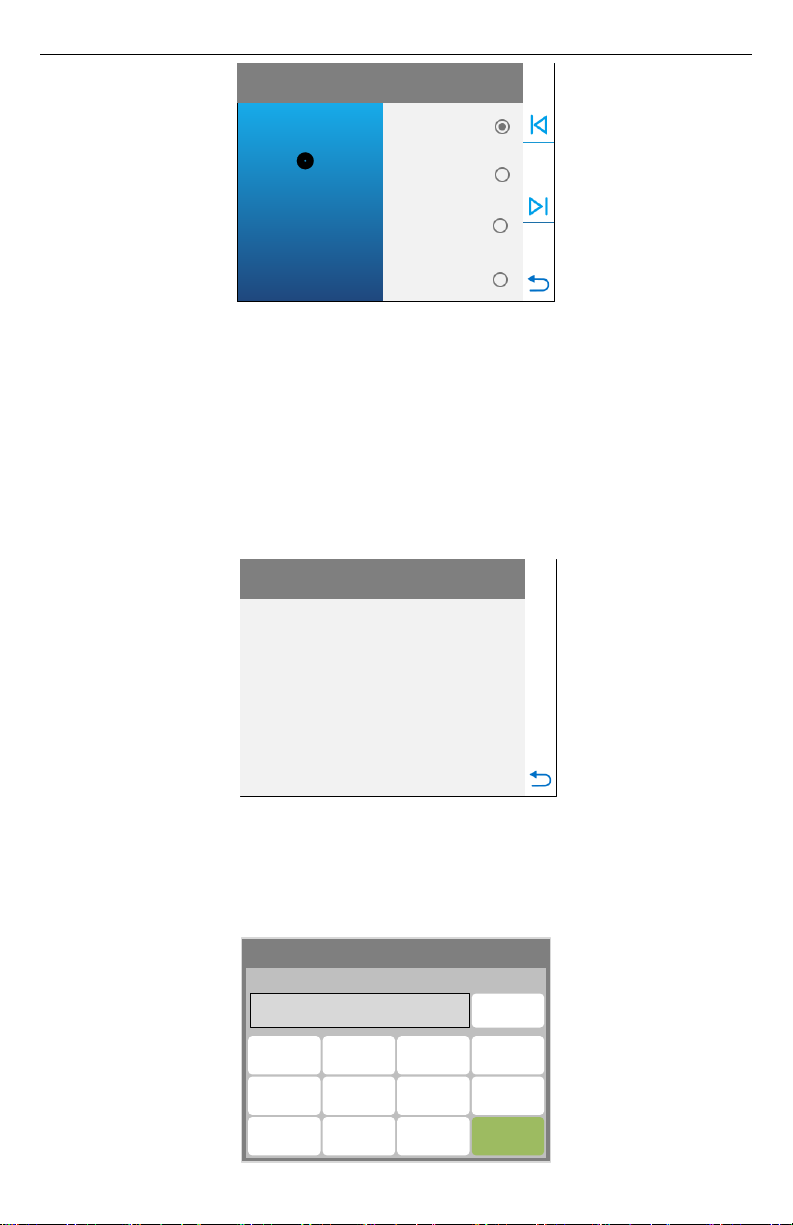

•Tubing: Choose the appropriate tubing size for selected pump
head. Use buttons to view the menu, as shown in Figure
26.

BT-F NEW Intelligent Dispensing Peristaltic Pump
17
Tube Settings
13#
14#
19#
16#
Min Flow
Max Flow
6.000 uL/min
9.000 mL/min
Figure 26 Tubing Select
•Anti-drip setting: The peristaltic pump will rotate the set angle
reversely to prevent fluid dropping from the tubing when the
peristaltic pump stops. Set the back suction angle you can select
the following options or custom input value. When the angle is set
to 0, this function is disabled.
Com Settings
Baud(bps)
9600
ECC
PAR_EVEN
Byte Order
CDAB
Pump No.
1
Figure 27 Backflow Setting
•Anti-speed: According to the actual situation, set the reverse
speed.
Anti-Speed
Del
1 2 3 .
4 5 6 0
7 8 9 OK
Max：600 Min：100

BT-F NEW Intelligent Dispensing Peristaltic Pump
18
•Communication settings - Sets the parameters of RS485
communication, as shown in Figure 28.
Com Settings
Baud(bps)
9600
ECC
PAR_EVEN
Byte Order
CDAB
Pump No.
1
Figure 28 Communication Settings

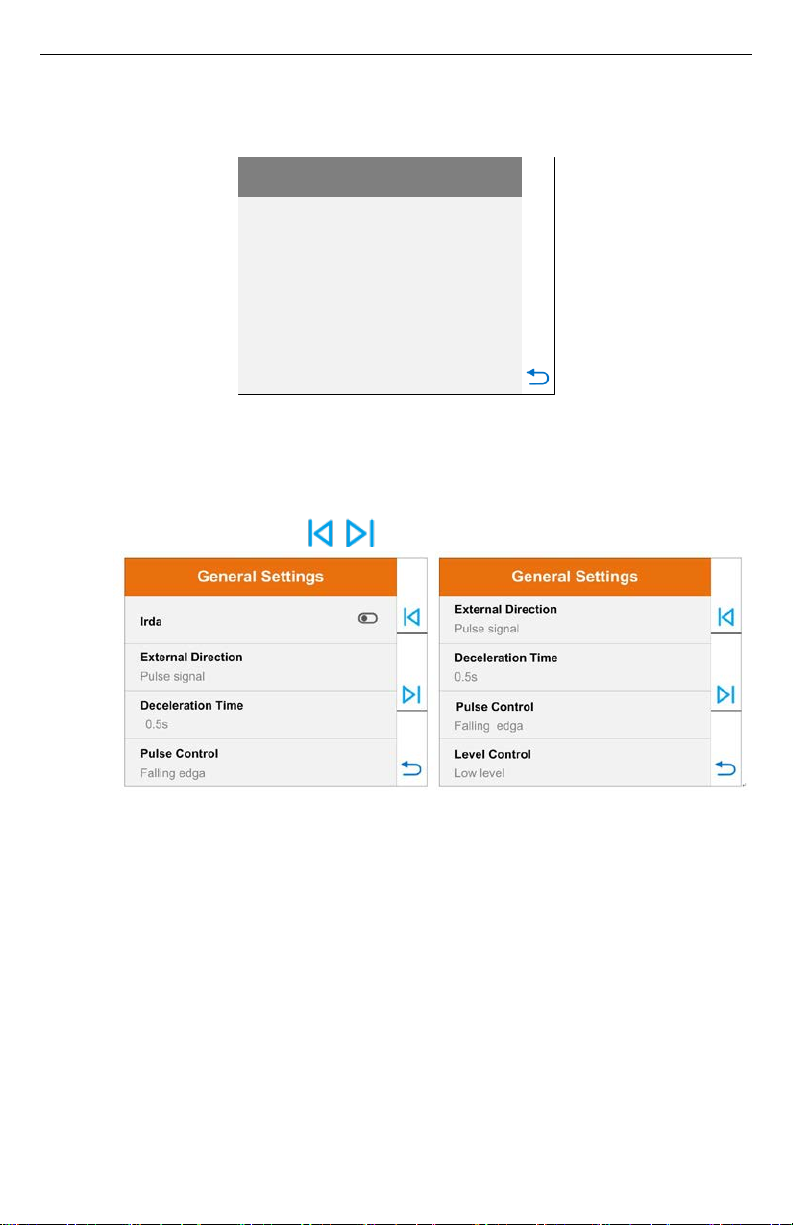

When the password is empty, you can see more parameter settings in
general settings, and use buttons to view the menu.
Figure 29 General Settings (high level)
•External control direction: Select the direction of external control
signal is level mode or pulse mode. Level mode refers to the
switching state of an external control signal, such as a switch. By
keeping it closed or open, while the pulse mode refers to the
switching state of an external control signal, such as an unlocked
button, by instantaneous closing.
•Deceleration time: Refers to the time from setting speed to
stopping in fluid dispensing mode and copy dispensing mode. By
modifying this parameter, the problem of spatter during liquid filling
can be reduced.
