Goldair GPH100-2PK User manual

CAUTION: In order to avoid a hazard due to inadvertent resetting of the
thermal cut-out, this appliance must not be supplied through an external
switching device, such as a timer, or connected to a circuit that is regularly
switched on and off by the utility.
•This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities or lack of experience and
knowledge, unless they are supervised or have been given instruction
concerning the use of the appliance by a person responsible for their safety.
•Children should be supervised to ensure that they do not play with the
appliance.
•If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
WARNING: You must not cover this heater. Covering this heater presents
fire risk and will activate the safety fuse; permanently disabling the unit.
WARNING: Do not use this heater in small rooms when they are occupied
by persons not capable of leaving the room on their own, unless constant
supervision is provided.
WARNING: To reduce the risk of fire, keep textiles, curtains, or any
flammable material a minimum distance of 1 metre from the air outlet.
WARNING: In order to avoid overheating or fire, do not cover the heater.
General Care and Safety Guide
YOUR SAFETY IS IMPORTANT TO US. PLEASE ENSURE YOU TAKE NOTE OF THE
INSTRUCTIONS AND WARNINGS OUTLINED IN THIS MANUAL.
•The heater must not be located immediately below a socket outlet.
•Do not use the heater if it has been dropped or damaged.
•Do not use if there are visible signs of damage to the heater.
•Ensure heater is on a flat, stable, heat-resistant surface.
•Do not use this appliance in the immediate surrounds of a bath, a shower, or a swimming
pool or other liquids.
•Keep all objects at least 1 metre from the front and 150mm from the sides of the appliance.
•This appliance is intended for household use only and not for commercial or industrial use.
•Indoor use only.
•Use only the voltage specified on the rating label of the appliance.
•Use this appliance only as described in this manual. Any other use is not recommended by
the manufacturer and may cause fire, electric shock or injury.
•The common cause of overheating is deposits of dust or fluff in the appliance. Ensure these
deposits are removed regularly by unplugging the appliance and vacuum cleaning the air
vents and grills.

•Never use the appliance to dry clothes.
•Always unplug appliance when not in use.
•Do not connect the appliance to mains supply until completely assembled and adjusted.
•Ensure hands are dry before handling the plug or main unit.
•Do not operate with cord set coiled up as a heat build up is likely, which could be sufficient to
become a hazard.
•Carry out regular checks of the supply cord to ensure no damage is evident
•Do not operate this appliance with a damaged cord, plug or after the appliance malfunctions
or has been dropped or damaged in any manner. Return to a qualified electrical person for
examination, electrical service or repair.
•Do not twist, kink or wrap the cord around the appliance, as this may cause the insulation to
weaken and split. Always ensure that all cord has been removed from any cord storage area
and is unrolled before use.
•It is recommended that this heater is plugged directly into the wall socket. Power boards are
not rated to supply power to high wattage appliances.
•A correctly specified, undamaged extension cord may be used with this heater provided it is
used in a safe manner.
•Do not remove plug from power socket until the appliance has been switched off.
•Do not remove plug from power socket by pulling cord; always grip plug.
•Do not place cord under carpet or cover with rugs or furniture. Arrange the cord so it cannot
be tripped over.
•Don’t place appliance on bedding or on thick & long carpet where the openings may get
blocked.
•Switch off and use handle provided when moving
•Do not place appliance close to radiant heat source.
•Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may
cause an electric shock, fire or damage to the appliance.
•Do not sit on the appliance.
•Do not use abrasive cleaning products on this appliance. Clean with a damp cloth (not wet)
rinsed in hot soapy water only. Always remove plug from the mains supply before cleaning.
•Do not operate in areas where petrol, paint or other flammable liquids are used or stored.
•The appliance must not be immersed in any liquids.
•There are no user serviceable parts installed in the unit.
•Do not place the unit in wardrobes or other enclosed spaces as this may cause fire hazards.
•This unit is not supposed to be used in or around locations where foodstuffs, works of art or
delicate articles of science, etc are stored.
•When the appliance has been unpacked, check it for transport damage and ensure all parts
have been delivered. If parts are missing or the appliance has been damaged, contact the
Customer Services Team.
•If your appliance does not work, or is not working properly, contact the place of purchase or
the Customer Services Team.
General Care and Safety Guide

Components
Screw Pack
Main Body x1
Model GPH100 Castor Plate and Castors x 2
Wall Top Mounting Brackets Wall Bottom Mounting Brackets

Assembly
ASSEMBLY FOR FREESTANDING
Each castor plate supplied with this heater (supplied separately in the carton) requires 3 screws
to attach them securely to the heater. Holes are pre-drilled in the base of the heater.
The castor plates come with 3 pre-drilled holes.
Carefully turn the Main Body upside-down on a scratch-free and stable surface. Be careful to
prevent damage to the cosmetic finish or your floor surfacing.
Place the plastic lugs on the castor plate into the holes on the bottom of the heater and secure
them in position with small screws provided.
Before using this appliance, it must either be wall mounted or have the castor plates and castors fitted.
The screw pack to attach the feet to your appliance will be taped to either one of the feet for your
appliance, or taped to the plug.
PLEASE NOTE: The screws supplied are one way screws so once screwed in they cannot be unscrewed
again.

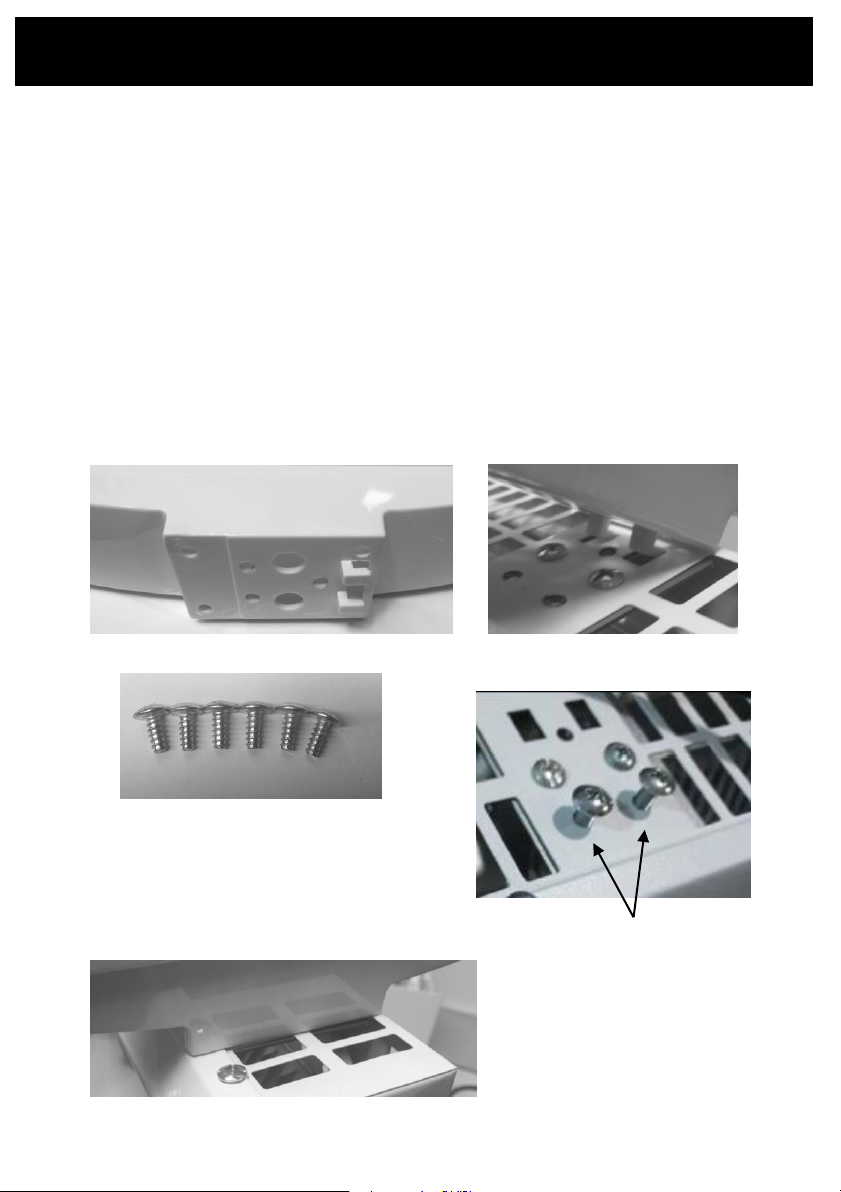

Castor plate showing lugs Lugs positioned in bottom of heater
Securing Screw (3 per castor plate)
Note:2 screws for each castor plate are
already screwed into the bottom of
heater and need to be removed to put
plate on.
Castor plate securely positioned
Screws pre-inserted

INSTALLATION FOR WALL MOUNTING
Position the panel heater within one metre of a wall socket. Do not mount in front of or below
the wall socket.
Ensure the heater is mounted at least 200mm above the floor and at least 400mm from
anything to the side and 600mm from anything above the heater.
To fix the bracket and install the heater:
First mark the wall where the heater will be installed taking into account safe distances
around the heater as shown above.
Wall Top Mounting Brackets
Wall Mounting Screw Set
Wall Bottom Mounting Brackets

Measure the distance between the mounting slots on the back of the heater. Now
mount one of the wall brackets to the wall so that it is in the right location to hold
the heater. Next mount the other bracket to the wall in the correct position to
locate the other slot in heater. Ensure they are level. Also ensure these brackets
are firmly fastened to the wall.
Secure the “L” shaped wall bottom mounting brackets to the bottom of the heater
with the wall mounting part pointing down below the heater as shown below.
These mount in the same position as the castor plates except they are only held by
2 screws. These brackets will hold the heater base in the right position from the
wall.
Now mount the heater onto the top mounting brackets.
Once the heater is mounted correctly, screw the bottom wall mounting brackets
to the wall to secure them.

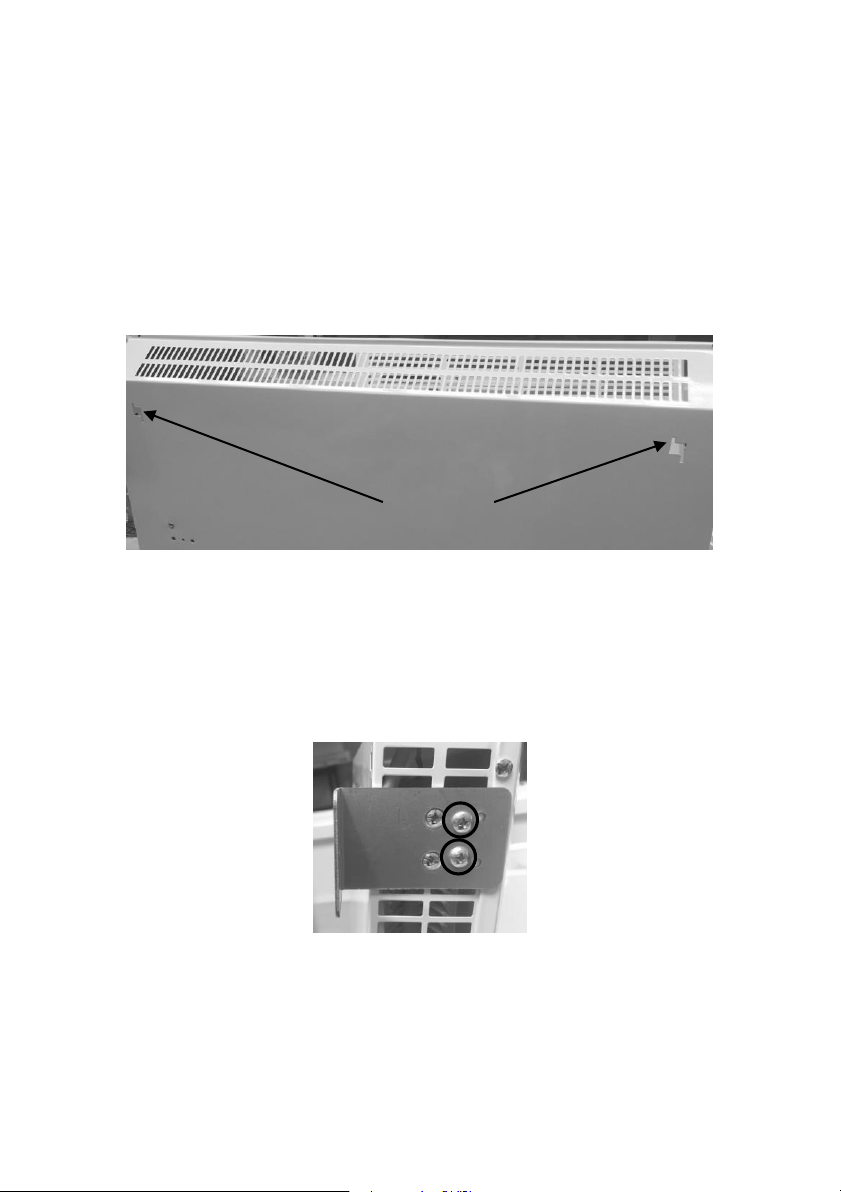

Mounting Slots

Operating Your Heater

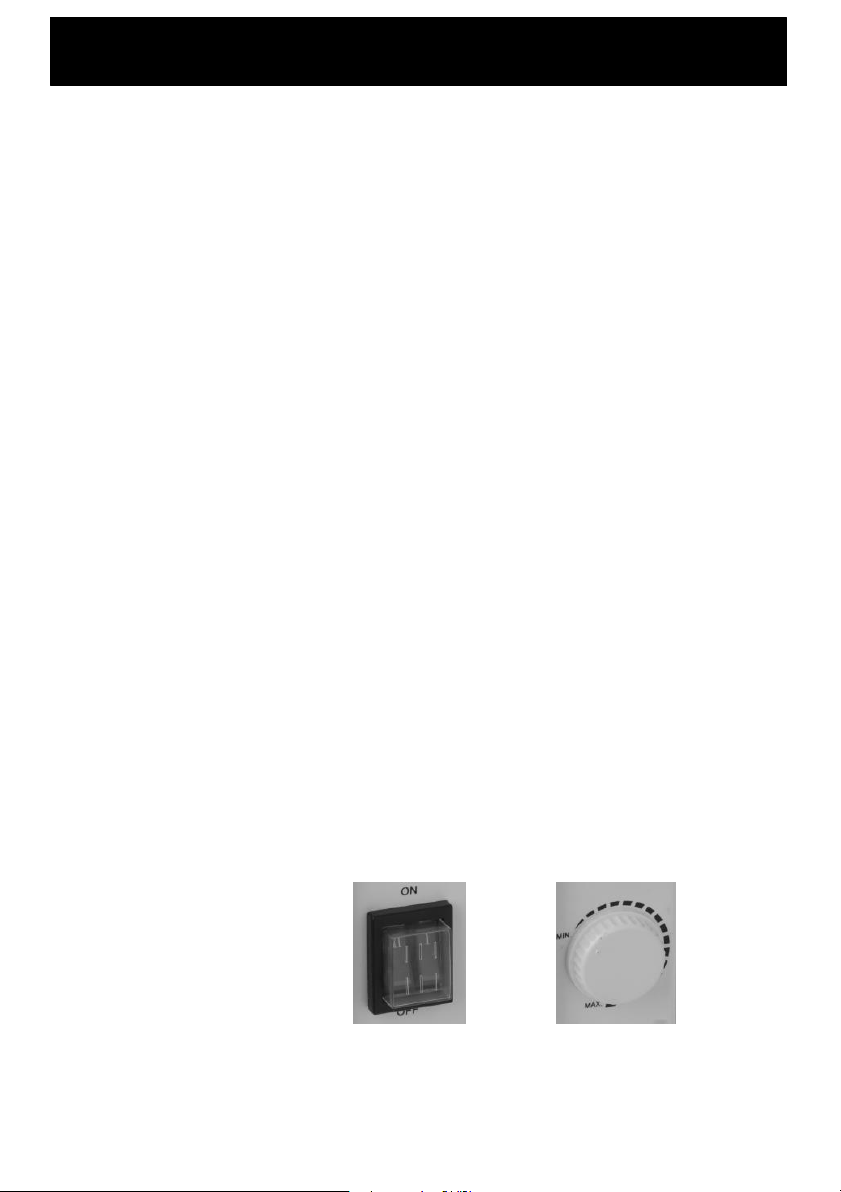

HEAT CONTROL SWITCH
The power switches are located on the right hand side of the heater below the control panel.
To turn the heater on, switch on the power switch to the heat setting desired.
To turn the heater off, switch off the power switches.
The control switch positions are:
0 = OFF
I = Low Heat
II = High Heat
THERMOSTATIC CONTROL
1. Rotate thermostat knob clockwise until you reach the maximum position.
2. When the room reaches a temperature that is comfortable for you, slowly turn the knob anti-
clockwise until the heater just turns off (you will hear a click).
3. The heater will now cycle on and off to maintain the comfort level you have set.
4. Take note of this setting position for future use.
Always choose a safe location for the appliance, keeping in mind the safety precautions
outlined. Ensure all packaging has been removed from the unit before use. This appliance
requires no installation, it should be used solely as a portable appliance.
WARNING:In order to avoid overheating or fire, do not cover the heater.
WARNING: Keep all objects at least 1 metre from the front and 150mm
from the sides of the appliance.
WARNING: Do not use this heater with a programmer, separate timer,
remote-control system or any other device that switches the heater on
automatically, since a fire risk exists if the heater is covered or positioned
incorrectly.
WARNING: Never leave this heater unattended when in use.
If mounted on castors, ensure heater is on a flat, stable, heat-resistant surface.
WALL MOUNTED HEATERS ARE ONLY TO BE MOUNTED ON WALLS THAT
COMPLY WITH CURRENT AS/NZS SPECIFICATIONS & BUILDING REGULATIONS
Once the heater is in a safe operating position and all switches are in the off
position, insert the power plug into the mains outlet.
CAUTION: Ensure the power cord is not tight because if pulled it may
partially pull the plug from the socket. A partially inserted plug will overheat
the plug and socket and could result in fire.

TECHNICAL SPECIFICATION
Model No: GPH100
Supply: 220-240VAC 50Hz
Wattage: 1000W
Operating Your Heater
SAFETY DEVICES
This appliance has two protection devices:
•Resettable Thermal Link - this will automatically disconnect the power to the
appliance at a pre-set overheat temperature. After cooling down it will reset and
power on again. If this occurs, investigate what is causing the appliance to overheat.
•Thermal Fuse - this disconnects the appliance permanently in case of overheating. (It
is non resettable).
Note: The light in the power switch will remain on even after the safety devices have
activated to show there is still power to the heater
CAUTION: The heater generates heat during use. Proper precautions must
be taken to prevent the risk of burns, scalds, fires or other damage to persons.
CARE AND CLEANING
•The heater requires regular cleaning to ensure trouble free operation:
•Unplug the heater from the mains supply before cleaning.
•Ensure that the heater has been allowed to cool down completely before cleaning.
•The common cause of overheating is deposits of dust or fluff in the appliance. Ensure
these deposits are removed regularly by unplugging the appliance and vacuum
cleaning the air vents and grills.
•Use a damp cloth (not wet) to wipe the exterior of the heater to remove dust and
dirt.
•Never use solutions such as petrol, thinners or polishing agents.
•Ensure the heater is dry before plugging back into the mains supply.
PROOF OF PURCHASE
To receive warranty retain receipt as proof of purchase.
SUPPORT AND TECHNICAL ADVICE
Goldair –New Zealand
Monday –Friday 8am-5pm
Phone [phone]
Phone [phone]
[email protected]
Goldair –Australia
Monday –Friday 8am-5pm
Phone [phone]
Phone [phone]
[email protected]

Thank you for purchasing this Goldair product. Your product is warranted against faults and manufacture when used in normal
domestic use for a period of two years. In non-domestic use Goldair limits the voluntary warranty to three months.
Goldair undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during the
warranty period.
This warranty excludes damage caused by misuse, neglect, shipping accident, incorrect installation, or work carried out by anyone
other than a qualified electrical service technician.
PLEASE KEEP YOUR RECEIPT AS THIS WILL HELP VERIFY YOUR WARRANTY.
The benefits given to you by this warranty are in addition to other rights and remedies available to you under law in relation to the
goods or services to which this warranty relates.
In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a
major failure.
In New Zealand this warranty is additional to the conditions and guarantees of the Consumers Guarantee Act (1993).
Two Year Warranty
Goldair Two Year Warranty (IMPORTANT: Please complete and retain this warranty card)
Name
Address
Place Of Purchase Date Of Purchase
Name Of Product Model Number
Attach a copy of the purchase receipt to this warranty card
Due to continual design improvements, the product illustrated in this User Manual may differ slightly from the actual product.
Goldair –New Zealand
CDB Goldair
PO Box 100-707
N.S.M.C
Auckland
Phone [phone]
Phone [phone]
www.goldair.co.nz
Goldair –Australia
CDB Goldair Australia Pty
PO Box 574
South Morang
Victoria, 3752
Phone [phone]
Phone 1300 GOLDAIR (1300 465 324)
www.goldair.com.au
