GOLDENSEA UV UV4C-H User manual

UV4C-H
USER MANUAL
KEEP THIS MANUAL FOR FUTURE NEEDS

www.goldenseauv.com
1
Thank you for purchasing a GOLDENSEA UV product. You have acquired a
powerful and versatile device. We are confident that you will be satisfied with
our excellent products and service. For your own safety, please read this user
manual carefully before installing and operating the device.
Contents
1. Installation 3
2. Operation 3
3. Notes 4
4. Warnings 4
5. Product Overview 6
6. Dimensional Drawings 6
7. Replacing The UV Tube 7
8. Troubleshooting Tips 8
9. Features 8
10.Cleaning and Maintenance 9
11.Service 9

www.goldenseauv.com
2
Voltage Input: AC 220-240V~, 50/60Hz;Power: 160W;Product Size: 440x370x650mm
This device is only for commercial use in non-residential locations, disinfect daily use items
such as mobile phone, headset, mask, office stationery, makeup tools, etc., it shall only be
used by professional person or adults who are capable of operating this device by following
this user manual. The warning sign as below shall be shown on the way to the fixture
during operation.
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed
including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
a) This equipment is designed for use with germicidal UV radiation sources and UV
radiation can pose a risk of personal injury. Overexposure can result in damage to eyes and
bare skin. To reduce the risk of overexposure this equipment must be used by professional
person, or adults who are capable of operating this device.
b) Maintenance and servicing of this UV generating equipment shall be performed by
professional person. Service personnel must wear appropriate Personal Protective
Equipment (PPE) if the equipment will be in operation during the maintenance or servicing
work. Contact the equipment manufacturer for PPE recommendations and guidance.
c) When replacing lamps, replace them only with the lamps for which the equipment is
marked and intended.
d) The use of accessory not recommended by the manufacturer may cause an unsafe
condition.
e) Do not use this equipment for other than intended use.
f) Keep the device away from children and pets.
g) It should be stored well to avoid accidental damage to the sterilizer and personal injury
after the sterilization is finished.

www.goldenseauv.com
3
1. Installation
1) Place the product on an even surface.
2) Untie the 3 Wire Shelving and place them into position inside the cabinet.
Note: The temperature of the bottom wire shelving close to the heat pipe is about 70 , and
no combustible materials such as cloth and fiber can be placed. The temperature of the
cavity center is 50-60 . Do not put anything too wet in the disinfection cabinet, so as not to
damage the heating tube with water droplets.
2. Operation
Disinfect
1) Plug-in to power on.
2) Open the door of the cabinet, place your items
onto the wire shelving inside, close the door.
3) Press the Disinfect touch key to start the
disinfection process. The disinfection time is 10
minutes, counting-down will be shown on the
Display.
4) Once the disinfection process ends, an audible
alarm sounds. (you can increase or decrease
the volume of the alarm by the Sound touch
key)
5) Open the door of the cabinet to ventilate.
Drying
1) Plug-in to power on.
2) Open the door of the cabinet, place your items
onto the wire shelving inside, close the door.
3) Press the Drying touch key to start the drying
process. The disinfection time is 30 minutes,
counting-down will be shown on the Display.
4) Once the drying process ends, an audible alarm
sounds. (you can increase or decrease the
volume of the alarm by the Sound touch key)
5) Open the door of the cabinet to ventilate.

www.goldenseauv.com
4
Drying+ Disinfect
1) Plug-in to power on.
2) Open the door of the cabinet, place your
items onto the wire shelving inside, close
the door.
3) Press the AUTO touch key to start. The
disinfection time is 30 minutes (First
disinfect, the disinfection times is 10
mins, then drying, the drying times is 30
mins), counting-down will be shown on
the Display.
4) Once the working ends, an audible alarm
sounds. (you can increase or decrease
the volume of the alarm by the Sound
touch key)
5) Open the door of the cabinet to ventilate.
* If the door of the cabinet is opened during disinfection process by misuse, the UV lamp
will automatically turn off to prevent potential injury to the operator. Once the door is closed
again, the disinfection process will continue.
3. Notes
1. The surface of the lamp should be kept clean.
2. The lamp is fragile. Please handle it with care.
3. According to the latest guideline on the diagnosis and treatment released by the
National Health Commission, the virus is sensitive to ultraviolet (UV) light and heat, so
UV radiation is a quick and effective way of disinfecting some objects against germs
and viruses.
4. Warnings
The UV-C wavelength is 253.7nm.
CAUTION: TO REDUCE THE RISK OF FIRE
USE ONLY _ TUV 4W FAM/10X25BOX _
LAMPS
ATTENTION –RISQUE D’INCENDIE
UTILISER UNIQUEMENT LES LAMPES
_ TUV 4W FAM/10X25BOX
Suitable for damp locations
CONVIENT AUX EMPLACEMENTS HUMIDES

www.goldenseauv.com
5
WARNING –RISK OF PERSONAL INJURY
Avertissement –RISQUE DE BLESSURES
CORPORELLES
THIS EQUIPMENT IS DESIGNED FOR
USE WITH GERMICIDAL LAMPS OR UV
SOURCES AND MUST BE INSTALLED
AND USED IN COMPLIANCE WITH
COMPETENT TECHNICAL DIRECTIONS
TO PREVENT THE USER'S EYE AND
BARE SKIN FROM EXPOSURE TO
HARMFUL UV OR OPTICAL RADIATION.
PEOPLE, PETS AND PLANT SHOULD
LEAVE THE AREAS WHEN USING THE
DISINFECTION LIGHT.
CET ÉQUIPEMENT EST CONÇU POUR ÊTRE
UTILISÉ AVEC DES LAMPES GERMICIDALES OU
DES SOURCES UV ET DOIT ÊTRE INSTALLÉ ET
UTILISÉ EN CONFORMITÉ AVEC LES DIRECTIVES
TECHNIQUES COMPÉTENTES POUR EMPÊCHER
L’ŒIL DE L’UTILISATEUR ET LA PEAU NUE DE
L’EXPOSITION À DES RAYONS UV OU OPTIQUE
NOCIFS. LES PERSONNES, LES ANIMAUX DE
COMPAGNIE ET LES PLANTES DEVRAIENT
QUITTER LES ZONES LORS DE L’UTILISATION DE
LA LUMIÈRE DE DÉSINFECTION.
EYE DAMAGE MAY RESULT FROM
DIRECTLY VIEWING THE LIGHT
PRODUCED BY THE LAMP IN THIS
EQUIPMENT. ALWAYS TURN OFF LAMP
BEFORE SERVICING.
LES DOMMAGES OCULAIRES PEUVENT
RÉSULTER DE L’OBSERVATION DIRECTE DE LA
LUMIÈRE PRODUITE PAR LA LAMPE DANS CET
ÉQUIPEMENT. ÉTEIGNEZ TOUJOURS LA LAMPE
AVANT L’ENTRETIEN.
UV-C RISK GROUP 3
WARNING: UV-C emitted from this
product.
Avoid eye and skin exposure to
unshielded product.
Follow installation instructions and
user manual.
GROUPE DE RISQUE UV-C 3
AVERTISSEMENT UV-C émis par ce
produit.
Évitez l’exposition des yeux et de la peau
au produit non fumé.
Suivez les instructions d’installation et le
manuel d’utilisation.
WARNING-POSSIBLE RISK OF INJURY TO EYES AND SKIN
•Hazardous optical radiation may be emitted from the light source. Do
not stare at operating lamp.May be harmful to the eyes.
•UV may be emitted from the light source. Eye or skin irritation may
result from exposure. Use appropriate shielding.
•IR may be emitted from the light source. Do not stare at operating lamp.
Avertissement：risque possible de blessures aux yeux et àla peau
•Un rayonnement optique dangereux peut être émis par la source
lumineuse. Ne pas regarder directement la lampe en fonctionnement.
Peut être très nocif pour les yeux.
•Des ultra-violets (UV) peuvent être émis par la source lumineuse. Une
irritation des yeux ou de la peau peut résulter de l'exposition. Toujours
utiliser des protections appropriées.
•Des infra-rouges (IR) peuvent être émis par la source lumineuse. Ne
pas regarder fixement la lampe en fonctionnement.
SAVE THESE INSTRUCTIONS

www.goldenseauv.com
6

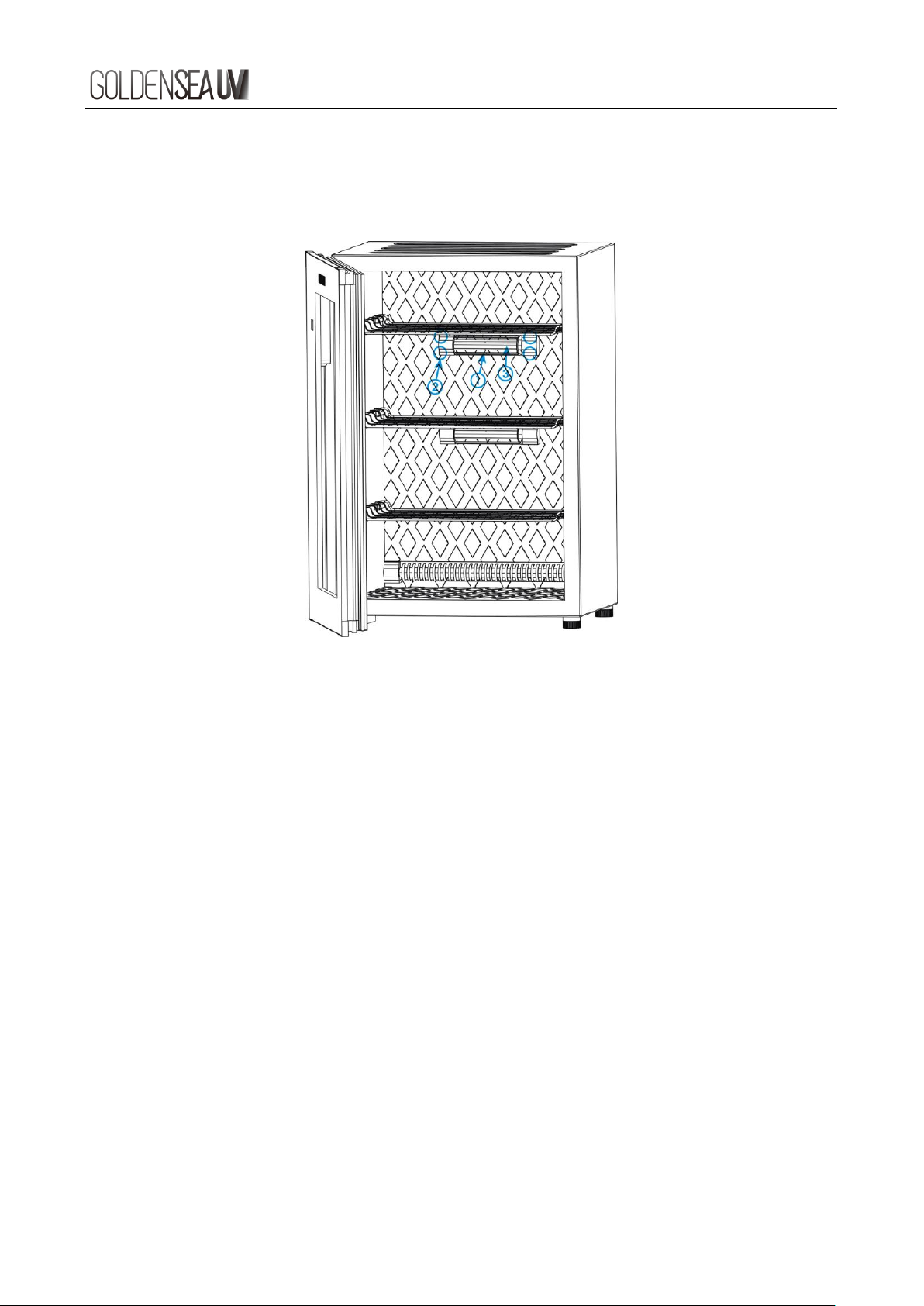

5. Product Overview
6. Dimensional Drawings
1）LED Display
2）Drying - touch key
3）Disinfect - touch key
4）Auto - touch key
5）Sound (Volume) - touch key
6）Wire Shelving
7）Protective Grid
8）UV Tube
9）Power Cable
10）Safety Catch
11）Fever Tube
12）Door

www.goldenseauv.com
7
7. Replacing The UV Tube
To maintain the sterilizing efficacy, the UV tube needs to be replaced after 6,000 hours of
use.
Steps:
1. Wait for UV tube to cool down (to avoid scalding) after switching off the device.
2. Remove the wire shelving.
3. Remove the Protective Grid ①of the UV tube.
4. Remove the 2 screws (M3x8mm) of the UV tube holders ②on the other sides, and
release the UV tube from the two holders.
5. Remove the UV tube ③.
Note: please follow your local toxic and hazardous waste regulations for lamp disposal.
6. Install the new UV tube and fix it into its two holders.
Note: direct contact with new UV tube should be avoided as grease from your skin may
reduce the efficiency of the UV tube. It is advised to wear protective gloves when
handling a new UV tube.
7. Tighten the 2 screws (M3x8mm) on the two holders.
8. Fix the Protective Grid back to its position.
9. Reinstall the wire shelving. The device is now ready for use.

www.goldenseauv.com
8
8. Troubleshooting Tips
8.1 What to do if the device doesn’t work?
1. Ensure the device is plugged into a working wall socket.
2. Ensure the plug is wired correctly and terminal well-connected.
3. If you still have issues with the device, please contact your local dealer or our customer
service for assistance.
8.2 How often should the UV tube be replaced?
1. The UV tube is the core of the product, it should be replaced after 6000 hours of use to
maintain the germicidal efficacy.
2. The UV tube is defected if it flashes, please contact your local dealer or our customer
service to order a new UV tube. For replacing the UV tube, please refer to the
instructions in this user manual.
3. After use for a period of time, it is normal to find some black spots on both sides of the
UV tube.
9. Features
Light Source
•Lamp:
TUV 4W FAM/10X25BOX (PHILIPS)
or
HNS 4W G5(G4T5/OF)PURITEC UV-C Germicidal Low Pressure Lamp (OSRAM)
•Extremely long Life: up to 6,000 H
Features
•LED display
•Touch keys
•Audio alarm
•Open door protection mode
•UVC wavelength: 253.7nm
Product Type
Industrial Ultraviolet disinfection light
Weight
Net weight: 12.1 kg

www.goldenseauv.com
9
10.Cleaning and Maintenance
1. To ensure the device remains in good condition and does not fail prematurely, regular
maintenance, cleaning and checks are required.
2. For cleaning of the device, please use a lint-free cloth.
3. To avoid damage to the device, never use detergent or solvents.
4. Never spray insecticide towards the device, it can discolor or damaged.
5. Should you need any spare parts, please order genuine parts from your local dealer.
11.Service
For all service needs, please contact your local authorized dealer or GOLDENSEA
customer service. Our contact details are:
Email: [e-mail]
Tel: [phone]
Address: No.109 Haiyong Road, Shiji Town, Panyu Zone, Guangzhou, China. 511450
Errors and omissions for all information given in this user manual are expected.
All information is subject to change without prior notice.
