GOLDENSEA UV UVL72 User manual

QUICK START GUIDE
UVL72
WARNING! POSSIBLE RISK OF INJURY TO EYES AND SKIN.
•Hazardous optical radiation may be emitted from the light source. Do not look
at an operating lamp. It may be harmful to the eyes.
•UVC is emitted from the light source. Eye or skin irritation may result from
exposure. Use appropriate shielding.
•IR may be emitted from the light source. Do not look at operating lamp.
CAUTION!
•To avoid eyes and skin exposure to UV light, it is forbidden for animals, plants
and all personnel to be present when the UV lamp is on.
•Always disconnect mains supply before removing any fixture covers.
•Keep this device away from rain and moisture.
www.goldenseauv.com

Thank you for purchasing a GOLDENSEAUV product. This manual is a quick operation guide to get
you started. For more information, please always refer to the full version user manual provided.
Before unpacking, please check and be sure that the package is in good condition with no damage
on the carton during transportation. In the package, you will find the following:
UVL72
(with Reflector and UV Tube)
Remote Control
UV Glasses
Warning Sign
Floor Brackets
(with screws)
1. Product Information
Voltage
Power
Net Weight
Size
AC100-240V, 50/60Hz
80W
2.2 kg
490.8x75.8x240.3mm
①Handle
⑥Start - touch key
⑪Protective Grid
②Hanging Hook
⑦Power Indicator
⑫UV Tube
③120 mins - touch key
⑧Power Switch (I/O)
⑬Grid Opening Tabs
④60 mins - touch key
⑨Power Cable
⑭Indicator Lights
⑤30 mins - touch key
⑩Lamp Tube Safety Catch
2. Preparation and Notes
•Before using the product, remove the foam (protecting the UV tube) inside the product: pull up the
4 locking Tabs to open the Grid and take the foam out carefully, then re-install the Grid.
•Keep in mind of the following information:
Delayed Start Time
Recommended Disinfection Times/Areas
2 minutes
30mins/20m²
60mins/40m²
120mins/80m²
•Place the supplied Warning Sign in a conspicuous place at the entrance/exit of disinfection area.
•Make sure the path to exit the disinfection area is clear before starting the device.
•The operator must wear anti-ultraviolet protective clothing and the UV Glasses before operating.
•The operator must leave the disinfection area and close all entrances after starting the device,
make sure the entrances are locked or safeguarded during the entire disinfection process.

•For safety reasons, the device was designed with a motion sensor: if the working device detects
any movement within 3m, it will immediately deactive and a continuous audible dual beep and
flashing red and green LED indicator lights will engage.
•The motion detector can ‘see’ through walls, the range can be affected by different materials and
thickness (metal: isolated; concrete: decreased; glass or wood: no change; reflector: increased).

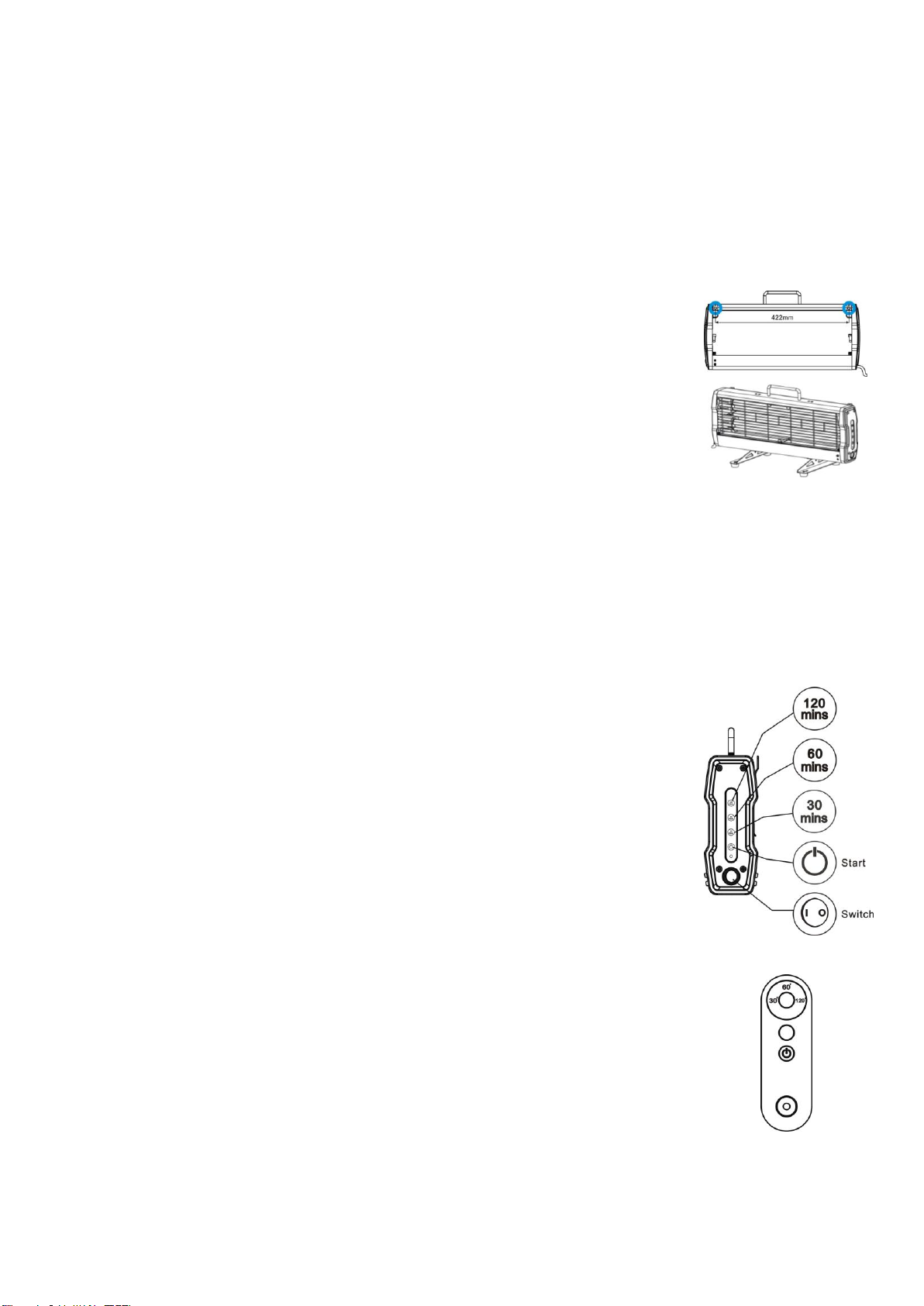

3. Installations
Wall Mounting
•Mount 2 screws (M4) on the wall with a distance of 422mm to hang the
device.
Floor Standing
•Take the 2 Floor Brackets provided and fix them to the device with the 4
screws (M4x10 mm).
*When using by Wall Mounting, the device should be installed with the Reflector. When using
by Floor Standing, the device can be installed with the Reflector if it is placed against wall, or
without Reflector if it is placed away from wall.
4. Operation
•Switch on the device, the green power indicator light turns on.
•On either the fixture control panel or supplied remote control:
Press the <30 mins>, <60 mins> or <120 mins> touch key/button to select
your desired disinfection time, the touch key indicator light turns on.
Press the Start touch key/button, audible alarm starts beeping and red
power indicator will flash regularly for 2 minutes. You must exit within this
2 minutes.
•The UV tubes will light up once the beeping countdown ends, the power
indicator turns red and stays on during the entire disinfection process.
•Once the disinfection process ends, the touch key indicator turns off and
the power indicator switches to green. Also an audible alarm sounds.
•Open the doors and windows to ventilate the disinfected area.
* If the remote control loses pairing with the device, re-do the pairing by pressing the Start
button on the remote control and switch on the device for 5 seconds.
Control panel:
Remote control:
