Goldensea uv Uvs4 User manual

USER GUIDE

USER GUIDE-WARNINGS

Improper use of this product may cause damage to skin and eyes

This device may only be used by trained personnel

Before operating this product the operator must read the user guide

and be aware of all the risks associated with this product and best

practices for using it

Never enter the disinfection area when the product is in operation

and the red LED is illuminated

SAFETY BY DESIGN

Motion Detection Audible/ Visual Alarms Delayed Start Time Fall Auto Protect*

*UVS4, UVP36, UVM216, UVM432, UVAIR216 are

fitted with this sensor

SAFETY BY DESIGN

Included Warning Sign Included UV Safety Glasses

SAFETY BY DESIGN

EVEN THOUGH ALL GOLDENSEA UV PRODUCT HAVE BUILT IN

SAFETY FEATURES IT IS ESSENTIAL THAT ALL OPERATORS AND

COMMERCIAL REPRESENTATIVES UNDERSTAND THE BEST

PRACTICES AROUND USING THESE PRODUCTS!

USER GUIDE-PREPARE

•Ensure unit is on a stable surface or properly wall mounted

•Confirm disinfection area is clear of LIVING BEINGS PRIOR TO PROCEEDING

•Wear the supplied UV glasses

•Place supplied warning sign on outside of door and use use additional signs if required

•Confirm there is a clear path to the exit

•Know how long you have to exit the area after starting the cycle (page 15)

•Identify and plan to cover significant gaps at doors to disinfection area

•Locate the remote control and keep it on your person

•It is best practice to wear tightly woven clothing covering all exposed skin and nitrile gloves

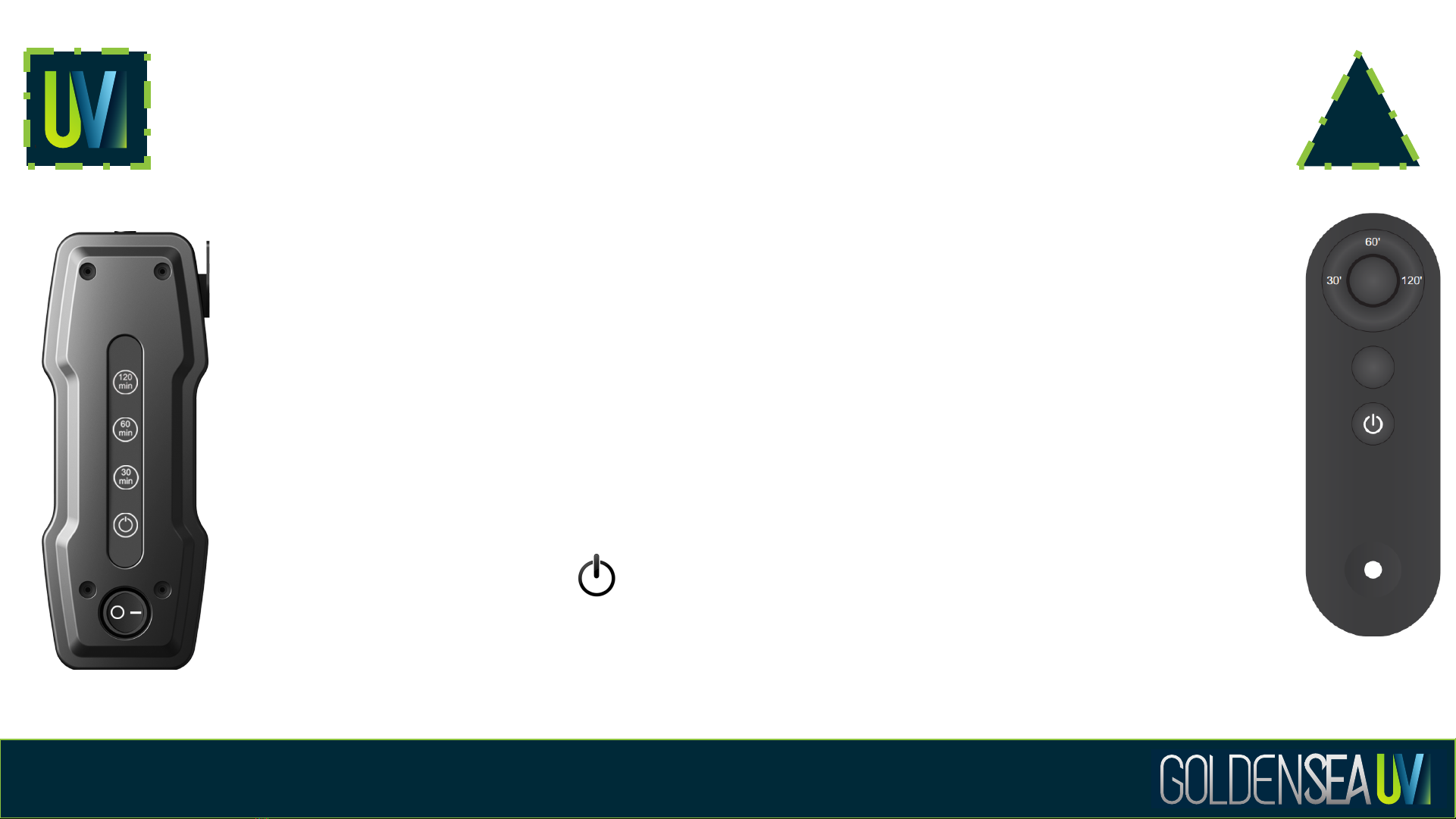

USER GUIDE-SETUP

1. Plug the unit into an electrical outlet, do not modify/ alter the electrical

connection of the product in anyway

2. Turn on the product by setting the I/0rocker switch to I. The green LED will

illuminate.The UVC tubes are NOT illuminated at this time

3. Where possible use the included remote control and move to the door in

preparation for activation

4. Select the appropriate disinfection time by pressing the relevant button

5. Before pressing start reassess the area, make sure there are no living

beings in the area and that your path to exit is clear

USER GUIDE-ACTIVATE

1. Press the start button

2. Once the start button is pressed an audible alarm will sound and ared LED light

will flash for the duration of the delayed start time

3. YOU MUST EXIT THE DISINFECTION AREA IMMEDIATELY

4. Once the delayed start time has ended, the tubes will activate and the red LED light

will illuminate for the duration of the disinfection process

5. During emission there will be an audible ping every 10 seconds until the emission

time is over

USER GUIDE-END OF CYCLE

1. Once the disinfection process has ended, the red LED light will turn off and be

replaced by the green LED light.This will indicate that it is now safe to enter the

room

2. Upon entering the room, open windows to ventilate area

1. You may encounter an unusual smell which is anormal result of the

disinfection process and is not harmful

3. If using amobile product return the unit to its safe storage location

4. Remember to return the UV Warning Sign, Remote control and UV Glasses to their

storage location

USER GUIDE-INTERRUPTION OF

CYCLE

1. If the disinfection cycle is interrupted due to the motion sensor being activated,

the unit will sound an alarm tone until an operator resets the unit

1. The unit may be reset by selecting the relevant timing cycle followed by the

start button

2. The unit will now go through the delay start process and then begin the cycle

3. You may also restart the unit using the remote control

2. If the disinfection cycle is interrupted due to apower outage, no alarm tone will

sound.Once power returns the disinfection cycle will need to be restarted as per

previous instructions

USER GUIDE-INFO

1. Unit is most effective when placed in line of sight of surface to be disinfected

2. Ensure placement of unit allows for greatest coverage

3. If necessary add more units at different points in the disinfection area

4. Shaded areas are likely not to be disinfected

5. UVGI disinfection is most effective when added to existing disinfection protocols

6. Best practice is to complete manual disinfection protocols prior to UVGI activation

7. UVGI disinfection alone will not disinfect an entire area

REMEMBER

NEVER ENTER THE DISINFECTION AREA WHEN THE PRODUCT IS

IN OPERATION, THE ALARM BUZZER IS SOUNDING AND THE

RED LED IS ILLUMINATED

AREA/ TIME DISINFECTION CHART

5 mins 10 mins 30 mins 60 mins

120 mins

UVS4

- - 1 m22 m24 m2

-BOX^200 cm2200 cm2200 cm2- -

UVP36

- - 10 m220 m240 m2

UVL72

- - 20 m240 m280 m2

UVL150

- - 40 m280 m2160 m2

UVL220

- - 60 m2120 m2240 m2

UVT72

- - 20 m240 m280 m2

UVM216

- - 60 m2120 m2240 m2

UVM900

- - 240 m2480 m2960 m2

*Disinfection Area/ Time calculated based on aroom height of 2.5m and targeting xpathogen.Different variables will result in changed area sizes.Please

consult the GOLDENSEA UV Calculator for more information.

^Box has a surface area 200 cm2and 5mins is enough time destroy/ neutralise all know pathogens at present.Longer disifection times are there for future

use.
