Goldmedal 2396A User manual

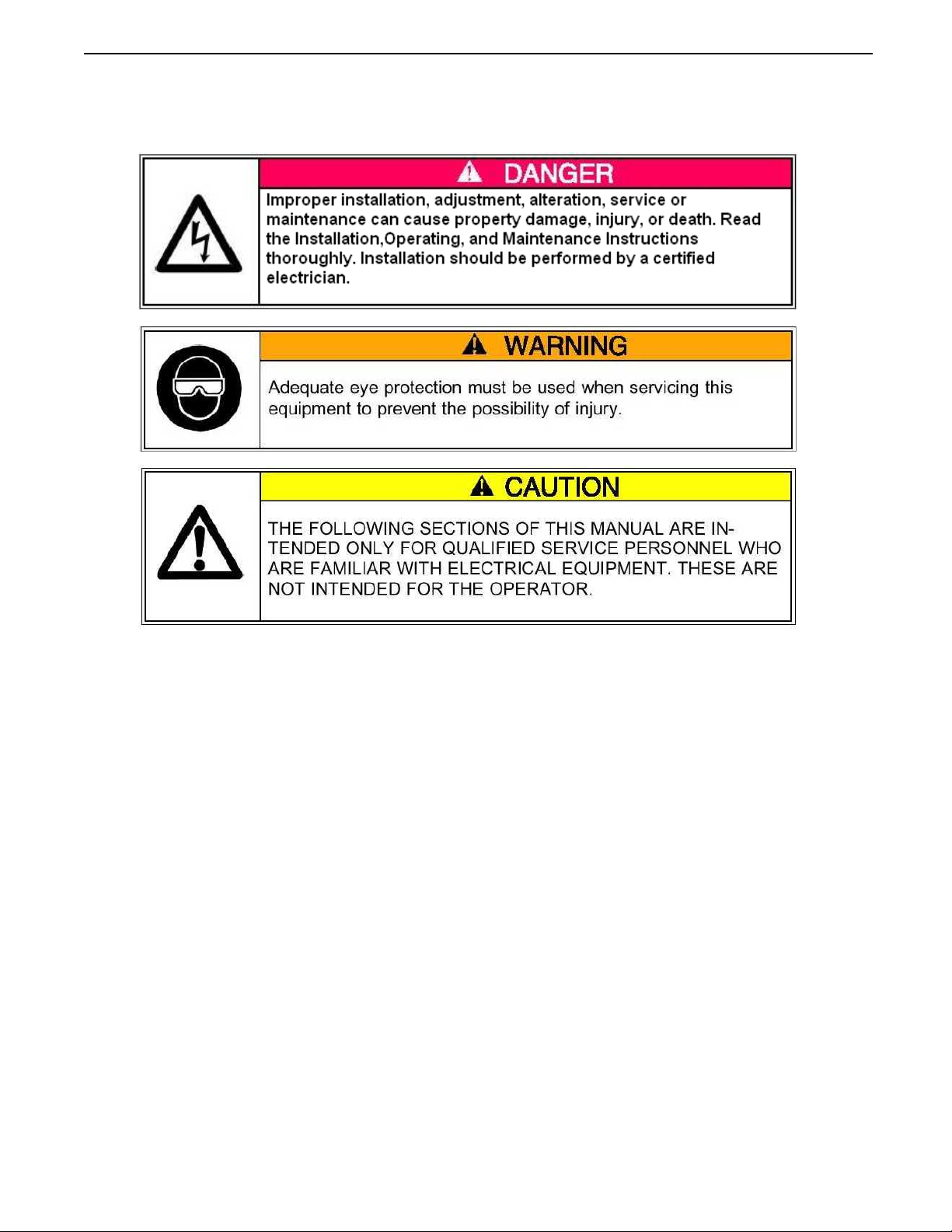

SAFETY PRECAUTIONS
a

Forward
This manual covers the Bag-In-A-Box Pedestal Counter Butter Dispenser, model numbers 2396A single
pedestal and 2396AD dual pedestal.
Installation Instructions
Inspection of Shipment:
Unpack all cartons and check thoroughly for any damage that may have occurred during transit.
Damage claims should be filed immediately with the transportation company. Gold Medal is not
responsible for damage that occurs in transit.
Setup:
Your new Butter Dispenser is completely assembled and tested at the factory.
Remove all packing material and tape before starting operation.

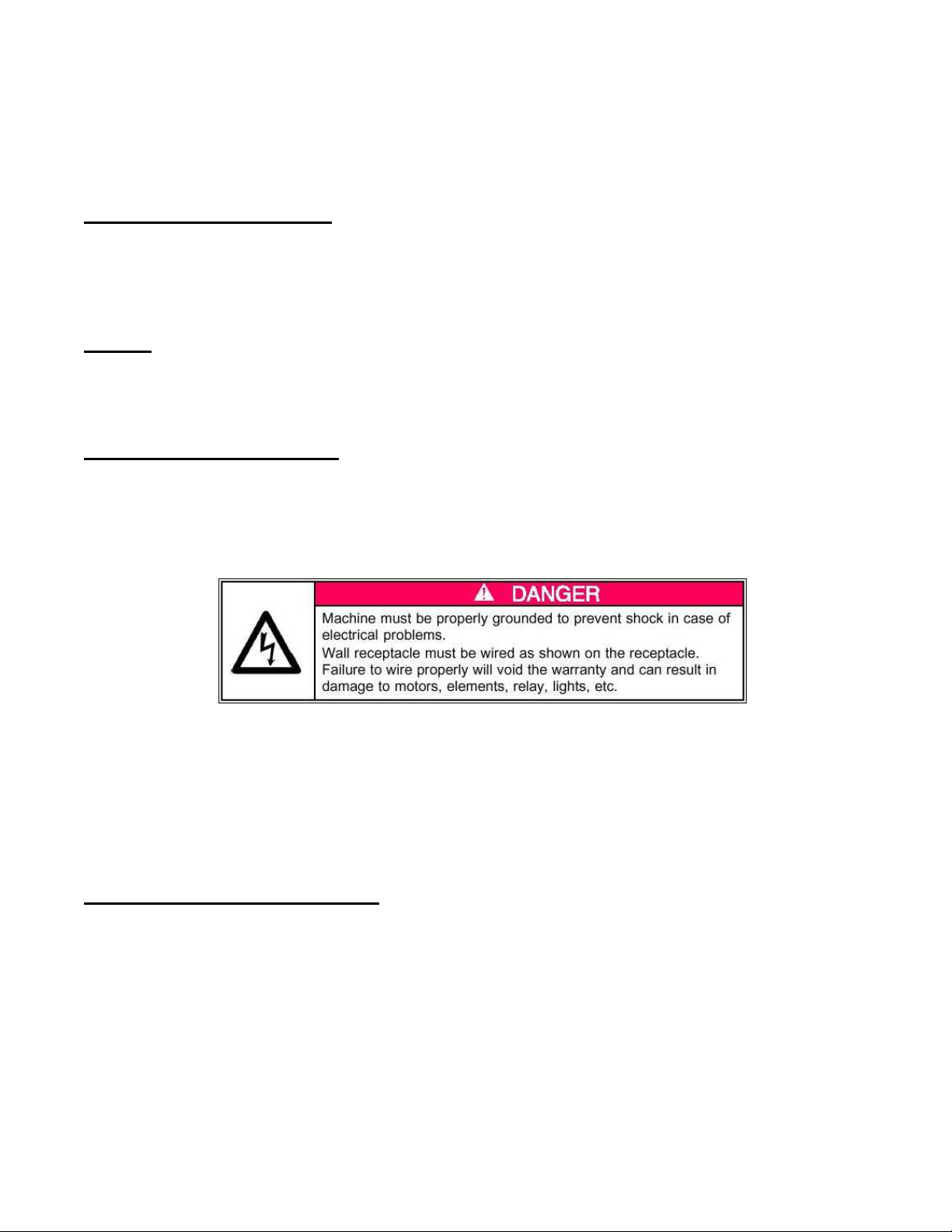

Electrical Requirements:
The following power supply must be provided:
Model No. 2396AD – 120 Volts, 2.9 Amps, 348 Watts, 60 Hz
Model No. 2396A – 120 Volts, 2.5 Amps, 300 Watts, 60 Hz
Your electrician must furnish sufficient current for proper machine operation. We recommend this
butter dispenser be on a dedicated and circuit protected line. Failure to wire properly will void the
warranty and can result in damage to the heat elements, light, motor and etc.
It is Gold Medal Products Company’s recommendation that this machine be plugged directly into a
wall outlet. The use of extension cords is not recommended due to safety concerns and reduction of
machine performance.
Before You Plug In Machine:
1. Make sure that the wall outlet can accept the three (3) prong grounded plug on the power supply
cord.
2. The wall outlet must have the proper polarity. If in doubt, have a competent electrician inspect the
outlet and correct if necessary.
3. DO NOT use a three (3) prong grounded to two (2) prong un-grounded adapter.
a

Bag-In-A-Box Counter Butter Dispenser
All Models #2396A and #2396AD
4
Installation
1. The bottom portion of the counter butter dispenser needs to be placed in an area under the
counter that can be enclosed on all sides in order for the heater to properly maintain the product
temperature. Access will be required to the front of this area allowing sufficient clearance to
clean and maintain the pump and add or remove boxes of topping.

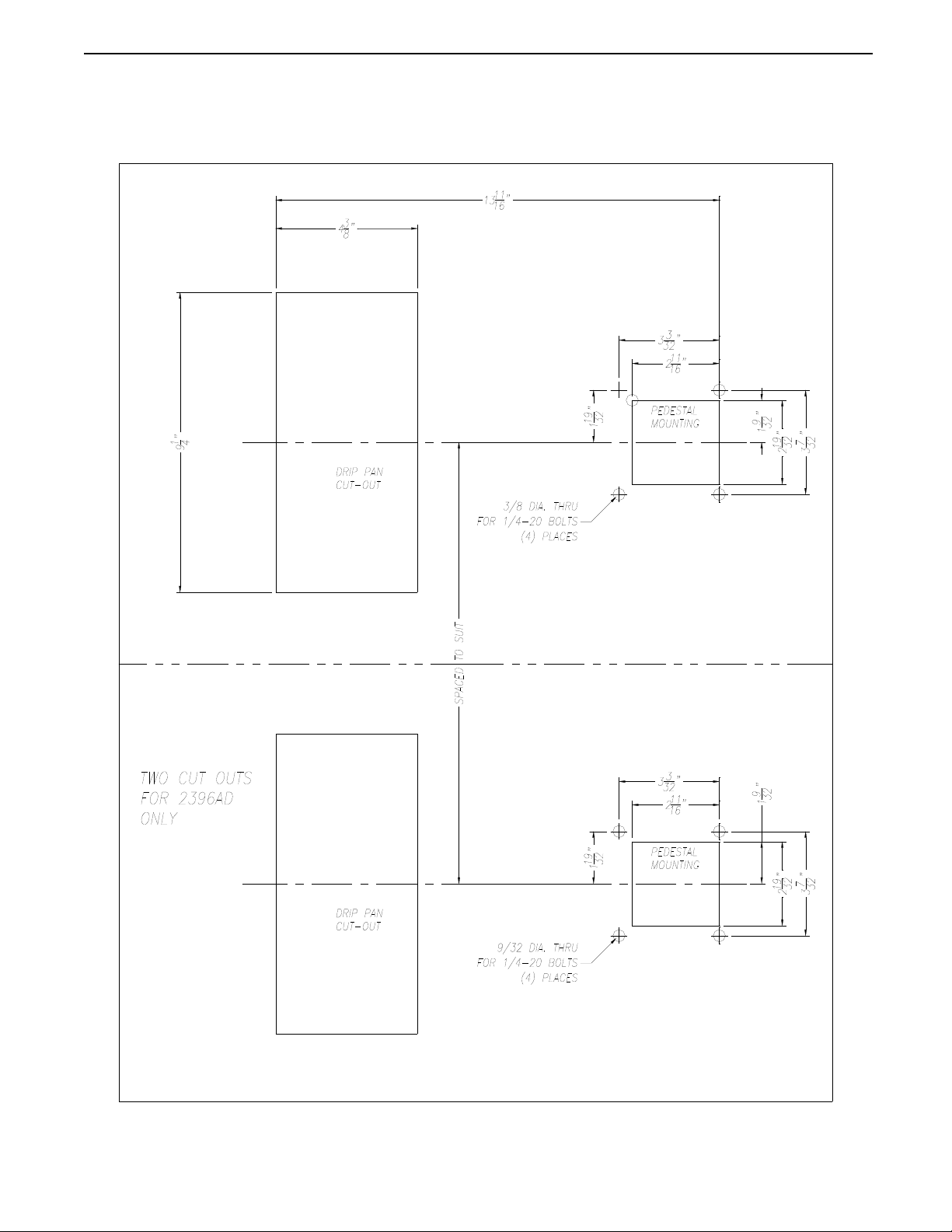

2. The countertop will require preparation by drilling the mounting holes and by cutting the
rectangular holes for the power cable, the tube and the drip pan. If your counter is thicker than
the provided mounting studs attached to the pedestal, then counter bore the underside of the
counter top to allow for the wing nuts.
3. Set the pedestal onto the counter top and secure it in place with the wing nuts.
4. Set the rack assembly into the opening under the counter.
5. Plug the six-prong power cable from the pedestal into the side of the control box on top of the
rack assembly.
6. Plug the power cord from the rack assembly into a proper outlet.
7. Load two boxes of pre-heated topping into the rack. Gold Medal’s Backroom Warmer, Item
#2262, may be purchased for pre-heating the topping. Remove the cardboard cutout on the box
to expose the quick-disconnect fitting.
8. Attach the quick-disconnect fitting, on the end of the tubing, to the fitting on the box of topping.
9. The unit is now ready for use.
Operating Instructions
1. Turn the master power switch, located on the front of the control box, to the PUMP & HEAT
position. This will start the heater/blower that will maintain cabinet temperature, activate the foil
heater in the pedestal, and provide power for the pump.
2. Pressing and holding either of the red buttons located on the pedestal will dispense topping. If
this is the first time the unit has been used, it may take a minute to completely fill the tube and
dispense topping.
3. Turn the master power switch, located on the front of the control box, to the HEAT ONLY
position. This will start the heater/blower that will maintain cabinet temperature and activate the
foil heater in the pedestal only. The pump is de-activated.
a

Bag-In-A-Box Counter Butter Dispenser
All Models #2396A and #2396AD
5
General Cleaning Instructions
Your Model 2396AD and 2396A is all stainless steel construction. The exterior surfaces can be
cleaned by wiping oil spills with a dry towel, then wiping with another towel moistened with mild soap
and warm water.
1. Disengage the bag connector from the bag of oil and place in a pail of hot water and mild soap.
Approximately 1 gallon.
2. Push the dispense button to flush the system of oil. Make sure you have a container under the
discharge tube. Discard the oil.
3. Put the intake line in the hot water and pump it through the lines by holding the dispense button
until the pail is empty.
4. Fill the pail with a sanitizing solution. Gold Medal offers a product for this purpose, Chlor-Tech,
part number 1109. Put the bag connector in the pail of sanitizer. Pump it through the lines by
holding the dispense button until the pail is empty. It is not necessary to flush the sanitizer before
the next step, but you may flush with water if desired.
5. Before the next use, install the connector to a bag of oil and pump oil until oil is dispensed
through the discharge tube.
The recommended sanitizing schedule is every night.
*IMPORTANT:
This product is not intended for use with volatile food products, i.e. real butter.
a

Bag-In-A-Box Counter Butter Dispenser
All Models #2396A and #2396AD
6
MAINTENANCE INSTRUCTIONS
a

Bag-In-A-Box Counter Butter Dispenser
All Models #2396A and #2396AD
7
ORDERING SPARE PARTS
1. Identify the needed part by checking it against the photos, illustrations, and/or the parts list.
2. When ordering, please include part number, part name, and quantity needed.
3. Please include the machine’s model name, serial number, and date of manufacture (located on the
machine nameplate) with your order.
4. Address all parts orders to:
Bruce's Entertainment
[phone]
a

Bag-In-A-Box Counter Butter Dispenser
All Models #2396A and #2396AD
8
PARTS BREAKDOWN – BUTTER TOWER
Pan Insert Weldment
p/n 38938
Momentary Switch
p/n 38971
Momentary Switch
p/n 38971
Drip Pan
p/n 38936
Pedestal Sign
p/n 39144
No Drip Spout
p/n 38566
a

Bag-In-A-Box Counter Butter Dispenser
All Models #2396A and #2396AD
9

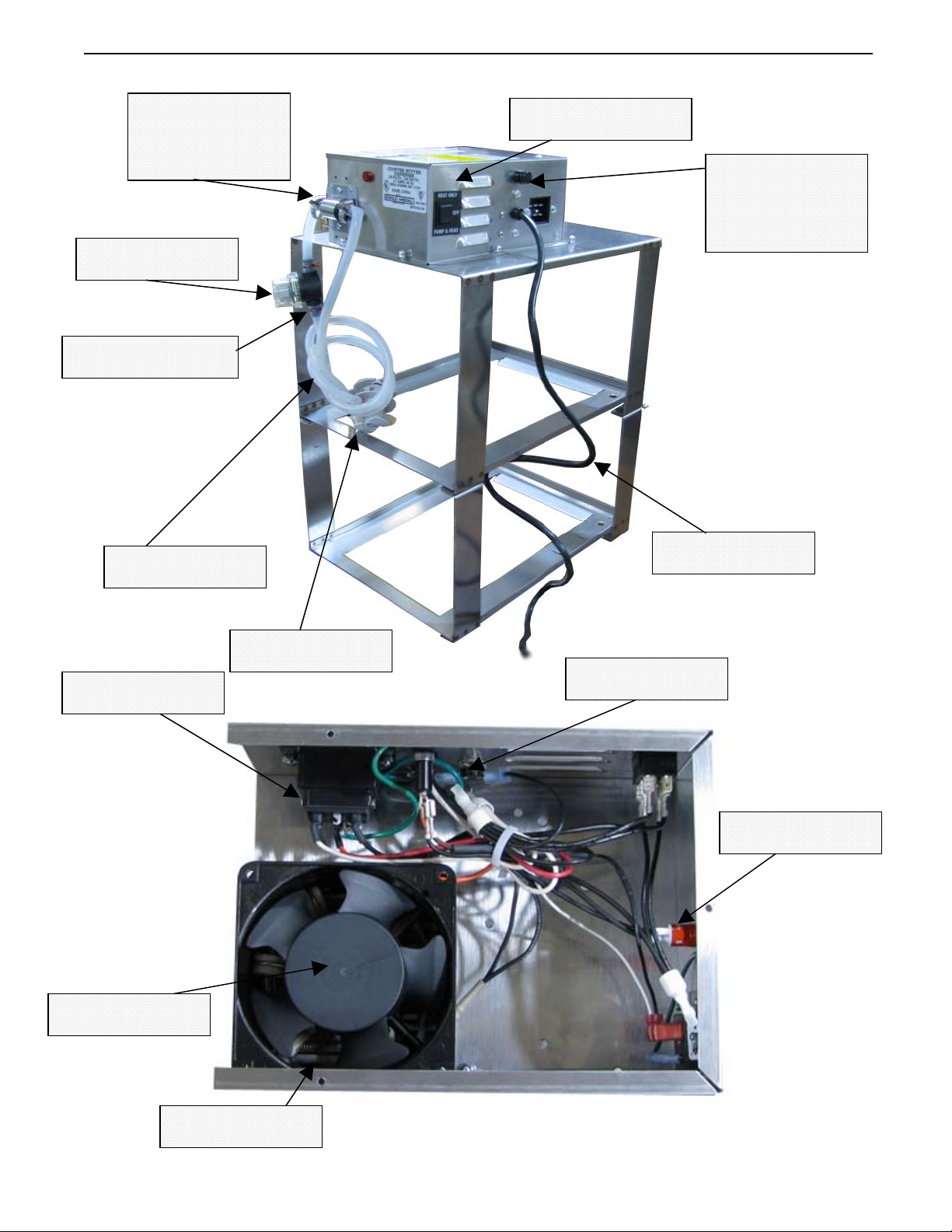

PARTS BREAKDOWN – BUTTER TOWER
Tygon Tubing
p/n 91375
B.I.B. Butter Pump
p/n 79888
Hose Clamp For Pump
p
/n 67843
Pilot Light
p/n 41033
3 Position Rocker Switch
p/n 39410
Lead-In Cord
p/n 22038
Exhaust Blowe
r
p/n 48018
Inline Straine
r
p/n 79269
Bag Connecto
r
p/n 79100G
Heat Element 250W
p/n 38824
Cinch Jones Plug
p/n 79129
Thermostat 135F
p/n 38990
Fuse, 1 Amp
p/n 79341,
Fuse Holder
p/n 74636
Single Wire Hose Clamp
p/n 75110
a

Bag-In-A-Box Counter Butter Dispenser
All Models #2396A and #2396AD
10

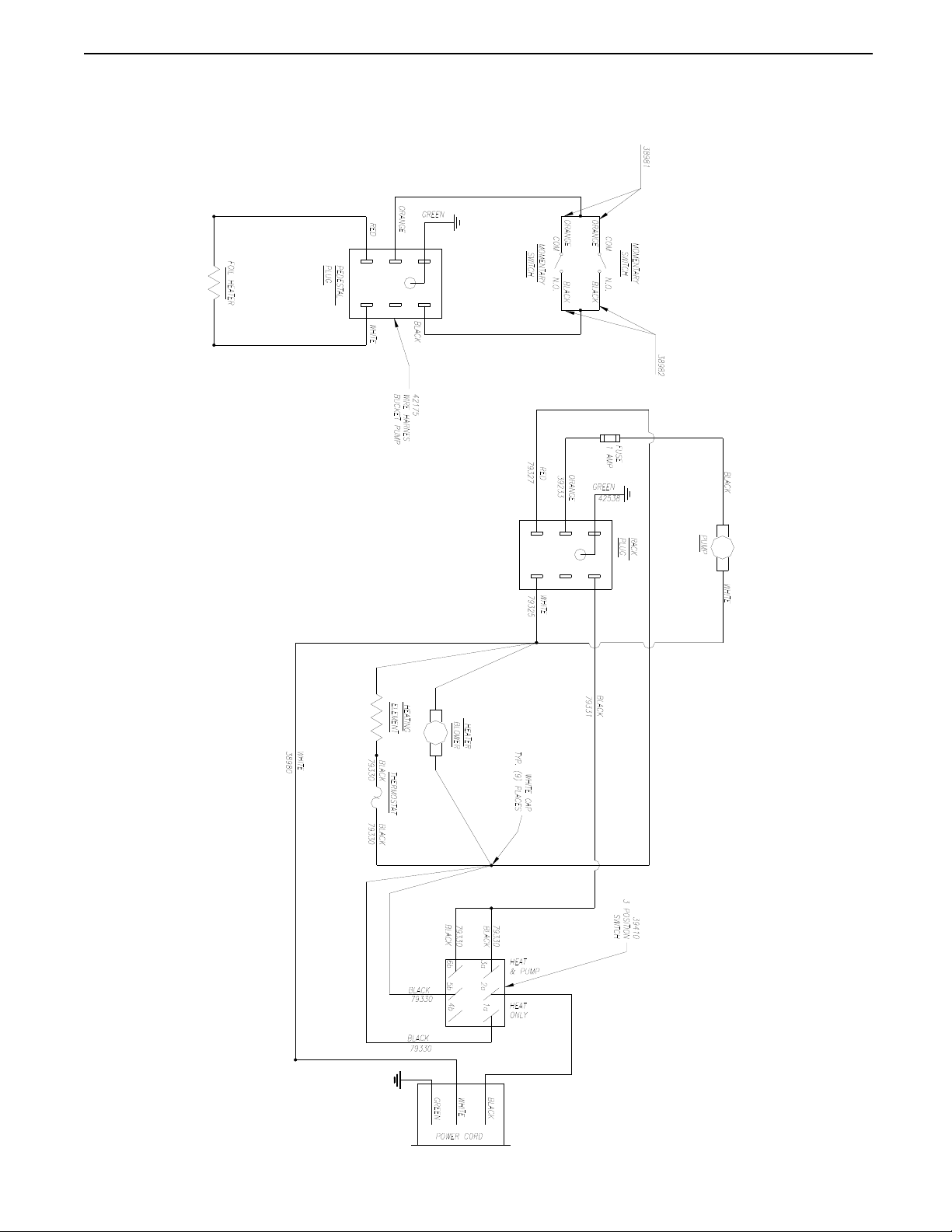

ELECTRICAL SCHEMATIC
a
