Goldmedal 2496 User manual
Part No. 39177
Countertop B.I.B.
Topping Dispenser
Instruction Manual
Model #2496
Cincinnati, OH 45241-4807 USA
Countertop B.I.B.
Model #2496
2
Safety Precautions
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
DO NOT immerse any part of this equipment in water.
DO NOT use excessive water when cleaning.
Keep cord and plug off the ground and away from moisture.
Always unplug the equipment before cleaning or servicing.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle.
008_051514
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installing, servicing, or operating this equipment.
014_020416
WARNING
To avoid burns, DO NOT touch heated surfaces.
DO NOT place or leave objects in contact with heated surfaces.
009_092414
WARNING
ALWAYS wear safety glasses when servicing this equipment.
010_010914
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
WARNING
Read and understand operator’s manual and all other safety instructions
before using this equipment. To order copies of the operator’s manual go to
gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive,
Cincinnati, OH 45241 USA 1-(800)-543-0862
022_060215
Countertop B.I.B.
Model #2496
3
Safety Precautions (continued)
WARNING
DO NOT allow direct contact of this equipment by the public when used in
food service locations. Only personnel trained and experienced in the
equipment operation may operate this equipment.
Carefully read all instructions before operation.
012_010914
WARNING
This machine is NOT to be operated by minors.
007_010914
Note: Improvements are always being made to Gold Medal’s equipment. This information may
not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical
Service Department at -800-543-0862 for any questions about your machine
operations, replacement parts, or any service questions. (Gold Medal Products Co. does
not assume any liability for injury due to careless handling and/or reckless operation of this
equipment.) General images may be used in manual for reference only.
Countertop B.I.B.
Model #2496
4
Installation Instructions
Checking Shipment
Unpack all cartons and check thoroughly for any damage, which may have occurred during
transit. Damage claims should be filed immediately with the transportation company.
Electrical Requirements
The following power supply must be provided:
2496: 120 Volts, 296 Watts, 60 Hertz
DANGER
Machine must be properly grounded to prevent electrical
shock to personnel. Failure to do so could result in serious
injury, or death.
Do NOT immerse any part of this equipment in water.
Do NOT use excessive water when cleaning.
Keep cord and plug off the ground and away from moisture.
Always unplug the equipment before cleaning or servicing.
Your electrician must furnish sufficient power for proper machine operation. We recommend this
equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and
may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this
machine be plugged directly into a wall outlet. The use of extension cords is not recommended due
to safety concerns, and may cause sacrificed and/or reduced performance.
Before You Plug In Machine
1. Make sure all machine switches are in the OFF position before plugging the equipment into the
receptacle.
2. Make sure the wall outlet can accept the grounded plugs (where applicable) on the power supply
cord.
3. The wall outlet must have the proper polarity. If in doubt, have a competent electrician inspect
the outlet and correct if necessary.
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable).
5. Install the unit in a level position.
Operating Instructions
Controls and Their Functions
The main power switch is located on the left side of the front door.
The push button located on the nozzle is the topping dispense button. Press and hold this button to
dispense the desired amount of topping.
Countertop B.I.B.
Model #2496
5
Operating Instructions
The Model 2496 Countertop B.I.B. is a front-loading, self-serve, counter topping dispenser. It utilizes the
Bag-In-A-Box system for product dispensing. The nozzle height will accommodate all of today’s
popcorn bags, boxes and tubs. The heated cabinet maintains the topping at 135 degrees Fahrenheit.
Important: This product is not intended for use with volatile food products, i.e. real butter.
1. Set the Model 2496 on the counter. See Electrical Requirements section for providing power to
the unit.
2. Open the front to install the bag-in-a-box product. Do not attempt to use this system with a bag
which has been removed from the box.
3. Place the bag-in-a-box vertically, with the opening for the quick-disconnect fitting at the bottom.
4. Connect the fitting located on the back side of the door to the bag-in-a-box. (Reference the Steps
to Attach the Universal Bag Connector shown below.)
5. Close the door and turn ON the power switch located on the left-hand side of the door. Allow
approximately one hour for product to reach serving temperature if starting with room
temperature product. (HINT: Use one of Gold Medal Products back room warmers to pre-heat
the topping boxes prior to use.)
Step 1:
Pull the Universal Bag Connector’s plunger out until it clicks into the open position.
Step 2:
Grasp
the Bag Nozzle
and slide the Bag Connector
on from the side.
Step 3:
With the hose connector
in place, press plunger forward
to lock.
Step 4:
Connector shown
with plunger fully forward in
lock position.
Topping
Bag Nozzle
Plunger OUT in
open position
Universal Bag
Connector
Steps to Attach the Universal Bag Connector
Countertop B.I.B.
Model #2496
6
Care and Cleaning
Follow the instructions below to clean and sanitize the unit each day after use.
1. With the machine OFF, unplug the unit and allow it to cool before attempting to clean.
2. The exterior surfaces can be cleaned by wiping oil spills with a dry towel, then wiping with
another towel moistened with mild soap and warm water.
Stainless steel covers may be cleaned with stainless steel cleaner. Gold Medal Products Co.’s
Watchdog Stainless Steel Polish (Item No. 2088) is recommended.
DO NOT use oven cleaners or abrasive materials as they will damage parts of the machine.
Sanitizing the Internal Parts (Tubing, Pump, Etc.)
Gold Medal Products Co. recommends pumping sanitizer through the system nightly to clean pumps and
dispensing lines.
DANGER
Machine must be properly grounded to prevent electrical
shock to personnel.
DO NOT immerse in water.
Always unplug the equipment before cleaning or servicing.
Good sanitation practice demands that all food preparation equipment be cleaned regularly.
A clean looking, well-kept machine is one of the best ways of advertising your product.
Countertop B.I.B.
Model #2496
7
MAINTENANCE INSTRUCTIONS
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
DO NOT immerse any part of this equipment in water.
DO NOT use excessive water when cleaning.
Keep cord and plug off the ground and away from moisture.
Always unplug the equipment before cleaning or servicing.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle.
008_051514
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installing, servicing, or operating this equipment.
014_020416
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
CAUTION
THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY
FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH
ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE
OPERATOR.
027_010914
Countertop B.I.B.
Model #2496
8
Ordering Spare Parts
. Identify the needed part by checking it against the photos, illustrations, and/or
parts list. (General images may be used in manual for reference only.)
2. Use only approved replacement parts when servicing this unit.
3. When ordering, please include part number, part name, and quantity needed.
4. Please include your model number, serial number, and date of manufacture (located on the
machine nameplate/data plate) with your order.
5. Address all parts orders to:
Parts Department
Gold Medal Products Co.
0700 Medallion Drive
Cincinnati, Ohio 4524 -4807
Or, place orders by phone or online:
Phone: (800) 543-0862
(5 3) 769-7676
Fax: (800) 542- 496
(5 3) 769-8500
E-mail: inf[email protected]
Web Page: gmpopcorn.com
Countertop B.I.B.
Model #2496
10

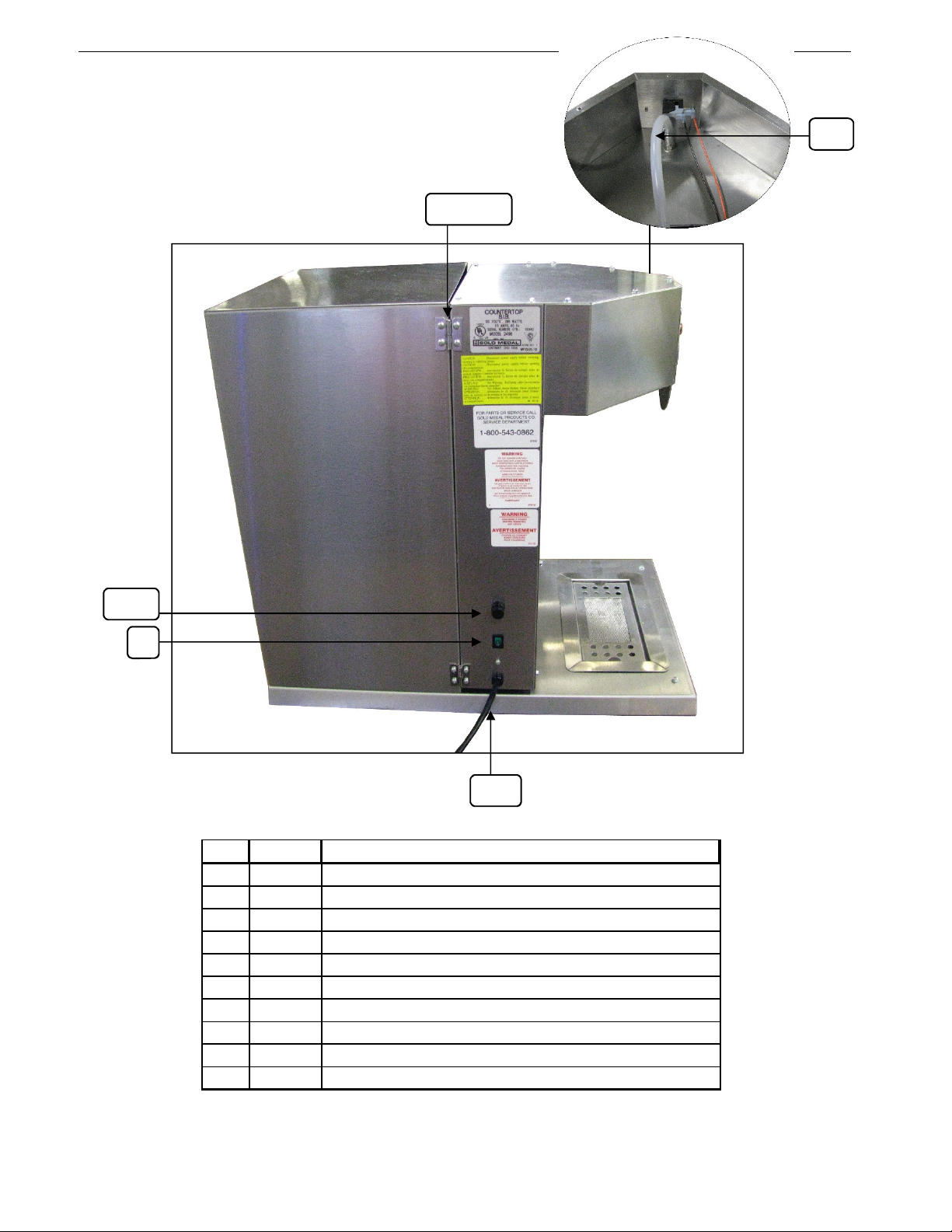

Item Part No. Description
149138 Hinge, Left Hand Female
249140 Hinge, Right Hand Male
349141 Hinge, Left Hand Male
449139 Hinge, Right Hand Female
579341 Fuse
674636 Fuse Holder
742532 Switch, DPST Rocker
822038 Lead-In Cord, 15 Amp
976026 Strain Relief
10 39175 Aluminum Tube
5, 6
7
8, 9
1, 2, 3, 4
10
Countertop B.I.B.
Model #2496
13

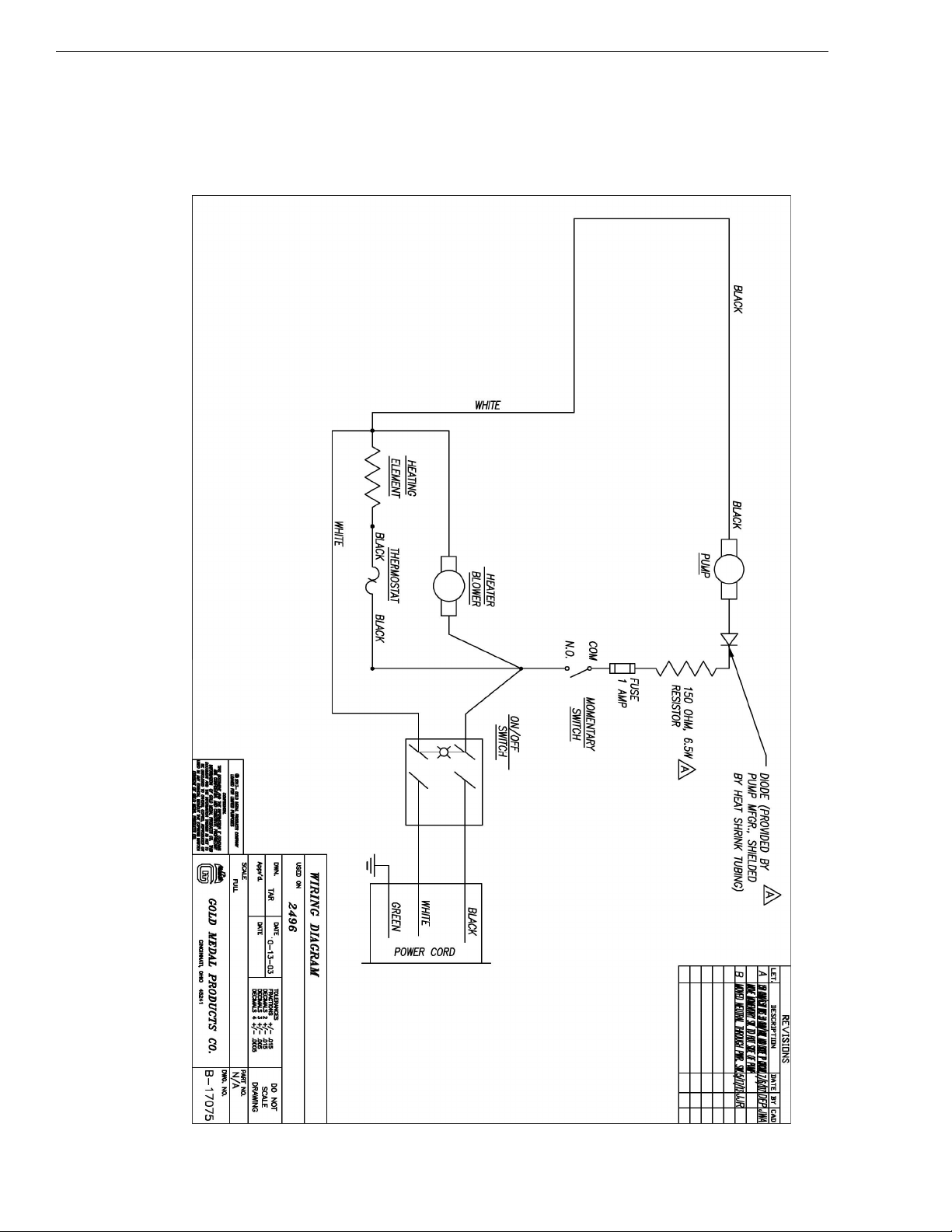

Electrical Schematic
Countertop B.I.B.
Model #2496
14
© 2017 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of
Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website
display, without its express written consent.
WARRANTY
Gold Medal Products Co. warrants to the original purchaser each item of its manufacture to
be free of defects in workmanship and material under normal use and service. Gold Medal
Products Co.’s obligation under this warranty is limited solely to repairing or replacing parts,
f.o.b. Cincinnati, Ohio, which in its judgment are defective in workmanship or material and
which are returned, freight prepaid, to its Cincinnati, Ohio factory or other designated point.
Except for “Perishable Parts” on specific machines, the above warranty applies for a period
of two (2) years from the date of original sale to the original purchaser of equipment when
recommended operating instructions and maintenance procedures have been followed. These
are packed with the machine. Parts warranty is two (2) years, labor is six (6) months.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR
IMPLIED, AND OF ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR PART,
INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY. THERE ARE
NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE
HEREOF. In no event shall Gold Medal Products Co. be liable for special, incidental or
consequential damages. No claim under this warranty will be honored if the equipment covered
has been misused, neglected, damaged in transit, or has been tampered with or changed in any
way. No claim under this warranty shall be honored in the event that components in the unit at
the time of the claim were not supplied or approved by Gold Medal Products Co. This warranty
is effective only when electrical items have been properly attached to city utility lines only at
proper voltages. This warranty is not transferable without the written consent of Gold Medal
Products Co.
The term “Original Purchaser” as used in this warranty shall be deemed to mean that person,
firm, association, or corporation who was billed by the GOLD MEDAL PRODUCTS CO.,
or their authorized distributor for the equipment.
THIS WARRANTY HAS NO EFFECT AND IS VOID UNLESS THE ORIGINAL
PURCHASER FIRST CALLS GOLD MEDAL PRODUCTS CO. AT 1-800-543-0862 TO
DISCUSS WITH OUR SERVICE REPRESENTATIVE THE EQUIPMENT PROBLEM,
AND, IF NECESSARY, FOR INSTRUCTIONS CONCERNING THE REPAIR OR
REPLACEMENT OF PARTS.
NOTE: This equipment is manufactured and sold for commercial use only.
10700 Medallion Drive, Cincinnati, Ohio 45241
-
4807 USA
gmpopcorn.com
Phone: (800) 543-0862 Fax: (800) 542-1496
(513) 769-7676 (513) 769-8500
Other manuals for 2496
1
Table of contents
Other Goldmedal Dispenser manuals
