Goldmedal 2496 User manual

Part No. 39177
Countertop B.I.B.
Butter Dispenser
Instruction Manual
Model #2496
Cincinnati, OH 45241-4807 USA

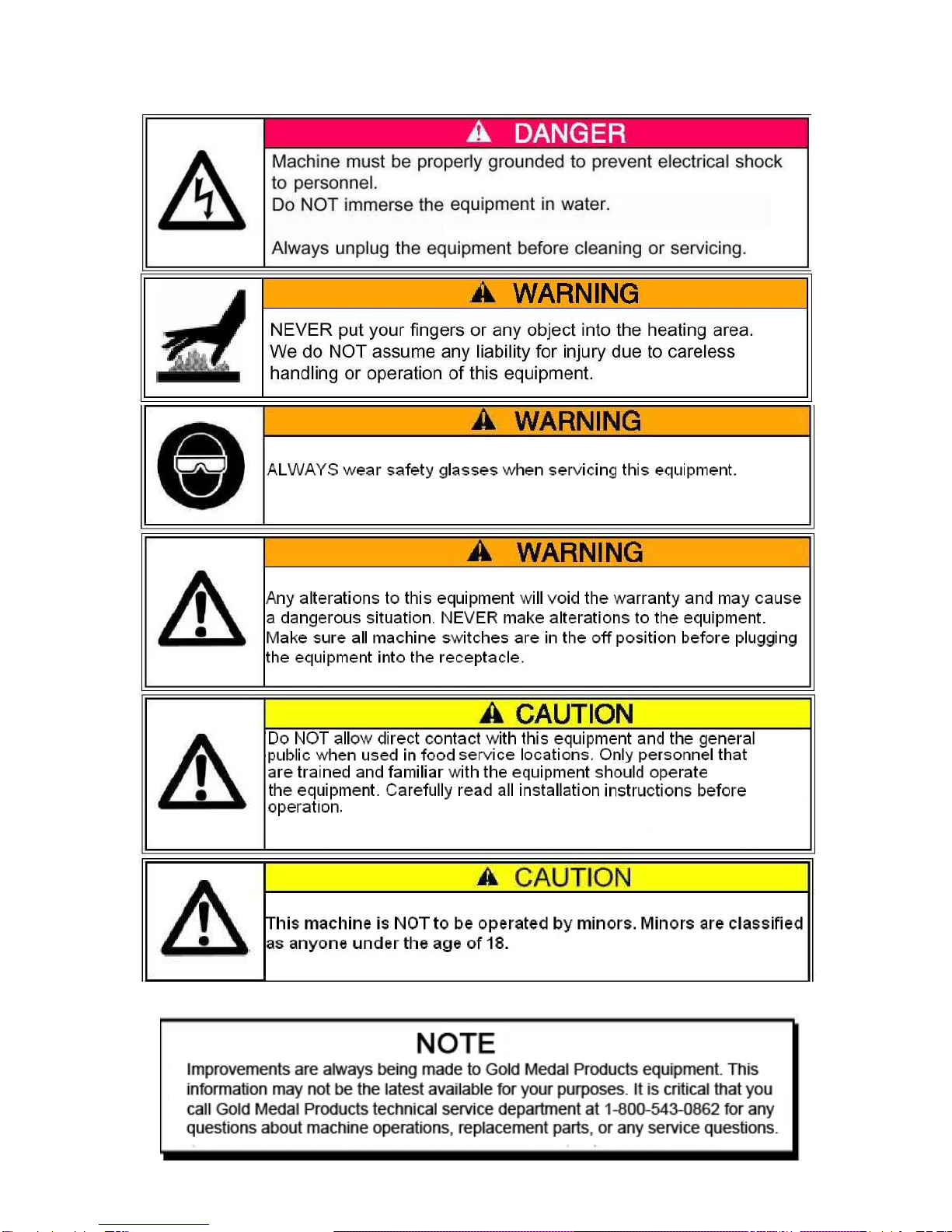

SAFETY PRECAUTIONS

Countertop B.I.B.
Model #2496
3
Installation Instructions
Checking Shipment
Unpack all cartons and check thoroughly for any damage, which may have occurred during
transit. Damage claims should be filed immediately with the transportation company.

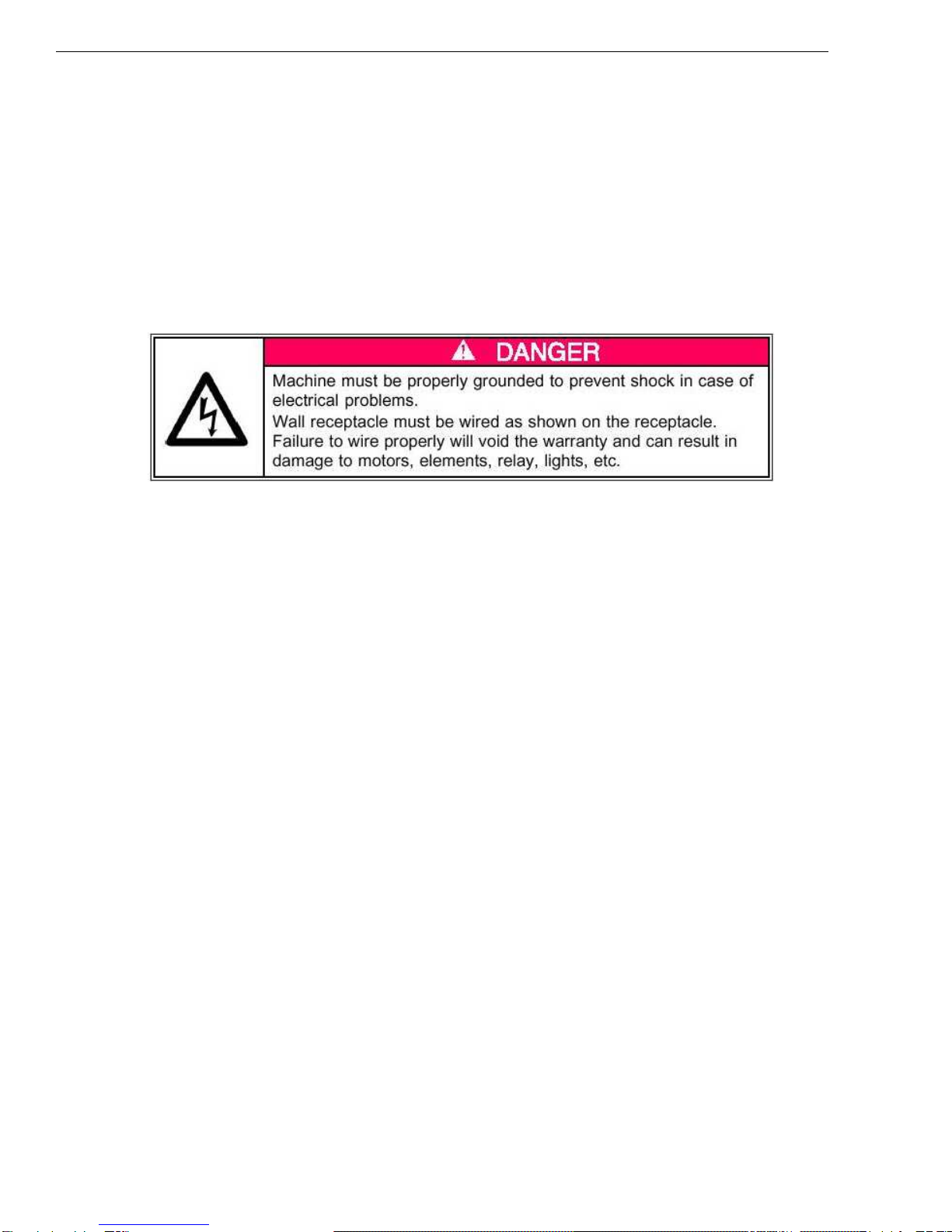

Electrical Requirements:
The following Power Supply must be provided:
120 Volts, 60Hz, 3.5 Amps, 420 Watts
Your electrician must furnish sufficient power for proper machine operation. We recommend this
Butter dispenser be on a dedicated and protected circuit. Failure to wire properly will void the
warranty and may result in damage to the machine.
It is Gold Medal Products Company’s recommendation that this machine be plugged directly
into a wall outlet. The use of extension cords is not recommended. They may cause
sacrificed and/or reduced performance and can become a safety hazard.
Before You Plug In Machine:
1. Make sure the wall outlet can accept the grounded plugs (where applicable) on the power supply
cord.
2. The wall outlet must have the proper polarity. If in doubt, have a competent electrician inspect the
outlet and correct if necessary.
3. DO NOT use a grounded to un-grounded receptacle adapter.

Countertop B.I.B.
Model #2496
4
Operating Instructions
The Model 2496 Countertop B.I.B. is a front-loading, self-serve, counter butter dispenser. It utilizes the
Bag-In-A-Box system for product dispensing. The nozzle height will accommodate all of today’s
popcorn
bags, boxes and tubs. The heated cabinet maintains the topping at 135 degrees Fahrenheit.
Set the Model 2496 on the counter. Open the front to install the bag-in-a-box product. Place the
bag-in-a-box vertically, with the opening for the quick-disconnect fitting at the bottom. Connect the fitting
located on the back side of the door to the bag-in-a-box. Close the door and turn on the power switch
located on the left-hand side of the door. Allow approximately one hour for product to reach serving
temperature if starting with room temperature product. (HINT: Use one of Gold Medal Products back
room warmers to pre-heat the topping boxes prior to use.)
Controls And Their Functions
The main power switch is located on the left side of the front door.
The push button located on the nozzle is the topping dispense button. Press and hold this button to
dispense the desired amount of topping.
Care And Cleaning
Sanitizing Instructions
Your Model 2496AD is all stainless steel construction. The exterior surface can be cleaned by wiping oil
spills with a dry towel, then wiping with another towel moistened with mild soap and warm water.
Sanitizing the internal parts; tubing, pump, etc.
1. Disengage the bag connector from the bag of oil and place it in a pail of hot water and mild soap;
approximately 1 gallon.
2. Push the dispense button to flush the system of oil. Make sure you have a container under the
discharge tube before you discard the oil.
3. Put the intake line in the hot water and pump it through the lines by holding the dispense button until
the pail is empty.
4. Fill the pail with a sanitizing solution. Gold Medal offers a product for this purpose, Chlor-Tech, part
number 1109. Put the bag connector in the pail of sanitizer. Pump it through the lines by holding the
dispense button until the pail is empty. It is not necessary to flush the sanitizer before the next step,
but you may flush with water if desired.
5. Before the next use, install the connector to a bag of oil and pump oil until oil is dispensed through the
discharge tube.
Schedule for Cleaning
The recommended sanitizing schedule is every night.
Important:
This product is not intended for use with volatile food products, i.e. real butter.

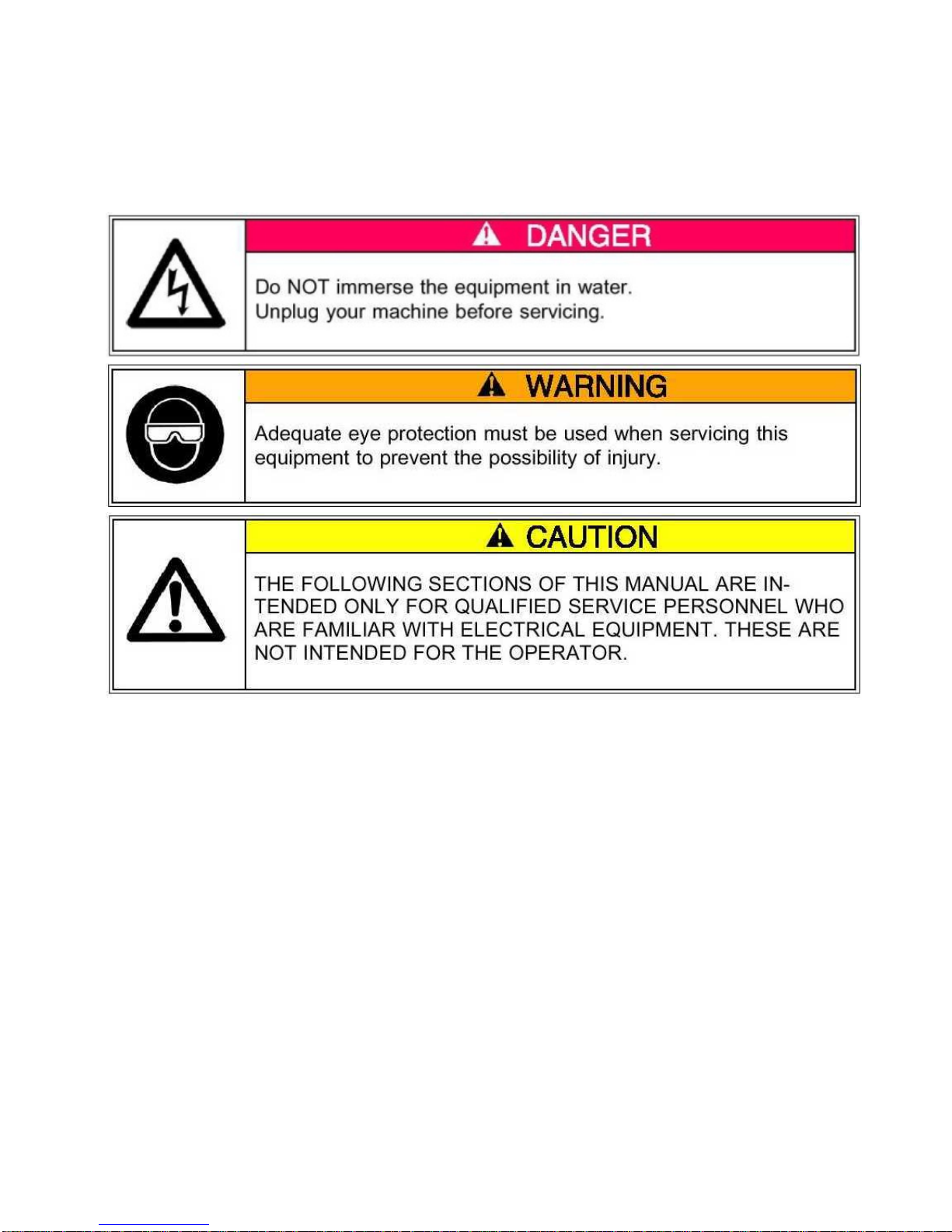

MAINTENANCE INSTRUCTIONS

ORDERING SPARE PARTS
* Always speak to a Gold Medal Products Technical Service Advisor before
ordering any parts to help ensure accuracy for your product. Included
diagrams may not be the latest information.
1. Identify the needed part by checking it against the photos, illustrations, and/or parts list.
2. When ordering, please include part number, part name, and quantity needed.
3. Please include your model name, serial number, and date of manufacture (located on
the machine nameplate) with your order.
4. Address all parts orders to:
Parts Department
Gold Medal Products Co.
10700 Medallion Drive
Cincinnati, Ohio 45241-4807
Or, place orders by phone or online:
[phone]
[phone]
Fax: [phone]
E-mail: [email protected]
Web Page: www.gmpopcorn.com

Countertop B.I.B.
Model #2496
7
Item Part No. Description
1 38971 Momentary Switch
2 39142 Dispenser Label
3 38566 No Drip Spout
4 39179 Decal
5 38936 Drip Pan
6 38938 Drip Pan Insert Weldment
7 77890 Spout Indicator
77891 Arrow Label
1
3
4
5
7
2
6

Countertop B.I.B.
Model #2496
8

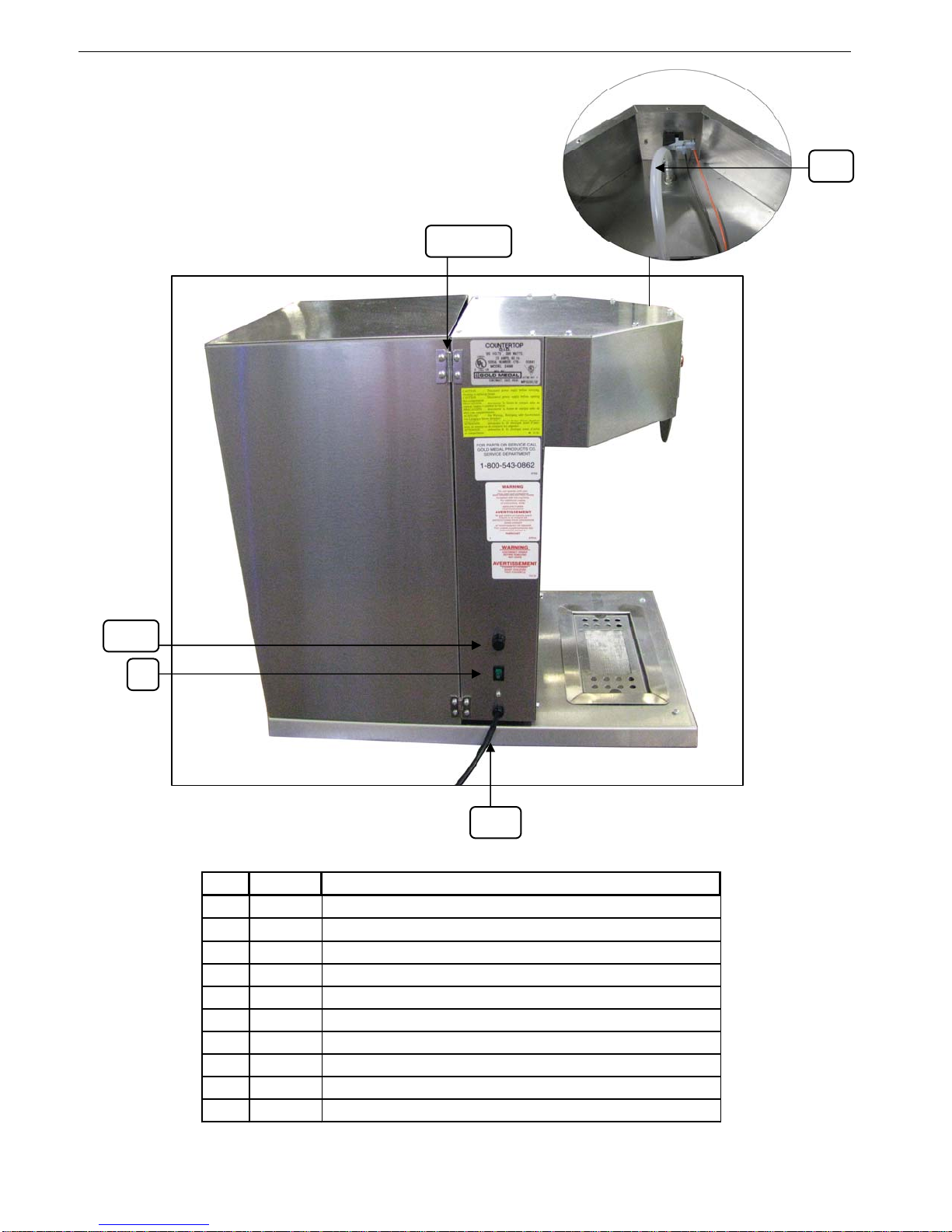

Item Part No. Description
1 49138 Hinge, Left Hand Female
2 49140 Hinge, Right Hand Male
3 49141 Hinge, Left Hand Male
4 49139 Hinge, Right Hand Female
5 79341 Fuse
6 74636 Fuse Holder
7 42532 Switch, DPST Rocker
8 22038 Lead-In Cord, 15 Amp
9 76026 Strain Relief
10 39175 Aluminum Tube
5, 6
7
8, 9
1, 2, 3, 4
10

Countertop B.I.B.
Model #2496
9

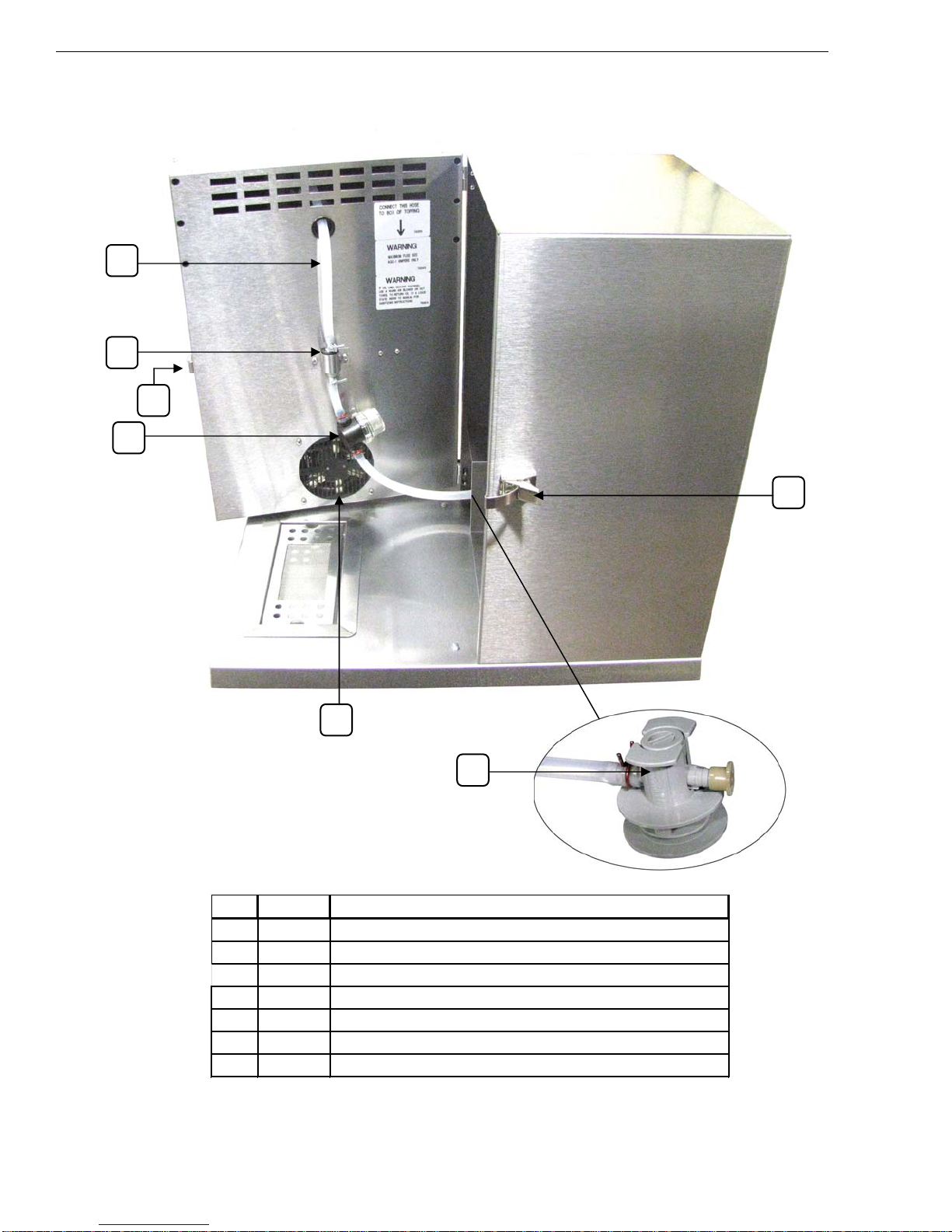

Item Part No. Description
1 91375 Tubing (sold by the foot)
2 67843 Hose Clamp (x3)
75110 Single Wire Hose Clamp (x3)
3 46304 Draw Latch
4 79269 In Line Strainer
5 47200 Finger Guard
6 46034 Keeper
1
2
6
7
3
4
5

Countertop B.I.B.
Model #2496
10
Item Part No. Description
1 48018 Exhaust Blower
2 38824 Heat Element 250W, 120V
3 79888 B.I.B. Butter Pump
4 38990 Thermostat 135°F
5 55443 150 Ohm Resistor and Diode Wire Assy.
6 47199 Blower Plug & Cord
1
2
3
4
5
6

Countertop B.I.B.
Model #2496
11
Electrical Schematic

WARRANTY
WE WARRANT to the original purchaser the Gold Medal equipment sold by us to
be free from defects in material or workmanship under normal use and service. Our
obligation under this warranty shall be limited to the repair or replacement of any
defective part for a period of six (6) months from the date of sale to the Original
Purchaser with regard to labor and two (2) years with regard to parts and does not
cover damage to the equipment caused by accident, alteration, improper use, voltage,
abuse, or failure to follow instructions.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED
OR IMPLIED, AND OF ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR
PART, INCLUDING THE IMPLIED WARRANTY OF MERCHANTIBILITY.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION
ON THE FACE HEREOF. We neither assume, nor authorize any other person
to assume for us, any other obligation or liability in connection with the sale of said
GOLD MEDAL equipment or any part thereof.
The term “Original Purchaser” as used in this warranty shall be deemed to mean that
person, firm, association, or corporation who was billed by the GOLD MEDAL
PRODUCTS COMPANY, or their authorized distributor for the equipment.
THIS WARRANTY HAS NO EFFECT AND IS VOID UNLESS THE ORIGINAL
PURCHASER FIRST CALLS GOLD MEDAL PRODUCTS COMPANY AT 1-800-
543-0862 TO DISCUSS WITH OUR SERVICE REPRESENTATIVE THE
EQUIPMENT PROBLEM, AND, IF NECESSARY, FOR INSTRUCTIONS
CONCERNING THE REPAIR OR REPLACEMENT OF PARTS.
