golmar T-540 PLUS SE User manual

Code 50122199 T EN-540 PLUS SE REV.0318
T-540 PLUS SE TELEPHONE
USER MANUAL
PLUS DIGITAL SYSTEM
TECHNOLOGY

INTRODUCTION
First of all, we thank and congratulate you for purchasing this product manufactured by Golmar.
Our commitment to achieving the satisfaction of customers like you is manifested through our ISO-9001 certification
and the manufacture of products like the one you have just purchased.
Its advanced technology and strict quality control will ensure that customers and users enjoy the numerous features
that this device offers. To get the most out of them and ensure proper operation from day one, we recommend that you
read this instruction manual.
CONTENTS
2
SAFETY PRECAUTIONS
- .Do not overtighten the telephone fixing screws
-Always disconnect the power supply before making modifications to the device.
-The fitting and handling of these devices must be carried out by authorised personnel.
-All of the wiring must run at least 40cm away from any other wiring.
-Install the telephone in a dry protected location free from the risk of dripping or splashing water.
-Do not place in humid, dusty or smoky locations, or near sources of heat.
-Before connecting the device to the mains, check the connections between the door panel, power supply and
telephones.
-Always follow the instructions contained in this manual.
Introduction....................................................................................................................................................................2
Contents....................................................................................................................................................................... 2..
Safety precautions............................................................................. ...............................................................2.............
Characteristics................................................................................................................................................. ............ 3. .
Functioning of the telephone.................................................................................................. .....................................3...
Description of the telephone........................................................................................................... .............................. ... .
............................................................................................................................... ................................4...
Description
.................................................................................................................................. .......................... 4..... .Status LED
.......................................................................................................................... .................. 4...... .Connection terminals
................................................................................................................................... ........... 5........... .Function buttons
............................................................................................ ................5...............................................SW1 DIP switch
............................................................................................................................... ..................6... .Fixing the telephone
Programming of the telephone..................................................................................................................... ...............7... .
Quick programming of the telephone.............................................................................................................. .........8.......
Advanced programming (telephone functions)................................................................................................ ............ ..... .
................................................................................................................................................................. ..... 8.. .
Menu 1
- ......................................................................................................... ......8.....................Changing the ringtone melody
- ............................................................................................ .........8..Activating / deactivating the doctor mode function
Men 2........................................................................................................................................................................ 9u .
- ....................................................................................................................9
Intercom with Plus telephones / monitors
- ..................................................................................................... .............. 9........ .Changing the function of button
- ........................................................................................................ .... 9................Changing the function of button
Men 3........................................................................................................................................................................9u
- ............................................................................................................... ............9..................
Repeating the ringtones
- .................................................................................. ........... 9” .............Adjusting the door panel communication time“
- ....................................................................................................... ........10” ............Adjusting the door panel call time“
Men 4......................................................................................................................................................................10u
- .................. ......................10” ...........
Setting all of the telephone's advanced programming options to the default value“

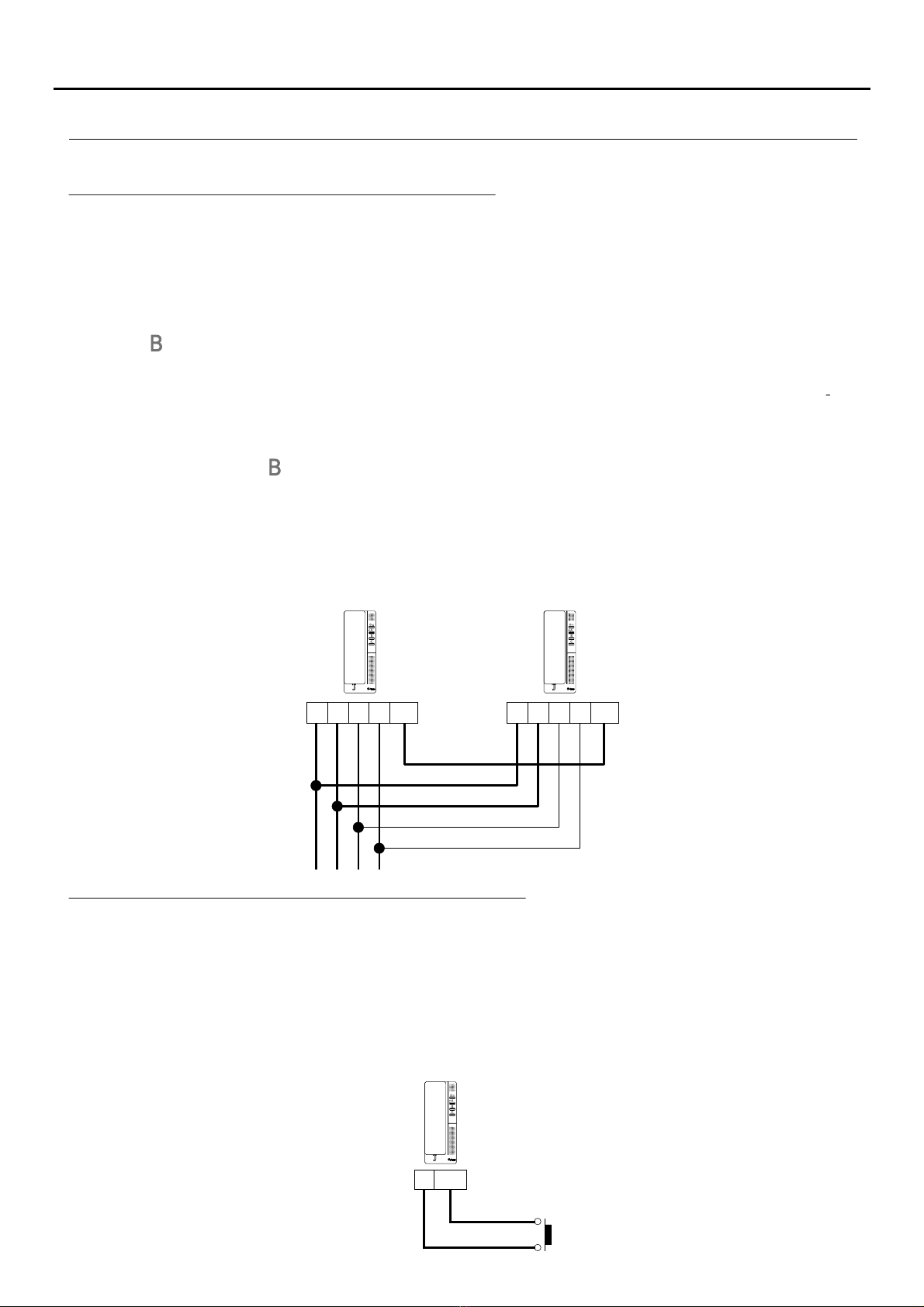

Optional connections.............................................................................................................................. ........................ ..
- ...................................................................................................................................... 11.
Activating auxiliary devices
- ................................................................................ 11.Auxiliary button input for activating the door panel door release
- ............................................................................................................ ............12.Intercom within the same apartment
- .................................................................. ........... 12............... .Button for receiving calls from the apartment front door
- ................................................................................................................................ ........ 13....Cleaning the telephone

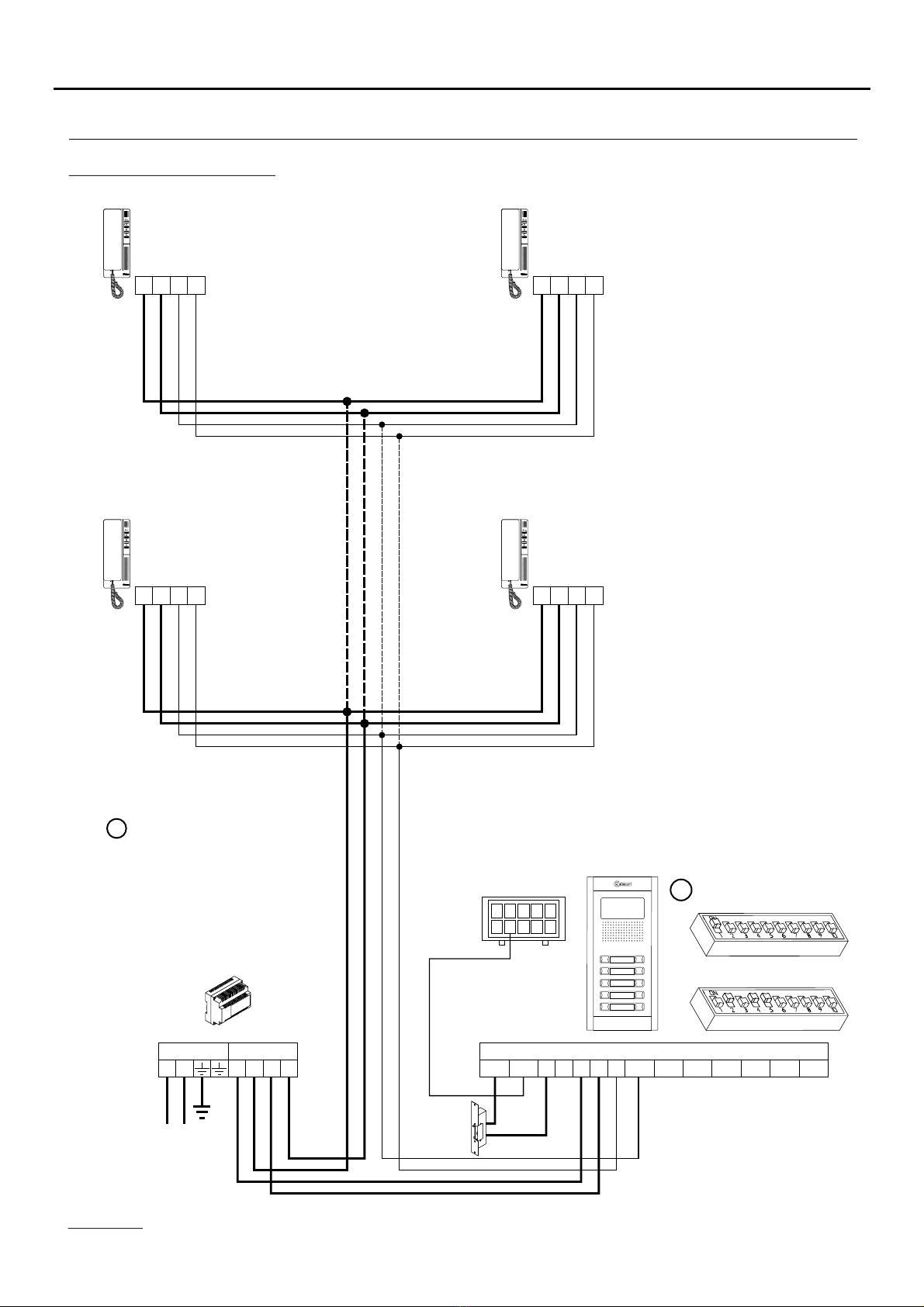

Wiring diagram........................................................................................................................................... ... 14..............
Not s...........................................................................................................................................................................15e
T-540 PLUS SE TELEPHONE

CHARACTERISTICS
-Telephone for Plus installation.
-Telephone with 4 common wire installation.
-Function and advanced programming access buttons (to customise telephone functions).
-Totally private conversation.
-Auto switch-on function.
-“ ”Doctor mode function (automatic door opening, see p. 8).
-Intercom between two devices in the same apartment.
-Apartment front door call input.
-Call volume adjustment: maximum, medium, minimum and no volume night mode , (see p. 5 function buttons ).“ ” “ ”
-Door panel exterior door release button input.
-Output to auxiliary call repeater.
-Call to main and secondary guard unit.
-Panic call to guard units.
-Different ringtones to identify call origin: Door panel, guard unit, intercom and interior door of apartment “HZ”.
-Activation of auxiliary functions: courtesy lights, second lock release, etc.
-DIP switches for setting the telephone address, call code and master/slave (quick programming mode).“ ”
-Door release button.
-Telephone status LED.
SYSTEM OPERATION
3
-To make a call, the visitor presses the button for the apartment, a number of audible tones indicate that the call is being
made and LED on the door panel illuminates. At this moment, the apartment's telephone (monitor) receives the
call. If the visitor presses the button for another apartment by mistake, the call can be cancelled by pressing the button
for the correct apartment.
-In systems with several access doors, the other door panel(s) automatically disconnects. If another visitor attempts to
call, a number of telephone tones will indicate that the channel is busy and LED on the door panel will illuminate.
-General entrance door panels (mode EL501): If the call is being made from the general entrance door panel, the
interior door panel of the building being called and other possible general entrance door panels automatically
disconnect. If another visitor attempts to call from either a busy interior door panel, a number of telephone tones will
indicate that the channel is busy and LED of the door panel will illuminate, or from another general entrance door
panel, a number of telephone tones will indicate that the channel is busy and LED of the general entrance door
panel will blink for 3 seconds. The door panels of the other interior buildings will remain free to be used.
-General entrance door panels (mode EL501): If the call is made from an interior door panel, the other interior door
panels will remain free to be used. It is only possible to make calls to interior buildings from the general entrance door
panels when their door panels are not in use. If an attempt is made to make a call to a busy interior door panel, a
number of telephone tones will indicate that the channel is busy and LED of the general entrance door panel will
blink for 3 seconds.
-The call lasts for 45 seconds and the status LED of the master telephone will illuminate (green). If the call is not
answered within 45 seconds, the master telephone's status LED will illuminate (red), LED on the door panel will
turn off and the channel will be free.
-To establish communication, lift the handset of the telephone (monitor), and the telephone's status LED (green) and
the door panel's LED will illuminate.
-The communication will last for one and a half minutes or until the handset is replaced. After the communication, the
telephone's status LED will illuminate (red), the door panel's LED will turn off and the channel will be free.
-To open the door, press the door release button during the call or communication processes: one press will activate
the door release for 3 seconds and LED will also illuminate for 3 seconds.
-Adescription of the function buttons can be found on p. 5.
T-540 PLUS SE TELEPHONE

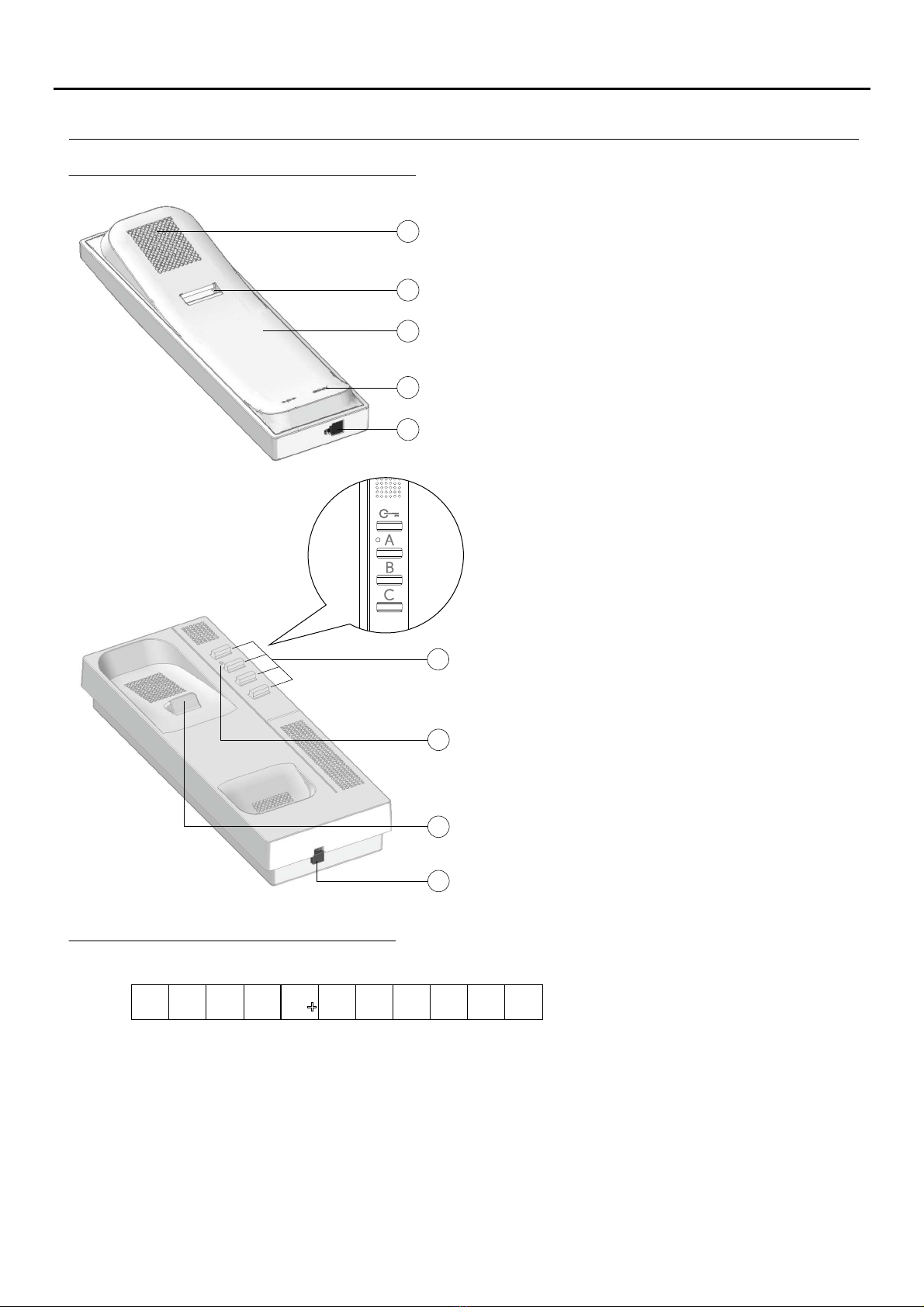

Description of the T-540 Plus SE telephone
DESCRIPTION OF THE TELEPHONES
4
Positive, negative (18Vdc power supply).
Audio, digital communication.
Auxiliary door release button input.
Door bell button input.
Output (negative) auxiliary call repeater (max. consumption 250mA).
Intercom function.
Output (negative) auxiliary device activation (max. consumption 50mA)
+, - :
.
A , D :
A :P+
HZ :-
SA :
INT :
A :1
AP+ SA
_A D Int A1 _HZ +
a. Telephone handset.
b. .Speaker grille
c. Microphone hole.
d. Subjection hole.
e. Telephone cord connectors.
f. Function / programming buttons.
g. Telephone status LED:
-Standby: LED illuminated red.
-Call: LED illuminated green (master telephone).
-Communication: LED illuminated green.
-Night mode: LED blinking red.
-Doctor mode: LED blinking green.
h. Hook switch.
Description of the connection terminals:
+-
T-540 PLUS SE TELEPHONE
a
d
c
e
b
h
e
f
g

DESCRIPTION OF THE TELEPHONES
5
Function button:
In advanced programming mode (see p. 9), the default functions of function buttons and can be changed with
one of the following functions at the same time and per button: (“A1” auxiliary device activation, call to secondary
guard unit, auto switch-on or intercom).
One short press for 1 second, with the telephone in standby and the handset on the hook,
activates ringtone volume mode, with a tone indicating the volume selected. Then
each 1 second press (before 5 seconds elapse) selects a ringtone volume level and so
on (in carousel mode) with the following selections (maximum, medium, minimum and
no volume “night mode”. Note: The “night mode” status LED blinks red . During a call)
process, the telephone will emit a ringtone and exit volume mode.
Regardless of the volume selected, the “apartment interior door call” ringtone will always sound at the
highest level.
One long press for 3 seconds, with the telephone in standby and the handset on or off the hook, turns the
telephone on or off. After any resetting of the telephone and for the following 45 seconds, no operation
with it can be performed.
With the handset off the hook, the intercom (in the same apartment) is activated. One long press until a
confirmation tone can be heard will call all of the telephones in the apartment. To call individual
telephones, press the button once to call the master telephone, twice to call slave 1”, 3 times to call“ ” “
“ “ “slave 2”, 4 times to call slave 3” and 5 times to call slave 4”. This selective intercom call mode is only
available with the T540 Plus SE telephone and the Tekna Plus SE monitor. This only functions if no call or
communication is in progress.
Regardless of the position of the handset, the auxiliary device is activated.
With the handset hung up, a panic call to the guard units configured to receive such calls is made. With the
handset off the hook, a normal call can be made to the main guard unit. During call reception and
communication processes, it enables the door release to be activated.
( )
*

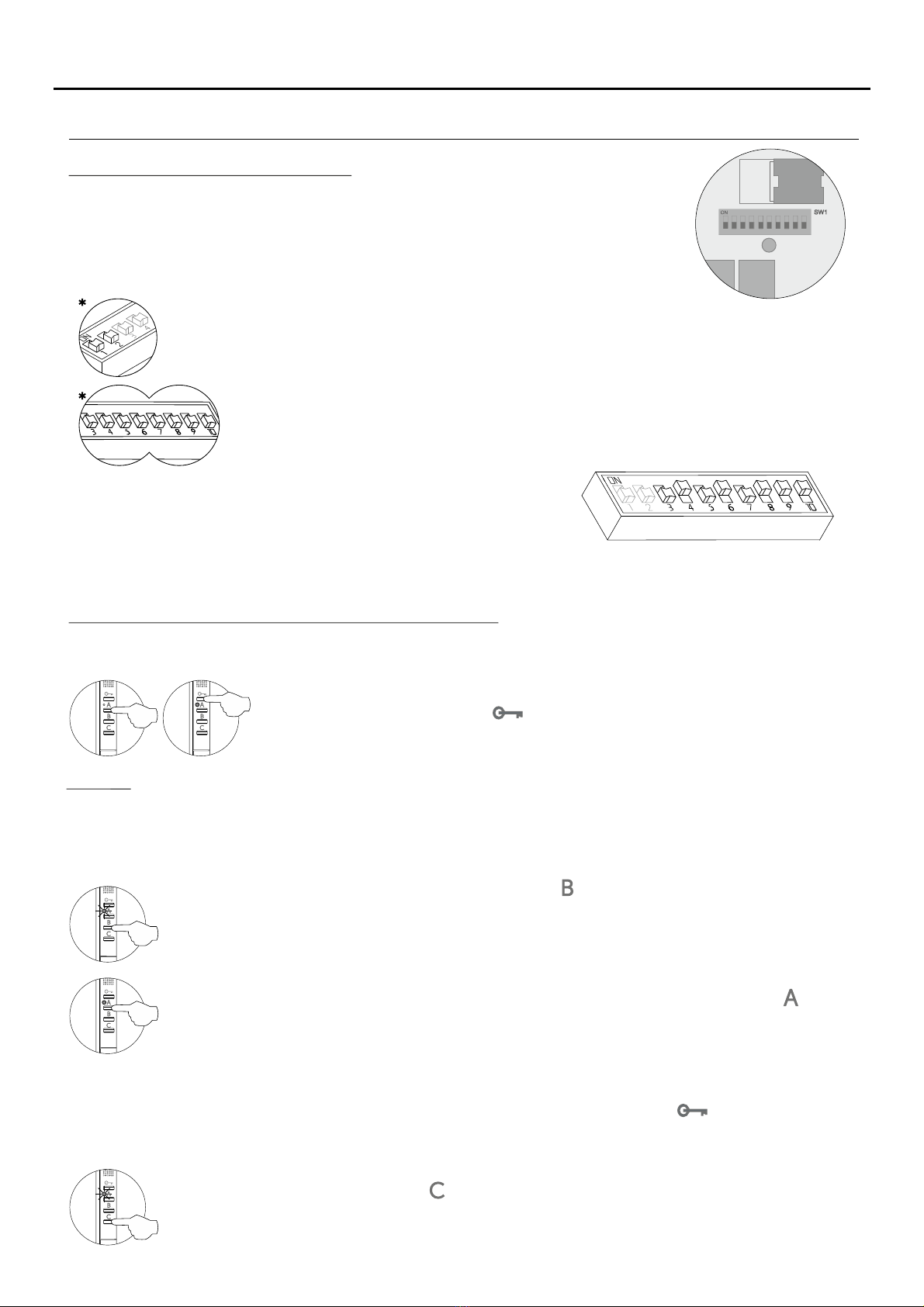

Description of the SW1 DIP switch:
*Factory setting
DIP 3 to DIP 10: To configure the telephone address.
The switches set to OFF have a zero value.
The values of the switches set to ON are shown in the table below.
The telephone code is the sum of the values of the switches set to ON.
DIP 1 and DIP 2: Configure the telephone as master/slave. DIP 1 and DIP 2 to OFF master,
DIP 1 to OFF and DIP 2 to ON slave 1, DIP 1 to ON and DIP 2 to OFF slave 2, DIP 1 and
DIP 2 to ON slave 3.
Switch number:
Value when ON:
4
64
5
32
6
16
7
8
8
4
9
2
10
1
3
128
Important: This type of programming cannot be performed on a general entrance door panel.
Example:0+ 64+0+16+0+4+2+1=87
1 2 3 4 5 6 7 8 9 10
SW1
Ethe SW1 DIP switch is located in the central part of the circuit, accessible
by opening the telephone.
It enables the telephone to be configured as master/slave and an address
to be assigned to it.
( )
*
( )
*
T-540 PLUS SE TELEPHONE

Fixing the telephone to the wall:
INSTALLING THE TELEPHONES
6
It is necessary to open the telephone for wiring and fixing purposes. To open
the telephone, insert a flat screwdriver into the slots and gently pry open
as shown in the drawing.
Pass the cables through the cable holes and connect them to the connector as per the
wiring diagrams. Close the telephone as shown in the drawing. Once the telephone is
closed, connect the handset using the telephone cord and place it on the hook.
Avoid dusty or smoky environments or locations near sources of
heat. The telephone can be fixed to an electrical embedding box
or directly to the wall. To secure directly to the wall, drill two 6mm
holes at the specified positions using 6mm wall plugs and
Ø3.5 x 25mm screws.
T-540 PLUS SE TELEPHONE

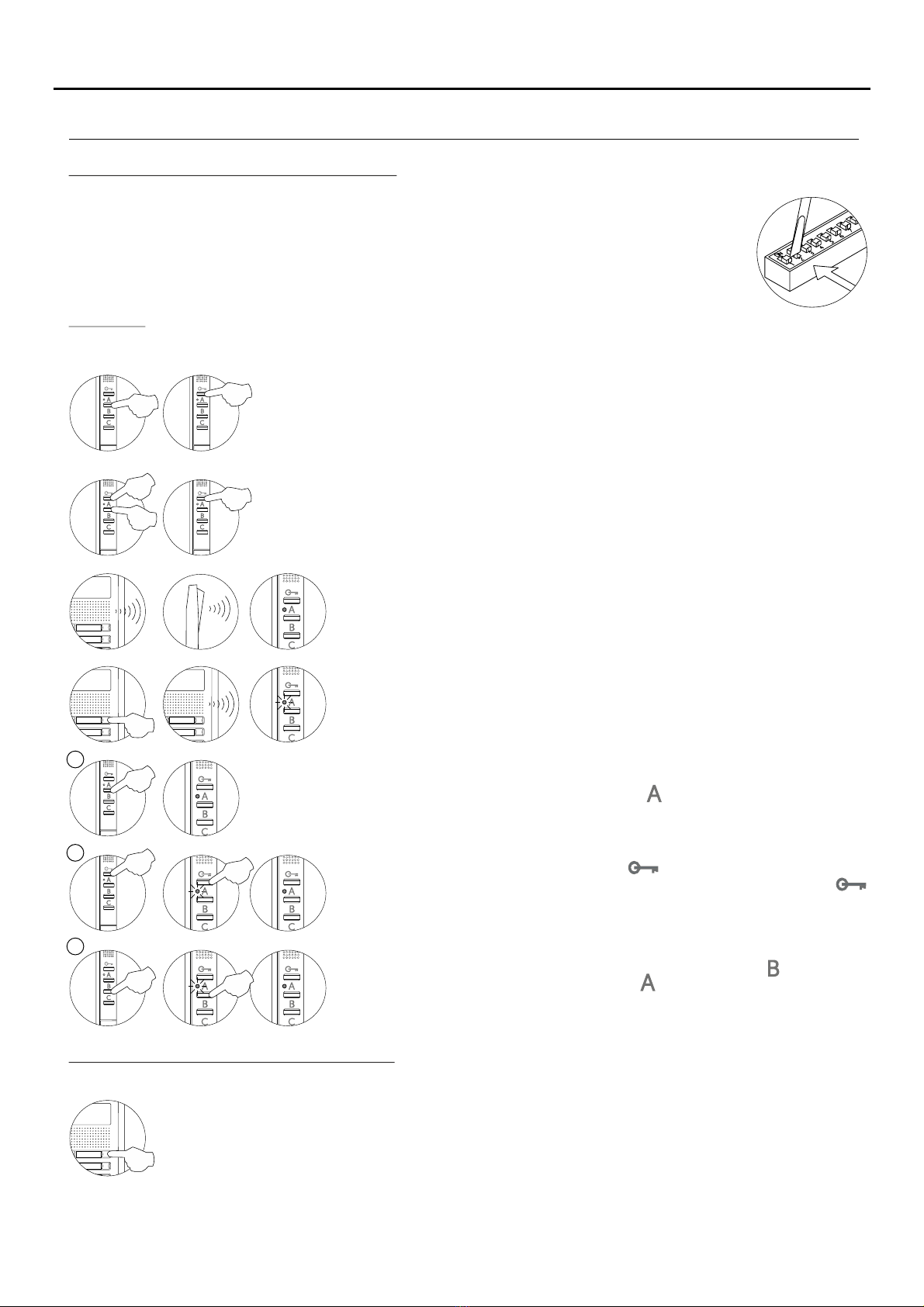

Programming T-540 Plus SE telephones:
PROGRAMMING THE TELEPHONES
Locate the SW2 DIP switch situated on the top left-hand side of the back of the EL632/PLUS module and
set number 2 to ON. The door panel will reproduce a sound to advise that the system has entered into
programming mode.
In systems with more than one door panel, only perform this procedure on the main door panel of each
building.
Important: To perform this programming, the telephone's SW1 DIP switch should be set to .OFF
7
Press the button of the door panel that will call this telephone.
At this moment, the door panel and handset will emit a number of tones (the
LED on the telephone will blink red).
Each apartment must only have one master unit; if there are parallel units, either telephones or monitors, they must be
configured as slaves.
Make a call to check that the telephone has been successfully programmed. Programme the other
telephones in the same way.
Once the programming has finished, set the programming switch to OFF. If this is not done, the door panel
will emit tones to indicate that the system is still in programming mode.
To programme the telephone as , press button and the LEDSlave + Intercom
will blink (green) once. Then press button for 3 seconds (the telephone's
LED will illuminate red).
M
S
SI
Switch off the telephone to be programmed.
Once switched off, press the door release button.
While keeping the door release button pressed, switch on the telephone.
To show that the system is ready for programming, the door panel and the
telephone handset will emit a number of tones (the LED on the telephone will
illuminate red), enabling the door release button to be released. To establish
audio communication with the door panel, lift the handset.
To programme the telephone as , press button for 3 seconds (the telephone'sMaster
LED will illuminate red).
To programme it as , press button once, and the status LED willSlave 1
blink (green) once. Continue successively to , pressing buttonSlave 4
four times, and the status LED will blink (green) four times.
T-540 PLUS SE TELEPHONE

8
Advanced programming of T540 Plus SE telephones:
Advanced programming enables the telephone's default settings to be changed:
Switch off the telephone to be programmed.
Once switched off, press button for 3 seconds to enter “Menu 1” of advanced
programming, the telephone will emit a number of tones and the LED will illuminate
orange.
Menu 1:
Then adjust the settings as required:
Select the ringtone to be changed: Each press on button selects a ringtone which is indicated with
blinks (1 to 4 blinks) of the status LED and in the following order: door panel, guard unit, intercom call
and HZ apartment interior door call. When the final selection is reached, the following press returns“ ”
the user to the first selection and the status LED blinks once (carousel mode).
-Changing the ringtone melody:
Then select the melody for the ringtone (selected in the previous step) by pressing button until the
required carousel mode melody is heard.“ ”
The telephone has different ringtones to identify the origin of the call. The melodies assigned by default to the
ringtones can be selected from among others available on the telephone.
Description of the SW1 DIP switch:
*Factory setting
DIP 3 to DIP 10: To configure the telephone address.
The switches set to OFF have a zero value.
The values of the switches set to ON are shown in the table below.
The telephone code is the sum of the values of the switches set to ON.
DIP 1 and DIP 2: Configure the telephone as master/slave. DIP 1 and DIP 2 to OFF master,
DIP 1 to OFF and DIP 2 to ON slave 1, DIP 1 to ON and DIP 2 to OFF slave 2, DIP 1 and
DIP 2 to ON slave 3.
Switch number:
Value when ON:
4
64
5
32
6
16
7
8
8
4
9
2
10
1
3
128
Important: This type of programming cannot be performed on a general entrance door panel.
Continued overleaf
Example: 64+0+16+0+4+2+1=870+
1 2 3 4 5 6 7 8 9 10
SW1
The SW1 DIP switch is located in the central part of the circuit, accessible
by opening the telephone.
It enables the telephone to be configured as master/slave and an address
to be assigned to it.
To activate doctor mode: Press button , and the status LED will indicate with 2 blinks that the function
is activated or with 1 blink that the function is deactivated.
- Activating / deactivating the doctor mode function: Doctor mode not activated (default setting).
The doctor mode function enables the door release to be activated automatically 5 seconds after making a call from“ ”
the door panel without having to establish communication or press door release button . The call ends after 20
seconds and the channel is free.
(Only the master telephone should be configured with doctor mode ).“ ”
PROGRAMMING THE TELEPHONES
T-540 PLUS SE TELEPHONE

9
Continued from previous page
-Accessing Menu 2 or exiting programming mode:“ ”
Menu 2:
Then adjust the settings as required:
If an apartment has T-540 Plus telephones, Tekna Plus monitors and T-540 Plus SE telephones, the T-540 Plus SE
telephones must be configured in Intercom with Plus telephones / monitors mode, as T-540 Plus telephones and“ ”
Tekna Plus monitors do not allow an intercom call to a particular telephone / monitor in the apartment to be made.
That way, when an intercom call is made, all of the monitors / telephones in the apartment will receive the call.
-Changing the function of button : Intercom function (default setting).
Select the function to assign to button : Each press on button selects a different function which
is indicated with blinks (1 to 4 blinks) of the status LED and in the following order: A1 auxiliary“ ”
device activation, call to secondary guard unit, auto switch-on and intercom. When the final
selection is reached, the following press returns the user to the first selection and the status LED
blinks once (carousel mode).
-Changing the function of button : A auxiliary device activation function (default setting).“ 1”
Select the function to assign to button : Each press on button selects a different function which
is indicated with blinks (1 to 4 blinks) of the status LED and in the following order: A1 auxiliary“ ”
device activation, call to secondary guard unit, auto switch-on and intercom. When the final
selection is reached, the following press returns the user to the first selection and the status LED
blinks once (carousel mode).
-Intercom with Plus telephones / monitors: Intercom with Plus SE telephones / monitors (default setting).
To activate the Intercom with Plus telephones / monitors mode: Press button , and the status LED“ ”
will indicate with 1 blink that the function is in Intercom with Plus telephones / monitors mode or“ ”
with 2 blinks that the function is in Intercom with Plus SE telephones / monitors mode.“ ”
To access Menu 2 , press button , and the status LED will blink twice.“ ”
To exit programming mode, press button for 3 seconds, and the status LED will turn off
(see p. 10).
Continued overleaf
-Accessing Menu 3 or exiting programming mode:“ ”
To access press button , and the status LED will blink 3 times.“ ”Menu 3 ,
To exit programming mode, press button for 3 seconds, and the status LED will turn off
(see p. 10).
To repeat the ringtone on the telephone: Each press on button selects a repeat of the ringtones“ ”
which is indicated with blinks (1 to 3 blinks) of the status LED and in the following order: 1, 2 or 3
repeats. When the final selection is reached, the following press returns the user to the first
selection and the status LED blinks once (carousel mode).
Menu 3:
Then adjust the settings as required:
-Repeating the ringtones: One repeat (default setting).
-Adjusting the door panel communication time :“ ” 90 seconds (default setting).
To adjust the door panel communication time : Each press on button selects a door panel“ ”
communication duration (1:60 seconds, 2: 90 seconds, 3): 120 seconds, and 4: 150 seconds),
which is indicated with blinks (1 to 4 blinks) of the status LED and in the following order: 1, 2, 3 and 4
repeats. When the final selection is reached, the following press returns the user to the first
selection and the status LED blinks once (carousel mode).
PROGRAMMING THE TELEPHONES
T-540 PLUS SE TELEPHONE

PROGRAMMING THE TELEPHONES
10
Continued from previous page
-Accessing Menu 4 or exiting programming mode:“ ”
To access press button , and the status LED will blink 4 times.“ ”Menu 4 ,
To exit programming mode, press button for 3 seconds, and the status LED will turn off
(see p. 10).
To set to the default value : Press button , and the telephone will indicate with two audible tones“ ”
that all of the options of the telephone's advanced programming (p. 8-10) are set to their default
value.
Men 4:u
Then adjust the settings as required:
-Setting all of the telephone's advanced programming options to the “ ”default value .
Reserved.
-Button has no function.
No function.
-Button has no function.
-.Adjusting the door panel call time:“ ” 45 seconds (default setting)
To adjust the door panel call time: Each press on button selects a door panel call duration (1: 30“ ”
seconds, 2): 45 seconds, 3): 60 seconds, and 4: 90 seconds), which is indicated with blinks (1 to 4
blinks) of the status LED and in the following order: 1, 2, 3 and 4 repeats. When the final selection is
reached, the following press returns the user to the first selection and the status LED blinks once
(carousel mode).
-Accessing Menu 1 or exiting programming mode:“ ”
When exiting advanced programming mode, the telephone will be turned off: Press button for
3 seconds to turn the telephone back on. After any resetting of the telephone and for the following
45 seconds, no operation with it can be performed.
-Turning on the telephone when exiting programming:
To access press button , and the status LED will blink once (see p. 8).“ ”,Menu 1
To exit programming mode, press button for 3 seconds, and the status LED will turn off.
T-540 PLUS SE TELEPHONE

OPTIONAL CONNECTIONS
Auxiliary device activation with T-540 Plus SE telephones:
Continued overleaf
To activate a second door release, a TF-104 transformer is required.
Auxiliary device activation requires the use of an SAR-12/24 relay unit. If the feature is shared by all telephones,
connect their A1 terminals; if, however, each telephone has its own feature, use an SAR-12/24 relay for each one
and do not connect theirA1 terminals.
This function is activated when button is pressed on the telephone at any time and regardless of the position of
the handset.
The most common applications are activating the stairway lights and opening a second door.
The neutral of the lighting power supply is arranged serially through the contacts of the SAR-12/24 relay and the
maximum consumption of the element to be connected does not exceed 1.8A.
( )
*
~~ ~~
Vac
lock release
T 104F-
Mains
PRI SEC
SAR-12/24
IN IN
NC NA C
Important: Place the varistor supplied with the sound module directly onto the terminals
of the lock release.
*
*
Exterior button input for activating the door panel door release:
_
+AP+
AP
This enables the door panel door release to be activated during a call or communication with the door panel.
With the telephone in standby, a panic call to the guard units configured to receive such calls is made.
A
+_D
SAR-12/24
F
N
220 Vac/
1.8A max.
IN IN
NC NA C
( )
*
To the distributor/
door panel.
To the stairway light
activation button
A1
A
+_D
To the distributor/
door panel.
A1
T-540 Plus SE
T-540 Plus SE
T-540 Plus SE
T-540 PLUS SE TELEPHONE 11

OPTIONAL CONNECTIONS
Intercom between two points in the same apartment:
The T-540 Plus SE telephone features as standard an intercom function between two points in the same apartment.
To enable this feature, the following is necessary:
-One of the telephones needs to be configured as master and the other as slave with intercom, as described on
p. 7. In the case of intercom between a monitor and a telephone, it is recommended to configure the monitor as
the master.
-The INT terminal of the intercom devices needs to be connected (see diagram attached).
To use the intercom function to call all of the telephones in the apartment, lift the handset and press and hold down
button until a confirmation tone can be heard. To call individual devices, press the button once to call the
“ ” “ ” “ ” “ ”master telephone, twice to call slave 1 , 3 times to call slave 2 , 4 times to call slave 3 and 5 times to call
“ ”.slave 4 This selective intercom call mode is only available with the T-540 Plus SE telephone. This only
functions if no call or communication is in progress. A number of audible tones emitted by the handset will confirm
that the call is being made or that the unit being called is in communication with the door panel. To establish
communication, lift the handset of the unit being called. If a call is received from the door panel during an intercom
process, the handset of the master unit will emit a number of audible tones. To establish communication with the
door panel, press button on the unit configured as master or press the door release button to simply open the
door.
The ringtones vary depending on where the call is being made from, enabling the user to identify its origin.
Note: If the apartment also has T-540 Plus telephones, the T-540 Plus SE telephones must be configured as
“ ”Intercom with Plus telephones / monitors (see p. 9). This configuration mode does not allow selective intercom
calls to different telephones in the apartment; when the intercom button is pressed, all of the telephones in the
apartment will receive the call.
Continued overleaf
Continued from previous page.
T-540 Plus SE T-540 Plus SE
A
+_D INT
A
+_D INT
Button for receiving calls from the apartment front door:
HZ-
-
The T-540 Plus SE telephone features as standard the ability to receive calls from the apartment front door. This
feature precludes the need to use the bell by positioning a switch between terminals HZ— and — of the“ ” “ ”
telephone.
The ringtones vary depending on where the call is being made from, enabling the user to identify its origin. If a call is
made from the apartment front door during a conversation with the door panel, the handset will emit a number of
tones to indicate so.
.
Note: Regardless of the volume set for the telephone's ringtones (see p. 5) and the night mode function, the“ ”
“ ”apartment front door call ringtone will always sound at the highest level.
T-540 Plus SE
T-540 PLUS SE TELEPHONE 12

CLEANING THE TELEPHONE
-Do not use solvents, detergents or cleaning products that contain acids, vinegar or abrasive components.
-Use a soft, damp cloth (not wet) that does leave lint behind.
-Always wipe the telephone in the same direction, from top to bottom.
-After cleaning the telephone, remove any moisture with a soft dry cloth that does not shed fibres.
T-540 PLUS SE TELEPHONE 13

WIRING DIAGRAM
Audio door entry system:
Important: For further information about the door panel, sections, distances, other wiring diagrams, etc., see
”. 2328the User Manual https://doc.golmar.es/search/manual/5012“T632 PLUS ML”P/T
FA-Plus/C or FA-Plus
SEC
PRI
~~
Mains
+ +
--
*Place this power supply as
close as possible to
the first telephone.
A
A
+
+
_
_
D
D
A
+_D
T-540 Plus SE
A
+_D
Access panel
M =Master.
DMesh Vin-AinAout Vin+ Vout-Vout+
CN1
+
-
+CV1CV2
-
10
1
9
2
8
3
7
4
6
5
CN3
DC
lock release
T-540 Plus SE
T-540 Plus SE T-540 Plus SE
SW1
SW2
M
T-540 PLUS SE TELEPHONE 14

15
NOT S:E
T-540 PLUS SE TELEPHONE

[e-mail]
www.golmar.es
Sistemas de comunicación S.A.
Golmar se reserva el derecho a cualquier modificación sin previo aviso.
Golmar se réserve le droit de toute modification sans préavis.
Golmar reserves the right to make any modifications without prior notice.
GOLMAR S.A.
C/ Silici, 13
08940- Cornellá de Llobregat
SPAIN
