Goodmans GM700 Series User manual

1
OPERATIONMANUAL
GTV34RDVD
14"(34cm)COLOURTELEVISION
WITHDVD PLAYER
P1420-GTV34RDVD.p65 2002/10/30, PM 09:121

2
INSTALLATION
LOCATEthe receiverinthe roomwheredirectlightdoesnotstrikethe screen.Totaldarkness
orareflection on the picturescreen can causeeyestrain.Soft and indirectlighting isrecom-
mended forcomfortableviewing.
ALLOWenough spacebetween the receiverand the wall topermitproperventilation.
AVOIDexcessivewarmlocationstopreventpossibledamage tothe cabinetorcomponent
failure.
CONNECTION
ThisTVreceivercan be connected to230-240V~50/60Hz,NEVERconnecttoDC supplyorany
otherpower.
AUTOMATICDEGAUSSING
All colourtelevision receiversaresensitivetomagneticinfluences,usuallycaused byeither
moving the receiverfromone placetoanotherorusing certainelectricalappliancesnearthe
receiver.Thisresidualmagnetismasitiscalled,sometimescausesdistortion whichgivesrise
to"blotchy"areasofcolourinthe picture.Toavoidtheseeffectsthe receiverincorporatesan
automaticdegaussing circuitwhichoperatesforashortwhileimmediatelyeachtimethe
CAUTION:TOREDUCETHERISKOFELECTRICSHOCK.DONOTREMOVE COVER(ORBACK).
NOUSERSERVICEABLEPARTSINSIDE.REFERSERVICINGTOQUALIFIEDSERVICEPERSONNEL.
Thegraphicsymbolson theback coverofthesetmeanthefollowing:
The lightning flashwitharrowhead symbolwithinan equilateraltriangleisintended to
alertthe usertothe presenceofuninsulated "dangerousvoltage"withinthe product's
enclosurethatmaybe ofsufficientmagnitude toconstitutearisk ofelectricshock to
persons.
The exclamation pointwithinan equilateraltriangleisintended toalertthe usertothe
presenceofimportantoperating and maintenance(servicing)instructionsinthe litera-
tureaccompanying the appliance.
WARNING:TOREDUCETHERISKOFFIREORELECTRICSHOCK,DONOTEXPOSE THIS
APPLIANCETORAINORMOISTURE.
P1420-GTV34RDVD.p65 2002/10/30, PM 09:122

3
receiverisswitched on using the mainsswitch.Thiscircuitremovesanyresidualmagnetism
inthe metalpartsofthe picturetube and thereforeensuresthateachtimethe receiveris
switched "ON"using the Mainsswitch,the purityofthe coloursdisplayed on the screen remain
true and lifelike.If the setismoved orfaced inadifferentdirection ,the mainsswitchmustbe
switched off atleast10 minutesinorderthatthe automaticdegaussing circuitoperatesproperly.
CAUTION
Nevertamperwithanycomponentsinside yourset, oranyotheradjustmentcontrolsnot
mentioned inthismanual.All television receiversarehigh voltage instruments.YourPICTURE
TUBE ishighlyevacuated.If broken,glass fragmentswill be violentlyexpelled.Scratching,
shipping orundue pressureisdangerousand shouldbe avoided.When you dustorwipe the
PICTURETUBE FACEorCABINET,the powercordshouldbe pulled outfromthe wall then wipe
the receiverwithadrysoft cloth.All "inside work"on yourreceivershouldbe performed only
byProfessionalServicePersonnel.
DANGER
Invisiblelaserradiation when open
and interlock failed ordefeated.
avoiddirectexposuretolaserbeam.
LASERSAFETY
Thisunitemploys an opticallaserbeamsysteminthe CD
mechanism,designed withbuiltinsafeguards.Donotattempt
todisassemble,refertoqualified servicepersonnel.
Exposuretothisinvisiblelaserlightlightbeammaybe harm-
fultothe human eye.
THISISACLASS-1LASERPRODUCT.USE OFCONTROLS,
ORADJUSTMENTSORPROCEDURESOTHERTHANTHOSE
SPECIFIEDHEREIN,MAY RESULTINHAZARDOUSLA-
SERLIGHTBEAMEXPOSURE.
Manufactured underlicensefromDolbyLaboratories“Dolby”,”ProLogic”and the double-D
symbolaretrademarks ofDolbyLaboratories.Confidentialunpublished works.©1992-1997
DolbyLaboratories,lnc.All rightsreserved.
P1420-GTV34RDVD.p65 2002/10/30, PM 09:123

4
IMPORTANTSAFEGUARDS
PREFITTEDMAINSPLUGS
Foryou convenienceamainsplug hasbeen fitted tothisappliance.Foryoursafetyplease
observethe following information.
1.Shouldthe fuseinthe plug fall removethe plug fromthe wall socketand replacethe fuse
witha3AmpASTAapproved toBS 1362 fuse.
2.Neverusethe plug withoutthe fusecoverfitted.Replacementfusecoversareavailable
fromyourdealerormostelectricalretall outlets.
3.If the mainsplug isoutoff the cable,rewirethe replacementplug inaccordancewith
instruction giveinthismanual.
4.CAUTION:Underno circumstancesshouldthe discarded plug be inserted intothe mains
socket.Topreventashock hazardcarefullydisposeofthe discarded plug.
Donotleavethe plug lying around wherechildren mightsee it.
WARNING:Topreventfireorshock hazarddo notexposethisunittorainormoisture.
CAUITON:
DANGEROUSVOLTAGES EXISTINSIDETHISUNITDONOTREMOVE COVER(OR
BACK).
NOUSERSERVICEABLEPARTSINSIDEREFERSERVICINGTOQUALIFIEDSERVICE
PERSONNEL.DISCONNECTFROMMAINSSUPPLYWHENNOTINUSE.
Thiswiresinthismainslead arecolorued in
accoudancewiththe following wiring codes:
Blue................................... Neutral
Brown................................... Live
Thiswiresinthismainslead mustbe connected
tothe terminalsinthe plug asfollows:
Blue Wire........................... NorBlack
BrownWire.......................... LorRed
Onlya3Ampfuseshouldbe fitted inthe plug ora5Ampfuseatthe distribution board.
WARNING:UNDERNOCIRCUMSTANCES MUSTTHELIVE ORNEUTRALWIRES BE
CONNECTEDTOTHEEARTHTERMINALINA3-PINMAINSPLUG.
Thissymbolmeansthatthisunitisdoubleinsulated.Anearthconnection isnot
required.
HELPLINEPHONENUMBER02392 39110
P1420-GTV34RDVD.p65 2002/10/30, PM 09:124

5
LOCATIONOFCONTROLS
1.Speaker
2.PowerButton
3.RemoteSensor
4.ChannelButtons
5.Open/CloseButton
6.DVDLoader
7.VolumeButtons
8.DVDPlayButton
9.DVDStop Button
10.TVStoreButton
11.TV/AV/DVDButton
12.Earphone Socket
13.Video InputSocket
14.AudioInputSocket(R+L)
15.75 ohmAntenna Socket
16.ScartConnector
17.AudiodigitalOutSocket(ForDVDonly)
18.S-Video OutSocket(ForDVDonly)
Note:PlasticCaps
The plasticcapssupplied withthe setarejust
forthe footdecoration.
P1420-GTV34RDVD.p65 2002/10/30, PM 09:135

6

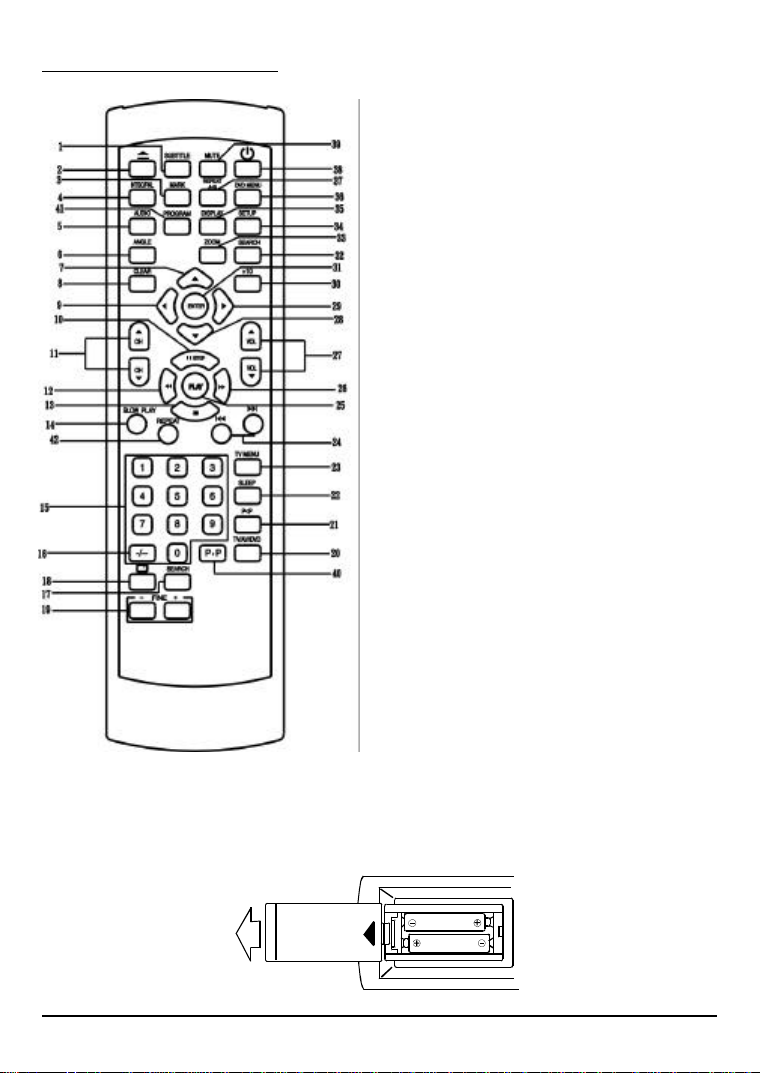

REMOTECONTROLUNIT
BATTERY INSTALLATION
•Inserttwo"AA"or"R06"1.5Vbatteriesasillustratedand replace thebatterycover.
1.DVDSubtitleButton
2.EjectButton
3.MarkButton
4.NTSC/PALButton
5.AudioButton
6.AngleButton
7.Direction UpButton
8.ClearButton
9.Direction Left Button
10.Pause/step Button
11.TVChannelButtons
12.FastReverseButton
13.Stop Button
14.SlowPlayButtons
15.NumericButtons
16.TwoDigitalProgramButton
17.TVSearchButtons
18.TVRecall Button
19.Fine Tune Function Buttons
20.TV/AV/DVDButton
21.TVPreviousProgramButton
22.TVSleep Button
23.TVMenu Button
24.DVDSkipBackward/ForwardButton
25.PlayButton
26.FastForwardButton(FastPlay)
27.VolumeButtons
28.Direction DownButton
29.Direction RightButton
30.+10 Button
31.DVDEnterButton
32.SearchButton (DVD)
33.DVDZoomButton
34.Setup Button
35.DisplayButton
36.DVDMenu Button
37.RepeatA-BButton
38.Stand-byOn/Off Button
39.MuteButton
40.PersonalPreferenceButton
41.ProgramButton
42.RepeatButton
P1420-GTV34RDVD.p65 2002/10/30, PM 09:136

7
OPERATINGTHETELEVISIONRECEIVER
ConnectyourTVaerialtothe aerialinputsocketlocated on the back ofthe TV.
Pushthe MainPowerSwitch,PowerIndicatorwill be illuminated.Press the CH./buttons
once,the TVscreen will lightup and will shownoiseon the screen.The TVwill requiretuning
intothe availableTVstationsinyourarea.
Pre-setting the TVstationsintothe Memory
(Note:Presettuning canonlybecarriedoutinTVMode)
1)Press and holdthe SEARCH button on the remotecontroltoselectthe desireband.As
the desired band appearson the screen,then releasethe SEARCH button.
*Press the SEARCH Button oncetosearchorskipforthe
otherbands.
*Onceastation istuned,the searchingwill stop automatically.
*VHF-1,VHF-3and UHFwill displayon screen alter-
natelywhilesearching.
Foryourinformation,The wording "SYS-1"will be displayed inanyone ofthe following
operations,however,itwill neitherhaveanyinfluencenorlead toanyadverseeffecton the TV
operation.
i.When using SEARCH button toperformtuning during TVreception.
ii.When RECALL button ( ) on the controlpanelispressed.
Inanyone ofthe abovecases,the displayed wording "SYS-1"will automaticallydisappear
afterthree seconds.
2)Press STOREbutton.(on the
frontpanelofthe TVset).3)Press the CH.""/""button to selectthe desired program.
0
STORE-
0
STORE12
"STORE"isinred colour.
P1420-GTV34RDVD.p65 2002/10/30, PM 09:137

8
4)Press STOREbutton on the TVfrontpanelagain
FINETUNEFUNCTION
Undernormalreception,AFT (AutoFine Tune)function isONtoensurethe bestreception.
However,inareasofpoorreception ofconstantinterference,aslightadjustmentofthe tuning
mayimprovethe pictureand sound quality.
Press and holdeitherthe FINE"-"or"+"button until the pictureand sound arecorrect.
During fine tuning,the displaywill show
"TUNE"inred colour,and tuning bar
ingreen.
UHF1TUNE-III-
IIII----------
UHF1TUNE-III-
IIIIIIIIII----
Todisablefine tune function and
restoreAFT function,justsimplypress
the CH." "/" " button.
PRESETTHETVPROGRAMME
The displaywill change fromred to
green.The TVstation isstoreinthe selected
programnumber.
0
STORE12
12
P1420-GTV34RDVD.p65 2002/10/30, PM 09:138

9
OPERATINGTHETELEVISIONRECEIVER
CHANNELSELECTANDMENU CONTROL
1)Press CH./buttonstoselectTVstation.(TVMode Only)
89
Press CH." ",the programno.will
appearon the top left cornerand
change fromhigherno.tolowerno.
Press CH." ",the programno.will
change fromlowerno.tohigherno.
2)Press the TVMENU button step bystep toselectone ofthe following function.
BRIGHTNESS ==>COLOUR ==>CONTRAST==>HUE==>VOLUME
3)Ateitherofthe BRIGHTNESS,COLOUR,CONTRAST,HUE&VOLUMEfunction controls,
press VOL" "," " buttonstoadjustthe level.
IIII-----------
0
IIIIIIIIIII---
P1420-GTV34RDVD.p65 2002/10/30, PM 09:139

10
OPERATIONTHETELEVISIONRECEIVER
If the tvsetisone systemonly,press thisbutton therewill be shown“-”on
screen,buttherewill be no function.
OPERATINGWITHREMOTECONTROL
TOSELECTTVSTATIONUSINGTHEPROGRAMNUMBERS:
1.ProgramNumberUpand Down
Press the CH." " or" " button toselectahigherorlowerprogramnumber.
2.0-9DigitalButton
ToselectTVstationsusing programnumbers0-9,selecting programnumberwill be
showninthe left cornerofthe top ofscreen inyellowcolour.
Forexample:
Press "9"digitbutton toselectprogram"9".
3.TwoDigitalProgramNumber
ToselectTVstation using programnumbers"10"-"89".
Forexample:selecting program12
*Press the button "-/--"
*Then press the number"1"button,on screen will show"1-"
*Then press the number"2"button,channel"12"will show.
4.PreviousProgramButton (P P)
Press (P P)button toselectthe previouslyviewed programnumber.
Stand-ByButton ()
•Press the " " button toswitchOFF the pictureand sound.
•Toswitchon the TVfromstand-bymode,justpress anydesired programnumber(0-9).
SleepTimer()
•The TVsetcan switchOFF automaticallyin15 minuteintervalsupto120 minutes.When the
SLEEP button ispressed,the screen displaywill show""inred colourand the settimein
yellowcolour.Keep pressing the button till the desired settimeappears.
•Anytimeyou brieflypress the SLEEP TIMERbutton,the displaywill showthe residualtime.
Tocancelthe setting ofsleep time,press the SLEEP TIMERbutton until displayshow"SLEEP
OFF".
MuteButton ()
•Press the " " button toswitchOFF the sound,press onceagaintoswitchONthe sound.
