Goodwe SBP SERIES User manual

User Manual
AC-Coupled Inverter
SBP Series
V1.5-2021-01-21

Content User Manual V1.5-2021-01-21
2
TABLE OF CONTENTS
01 Introduction ..............................................................1
1.1 Operation Modes Introduction................................................................1
1.2 Safety and Warning...................................................................................2
1.3 Product Overview ......................................................................................4
02 Installation Instructions .............................................5
2.1 Unacceptable Installations.......................................................................5
2.2 Packing List ................................................................................................5
2.3 Mounting ....................................................................................................6
2.3.1 Select Mounting Location .................................................................................6
2.3.2 Mounting ............................................................................................................7
2.4 Electrical Wiring Connection ....................................................................9
2.4.1 PE Cable Connection .........................................................................................9
2.4.2 Battery Wiring Connection ............................................................................... 9
2.4.2 On-Grid & Back-Up Connection .....................................................................11
2.4.3 Smart Meter & CT Connections .....................................................................13
2.5 DRED & Earth Fault Alarm ......................................................................15
2.5.1 DRED Connection.............................................................................................15
2.5.2 Earth Fault Alarm Connection ........................................................................16
03 MANUAL OPERATION ................................................ 19
3.1 Wi-Fi Conguration .................................................................................19
3.2 PV Master .................................................................................................20
3.3 CEI Auto-Test Function............................................................................21
3.4 Startup/shutdown Procedure ................................................................21
3.4.1 Startup Procedure ...........................................................................................21
3.4.2 shutdown Procedure.......................................................................................21
3.5 SEMS Portal ..............................................................................................21

ContentUser Manual V1.5-2021-01-21
3
04 OTHER ..................................................................... 22
4.1 Error Messages........................................................................................22
4.2 Troubleshooting ......................................................................................23
4.3 Disclaimer.................................................................................................27
4.4 Technical Parameters..............................................................................29
4.5 Quick Checklist To Avoid Dangerous Conditions.................................33
Appendix ..................................................................... 34

1
01 Introduction User Manual V1.5-2021-01-21
1.1 Operation Modes Introduction
01 Introduction
S-BP series bi-directional inverter is designed for both indoor and outdoor use, which could be
used with or without existing grid-tied inverter systems to store energy using batteries. Energy
produced from grid-tied inverters shall be used to optimize self-consumption, excess energy
will be used to charge the batteries, if the battery is already full, power excess power could be
exported to the grid. Loads will be supported in priority by grid-tied system, then battery power,
if there is insucient energy, power will be supported by the grid.
Note:
The introduction describes a general behavior of S-BP system. The
operation mode can be adjusted on PV Master App depending on
the system layout. Below are the general operation modes for SBP
system:
SBP system normally has the following operation modes based on your conguration and layout
conditions.
Mode I
Energy from grid-tied inverters optimize loads,
excess energy will be used to charge the battery,
anymore will be exported to the grid.
Mode III
When grid power fails, battery will discharge to
support back-up Loads.
Mode II
When energy from grid-tied inverters is
weak, battery will discharge to support the
load in priority together with the grid.
Mode IV
Battery could be charged by grid, and
charge time/power could be set exibly on
PV Master APP.
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
2019
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
2019
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
2019
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
2019
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
2019

2
User Manual V1.5-2021-01-21 01 Introduction
1.2 Safety and Warning
WARNING!
The SBP series of inverters from Jiangsu Goodwe Power Supply Technology Co.,Ltd (also called
GoodWe) strictly complies with related safety rules for product design and testing. Please read
and follow all of the instructions and cautions appearing on the inverter or in the User Manual
during installation, operation and maintenance, as any improper operation might cause personal
injury or property damage.
These servicing instructions are for use by qualied personnel only. To
reduce the risk of electric shock, do not perform any servicing other
than that specied in the operating instructions.
Symbol Explanation
Danger - high voltage and electric shock!
Caution!
Failure to observe any warnings contained in this manual may result in injury.
Danger - hot surface!
The components of the product can be recycled.
This side up! This package must always be transported, handled and stored in such
a way that the arrows always point upwards.
No more than six (6) identical packages being stacked on each other.
Products shall not be disposed as household waste.
5min
Fragile - The package/product should be handled carefully and never be tipped over
or slung.
Refer to the operating instructions.
Keep dry! The package/product must be protected from excessive humidity and
must be stored under cover.
This symbol indicates that you should wait at least 5mins after disconnecting the inverter
from the utility grid and from the PV panel before touching any inner live parts.
CE mark.

3
01 Introduction User Manual V1.5-2021-01-21
Any installation or operations on the inverter must be performed by qualied electricians
in compliance with standards, wiring rules and the requirements of local grid authorities or
companies (such as AS 4777 and AS/NZS 3000 in Australia).
Prohibit inserting and pulling the AC and DC terminals when the inverter is running.
Before any wiring connection or electrical operation on inverter, all DC and AC power must
be disconnected from inverter for at least 5 minutes to make sure inverter is totally isolated
to avoid electric shock.
The temperature of inverter surface might exceed 60℃ during operation, so please make
sure it has cooled down before touching it, and make sure the inverter is out of reach of
children.
Do not open the inverter's cover or change any components without manufacturer's
authorization, otherwise the warranty commitment for the inverter will be invalid.
Usage and operation of the inverter must follow instructions in this user manual, otherwise
the protection design might be impared and warranty commitment for the inverter will be
invalid.
Appropriate methods must be adopted to protect inverter from static damage. Any damage
caused by static is not warranted by manufacturer.
The inverter, with built-in RCMU, will exclude possibility of DC residual current to 6mA, thus
in the system an external RCD (type A) can be used(≥30mA).
In Australia, the inverter internal switching does not maintain neutral integrity, which must
be addressed by external connection arrangements like in the System Connection Diagrams
for Australia.
In Australia, output of back-up side in switchbox should be labeled "Main Switch UPS
Supply", the output of normal load side in switch box should be labeled "Main Switch Inverter
Supply".
Safety Warnings

4
User Manual V1.5-2021-01-21 01 Introduction
1.3 Product Overview
HYBIRD LED INDICATORS
INDICATOR
ENERGY
ON = SYSTEM IS READY BLINK = SYSTEM IS STARTING UP OFF = SYSTEM IS NOT OPERATING ON = BACK-UP IS READY / POWER AVAILABLE OFF = BACK-UP IS OFF / ON POWER AVAILABLE ON = BMS AND METER COMMUNICATION OK OFF = BMS AND METER COMMUNICATION FAIL ON = BATTERY IS CHARGING BLINK 1 = BATTERY IS DISCHARGING BLINK 2 = BATTERY IS LOW / SOC IS LOW OFF = BATTERY IS DISCONNECTED / NOT ACTIVE ON = BATTERY IS ACTIVE AND CONNECTED BLINK = GRID IS ACTIVE BUT NOT CONNECTED OFF = GRID IS NOT ACITVE ON =
CONSUMING ENERGY FROM GRID / BUYING
BLINK 1 = SUPPLYING ENERGY TO GRID / ZEROING BLINK 2 = SUPPLYING ENERGY TO GRID / SELLING ON = WiFi CONNECTED / ACTIVE BLINK 1 = WiFi SYSTEM RESETTING BLINK 2 = WiFi NOT CONNECT TO ROUTER BLINK 4 = WiFi SERVER PROBLEM OFF = WiFi NOT ACTIVE ON = FAULT HAS OCCURRED OFF = NO FAULT
STATUS EXPLANATION
SYSTEM BACK-UP COM BATTERY GRID ENERGY WiFi FAULT
BLINK1 = OVERLOAD OF BACK-UP
OUTPUT / REDUCE LOAD
BLINK 1 = METER COMMUNICATION OK,
BMS
COMMUNICATION FAIL
BLINK 2 = BMS COMMUNICATION OK,
METER
COMMUNICATION FAIL
OFF = GRID NOT CONNECTED OR
SYSTEM NOT OPERATING
SYSTEM
GRID
WiFi
COM
FAULT
BATTERY
2019
BACK-UP
Wi-Fi
Reset/Reload
LED Lable
WiFi reset / Reload Button
Back-Up Port
On-Grid Port
DRED
Wi-Fi Box
Reserved RS485
Battery Terminals
Exhaust Valve
BMS Communication Cable
Smart Meter Communication Cable
To Battery
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
To Smart Meter

5
01 Introduction User Manual V1.5-2021-01-21
02 Installation Instructions
2.1 Unacceptable Installations

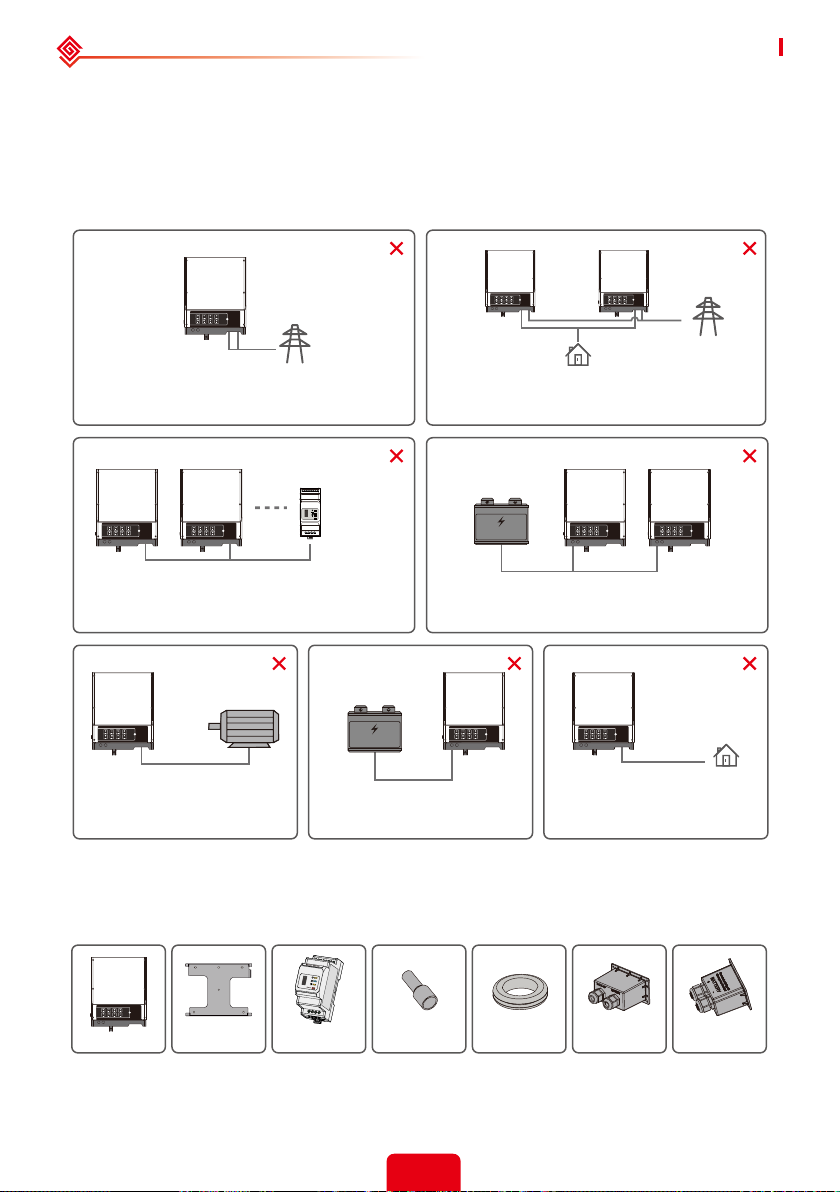

Please avoid the following installations which will damage the system or the Inverter.
The following installations should be avoided. Any damage caused will not be covered by the
warranty policy.
2.2 Packing List
Upon receiving the hybrid inverter, please check if any of the components as shown below are
missing or broken.
On-Grid
Back-Up Back-Up Back-Up
Load
On-Grid
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
2019
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
2019
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
2019
Battery
Incompatible battery
Back-Up On-Grid
Generator
Battery
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
2019
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
2019
Load
Back-Up
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
2019
Back-up cannot be connected to grid.
One meter cannot connect to multiple inverters,
and dierent CT cannot connect to a Smart Meter.
One battery bank cannot be connected to multiple
inverters.
On-Grid or back-up side cannot
connect to any ac generators.
Inverter battery input cannot
be connected to incompatible
batteries.
Inverter does not support o-
grid function in grid-less area.
Back-up cannot be connected in parallel.
Back-Up Back-Up
Smart Meter
Reset
SMART METER
USB
BatteryBattery
Incompatible battery
Battery
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
2019
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
2019
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
2019
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
2019
Wall-mounted
Bracket
USB
Inverter Smart Meter Pin Terminal Pin Terminal AC Cover Battery Cover
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
2019

6
User Manual V1.5-2021-01-21 02 Installation Instructions
2.3 Mounting
2.3.1 Select Mounting Location

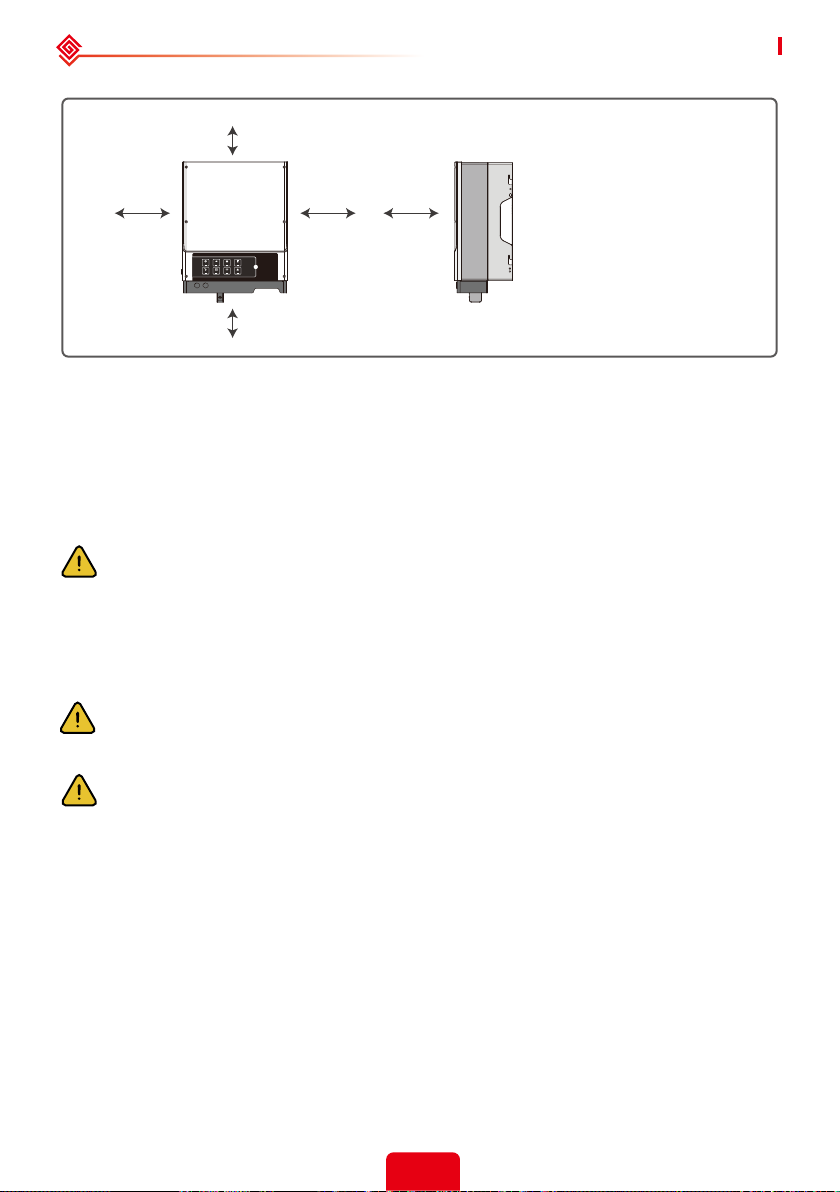

For inverter's protection and convenient maintenance, mounting location for inverter should be
selected carefully based on the following rules:
Rule 1. Any part of this system shouldn't block the switch and breaker from disconnecting the
inverter from DC and AC power.
Rule 2. Inverter should be installed on a solid surface, where it is suitable for inverter's dimensions
and weight.
Rule 3. Inverter should be installed vertically with a max rearward tilt of 15°.
PE TerminalBattery Terminal Expansion Bolts Hexagon Head Screw Pan Head Screw Documentations
Rule 4. Ambient temperature should be lower than 45°C. The temperature and humidity at the
installation site should be within the appropriate range (60 °C for outdoor unconditioned with
solar eects).
Rule 5. It is recommanded that the installation of the inverter should be prevented from direct
sunlight, snow, rain and other negative inuences which may cause function impact or life aging.
Accmulated snow
Keep away
from sunlight Keep dry Keep it clear
of snow Sun Rain
Rule 6. Inverter should be installed at eye level for convenient maintenance.
Rule 7. Product label on inverter should be clearly visible after installation. Do not damage the
lable.
Rule 8. Do not install the inverter when it is snowing or raining. If you have to, pay attention to
the waterproof and moisture-proof of the inverter and distribution box.
Rule 9. Leave enough space around the inverter according to the below gure for natural heat
dissipation.

7
02 Installation Instructions User Manual V1.5-2021-01-21
2.3.2 Mounting
Deliver the inverter carefully.
300mm
500mm
200mm 200mm
Upward
Downward
Front
Both sides
---------- 300mm
------ 500mm
------------- 300mm
-------- 200mm
300mm
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
2019
• Pack the inverter securely for transport.
• Carefully transport the inverter using the carrying handles in the boxes.
• Do not subject the inverter to shocks during the transport.
• Make sure that the arrows on the box always point upwards during the transport.
• Secure the inverter rmly in place for transport.
Note:
• Move the inverter with care to prevent device damage and personal injury.
• Do not use the wiring terminals and ports at the bottom to support any weight of the inverter.
• Place a foam pad or cardboard under the inverter to protect the inverter enclosure from damage.
Inverter cannot be installed near ammable, explosive or strong electro-magnetic
equipment.[1]
Lift the inverter from the packing case and move it to the specied installation position.
The inverter is suitable for mounting on concrete or other non-combustible surface only.
Mounting Support Requirements
• The mounting support shall be nonammable and reproof.
• Make sure that the support surface is solid enough to bear the product weight load.
• Do not install the product on the support with poor sound insulation to avoid the noise
generated by the working product, which may annoy the residents nearby.
• Do not install the productnear equipment with strong electromagnetism.

8
User Manual V1.5-2021-01-21 02 Installation Instructions
1
Carry the inverter by holding the heating sink on both sides and place the inverter
on the mounting bracket.
wall bracket
expansion pipe
self-tapping screws
125mm 125mm
120mm 120mm
265mm
• Please use the mounting bracket as a template to drill 6 holes in right positions (10mm
in diameter,and 80mm in depth).
• Use expansion bolts in accessory box and x the mounting bracket onto the wall tightly.
Note: Bearing capacity of the wall must be higher than 25kg, otherwise it may not be able to
keep inverter from dropping.
Note: Make sure the heat sink on the inverter joints with mounting bracket.
2
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT

9
02 Installation Instructions User Manual V1.5-2021-01-21
3
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
2.4 Electrical Wiring Connection
2.4.1 PE Cable Connection
• Disconnect the PE cable after dismantling the equipment if needed.
• To improve the corrosion resistance of the terminal, it is recommended to apply silica gel or
paint on the ground terminal after installing the PE cable.
• The PE cable should be prepared by customers. Recommended specications:
• Type: single-core outdoor copper cable.
• Conductor cross-sectional area S≥6mm2.
• For lithium battery (pack) the capacity should be 50Ah or larger. Battery cable requirement are
shown below.
2.4.2 Battery Wiring Connection
1.2~2N·m
A lock could be used for anti-theft purposes if it is necessary for individual
requirement.
The lock is not included in the package,
It can be purchesed by user.
Copper, ≥6mm2
L=L1+(1~2)mm L1
1
23
M5
1.5~2N·m
Cable Description Value
A Outside Diameter 10-12mm
B Isolation section NA
C Conductor Core 25-35mm2

10
User Manual V1.5-2021-01-21 02 Installation Instructions
3
• Please be careful against any electric shock or chemical hazard
• Make sure there is an external DC breaker (≥125A) connected for batteries without build-in DC
breaker.
• +: Positive polarity; -: Negative polarity
Make sure battery switch is o and battery nominal voltage meet S-BP specication
before connecting battery to inverter and make sure invereter is totally isolated from PV
and AC power.[4]
Battery wiring connection process
Prepare battery cables and accessories
and put battery power cable through
battery cover.
Note:
1.Please use delivered accessories.
2. Battery power cable should be 25-35mm2.
Use Special Tool to Crimp
Make battery terminals:
• Strip cable coat, revealing 10mm length of metal core.
• Use special crimper to compress battery terminal
tightly.
Connect battery terminal onto inverter.
Note: Please make sure polarity (+/-) of
battery are not reversed.
1Battery Terminal
Waterproof Ring
Cable
Insulator
Screw Cap
2
* For the compatible lithium batteries (LG / PYLON / BYD / GCL / DYNESS / ALPHA) connection,
please visit www.goodwe.com.
Battery Protection Description
Battery will act as protective charge/discharge current limitation under any condition as below:
• Battery SOC is lower than I-DOD
• Battery voltage lower than discharge voltage
• Battery over temperature protection
• Battery communication abnormal for lithium battery
• BMS limitation for lithium battery
When charge/discharge current limitation protection happens:
• Under on-grid mode, battery charge/discharge operation could be abnormal
• Under o-grid mode, Back-Up supply will shut down
6~8N·m

11
02 Installation Instructions User Manual V1.5-2021-01-21
2
Note:
1. Under on-grid mode, battery is protected from over discharge by DOD and discharge voltage, under
o-grid mode, it is protected by only discharge voltage in priority.
2. The DOD setting of a battery prevents the inverter from discharging battery reserve power. As soon
as the DOD is reached the load of building will only be supported by either PV power or from the grid.
If there are continuous days when little or no battery charging occurs, the battery may continue to
self-consume energy to support communications with the inverter. This behaviour is dierent between
battery manufactures products, however, if the SOC of the battery reaches a certain level the inverter will
boost the SOC back up. This protection mechanism safegurads the battery to falling to 0% SOC.
2.4.3 On-Grid & Back-Up Connection
An external AC breaker is needed for On-Grid connection to be isolated from grid when necessary.
Below are the requirements of On-Grid AC breaker.
1. Use a separate AC break for individual
inverter.
2. On AC side, the individual break should
be connected before loads (between
inverter and loads).
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
2019
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
2019
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
2019
AC Breaker
AC Breaker
AC Breaker
AC Breaker
Load
Grid
• On-grid wiring connection process is as below:
Make sure inverter inverter is totally isolated from any DC or AC power before connecting
AC cable.[5]
Prepare the terminals and AC cables according
to the right table.
Note:
1. Neutral cable shall be blue, line cable is black or brown (preferred) and protective earth cable yellow-green.
2. For AC cables, PE cable shall be longer than N&L cables, so that if in any case the AC cable slips or is taken
out, the protecting earth conductor will be the last to take the strain.
Cable Description Value
A Outside Diameter 11-12 mm
B Isolation section NA
C Conductor wire length 7-9 mm
DConductor core section 6 mm2
Put AC cable through the terminal
cover in the following sequence.
Note: Please use the terminals in
the accessories box.
Connection
Terminal
AC Cover
Insulator
Screw Cap
Cable
Single hole seal ring
ABC
D
1

12
User Manual V1.5-2021-01-21 02 Installation Instructions
4
Press the six connectors on cable conductor
core tightly.
Note: Make sure cable jacket is not
locked within the connector.
1. Connect the assembled AC
terminals onto the inverter.
Note: Make sure it is not connected
to a wrong side.
2. Lock the cover and screw the
cap on.
Declaration for back-up function
The below statement lays out manufacturer's general policies governing the energy storage
inverters of the series ES, EM, SBP, ET, EH and BH.
• For Hybrid inverters (Series ES, EM, EH and ET), the standard PV installation typically consists
of the connection of the inverter with both panels and batteries. In the case where the systems
are not connected to the batteries, the back-up function is strongly not advised for use. GoodWe
shall not cover the standard warranty and be liable for any consequences arising from users not
following this instruction.
• Under normal circumstances, the back-up switching time is less than 10 ms (the minimal
condition to be considered as the UPS level). However, some external factors may cause the
system to fail on Back-Up mode. As such, we recommend the users to be aware of conditions
and follow the instructions as below:
1. Do not connect loads if they are dependent on a stable energy supply for a reliable operation.
2. Do not connect the loads which may in total exceed the maximum back-up capacity.
3. Try to avoid those loads which may create very high start-up current surges such as Inverter
Air-conditioner, high-power pump etc.
4. Due to the condition of battery itself, battery current might be limited by some factors
including but not limited to the temperature, weather etc.
Declartion for back-up loads
GoodWe S-BP inverter is able to supply a continuous 5000VA output(max 5500VA within 10s)
on Back-Up side. And the inverter will shutdown when it is full loading with high ambient
temperature if grid is absent.
• Accepted Back-Up loads: television, computer, fridge, fan, illumination lamps, microwave oven,
electrical rice cooker and router etc.
• Unacceptable house loads for Back-Up side: air conditioner, water pump, heaters, washing
machine, electromagnetic oven, compression engine, hair drier and dust cleaner etc. with high
power and other loads with high inrush current at start-up.
1.6N·m 2~2.5N·m
3

13
02 Installation Instructions User Manual V1.5-2021-01-21
Reset
SMART METER
USB
L
N
Special adjustable settings
The inverter has eld adjustable setting like
tripping point, tripping time, reconnect time, active
and invalid QU/PU curves etc. They can be adjusted
using special rmware, please contact after-sales
for the special rmware and adjustment methods.
For a convenient maintenance, an SP3T switch
could be installed on Back-Up and On-Grid side.
Then it is adjustable to support load by Back-Up or
by grid or left alone.
Wi-Fi
Reset/Reload
SYSTEM
GRID
BACK-UP
ENERGY
COM
Wi-Fi
BATTERY
FAULT
2019
Grid
Ongrid
Back-Up
Loads
1
2
3
SP3T
1: Load is supplied from Back-Up side
2: Load is isolated
3: Load is supplied from grid side
Declartion for Back-Up overload protection
Inverter will restart itself if overload protection occurs. The preparation time for restarting will
extend (max one hour) if overload protection repeats. Take following steps to restart inverter
immediately:
• Decrease Back-Up load power within max limitation.
• On PV Master APP → Advanced Setting →Click "Reset Back-Up Overload History"
2.4.4 Smart Meter & CT Connections
The single-phase Smart Meter with 2 CTs or 3-phase in product box is compulsory for S-BP
system installation, used to detect grid voltage, current direction and magnitude, further to
instruct the operation condition of S-BP inverter via RS485 communication.
Make sure S-BP and grid-tied inverters are totally isolated from AC and DC power before
connecting Smart Meter and CT.
Single-phase Smart Meter & CT connection diagram
Three-phase Smart Meter & CT connection diagram
GM1000D
SBP
PV
Single-Phase
Grid-Tied Inverter
House → Grid
Load
CT1
Grid
Note:
1. The Smart Meter and CT are well congured, please do not change any setting of the Smart Meter.
2. CT must be connected to the same phase with Smart Meter power cable.
3. Do not connect CT2 to the power line when the CT2 is not in use.

14
User Manual V1.5-2021-01-21 02 Installation Instructions
Reset
SMART METER
USB
L1
L2
L3
N
Detailed pin functions of each port on the SBP
BMS: CAN communication is congured by default. If 485 communication is used, please contact
the after-sales service to replace this with the correct communication cable.
GM3000
SBP
PV
3-Phase
Grid-Tied Inverter
House → Grid
Load
CT1
CT2
CT3
Grid
Note:
1. Please use the Smart Meter with 3 CTs in GoodWe product box.
2. CT cable is 3m as default, could be extended to a max of 5m.
3. Smart Meter communication cable (RJ45) is attached on the inverter ("To Smart Meter" cable), could
be extended to a max of 100m, standard RJ45 cable and plug must be used, as below:
Position Color BMS
Function
Smart
Meter
EMS
1 Orange & white 485_A2 NC 485_A
2 Orange NC NC 485_B
3 Green & white 485_B2 485_B1 485_A
4 Blue CAN_H NC NC
5 Blue & white CAN_L NC NC
6 Green NC 485_A1 485_B
7 Brown & white NC 485_B1 NC
8Brown NC 485_A1 NC
Smart Meter LED indications
STATUS OFF ON Blinking
POWER Not working Working /
ENERGY / Importing Exporting
COM Single blink when data are transferred to the inverter
POWER
ENERGY
COM

15
02 Installation Instructions User Manual V1.5-2021-01-21
Reset
SMART METER
USB
L
N
[1]
1
2.5.1 DRED Connection
DRED is used for Australia and New Zealand installation (also used as remote shutdown function
in European countries), in compliance with Australia and New Zealand safety requirements( or
European countries). And DRED device is not provided by GoodWe.
Detailed connection of DRED device is shown below:
Anti-reverse function connection
If S-BP system (connected with grid-tied inverters) requires anti-reverse function, it is operable
but please note:
1. This diagram is only for installation where there is exporting power limit function requirement.
2. For anti-reverse function, it can be set on PV Master App →Advanced Setting →Power Limit.
3. This diagram will only applies if grid-tied inverter has anti-reverse function build-in. And the
power limitation value can be set on grid-tied inverter.
4. When using anti-reverse function, it would buy about 100W from the grid.
[1] This cable is a theoretical connection supporting anti-reverse function, which could be dierent for
dierent grid-tied inverters.
Smart Meter
SBP
PV
Single-Phase
Grid-Tied Inverter
House → Grid
Load
CT1
Grid
2.5 DRED & Earth Fault Alarm
Screw this plate o from the inverter.
Note: DRED / Remote Shutdown device should be connected through "DRED port" as the
gure shows.

16
User Manual V1.5-2021-01-21 02 Installation Instructions
4
123456
3-2
123456
3-1
2
1. Plug out the 6-pin terminal and dismantle the resistor on it.
2. Plug the resistor out, leave the 6-pin terminal for next step.
Note: The 6-pin terminal in the inverter serves the same function as
DRED / Remote shutdown device. Please leave it in the inverter if no
external device are connected.
1. Put the cable through the plate.
2. Connect the cable on the 6-pin
terminal.
The function of each connection
position as below:
1. Put the cable through the plate.
2. Connect cable on the 6-pin terminal.
(Wiring from the No. 5 and 6 holes
respectively.)
The function of each connection position
as below:
Plug the terminal to the right
position of the inverter.
Single hole
seal ring
Single hole
seal ring
RS485
communication board
RS485
communication board
Screw
Screw
Cable
Cable
Screw Cap
Screw Cap
Insulator
Insulator
Nut
Nut
NO 1 2 3 4 5 6
Function DRM1/5 DRM2/6 DRM3/7 DRM4/8 REFGEN COM /DRMO
NO 5 6
Function REFGEN COM /DRMO
2.5.2 Earth Fault Alarm Connection
S-BP series inverter complies with IEC 62109-2 13.9. Fault indicator LED on the inverter cover will
light up and the system will email the fault information to customer.
For DRED
For Remote Shutdown
M2
0.2N·m

17
02 Installation Instructions User Manual V1.5-2021-01-21
For 3-phase Smart Meter wiring connection, please refer to "3-phase Smart Meter & CT
Connection Diagram". Inverters should not be installed in multiple phase combination.
Wiring System For S-BP Series hybrid inverter
1. For batteries with attached switch, the external DC switch is not necessary. 2. Only for lithium battery which has BMS communication. 3. Direction of the CT cannot be connected in reverse, please follow "House → Grid" direction to do the connection. 4. AC Breaker ≥40A for GW3600S-BP, and ≥50A for GW 5000S-BP.
Please select the breaker according to the specications below:
Inverter ① ② ③④
GW3600S-BP
125A/60V
DC breaker
40A/230V AC breaker Depends
on
household
loads
GW5000S-BP 50A/230V AC breaker
Reset
SMART METER
USB
PV
AC Breaker[4]
Power Meter
ON-Grid Load
L
N
PE
AC Breaker[4]
AC Breaker[4]
AC Breaker[4]
"To Battery" Cable[2]
Smart Meter
Battery
LN
Back-Up
Load
CT1[3]
CT2[3]
Grid
N
L
Grid
Single-Phase
Grid-Tied Inverter
RCD
RCD
