We thank you for your trust and the
purchase of our appliance.
This detailed instruction manual is supplied to make the
use of this product easier. The instructions should allow
you to learn about your new appliance as quickly as
possible.
Make sure you have received an undamaged appliance. If
you do find transport damage, please contact the seller
from which you purchased the appliance, or the regional
warehouse from which it was supplied. The telephone
number can be found on the invoice or on the delivery
note.
These instructions are only valid if the country symbol is
printed on the appliance. If there is NO country symbol
on the appliance, please consult the technical instructions
for adjusting the appliance according to the requirements
for use in the relevant country.
The appliance has to be connected in compliance with
the effective regulations, and it may only be used in well
ventilated areas. Read the instructions before connecting
or using the appliance.
Instructions for use are also available at our website:
http://www. gorenje.com
Important information
Tip, note
GORENJE gospodinjski aparati, d.o.o.
Partizanska cesta 12
SI-3320 Velenje, SLOVENIJA
[email protected]
586308_en.indd 2586308_en.indd 2 25. 08. 2021 13:17:2925. 08. 2021 13:17:29

3
CONTENTS
586308
INTRODUCTION
USING THE
APPLIANCE
MAINTENANCE
& CLEANING
TROUBLE-
SHOOTING
4 IMPORTANT SAFETY INSTRUCTIONS
8 Before connecting the appliance
9 GAS FREE STANDING COOKER
13 Control unit
14 Appliance data - data plate
15 USING THE APPLIANCE
15 Before using the appliance for the first time
15 Cooking hob (depending on the model)
16 Electronic program timer
21 Oven
23 Descriptions of cooking systems and cooking table
30 MAINTENANCE & CLEANING
31 Conventional oven cleaning
32 Gas burner
33 Using the aqua clean function to clean the oven
34 Cleaning the insert bottom panel
35 Removing and cleaning wire and telescopic extendible guides
36 Removing and inserting the oven oor
39 Removing and inserting the oven inner door glass (depending on the
model)
41 Replacing the bulb
42 SPECIAL WARNINGS AND FAULT REPORTING
44 INSTALLATION AND CONNECTION INSTRUCTIONS
50 NOZZLE TABLE
52 DISPOSAL
OTHER
INSTALLATION
INSTRUCTIONS
586308_en.indd 3586308_en.indd 3 25. 08. 2021 13:17:2925. 08. 2021 13:17:29

4
586308
IMPORTANT SAFETY
INSTRUCTIONS
CAREFULLY READ THE INSTRUCTIONS AND SAVE THEM
FOR FUTURE REFERENCE
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements. Children younger than 8 years of age shall
be kept away unless continuously supervised.
WARNING: The accessible parts of the appliance may
become hot during use. Young children should be kept
away from the oven.
The appliance becomes very hot during use. Be careful not
to touch the oven heaters.
WARNING: Danger of fire: do not store items on the
cooking surfaces.
WARNING: Unattended cooking on a hob with fat or oil
can be dangerous and may result in fire. NEVER try to
extinguish a fire with water, but switch off the appliance
and then cover flame e.g. with a lid or a fire proof blanket.
586308_en.indd 4586308_en.indd 4 25. 08. 2021 13:17:2925. 08. 2021 13:17:29

5
586308
CAUTION: The cooking process has to be supervised.
A short term cooking process has to be supervised
continuously.
WARNING: Before replacing the light bulb, make sure the
appliance has been disconnected from the mains power, in
order to prevent the hazard of an electric shock.
CAUTION: This appliance is for cooking purposes only. It
must not be used for other purposes, for example room
heating.
The appliance is not intended to be controlled by external
timers or separate remote controll system.
WARNING: Use only hob guards designed by the
manufacturer of the cooking appliance or indicated by the
manufacturer of the appliance in the instructions for use as
suitable or hob guards incorporated in the appliance. The
use of inappropriate guards can cause accidents.
WARNING: If the surface is cracked, switch off the appliance
to avoid the possibility of electric shock.
CAUTION: In case of hotplate glass breakage:
– shut immediately off all burners and any electrical heating
element and isolate the appliance from the power supply
– do not touch the appliance surface,
– do not use the appliance.
For appliance connection use a 5 x 1,5 mm2cord with mark
H05VV-F5G1,5 or better. Cord must be installed by service
agent or similary quialified person.
The appliance is intended to be placed directly on the floor,
without any supports or plinths.
586308_en.indd 5586308_en.indd 5 25. 08. 2021 13:17:2925. 08. 2021 13:17:29

6
586308
Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the oven door glass or the glass of hinged lids of
the hob (where appropriate), since they can scratch the
surface, which may result in shattering of the glass.
The appliance must not be installed behind a decorative
door in order to avoid overheating.
Do not use steam cleaners or high-pressure cleaners to
clean the appliance, as this may result in an electric shock.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
Only use the temperature probe recommended for this
oven.
Make sure the lid is clean and that there is no liquid spilt
on it before raising it. The lid may be lacquer-coated or
- CAUTION: possibility of tilting.
- WARNING: In order to prevent
tipping of the appliance, stabilising
means must be installed. Refer to the
instructions for installation.
586308_en.indd 6586308_en.indd 6 25. 08. 2021 13:17:2925. 08. 2021 13:17:29

7
586308
The appliance is intended for household
use. Do not use it for any other purpose,
such as room heating, drying of pets or
other animals, paper, fabrics, herbs etc. As
this may lead to injury or fire hazard.
The appliance may only be connected
by an expert authorized by the gas
distribution company or an authorized
service center. All relevant legislation and
local gas distributor's technical conditions
for connection to the gas mains should be
complied with.
Unauthorized service and repair can result
in risk of explosion, electric shock, or short
circuit and consequently personal injury
and damage to the appliance.
Such tasks may only be carried out by an
authorized expert.
Before installing and connecting the
appliance, make sure the local connection
conditions and characteristics (gas type
and pressure) are compatible with the
appliance set-up.
The set-up of the appliance is specified on
the rating plate.
This appliance is not connected to a
combustion products evacuation device.
It shall be installed and connected in
accordance with current installation
regulations. Particular attention shall
be given to the relevant requirements
regarding ventilation.
This is a class 2/1 appliance. The appliance
may touch the adjacent cabinets on both
sides when placed in a row. On one side,
a tall cabinet – taller than the appliance –
may be placed at a distance of at least 10
cm from the appliance. On the other side,
only a cabinet of the same height may be
placed.
Pay attention to correct placement of the
burner parts.
Do not install the appliance near powerful
sources of heat, such as solid fuel stoves,
because high temperature near them can
damage the appliance.
Close the main inlet valve if you do not
intend to use the burners for a longer
period of time (e.g. before going on
vacation).
Appliance operation is safe with and
without tray guides.
If the power cord is damaged, it should
be replaced by the manufacturer or an
authorized service technician, in order to
avoid hazard.
glass. It may only be closed when the cooking zones have
completely cooled down.
Appliance must be connected to fixed wiring which is in
accordance with the witing rules.
Appliance must be connected to fixed wiring which has
incorporated means of disconnection. Fixed wiring must be
made in accordance with the wiring rules.
586308_en.indd 7586308_en.indd 7 25. 08. 2021 13:17:2925. 08. 2021 13:17:29

8
586308
BEFORE CONNECTING THE APPLIANCE
Carefully read the instructions for use before connecting the
appliance. Repair or any warranty claim resulting from incorrect
connection or use of the appliance shall not be covered by the
warranty.
If you observe any faults on the gas
installation or smell gas in the room:
• immediately shut o the gas supply or
close the gas cylinder;
• put out any open fi re and extinguish any
tobacco product;
• do not switch on any electrical
appliances (including lights);
• thoroughly ventilate the room – open the
windows;
• immediately inform the service centre or
an authorized natural gas distributor.
Do not line the oven walls with aluminium
foil and do not place baking trays or other
cookware on the oven bottom. Aluminium
foil would prevent air circulation in the
oven, hinder the cooking process, and ruin
the enamel coating.
Oven door become very hot during
operation. A third glass is installed for
extra protection, reducing the temperature
of the outside surface (only with some
models).
Oven door hinges may be damaged when
under excessive load. Do not place heavy
pans on open oven door and do not lean
against open oven door when cleaning the
oven cavity.
Never stand on the open oven door and do
not let children sit on it.
Make sure the vents are never covered or
obstructed in any other way.
CAUTION:The use of a gas cooking
appliance results in the production of heat,
moisture and products of combustion in
the room in which it is installed. Ensure
that the kitchen is well ventilated especially
when the appliance is in use: keep
natural ventilation holes open or install a
mechanical ventilation device (mechanical
extractor hood).
Prolonged intensive use of the appliance
may call for additional ventilation, for
example opening of a window, or more
effective ventilation, for example increasing
the level of mechanical ventilation where
present.
The appliance is heavy. For carrying the
appliance at least 2 persons are needed.
586308_en.indd 8586308_en.indd 8 25. 08. 2021 13:17:2925. 08. 2021 13:17:29

9

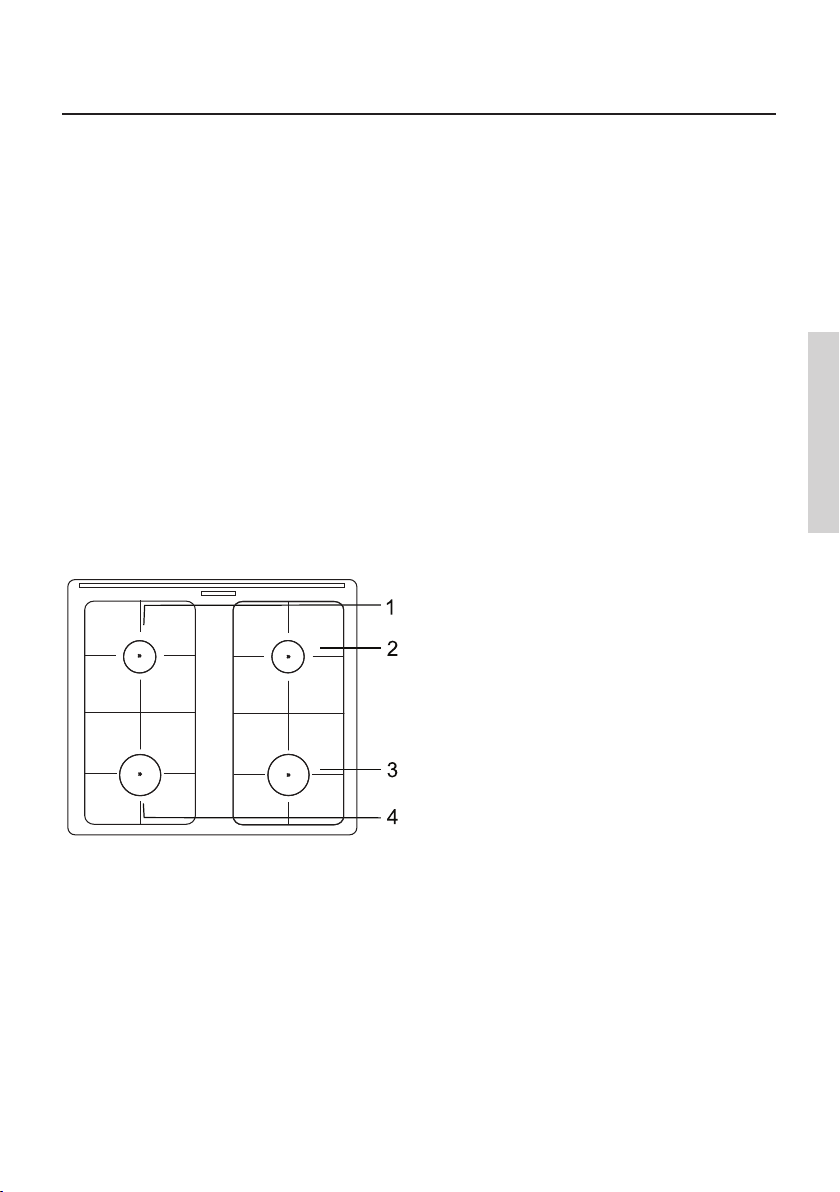

GAS FREE STANDING COOKER
DESCRIPTION OF THE APPLIANCE AND EQUIPMENT
(depending on the model)
Lid
Door
Guides –
cooking
levels
4
3
2
1
Control unit
Adjustable feet
Door switch
Door handle
Combined or gas hob
Drawer/Clampshell drawer
Plinth
586308
Since the appliances for which these instructions were drawn up may have different
equipment, some functions or equipment may be described in the manual that may not be
present in your appliances.
APPLIANCE LID
Make sure the lid is clean and that there is no liquid spilt on it before raising it. The lid
may be lacquer-coated or glass. It may only be closed when the cooking zones have
completely cooled down.
586308_en.indd 9586308_en.indd 9 25. 08. 2021 13:17:3025. 08. 2021 13:17:30

10
586308
APPLIANCE DRAWER
Do not store combustible, explosive, volatile or temperature-
sensitive items (such as paper, dish cloths, plastic bags, cleaners
or detergents and spray cans) in the oven's storage drawer, as
they can ignite during excessive operation and cause a fire.
CONTROL LIGHT
The red light is no when the oven heaters are activated. When the selected temperature is
reached, the red light is switched off.
Oven lighting will be switched on automatically when the cooking system is selected.
WIRE GUIDES
The wire guides allow preparation of the food on four levels.
TELESCOPIC PULL-OUT GUIDES
Telescopic pull-out guides may be fitted for the 2nd, 3rd, and 4th level.
Pull-out guides can be partly or fully extendible.
EMBOSSED GUIDES
The oven has stamped side grooves in three levels for inserting of the grid.
OVEN DOOR SWITCH
The switch deactivates oven heating and the fan when the oven door is opened during the
cooking process. When the door is closed, the switch turns the heaters back on.
COOLING FAN
The appliance is fitted with a cooling fan that cools the housing and the appliance control
panel.
After the oven is switched off, the cooling fan continues to operate for a short while in
order to cool the oven.
The symbol on the product or its packaging indicates that glass
lids may shatter when heated. Turn off all the burners before
shutting the lid.
586308_en.indd 10586308_en.indd 10 25. 08. 2021 13:17:3025. 08. 2021 13:17:30

11
586308
OVEN EQUIPMENT AND ACCESSORIES
(depending on the model)

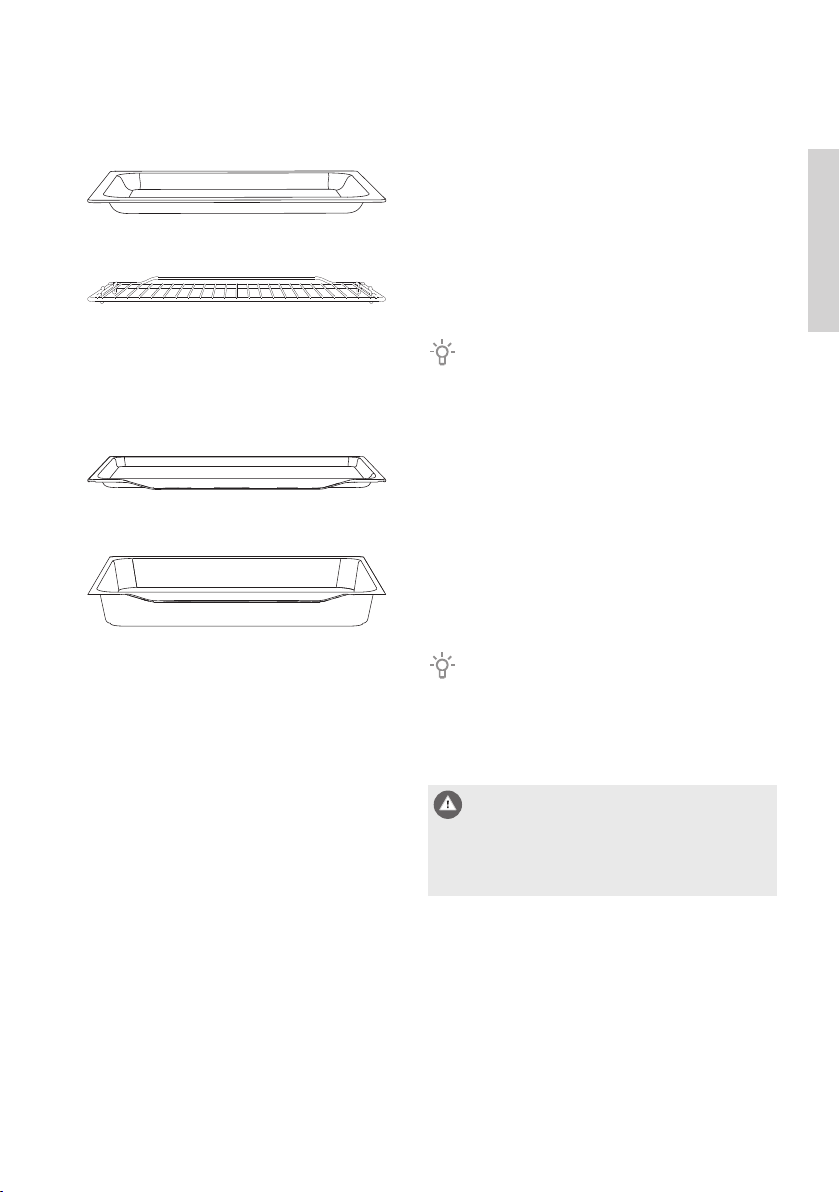

GLASS BAKING DISH is used for cooking
with all oven systems. It can also be used as
a serving tray.
The GRID is used for grilling or as support
for a pan, baking tray or baking dish with
the food.
There is a safety latch on the grid.
Therefore, lift the grid slightly at the front
when pulling it out from the oven.
The SHALLOW BAKING SHEET is used for
baking pastry and cakes.
Use the BAKING TRAY for cooking of all
types of meat, fish and vegetables, as well as
for catching the drippings when cooking on
the wire rack.
Never place the deep baking tray in the
first guide during the cooking process, except
when grilling food or using the roasting spit
and you are only using the deep tray as a drip
tray.
As baking accessories heat up, their
form may change. This does not affect
their functionality and their original form
will be restored when they cool down.
586308_en.indd 11586308_en.indd 11 25. 08. 2021 13:17:3025. 08. 2021 13:17:30

12
586308
The grid or the tray should always be
inserted into the groove between the two
wire profiles.

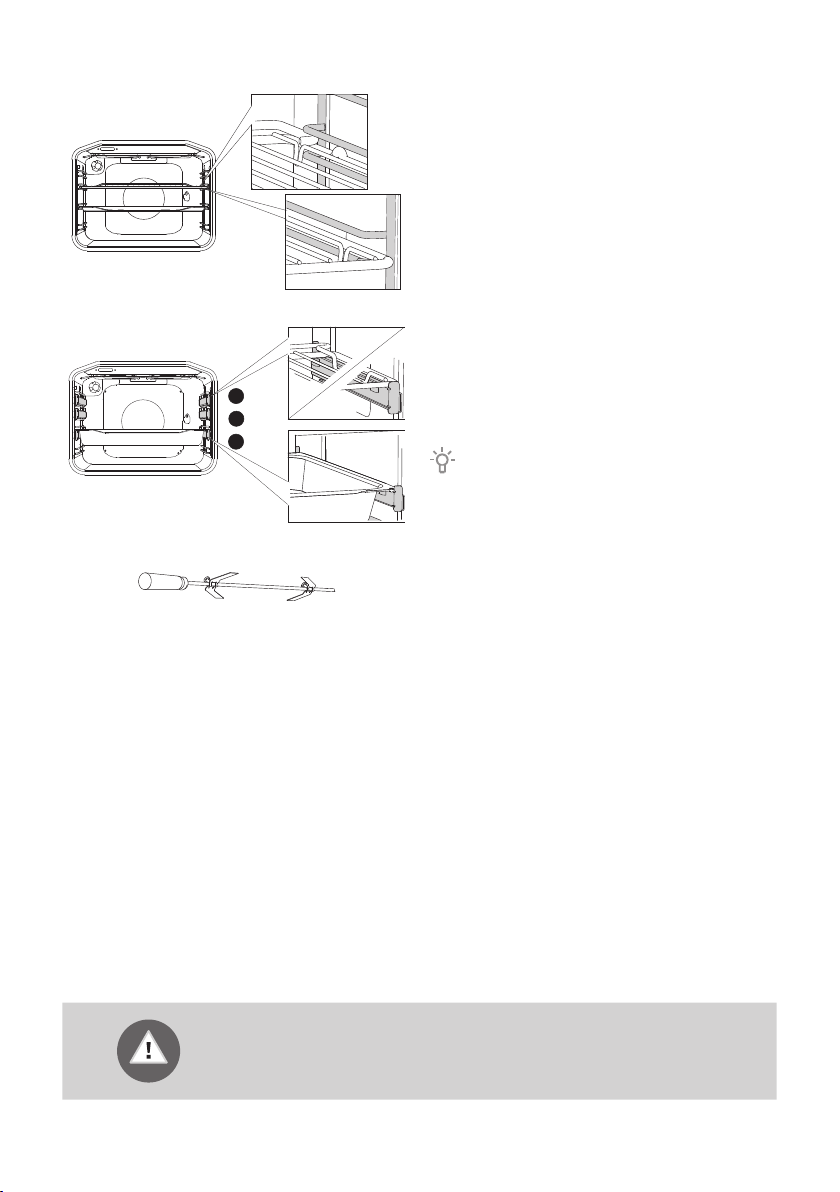

With telescopic extendible guides, first pull
out the guides of one level and place the
grid or the baking tray onto them. Then,
push them in with your hand as far as they
will go.
Close the oven door when the
telescopic guides are retracted all the way
into the oven.
The TURNSPIT (meat skewer) is used
for roasting meat. The set consists of a
skewer support, skewer with screws, and a
removable handle.
2
3
4
The appliance and some of the accessible parts tend to heat up
during cooking. Use oven mitts.
586308_en.indd 12586308_en.indd 12 25. 08. 2021 13:17:3125. 08. 2021 13:17:31

13

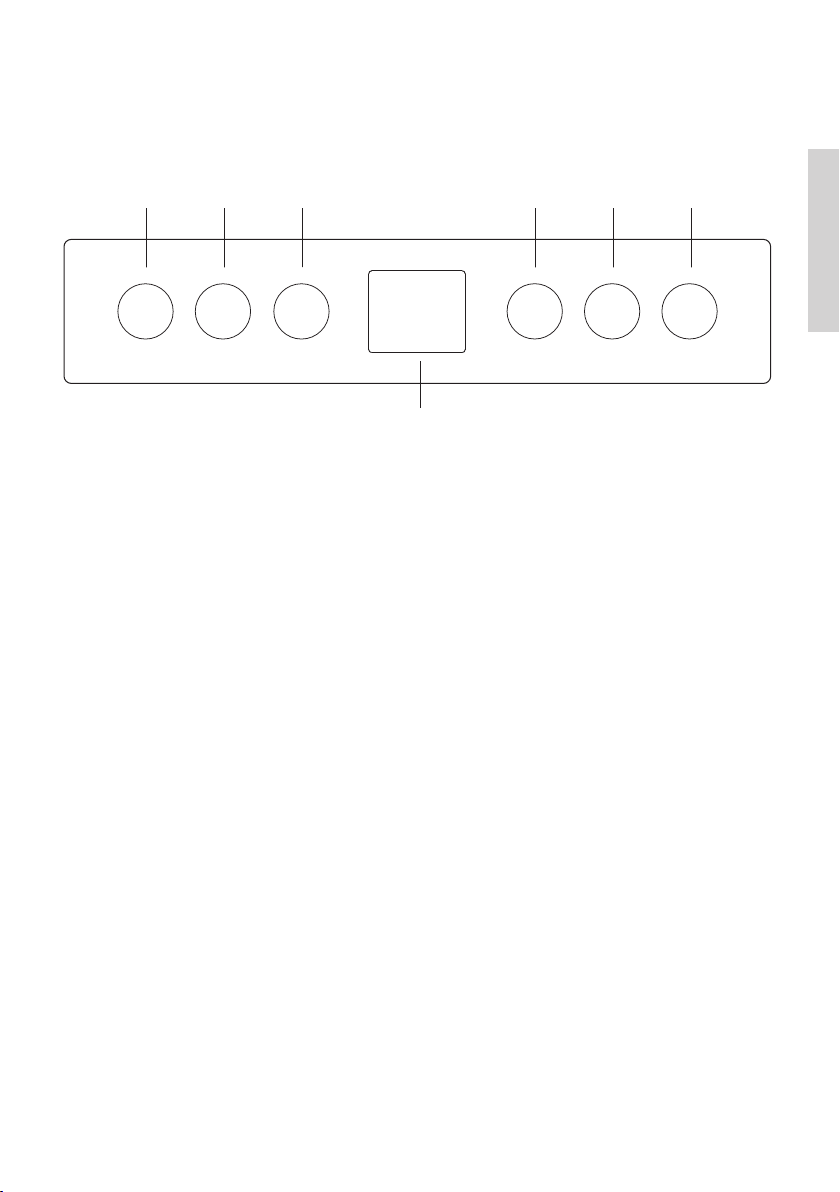

CONTROL UNIT
(depending on the model)
12 5 6 73
4
1COOKING ZONE KNOB, FRONT LEFT
2COOKING ZONE KNOB, REAR LEFT
3CONTROL LIGHT
4TIMER
5COOKING SYSTEM SELECTOR KNOB
6COOKING ZONE KNOB, REAR RIGHT
7COOKING ZONE KNOB, FRONT RIGHT
NOTE:
Symbols of cooking systems may be located on the knob or on the front panel
(depending on the appliance model).
The keys will respond better if you touch them with a larger area of your fingertip. Each
time you press a key, a short acoustic signal will be sounded.
586308
586308_en.indd 13586308_en.indd 13 25. 08. 2021 13:17:3225. 08. 2021 13:17:32

14
APPLIANCE DATA - DATA PLATE
(depending on the model)
586308

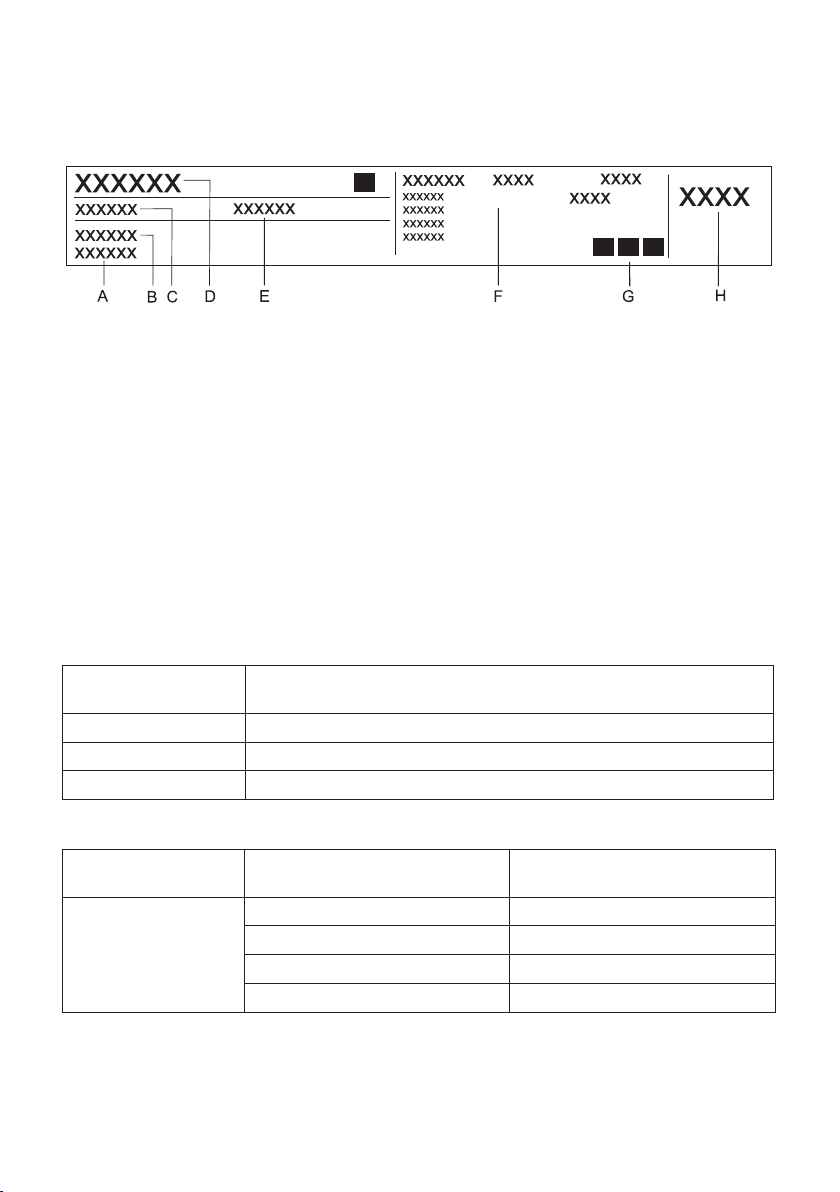

The rating plate, indicating the basic
information about the appliance, is located
on the edge of the oven and it is visible
when the oven door is opened.
ASerial number
BModel
CType
DTrademark
ECode
FTechnical information
GCompliance indications / symbols
H Factory settings for gas type
Country of
destination
Appliance Categories
GB I2H, I3+, II2H3+, II2H3P
IE I2H, I3+, II2H3+, II2H3P
MT I3B/P
HEAT INPUT
Type designation Total nominal gas heat input
(kW)
Total nominal electric input
(kW)
FG6Axx-xxxxx
11,3 0,03
10,8 0,03
11,3 1,63
10,8 1,63
586308_en.indd 14586308_en.indd 14 25. 08. 2021 13:17:3225. 08. 2021 13:17:32

15
586308
USING THE APPLIANCE
BEFORE USING THE APPLIANCE FOR THE
FIRST TIME
Upon receiving the appliance, remove all parts, including any transport equipment, from
the oven.
Clean all accessories and utensils with warm water and regular detergent. Do not use any
abrasive cleaners.
When the oven heats up for the first time, the characteristic smell of a new appliance will
be emitted. Ventilate the room thoroughly during the first operation.
After you receive your appliance, please wipe the entire cooking hob, including the
cooking zones, with a damp cloth
COOKING HOB (depending on the model)
1. Cooking zone rear left
2. Cooking zone rear right
3. Cooking zone front right
4. Cooking zone front left
586308_en.indd 15586308_en.indd 15 25. 08. 2021 13:17:3325. 08. 2021 13:17:33

16
ELECTRONIC PROGRAM TIMER
586308
SWITCHING ON AND SETTINGS
After connecting your appliance to the mains power or after an extended power outage,
"0.00" will appear on the display.
Setting the time
Touch the and keys. Then, use the and keys to set the time. The dot symbol
will stop flashing and the clock will start running.
If you press and hold the value adjustment key, the speed at which the set value is
being changed will increase.
TIMER FUNCTIONS
Setting the duration of cooking zone burner operation.
With this function, you can simultaneously set different duration of all four gas burners.
Touch the key to select the burner.The symbol and the selected burner symbol will
flash. Use the and key to set the time. (After a few seconds, other burner symbols
will go off, and only the symbol and the selected burner symbol will stay lit.) The time
of day will appear. Cooking time (or burner operation time) countdown will start.
Minute minder
Selecting the right cooking zone gas
burner
Selecting the oven gas burner
Minus
Plus
dot symbol for settings
oven burner
minute minder symbol
delay symbol
cooking zone burner symbol
586308_en.indd 16586308_en.indd 16 25. 08. 2021 13:17:3325. 08. 2021 13:17:33

17
586308
Touch the key again to set the time for the next burner, change the already active
timer setting, or check the remaining time.
When the time expires, the burner is switched off and gas supply to
the burner is shut down. A short beep will be heard.
Cancelling a timer setting
Use the key to select the burner. Then, use the key to set the time to "0.00". In this
case, the burner will continue to operate without any timer setting.
Setting the oven gas burner timer
Use this function to set the duration of cooking only for the lower oven burner.
No timer setting is possible for the infrared burner.
Touch the key. "0.00" will appear on the display, and the and symbols will flash.
Use the and key to set the time. A few seconds after the time is set, the and
symbols are lit. Cooking time (or burner operation time) countdown will start.
Touch the key again to adjust the time or check the remaining time.
When the time expires, the burner is switched off and gas supply to
the burner is shut down. A short beep will be heard.
Cancelling a timer setting
Use the key to select the oven burner. Then, use the key to set the time to "0.00". In
this case, the burner will continue to operate without any timer setting.
Maximum duration that can be set for gas burners and the oven
burner is 3 hours.
The burner symbol indicates that a timer setting is active for at least one of the burners.
To check, press the key.
If the symbol is lit, then the timer is set for the oven burner (in this case, the symbol
is lit as well).
586308_en.indd 17586308_en.indd 17 25. 08. 2021 13:17:3525. 08. 2021 13:17:35

18
586308
Setting the minute minder
The minute minder can be used independently from the oven operation. Press the key.
"0.00" appears on the display and the symbol flashes. Use the and key to set the
time. After a few seconds the symbol will stop flashing and the timer countdown will start.
During the last minute, the minute minder is displayed in seconds. Clock will appear on the
display. Press the key, check the remaining time and adjust it using the and keys.
When the time expires, a short acoustic signal is sounded and the symbol turns off.
SELECTING ADDITIONAL FUNCTIONS/EXTRAS
Acoustic signal volume
Set the signal volume when no timer function is activated.
Choose between three different acoustic signal settings. Touch and hold the key. The
acoustic signal is sounded at the first level. When the key is released and pressed again,
the following volume level is played. The most recently heard acoustic signal volume will
he saved.
Safety shut-off function
This function restricts appliance operation time to 3 hours. This time starts counting down
after the most recent press of the electric ignition knob or key for any gas burner. Every
time the electric ignition is activated, a brief acoustic signal is sounded on the timer.
Using the timer in combination with oven or burners
When using the timer in combination with the oven, first turn the oven "ON" and set the
desired cooking system and temperature. Then, set the timer functions. When the food is
done, turn off the oven and the cooking zones.
586308_en.indd 18586308_en.indd 18 25. 08. 2021 13:17:3625. 08. 2021 13:17:36

19
586308
GAS BURNERS
- To sear the food, set the burner to maximum power first, and then continue to cook at
minimum power.
- Always place the burner cap accurately on the burner crown. Make sure the slots in the
burner crown are never blocked.
Burner crown cap
Burner crown with burner cap support
Thermocouple (or thermoelectric safety device, only with
some models)
Spark plug
Nozzle
- Correct choice of cookware allows optimum cooking
time and gas consumption. Cookware diameter is the
most important in this respect.
- If a pot or a pan is too small, the flames reaching over
the edge of its bottom will damage it. Moreover, gas
consumption will be higher.
- Combustion of gas also requires air. If the pot or pan
is too large, there is not enough air and the burning
eciency is decreased.
Gas hob reducer (only with some models) Use the gas
hob reducer when cooking in a container of smaller
diameter. Place it on the grid over the auxiliary burner.
Burner type Container diameter
Large (3.0 kW) 220—260 mm
Normal (1.9 kW) 160—220 mm
Auxiliary (1.9 kW) 120—140 mm
Multi-ring burner (3,5kw) 220—260 mm
TIPS REGARDING YOUR COOKWARE
586308_en.indd 19586308_en.indd 19 25. 08. 2021 13:17:3625. 08. 2021 13:17:36

20
586308
BURNER IGNITION AND OPERATION
Always press the knob before rotating it.
Cooking power levels are indicated on the knobs with a large and a
small flame symbol. Rotate the knob over the large flame position
to the small flame position and back. Operating range is
between the two flame symbols.
Settings between and are not recommended. In this range, the
flame is unstable and may be extinguished.
Place the pot or pan on the grid above the burner before
igniting it (applies to three-ring, double-ring, and mini-wok burner).
To turn off a burner, rotate the knob to the right to position .
Single-handed ignition
To ignite a gas burner, press the corresponding knob and rotate it
to the maximum power position. Electric spark from the spark plug
will be activated and the gas will ignite.
Two-handed ignition
To ignite a gas burner, press the corresponding knob and rotate
it to the maximum power position. Press the spark plug button.
Electric spark from the spark plug will be activated and the gas will
ignite.
Electric ignition will only work if the power cord is connected
to the mains power. If electric ignition does not work due to a
power supply failure or damp spark plugs, the gas can still be
ignited with a match or a lighter. After ignition, keep the knob
depressed for approximately 10 more seconds until the flame is
stabilized.
If the burner does not ignite in 15 seconds, close it and wait for at
least 1 minute. Then repeat the ignition process.
If the flame on a burner is extinguished (regardless of the
reason), close the burner and wait for 1 minute before trying to
ignite it again.
586308_en.indd 20586308_en.indd 20 25. 08. 2021 13:17:3725. 08. 2021 13:17:37
