Gorenje EFWH SERIES User manual

INSTANTANEOUS ELECTRIC WATER HEATER
–
USER MANUAL AND INSTALLATION
INSTRUCTIONS
ELEKTRIČNI PRETOČNI GRELNIKI VODE
–
NAVODILA ZA UPORABO IN VGRADNJO
SLO
GB
PRIETOKOVÝ ELEKTRICKÝ OHRIEVAČVODY – NÁVOD NA POUŽITIE A INŠTALÁCIU
SK
INSTANT APĂCALDĂELECTRIC
–
MANUAL DE UTILIZARE
ȘI INSTRUCȚIUNI DE INSTALARE
RO
ELEKTRIČNI PROTOČNI BOJLER
–
UPUTSTVO ZA UPOTREBU I POSTAVLJANJE
SRB
ELEKTRIČNI PROTOČNI BOJLER
–
UPUTSTVO ZA UPOTREBU I POSTAVLJANJE
BIH
ELEKTRIČNI PROTOČNI BOJLER
–
UPUTSTVO ZA UPOTREBU I POSTAVLJANJE
MNE
ELEKTRIČNE PROTOČNE GRIJALICE VODE
–
UPUTE ZA UPORABU I
UGRADNJU
CRO

1
English
EFWH xxxxx
Before using your electrical water heater, please read
this manual carefully and keep it for future reference.
INSTANTANEOUS (non
preassurized) ELECTRIC WATER
HEATER
USER MANUAL
INSTALLATION INSTRUCTIONS
Read This Manual
Inside you will find many helpful hints on how to use and maintain your instantaneous
water heater properly. Just a little preventative care on your part can save you a
great deal of time and money over the life of your instantaneous electrical water
heater. You'll find many answers to common problems in the chart of troubleshooting
tips. If you review the chart of Troubleshooting Tips first, you may not need to call for
service.

2
CONTENTS
Sociable remark ....................................................................................................................................... 3
Safety precautions ................................................................................................................................... 4
Application and features ......................................................................................................................... 7
FUNCTION.......................................................................................................................................... 7
FEATURES.......................................................................................................................................... 7
Technical information ............................................................................................................................. 7
Installation method ................................................................................................................................. 8
FIX WATER HEATER.......................................................................................................................... 8
PIPE CONNECTION ........................................................................................................................... 9
Operation method ................................................................................................................................. 1
Troubleshooting .................................................................................................................................... 12
Maintenance and repair ........................................................................................................................ 12
Packing list ............................................................................................................................................. 12
Electric diagram ..................................................................................................................................... 13
CAUTION
•Contact an authorized service technician for repair or maintenance of this unit.
•Contact the authorized installer for installation of this unit.
•The instantaneous electric water heater is not intended for use by young
children or invalids without supervision.
•Installation work must be performed in accordance with the national wiring
standards by authorized personnel only.

3
Sociable remark
When using this instantaneous electric water heater, the following
information’s must be followed:
DISPOSAL:
Do not dispose this product as unsorted municipal waste. Collection of such waste
separately for special treatment is necessary.
It is prohibited to dispose of this appliance in domestic household waste.
For disposal, there are several possibilities:
•The municipality has established collection systems, where electronic waste
can be disposed of at least free of charge to the user.
•As old products contain valuable resources, they can be sold to scrap metal
dealers.
Wild disposal of waste in forests and landscapes endangers your health when
hazardous substances leak into the ground-water and find their way into the food
chain.

4
Safety precautions
Please contact an authorized installer for installing instantaneous water
heater.
Failure to install the appliance in accordance with all current regulations can
result in fierce hazard on user’s life.
Failure to install the appliance in accordance with all current regulations can
result in the guarantee becoming void.
Failure to comply with this warning implies the risk of personal injury, in some
circumstances even fatal.
Failure to comply with this warning implies the risk of damage, in some
circumstances even serious, to property, plants or animals.
Do not perform operations which involve opening the appliance.
Electrocution from the live components.
Personal injury caused by burns due to overheated components, or wound
caused by sharp edges.
Do not perform operations which involve removing the appliance from its
installation space.
Electrocution from the live components.
Flooding caused by water leaking from disconnected piping.
Do not leave anything on top of the appliance.
Personal injury caused by an object falling off the appliance as a result of
vibrations. Damage to the appliance or items underneath it caused by the object
falling off as a result of vibrations.
Do not climb onto the appliance.
Personal injury caused by the appliance falling.
Damage to the appliance or any objects underneath it caused by the appliance
falling away from its installation space.
Do not climb onto chairs, stools, ladders or unstable supports to clean the
appliance.
Personal injury caused by falling from a height or cuts (stepladders shutting
accidentally).
Do not attempt to clean the appliance without first closing fuse and turning the
switch to the OFF position.
Electrocution from live components.

5
Do not use insecticides, solvents or aggressive detergents to clean the
appliance.
Damage to plastic and painted parts.
Do not allow children or inexperienced individuals to operate the appliance.
Damage to the appliance caused by improper use.
If you detect a smell of burning or smoke coming from the appliance,
disconnect it from the electricity supply, open all windows and call for
assistance.
Personal injury caused by burns, smoke inhalation, intoxication.
Do not touch the housing of the instantaneous electric water heater during
operation. During operation only setting knobs can be touched.
Risk of scalding.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. Children should
be supervised to ensure that they do not play with the appliance.
Warning!!
Turn off the power and water valve after use.
Warning!!
Water with a temperature higher than 50°C can cause serious burns.
Always verify water temperature before use.
Warning!!
The device must be activated only in presence of water in the heater.
Warning!!
In case of contaminated water on the inlet of the device, the water on the outlet
is not suitable for drinking.
Warning!!
Choose the electrical socket which meets the national standard and without
switch. The internal grounding should be safely connected to non-electricity
grounding wire of the power supply system.
Warning!!
In case of using appliance in freezing ambient or long time no use, make sure
to pour water out of water tank (after each use).

6
Warning!!
The rated current value of the power socket should be applied with the
purchased water heater or without plug.
Warning!!
There should be a good floor drain system. The water heater should be
installed in the safe area, in case that water leakage of the water heater or the
connector happens.
Warning!!
In case of abnormal work, you should stop using the heater at once. Unplug the
power plug or disconnect power supply, and contact the professional
personnel.
Warning!!
The valve must be installed in the water inlet.
Warning!!
If the power supply cord is damaged, it must be replaced by the professional
personnel to avoid a hazard.
Warning!!
If the water heater is used with a spray head, the spray head must be descaled
regularly. The outlet must not be connected to any tap or fitting other than
those specified. New hose-set must be used to connect appliance with water
supply.
Warning!!
Do not switch appliance ON if there is a possibility that the water in the heater
is frozen

7
Application and features
FUNCTION
Gorenje electric tankless heaters are the right and economical solutions wherever
there is no requirement for a large amount of water heated to a very high
temperature. Owing to the tankless on-demand heating system, the water is heated
only when you need it and only as much as you need.
FEATURES
GOOD MATERIAL
Plastics shell is made of Adopt ABS plastic. High quality stainless steel pressure
type heating element provides long life service.
ENERGY SAVING
Heating water only when needed.
SAFE AND RELIABLE
Shock protection, over-heat protection and over-pressure protection High-grade
waterproof structure ensure the safety use in all environment conditions.
CONVENIENT OPERATION
The outlet temperature could be adjusted at any degree by the multi-functional
valve.
Technical information
MODEL
EFWH3000
EFWH3000L
EFWH5000
Length A (mm)
387 387 387
Height B (mm)
257 257 257
Depth C (mm)
84 84 84
Power supply
230V-50Hz-1p 230V-50Hz-1p 230V-50Hz-1p
Rated pressure (MPa)
0 0 0
Rated power (W)
3000 3000 5000
DIMENSION DIAGRAM

8
ATTENTION
- The fuse and power socket for 3000W model should be the standard one,
with specification 16A/250V~. Wire connection must be in accordance to
national standard.
- For 5000W model, heater must be connected directly to electrical network
with 25A/250V~ fuse and 32A, 30mA RCD.
- The socket, for 3000W model and the RCD for 5000W model, should be
installed in place where humidity is less than 80%, and beside the water
heater. It is not allowed to be installed below the water heater.
- The water heater should use the independent power supply which have
the reliable earthling connections.
- Water pipes and the sewer pipes could not be used for grounding.
- There may occur some water-drops from pressure valve which are caused
by high water pressure. This is normal phenomenon. Do not stuck the
pressure-release valve outlet.
- To avoid overheating, please fill heater with water before first use.
- If power plug is damaged, please contact with the professional
maintenance service.
Installation method
FIX WATER HEATER
1. The installation must be done by professional personnel.
2. This is wall-hang electrical water heater, it must be located in a place
where it is:
- drainable and unfrozen,
- concentrated water use,
- enough space for maintenance and repair,
- the volume of water in the installation pipes should not be less than 4 times of
volume of water heater.
- no flammable gas or strongly corrosive gas are nearby,
- no strong electric magnetic field is nearby,
- no direct sunlight, rain or wind.

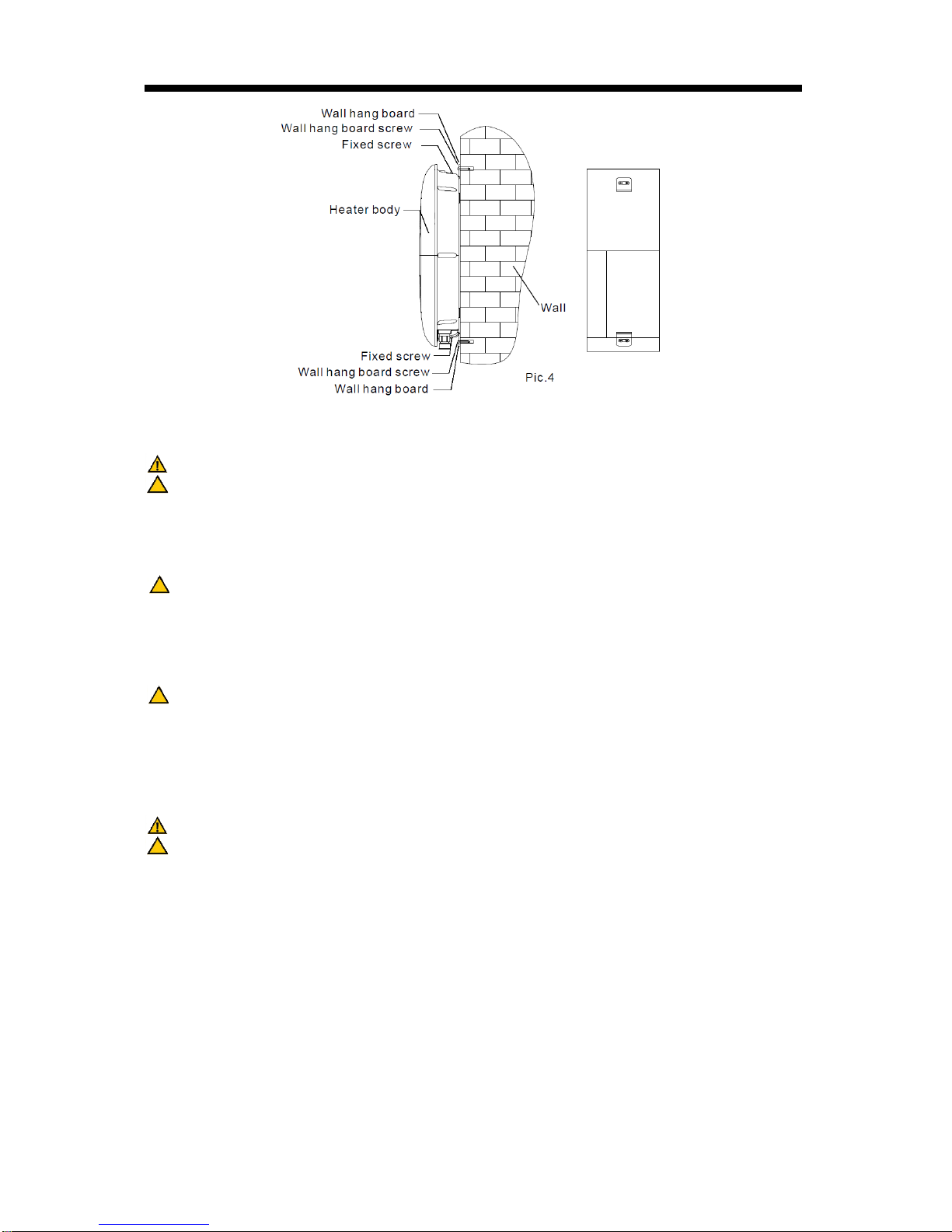

3. Drill 4 holes (please refer to drilling holes picture), then use a hammer to
place the bolt cap into the holes. Then fix the wall-hang board with
screw. See the pic.4.
4. Lift the water heater; move it slowly forward until the hook is in position
and lock the heater with a screw. Make sure the heater is fixed.
Note:
(1) The two plug bolt hooks should be completely in the wall and at the
same height (horizontal).
(2) For the convenience of the repair and maintenance, leave a space of
50cm at least at the left side of the water heater (the side with power supply
cable).
(3) Water heater must not be installed transversely and should not incline
after installation.

9
When drilling holes in the wall for installation purposes, take care not to
damage any electrical wiring or existing piping.
Electrocution caused by contact with live wires. Explosions, fires or asphyxiation
caused by gas leaking from damaged piping. Damage to existing installations.
Flooding caused by water leaking from damaged piping.
Perform all electrical connections using wires which have a suitable cross
section.
Fire caused by overheating due to electrical current passing through undersized
cables.
Protect all connection pipes and wires in order to prevent them from being
damaged.
Electrocution caused by contact with live wires. Flooding caused by water
leaking from damaged piping.
Use suitable manual tools and equipment (make sure in particular that the tool
is not worn out and that its handle is fixed properly); use them correctly and
make sure they do not fall from a height. Replace them once you have finished
using them.
Personal injury from the falling splinters or fragments, inhalation of dust, shocks,
cuts, pricks and abrasions. Damage to the appliance or surrounding objects
caused by falling splinters, knocks and incisions.
PIPE CONNECTION – non preassurized boiler
1. Install the multi-functional valve and water inlet valve to the water inlet of the
water heater.
2. Please refer to the picture for installation requirements and instructions how to
connect heater, water tap, valve and pipes. Ensure that water pipes are clean
and there is no blockage inside pipes. It is necessary to install water inlet
valve.
3. In the heating process there can be a few water drops come out of the safety
valve.

10
4. If the heater is not installed in the indoor place, it should be installed in the
place where it is no direct sunlight and rain. To avoid the heat losses, it has to
be installed near the place of use of water.
5. When the heater is not in use for a long period of time, please unplug the
power supply and pour the water out of heater.
6. The water tap or the connection on the outlet water pipe must be without the
valve. The installation must be done by professional personnel.
NOTE: Heater is equipped with multi-functional valve. Water inlet valve and water tap
is not included in package! You must use water tap for non preasusurized boiler! You
have to install boiler with water connections downwards!
1. Operation method
DISPLAY INTRODUCTION – model without LED display
1. The green light is indicator forheating operation. W hen the heater is
heating, thelight will illuminate. If there are any problems the light will
blink.
2. The red light is indicator for power. When heater is connected to power
supply light will illuminate.

11
3.
Operation :
- On/Off
When you connect heater to power supply, the power indicator will illuminate.
When the water valve is closed, the heater is in standby - the green operation
indicator will not illuminate. When you open the inlet water valve, the heater is
in operation mode and green operation indicator will illuminate.
- Digital display (on some models) will show the water outlet temperature.
- According to your demand, you can change the water outlet temperature by
adjusting the multi-functional valve.
- It is suggested that after use, you first turn off the heater and then close the
water tap.

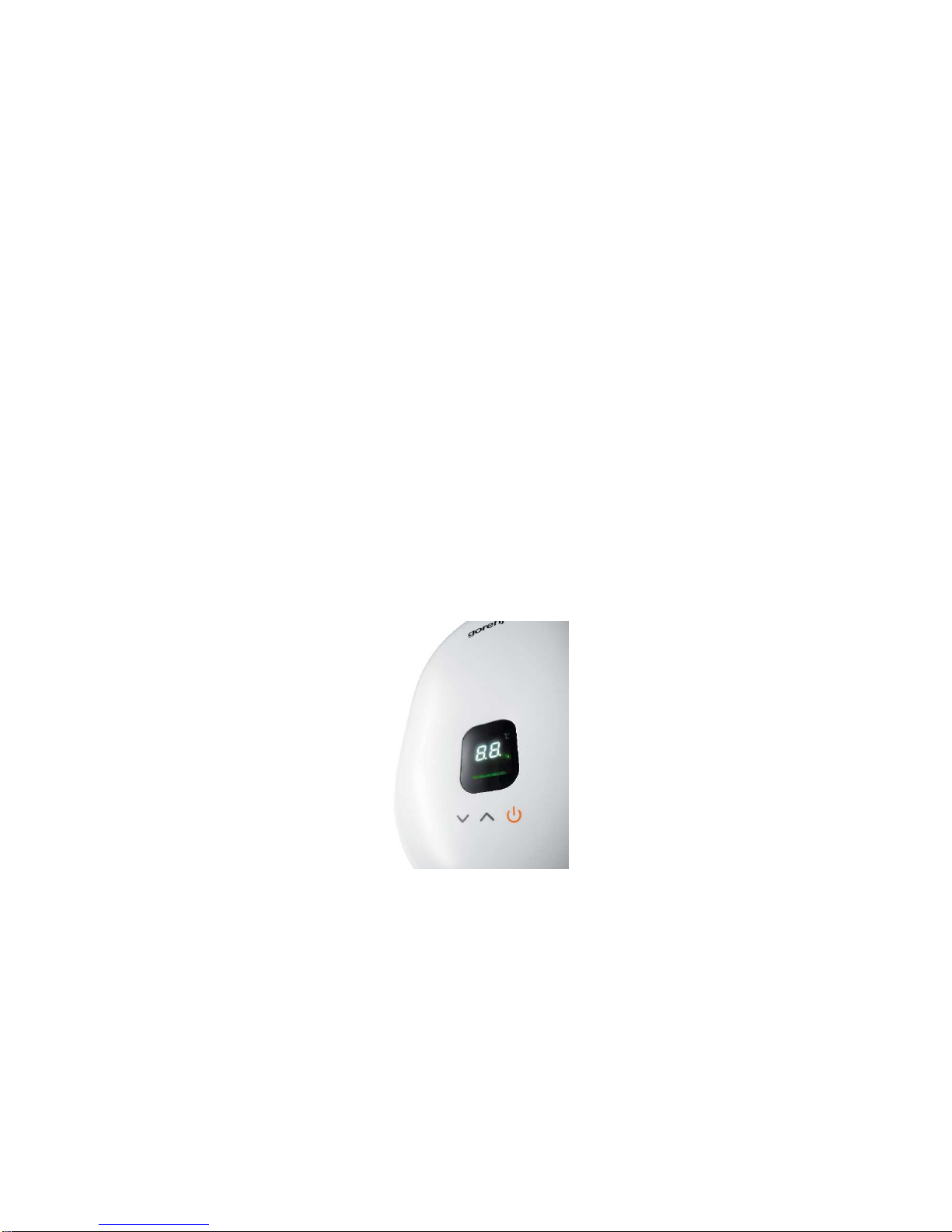

DISPLAY INTRODUCTION – model with LED display
TOUCH KEY
There are three touch keys on the water heater:
- ON/OFF ,
- Down and
- Up .
ON/OFF:
The buzzer will ring once when you turn on or off the heater.
Up/Down touch key:
When you press this key once current heating power will be displayed. If you press
again, the heating level will increase/decrease (range 0-3). The buzzer will ring every
time you press this key. If voltage drop appears this key will have no function.
Note: If heating power is set to 0, the heater won’t heat.
DISPLAY FUNCTIONS
- Heating power: When you press up/down touch key the display will show current
heating power.
- Temperature display: After setting the heating power, the digital tube will display
the water outlet temperature (0-55°C).
- Flow rate display: When the heater is on, press and , and current water
flow (l/min) will be displayed.
- Operation indicator: When the heater starts heating, the operation indicator will
illuminate from left to right according to the water flow rate. There are three
different scan speeds. Bigger flow rate means faster illuminating of indicator.
- Error code display: When malfunction occurs, error code (refer to error code
table) will be displayed and the green light on the right side of display will
illuminate.

12
OPERATION METHOD
- Switch on the power: The display and the indicator will illuminate for 3s and then
turn off. The buzzer will ring once. The heater is now in standby operation.
- Turn on/off heater: Press
NOTE: If you turn on the heater and you don’t use it for 15 min, display will turn off.
When you next time open water tap, display will turn on automatically and show
outlet water temperature.
- Water outlet temperature: You can set water outlet temperature by adjusting
water flow with the multi-functional valve or selecting heating power.
- It is suggested that after use, you first turn off the heater and then close the
water tap.
Troubleshooting
Model
with LED display
Model
without LED display
Error
Code
Trouble
Trouble
Cause
What should be done
E1
The buzzer ring 5 times
and green light is on The buzzer ring 5 times and the operation indicator (green) flash 1 time, then repeat flashing. Voltage drop. Close the water tap, cut of the power and contact with the professional
personnel.
E2
The buzzer ring 5 times
and green light is on
The buzzer ring 5 times, and the operation indicator
(green) flash 4 times, then repeat flashing.
Measuring coil (voltage
drop) malfunction.
Close the water tap, cut of the power
and contact with the professional
personnel.
E3
The buzzer ring 2 times
and green light is on
The buzzer ring 2 times, and the operation indicator
(green) flash 2 times, then repeat flashing.
Water outlet temperature
sensor malfunction
Contact with the professional
personnel.
E4
The green light is on
The buzzer ring 2 times, and the operation indicator
(green) flash 3 times, then repeat flashing. The water outlet temperature more than
55
℃
Adjust water flow.
L2
The green light is on The heater doesn't work, and the operation
indicator (green) flash 5 times, then repeat flashing
Not enough water flow Adjust water flow.
Maintenance and repair
Regularly clean the water filter, to avoid clogging.
Clean the heater with neutral detergent. Do not clean the water heater cover with acidic
or alkaline cleaning detergent. Cut the power off during cleaning.
Packing list
Name Qty (pcs) Name Qty (pcs)
Instantaneous
water heater 1 Multi-functional valve 1
Manual 1 Mounting kit 1
Filter/sealing 1/4 screw 4+2

13
Electric diagram
PE
PE

1
Slovenščina
EFWH xxxxx
Pred uporabo grelnika vode natančno preberite ta navodila ter jih shranite
za kasnejšo uporabo.
ELEKTRIČNI PRETOČNI
(netlačni) GRELNIK VODE
NAVODILA ZA UPORABO IN
NAMESTITEV
Preberite ta navodila
V njih boste našli veliko koristnih nasvetov o pravilni uporabi in vzdrževanju naprave.
Nekaj preventivne nege z vaše strani, vam lahko prinese velik prihranek časa in
denarja v celotni življenjski dobi naprave. V preglednici nasvetov za odpravljanje
motenj v delovanju boste našli veliko odgovorov na običajna vprašanja. Najprej
preglejte nasvete in morda vam ne bo potrebno klicati servisa.

2
VSEBINA
Koristni nasveti ........................................................................................................................................ 3
Varnostna opozorila ................................................................................................................................ 4
Uporaba in značilnosti ............................................................................................................................. 7
UPORABA .......................................................................................Napaka! Zaznamek ni definiran.
ZNAČILNOSTI..................................................................................................................................... 7
Tehnične informacije ............................................................................................................................... 7
Način namestitve ..................................................................................................................................... 8
PRITERDITEV..................................................................................................................................... 8
VODOVODNI PRIKLJUČKI................................................................................................................. 9
Način delovanja ..................................................................................................................................... 1
Odpravljanje težav ................................................................................................................................. 12
Vzdrževanje in popravila ....................................................................................................................... 12
Pribor ..................................................................................................................................................... 12
Električna shema ................................................................................................................................... 13
OPOZORILA
• Za popravila in vzdrževanje naprave se obrnite na strokovno usposobljeno osebje.
• Za montažo te naprave se obrnite na pooblaščenega monterja.
• Naprave naj brez nadzora ne uporabljajo otroci ali invalidne osebe.
• Električno napeljavo mora izvesti pooblaščeno osebje v skladu z nacionalnimi
standardi za električno napeljavo.

3
Koristni nasveti
V evropskih državah je pri uporabi naprave potrebno upoštevati naslednje
informacije:
ODLAGANJE ODPADKOV: Tega izdelka ne odlagajte kot nesortiran komunalni
odpadek. Potrebno je ločeno zbiranje takšnih odpadkov, ki se ločeno obdelujejo.
Te naprave ne smete odložiti med gospodinjske odpadke. Za odlaganje obstajajo
različne možnosti:
A) Lokalna uprava je določila sistem zbiranja, kam se lahko odlagajo elektronski
odpadki brezplačno za uporabnika.
B) Ko kupujete nov izdelek, prodajalec vzame nazaj star izdelek brezplačno.
C) Proizvajalec vzame nazaj star aparat brezplačno za uporabnika.
D) Stari izdelki vsebujejo koristne vire in jih lahko prodate trgovcem odpadnih
materialov.
Divje odlaganje v gozdove oz. v naravo ogroža vaše zdravje, ker zdravju škodljive
snovi odtekajo v podtalnico in najdejo pot v prehrambno verigo.

4
Varnostna opozorila
Za vgradnjo električnega pretočnega grelnika, kontaktirajte strokovno
usposobljeno osebje.
Upoštevajte naslednja navodila, da preprečite možnost poškodb oseb ali
škode na lastnini. Nepravilno delovanje, ki je posledica neupoštevanja navodil,
lahko povzroči škodo ali poškodbe; resnost označujejo naslednji simboli.
POZOR
Ta znak pomeni smrtno nevarnost ali nevarnost resnih poškodb.
OPOZORILO
Ta znak pomeni možnost poškodb ali škode na lastnini.
Ne odpirajte ali razstavljajte naprave.
To lahko povzroči električni udar ali požar.
To lahko povzroči opekline in ureznine na vročih oziroma ostrih predelih
aparata.
Ne prestavljajte naprave z mesta inštalacije.
To lahko povzroči električni udar ali požar .
To lahko povzroči izliv vode zaradi odklopa naprave iz vodovodnih priključkov.
Ne odlagajte predmetov na aparat.
To lahko povzroči osebne poškodbe, ki lahko nastanejo zaradi padanja
predmetov z naprave. To lahko povzroči poškodbe lastnine ki lahko nastanejo
zaradi padanja predmetov z naprave.
Ne plezajte na napravo.
To lahko povzroči osebne poškodbe zaradi padca z naprave.
To lahko povzroči poškodbe osebne lastnine zaradi padca z naprave ali padca
naprave z mesta namestitve.
Ne plezajte na razne pripomočke, stole, mize… med čiščenjem naprave.
To lahko povzroči osebne poškodbe zaradi padca.
Ne čistite naprave če je pod napetostjo.
To lahko povzroči električni udar ali požar.
Ne uporabljajte agresivnih čistilnih sredstev.
To lahko povzroči poškodbe na barvi in drugih delih naprave.

5
V primeru zaznavanja vonja po dimu ali dima, napravo izključite, prekinite
električno napajanje in zaprite vodovodni ventil.
To lahko povzroči opekline in zastrupitev.
Me delovanjem naprave, se ne dotikajte ohišja aparata. Dovoljeno dotikanje je
samo v predelih gumbov za nastavitve.
To lahko povzroči opekline.
Ta naprava ni namenjena uporabi s strani oseb (vključno z otroki) z
zmanjšanimi telesnimi, čutnimi ali duševnimi sposobnostmi, ali pomanjkanjem
izkušenj in znanja, razen v primeru nadzora s strani osebe, ki je odgovorna za
njihovo varnost. Otrokom je potrebno preprečiti, da se z aparatom igrajo.
Opozorilo!!
Po uporabi napravo izključite in zaprite vodovodni ventil.
Opozorilo!!
Voda s temperaturo višjo od 50°C lahko povzroči opekline. Pred uporabo
vedno preverite temperaturo vode.
Opozorilo!!
Naprava se lahko vključi le ob prisotnosti vode v napravi.
Opozorilo!!
V primeru oporečnosti vode na vstopu v napravo, je tudi voda na izstopu
oporečna in ni primerna za pitje.
Opozorilo!!
Električni priključek mora biti izveden v skladu z državnim standardom.
Potrebno je zagotoviti zanesljivo ozemljitev naprave.
Opozorilo!!
V primeru uporabe naprave v prostorih s temperaturo pod lediščem je
potrebno iz naprave iztočiti vodo (po vsaki uporabi).
Opozorilo!!
Priključni kabel mora biti predpisanega preseka in je del dobavljene
naprave.
Opozorilo!!
Naprava mora biti vgrajena v prostoru, ki ima dober odtočni sistem. V
primeru puščanja vodovodnih povezav lahko pride do izlitja vode.
Opozorilo!!
V primeru nepravilnega delovanja naprave takoj prenehajte z uporabo.
Napravo odklopite iz električnega napajanja in zaprite vodovodni ventil.
