Grace Company Cutie Quick setup guide

Assembly & Use
Grace Company July 13, 2021 V1.3

Cutie Frame

3
Cutie Frame
Table of Contents
Contents
Table of Contents .....................................................................................................................3
Included Parts & Tools..............................................................................................................4
Part One
Step 1 - Assembling the Tracks..................................................................................................8
Step 2 - Installing the Sides .................................................................................................... 10

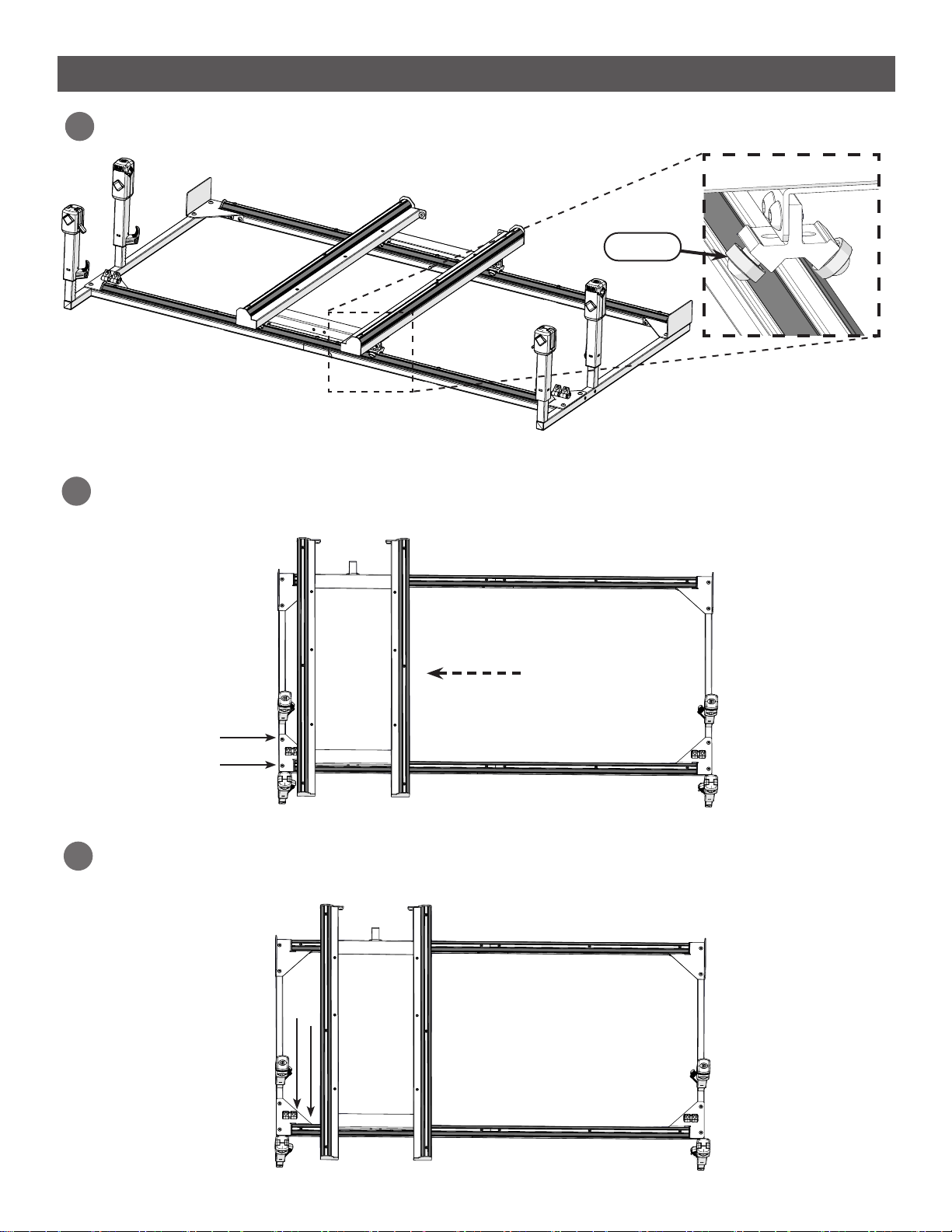

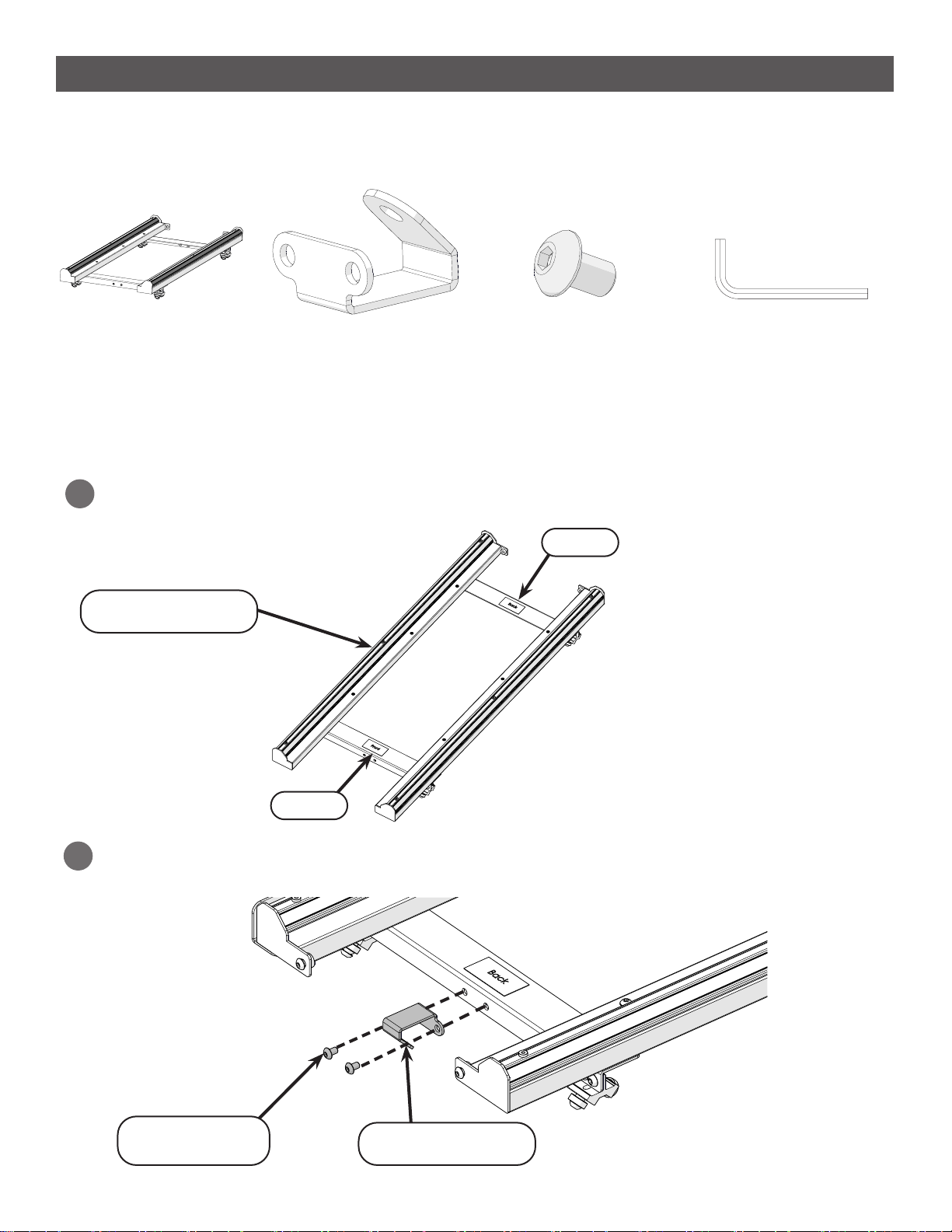

Step 3 - Aligning the Tracks..................................................................................................... 12

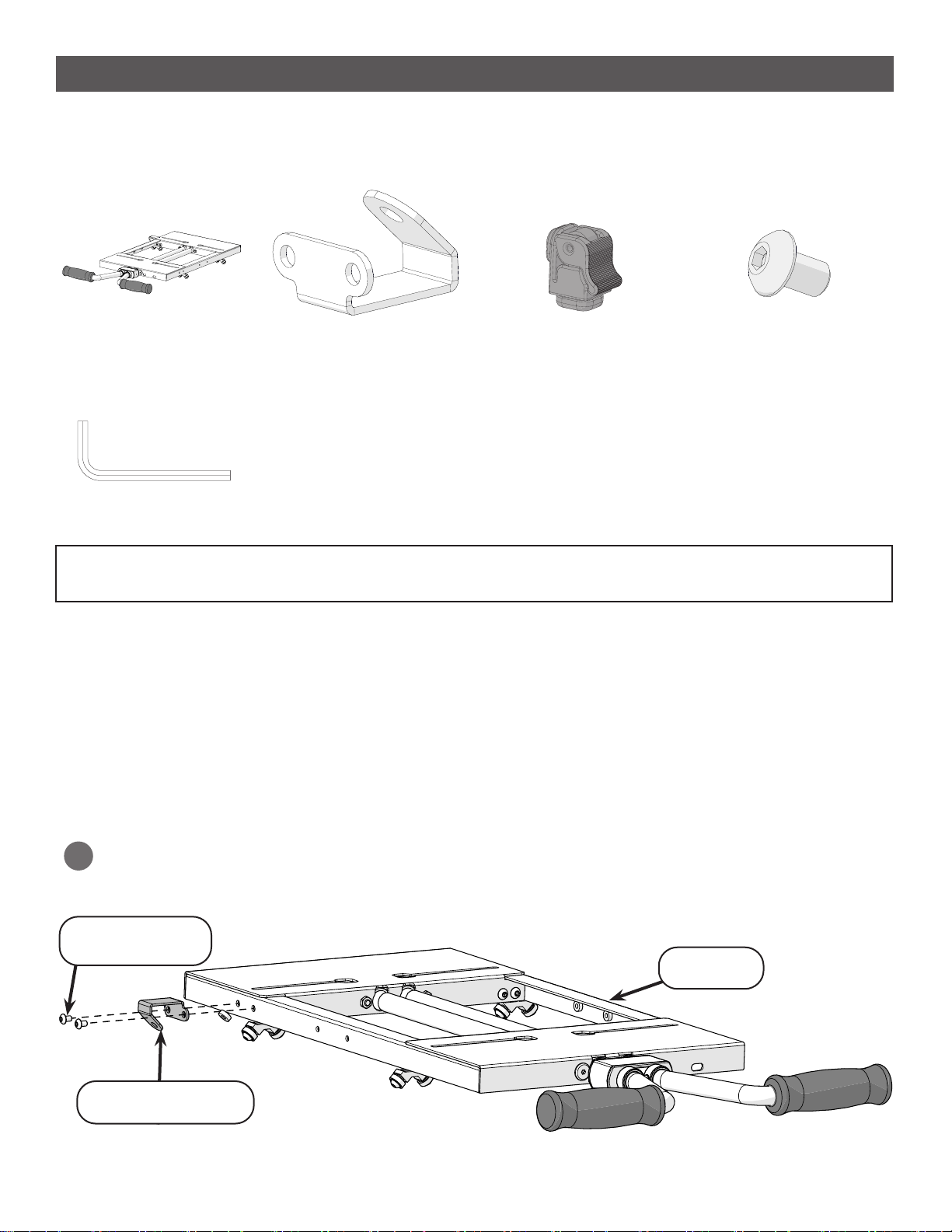

Step 4 - Installing the Top Plate Clamps and Encoder Bracket.................................................... 16
Part Two
Step 5 - Installing the Top Plate............................................................................................... 19

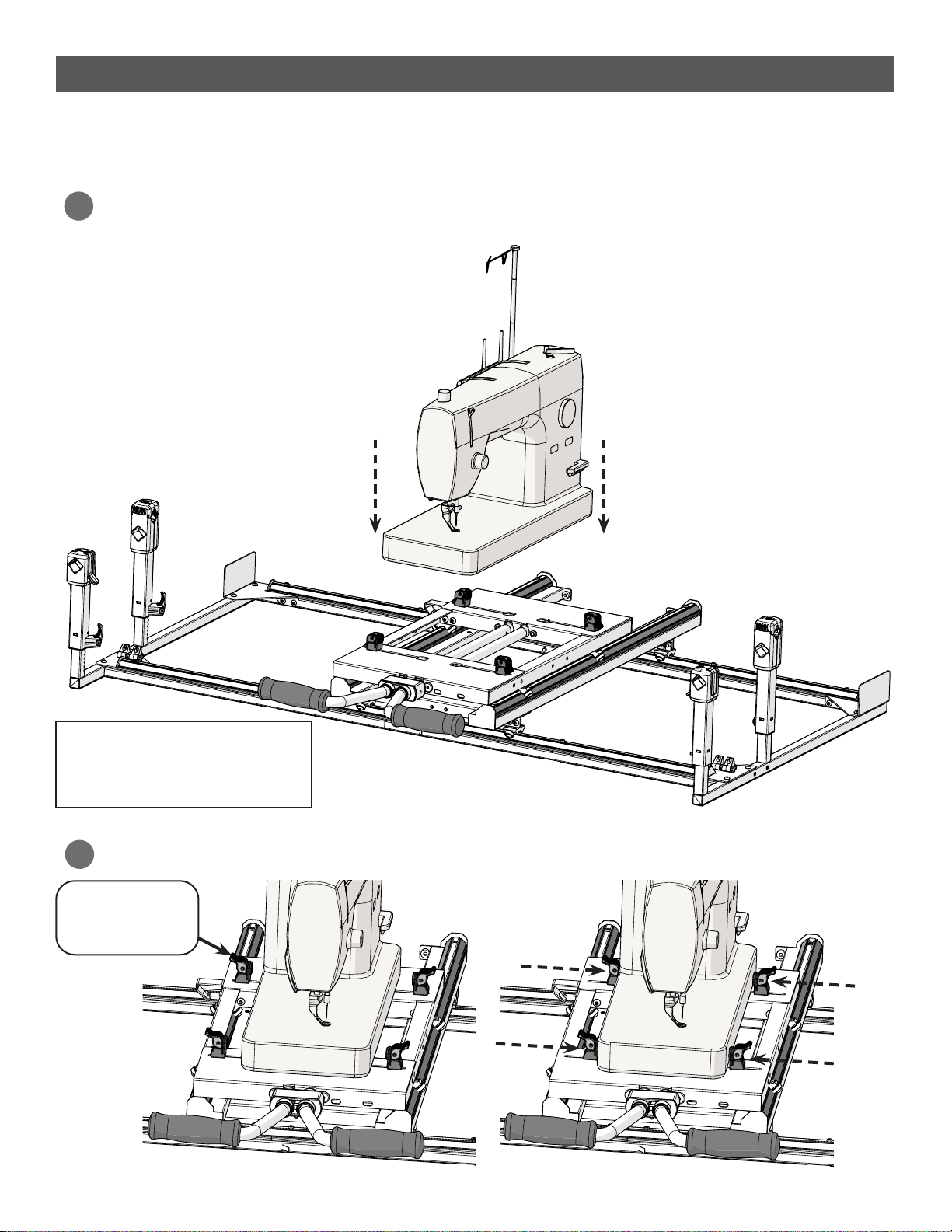

Step 6 - Installing your Sewing Machine................................................................................... 20
Step 7 - Prepare Your Machine for Quilting............................................................................... 22
Part Three
Step 8 - Installing the Rails ..................................................................................................... 24
Step 9 - Adjusting the Rails..................................................................................................... 31
Step 10 - Adjusting the Carriage Stop Bracket .......................................................................... 33
Step 11 - Adjusting the Top Plate Handles................................................................................ 34
Step 12 - Extending Your Foot Pedal Cable............................................................................... 36
Part Four
Step 13 - Preparing your Quilt................................................................................................. 40
Step 14 - Attaching your Quilt ................................................................................................. 42
Step 15 - Moving your Fabric................................................................................................... 44
Step 16 - Getting Started........................................................................................................ 47

4
Cutie Frame
Included Parts & Tools

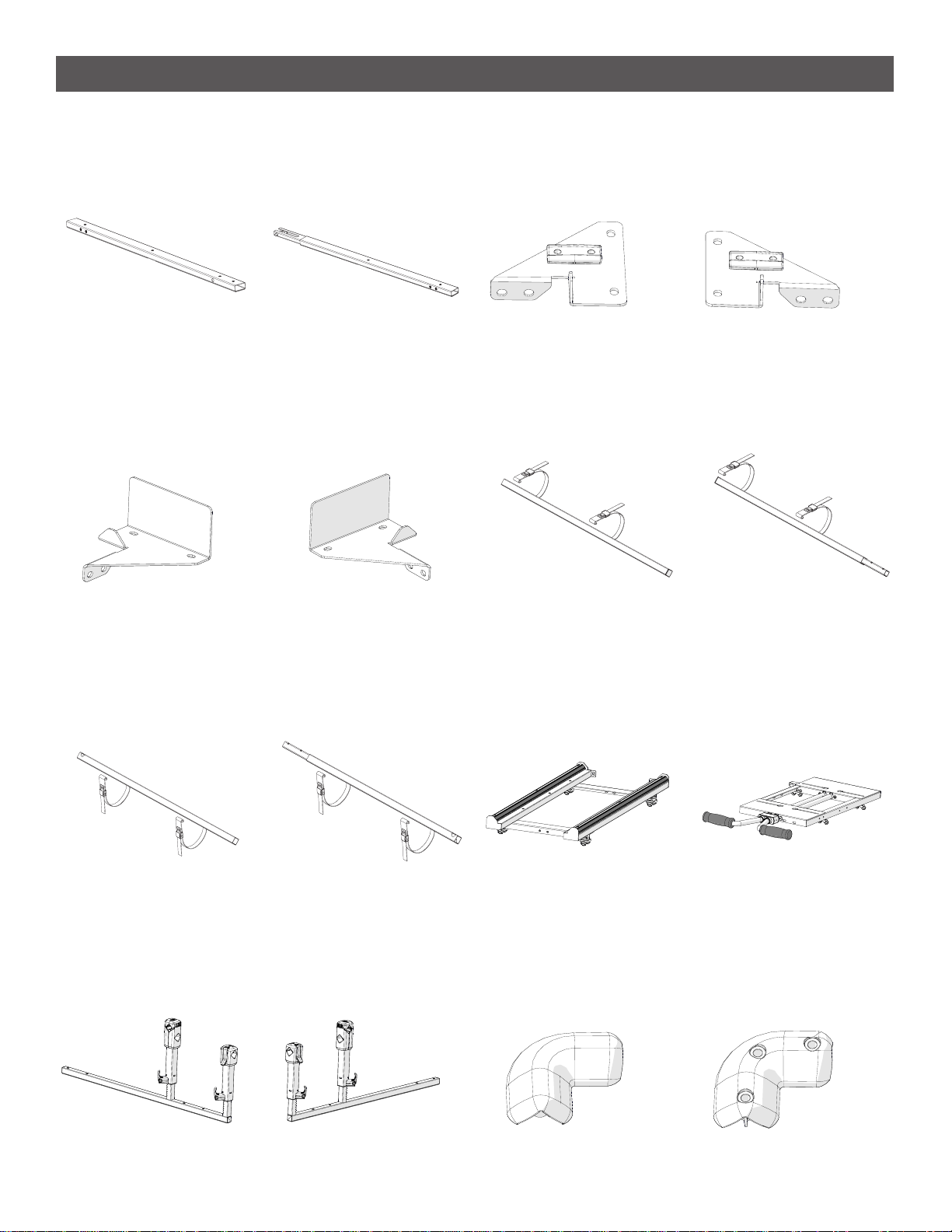

Please make sure all pieces are included in your kit.
Back Left
Brace
Back Right
Brace
QTT-04-14822
(See page 10)
QTT-04-14821
(See page 10)
QTT-09-14845
(See page 8) QTT-09-14844
(See page 8)
Corner Brace
Front Right
QT-09-14840
(See page 10)
Long Take-up Rail
QTT-09-14839
(See page 24)
Corner Brace
Front Left
QTT-09-14842
(See page 10)
Short Take-up Rail
Long Front Rail
QTT-09-14838
(See page 24)
QTT-09-14836
(See page 24)
Short Front Rail
QTT-09-14837
(See page 24) QTT-09-15881
(See page 12) QTT-09-14846 (See page 16)
Long Cross
Support (x2) Short Cross
Support (x2)
Table-Top
Bottom Carriage
Rail Corner Top (x2)
QTT-04-14708
(See page 24)
Rail Corner
Bottom (x2)
QTT-04-14709
(See page 24)
Side Assembly Right
QTT-09-14820
(See page 10)
Side Assembly Left
QTT-09-14830
(See page 10)
Table-Top
Top Plate

5
Cutie Frame
QTT-05-14728
(See page 8)
QTT-05-14725
(See page 8)

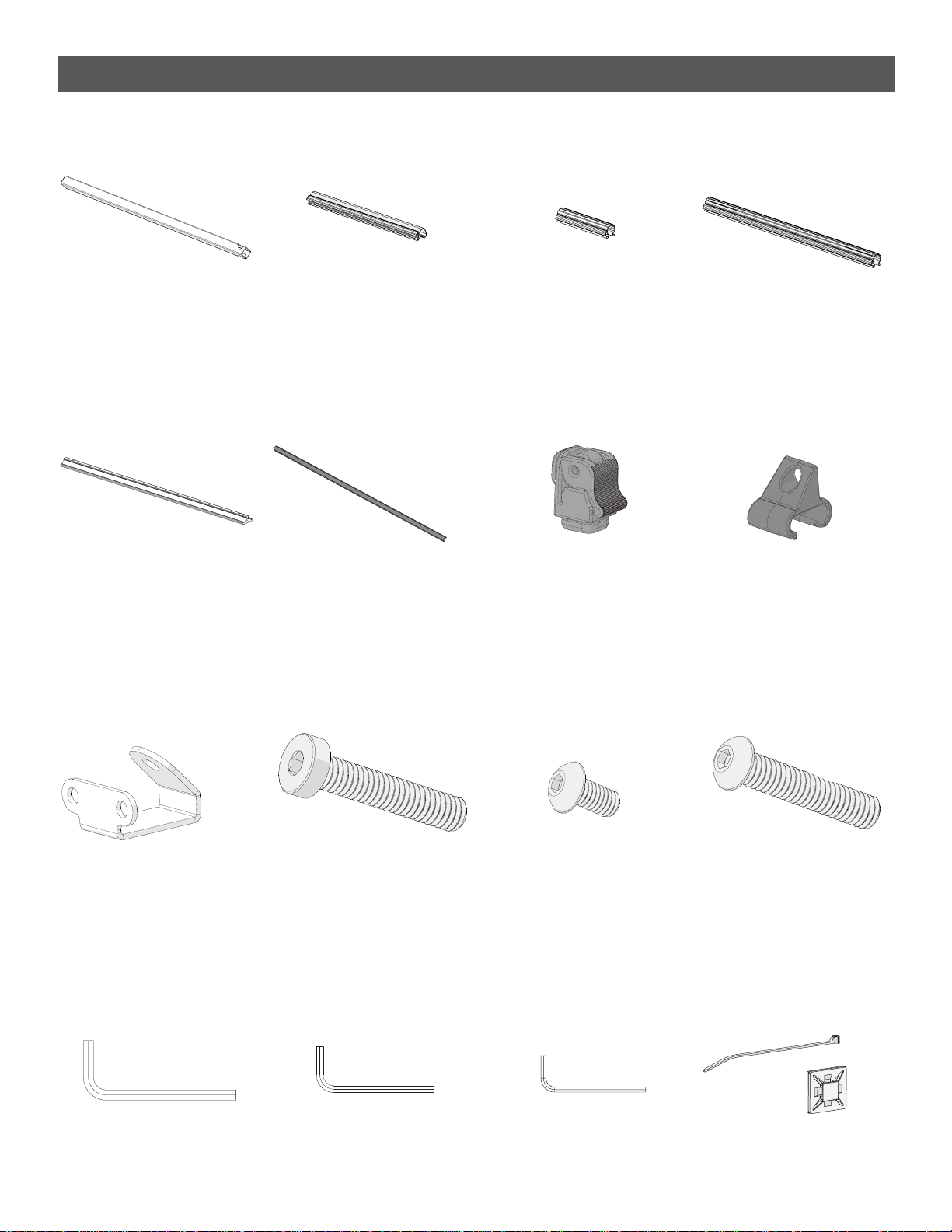

Sewing Machine
Clamps (x4)
ACC-01-10324
(See page 16)
Plastic Track
Support (x4)
Fabric Clamp (x3)
QTT-05-14723
(See page 42)
Side Fabric
Clamp (x2)
QTT-05-14724
(See page 42)
Front Fabric Clamp
with Clip (x2)
QTT-05-14730
(See page 42)
Plastic Flat
Track (x4) Bungee
Slide (x4)
QTT-04-14720
(See page 10)
Hoop Side Rail (X2)
QTT-09-15032
(See page 8)
SBHCS
M5 x 8 mm (x22)
HDW-03-14253
Allen Wrench
2.5 mm
ULPSHS
M4 x 20 mm (x12)
HDW-03-10165
HDW-03-14739
14
17
Allen Wrench
3 mm
HDW-03-10166
14
17
Allen Wrench
2 mm
HDW-03-11030
14
17
SBHCS
M4 X 25 mm (x6)
HDW-03-12240
Encoder
Bracket (x2)
QTT-04-14695
(See page 12 ,page 16)
Included Parts & Tools (Continued)
MIS-08-10805
(See page 36)
Zip Tie/Zip Tie
Mount (x4)

6
Cutie Frame
Custom Barrel
Extension Cable
QTT-02-15049
(See page 36)

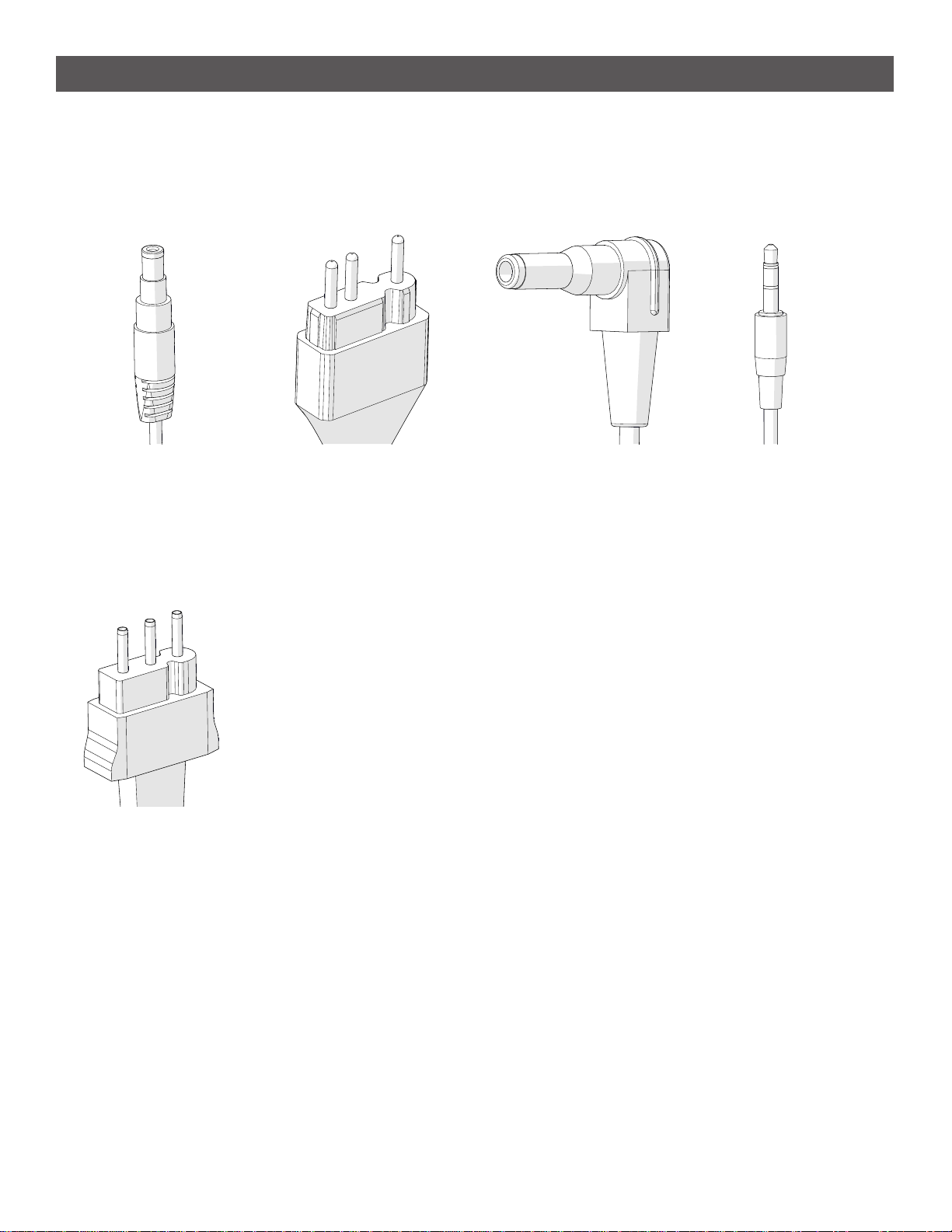

Included Parts & Tools (Continued)
HD9 Foot Pedal
Extension Cable
QTT-02-15051
(See page 36)
Angled Barrel Jack
Extension Cable
QTT-02-15050
(See page 36)
3 Prong
Extension Cable
QTT-02-15052
(See page 36)
TRS
Extension Cable
QTT-02-15048
(See page 36)
Foot Pedal Extension Cables

7
Cutie Frame
Part One
Part One
Step 1 - Assembling the Tracks.................................................................................................8
Step 2 - Installing the Sides .....................................................................................................10
Step 3 - Aligning the Tracks......................................................................................................12
Step 4 - Installing the Top Plate Clamps and Encoder Bracket.....................................................16

8
Cutie Frame

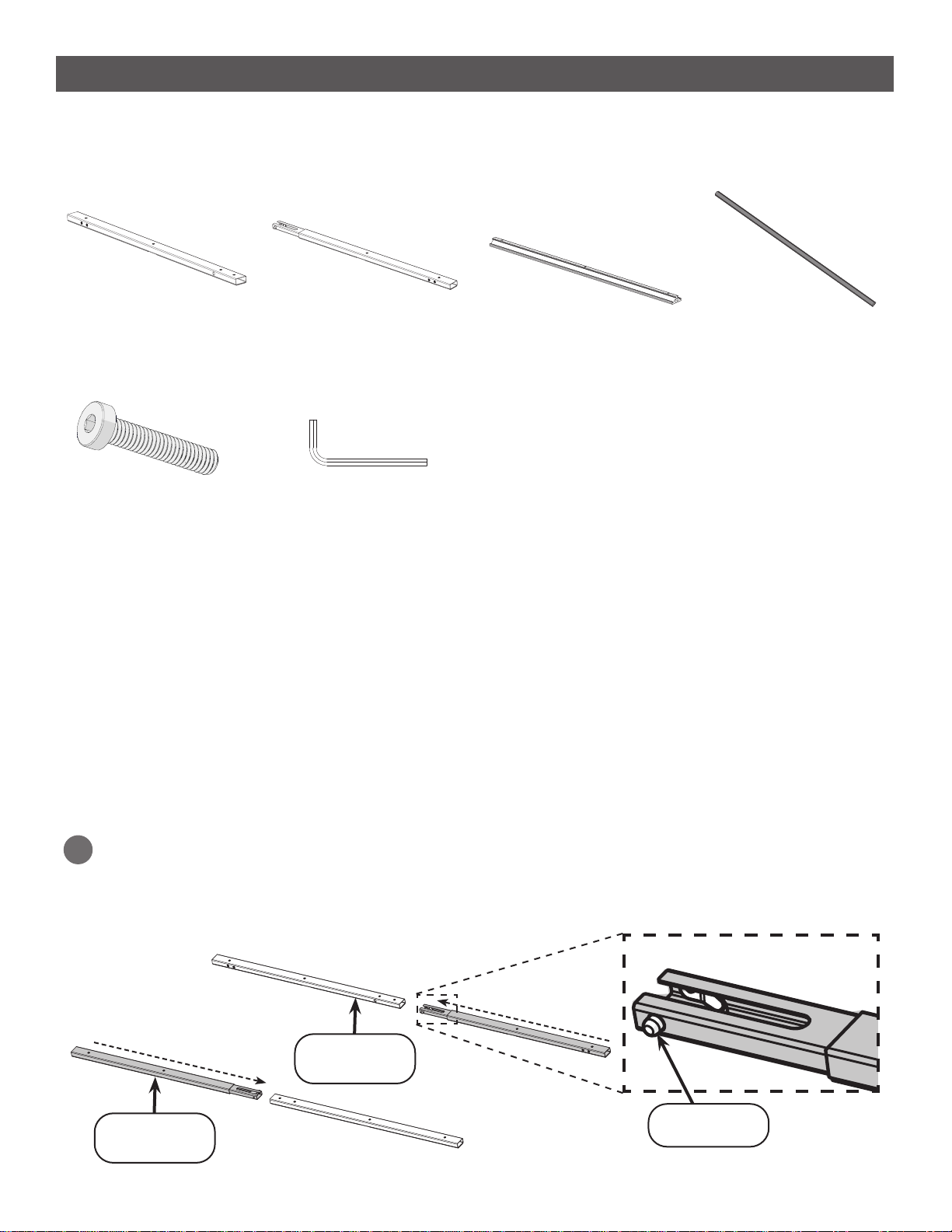

Step 1 - Assembling the Tracks
Parts & Tools Needed:
Instructions
The frame tracks allow the bottom carriage to move horizontally across the frame. Please take the
following steps to assemble the frame tracks:
On both short cross supports: Press in the metal clips and slide into the long cross
supports until they click into place.
1
ULPSHS
M4 x 20 mm (x12)
Long Cross
Support (x2) Short Cross
Support (x2)
Metal Clip
Short Cross
Support
Long Cross
Support
Plastic Track
Support (x4)
Allen Wrench
2.5 mm
Plastic Track (x4)
14
17

9
Cutie Frame
Insert a plastic track into each side of both plastic track supports. Then tighten the twelve
M4 x 20 mm ULPSHS screws from the previous step.
3
AssemblingAdjusting the Rails (Continued)
On both cross supports: Use six M4 x 20 mm ULPSHS screws to attach two of the
plastic track supports. Do not tighten at this time.
2
Plastic Track
Support
ULPSHS
M4 x 20 mm
Plastic Track
Support
Plastic Track
Step 1 Completed:

10
Cutie Frame

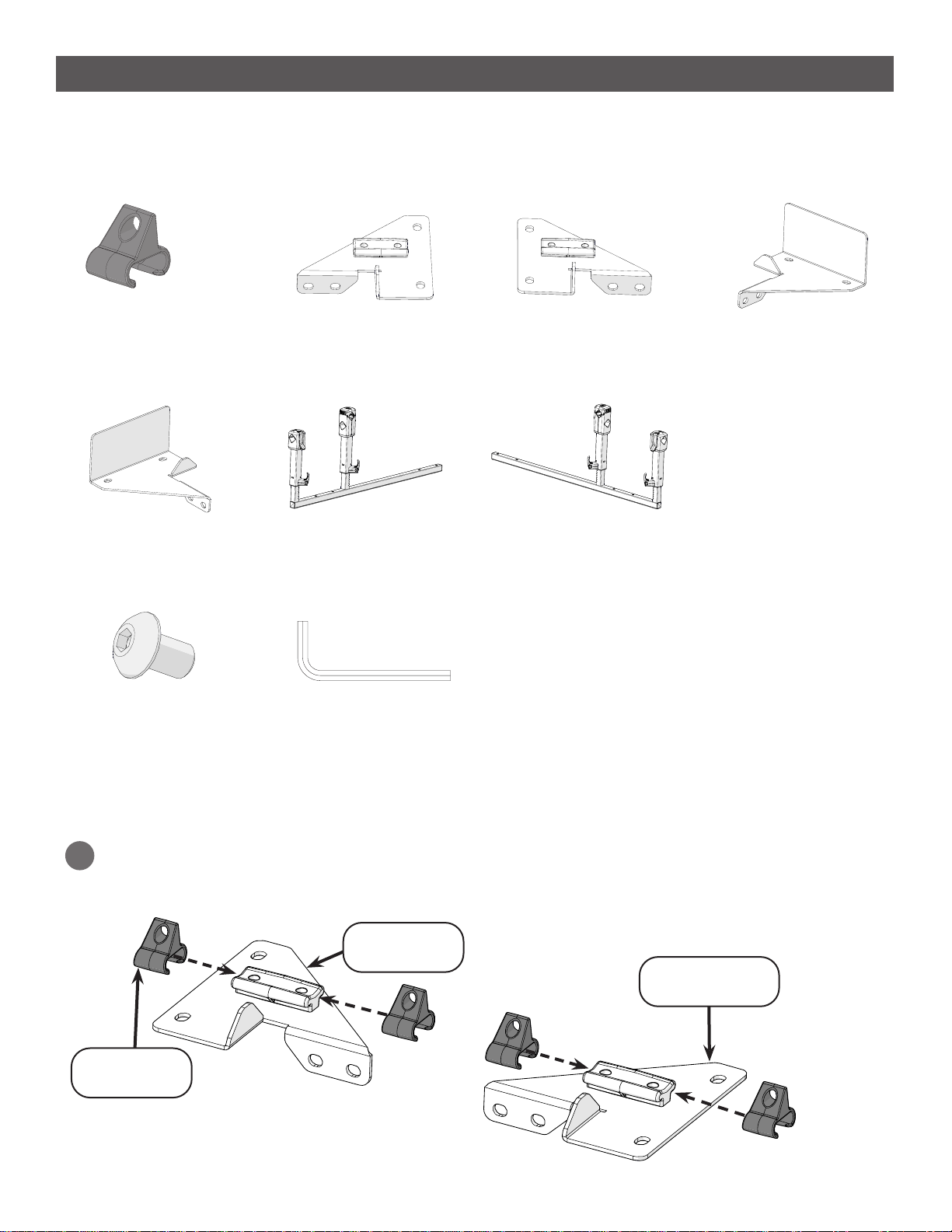

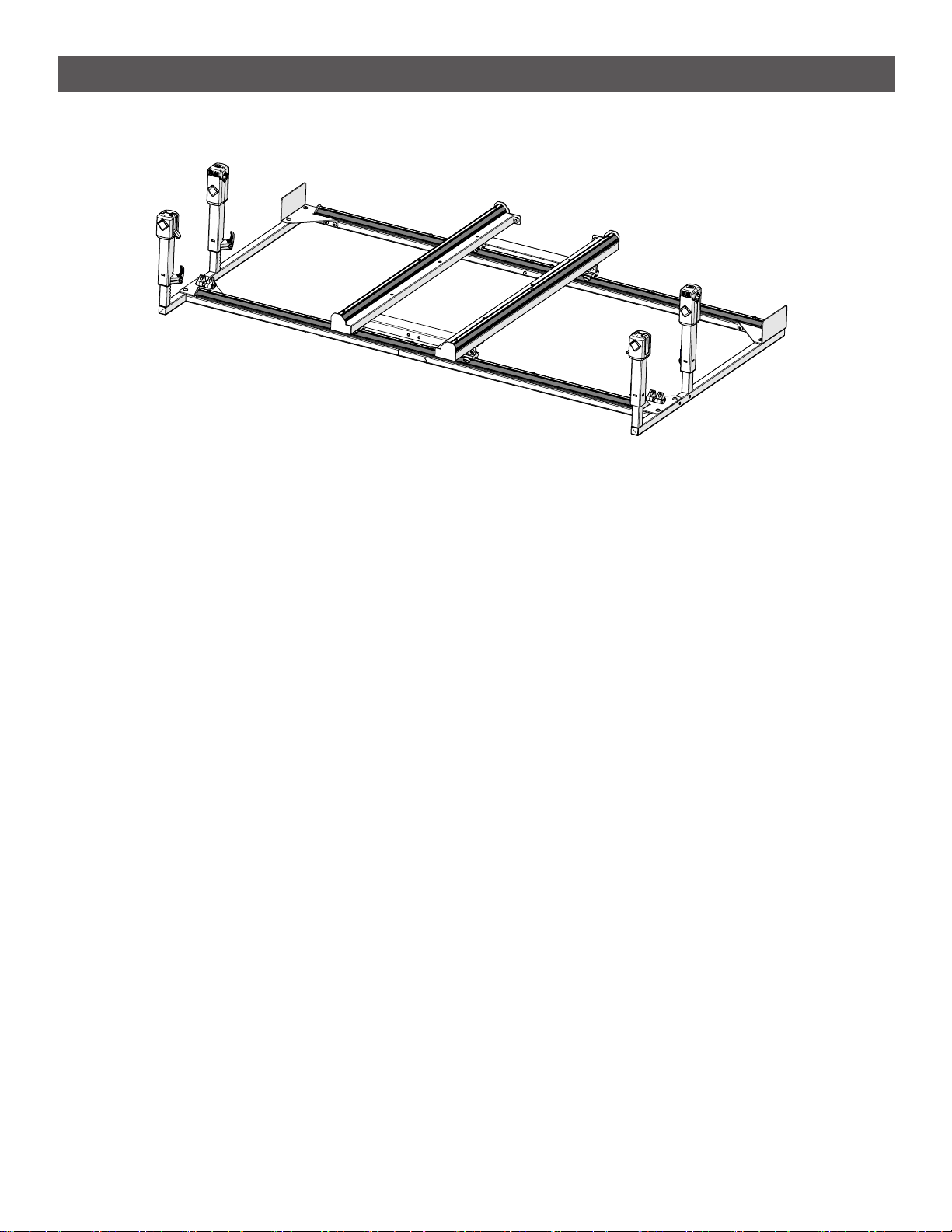

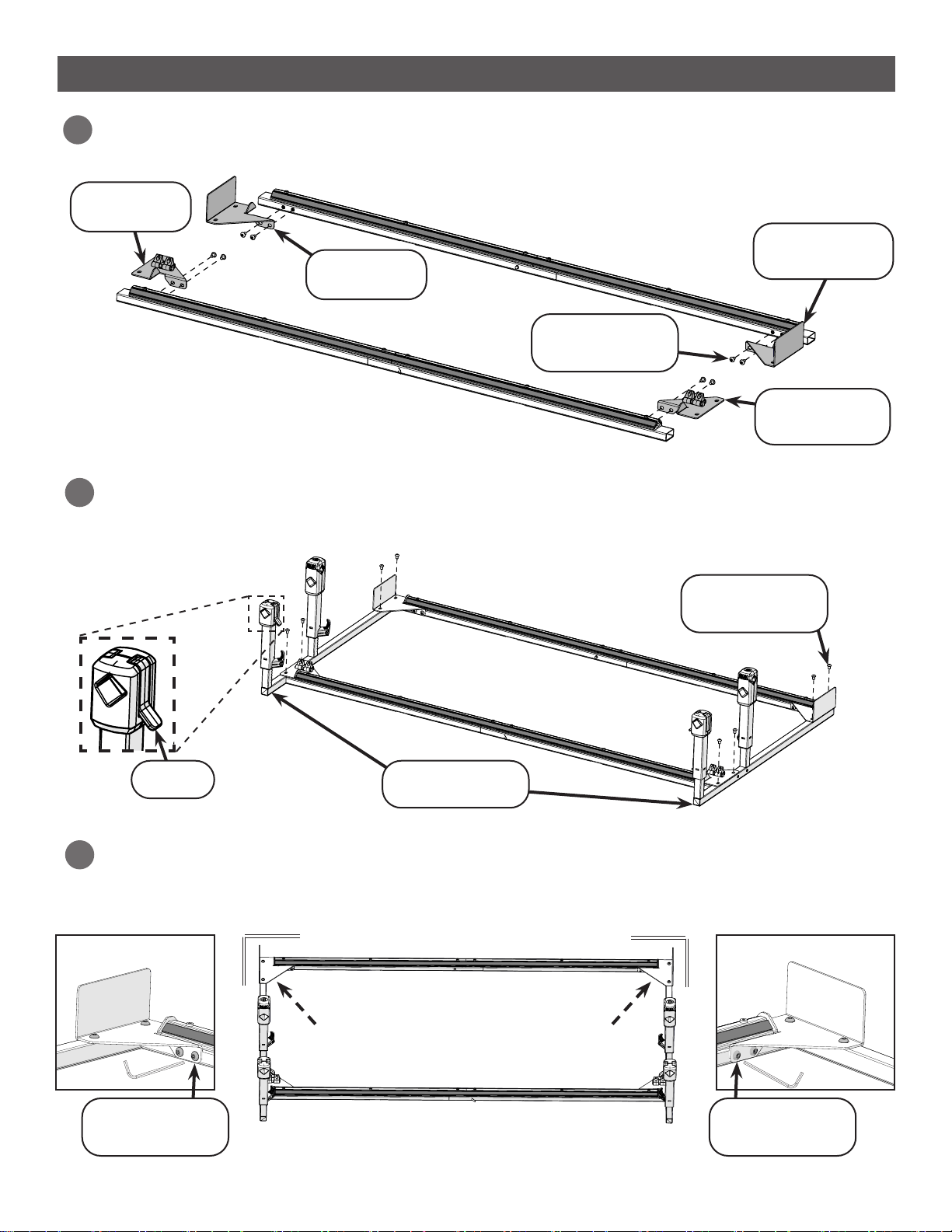

Step 2 - Installing the Sides
Right Rear
Corner Brace
Left Rear
Corner Brace
Front Right
Corner Brace Front Left
Corner Brace
Parts & Tools Needed:
SBHCS
M5 x 8 mm (x16) Allen Wrench 3 mm
14
17
Instructions
The frame sides support the rails and hold up your fabric. To install the frame sides, take the
following steps:
Right Side Assembly
Left Side Assembly

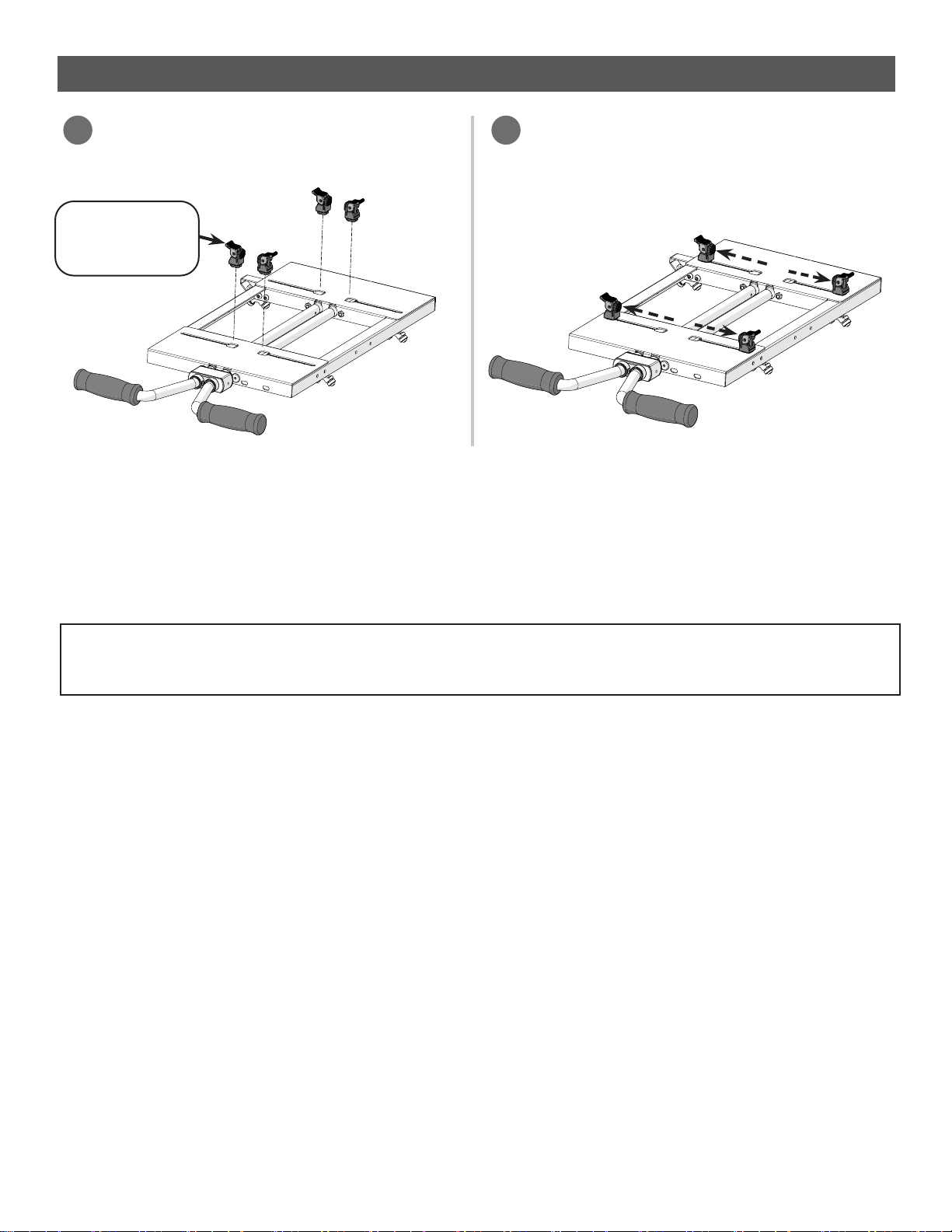

Bungee Slide (x4)
Slip the four bungee slides onto the mounts on the front left and right corner braces. This
is a convenient place to store the bungee slides when the bungee accessory isn’t in use.
1
Front Left
Corner Brace Front Right
Corner Brace
Bungee Slide
(x4)
