Graco SDP8 Series Owner's manual

3A6673B
EN
Installation and Operation
SDP8/SDP18 Preset
Metered Dispense Valve
Pulse FC Enabled
For dispensing oil, automatic transmission fluid (ATF), gear oils, and antifreeze.
Not approved for use in explosive atmospheres or hazardous locations. For professional
use only.
See page 6 for model information.
1500 psi (10 MPa, 103 bar) Maximum Working Pressure
Important Safety
Instructions
Read all warnings and instructions
in this manual and related system
manuals before using the
equipment. Save all instructions.
NOTICE
The metered dispense valve is designed to
dispense petroleum-based lubricants, and
antifreeze only. Brake cleaner and/or harsh
solvents may damage the plastic
components.

Contents
23A6673B
Contents
Warnings ....................................................................................................4
Models ........................................................................................................6
Overview ....................................................................................................7
Metered Dispense Valve .......................................................................7
Navigation Pad (FIG. 1) .........................................................................7
Locking and Unlocking the Trigger .......................................................7
Opening and Closing the Nozzle ..........................................................8
Typical Installation ....................................................................................9
Mounting Bracket ..................................................................................9
Oil Bar ...................................................................................................9
Installation ...............................................................................................10
Pressure Relief Procedure ..................................................................10
Grounding ...........................................................................................10
Pre-Installation Procedure ..................................................................10
Flushing ..............................................................................................11
Install the Metered Dispense Valve ....................................................11
Install the Extension Tube ..................................................................12
Install the Nozzle ................................................................................12
Preset Mode .............................................................................................13
Main Menu Screen ..............................................................................13
Calibration ...........................................................................................13
Manual Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Alternate Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
DISPENSE ..........................................................................................18
Preset Dispense . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
TOTAL ................................................................................................21
UTILITY MENU ...................................................................................21
DEVICE INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
RESET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
SET-UP SCREENS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
DEVICE INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
RESET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
GO BACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Contents
3A6673B 3
Pulse FC Mode ........................................................................................28
Enable Pulse FC Mode .......................................................................28
Activation ............................................................................................29
Calibration ..........................................................................................29
Manual Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
DISPENSE .........................................................................................31
Screen Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
UTILITY MENU ...................................................................................33
Service .....................................................................................................35
Battery Replacement ..........................................................................35
Parts .........................................................................................................36
Parts .........................................................................................................37
Related Kits ........................................................................................37
Troubleshooting ......................................................................................38
Error Codes .............................................................................................40
Technical Specifications ........................................................................41
FCC / IC Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Graco 5-Year Meter and Valve Warranty ...............................................43

Warnings
43A6673B
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this
equipment. The exclamation point symbol alerts you to a general warning and the hazard
symbols refer to procedure-specific risks. When these symbols appear in the body of this
manual or on warning labels, refer back to these Warnings. Product-specific hazard symbols
and warnings not covered in this section may appear throughout the body of this manual where
applicable.
WARNING
SKIN INJECTION HAZARD
High-pressure fluid from dispensing device, hose leaks, or ruptured components
will pierce skin. This may look like just a cut, but it is a serious injury that can result
in amputation. Get immediate surgical treatment.
•Do not point dispensing device at anyone or at any part of the body.
•Do not put your hand over the fluid outlet.
•Do not stop or deflect leaks with your hand, body, glove, or rag.
•Follow the Pressure Relief Procedure when you stop dispensing and before
cleaning, checking, or servicing equipment.
•Tighten all fluid connections before operating the equipment.
•Check hoses and couplings daily. Replace worn or damaged parts immediately.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
•Do not operate the unit when fatigued or under the influence of drugs or alcohol.
•Do not exceed the maximum working pressure or temperature rating of the low-
est rated system component. See Technical Specifications in all equipment
manuals.
•Use fluids and solvents that are compatible with equipment wetted parts. See
Technical Specifications in all equipment manuals. Read fluid and solvent
manufacturer’s warnings. For complete information about your material, request
Safety Data Sheets (SDSs) from distributor or retailer.
•Turn off all equipment and follow the Pressure Relief Procedure when equip-
ment is not in use.
•Check equipment daily. Repair or replace worn or damaged parts immediately
with genuine manufacturer’s replacement parts only.
•Do not alter or modify equipment. Alterations or modifications may void agency
approvals and create safety hazards.
•Make sure all equipment is rated and approved for the environment in which you
are using it.
•Use equipment only for its intended purpose. Call your distributor for information.
•Route hoses and cables away from traffic areas, sharp edges, moving parts, and
hot surfaces.
•Do not kink or over bend hoses or use hoses to pull equipment.
•Keep children and animals away from work area.
•Comply with all applicable safety regulations.

Warnings
3A6673B 5
FIRE AND EXPLOSION HAZARD
When flammable fluids are present in the work area, such as gasoline and wind-
shield wiper fluid, be aware that flammable fumes can ignite or explode. To help
prevent fire and explosion:
•Use equipment only in well-ventilated area.
•Eliminate all ignition sources, such as cigarettes and portable electric lamps.
•Ground all equipment in the work area.
•Keep work area free of debris, including rags and spilled or open containers of
solvent and gasoline.
•Do not plug or unplug power cords or turn lights on or off when flammable fumes
are present.
•Use only grounded hoses.
•Stop operation immediately if static sparking occurs or you feel a shock.Do
not use equipment until you identify and correct the problem.
•Keep a working fire extinguisher in the work area.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent seri-
ous injury, including eye injury, hearing loss, inhalation of toxic fumes, and burns.
Protective equipment includes but is not limited to:
•Protective eye wear, and hearing protection.
•Respirators, protective clothing, and gloves as recommended by the fluid and
solvent manufacturer.
WARNING

Models
63A6673B
Models
Model Swivel Extension Nozzle Fluid
Max Volumetric
Flow Rate
GPM LPM
26C384 1/2 NPT Rigid Automatic Oil 8 30
26C385 1/2 NPT Rigid Antifreeze Antifreeze 8 30
26C354 1/2 NPT Flexible Automatic Oil 8 30
26C355 1/2 NPT Flexible Antifreeze Antifreeze 8 30
26C356 1/2 NPT Rigid High Flow Oil 18 68
26C357 1/2 NPT Flexible High Flow Oil 18 68
26C358 1/2 NPT Gear Lube Manual Gear Lube 5 19
26C360 3/4 NPT Rigid High Flow Oil 18 68
26C361 3/4 NPT Flexible High Flow Oil 18 68
26C362 1/2 BSPP Rigid Automatic Oil 8 30
26C363 1/2 BSPP Rigid Antifreeze Antifreeze 8 30
26C364 1/2 BSPP Flexible Automatic Oil 8 30
26C365 1/2 BSPP Flexible Antifreeze Antifreeze 8 30
26C368 1/2 BSPP Rigid High Flow Oil 18 68
26C369 1/2 BSPP Flexible High Flow Oil 18 68
26C370 1/2 BSPP Gear Lube Manual Gear Lube 5 19
26C372 3/4 BSPP Rigid High Flow Oil 18 68
26C373 3/4 BSPP Flexible High Flow Oil 18 68
26C374 1/2 BSPT Rigid Automatic Oil 8 30
26C375 1/2 BSPT Rigid Antifreeze Antifreeze 8 30
26C376 1/2 BSPT Flexible Automatic Oil 8 30
26C377 1/2 BSPT Flexible Antifreeze Antifreeze 8 30
26C378 1/2 BSPT Rigid High Flow Oil 18 68
26C379 1/2 BSPT Flexible High Flow Oil 18 68
26C380 1/2 BSPT Gear Lube Manual Gear Lube 5 19
26C382 3/4 BSPT Rigid High Flow Oil 18 68
26C383 3/4 BSPT Flexible High Flow Oil 18 68

Overview
3A6673B 7
Overview
Metered Dispense Valve
NOTE: The metered dispense valve can be
set up to be used without a Pulse FC system,
or with a Pulse FC system with the installation
of a Pulse FC Starter kit (P/N 26C401).
Navigation Pad (FIG. 1)
The Navigation Pad includes 4 navigation
ARROWS (UP, DOWN, LEFT, RIGHT) and a
center, ENTER button.
Arrows: Move the cursor on the display.
ENTER button: Used to select or store an
entry.
Locking and Unlocking
the Trigger
The locking trigger feature locks the trigger in
the dispense position as shown in FIG. 2. To
release the lock, firmly squeeze the trigger to
the handle.
NOTE: Do no leave the metered dispense
valve unattended during a dispense.
FIG. 1
Navigation Pad ENTER
Display
Navigation
Arrows
FIG. 2
Unlocked
Locked

Overview
83A6673B

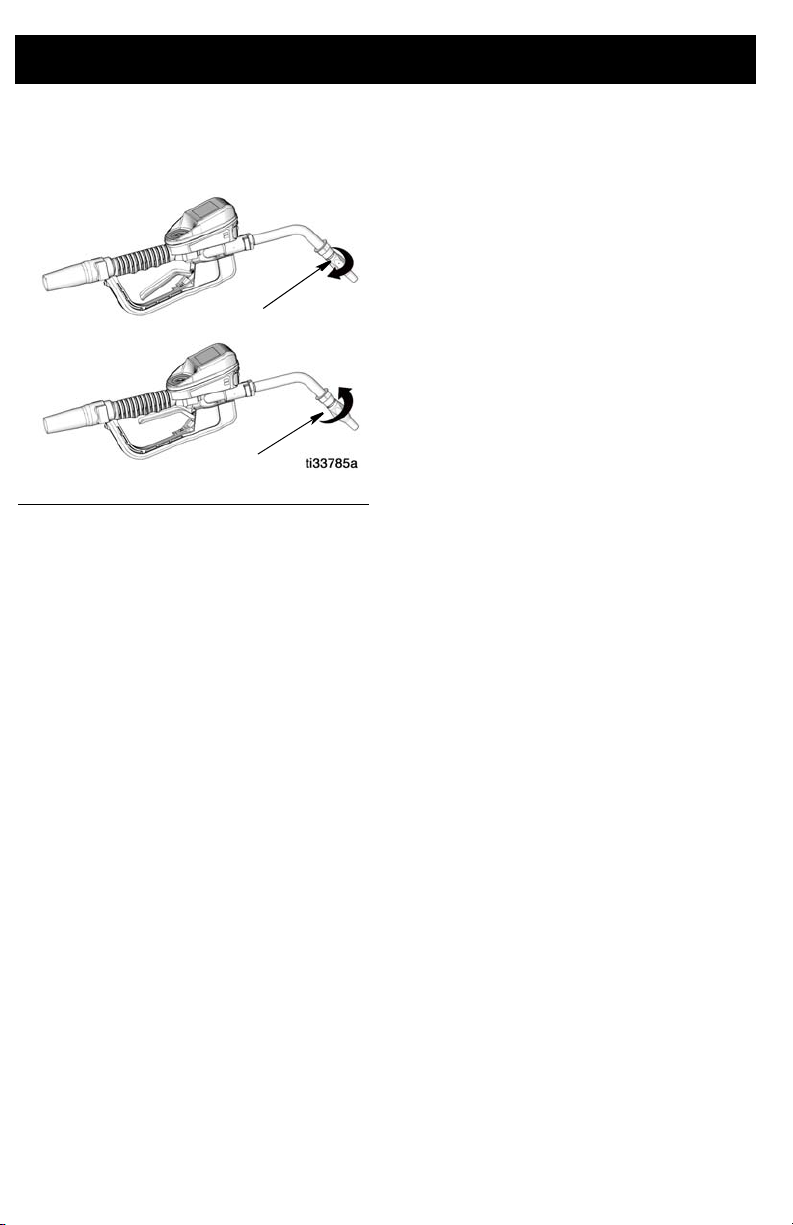

Opening and Closing the
Nozzle
•To open the nozzle, rotate the nozzle
clockwise.
•To close the nozzle, rotate the nozzle
counter-clockwise.
FIG. 3
Open
Closed

Typical Installation
3A6673B 9
Typical Installation
The typical installation shown in FIG. 4 is only
a guide. It is not a complete system design.
Contact your Graco distributor for assistance
in designing a system to suit your needs.
The metered dispense valve is not designed
for in-line installation.
Mounting Bracket
Mounting Bracket Kit 249440 is available for
mounting the metered dispense valve on a
console.
Oil Bar
An Oil Bar Kit is available for mounting one to
three metered dispense valves. Contact your
Graco Distributor for ordering details.
NOTE: The Utility Menu provides an option to
flip the metered dispense valve display for
easy viewing when the metered dispense
valve is installed in the Oil Bar.
FIG. 4
Ref Description
A Metered dispense valve
B Fluid shut-off valve
CHose
D Hose reel fluid inlet hose
E Hose reel
A Thermal Relief Kit (not shown) is
required. The kit required will vary by pump
selected.
E
A
C
D
B
FIG. 5
FIG. 6

Installation
10 3A6673B
Installation
Pressure Relief Procedure
Follow the Pressure Relief
Procedure whenever you see this
symbol.
1. Turn off the power supply to the pump or
close the fluid shut off valve (B).
2. Open the nozzle. Authorize and activate
a dispense. Trigger the metered
dispense valve into a waste container to
relieve pressure.
3. Open any bleed-type master air valves
and fluid drain valves in the system.
4. Leave the drain valve open until ready to
pressurize the system.
Grounding
Follow manufacturer’s recommendations to
ground the pump and fluid supply
container.
Ground the hose and reel or console. Leave
at least two threads bare when using PTFE
tape. The bare threads ensure a ground is
maintained.
To maintain grounding continuity when
flushing or relieving pressure: hold a metal
part of the metered dispense valve firmly to
the side of a grounded metal pail, then trigger
the metered dispense valve.
Hoses: Only use electrically conductive
hoses. Check electrical resistance of hoses.
If total resistance to ground exceeds 29
megohms, replace the hose immediately.
Pre-Installation Procedure
1. See Relieve pressure, page 10.
2. Close fluid shut-off valve (B, FIG. 4, page
9).
3. Ground the hose and reel or console
(see Grounding, page 10).
4. Flush equipment. See Flushing, page
11.
This equipment stays pressurized until
pressure is manually relieved. To help
prevent serious injury from pressurized
fluid, such as skin injection, splashing fluid
and moving parts, follow the Pressure
Relief Procedure when you stop
dispensing and before cleaning, checking,
or servicing the equipment.
The equipment must be grounded to
reduce the risk of static sparking. Static
sparking can cause fumes to ignite or
explode. Grounding provides an escape
wire for the electric current.
FIRE HAZARD
Conductive metal surfaces on the metered
dispense valve must not make contact with
any positively charged metal surface,
including (but not limited to), the starter
solenoid terminal, alternator terminal or
battery terminal. Such contact could cause
electrical arcing and a fire.
NOTICE
•If this is a new installation or if the fluid
lines are contaminated, flush the lines
before installing the metered dispense
valve. Contaminated lines could cause
the metered dispense valve to leak.
•Never dispense compressed air with
metered dispense valve. Dispensing
compressed air will damage the
metered dispense valve.

Installation
3A6673B 11
Flushing
The equipment was tested with lightweight
oil, which was left in the fluid passages to
protect parts. To avoid contaminating the
fluid, flush the equipment with a compatible
solvent before use.
1. Close the fluid shut-off valve (B, FIG. 4,
page 9) at each dispense position.
2. Make sure:
•the main fluid outlet valve at the
pump is closed.
•the air pressure to the pump motor
is adjusted to minimize the system
flow rate without the metered
dispense valve attached.
•the air valve is open.
3. Slowly open the main fluid outlet valve.
a. Place the hose end (with no
metered dispense valve connected)
into a container for waste oil.
b. Secure the hose in the container to
avoid it becoming loose during
flushing.
c. For multiple dispense positions, first
flush the dispense position farthest
from the pump then work toward the
pump.
4. Slowly open the fluid shut-off valve (B) at
the dispense position. Flush a sufficient
amount of oil to ensure that the entire
system is clean; then close the valve.
5. Repeat Step 4 at all other positions.
Install the Metered
Dispense Valve
1. Follow Pressure Relief Procedure,
page 10.
2. Slide the swivel boot (a) back, over the
hose, small end first to access the swivel
fitting (6) (FIG. 7).
3. Apply thread sealant to the male threads
of the hose fitting. Thread the hose fitting
(b) into the metered dispense valve
swivel (6). Use two wrenches to tighten
securely (FIG. 7).
NOTE: Allow the sealant to cure
according to the manufacturer’s
recommendations before circulating
fluid through the system.

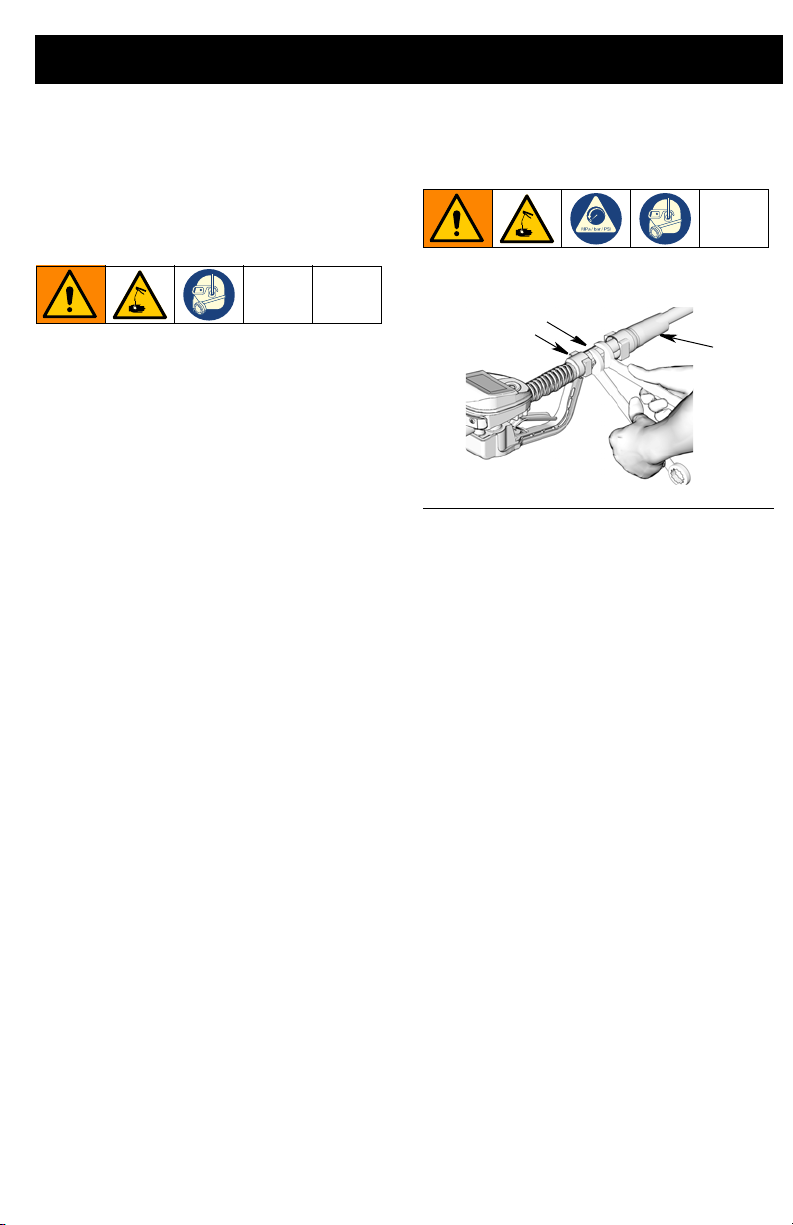

FIG. 7
b6
a

Installation
12 3A6673B
Install the Extension Tube
1. Adjust nut (c) on extension (2) so that the
maximum thread engagement of the
extension can be utilized (FIG. 8).
2. Thread extension (2) into housing until it
bottoms out (FIG. 8).
3. Align extension (2) with metered
dispense valve housing and handle (16)
(FIG. 8).
4. Firmly tighten nut (c) (FIG. 8).
Install the Nozzle
1. Thread nozzle (3) onto extension (2)
(FIG. 9).
2. With an open-end adjustable wrench on
the flats of the nozzle bushing, tighten
firmly (FIG. 10).
3. Open the automatic twist lock nozzle and
all fluid shut-off valves. Start pump to
pressurize system.
4. Toensure dispensingaccuracy,purge all
air from the fluid lines and metered
dispense valve before use.
5. Set the system flow to the desired flow
rate. This is typically done by adjusting
the pump air pressure.
FIG. 8
FIG. 9
2
16
c
3
2
FIG. 10
NOTICE
•To prevent nozzle damage, only tighten
nozzle with wrench on flats of the
nozzle bushing as shown in FIG. 10.
•Do not disassemble the bushing
from the nozzle. Disassembly will
affect the performance of the nozzle.

Preset Mode
3A6673B 13
Preset Mode
Main Menu Screen
This screen provides access to the main
metered dispense valve functions:
•DISPENSE, page 18
•TOTAL, page 21
•UTILITY MENU, page 21
Calibration
NOTE:
•This calibration procedure requires a
one quart or one liter clean, calibrated,
volumetric flask. When the meter is
configured to display fluid volume in
pints, quarts, or gallons, the calibration
procedure will require a one quart
calibrated, volumetric flask be used.
When the meter is configured in liters, a
one liter volumetric flask is required for
calibration.
•The metered dispense valve must be
flushed and primed prior to calibration
(see Flushing, page 11).
•The metered dispense valve should be
calibrated prior to using it for the first
time. Calibrating the metered dispense
valve assures that the dispenses are
accurate.
Calibration factors can vary due to fluid
viscosity and flow rate.
Calibrate the metered dispense valve for
specific fluids at nominal flow rates.
This calibration procedure requires a one
quart or one liter calibrated, volumetric flask.
If a one quart or one liter calibrated,
volumetric flask is not available, see Alternate
Calibration instructions, page 16.
To calibrate the metered dispense valve:
1. Use the UP or DOWN ARROW button on
the keypad to highlight UTILITY MENU
(FIG. 12) and then press the center
ENTER button on the keypad to select
the UTILITY MENU option.
2. Use the UP or DOWN ARROW button on
the keypad to highlight SET-UP (FIG. 13)
and then press the center ENTER button
on the keypad to select the SET-UP
option.

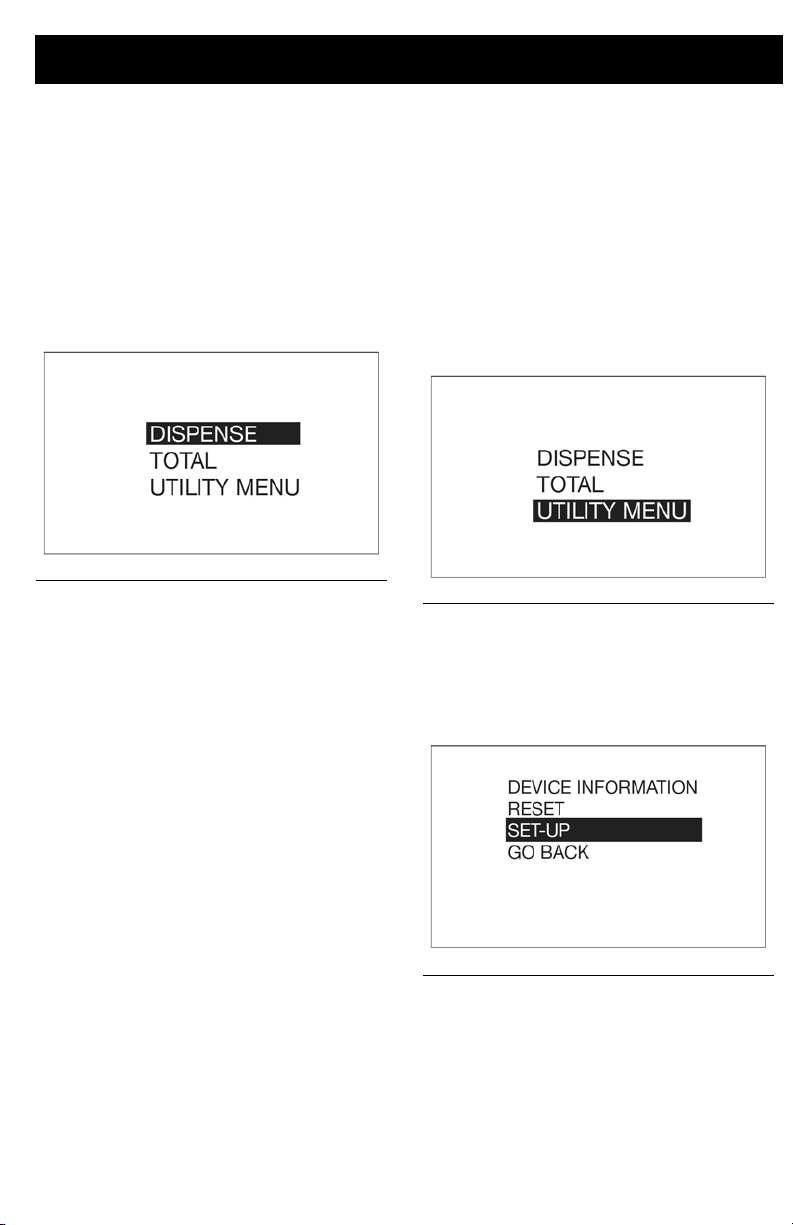

FIG. 11
FIG. 12
FIG. 13

Preset Mode
14 3A6673B
3. Use the UP or DOWN ARROW button on
the keypad to highlight CALIBRATE (FIG.
14) and then press the center ENTER
button on the keypad to select the
CALIBRATE option.
4. The calibration k-factor screen shown in
FIG. 15 displays.
NOTE: The number shown on the
display is the k-factor the meter is
currently using. After completing the
calibration procedure this number may
be the same or different than what is
currently shown on the display.
5. Select ACTIVATE and press the center
ENTER button on the keypad to begin
metered dispense valve calibration (FIG.
15).
NOTE: The +/- on this screen is used for
Manual Calibration. See Manual
Calibration instructions on page 15.
6. Dispense exactly one quart or one liter of
fluid into the one quart or one liter clean,
calibrated, volumetric flask.
NOTE: During the dispense the metered
dispense valve will not display the
volume dispensed. The volume
dispensed is only determined by the
flask measurement. A screen displays
(FIG. 16) during the calibration dispense.
7. When exactly one quart or one liter of
fluid is dispensed into the flask use the
center ENTER button on the keypad to
select END. A screen displaying the
quantity of fluid dispensed displays (FIG.
17 shows an example of the dispensed
volume screen).

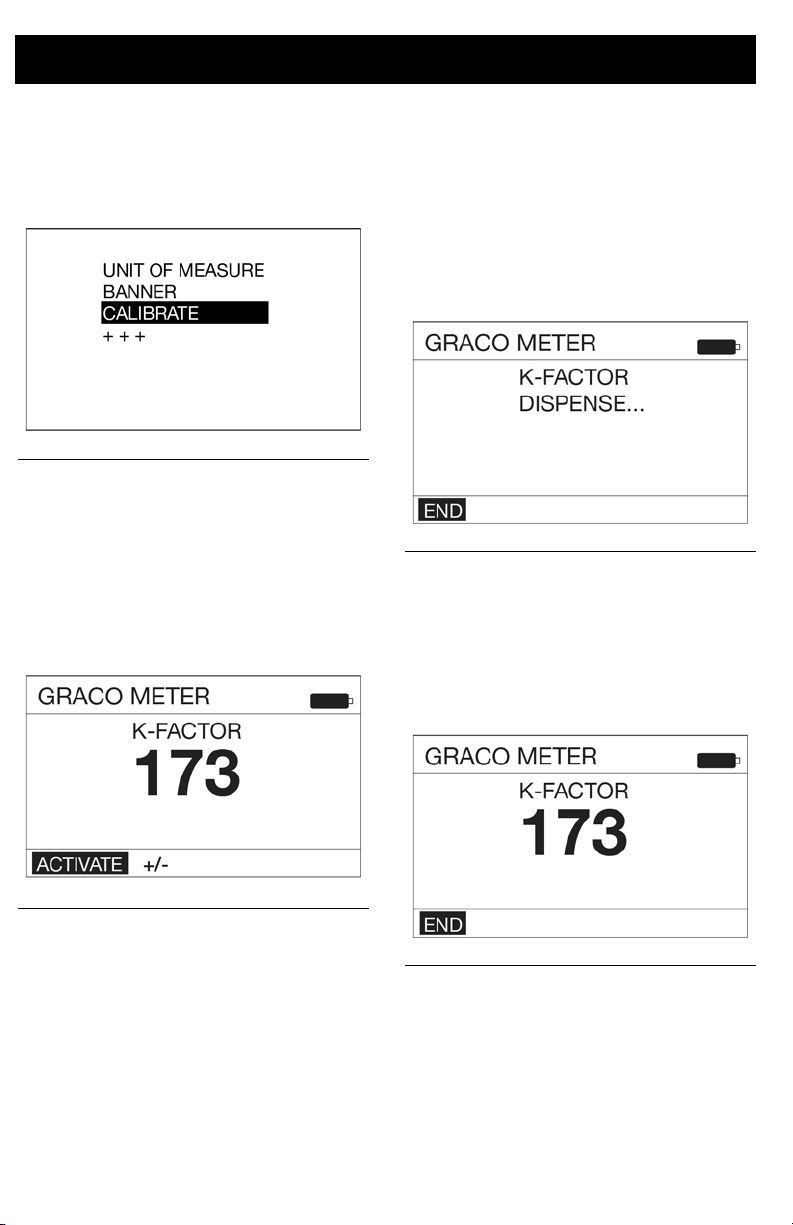

FIG. 14
FIG. 15
FIG. 16
FIG. 17

Preset Mode
3A6673B 15
8. Press the center ENTER button on the
keypad again to select END and save the
new calibration factor.
9. After selecting END the following screen
(FIG. 18) displays.
Manual Calibration
NOTE: This Manual Calibration procedure is
used when the k-factor is known and a simple
adjustment of the displayed k-factor is
needed to set that number.
1. Follow steps 1- 4 of the Calibration
instructions, beginning on page 13.
2. Use the RIGHT ARROW button on the
keypad to highlight +/- and press the
center ENTER button on the keypad to
select the +/- option (FIG. 19).
3. The k-factor adjustment screen shown in
FIG. 20 displays.
4. Use the UP and DOWN ARROW to
increase or decrease the displayed
k-factor until the new k-factor displays on
the screen.
NOTE: Selecting the GO BACK Function
on this screen returns the display to the
previous screen (shown in FIG. 19).
FIG. 18
FIG. 19
FIG. 20

Preset Mode
16 3A6673B
5. Be sure ENTER is highlighted in the
lower left corner of the display as shown
in FIG. 21. Press the center ENTER
button on the keypad to save the new
calibration factor.
6. After selecting ENTER the following
screen (FIG. 22) displays.

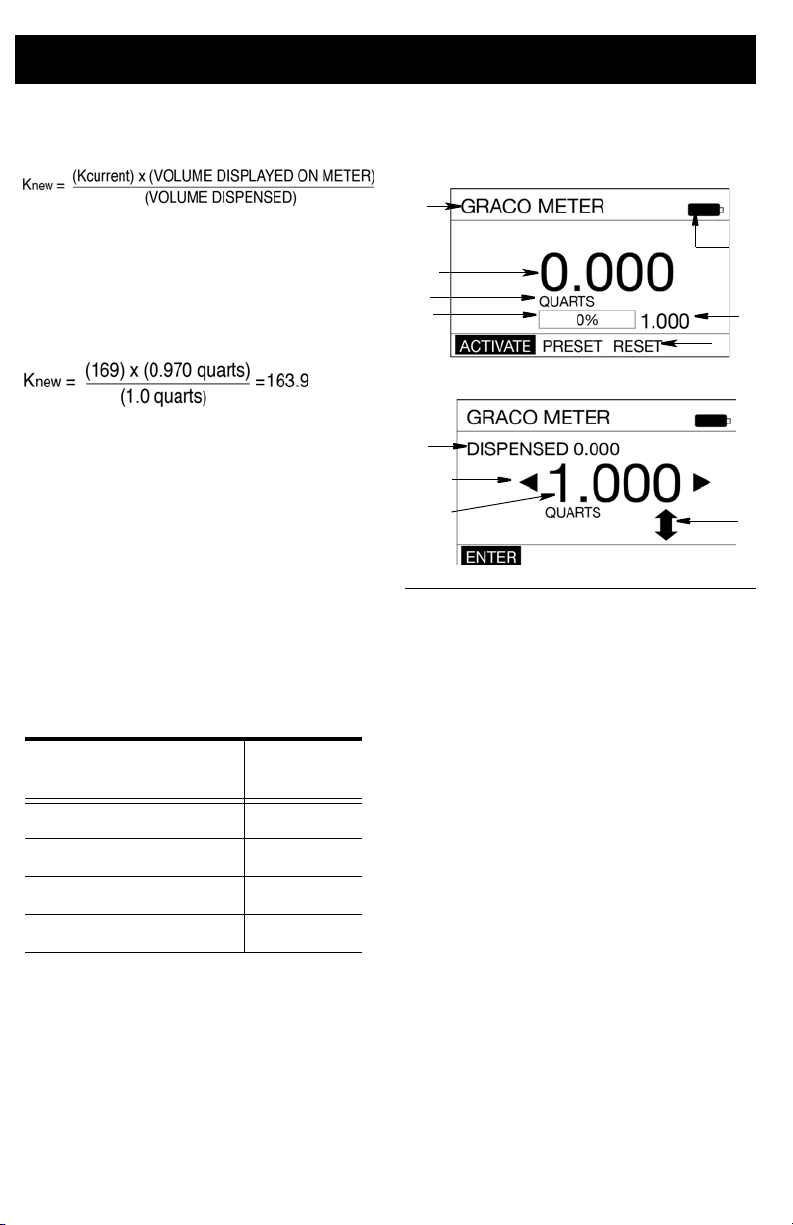

Alternate Calibration
NOTE: This alternate calibration procedure is
used when a one quart or one liter calibrated,
volumetric flask is not available.
1. Dispense a known volume of fluid into
any sized clean, calibrated, volumetric
flask. Note this volume as the VOLUME
DISPENSED (see Calculating k-factor,
Step 11, page 18).
2. Record the volume displayed on the
metered dispense valve. Note this
volume as the VOLUME DISPLAYED
ON THE METERED DISPENSE VALVE
(see Calculating the k-factor, Step 11,
page 18).
3. Use the UP or DOWN ARROW button on
the keypad to highlight UTILITY MENU
(FIG. 23) and then press the center
ENTER button on the keypad to select
the UTILITY MENU option.
4. Use the UP or DOWN ARROW button on
the keypad to highlight SET-UP (FIG. 24)
and then press the center ENTER button
on the keypad to select the SET-UP
option.
FIG. 21
FIG. 22
FIG. 23
FIG. 24

Preset Mode
3A6673B 17
5. Use the UP or DOWN ARROW button on
the keypad to highlight CALIBRATE (FIG.
25) and then press the center ENTER
button on the keypad to select the
CALIBRATE option.
6. The calibration k-factor screen shown in
FIG. 26 displays.
7. Use the RIGHT ARROW button on the
keypad to highlight +/- and press the
center ENTER button on the keypad to
select the +/- option (FIG. 27).
8. The k-factor adjustment screen shown in
FIG. 28 displays.
9. Use the UP and DOWN ARROW to
increase or decrease the displayed
k-factor (FIG. 29) until the new k-factor
displays on the screen.
10. Note the current k-factor is displayed. In
the example shown in FIG. 30 the k-factor
is 169.
FIG. 25
FIG. 26
FIG. 27
FIG. 28
FIG. 29
FIG. 30

Preset Mode
18 3A6673B
11. Calculate the new k-factor using the
following equation:
Example:
Kcurrent = 169
Volume displayed on metered dispense valve
= 0.970 quart
Volume dispensed = 1 quart
Round to the nearest whole number: 163.9 =
164.
NOTE: The unit of measurement for both
volumes must be the same in the above
equation.
12. Use the UP or DOWN ARROWS to
adjust the k-factor to the k-factor (Knew)
calculated in Step 11.
See Table 1, page 18 for recommended fluid
calibration factors.
NOTE: The calibration number may vary
slightly due to temperature or rate of flow.
Table 1
13. Press the center ENTER button on the
keypad to complete the calibration
operation and save the new calibration
factor.
DISPENSE
A BANNER - Unique identification name. See
Utility Menu/Set-Up/BANNER, page 23 for
instructions for creating the banner.
B BATTERY INDICATOR - When the batter-
ies are fully charged, the battery is com-
pletely filled in. As the battery discharges,
the amount of battery that is filled-in
declines.
C FUNCTION COMMAND - Function com-
mand options appear at the bottom of the
display when applicable to the task being
performed. Options when in the Dispense
mode include:
ACTIVATE - Activates the trigger to begin a
dispense.
PRESET - Preset dispense adjustment
screen displays.
RESET - Resets the dispense settings.
ENTER - Saves changes or updates.
NOTE: Additional function commands will
appear throughout the following instruc-
tions. when applicable
Fluid Calibration
Factor
Oil (10W30) 173
Gear Lube 173
ATF 173
Antifreeze 150
FIG. 31
C
D
E
F
H
G
J
HK
L
PRESET ADJUSTMENT SCREEN
DISPENSE SCREEN
A
B

Preset Mode
3A6673B 19
D DISPENSED FLUID COUNTER- As fluid is
dispensed, this number increases to reflect
the quantity of fluid that is being dispensed.
NOTE: If RESET was not selected after the
previous dispense was completed, the
amount of fluid dispensed in the previous
dispense will be shown in this field. If
RESET was selected, the field will show
0.000.
E UNIT OF MEASURE - Pints, Quarts, Gal-
lons or Liters. For instructions on setting the
Unit of Measure see UTILITY
MENU/SET-UP/UNIT OF MEASURE, page
23.
F PROGRESS BAR - Graphic representation
of the progression of the dispense shown by
gradually filling-in the empty space in the
bar. A textual representation of the progress
is also shown in a percentage format.
G PRESET AMOUNT - The volume of fluid
that the meter is currently set up to dispense
in PRESET Mode. See UTILITY
MENU/SET-UP/PRESET, page 25.
H ADJUSTABLE PRESET - Shows the vol-
ume of fluid that the meter is currently set up
to dispense in PRESET. Press the UP or
DOWN arrow on the keypad to increase or
decrease this quantity.
J DISPENSED - The amount of fluid previ-
ously dispensed.
K INCREASE/DECREASE ARROW - The
up/down arrow on the screen indicates the
user can increase or decrease the PRESET
quantity before starting the dispense. Use
the UP or DOWN ARROW button on the key
pad to increase or decrease the PRESET
amount.
L PRESET SELECTION - The left and right
arrow on the screen indicate the user can
select a different PRESET option (1-5).
Press the LEFT or RIGHT ARROW button
on the key pad to scroll through the PRESET
options 1 - 5 (set up in UTILITY
MENU/SET-UP/PRESET, page 25).
Preset Dispense
1. Wake up the metered dispense valve by
pressing any button on the key pad (FIG.
1, page 7).
2. If ACTIVATE (A) is not highlighted, use
the LEFT or RIGHT ARROW button on
the keypad to highlight ACTIVATE (FIG.
31); then press the center, ENTER
button on the keypad to select it.
The following screen (FIG. 32) displays
after ACTIVATE is selected.
3. Squeeze the trigger to dispense fluid. A
numeric volume of dispensed fluid
displays in field (D) and increases while
the fluid is dispensed.
The progress bar (F) fills-in and a
numeric percentage increases as the
amount of fluid dispensed nears the
Preset amount.
4. When the PRESET amount of fluid has
been dispensed the trigger deactivates,
stopping the fluid flow.
FIG. 32
D
F

Preset Mode
20 3A6673B
5. The screen shown in FIG. 33 displays.
Notice the word “DONE” near the top of
the screen, confirming the requested
PRESET amount of fluid has been
dispensed. The progress bar (F) now is
entirely filled in and shows 100% of the
fluid requested has been dispensed and
the Dispensed Fluid Counter (D) now
shows 1.000 matching the chosen
PRESET parameters (K).
6. Use the LEFT ARROW on the keypad to
highlight RESET. Press the ENTER
button on the keypad to reset the meter
to 0.000 to prepare it for the next
dispense.
7. Use the RIGHT ARROW on the keypad
to highlight END. Press the center
ENTER button on the keypad to return to
the Main Menu Screen.
NOTE: If RESET was not selected after
the dispense was completed, the
amount of fluid dispensed in the last
dispense will be shown in this field. If
RESET was selected, the field will show
0.000.
STOP Function
During the dispense the word STOP (FIG. 32)
is highlighted on the lower left corner of the
dispense screen. To interrupt the dispense at
any time during the fill:
1. Release the trigger and press the center
ENTER button on the key pad.
Notice the word “STOPPED” appears
across the top of the display (FIG. 34).
2. Use the LEFT or RIGHT ARROW button
on the keypad to highlight either:
•END - Ends the dispense and
returns the meter to the MAIN
MENU screen.
•PRESET - Allows for increasing,
decreasing or entirely changing the
amount of fluid for the PRESET
selection. The screen shown in FIG.
31 displays. See Function
Command (C)/PRESET, page 18
for instructions on changing the
PRESET).
•RESET - Resets the Dispensed
Fluid Counter (D) back to 0.000.
3. After making changes use the LEFT
ARROW button on the keypad to
highlight END. Press the center ENTER
button on the key pad to select END and
return to the Dispense screen to
complete the dispense.
FIG. 33
D
FK
FIG. 34
