Graco 17G807 Guide

OperationandParts
XP™ XP™
XP™and and andXP XP XP- - -hf™ hf™ hf™PressureTrak PressureTrak PressureTrakKit Kit Kit
3A3320D
EN
Monitors Monitors
Monitorspressures pressures pressuresto to toprovide provide provideratio ratio ratioassurance assurance assuranceon on onXP XP XPand and andXP XP XP- - -hf hf hfplural plural plural- - -component component componentsprayers sprayers sprayersin in inhazardous hazardous hazardous
or or
ornon non non- - -hazardous hazardous hazardouslocations. locations. locations.For For Forprofessional professional professionaluse use useonly. only. only.
Important Important
ImportantSafety Safety SafetyInstructions Instructions Instructions
Readallwarningsandinstructionsinthismanualand and
andthe the theXP XP XP- - -hf hf hf
sprayer sprayer
sprayeroperation operation operationmanual. manual. manual.Save Save Savethese these theseinstructions. instructions. instructions.
17G807 — N3400 PressureTrak Kit
17G808 — N6500 PressureTrak Kit
17N936 — XP - hf PressureTrak Kit
See page 2 for Related Manuals and
Approvals.
W
W
L
L










D
D
PROVENQUALITY.LEADINGTECHNOLOGY.

Contents Contents
Contents
RelatedManuals................................................2
AgencyApprovals...............................................2
Warnings...........................................................3
Overview............................................................4
OperatingWindow.......................................4
ComponentIdenti󰘰cation.....................................5
UserInterface..............................................7
Installation..........................................................9
Startup...............................................................13
Shutdown...........................................................13
Setup.................................................................13
Alarms,Deviations,andAdvisories......................14
ClearAlarms................................................14
ViewCurrentAlarms....................................14
ViewErrorLog.............................................14
ErrorCodes.................................................15
Repair................................................................18
ReplacethePressureTrakModuleBattery
orFuse..........................................18
RetractaSolenoidWithaDead
Battery...........................................19
Parts..................................................................20
Kits17G807and17G808.............................20
Kits17N936.................................................21
AppendixA—UserSetupDisplay.......................22
SetupModeDetails......................................22
RunScreenDetails.............................................25
CirculationMode..........................................25
SprayModeActive.......................................25
AlarmActive................................................25
DeviationActive...........................................26
InformationScreen.......................................26
ManualBypassMode...................................26
TechnicalData...................................................27
Accessories........................................................27
GracoStandardWarranty....................................28
Related Related
RelatedManuals Manuals Manuals
Manual Manual
ManualDescription Description Description
3A0420XPSprayer,Instructionsand
Parts
3A4381XP-hfProportioner,Operation,
RepairandParts
Agency Agency
AgencyApprovals Approvals Approvals
Model Model
ModelAgency Agency AgencyApproval Approval Approval
17G807
17G808
17N936
2
3A3320D

Warnings
Warnings Warnings
Warnings
Thefollowingwarningsareforthesetup,use,grounding,maintenance,andrepairofthisequipment.The
exclamationpointsymbolalertsyoutoageneralwarningandthehazardsymbolsrefertoprocedure-speci󰘰c
risks.Whenthesesymbolsappearinthebodyofthismanualoronwarninglabels,referbacktothese
Warnings.Product-speci󰘰chazardsymbolsandwarningsnotcoveredinthissectionmayappearthroughout
thebodyofthismanualwhereapplicable.
WARNING WARNING
WARNING
SPECIAL SPECIAL
SPECIALCONDITIONS CONDITIONS CONDITIONSFOR FOR FORSAFE SAFE SAFEUSE USE USE
Equipmentmustcomplywiththefollowingconditionstoavoidahazardousconditionwhich
cancause󰘰reorexplosion.
•Alllabelandmarkingmaterialmustbecleanedwithadampcloth(orequivalent).
•Theelectronicmonitoringsystemisrequiredtobegrounded.SeeGrounding Grounding
Groundinginstructions
inyourpumpoperationmanual.
FIRE FIRE
FIREAND AND ANDEXPLOSION EXPLOSION EXPLOSIONHAZARD HAZARD HAZARD
Flammablefumes,suchassolventandpaintfumes,inwork work
workarea area areacanigniteorexplode.Paint
orsolvent󰘱owingthroughtheequipmentcancausestaticsparking.Tohelpprevent󰘰reand
explosion:
•Useequipmentonlyinwellventilatedarea.
•Eliminateallignitionsources;suchaspilotlights,cigarettes,portableelectriclamps,and
plasticdropcloths(potentialstaticsparking).
•Groundallequipmentintheworkarea.SeeGrounding Grounding
Groundinginstructions.
•Neversprayor󰘱ushsolventathighpressure.
•Keepworkareafreeofdebris,includingsolvent,ragsandgasoline.
•Donotplugorunplugpowercords,orturnpowerorlightswitchesonoroffwhen󰘱ammable
fumesarepresent.
•Useonlygroundedhoses.
•Holdgun󰘰rmlytosideofgroundedpailwhentriggeringintopail.Donotusepaillinersunless
theyareanti-staticorconductive.
•Stop Stop
Stopoperation operation operationimmediately immediately immediatelyifstaticsparkingoccursoryoufeelashock. . .Donotuse
equipmentuntilyouidentifyandcorrecttheproblem.
•Keepaworking󰘰reextinguisherintheworkarea.
3A3320D 3

Overview
Overview Overview
Overview
ThepurposeoftheXPPressureTrakistoshutdown
thesprayerifabnormalpressureconditionsare
detectedinordertopreventsprayingmaterialthatis
notmixedonratio.
TwopressuretransducersreadtheAandB󰘱uid
pressuresintheoutletmanifoldandsendthe
readingsbacktotheXPPressureTrak.
TheXPPressureTrakmonitorsthedifference
betweentheAandB󰘱uidpressures,alertingthe
userwhenanimbalanceisdetected.Animbalance
maybeduetoaplug,leak,orrunningoutof󰘱uid.
Whenanimbalanceisdetected,theelectricsolenoid
disablestheairmotor,analarmisdisplayedon
thescreen,andtheLEDonthefrontofthedisplay
󰘱ashes.Formoreerrorcodeinformationsee
Alarms,Deviations,andAdvisories,page14.
Thefollowingalarmscanoccur:
•DifferentialPressure(B>A)
•DifferentialPressure(A>B)
•PressureAHigh
•PressureBHigh
•ElectricSolenoidDisconnected
•PressureADisconnected
•PressureBDisconnected
•LowBattery
•BlownFuse
Operating Operating
OperatingWindow Window Window
Below Below
BelowMinimum Minimum MinimumSpray Spray SprayPressure Pressure Pressure
Theairmotorisallowedtoautomaticallyoperatein
CirculationModeanytimethe󰘱uidpressuresare
belowtheminimumspraypressure.Thisallowsfor
loadingthesystemandcirculatingthe󰘱uidswithout
alarmsorshutdowns.
Above Above
AboveMinimum Minimum MinimumSpray Spray SprayPressure Pressure Pressure
WhentheXPPressureTrakdetectsthe󰘱uid
pressuresabovetheminimumspraypressurefor
30seconds,andthepressuresarebalancedwithin
thepre-setlimits,itwillautomaticallystartpressure
monitoring.IftheXPPressureTrakdoesnotsee
balancedpressureswithin30secondsofgoing
abovetheminimumspraypressure,itwilldetectthe
faultanddisabletheairmotor.Thedefaultminimum
spraypressureis2000psi(14MPa,138bar).Enter
SetupModetochangetheminimumspraypressure
asnecessary(seeSetupModeDetails,page22).
Maximum Maximum
MaximumSpray Spray SprayPressure Pressure Pressure
TheXPPressureTrakwillalarmandshutdownif
itdetectseitherAorB󰘱uidpressuresabovethe
maximumworkingpressure(seetablebelow).Enter
SetupModetoreducethemaximumallowable
pressuresetpoint(seeSetupModeDetails,page22).
Model Model
ModelMaximum Maximum MaximumWorking Working WorkingPressure Pressure Pressure
17C807
17C808
7250psi(500Bar,50MPa)
17N9367500psi(520Bar,52MPa)
4
3A3320D

ComponentIdentication

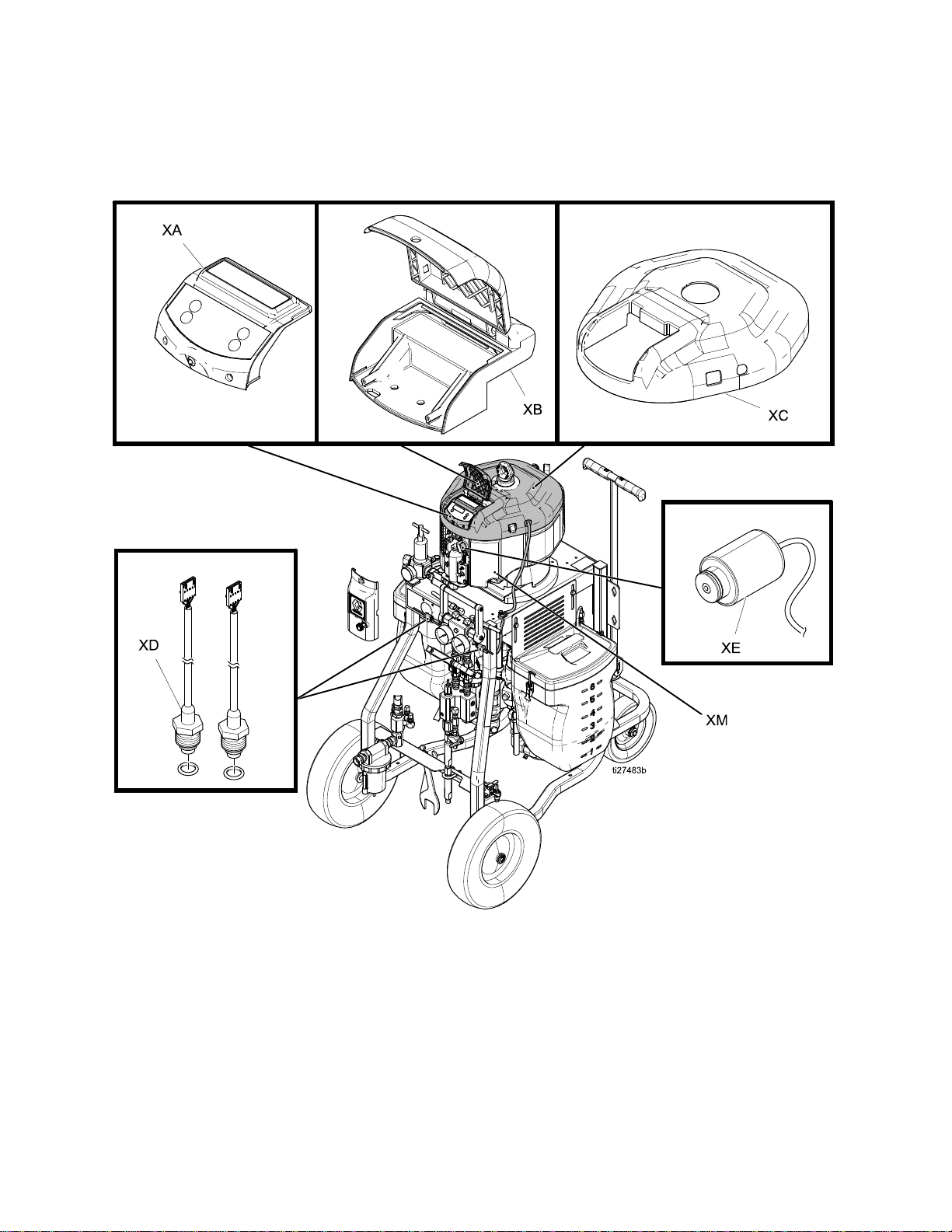

Component Component
ComponentIdenti󰘰cation Identi󰘰cation Identi󰘰cation
XP XP
XPProportioner Proportioner Proportioner(Model (Model (Model571100 571100 571100Shown) Shown) Shown)
Ref. Ref.
Ref.Description Description
Description
XAModule
XBHousing
XCCover
XDPressureSensors
XESolenoid
XMAirMotor
3A3320D 5

ComponentIdentication
XP–hf XP–hf
XP–hfProportioner Proportioner Proportioner(Model (Model (Model572407 572407 572407Shown) Shown) Shown)
W
W
L
L










D
D
,
;
;
$
$
;
;
%
%
;
;
(
(
;
;
'
'
;
;
0
0
;
;
0
0
Ref. Ref.
Ref.Description Description
Description
XAModule
XCCover
XDPressureSensors
XESolenoid
XMAirMotor
6 3A3320D

ComponentIdentication
User User
UserInterface Interface Interface
Table Table
Table1 1 1LCM LCM LCMButton Button ButtonFunctions Functions Functions
Button Button
ButtonFunction Function Function
Arrows
Up/Down
Navigateupordownwithina
screenortoanewscreen.
Softkeysactivatethemodeor
actionrepresentedbytheiconnext
toeachsoftkey.
SeeTable2forsoftkeyiconsand
actions.
TopSoftKey:Editdata,accept
editeddata,ormoverightwithina
selected󰘰eld.
SoftKeys
BottomSoftKey:Enterascreen,
exitascreen,orcancelediteddata.
NOTICE NOTICE
NOTICE
Topreventdamagetosoftkeybuttons,donot
pressthebuttonswithsharpobjectssuchaspens,
plasticcards,or󰘰ngernails.
Table Table
Table2 2 2Display Display DisplaySoft Soft SoftKey Key KeyIcons Icons Icons
Icon Icon
IconFunction Function Function
EnterScreenInscreensthathaveeditable
󰘰elds,presstoaccessthe
󰘰eldsandmakechanges.
ExitScreenInscreensthathaveeditable
󰘰elds,presstoexitedit
mode.
EnterInscreensthathaveeditable
󰘰elds,presstomakedata
selectionsortoenter
changes.
RightInscreensthathaveeditable
󰘰elds,presstomovetothe
rightwhileina󰘰eld.
CancelCancelaselectionoredited
data.Returnstotheoriginal
data.
ClearErrorLogClearentireerrorlog.
NOTE: NOTE:
NOTE:ThedisplaywillturnOFFafteroneminuteof
inactivitytosavebatterylife.ThePressureTrakwill
continuetomonitorthepressures.Pressanykeyto
waketheXPPressureTrakdisplay.
3A3320D
7

ComponentIdentication
Display Display
DisplayScreens Screens Screens
Table3identi󰘰escomponentsshownontheSpray
ModeActive,CirculationModeActive,AlarmActive,
andDeviationActiveRunscreens.Formore
informationseeRunScreenDetails,page25.
Spray Spray
SprayMode Mode ModeActive Active ActiveScreen Screen Screen
Circulation Circulation
CirculationMode Mode ModeActive Active ActiveScreen Screen Screen
Alarm Alarm
AlarmActive Active ActiveScreen Screen Screen
Deviation Deviation
DeviationActive Active ActiveScreen Screen Screen
Table Table
Table3 3 3Display Display DisplayScreens Screens Screens
Icon Icon
IconFunction Function Function
Actualspraypressures.
Differentialpressurealarm
bargraphandpressure
units.
Indicatesthatyouarein
spraymode.
Indicatesthatyouarein
circulationmode.
Indicatesthatthereisan
activealarm.
Indicatesthatthereisan
activedeviation.
8 3A3320D

Installation
Installation Installation
Installation
Installation Installation
Installationfor for forXP XP XPSystem System Systemwith with withNXT NXT NXTMotor Motor Motor
Toreducetheriskofskininjectionandshock,shut
downtheXPSprayerbeforeinstallingyourXP
PressureTrak.FollowtheShutdown Shutdown
ShutdownandPressure Pressure Pressure
Relief Relief
ReliefproceduresintheXPSprayeroperation
manual.
Theproceduresinthissectionarespeci󰘰ctoeach
componentoftheXPPressureTrak.Forsprayer
installationinstructions,refertothesprayeroperation
manual.
1.PerformPressure Pressure
PressureRelief Relief ReliefProcedure Procedure Procedure.Seeyour
XPOperationssprayermanual3A0420.
2.RemovetheexistingNXTairmotorcoverand
front(D)ofthemotorcover.
3.Removetheinsertfromthesolenoidhole(F).
4.Installthesolenoid(XE).Usetheretainer(G)and
twobolts(H)tosecurethesolenoid.
NOTE: NOTE:
NOTE:Theholesinthecastingmaynothave
threads,butthescrewsarethread-forming.
5.Passthepressuresensor(4aand4b)through
slot(K)andthesolenoid(XE)throughslot(J)in
thehousing(XB)andsecurethehousingtothe
airmotorwithtwobolts(6).
6.Reinstallthefront(D)andinstalltheXP
PressureTrakcover(3).
7.Connectthepressuresensorcablestothe
connectorsonthecircuitboard.NOTE: NOTE:
NOTE:Besure
tomatchthecolorcodes(connectthebluecord
toJ6,circuitboardlabeledAandgreencordto
J7,circuitboardlabeledB).Connectthesolenoid
toJ3,thenconnectthebatterytothebattery
terminals.
8.Slidethemodule(XA)intothechannelofthe
housing(XB)andsecurewithtwoscrews(5).
9.Inserto-ring(11)onpressuresensor(XD).
Lubricateo-ringandinstallintotheAside(blue)
ofthemanifold.Torquesensornutto40–50
in-lb(54–67N•m).Inserto-ring(11)onpressure
sensor(XD).Lubricateo-ringandinstallintothe
Bside(green)ofthemanifold.Torquesensor
nutto40–50in-lb(54–67N•m).
10.Installthepressuresensorharness(XD)through
clamp(10)andsecuretotheframewithscrew
(8)andnut(9).
3A3320D 9

Installation
Installation Installation
Installation- - -XP XP XPSystem System Systemwith with withNXT NXT NXTMotor Motor Motor
10 3A3320D

Installation
Installation Installation
Installationfor for forXP-hf XP-hf XP-hfSystem System Systemwith with with
Xtreme Xtreme
XtremeXL XL XLMotor Motor Motor
Toreducetheriskofskininjectionandshock,shut
downtheXPSprayerbeforeinstallingyourXP
PressureTrak.FollowtheShutdown Shutdown
ShutdownandPressure Pressure Pressure
Relief Relief
ReliefproceduresintheXPSprayeroperation
manual.
Theproceduresinthissectionarespeci󰘰ctoeach
componentoftheXPPressureTrak.Forsprayer
installationinstructions,refertothesprayeroperation
manual.
1.PerformPressure Pressure
PressureRelief Relief ReliefProcedure Procedure Procedure.Seeyour
XP-hfOperationssprayermanual3A4381.
2.Removethetwotopbolts(L)ontheXLMotor
manifold.UsetheboltstoinstalltheXP-hf
PressureTrakmodule.
3.Removetheplug(126)ando-ring(125)by
removingtheretainingring(127).
4.Removetworightsidebolts(23)formtheXL
motorvalve.
5.Installsolenoid(8)intothesolenoidhole.
6.Boltdownthesolenoidholdingbracket(17)with
twoboltswhilepushingthebrackettotheleftto
holdthesolenoidtightinthehole.
7.Inserto-ring(19)onpressuresensor(XD).
Lubricateo-ringandinstallintotheAside(blue)
ofthemanifold.Torquesensornutto40–50
in-lb(54–67N•m).Inserto-ring(19)onpressure
sensor(XD).Lubricateo-ringandinstallintothe
Bside(green)ofthemanifold.Torquesensor
nutto40–50in-lb(54–67N•m).
8.Installthepressuresensorharness(XD)through
clamp(20)andsecuretotheframewithscrew
(4)andnut(5).
9.Removescrews(9)toslideoutmodule(6).
10.Connectthebatterytothebatteryterminals.
11.Slidethemodule(XA)intothechannelofthe
housing(XB)andsecurewithtwoscrews(9).
3A3320D
11

Installation
Installation Installation
Installation– – –XP-hf XP-hf XP-hfSystem System Systemwith with withXtreme Xtreme XtremeXL XL XLMotor Motor Motor
W
W
LL     DD





 

 

 
)
)
//


















;
;
$
$
;; %%
;
;
'
'
;
;
'
'













 










12
3A3320D

Startup
Startup Startup
Startup
1.RefertoyourXPsprayeroperationmanualfor
sprayerstartupinstructions.
NOTE: NOTE:
NOTE:TheXPPressureTrakmodi󰘰esXP
sprayers.However,theoperationprocedures
fromtheXPsprayeroperationmanualstillapply.
2.PressanykeytowaketheXPPressureTrak.The
displaywillturnoffinoneminutetosavebattery
life,butwillcontinuetomonitorthepressures.
NOTE: NOTE:
NOTE:ToenterintoSetup,pressandholdany
buttonforthreeseconds.
Shutdown Shutdown
Shutdown
RefertoyourXPsprayeroperationmanualfor
sprayershutdowninstructions.TheXPPressureTrak
willenterahibernationmodetosavebatterylife.
Setup Setup
Setup
1.ToenterintoSetup,pressandholdanybutton
forthreeseconds.
2.Setthesystemparametersbeforespraying.
Thesecanbechangedasnecessary(see
SetupModeDetails,page22).
3A3320D 13

Alarms,Deviations,andAdvisories
Alarms, Alarms,
Alarms,Deviations, Deviations, Deviations,and and and
Advisories Advisories
Advisories
Therearethreetypesoferrorsthatcanoccur:
Alarms,Deviations,andAdvisories.Errorsare
indicatedbythe󰘱ashingredLEDaswellasonthe
display.
Alarms Alarms
Alarms,indicatedby,requireimmediateattention;
therefore,theXPPressureTrakdisablestheairmotor
andthealarmscreenautomaticallydisplays.
Deviations Deviations
Deviations,indicatedby,requireattention,but
notimmediately.
Advisories Advisories
Advisories,indicatedby,donotrequireattention.
Therefore,ifadeviationoradvisoryoccur,the
systemcontinuesrunningandorisdisplayed
ontherunscreen.
ThefollowingtableshowsthestatusofthefrontLED
forAlarmsandAdvisories.
Front Front
FrontLED LED LEDDescription Description Description
OFFSystemispoweredupand
monitoringpressure.
OFFInCirculationModeorManual
BypassMode.
OFFAdeviationexists.
RedFlashAnalarmexistsandthesystem
shutsdown.
Clear Clear
ClearAlarms Alarms Alarms
1.TurntheairvalvetoOFF.
2.Reducetheairpressureregulatortominimum.
3.Waitfortheairpressuretodrop.
4.Clearthecauseoftheerror.
5.Press.
NOTE: NOTE:
NOTE:Ifthesystemhaspressurewhen
ispressed,thescreenwillchangetoindicate
thisasthescreensbelow.Ifthesescreensare
displayed,repeatsteps1through5.
XP XP
XPPressureTrak PressureTrak PressureTrak
XP XP
XP- - -hf hf hfPressureTrak PressureTrak PressureTrak
6.TurntheairvalvetoON.
7.Increasethepressuretoachievethebestpattern.
NOTE: NOTE:
NOTE:Whentryingtoclearanerrorandthescreen
displaysthe“X”,theunitdidnotretractthesolenoid
andisinan8seconddelayperiodbeforeanattempt
canbetriedtoretractthesolenoid.Verifyair
pressurehasdropped.
View View
ViewCurrent Current CurrentAlarms Alarms Alarms
TotogglethescreensbetweentheAlarmInformation
ScreenandtheRunAlarmActiveScreen,press
or.
View View
ViewError Error ErrorLog Log Log
SetupScreen3istheerrorlogscreen.Itdisplaysthe
mostrecenterroronthetopofthelistwiththepast20
errorsbelowit.Thisscreendisplaysalistofadvisory
oralarmerrorcodesandthetimetheerroroccurred
sincetheunitwenttospraymode.Thetimerwill
restartwhenthepressurefallsandunitentersinto
circulationmode,orwhenthetimerrollsover23:59.
14
3A3320D

Alarms,Deviations,andAdvisories
Error Error
ErrorCodes Codes Codes
Code Code
CodeIcon Icon
IconCode Code
CodeName Name NameLED LED LEDStatus Status StatusCause Cause CauseSolution Solution Solution
Alarms Alarms
Alarms
RanoutofBsidematerial.Re󰘰llhopperorchange
drum.
CavitatingBsidepump.Warmmaterialoraddfeed
pressure.
Bmaterialleaking.Followpump
troubleshootinginXP70
Sprayermanual.
NomixmanifoldBside
restriction.
AddrestrictiontoBside
onmixmanifoldtobalance
pressures.
Asidehoseistoosmall.Changetolargerhose
size.
ToomuchBsideoffsetin
controlsetup.
AdjustBsideoffset
insetupscreensifB
normallyrunsatahigher
pressurethanA.
J4AX J4AX
J4AXDifferential
Pressure
(A>B)
FlashingRed
Impropercon󰘰guration.Adjustsetpointsonsetup
screens.SeeSetupMode
Details,page22.
RanoutofAsidematerial.Re󰘰llhopperorchange
drum.
CavitatingAsidepump.Warmmaterialoraddfeed
pressure.
Amaterialleaking.Followpump
troubleshootinginXP70
Sprayermanual.
Toomuchrestriction
onmixmanifoldBside
restriction.
ReducerestrictiontoB
sideonmixmanifold.
*Bsidehoseistoosmall.Changetolargerdiameter
hosesize.
*NoBsideoffsetin
controlsetup.
AdjustBsideoffsetin
setupscreensifBnor-
mallyrunsatahigher
pressurethanA.See
SetupModeDetails,page
22.
J4BX J4BX
J4BXDifferential
Pressure
(B>A)
FlashingRed
Impropercon󰘰guration.Adjustsetpointsonsetup
screens.SeeSetupMode
Details,page22.
Brokencable.Replacetransducer.
P6AX P6AX
P6AXPressureA
Disconnected
FlashingRed
Disconnectedcable.Connectcable.
Brokencable.Replacetransducer.
P6BX P6BX
P6BXPressureB
Disconnected
FlashingRed
Disconnectedcable.Connectcable.
3A3320D 15

Alarms,Deviations,andAdvisories
Code Code
CodeIcon Icon
IconCode Code
CodeName Name NameLED LED LEDStatus Status StatusCause Cause CauseSolution Solution Solution
Alarms Alarms
Alarms
Brokencable.Replacecable.
Disconnectedcable.Connectcable.
WJPX WJPX
WJPXAirSolenoid
Disconnected
FlashingRed
Damagedsolenoid.Replacesolenoid.
P4AX P4AX
P4AXPressureA
High
FlashingRedApressureexceeded
maximumworking
pressuresetpoint.
Reduceairpressureto
motororadjustsetpoint.
Reduceairpressureto
motororadjustsetpoint.
Apressureexceeded
maximumworking
pressuresetpoint.Opendownstreamvalve.
Toomuchrestriction
onmixmanifoldBside
restriction.
ReducerestrictiontoB
sideonmixmanifold.
Reducedownstream
restriction.
P4BX P4BX
P4BXPressureB
High
FlashingRed
BlockageinBline
downstream.
Cleanmixmanifold.
BATT BATT
BATTLowBatteryFlashingRedBatteryislow.SeeRepair,page18.
FUSE FUSE
FUSEBlownFuseFlashingRedFuseisblown.SeeRepair,page18for
informationonhowto
checkthefuse.
System
Pressurized
FlashingRedSystemispressurized
whenclearinganalarm.
Shutoffairpressureand
waitforairpressureto
drop.
SystemPressurizedFlashingRedOnlytheXP-hfwillhavetheseimagesiftheair
pressureisnotturneddown.Aftershuttingofftheairpressure,pressthepinuntil󰘱ush.
*Remotemixmanifoldapplicationsonly.
16 3A3320D

Alarms,Deviations,andAdvisories
Code Code
CodeIcon Icon
IconCode Code
CodeName Name NameLED LED LEDStatus Status StatusCause Cause CauseSolution Solution Solution
Deviations Deviations
Deviations
RanoutofBsidematerial.Re󰘰llhopperorchange
drum.
CavitatingBsidepump.Warmmaterialoradd
feedpressure.
Bmaterialleaking.Followpump
troubleshootinginXP70
Sprayermanual.
NomixmanifoldBside
restriction.
AddrestrictiontoBsideon
mixmanifoldtobalance
pressures.
J3AX J3AX
J3AXDifferential
Pressure
(A>B)
OFF
Asidehoseistoosmall.Changetolargerhose
size.
RanoutofAsidematerial.Re󰘰llhopperorchange
drum.
CavitatingAsidepump.Warmmaterialoradd
feedpressure.
Amaterialleaking.Followpump
troubleshootinginXP70
Sprayermanual.
Toomuchrestriction
onmixmanifoldBside
restriction.
ReducerestrictiontoGB
sideonmixmanifold.
*Bsidehosetoosmall.Changetolargerhose
size.
J3BX J3BX
J3BXDifferential
Pressure
(B>A)
OFF
*NoBsideoffsetin
controlsetup.
AddBsideoffsetinsetup
screen.
Events Events
Eventsand and andAdvisories Advisories Advisories
EERX EERX
EERXUnder
Minimum
Spray
Pressure,
Circulation,
Loading
OFF
Underminimumspray
pressure.
Normalforcirculation
mode.
EVRX EVRX
EVRXEnteredinto
spraymode
OFFPressurewentabove
minimumspraylimitNormalforspraymode.
*Remotemixmanifoldapplicationsonly.
3A3320D
17

Repair
Repair Repair
Repair
Replace Replace
Replacethe the thePressureTrak PressureTrak PressureTrakModule Module Module
Battery Battery
Batteryor or orFuse Fuse Fuse
Thebatteryandfusemustbereplacedina
non-hazardouslocation.
1.Removethetwoscrews(135).Carefullyslidethe
PressureTrakmodule(131)outofthehousing
(132).
XP XP
XPSystem System System
XP-hf XP-hf
XP-hfSystem System System
W
W
L
L










D
D
2.Disconnecttheelectricsolenoid(7)andpressure
sensorcables(4)fromthemoduleboard.
3.TakethePressureTrakmodule(131)toa
non-hazardouslocation.
Useonlythefollowingapprovedreplacement
batteries.Useofanunapprovedbatterywill
voidtheGracowarranty,aswellasIntertek
andExapprovals.
•Ultralife®brandlithium#U9VL
•Duracell®brandalkaline#MN1604
•Energizer®brandalkaline#522
•Varta®brandalkaline#4922
4.To To
Toreplace replace replacethe the thebattery, battery, battery,disconnecttheused
batteryandreplacewithanapprovedbattery.
UseonlyaGraco-approvedreplacementfuse
(12)Gracopartnumber24V216.
5.Checking Checking
Checkingthe the thefuse fuse fuse(12): (12): (12):
a.Removethefusefromthecircuitboard.
b.Useanohmmetertomeasuretheresistance
ofthefuse.NOTE: NOTE:
NOTE:Lessthan6ohmsmeans
thefuseisgood.6ohmsormoremeansthe
fusemustbereplaced.
6.To To
Toreplace replace replacethe the thefuse fuse fuse(12): (12): (12):
a.Pullthefuseawayfromtheboard.
b.Replacewithanewfuse(12).
18 3A3320D

Repair
Retract Retract
Retracta a aSolenoid Solenoid SolenoidWith With Witha a aDead Dead Dead
Battery Battery
Battery
Firstreplacethebatteryandcleartheerror(thiswill
retractthepin).Ifnoreplacementbatteryisavailable,
completethefollowingstepstoretractthesolenoid.
1.Removecover(3),front(D),andretainer(G).
2.Pushpinbackintosolenoid(7).
3.Reinstallsolenoid(7),retainer(G),front(D),and
cover(3).
NOTE: NOTE:
NOTE:Formoredetailonpartsorientation,
seeInstallation,page9.
3A3320D 19

Parts
Parts Parts
Parts
Kits Kits
Kits17G807 17G807 17G807and and and17G808 17G808 17G808
Ref. Ref.
Ref.Part Part
PartDescription Description DescriptionQty. Qty.
Qty.
124Y281MODULE,hazardous
locationpressuremonitor
1
224Y932HOUSING,PressureTrak,
machined
1
317G839COVER,PressureTrak,
NXT3400
1
17G840COVER,PressureTrak,
NXT6500
1
417G837SENSOR,PressureTrak,
assy
1
5–––––SCREW,high-low,󰘱at
had#6x.625
2
6–––––SCREW,thdforming2
Ref. Ref.
Ref.Part Part
PartDescription Description DescriptionQty. Qty.
Qty.
7NXT403SOLENOID,locking,DC1
8–––––SCREW,󰘱anged,hexhd1
9–––––NUT,hex,󰘱angehead1
10–––––CLAMP,cable1
11–––––PACKING,o-ring2
1224V216KIT,repair,fuseassembly1
13▲15F716LABEL,warning1
14NXT405KIT,membraneshield1
▲
Replacement Danger and Warning labels are
available at no cost.
20 3A3320D
