Graco XTR7+ XTR720 User manual

3A7469D
EN
Instructions
XTR5+™ and XTR7+™
Airless Spray Gun
For use with protective coating materials. For professional use only.
XTR5+
5000 psi (35 MPa, 345 bar) Maximum
Working Pressure
XTR7+, XTR7+ High Flow
7250 psi (50 MPa, 500 bar) Maximum
Working Pressure
Important Safety
Instructions
Read all warnings and instructions
in this manual before using the
equipment. Save these instructions.
Important Medical
Information
Read the medical alert card
provided with the gun. It contains
injection injury treatment
information for a doctor. Keep it
with you when operating the
equipment.
WLD
II 2 G Ex h T6 Gb

Contents
2 3A7469D
Contents
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
XTR5+ Airless Spray Gun . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
XTR7+ Airless Spray Gun . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
XTR7+ High Flow Airless Spray Gun . . . . . . . . . . . . . . . . . . . 3
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Gun Trigger Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Spray Tip Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Pressure Relief Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Spray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Adjust Spray Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Clean Spray Tips/Clear Clogs . . . . . . . . . . . . . . . . . . . . . . . . 10
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Flushing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Clean and Replace Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Cleanup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Trigger Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Test Gun Before Using . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
XTR5+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
XTR7+, XTR7+ High Flow . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Models
3A7469D 3
Models
XTR5+ Airless Spray Gun
XTR7+ Airless Spray Gun
XTR7+ High Flow Airless
Spray Gun
Part
Number Description
XTR520 1 in. round handle, four-finger
trigger, no tip
XTR521* 1 in. round handle, four-finger
trigger, flat tip
XTR522* Oval insulated handle, four-finger
trigger, XHD RAC tip
XTR523* Oval insulated handle, two-finger
trigger, XHD RAC tip
XTR524* 1 in. round handle, four-finger
trigger, XHD RAC tip
XTR525* 1 in. round handle, two-finger
trigger, XHD RAC tip
XTR530 1 in. round handle, four-finger
trigger, no filter, XHD RAC 529 tip
*Includes 519 Tip
Part
Number Description
XTR720 Round handle, four-finger trigger,
no tip
XTR721* Round handle, four-finger trigger,
flat tip
XTR722* Oval insulated handle, four-finger
trigger, XHD RAC tip
XTR723* Oval insulated handle, two-finger
trigger, XHD RAC tip
XTR724* Round handle, four-finger trigger,
XHD RAC tip
XTR725* Round handle, two-finger trigger,
XHD RAC tip
*Includes 519 Tip
Part
Number Description
XTR710 High flow, round handle, four-finger
trigger, no tip
XTR711* High flow, round handle, four-finger
trigger, flat tip
XTR712* High flow, oval insulated handle,
four-finger trigger, XHD RAC tip
XTR713* High flow, oval insulated handle,
two-finger trigger, XHD RAC tip
XTR714* High flow, round handle, four-finger
trigger, XHD RAC tip
XTR715* High flow, round handle, two-finger
trigger, XHD RAC tip
* Includes 531 Tip

Warnings
4 3A7469D
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this
equipment. The exclamation point symbol alerts you to a general warning and the hazard
symbols refer to procedure-specific risks. When these symbols appear in the body of this
manual or on warning labels, refer back to these Warnings. Product-specific hazard symbols
and warnings not covered in this section may appear throughout the body of this manual where
applicable.
WARNING
SKIN INJECTION HAZARD
High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin.
This may look like just a cut, but it is a serious injury that can result in amputation. Get
immediate surgical treatment.
•Do not spray without tip guard and trigger guard installed.
•Engage trigger lock when not spraying.
•Do not point gun at anyone or at any part of the body.
•Do not put your hand over the spray tip.
•Do not stop or deflect leaks with your hand, body, glove, or rag.
•Follow the Pressure Relief Procedure when you stop spraying and before
cleaning, checking, or servicing equipment.
•Tighten all fluid connections before operating the equipment.
•Check hoses and couplings daily. Replace worn or damaged parts immediately.
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or
explode. Paint or solvent flowing through the equipment can cause static sparking.
To help prevent fire and explosion:
•Use equipment only in well-ventilated area.
•Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric
lamps, and plastic drop cloths (potential static sparking).
•Ground all equipment in the work area. See Grounding instructions.
•Never spray or flush solvent at high pressure.
•Keep work area free of debris, including solvent, rags and gasoline.
•Do not plug or unplug power cords, or turn power or light switches on or off when
flammable fumes are present.
•Use only grounded hoses.
•Hold gun firmly to side of grounded pail when triggering into pail. Do not use pail
liners unless they are anti-static or conductive.
•Stop operation immediately if static sparking occurs or you feel a shock. Do
not use equipment until you identify and correct the problem.
•Keep a working fire extinguisher in the work area.

Warnings
3A7469D 5
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
•Do not operate the unit when fatigued or under the influence of drugs or alcohol.
•Do not exceed the maximum working pressure or temperature rating of the
lowest rated system component. See Technical Specifications in all equipment
manuals.
•Use fluids and solvents that are compatible with equipment wetted parts. See
Technical Specifications in all equipment manuals. Read fluid and solvent
manufacturer’s warnings. For complete information about your material, request
Safety Data Sheets (SDSs) from distributor or retailer.
•Do not leave the work area while equipment is energized or under pressure.
•Turn off all equipment and follow the Pressure Relief Procedure when
equipment is not in use.
•Check equipment daily. Repair or replace worn or damaged parts immediately
with genuine manufacturer’s replacement parts only.
•Do not alter or modify equipment. Alterations or modifications may void agency
approvals and create safety hazards.
•Make sure all equipment is rated and approved for the environment in which you
are using it.
•Use equipment only for its intended purpose. Call your distributor for information.
•Route hoses and cables away from traffic areas, sharp edges, moving parts, and
hot surfaces.
•Do not kink or over bend hoses or use hoses to pull equipment.
•Keep children and animals away from work area.
•Comply with all applicable safety regulations.
PRESSURIZED ALUMINUM PARTS HAZARD
Use of fluids that are incompatible with aluminum in pressurized equipment can
cause serious chemical reaction and equipment rupture. Failure to follow this warning
can result in death, serious injury, or property damage.
•Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated
hydrocarbon solvents or fluids containing such solvents.
•Do not use chlorine bleach.
•Many other fluids may contain chemicals that can react with aluminum. Contact
your material supplier for compatibility.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on
skin, inhaled, or swallowed.
•Read Safety Data Sheets (SDSs) to know the specific hazards of the fluids you
are using.
•Store hazardous fluid in approved containers, and dispose of it according to
applicable guidelines.
WARNING

Warnings
6 3A7469D
BURN HAZARD
Equipment surfaces and fluid that is heated can become very hot during operation.
To avoid severe burns:
•Do not touch hot fluid or equipment.
RECOIL HAZARD
Gun may recoil when triggered. If you are not standing securely, you could fall and
be seriously injured.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious
injury, including eye injury, hearing loss, inhalation of toxic fumes, and burns.
Protective equipment includes but is not limited to:
•Protective eyewear, and hearing protection.
•Respirators, protective clothing, and gloves as recommended by the fluid and
solvent manufacturer.
WARNING

Installation
3A7469D 7
Installation
Grounding
Check your local electrical code and pump
or sprayer manual for detailed grounding
instructions.
Spray gun: ground through connection to a
properly grounded fluid hose and pump.
Fluid hose: use only electrically conductive
hoses with a maximum of 500 ft. (150 m)
combined hose length to ensure grounding
continuity. Check electrical resistance of
hoses. If total resistance to ground exceeds
29 megohms, replace hose immediately.
Fluid supply container: follow local code.
Object being sprayed: follow local code.
Solvent pails used when flushing: follow
local code. Use only conductive metal pails,
placed on a grounded surface. Do not place
the pail on a nonconductive surface, such as
paper or cardboard, which interrupts
grounding continuity.
To maintain grounding continuity when
flushing or relieving pressure: hold metal
part of the spray gun firmly to the side of a
grounded metal pail, then trigger the gun.
System Requirements
•Install a bleed-type master air valve on a
pneumatic pump air supply line to relieve
air trapped between this valve and pump
after air regulator is shut off. Trapped air
can cause the pump to cycle
unexpectedly.
•Install a fluid drain valve between the
pump and gun to relieve pressure in
displacement pump, hose, and gun.
Triggering to relieve pressure may not
be sufficient. See the Pressure Relief
Procedure, page 9.

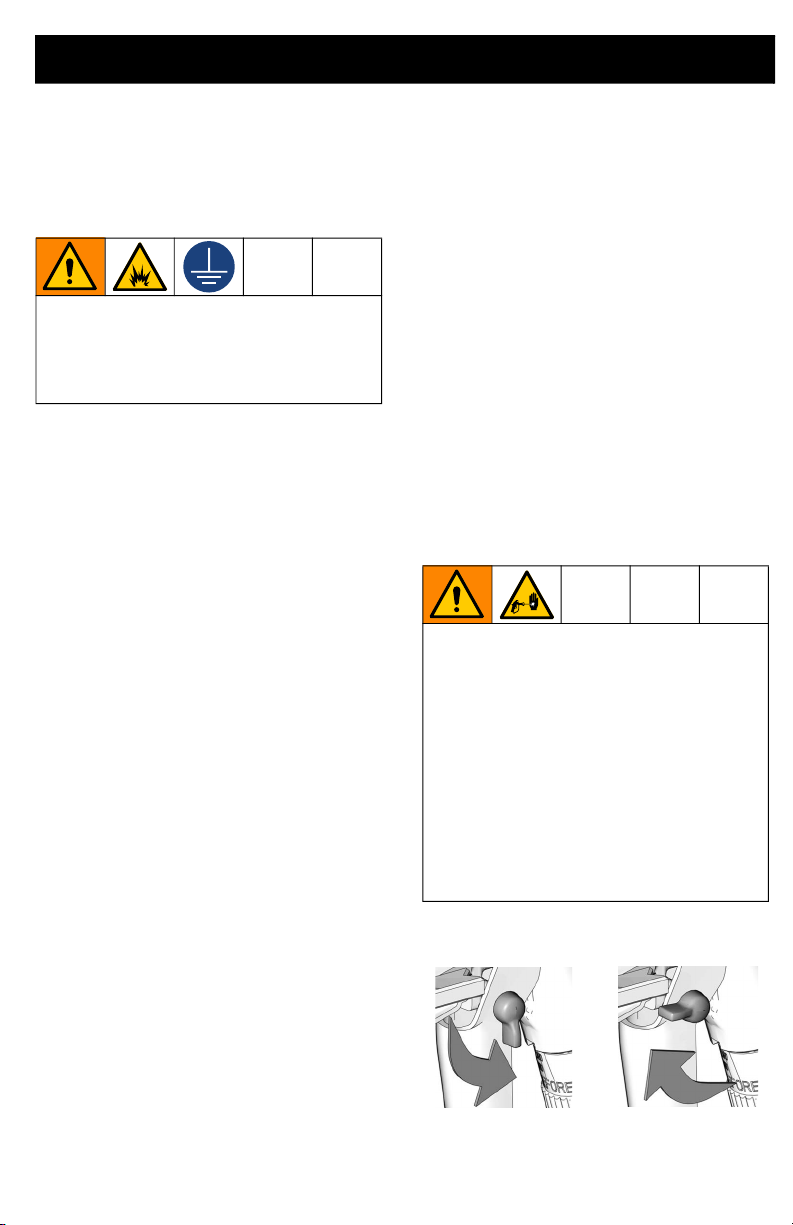

Gun Trigger Lock
The equipment must be grounded to
reduce the risk of static sparking. Static
sparking can cause fumes to ignite or
explode. Grounding provides an escape
wire for the electric current.
To prevent injury when the gun is not in
use, always engage the gun’s trigger lock
if unit is being shut down or left
unattended. A wallet-sized warning card
with important injection treatment
information is included with the gun.
Additional cards are available at no
charge. Provide a card to all operators.
The trigger lock must move freely, and
easily snap into the locked position. If the
trigger lock is damaged or movement is
restricted, replace with new trigger kit (16)
immediately.
Trigger Locked
(no spray)
Trigger Unlocked
(spray)

Installation
8 3A7469D

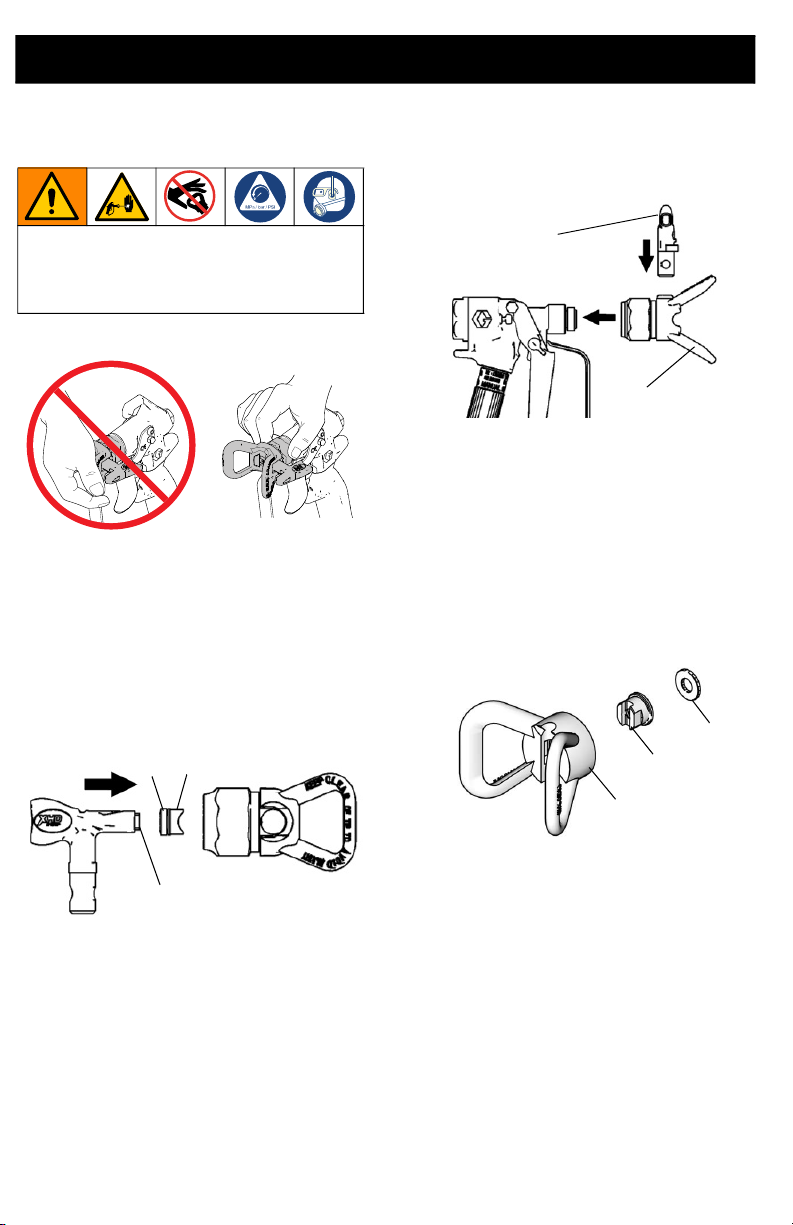

Spray Tip Installation
RAC Tip
1. Follow the Pressure Relief Procedure,
page 9.
2. Engage the trigger lock.
3. Snap gasket (20b) on fluid seal (20a).
Use tool (A) to insert gasket and seal into
housing, seal first. Tip the tool to remove
it when seal is in place.
4. Install tip cylinder (20c) as shown. Turn
90° counterclockwise to spray position,
so the arrow faces forward. Install the
RAC tip guard (19) onto spray gun.
Flat Tip
1. Follow the Pressure Relief Procedure,
page 9.
2. Engage the trigger lock.
3. Insert tip (32) and gasket (30) into back
of tip guard (31).
4. Install the tip guard (31) over the end of
the gun.
To avoid serious injury from skin injection,
do not put your hand in front of the spray
tip when installing or removing the spray
tip and tip guard.
NO YES
A
20b 20a
20c
19
31
32
30

Operation
3A7469D 9
Operation
Pressure Relief Procedure
Follow the Pressure Relief
Procedure whenever you see this
symbol.
1. Engage the trigger lock.
2. Shut off the pump.
3. Disengage the trigger lock.
4. Hold a metal part of the gun firmly to a
grounded metal pail. Trigger the gun to
relieve pressure.
5. Engage the trigger lock.
6. Open the fluid drain valve over a waste
container (see System Requirements,
page 7). Leave drain valve open until
fluid is dispensed.
If pressure is not fully relieved:
•Spray tip is clogged. For RAC tip, see
Clean Spray Tips/Clear Clogs, page
10. For flat tip, slowly loosen tip guard
retaining nut to relieve pressure.
Remove and clean the tip.
•Hose is clogged. Slowly loosen hose end
coupling to relieve pressure. Clean the
hose obstruction.
Spray
1. Connect a grounded fluid hose.
2. Without spray tip and tip guard attached,
flush the pump. Use the lowest pressure
possible.
3. Prime. Refer to the sprayer manual.
4. Follow the Pressure Relief Procedure,
page 9.
5. Install the spray tip and tip guard.
6. RAC tips only: In spray position, arrow
on tip cylinder (20c) faces forward.
7. Hold the gun perpendicular and
approximately 12 in. (304 mm) from the
surface. Wear gloves if the fluid
temperature exceeds 110°F (43°C).
8. Move the gun first, then pull the gun
trigger to spray onto test paper.
a. Adjust the fluid pressure until spray
is completely atomized.
b. If adjusting the pressure does not
give a good spray pattern, follow
Pressure Relief Procedure, page
9, then try another tip size.
9. Trigger the gun full-open or full-close.
This equipment stays pressurized until
pressure is manually relieved. To help
prevent serious injury from pressurized
fluid such as skin injection and splashing
fluid, follow the Pressure Relief Procedure
when you stop spraying and before
cleaning, checking, or servicing the
equipment.
20c

Operation
10 3A7469D
Adjust Spray Pattern
The spray tip orifice and spray angle
determine pattern coverage and size. When
you need more coverage, use a larger spray
tip rather than increasing fluid pressure.
1. Follow the Pressure Relief Procedure,
page 9.
2. Engage the trigger lock.
3. Loosen tip guard retaining nut.
4. Align the guard horizontally to spray a
horizontal pattern. Align guard vertically
to spray a vertical pattern.
5. Tighten the nut.
Clean Spray Tips/Clear
Clogs
NOTE: Clean the spray tip and tip guard at
the end of each workday.
Clean the spray tip
RAC tips
1. Engage the trigger lock.
2. Rotate tip 180 so arrow on top tip
cylinder (20c) faces backward.
Disengage the trigger lock.
3. Trigger the gun into a pail or onto the
ground to remove clog.
4. Engage the trigger lock.
5. Rotate tip 180 back to spray position.
6. If the RAC tip is still clogged:
a. Shut off sprayer and disconnect
power source.
b. Slowly open the fluid drain valve
(see System Requirements, page
7) to relieve pressure.
c. Remove and clean the spray tip.
Flat tips
1. Follow the Pressure Relief Procedure,
page 9.
2. Remove tip and clean with a
solvent-soaked brush.
20c

Maintenance
3A7469D 11
Maintenance
Flushing
Flush the pump and gun before fluid can dry
in it. If available, use flushing procedure
provided in your pump manual instead of
this procedure.
1. Follow the Pressure Relief Procedure,
page 9.
2. Engage the trigger lock.
3. Remove the spray tip and tip guard from
gun. Clean with solvent.
4. Put the pump intake in a grounded pail of
compatible solvent.
5. Start the pump at its lowest pressure.
6. Disengage trigger lock.
7. Trigger the gun into the paint pail. When
solvent appears, release trigger.
8. Trigger the gun into solvent pail.
Circulate fluid until the system is
thoroughly flushed.
9. Follow the Pressure Relief Procedure,
page 9.
10. Engage the trigger lock.

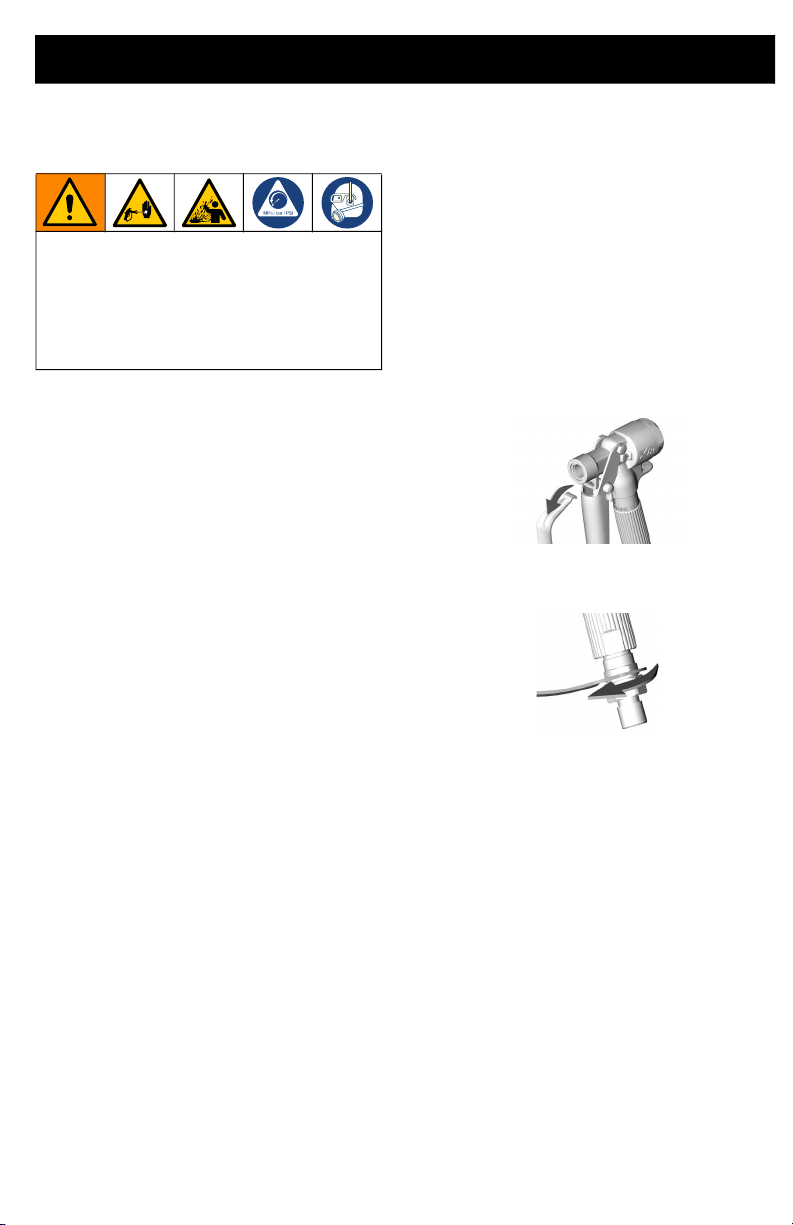

Clean and Replace Filter
(Not applicable for XTR530,
XTR710-XTR715, and 17V677)
1. Follow the Pressure Relief Procedure,
page 9.
2. Engage the trigger lock.
3. Disconnect the trigger guard from the
gun body by pushing up on the guard
hook and pulling it out of the notch.
4. The trigger guard beneath the gun
handle can then be used as a wrench to
loosen the nut.
5. When the alignment notches are no
longer engaged, use your hand to twist
the handle and remove it from the gun
head.
6. Remove the filter.
7. Clean the filter using a soft brush.
8. Replace the filter.
9. Apply a light coating of grease to the
threads and then attach.
10. Use the trigger guard to tighten the nut.
11. Reattach the trigger guard to the gun.
Cleanup
Flush the gun after each work shift and store
in a dry location. Do not leave the gun or
any parts in water or cleaning solvents.
Failure to clean or replace the filter or a
damaged handle bore can result in
serious injury.
Before performing any maintenance on
the gun, read all warnings in this manual
and relieve pressure.

Repair
12 3A7469D
Repair

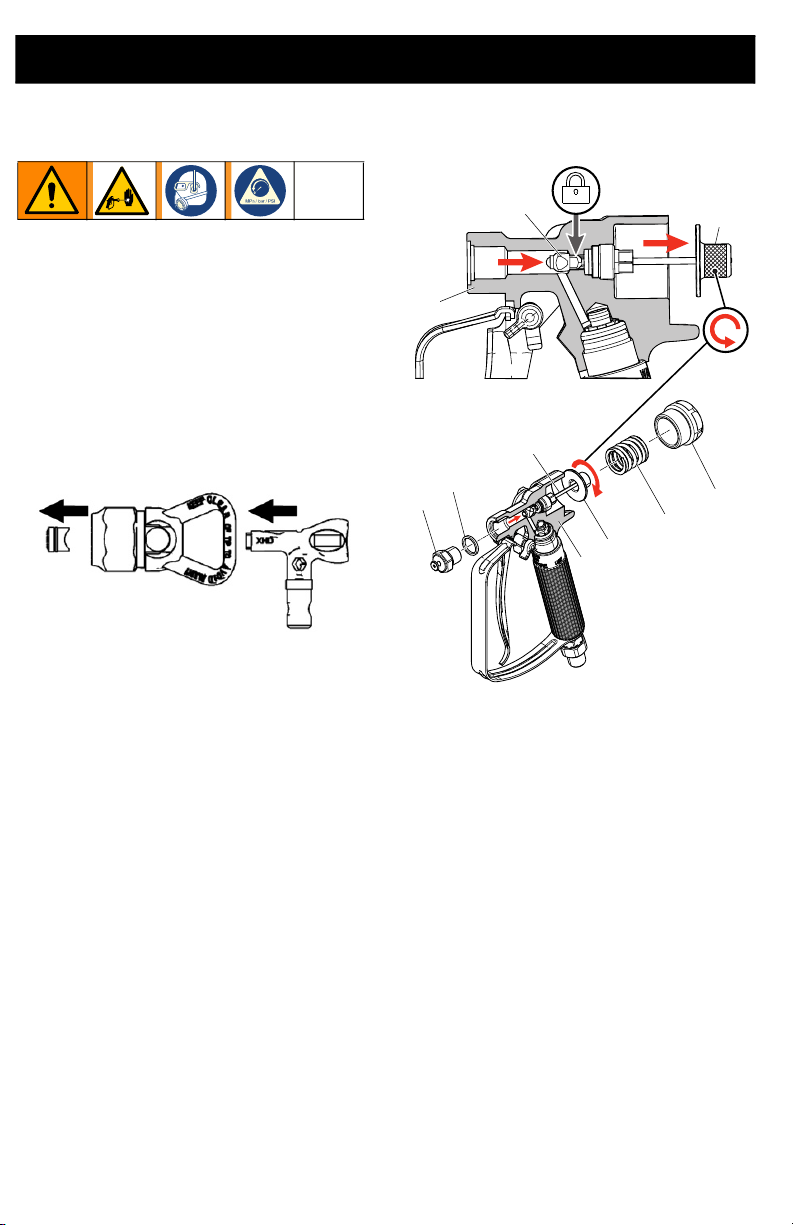

Disassembly
1. Follow the Pressure Relief Procedure,
page 9.
2. Engage the trigger lock.
3. Disconnect the fluid hose. Remove the
RAC tip guard and tip (19 and 20a–20c)
or flat tip guard and tip (30, 31, and 32).
4. RAC tip only: Use tool to push gasket
and seal out the back of the housing.
5. Using a wrench, remove the cap (4) with
spring (5) (releases spring tension on
needle).
6. Remove the valve seat (10) and gasket
(9).
7. Pull needle retainer (6) back. Make sure
needle (8) is seated in broached gun
body (1). Turn needle retainer counter
clockwise to unfasten.
8. Pull the needle (8) out.
9. Using a socket wrench, remove the seal
retainer (2) from the back of the gun. Use
a pick to remove the gasket (3).
10. Clean and replace parts as needed.
WLD











Repair
3A7469D 13

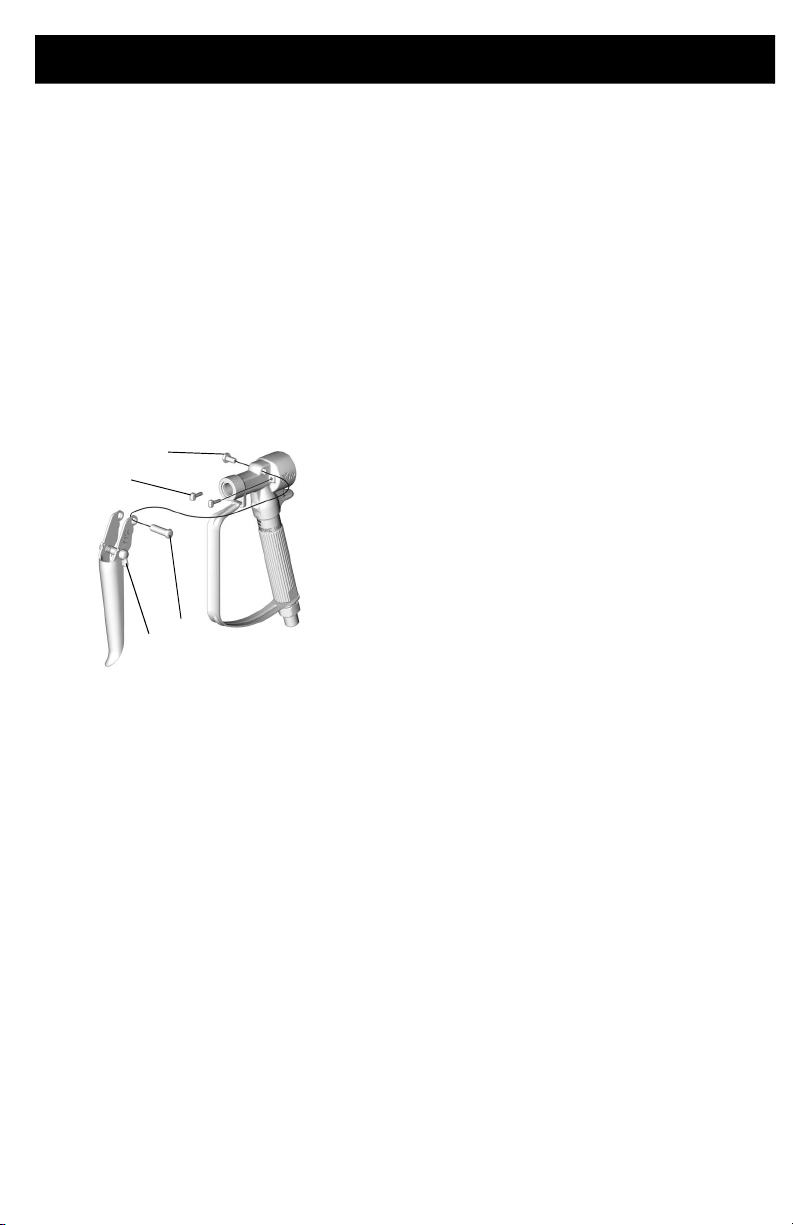

Trigger Removal
NOTE: To avoid losing parts, be ready for
two actuator pins (7) to fall out of the gun
body when the trigger (16) is removed.
XTR7+ Guns
1. Using a wrench, remove screw (16b)
from the pivot pin (16a).
2. Slide the pivot pin (16a) out of the gun
body, and remove the trigger (16).
3. Before reinstalling the trigger, grease the
actuator pins (7) and the pivot pin (16a).
XTR5+ Guns
1. Using a socket wrench, remove screw
(16c) from each side of the gun body and
remove the trigger.
2. Before reinstalling the trigger, grease the
actuator pins (7).
Assembly
1. Press a new gasket (3*) into the gun
body. Lightly grease the seal retainer
(2*) and install. Torque to 48–72 in-lb
(5–8 N•m).
2. Lightly grease and replace the needle
(8*). Press the needle through the seal
retainer.
3. Apply light-strength Loctite™ to needle
threads. Ensure Loctite does not spread
to the needle shaft. Ensure the needle
(8*) is seated in gun body.
4. Install needle retainer (6). Tighten until it
bottoms out. Do not overtighten.
5. Lightly grease valve seat (10*) threads.
Squeeze the trigger to retract the needle
and install gasket (9*) and valve seat
(10*). Torque valve seat to 26–32 ft-lb
(34–43 N•m).
6. Grease and install the spring (5) and cap
(4). Tighten the cap to 10–13 ft-lb (8–10
N•m).
Test Gun Before Using
1. Engage the trigger lock.
2. Connect the fluid hose to the gun.
3. Start and prime the pump.
4. Disengage the trigger lock.
5. Trigger the gun into a metal waste
container.
6. Release the trigger. The gun should
immediately stop spraying and there
should be no leaks. If there is a problem,
follow the Pressure Relief Procedure,
page 9. Check through the Assembly
procedure and correct any problem.
7. Install the tip and tip guard before regular
use.
16a
16
16b
7

Parts
14 3A7469D
Parts
XTR5+
WLD

F














DD

E
D
F




†

‡

Parts
3A7469D 15
XTR5+ Parts List
Ref. Part Description
Quantity
XTR520 XTR521 XTR522 XTR523 XTR524 XTR525 XTR530
119B236 BODY, gun 1 1 1 1 1 1 1
2* 245881 SEAL, retainer assembly 1 1 1 1 1 1 1
3* --- GASKET 1 1 1 1 1 1 1
419B237 CAP, end 1 1 1 1 1 1 1
5117350 SPRING 1 1 1 1 1 1 1
615E088 RETAINER, needle 1 1 1 1 1 1 1
715E085 PIN, actuator 2 2 2 2 2 2 2
8* 18C010 NEEDLE 1 1 1 1 1 1 1
9* 156766 GASKET 1 1 1 1 1 1 1
10* 245858 SEAT, valve 1 1 1 1 1 1 1
13‡ 255275 HANDLE; includes trigger
guard and swivel
1 1 1 1 1
14 248952 HANDLE KIT 1 1
14a★--- SWIVEL
15 276997 HANDLE SLEEVE,
insulated
1 1
16†
287449 TRIGGER KIT, 4-finger,
straight; includes 16c
1 1 1 1
287451 TRIGGER KIT, 4-finger,
curved; includes 16c
1
287450 TRIGGER KIT, 2-finger;
includes 16c
1 1
16c† 117602 SCREW, shoulder, #8-32 2 2 2 2 2 2 2
19 XHD001 GUARD, RAC tip 1 1 1 1 1 1
20
XHDxxx SWITCH, RAC tip; 519
size included
1 1 1 1
XHDxxx SWITCH, RAC tip; 529
size
1
20a✓--- SEAL, fluid 1 1 1 1 1
20b✓--- GASKET 1 1 1 1 1
20c --- TIP, spray, XHD RAC 1 1 1 1 1
21* 179733 SEAL, sleeve 1 1 1 1 1 1 1
24 119740 O-RING 1 1
26
287032 FILTER, 60 mesh included
with gun
1 1 1 1 1 1
287034 FILTER, 60 mesh and 100
mesh combo
1 1 1 1 1 1
29▲222385 CARD, medical alert (not
shown)
1 1 1 1 1 1 1
30 166969 GASKET 1
31 220251 GUARD, flat tip 1
32 163519 TIP, flat 1
--- Not for sale
▲ Replacement safety labels, tags, and cards are available at no cost.
* Parts included in Repair Kit 273141 purchased separately.
† Trigger kit (16) includes mounting hardware for either XTR5 or XTR7 gun.
‡ Handle is not pressure rated for use with the XTR 7. For an XTR 7, order handle 248952 and sleeve 276997 or 15E083
depending on your model.
✓ Included in OneSeal™ Repair Kit XHD010 (5 each per package, purchase separately).
★ Do not remove swivel. If the swivel needs to be replaced, order replacement handle kit 248952.

Parts
16 3A7469D
XTR7+, XTR7+ High Flow

Parts
3A7469D 17
XTR7+ Parts List
Ref. Part Description
Quantity
XTR720 XTR721 XTR722 XTR723 XTR724 XTR725
1 19B238 BODY, gun 1 1 1 1 1 1
2* 245881 SEAL, retainer assembly 1 1 1 1 1 1
3* --- GASKET 1 1 1 1 1 1
4 19B239 CAP, end 1 1 1 1 1 1
5 117350 SPRING 1 1 1 1 1 1
6 15E088 RETAINER, needle 1 1 1 1 1 1
7 15E085 PIN, actuator 2 2 2 2 2 2
8* 18C010 NEEDLE 1 1 1 1 1 1
9* 156766 GASKET 1 1 1 1 1 1
10* 245858 SEAT, valve 1 1 1 1 1 1
14 248952 KIT, repair, handle 1 1 1 1 1 1
17V749 KIT, repair, handle
14a★--- SWIVEL
14b 17G980 SWIVEL
15 276997 HANDLE SLEEVE, insulated 1 1
15E083 HANDLE SLEEVE, round 1 1 1 1
16
287449 TRIGGER KIT, 4-finger,
straight; includes 16a and 16b 1 1 1
287451 TRIGGER KIT, 4-finger,
curved; includes 16a and 16b 1
287450 TRIGGER KIT, 2-finger;
includes 16a and 16b 1 1
16a† 192272 PIN, pivot 1 1 1 1 1 1
16b† 203953 SCREW, cap, #10-24 1 1 1 1 1 1
19 XHD001 GUARD, RAC tip 1 1 1 1 1
20 XHDxxx
SWITCH, RAC tip; 519 size
included 1 1 1 1
SWITCH, RAC tip: 523 size
included
SWITCH, RAC tip: 531 size
included
20a✓--- SEAL, fluid 1 1 1 1
20b✓--- GASKET 1 1 1 1
20c --- TIP, spray, XHD RAC 1 1 1 1
21* 179733 SEAL, sleeve 1 1 1 1 1 1
24** 119740 O-RING 1 1 1 1 1 1
26
287032 FILTER, 60 mesh included
with gun 1 1 1 1 1 1
287034 FILTER, 60 mesh and 100
mesh combo 1 1 1 1 1 1
29▲222385 CARD, medical alert (not
shown) 1 1 1 1 1 1
30 166969 GASKET 1

Parts
18 3A7469D
31 220251 GUARD, flat tip 1
32 163519 TIP, flat 1
--- Not for sale.
▲ Replacement Danger and Warning labels, tags, and cards are available at no cost.
* Parts included in Repair Kit 273141, purchased separately.
★ Do not remove swivel. If the swivel needs to be replaced, order replacement handle kit 248952.
† Trigger Kit (16) includes mounting hardware for either the XTR5 or XTR7 gun.
✓ Included in OneSeal™ Repair Kit XHD010 (5 each per package, purchase separately).
** Included in Handle Repair Kits 248952 and 17V749.
Ref. Part Description
Quantity
XTR720 XTR721 XTR722 XTR723 XTR724 XTR725

Parts
3A7469D 19
XTR7+ High Flow Parts List
Ref. Part Description
Quantity
XTR710 XTR711 XTR712 XTR713 XTR714 XTR715 17V677
1 19B240 BODY, gun 1 1 1 1 1 1 1
2* 245881 SEAL, retainer
assembly 1 1 1 1 1 1 1
3* --- GASKET 1 1 1 1 1 1 1
4 19B239 CAP, end 1 1 1 1 1 1 1
5 117350 SPRING 1 1 1 1 1 1 1
6 15E088 RETAINER, needle 1 1 1 1 1 1 1
7 15E085 PIN, actuator 2 2 2 2 2 2 2
8* 18C010 NEEDLE 1 1 1 1 1 1 1
9* 156766 GASKET 1 1 1 1 1 1 1
10* 245858 SEAT, valve 1 1 1 1 1 1 1
14 17V749 KIT, repair, handle 1 1 1 1 1 1 1
14a★--- SWIVEL
14b 17G980 SWIVEL 1 1 1 1 1 1 1
15
276997 HANDLE SLEEVE,
insulated 1 1 1
15E083 HANDLE SLEEVE,
round 1 1 1 1
16
287449
TRIGGER KIT,
4-finger, straight;
includes 16a and 16b
1 1 1
287451
TRIGGER KIT,
4-finger, curved;
includes 16a and 16b
1 1
287450
TRIGGER KIT,
2-finger; includes 16a
and 16b
1 1
16a† 192272 PIN, pivot 1 1 1 1 1 1 1
16b† 203953 SCREW, cap, #10-24 1 1 1 1 1 1 1
19 XHD001 GUARD, RAC tip 1 1 1 1 1 1
20 XHDxxx
SWITCH, RAC tip:
523 size included 1
SWITCH, RAC tip:
531 size included 1 1 1 1 1
20a✓--- SEAL, fluid 1 1 1 1 1
20b✓--- GASKET 1 1 1 1 1
20c --- TIP, spray, XHD RAC 1 1 1 1 1
21* 179733 SEAL, sleeve 1 1 1 1 1 1 1
24** 119740 O-RING 1 1 1 1 1 1 1
29▲222385 CARD, medical alert
(not shown) 1 1 1 1 1 1 1
30 166969 GASKET 1

Parts
20 3A7469D
31 220251 GUARD, flat tip 1
32 163531 TIP, flat 1
--- Not for sale.
▲ Replacement Danger and Warning labels, tags, and cards are available at no cost.
* Parts included in Repair Kit 273141, purchased separately.
★ Do not remove swivel. If the swivel needs to be replaced, order replacement handle kit 248952.
† Trigger Kit (16) includes mounting hardware for either the XTR5 or XTR7 gun.
✓ Included in OneSeal™ Repair Kit XHD010 (5 each per package, purchase separately).
** Included in Handle Repair Kits 248952 and 17V749.
Ref. Part Description
Quantity
XTR710 XTR711 XTR712 XTR713 XTR714 XTR715 17V677
