Graco 258864 Instruction Manual

3A0705B
Operation
TrueCoat™Pro and TrueCoat™Plus Cordless
Paint Sprayers
U.S. Patent No. D625,775 S
- For portable spray applications of water-based and oil-based
(mineral spirit-type) architectural paints and coatings only -
- Not for use in explosive atmospheres -
Models 258864, 258880
Maximum Working Pressure 2000 psi (137 MPa, 13.7 bar)
IMPORTANT SAFETY INSTRUCTIONS
Read all warnings and instructions in this
manual. Save these instructions.
ENG
ti14773a
WARNINGWARNINGWARNING
WARNING
Use only water-based or oil-based (mineral spirit-type) materials with flash point greater than 100° F
(38° C). Do not use materials which state “FLAMMABLE” on the packaging. For more information about
your material, request MSDS from distributor or retailer.
Use oil-based material outdoors or in a well-ventilated indoor area with a flow of fresh air.
Spraying certain materials may cause static build-up in the sprayer that can result in static shock to
the user. If this occurs, first ensure the material has a flash point greater than 100° F (38° C) and does not
state that it is FLAMMABLE anywhere on the package. If still feeling a static shock, the material likely con-
tains a non-mineral spirits fluid such as, but not limited to, xylene, toluene, or naphtha, which can build up
static. Switch to an alternative material.

Table of Contents
23A0705B
Table of Contents
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Component Identification . . . . . . . . . . . . . . . . . . . . 5
Pressure Relief Procedure . . . . . . . . . . . . . . . . . . . 6
Trigger Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Spray Tip Position . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Prime/Relief Valve Position . . . . . . . . . . . . . . . . . . . 6
Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . 7
Charger Status Indicator Lights . . . . . . . . . . . . . . 7
Sprayer Status Indicator . . . . . . . . . . . . . . . . . . . 7
Spraying Stains or Clear Coats . . . . . . . . . . . . . . . 8
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Install Tip/Guard Assembly (if not installed) . . . . 11
Getting Started with Basic Techniques . . . . . . . . 12
Triggering Sprayer . . . . . . . . . . . . . . . . . . . . . . . 12
Aiming Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Unclogging Spray Tip/Guard Assembly . . . . . . . . 13
Shutdown and Cleaning . . . . . . . . . . . . . . . . . . . . . 14
Flushing Sprayer . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning Sprayer Exterior . . . . . . . . . . . . . . . . . 15
Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Replacement Parts and Kits . . . . . . . . . . . . . . . . . 17
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 24
Important User Information
Read this before using your sprayer. See the Operation Manual provided with
your sprayer for complete instructions on proper use and safety warnings.
Congratulations! You have purchased a high-quality paint sprayer made by Graco Inc. This sprayer is designed to
provide superior spray performance with water-based and oil-based (mineral spirit-type) architectural paints and
coatings. This user information sheet is intended to help you understand the types of materials that can and cannot be
used with your sprayer.
Before using this equipment, be sure to read and follow the information on your container label and ask for a Material
Safety Data Sheet (MSDS). The container label and MSDS will explain the contents of the material and the specific
precautions related to it.
Paints, coatings and clean-up materials generally fit into one of the following 3 basic categories:
WATER-BASED: The container label should indicate that the material can be cleaned up with soap and
water. Your sprayer is compatible with this type of material. Your sprayer is NOT compatible with harsh
cleaners such as chlorine bleach.
OIL-BASED: The container label should indicate that the material is combustible and can be cleaned up with
mineral spirits or paint thinner. The MSDS must indicate that the flash point of the material is above 100° F.
Your sprayer is compatible with this type of material. Use oil-based material outdoors or in a well-ventilated
indoor area with a flow of fresh air. See the safety warnings in your Operation Manual.
FLAMMABLE: This type of material contains flammable solvents such as xylene, toluene, naphtha, MEK,
lacquer thinner, acetone, denatured alcohol, and turpentine. The container label should indicate that this
material is FLAMMABLE. This type of material is NOT compatible with your sprayer and CANNOT be used.
DO NOT RETURN THIS SPRAYER TO THE STORE!
If you experience problems, contact Graco Customer Service at 1-888-541-9788.

Warnings
3A0705B 3
Warnings
The following warnings are for the setup, use, maintenance, and repair of this equipment. The exclamation point symbol alerts you
to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this
manual, refer back to these Warnings. Product-specific hazard symbols and warnings not covered in this section may appear
throughout the body of this manual where applicable.
WARNINGWARNINGWARNING
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent fire
and explosion:
• Sprayer generates sparks. Do not spray or flush with flammable liquids.
• Use only water-based or oil-based (mineral spirit-type) materials with a flash point greater than
100° F (38° C).
• Keep spray area well-ventilated. Keep a good supply of fresh air moving through the area.
• Use oil-based material outdoors or in a well-ventilated indoor area with a flow of fresh air.
• Do not spray or flush with combustible materials near an open flame or sources of ignition.
• Paint or solvent flowing through the equipment is able to result in static electricity. Static electricity creates
a risk of fire or explosion in the presence of paint or solvent fumes. Keep sprayer at least 10 cm away from
objects while spraying or flushing.
• Do not smoke in the spray area.
• Do not operate light switches, engines, or similar spark producing products in the spray area.
• Keep area clean and free of paint or solvent containers, rags, and other flammable materials.
• Know the contents of the paints and solvents being sprayed. Read all Material Safety Data Sheets (MSDS)
and container labels provided with the paints and solvents. Follow the paint and solvents manufacturer’s
safety instructions.
• Fire extinguisher equipment shall be present and working.
SKIN INJECTION HAZARD
High-pressure spray is able to inject toxins into the body and cause serious bodily injury. In the event that
injection occurs, get immediate surgical treatment.
• Do not aim the sprayer at, or spray any person or animal.
• Keep hands and other body parts away from the discharge. For example, do not try to stop leaks with any
part of the body.
• Always engage the trigger lock when not spraying. Verify the trigger lock is functioning properly.
• Always use the nozzle tip guard. Do not spray without nozzle tip guard in place.
• Use caution when cleaning and changing nozzle tips. In the case where the nozzle tip clogs while spray-
ing, follow the Pressure Relief Procedure for turning off the unit and relieving the pressure before remov-
ing the nozzle tip to clean.
• Do not leave the unit energized or under pressure while unattended. When the unit is not in use, turn off
the unit and follow the Pressure Relief Procedure for turning off the unit.
• Check parts for signs of damage. Replace any damaged parts.
• This system is capable of producing 2000 psi. Use replacement parts or accessories that are rated a min-
imum of 2000 psi.
• Do not carry the tool with a finger on the trigger.
• Verify that all connections are secure before operating the unit.
• Know how to stop the unit and bleed pressure quickly. Be thoroughly familiar with the controls.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Always wear appropriate gloves, eye protection, and a respirator or mask when painting.
• Do not operate or spray near children. Keep children away from equipment at all times.
• Do not overreach or stand on an unstable support. Keep effective footing and balance at all times.
• Stay alert and watch what you are doing.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Use only in dry locations. Do not expose to water or rain.
• Use in well-lit areas.

Warnings
43A0705B
BATTERY HAZARD
The battery may leak, explode, cause burns, or cause an explosion if mishandled. Contents of an open battery
can cause severe irritation and/or chemical burns. If on skin, wash with soap and water. If in eyes, flush with
water for at least 15 minutes and seek immediate medical attention.
• Do not short-circuit the terminals of the battery.
• Keep the battery away from fire.
• Charge only with Graco approved charger as listed in this manual.
• Do not expose to heat above 170° F (80° C).
• Do not expose battery to water or rain.
• Do not disassemble, crush, or penetrate the battery.
• Follow local ordinances and/or regulations for disposal.
CHARGER ELECTRIC SHOCK, FIRE AND EXPLOSION HAZARD
Improper setup or usage can cause electric shock, fire, and explosion.
• Charge only Graco 18V Lithium Ion batteries; other batteries may burst.
• Use only in dry locations. Do not expose to water or rain.
• If the supply cord is damaged, it must obtained from the manufacturer to avoid a hazard.
• Ensure that the outside surface of the battery is clean and dry before plugging into the charger.
• Do not attempt to charge non-rechargeable batteries.
• Place charger on flat non-flammable surfaces and keep away from flammable materials or fumes when
recharging battery.
PRESSURIZED ALUMINUM PARTS HAZARD
Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious chemical
reaction and equipment rupture. Failure to follow this warning can result in death, serious injury, or property
damage.
• Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or fluids
containing such solvents.
• Many other fluids may contain chemicals that can react with aluminum. Contact your material supplier for
compatibility.
MOVING PARTS HAZARD
Moving parts can pinch or amputate fingers and other body parts.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Pressurized equipment can start without warning. Before checking, moving, or servicing equipment, follow
the Pressure Relief Procedure in this manual. Disconnect power.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or swallowed.
• Read MSDS’s to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the operating area of
the equipment to help protect you from serious injury, including eye injury, hearing loss, inhalation of toxic
fumes, and burns. This equipment includes but is not limited to:
• Protective eyewear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer.
WARNINGWARNINGWARNING
WARNING

Component Identification
3A0705B 5

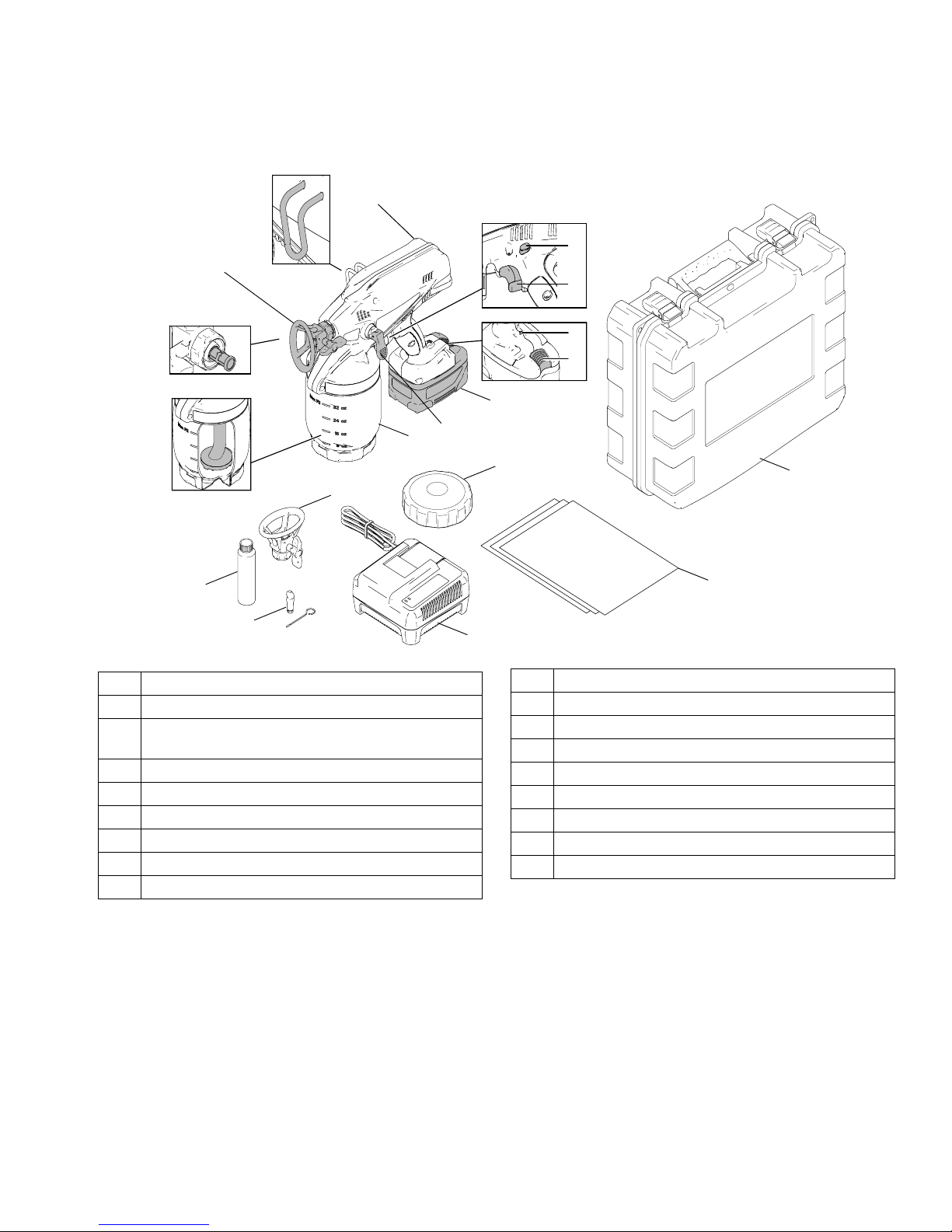

Component Identification
*NOTE: Filter assembly is reverse-threaded. Turn left (or counter-clockwise) to tighten,
turn right (or clockwise) to loosen.
ti15479a
F
E
R
K
M
X
T
S
W
B
D
P
A
G
J
H
N
C
C
A Cordless Paint Sprayer
B Sprayer Hook
CSpray Tip/Guard Assembly
(311, 515 included)
D Tip Filter (*Reverse Threaded)
E Suction Tube
F Pump Armor Concentrate (4 oz.)
G Fine-Finish Optimizer with Storage/Cleaning Tool
H Material Cup Cover and Seal
J Material Cup (32 oz)
K Prime/Relief Valve
M Lithium Ion Premium Power Battery Charger
N Material Cup Liners (3 included)
P Lithium Ion Premium Power Battery (2 included)
R Battery Release Button
S Battery Status Indicator Light
T Sprayer Trigger
W Sprayer Trigger Lock
X Sprayer Case

Common Procedures
63A0705B
Common Procedures

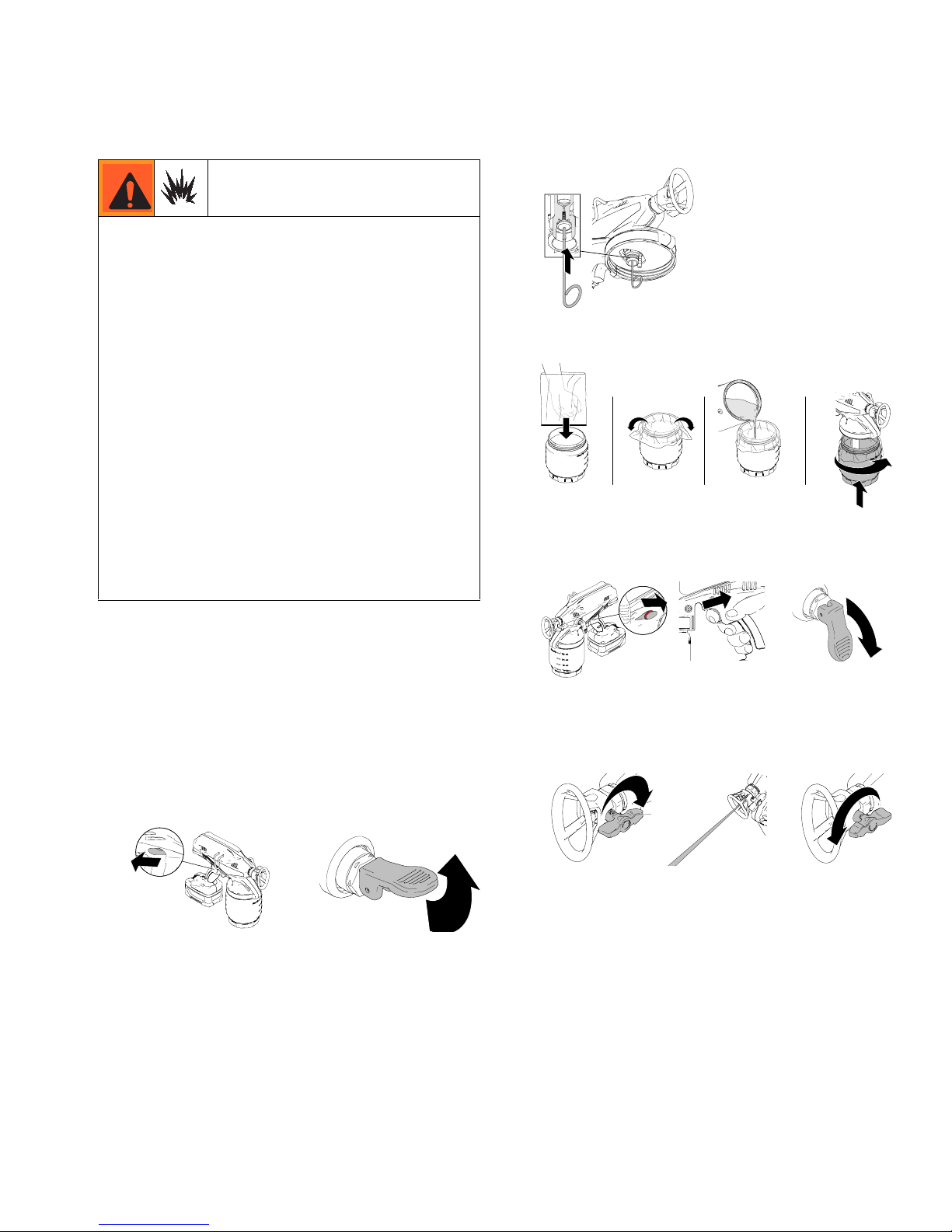

Pressure Relief Procedure
1. Engage trigger lock.
2. Put prime/relief valve UP to release pressure.
Trigger Lock
Spray Tip Position
Prime/Relief Valve Position
Do not operate or spray near children. Do not aim the
sprayer at, or spray any person or animal. Keep hands
and other body parts away from the front of the sprayer.
For example, do not try to stop the paint flow with any
part of the body.
This sprayer builds up an internal pressure of 2,000 psi
during use. Follow this Pressure Relief Procedure
whenever you stop spraying and before cleaning,
checking, servicing, or transporting equipment to
prevent serious injury.
Always engage the trigger lock when you stop spraying
to prevent the sprayer from being triggered accidentally
by hand, or if dropped or bumped.
i14994
ti14999a
ti14994a
Trigger Locked Trigger Unlocked
ti14995a
(red ring is visible)
Always perform Pressure Relief Procedure before
adjusting spray tip position.
Tip Forward
(SPRAY position)
Tip Reversed
(UNCLOG position)
ti14991a
ti14985a
ti15510a
UP position
(Releases pump pressure) DOWN position
(Ready to spray)
ti14999a ti15425a

Charging the Battery
3A0705B 7
Charging the Battery
Batteries are initially 50% charges to provide optimum
battery life and require charging before first use. It takes
approximately 45 minutes to charge a dead battery to
80%, at which point it can be used.It will take approxi-
mately 75 minutes to fully charge a dead battery.
1. Slide battery into charger as shown (light will turn on
within 5 seconds).
NOTE: Batteries can remain in the charger, which
automatically switches to maintenance mode. It is not
recommended to store the battery in the charger for
longer than one week.
NOTE: The amount sprayed with each battery varies
depending on material, tip size, battery charge, and bat-
tery temperature. 1 battery fully charged will spray
approximately 1 gallon when using the 515 tip with latex
paint. You will get less when using a smaller tip or thin-
ner material.
Charger Status Indicator Lights
Sprayer Status Indicator
NOTE: The indicator light is only visible when sprayer trigger is engaged. You must squeeze and hold the trigger to
see the Sprayer Status Indicator.
Batteries may leak, explode, cause burns or cause an
explosion if mishandled.
ti14990
To reduce the risk of electric shock, only use Graco
batteries with the Graco charger. Do not insert any
foreign objects into the adapter cup.
Label Appearance Description
Solid green light Indicates a full charge. Use the battery or leave it in the charger.
The automatic Maintenance Mode holds the batteries at full charge.
Flashing green light Battery is charging, indicates 80% charge.
Battery can be used.
Flashing red light Battery is charging, indicates less than 80% charge.
Do NOT use battery.
Solid red light Battery is too hot to charge and must cool before charging.
Leave battery in charger.
Light Appearance Description
No light Normal operation.
Solid red Battery is low on power and needs to be charged,
Flashing red Battery temperature is too high, or tip is clogged.
See Troubleshooting, page 18.

Setup
83A0705B
Setup
Installing Suction Tube
Aim the inlet of the suction tube at the front of the material
cup (towards Spray Tip/Guard Assembly) during installa-
tion.
Spraying Stains or Clear Coats
(Fine-Finish Optimizer)
The Fine-Finish Optimizer should be installed and used
when spraying thin material such as stain or clear coats.
The Fine-Finish Optimizer restricts the material flow
resulting in a finer quality finish.

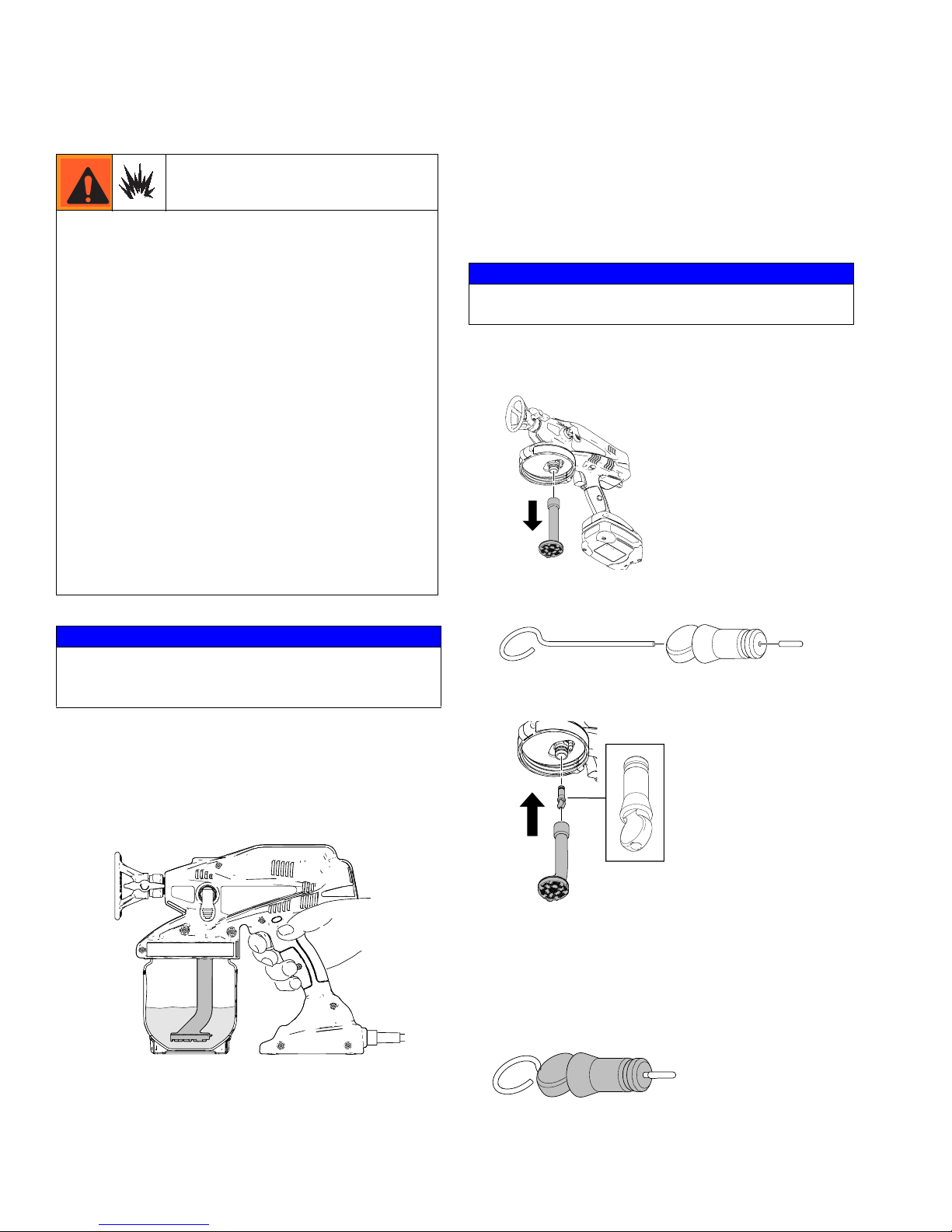

Installation
1. Remove material cup and suction tube.
2. Remove the cleaning tool before installing the
Fine-finish Optimizer into the sprayer.
3. Push Fine-Finish Optimizer into pump inlet until
completely engaged and re-install suction tube.
Cleanup/Storage
Be sure to remove and clean the Fine-Finish Optimizer
immediately after use. Store the Fine-Finish Optimizer
on the Storage/cleaning Tool supplied to keep the hole
clear of dried material.
Use only water-based or oil-based (mineral
spirit-type) materials with flash point greater than
100° F (38° C). Do not use materials which state
“FLAMMABLE” on the packaging. For more informa-
tion about your material, request MSDS from distribu-
tor or retailer.
Spraying certain materials may cause static
build-up in the sprayer that can result in static
shock to the user. If this occurs, first ensure the mate-
rial has a flash point greater than 100° F (38° C) and
does not state that it is FLAMMABLE anywhere on the
package. If still feeling a static shock, the material likely
contains a non-mineral spirits fluid such as, but not lim-
ited to, xylene, toluene, or naphtha, which can build up
static. Switch to an alternative material.
Use oil-based material outdoors or in a well-ventilated
indoor area with a flow of fresh air.
Keep spray area well-ventilated. Keep a good supply
of fresh air moving through the area.
NOTICE
Your sprayer is NOT compatible with harsh cleaners
such as chlorine bleach. Using these cleaners will
cause damage to the sprayer.
NOTICE
Failure to install the Fine-Finish Optimizer when spraying
thin materials will cause the spray pattern to pulsate.
ti15440a
ti15473a

Setup
3A0705B 9
Sprayer Setup

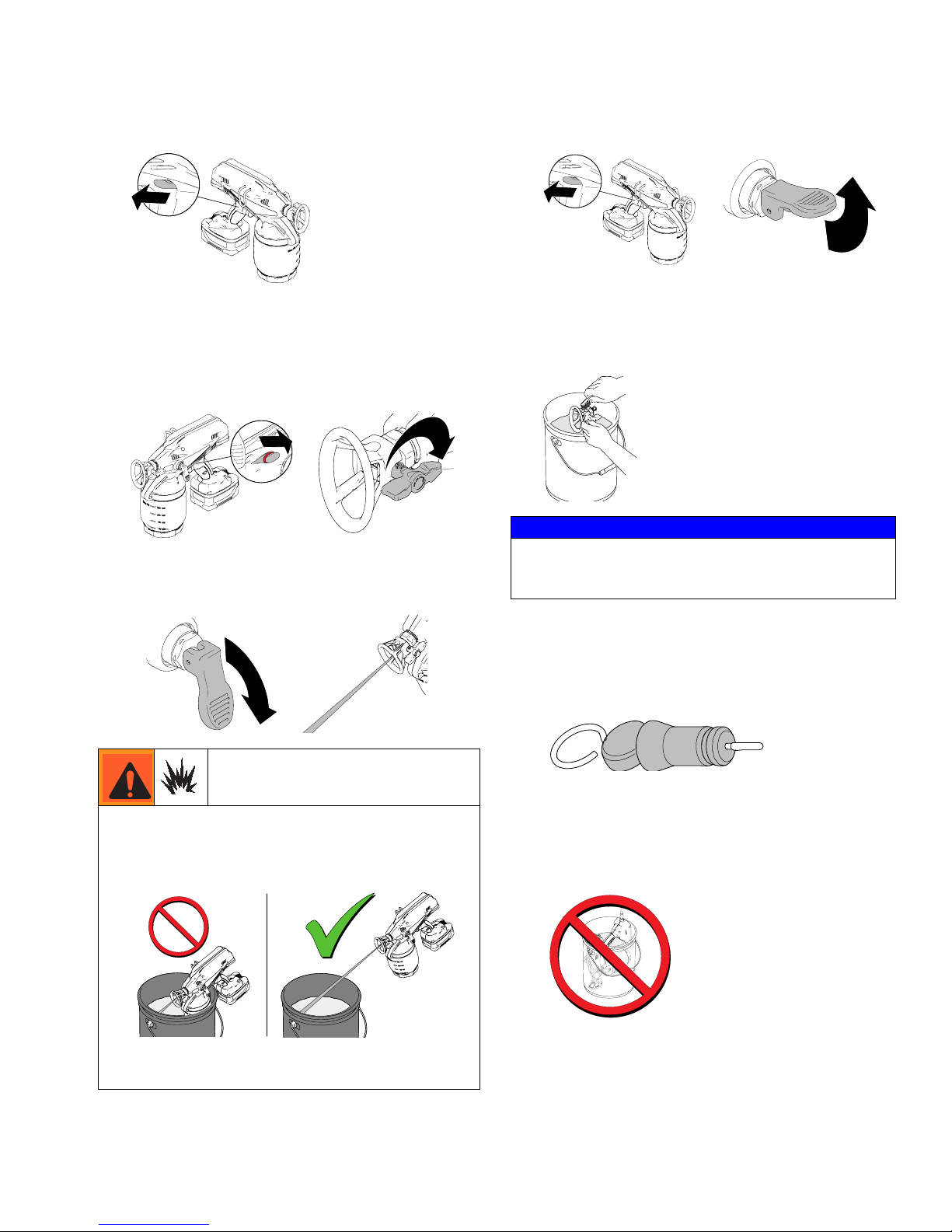

This sprayer arrives from the factory with a small
amount of test material in the system. It is important
that you flush this material from the sprayer before
using it for the first time:
1. Fill material cup with water and thread onto sprayer.
2. Put prime/relief valve to UP position, then hold trig-
ger in for 10 seconds.
3. Put prime/relief valve DOWN to spray position.
4. Reverse spray tip to UNCLOG position and trigger
sprayer into a waste area.
5. Engage trigger lock and put prime/relief valve UP to
release pressure.
6. Unscrew and remove material cup.
7. Disengage trigger lock, put prime/relief valve
DOWN, hold sprayer slightly above material cup,
and pull trigger to discharge fluid from pump.
8. Discard material in cup.
NOTE: If the sprayer is angled or tilted too far, the
suction tube will lose contact with the material and
the sprayer will stop spraying.
ti14992a
ti14999a
ti15425a
ti14991a ti15491a
ti14999a
ti14994a
ti15478a
ti15511a

Setup
10 3A0705B
Materials
• When spraying water-based materials, flush the
sprayer thoroughly with water.
• When spraying non-water-based materials, flush
the sprayer thoroughly with mineral spirits or com-
patible, oil-based flushing fluid.

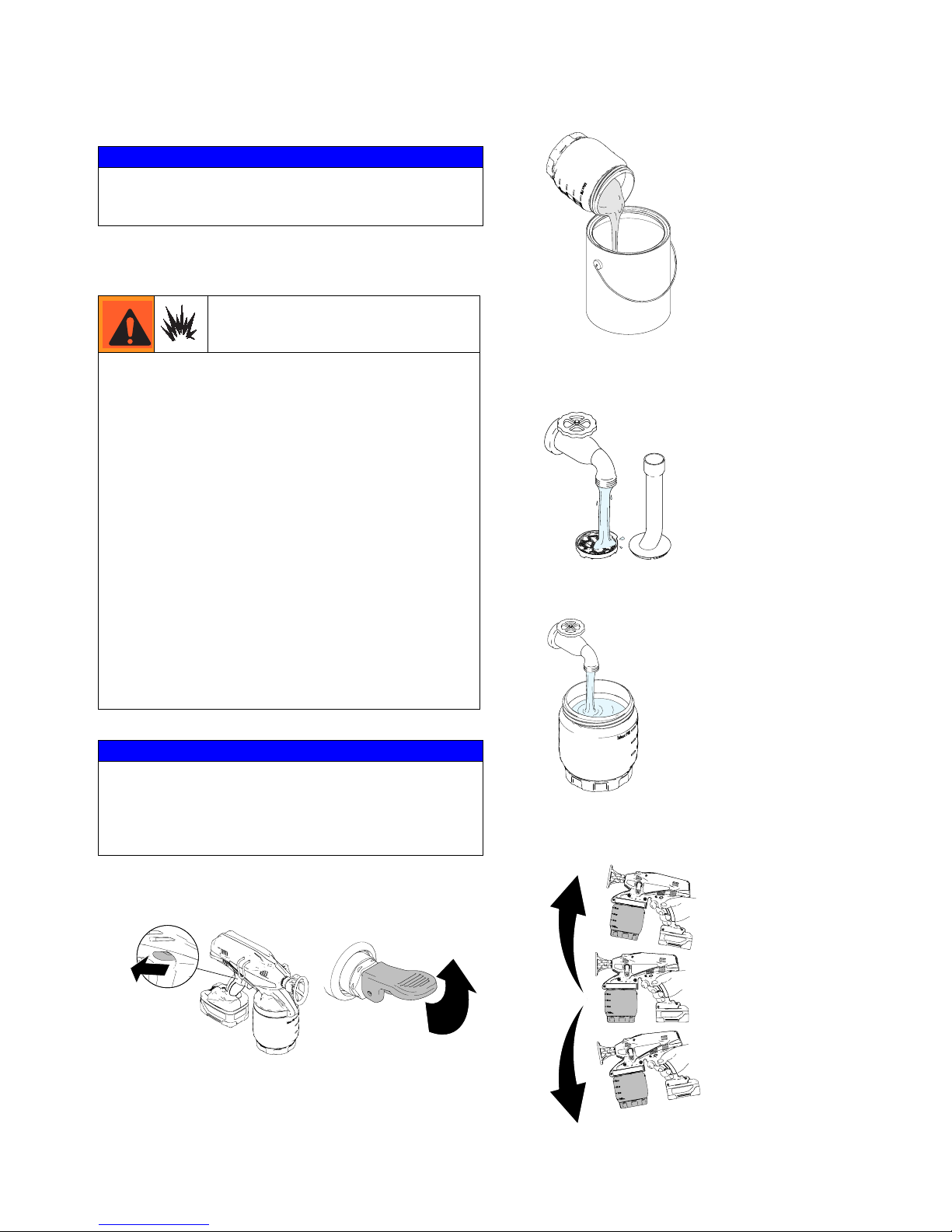

Starting a New Job (or Refilling the Cup)
1. Engage trigger lock and put prime/relief valve UP to
release pressure.
2. Use the Fine-Finish Optimizer cleaning tool to lightly
push on inlet valve to make sure it moves up and
down freely.
3. Install material cup liner, fill with material, and
thread onto sprayer.
4. To prime pump, disengage trigger lock and trigger
sprayer for 10 seconds. Then release trigger and
put prime/relief valve DOWN to spray position.
5. Reverse spray tip to UNCLOG position and spray
into waste area for five seconds. Then rotate tip
back to SPRAY position. NOTE: Failure to perform
this operation could result in poor spray pattern.
You are now ready to spray! (If the sprayer does NOT
spray, see Inlet Valve Cleaning, page 21).
Use only water-based or oil-based (mineral
spirit-type) materials with flash point greater than
100° F (38° C). Do not use materials which state
“FLAMMABLE” on the packaging. For more informa-
tion about your material, request MSDS from distribu-
tor or retailer.
Spraying certain materials may cause static
build-up in the sprayer that can result in static
shock to the user. If this occurs, first ensure the mate-
rial has a flash point greater than 100° F (38° C) and
does not state that it is FLAMMABLE anywhere on the
package. If still feeling a static shock, the material likely
contains a non-mineral spirits fluid such as, but not lim-
ited to, xylene, toluene, or naphtha, which can build up
static. Switch to an alternative material.
Use oil-based material outdoors or in a well-ventilated
indoor area with a flow of fresh air.
Keep spray area well-ventilated. Keep a good supply
of fresh air moving through the area.
ti14999a
ti14994a
ti15474a
ti15418a ti15425a
ti14995a
ti14991a ti14985a
ti15491a

Install Tip/Guard Assembly (if not installed)
3A0705B 11
Install Tip/Guard Assembly
(if not installed)
Reversible Tip Selection Chart
1. Engage trigger lock and put prime/relief valve UP to
release pressure.
2. Install filter to Spray Tip/Guard Assembly (make sure
filter is fully installed into sprayer). NOTE: Filter assem-
bly is reverse-threaded. Turn left (or counter-clock-
wise) to install. Turn right (or clockwise) to remove.
3. Firmly screw Tip/Guard Assembly onto sprayer.
Tighten retaining nut until completely engaged with
sprayer. If Tip/Guard Assembly is not fully tightened,
poor spray results and possible damage to the sprayer
could occur.
MATERIALS
*Thin Medium Heavy
Thin stains,
semi-transparent stains
Enamels, solid
stains, thin latex
Heavy latex
311 315, 515 517
*Install Fine-Finish Optimizer, see page 8.
ti14999a
ti14994a
ti14775a
NOTICE
Make sure filter is completely screwed into the Tip/Guard
Assembly to avoid splattering material or damage to the
filter.
NOTICE
The tip is a permanently attached to the guard.
Removing the tip from the guard will result in damage
to tip assembly.
ti15490a

Basic Spraying Techniques
12 3A0705B
Basic Spraying Techniques
NOTE: Use a piece of scrap cardboard to practice these
basic spraying techniques before you begin spraying the
surface. Anything you don’t want painted that is in
the area of your spraying surface should be covered
or removed.
Hold sprayer at least 25 cm (10 in.) from surface and
adjust accordingly to achieve desired results. Aim
sprayer straight at surface. Tilting sprayer to direct spray
angle causes an uneven finish.
Flex your wrist while moving your arm to keep the
sprayer pointed straight. Tilting the sprayer or spraying
at an angle causes an uneven finish.
NOTE: How fast you move the sprayer will affect spray
application. If material is pulsating, you are moving too fast.
If material drips, you are moving too slow. See Trouble-
shooting, page 18.
Triggering Sprayer
Pull trigger after starting stroke. Release trigger before end
of stroke. Sprayer must be moving when trigger is pulled
and released.
Aiming Sprayer
Aim tip of sprayer at bottom edge of previous stroke, over-
lapping each stroke by half.
10 in.
(25 cm)
even
finish
thick
thin
uneven
finish
ti14780a
even finish thin thick thin
ti14986a ti14987a
ti14988a
Start Moving Pull Trigger Release Trigger
ti14782a

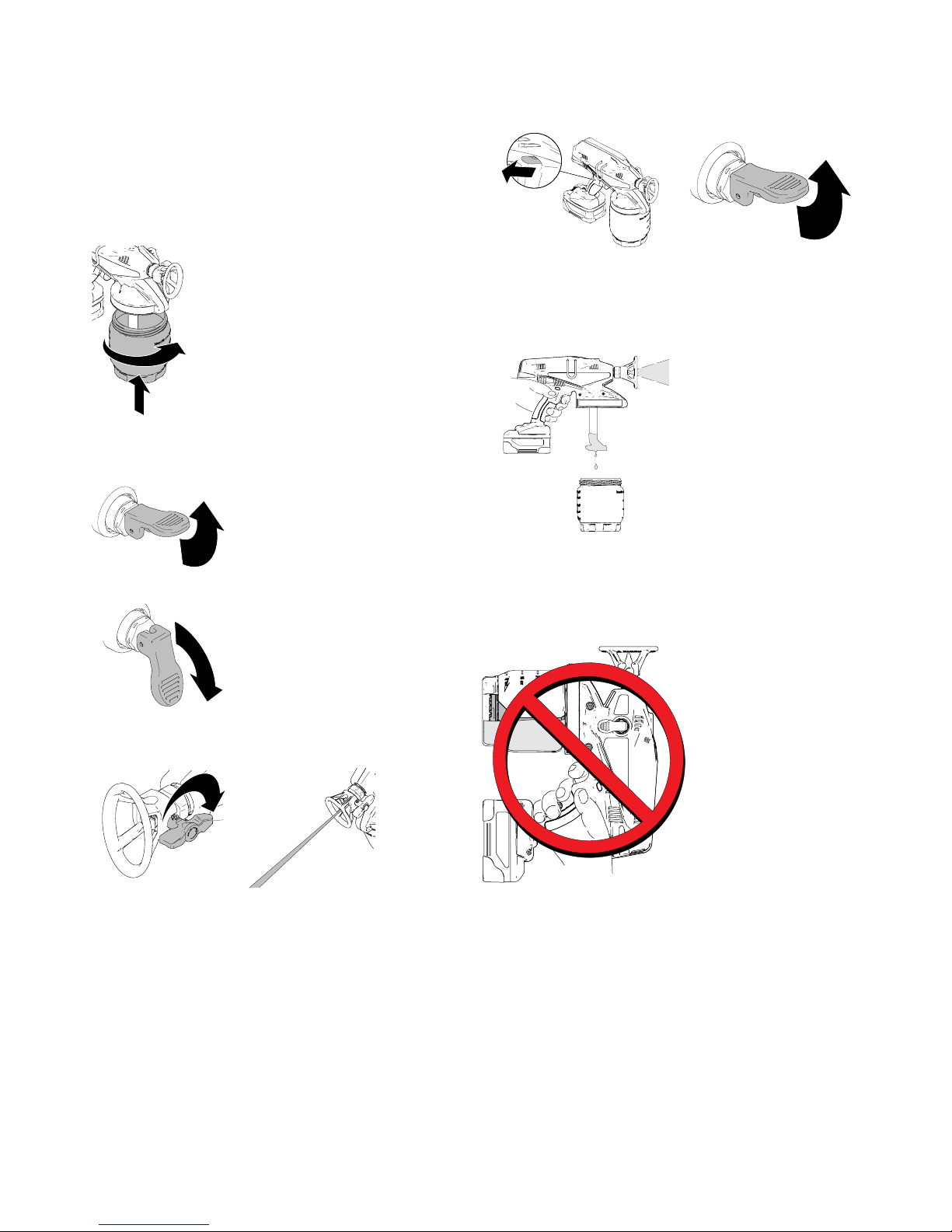

Unclogging Spray Tip/Guard Assembly
3A0705B 13
Unclogging Spray
Tip/Guard Assembly
Occasionally, debris from material can accumulate and
clog the spray tip. Perform the following steps to unclog
the tip.
1. To unclog tip obstruction, engage trigger lock and
pull relief valve UP to release pressure.
2. Reverse spray tip to UNCLOG position.
3. Aim sprayer at waste area, disengage trigger lock,
and put prime/relief valve DOWN to spray position.
Pull trigger to clear clog.
4. Engage trigger lock. Put prime/relief valve UP to
release pressure and rotate spray tip back to
SPRAY position.
5. Disengage trigger lock, put prime/relief valve DOWN
to spray position, and resume spraying.
6. If tip is still clogged, you may have to repeat steps
1 - 5 and rotate the tip from SPRAY to UNCLOG
several times. Repeat step 1 to release pressure,
remove and clean filter, or replace with new tip
assembly.
NOTE: Filter assembly is reverse-threaded:
Turn left (or counter-clockwise) to install.
Turn right (or clockwise) to remove.
7. If obstruction is cleared, engage trigger lock and
rotate arrow-shaped handle back to SPRAY
position.
Do not operate or spray near children. Do not aim the
sprayer at, or spray any person or animal. Keep hands
and other body parts away from the discharge. For
example, do not try to stop leaks with any part of the
body.
ti14994a ti14999a
ti14991a
ti14995a
ti15425a
ti14994a
ti14999a
ti14995a
ti15425a
ti14989a
ti14985a
ti14994a

Shutdown and Cleaning
14 3A0705B
Shutdown and Cleaning
Flushing Sprayer
1. Engage trigger lock and pull relief valve UP to
release pressure.
2. Remove material cup and properly dispose cup liner
or excess material.
3. Remove and clean sprayer intake tube and screen
with water (or flushing fluid) and a brush every time
you flush the sprayer. Reconnect intake tube.
4. Clean cup if not using a liner, and fill with water or
appropriate flushing fluid.
5. Reconnect material cup and shake sprayer to move
clean water around and clean all areas inside of
cup.
NOTICE
Failure to properly clean sprayer after each use will result
in hardened materials, damage to the sprayer, and the
warranty will no longer be valid.
Use only water-based or mineral spirit-type materials
with flash point greater than 100° F (38° C). Do not use
materials which state “FLAMMABLE” on the packaging.
For more information about your material, request MSDS
from distributor or retailer.
Spraying certain materials may cause static build-up
in the sprayer that can result in static shock to the
user. If this occurs, first ensure the material has a flash
point greater than 100° F (38° C) and does not state that it
is FLAMMABLE anywhere on the package. If still feeling a
static shock, the material likely contains a non-mineral
spirits fluid such as, but not limited to, xylene, toluene, or
naphtha, which can build up static. Switch to an alterna-
tive material.
Use oil-based material outdoors or in a well-ventilated
indoor area with a flow of fresh air.
Keep spray area well-ventilated. Keep a good supply of
fresh air moving through the area.
NOTICE
Protect the internal parts of this sprayer from water.
Do not submerge the sprayer in cleaning fluid. Openings
in shroud allow cooling of mechanical parts and electron-
ics inside. If water gets into these openings, the sprayer
could malfunction or become permanently damaged.
ti14994a ti14999a
ti15000a
ti15002a
ti15001a
ti15441a

Shutdown and Cleaning
3A0705B 15
6. Disconnect trigger lock and trigger sprayer for
approximately 15 seconds. Engage trigger lock.
7. Discard contaminated fluid and refill with appropri-
ate flushing fluid.
8. Disengage trigger lock, reverse tip to UNCLOG
position, and pull trigger for 5 seconds to prime
sprayer.
9. Put prime/relief valve DOWN to spray position.
Trigger sprayer into waste area until no paint
appears in water or flushing fluid.
10. Engage trigger lock and put prime/relief valve UP to
release pressure.
11. Remove material cup and discard used fluid.
12. Remove Spray Tip/Guard Assembly and clean with
water or flushing fluid. A soft brush can be used to
loosen and remove dried material if needed.
13. Replace tip assembly.
14. If you used the Fine-Finish Optimizer, remove and
clean optimizer with water (or flushing fluid) and a
brush. Reconnect intake tube.
Cleaning Sprayer Exterior
• Wipe paint off outside of sprayer using a soft cloth
moistened with water or flushing fluid.
Do NOT submerge the sprayer.
Tips
• Tips will require replacement depending on
abrasiveness of paint.
• Do not spray with worn tip. See Troubleshooting,
page 18.
To avoid serious injury or damage to equipment, do not
expose the sprayer electronics to flushing solvents.
Keep sprayer at least 10 in. above the rim of the con-
tainer when flushing.
Keep spray area well-ventilated. Keep a good supply of
fresh air moving through the area.
ti14994a
ti1495a
ti14991a
ti15425a ti15491a
ti15529a
NOTICE
The tip is permanently attached to the guard. Remov-
ing the tip from the guard will result in damage to the
tip assembly.
ti14994a
ti14999

Storage
16 3A0705B
Storage
1. Dilute 4 oz. bottle of Pump Armor Concentrate with
an additional 4 oz. of water in material cup.
2. Thread cup into sprayer, put prime/relief valve to UP
position and squeeze sprayer trigger for approxi-
mately 10 seconds.
3. Reverse spray tip to UNCLOG position, put
prime/relief valve DOWN to spray position, and aim
sprayer into waste area. Pull trigger for 1-2 seconds.
4. Properly dispose of used Pump Armor mixture from
material cup and rinse cup with water.
5. Store sprayer indoors in a cool, dry place. Store in
an upright position only.
NOTICE
Failure to store with sprayer with Pump Armor will
result in operational problems the next time you spray.
Always circulate Pump Armor through the sprayer
after cleaning. Water left in the sprayer will corrode
and damage the pump.
ti15442a
4 oz
ti14999a
ti15418a
ti15425a ti15418a
ti14991a
ti15001a
ti15438a

Replacement Parts and Kits
3A0705B 17

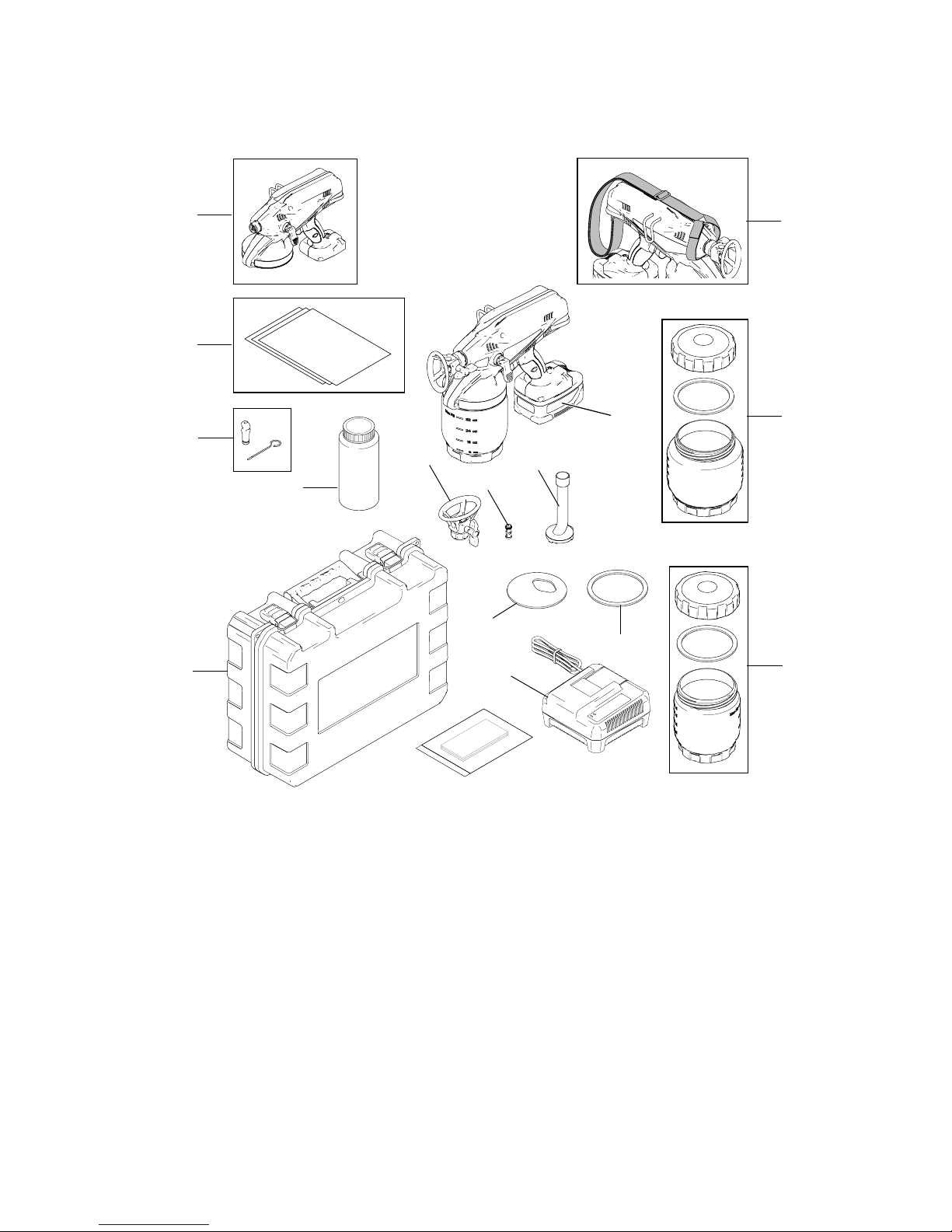

Replacement Parts and Kits
1
8
11
7
5
4
3
6
12
15
ti15497a
2
13
14
9
10
Ref. Part Description
1 262368 Sprayer, replacement (no tip/guard,
battery, suction tube, or material cup)
(Model 258864)
262461 Sprayer, replacement (Model 258880)
2 16D562 Liner, replacement (10 pack)
3 24F045 Fine Finish Optimizer (with Cleaning Tool)
2-Pack
4 243103 Pump Armor (32 oz.)
5 24F042 Storage Case
6 Tip/Guard Assembly
NAR311 311
NAR315 315
XWD515 515
XWD517 517
7 Tip Filter
24E376 Kit, 1-pack
24F039 Kit, 3-pack
8 24F076 Suction Tube with screen and o-rings
9 16D558 Lithium Ion Premium Power Battery
10 16E403 Sprayer Cup Seal
11 16C650 Material Cup Seal
12 16D559 Lithium Ion Battery Charger
13 24E374 Material Cup (32 oz) cover and seal
14 24E375 Material Cup (48 oz) cover and seal
15 24E377 Shoulder Strap
24D425 Lid with gasket (not shown)
106555 Suction Tube o-ring (not shown)
Ref. Part Description

Troubleshooting
18 3A0705B
Troubleshooting
Check everything in this Troubleshooting Table before
you bring the sprayer to an authorized service center.
Problem Cause Solution
Sprayer makes no sound when
trigger is pulled
Trigger is locked. Disengage trigger lock. See page 6.
Status Indicator Light is solid RED
when triggering, indicating that the
battery charge is low.
Replace with charged battery and
place old battery in charger.
Status Indicator Light is flashing RED
when triggering, indicating that the
battery is too hot to operate.
Allow battery to cool.
Status Indicator Light does not light
when sprayer is triggered.
Battery is not installed or is
damaged.
Sprayer makes sound but no material
is sprayed when trigger is pulled
Sprayer is not primed. Prime the pump. See Starting a new
Job (or Refilling the Cup), page 10.
Prime/relief valve is in UP position. Pull valve DOWN to spray position.
Suction Tube is missing or improperly
installed.
Make sure Suction Tube is properly
installed.
Inlet valve is stuck from material
residue left in sprayer.
Use a pencil or thin rod to lightly push
on inlet valve to make sure it moves
up and down freely. See Starting a
new Job (or Refilling the Cup),
page 10.
Tip is not in SPRAY position. Turn tip to SPRAY position.
Tip is clogged. See Unclogging Tip/Guard
Assembly, page 13.
Suction Tube screen is clogged. See Shutdown and Cleaning, page
14.
Sprayer has been tilted too far and
suction tube has lost contact with
material.
Make sure cup is filled with material.
Do not tilt the cup too far. Prime the
pump. See Starting a new Job (or
Refilling the Cup), page 10.
No or low material in cup. Refill cup with material.
Tip filter is clogged. Remove and clean tip filter. See
Unclogging Tip/Guard Assembly,
page 13.
Fine Finish Optimizer is installed
while using an incompatible material.
Make sure compatible material is
being used. See Reversible Tip
Selection Chart, page 11.
Suction Tube o-rings are damaged or
missing.
Replace Suction Tube and o-rings.
Sprayer has reached maximum life. Replace sprayer.
Material is leaking from hole in front
of sprayer.
Replace sprayer.

Troubleshooting
3A0705B 19

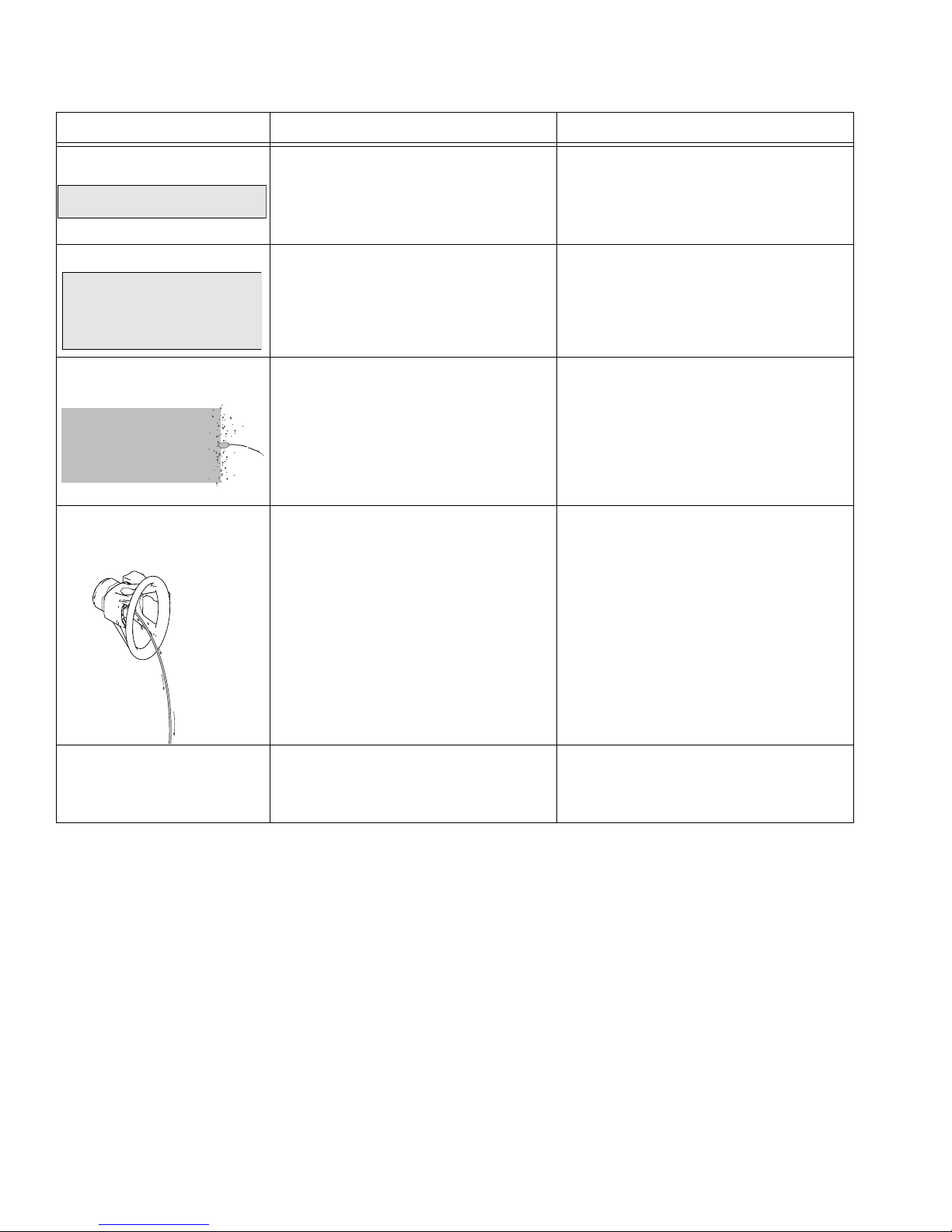

Spray Pattern Diagnostics
Poor spray results Tip is partially clogged See Unclogging Tip/Guard
Assembly, page 13.
Tip is not in correct position Rotate tip to SPRAY position.
Incorrect tip for application of
material.
See Reversible Tip Selection
Chart, page 11.
Tip filter is partially clogged Clean or replace filter. See page 13.
Suction Tube screen is partially
clogged.
Clean or replace Suction Tube. See
page 14.
Fine Finish Optimizer is partially
clogged.
Clean or replace Fine Finish Opti-
mizer. See page 8.
Fine Finish Optimizer is installed
while using an incompatible material.
Make sure compatible material is
being used. See Reversible Tip
Selection Chart, page 11.
Tip is worn or damaged Replace tip. See Install Tip/Guard
Assembly, page 11.
Sprayer is worn out. Replace sprayer.
Paint leaks from sprayer trigger area. Sprayer has reached its maximum
life.
Replace sprayer.
Battery is discharged but charger still
displays green light when battery is
inserted.
Damaged battery. Replace battery.
Problem Cause Solution
Problem Cause Solution
Spray pattern is pulsating: Fine Finish Optimizer is installed while using
an incompatible material.
Operator is moving too fast while spraying.
Make sure material is compatible. See
Reversible Tip Selection Chart, page 11.
Slow speed of movement.
Spray pattern has tails: Fine Finish Optimizer is installed while using
an incompatible material.
Fine Finish Optimizer is partially clogged.
Material not compatible with sprayer.
Sprayer is worn out.
Make sure compatible material is being used.
See Reversible Tip Selection Chart, page
11.
Clean or replace Fine Finish Optimizer.
See page 8.
Switch material.
Replace sprayer.
Spray pattern has dripping: Sprayer is moving too slow for material.
Sprayer is too close to target surface.
Holding trigger while changing spray
direction.
Incorrect tip for application of
material.
Tip is worn or damaged.
Move sprayer faster while spraying.
Move sprayer away from surface (10 in).
Release trigger when changing directions.
See Reversible Tip Selection Chart, page
11.
Replace tip. See Install Tip/Guard Assembly,
page 11.
ti15524a
ti15526a
ti15522a

Troubleshooting
20 3A0705B
Spray pattern is too narrow: Sprayer is too close to target surface.
Incorrect tip for application of material.
Tip is worn or damaged.
Move sprayer away from surface (10 in).
See Reversible Tip Selection Chart, page
11.
Replace tip. See Install Tip/Guard Assembly,
page 11.
Spray pattern is too wide: Sprayer is too far away from target surface.
Incorrect tip for application of material.
Move sprayer closer to surface.
See Reversible Tip Selection Chart, page
11.
Spray pattern “spits” at the
end:
Excess material has accumulated on Spray
Tip/Guard Assembly.
Tip filter is partially clogged.
Tip/Guard Assembly not threaded com-
pletely onto sprayer.
Seat is worn.
See Shutdown and Cleaning, page 14.
Clean or replace filter. See page 13.
See Install Tip/Guard Assembly, page 11.
Replace Spray tip.
Tip continues to drip or ooze
material after trigger is
released:
Sprayer is worn out. Replace sprayer.
Spray pattern does not
adequately cover target
surface
Fine Finish Optimizer is installed while using
an incompatible material.
Sprayer is worn out.
Make sure compatible material is being used.
See Reversible Tip Selection Chart, page
11.
Replace sprayer.
Problem Cause Solution
ti15523a
ti15527a
ti15525a
ti15528a
