Graco GTS-2500 B Series Operation manual

308808
Rev. K
First choice when
quality counts.t
GTS-4900 Shown
7947A
INSTRUCTIONS–PARTS LIST
INSTRUCTIONS
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
Two- , Three- , and Four-Stage
HVLP Turbine Sprayers
120V AC 50/60 Hz
GTS-2500tSystem with Two-Stage Turbine
Models 232520, 232523, 232524, and 232525 — Series B
5 psi (34 kPa, 0.3 bar) Maximum Working Pressure
GTS-3800tSystem with Three-Stage Turbine
Models 232530, 232533, 232534, and 232535 — Series B
6 psi (41 kPa, 0.4 bar) Maximum Working Pressure
GTS-4900tSystem with Four-Stage Turbine
Models 232540, 232543, 232580, and 232581 — Series C
8 psi (55 kPa, 0.5 bar) Maximum Working Pressure
Model descriptions are in Turbine
Components Table on page 4.
Related Manuals
HVLP Compressor/Cart 308809. . . . . . . . . . . . . . . . . . .
GTS-960 Bleeder Gun 308336. . . . . . . . . . . . . . . . . . . .
GTS-980 Non-Bleeder Gun 308810. . . . . . . . . . . . . . . .
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
ECOPYRIGHT 1998, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001

 
Table of Contents
Warnings 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Information 4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Component Identification and Function 5. . . . . . . . . . . .
Setup 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shutdown 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Repair 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Drawing 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts List 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessories 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Graco Standard Warranty 22. . . . . . . . . . . . . . . . . . . . . .
Graco Phone Number 22. . . . . . . . . . . . . . . . . . . . . . . . . .
Symbols
Warning Symbol
WARNING
This symbol alerts you to the possibility of serious
injury or death if you do not follow the instructions.
Caution Symbol
CAUTION
This symbol alerts you to the possibility of damage to
or destruction of equipment if you do not follow the
instructions.
WARNING
FIRE AND EXPLOSION HAZARD
Improper grounding, poor ventilation, open flames, or sparks can cause a hazardous condition and
result in a fire or explosion and serious injury.
DGround the equipment. See Grounding on page 6.
DIf there is any static sparking or you feel an electric shock while using this equipment, stop
spraying immediately. Do not use the equipment until you identify and correct the problem.
DProvide fresh air ventilation to avoid the buildup of flammable fumes from solvents or the fluid
being sprayed.
DWhen flammable liquid is sprayed or used for flushing or cleaning the equipment, the turbine must
be placed at least 20 feet (6.1 m) away from areas where hazardous concentrations of flammable
vapors are likely to occur.
DUse additional air hose if necessary to ensure that the turbine is operated in a clean, dry,
well-ventilated area.
DNever place the turbine inside a spray booth! Use this equipment outdoors or in extremely
well-ventilated areas.
DKeep the spray area free of debris, including solvent, rags, and gasoline.
DElectrically disconnect all equipment in the spray area.
DExtinguish all open flames or pilot lights in the spray area.
DDo not smoke in the spray area.
DDo not turn on or off any light switch in the spray area while operating or if fumes are present.
DDo not operate a gasoline engine in the spray area.

 
WARNING
INSTRUCTIONS
EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to rupture or malfunction and result in serious injury.
DThis equipment is for professional use only.
DRead all instruction manuals, tags, and labels before you operate the equipment.
DUse the equipment only for its intended purpose. If you are not sure, call your Graco distributor.
DDo not alter or modify this equipment. Use only genuine Graco parts.
DCheck equipment daily. Repair or replace worn or damaged parts immediately.
DDo not exceed the maximum working pressure of the lowest-rated system component.
GTS-2500 turbine has a working pressure of 5 psi (0.3 bar, 34 kPa).
GTS-3800 turbine has a working pressure of 6 psi (0.4 bar, 41 kPa).
GTS-4900 turbine has a working pressure of 8 psi (0.5 bar, 55 kPa).
DUse fluids and solvents that are compatible with the equipment wetted parts. See Specifications
on page 21 for wetted parts information.
DDo not use hoses to pull equipment.
DRoute hoses away from traffic areas, sharp edges, moving parts, and hot surfaces. Do not expose
Graco hoses to temperatures above 82_C (180_F) or below –40_C (–40_F).
DWear hearing protection when operating this equipment.
DDo not lift pressurized equipment.
DComply with all applicable local, state, and national fire, electrical, and safety regulations.
DDo not point the gun at anyone or at any part of the body.
DDo not put your hand or fingers over the gun fluid nozzle.
DDo not stop or deflect leaks with your hand, body, glove, or rag.
DDo not “blow back”fluid; this is not an air spray system.
DFollow the Pressure Relief Procedure on page 10 if the fluid nozzle clogs and before you clean,
check, or service the equipment.
DTighten all fluid connections before you operate the equipment.
DCheck the hoses, tubes, and couplings daily. Replace worn or damaged parts immediately.
TOXIC FLUID HAZARD
Hazardous fluid or toxic fumes can cause serious injury or death if splashed in the eyes or on the skin,
inhaled, or swallowed.
DKnow the specific hazards of the fluid you are using.
DStore hazardous fluid in an approved container. Dispose of hazardous fluid according to all local,
state, and national guidelines.
DAlways wear protective eyewear, gloves, clothing and respirator as recommended by the fluid and
solvent manufacturer.
DDo not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents, or
fluids containing such solvents in the turbine spray system, which contains aluminum and/or
galvanized-coated parts. Such use could result in a serious chemical reaction, with the possibility
of explosion, which could cause death, serious injury, and/or substantial property damage.

 
General Information
HVLP Turbine Sprayers
The GTS-2500, GTS-3800, and GTS-4900 HVLP
Turbines, compressor/cart, and spray guns can spray
most coatings or finishes currently being used for
automotive refinish, industrial, aerospace, marine,
wood, plastic, and architectural applications.
To produce high-quality paint finishes, the spray gun
typically utilizes inbound air pressure of 5 psi (0.3 bar,
34 kPa) for GTS-2500; 6 psi (0.4 bar, 41 kPa) for
GTS-3800; and 8 psi (0.5 bar, 55 kPa) for GTS-4900.
A cone of air, produced by the gun, carries and directs
the paint from the gun to the surface, minimizing
overspray and increasing transfer efficiency. This
enables painters to comply with new clean air laws that
are designed to reduce VOC (volatile organic
compounds) emissions, eases paint application by
requiring fewer paint passes to obtain coverage, and
saves on both material and clean-up time.
See turbine gun manuals 308336 or 308810 for more
information on the operation and use of the turbine
spray gun.
Unpacking Turbine
Unpack the Graco Turbine Sprayer from the shipping
carton, and inspect for any possible shipping damage.
If there is any damage, call your distributor.
Turbine Configurations
Graco GTS turbines come in the following basic
configurations:
DGTS-2500 two-stage turbine sprayer
DGTS-3800 three-stage turbine sprayer
DGTS-4900 four-stage turbine sprayer
Turbine Components Table
System Model Turbine 30-ft (9 m) Hose
Gun /
Fluid Set Extra/Fluid Sets
GTS-2500 232520 232520 none none none
232523 232520 241413 240083 (GTS 960)
bleeder style cup gun /
240113 (#3) fluid set
none
232524 Consists of Model 232523 with 240114 (#4) fluid set (included with gun)
232525 Consists of Model 232523 with 240115 (#5) fluid set (included with gun)
GTS-3800 232530 232530 none none none
232533 232530 241413 240093 (GTS 980) non-
bleeder style cup gun /
240113 (#3) fluid set
none
232534 Consists of Model 232533 with 240114 (#4) fluid set (included with gun)
232535 Consists of Model 232533 with 240115 (#5) fluid set (included with gun)
GTS-4900 232540 232540 none none none
232543 232540 241413 240093 (GTS 980) non-
bleeder style cup gun /
240113 (#3) fluid set
240078 (#4 and #5)
232580 Consists of Model 232543 with GTS-ProCartt232575
232581 Consists of Model 232543 with GTS-ProCart Plust232576

 
Component Identification and Function
7947A
B
E
G
A
D
C
H
F
Fig. 1
J
K
L
AAir outlet Connection for turbine air supply to turbine spray guns (GTS-4900
units include quick connector)
BPower switch ON/OFF switch for sprayer turbine and rear outlet
CStorage compartment Provides storage for fluid set components
DTurbine handle Folds flat for minimum storage space
ETurbine case Houses air filter and provides dual air flow to motor and turbine; can be
lock-mounted on compressor/cart
FAir filters (pre-filter and main) Provide filtered air for turbine spray gun and turbine motor
GTwo-speed switch Allows two-speed operation of turbine sprayer motor (used on
GTS-4900 units)
HAir filter indicator light Indicates air filter performance and maintenance (used on GTS-3800
and GTS-4900 units)
JConnector and power cord Provides power for turbine sprayer (power cord provided with turbine)
KAuxiliary power outlet Switched power outlet for compressor/cart or other accessory
LResettable circuit breaker Provides protection for turbine motor and cart

 
Setup
Grounding
WARNING
Improper installation or alteration of the grounding
plug will result in a risk of electric shock, fire, or
explosion that could cause serious injury or death.
This equipment requires a 120V AC, 60 Hz, 15A circuit
with a grounding receptacle. See Fig. 2.
Fig. 2
grounding prong
grounded outlets
Extension cord must be 3-wire, 12 AWG, 50 ft (15 m)
or shorter.
Do not alter the ground prong or use an adapter.
Setup/Use Options
HVLP Turbine Sprayers have a variety of user options.
See Fig. 3.
DSee compressor/cart manual 308809 for
information on compressor/cart setup and
operation.
DSee turbine gun manual 308336 or 308810 for
information on turbine spray gun setup and
operation.
Prepare the Fluid
DAlways strain the fluid before you spray; this
includes color, reducer, and hardeners if used.
DWhen using a turbine spray system, use a
slower drying reducer or thinner to compensate for
the faster drying time caused by the warm air of the
turbine. Do not over reduce.
CAUTION
The performance of the turbine sprayer varies with
the viscosity of the material and the length of the
hose. Keep the hose short to prevent pressure drop.
Paint Reduction —Automotive Type Finishes
Reduce and catalyze all paint to manufacturer’s
specifications. To compensate for the faster drying
time of turbine systems, use a reducer that is one step
slower than what is used for conventional air spray.
Paint Reduction —Industrial or Domestic
Coatings
Reduce and catalyze all paint to manufacturer’s
specifications. If no reductions are given, first
thoroughly mix the fluid to be sprayed. Then gradually
mix in the proper reducer, testing the fluid until you
have the correct spraying consistency.
To test the consistency, remove the stir stick from the
thinned paint. When the paint stream running off the
stir stick breaks into droplets, the first few drops should
be about one second apart.

C
A
Fig. 3
F
04958
K
B
X
A
G
Y
G
C
X
E
F
Y
Y
HJ
HG
JK
E
D
X
D
cup-over option
(see manual 308336 or 308810)
cup setup for spray gun
to
compressor/
cart
2-quart remote pressure pot
GTS-4900 Turbine
21/2-gallon remote pressure pot
to
compressor/
cart
remote pressure pot setup for spray gun
 
Setup
Connect the Fluid and Air Supply
See Fig. 3
DThe HVLP compressor/cart provides the air supply
for the remote pressure pot.
DThe circled letters in Fig. 3 indicate hose line
connections.
1. Connect gun air supply hose (A) between turbine
air outlet (B) and gun air inlet (C). DO NOT use
wrench to tighten connections; hand tighten only.
The GTS-4900 turbine uses a quick connector at
outlet (B). A wrench is not required for hose
connection.
2. If using a spray gun cup (D):
Connect the cup to the gun fluid inlet (E).
If using accessory remote pressure pot (F):
Connect fluid supply hose (G) between remote
pressure pot fluid outlet (H) and gun fluid inlet (E).
Connect pressure pot air hose (J) between
pressure pot air regulator inlet (K) and the
compressor/cart air outlet.
Connect to Electric Supply
Plug turbine power cord into grounded outlet.
NOTE: Extension cord must be 3-wire, 12 AWG, 50 ft
(15 m) or shorter.

 
Setup
Fill the Cup or Remote Pressure Pot
Spray Gun Cup
WARNING
The spray gun cup is pressurized by the gun’s air
supply. To reduce the risk of serious injury from
pressurized fluid or accidental spray from the gun,
always turn off the air supply to the gun before you
remove the spray gun cup.
Only fill the cup 3/4 full to help keep the air pressure
tube clean, then install the cover. The under-cup cover
has a latch (H) to secure it to the cup. The over-cup
has a ring with notches (J) that secures the cup hood
into place when locked in place on the cup.
Fig. 4
02845
H
J
02845
Accessory Remote Pressure Pot
WARNING
The accessory remote pressure pots remain pres-
surized until pressure is manually relieved. To
reduce the risk of serious injury from pressurized
fluid or accidental spray from the gun, always
relieve pressure in the pressure pot before you
loosen or remove the cover.
1. Relieve remote pressure pot pressure as follows
(see Fig. 5):
a. Turn off air supply to pressure pot.
b. 21/2-gallon remote pressure pot:
Pull pressure relief valve ring (206c) until
pressure is completely relieved.
2-quart remote pressure pot:
Turn out pressure relief knob (113) one turn.
Wait until pressure is completely relieved
before you remove cover. Close knob.
8069A
Fig. 5
206c
113
2 quart
02882A
21/2gallon
2. Remove pressure pot cover and fill. Secure cover.
NOTE: 2-quart remote pressure pot only:
Lightly coat the cover threads with petroleum jelly.
CAUTION
If the 2-quart remote pressure pot is accidentally
tipped over or held at too great of an angle, fluid may
leak into the air regulator and cause damage. Take
precautions to avoid this. If fluid does get into the
regulator, clean it immediately.
CAUTION
Do not tighten the pressure pot cover more than
hand-tight. Excessive tightening may damage the
cover gasket.

 
Setup
Prepare Surface to be Sprayed
To get proper adhesion, make sure surface is
completely clean.
Operating Turbine
WARNING
Sparks can be expected in the normal operation of
the turbine motor. These sparks can ignite fumes
from flammable liquids, dust particles, and other
flammable substances in the spray area. This can
cause serious injury and property damage. Be sure
to follow the precautions below:
DWhen flammable liquid is sprayed or used for
flushing or cleaning equipment, the turbine must
be placed at least 20 feet (6.1 m) away from
areas where hazardous concentrations of
flammable vapors are likely to occur.
DUse additional air hose if necessary to ensure
that the turbine is operated in a clean, dry, well
ventilated area.
DNever place the turbine inside a spray booth!
Use this equipment outdoors or in extremely
well ventilated areas.
DAvoid all ignition sources such as: static
electricity from plastic drop cloths, open flames
like pilot lights, hot objects like cigarettes, arcs
from connecting or disconnecting power cords,
and turning light switches on and off. Extinguish
or remove all sources of ignition.
1. Turn turbine ON a few minutes before spraying to
allow warm-up.
NOTE: When the turbine is not in use for an extended
period of time, turn it off. The turbine does not shut off
automatically.
2. Be sure turbine filter is clean before operating. See
page 11 to check and clean filter.
NOTE: To adjust the spray gun pattern see the turbine
gun manual.
HVLP Compressor/Cart Cold Weather
Operation
The HVLP compressor/cart uses a diaphragm
compressor. A new diaphragm may be stiff in cold
weather. If cold enough, the diaphragm is too stiff to
allow the compressor motor to start (the unit hums).
If this occurs, follow these steps:
1. Turn turbine and compressor OFF.
2. Unplug turbine from power source.
3. Pinch and remove filter by hand. Clean or replace
if dirty.
4. Hand spin cooling fan on compressor for a few
revolutions.
5. Reinstall filter.
6. Plug in turbine.
7. Turn turbine and compressor ON. If necessary,
repeat procedure.

 
Shutdown

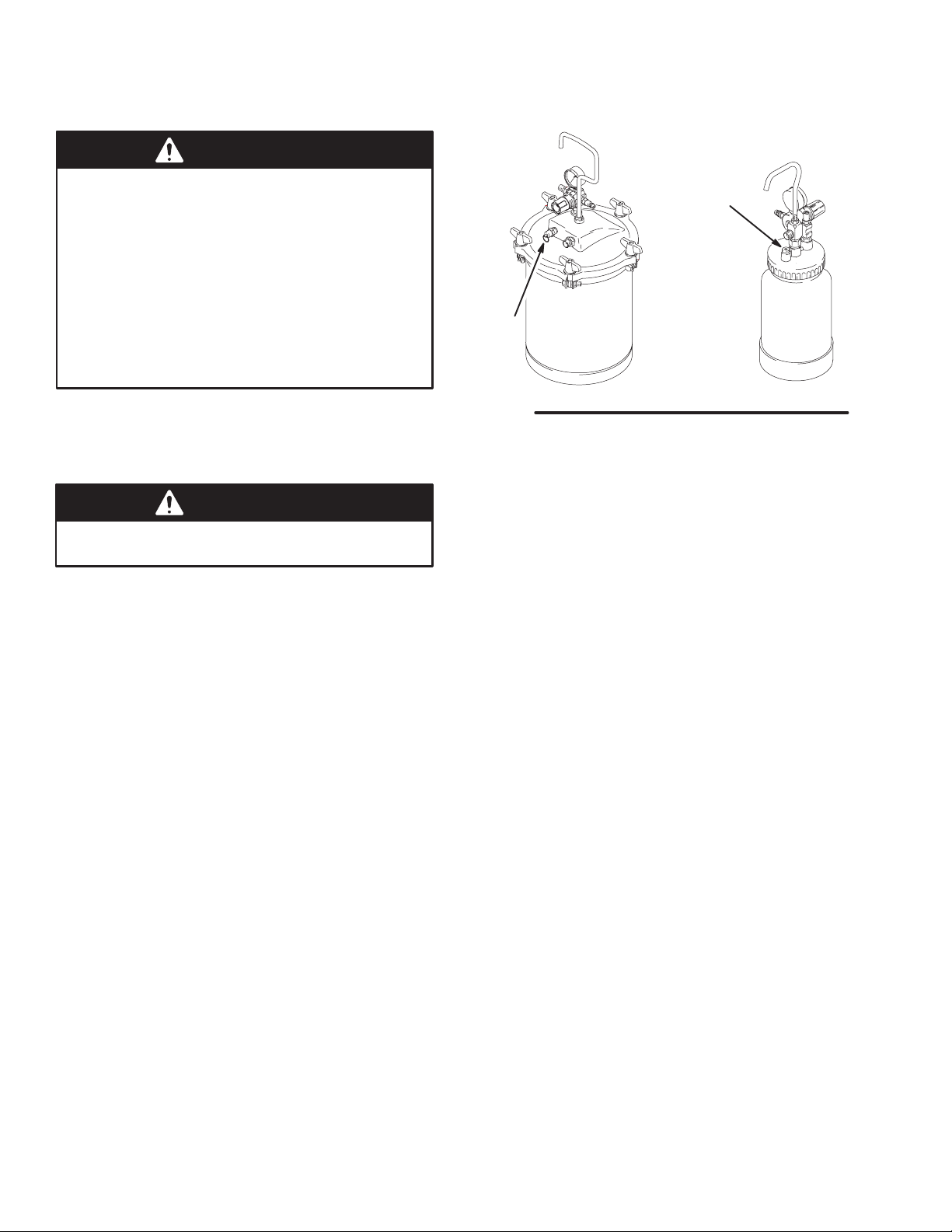

Pressure Relief Procedure
WARNING
PRESSURIZED EQUIPMENT HAZARD
The equipment stays pressurized until pressure is
manually relieved. To reduce the risk of a serious
injury from pressurized fluid, accidental spray from
the gun, or splashing fluid, follow the Pressure
Relief Procedure whenever you
DAre instructed to relieve the pressure
DStop spraying
DCheck or service any of the system equipment
DInstall or clean the fluid nozzles
1. Turn off air supply to gun.
2. Turn off turbine sprayer.
WARNING
The turbine hose outlet may be hot. Carefully check
the hose end before you remove the hose.
3. If using remote pressure pot, relieve pressure by
following these steps (see Fig. 6):
a. Turn off air supply to pressure pot.
b. 21/2-gallon remote pressure pot:
Pull pressure relief valve ring (206c) until
pressure is completely relieved.
2-quart remote pressure pot:
Turn out pressure relief knob (113) one turn.
Wait until pressure is completely relieved
before you remove cover. Close knob.
Fig. 6
8069A
206c
113
2 quart
02882A
21/2gallon
NOTE: Elevate spray gun and pull trigger. This will
allow fluid in fluid hose to drain back into remote
pressure pot.
4. If using a spray gun cup:
Unlatch cup cover, and loosen or remove cup from
cover to relieve cup pressure.
5. Clean spray gun and cup as instructed in turbine
gun manual 308336 or 308810.

 
Maintenance
Daily
The turbine systems are lifetime lubricated. The only
maintenance required is filter cleaning and
replacement.
The turbine filter must be clean at all times to provide
sufficient air flow to cool motor and atomize the fluid.
Check turbine pre-filter (22) daily for cleanliness.
Check the main paper filter (21) weekly, minimum.
Clean as necessary.
NOTE: To check filter, turn on turbine and place piece
of paper against pre-filter. If air intake holds paper in
place, filter is okay.
Models GTS-3800 and GTS-4900 have an air filter
indicator light on the front panel. If the filter is good the
light is out. If the filter is clogged or has low airflow the
light will come on as in Fig. 7 below.
Fig. 7 8049A
To clean filter:
1. Turn off and unplug turbine.
2. Loosen four thumbscrews (16), and remove filter
retainer (15) and pre-filter (22). See Fig. 8.
3. Remove main filter (21) and clean by using one of
the following three methods:
DTap filter gently on flat surface, dirty side
down.
CAUTION
To prevent damage to filter, do not use compressed
air on a wet filter.
DDirect compressed air (100 psi [7 bar, 70 kPa]
maximum) through filter panel in opposite
direction of arrows on side of filter.
DSoak filter for 15 minutes in water and mild
detergent. Rinse filter until clean. Air dry. Do
not use compressed air on damp or wet filter.
WARNING
To avoid damage to the turbine and possible elec-
tric shock, never install a damp filter in the turbine.
CAUTION
To keep out dirt, do not operate the turbine sprayer
without both filters installed.
Fig. 8 03072
16
21
22
15
20
1
Weekly
Check hose for cracks, leaks, and holes. Replace if
necessary.
Annually or Every 600 Hours, Whichever
Comes First
Replace motor brushes 600 hours after turbine sprayer
operation. If brushes are not replaced, motor failure
will occur.
NOTE: It is recommended that an authorized service
center perform the motor brush replacement procedure
on page 14.

 
Notes

 
Troubleshooting
PROBLEM CAUSE SOLUTION
No fluid delivery No material, no remote
container pressurization, hose
or pickup tube clogged
Check container for material.
Check for leaks at the container gasket (2-quart
pressure pot cover or 21/2-gallon pressure pot wing
nuts). Tighten wing nuts if loose.
Check for air flow from male quick-disconnect at
compressor outlet (should be approx. 1/4 CFM).
Turn pressure regulator clockwise. Look for pressure
on gauge. (If no pressure on gauge, check air line and
fittings).
Check hole in 21/2-gallon pressure pot cover under
regulator or in 2-quart pressure pot cover at needle
valve. Clean if necessary.
Check for obstructions.
Check if fluid pickup tube is unplugged. Tighten.
Blow out and clear material hose.
Compressor not
starting
Cold weather operation See HVLP Compressor/Cart Cold Weather
Operation on page 9.
Turbine not starting No power Check outlet for power. Cycle red rocker switch.
Check that correct IEC (modular) cord is used and
plugged in.
Check circuit breaker(38). Push to reset.
Poor atomization Dirty filter Clean filter.
Extension cord too long Extension cord must be 3-wire, 12 AWG, 50 ft (15 m)
or shorter.
Hose too long Replace with shorter hose. See Accessories page 19
for shorter hose and Part No.
Circuit breaker trips Filter clogged Clean filter and replace as necessary.
High ambient temperature Move turbine to cooler area.
Excessive brush wear Remove cover and turbine, and check for free motor
rotation and for brush wear. Replace motor brushes if
necessary.
Excessive current draw Return to authorized service center.

 
Repair
WARNING
Turn off turbine and unplug power for the following
procedures.

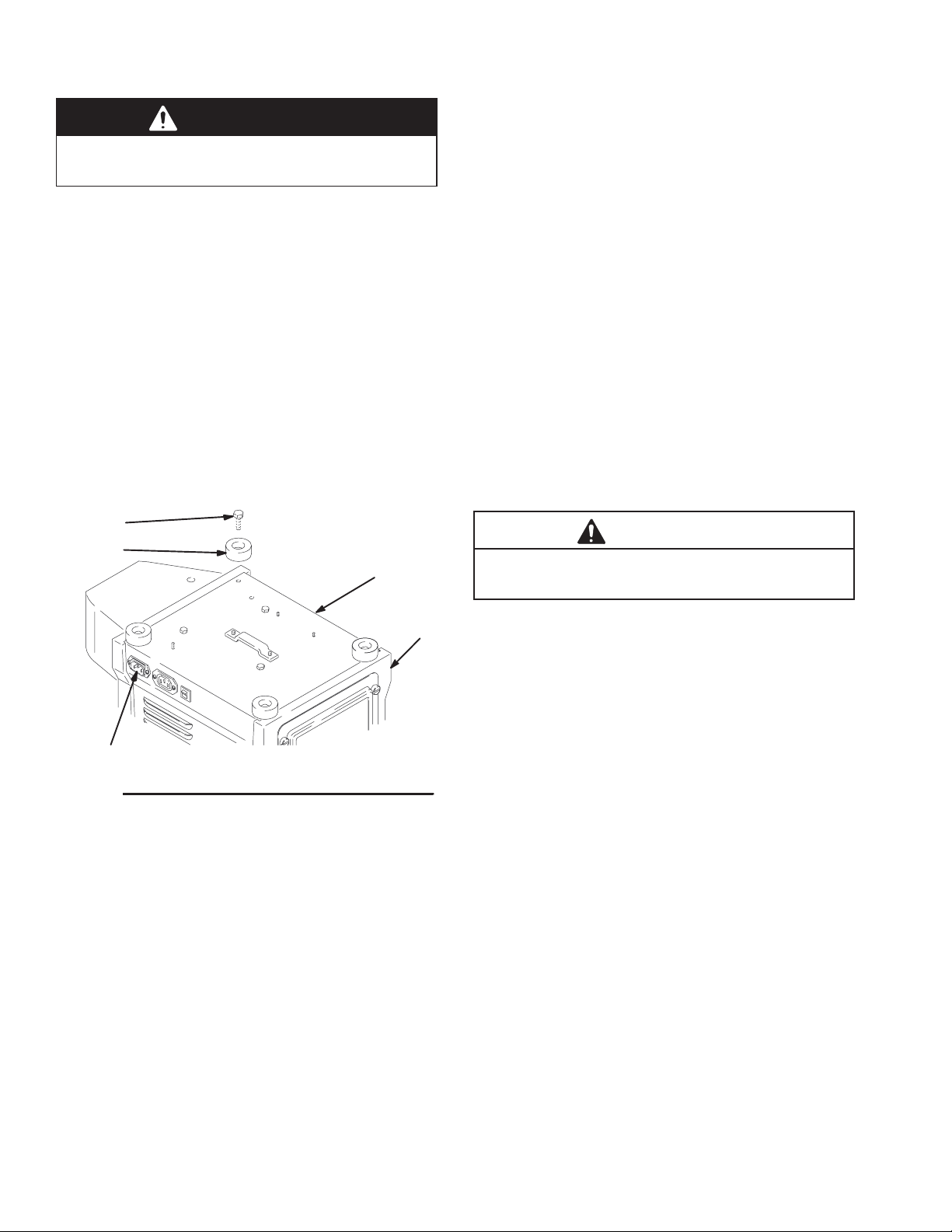

Turbine Sprayer Disassembly
1. If necessary, clean and replace filter according to
maintenance procedure on page 11.
2. Place turbine upside down on work surface.
Remove four cap screws (6) and bumpers (7). See
Fig. 9 below and Parts Drawing on page 16.
3. Carefully lift unit by turbine baseplate (2) from
turbine cover (1), and place upright on work
surface.
4. Repair or replace items as required.
5. Reassemble turbine.
7949A
Fig. 9
6
7
1
2
A
Power Cord Replacement
Replace power cord by unplugging from IEC connector
(A). Install new cord. See Fig. 9
Motor Brush Replacement
NOTE: It is recommended that this procedure be
performed by an authorized service center.
1. Use Turbine Sprayer Disassembly procedure at
left to take turbine apart. Use Turbine/Motor
Replacement on page 15 to replace turbine.
2. Remove plastic fan cover.
3. Remove brushes. Check commutator for
excessive wear.
Note: Do not install new brushes in a turbine in which
the commutator has been damaged by the brush
holders. A motor with this type of damage cannot be
repaired.
4. Install new motor brushes using reverse order.
Keep lead wires from all rotating parts and motor
frame.
CAUTION
Do not run the motor with the air inlet or outlet
sealed off.
5. Reassemble turbine.
6. Run motor 30 to 45 minutes at half-rated voltage
to seat motor brushes.
Note: If half-rated voltage is not available, run repaired
unit in series with another turbine for 30 to 45 minutes.

 
Repair
Turbine/Motor Replacement
The GTS-2500, GTS-3800, and GTS-4900 Turbines
each use a different turbine/motor. See the
Turbine/Motor Replacement Kits in the Parts List on
page 17 for a listing of replacement kit parts.
See Parts Drawing on page 16.
1. Use Turbine Sprayer Disassembly procedure on
page 14 to take turbine apart.
2. Remove turbine gasket (25).
3. Remove 3 screws (6).
4. Remove plate (82) and 3 spacers (83).
5. Remove turbine motor wires from spade
connectors.
6. Rotate turbine (24) from outlet fitting (18) and lift
up from turbine spacers (23).
7. Install new turbine gaskets (25 and 41).
8. Reassemble turbine.
9. Connect ground wire to turbine housing as
required.
10. Reconnect wires according to applicable turbine.
See Fig. 10, Fig. 11, or Fig. 12 schematics.
Fig. 10
Motor
GTS-2500 Turbine
7246A
Fig. 11
GTS-3800 Turbine
Motor
7245A
7244B
Fig. 12
GTS-4900 Turbine
Motor

 
Parts Drawing
31
29
28
20
33 7
3
27
5
38
16, 17
42
25
24
26
27
36
34
2
1
41
6
6
23
12
11
13
14
15
81
19
18
21
22
32, 40
46
47
37
39
65
67
68
69
4
64
83
82
7943C
12
10

 
Parts List
Ref
No. Part No. Description Qty
Ref
No. Part No. Description Qty
1 276501 COVER, turbine 1
2 192775 BASE PLATE, turbine
(GTS-2500 and GTS-3800) 1
192774 BASE PLATE, turbine
(GTS-4900) 1
3 192786 PLATE, retaining 1
4 106084 SCREW, pan hd 4
5 192787 DUCT, turbine 1
6 112117 SCREW, cap, hx hd 8
7 113817 BUMPER 4
10 114064 PLUG, inlet 1
11 114065 PLUG, inlet, female 1
12 114410 SCREW, pan hd, torx 6
13 240006 LID, tool box 1
14 192793 FOAM PAD, tool box 1
15 192778 RETAINER, filter 1
16 192895 SCREW, captive 4
17 158486 O-RING 4
18 193057 FITTING, outlet
(GTS-2500) 1
192779 FITTING, outlet
(GTS-3800 and GTS-4900) 1
19 156698 O-RING, buna–n1
20 192789 GASKET, filter 2
21 240273 FILTER, main, paper 1
22†240274 FILTER, pre 1
23 193068 SPACER, turbine
(GTS-2500) 3
192780 SPACER, turbine
(GTS-3800 and GTS-4900) 3
24* 240269 TURBINE KIT, 2 stage; 120 volts
(GTS-2500) 1
240270 TURBINE KIT, 3 stage; 120 volts
(GTS-3800) 1
241122 TURBINE KIT, 4 stage; 120 volts
(GTS-4900) 1
25 192812 GASKET, turbine
(GTS-2500) 1
192788 GASKET, turbine
(GTS-3800 and GTS-4900) 1
26 192784 BRACKET, handle 2
27 114531 SCREW, cap, hx hd 8
28 113414 NUT, lock 2
29 192785 HANDLE, turbine 1
31 114658 SWITCH, rocker (GTS-4900) 1
32 114279 SENSOR, pressure
(GTS-3800 and GTS-4900) 1
33 114295 PLUG, dome
(GTS-2500) 1
114280 LIGHT, indicator
(GTS-3800 and GTS-4900) 1
34 114293 SWITCH, rocker, red 1
36 111593 SCREW, grounding 1
37 102063 WASHER, lock, external tooth 1
38 114290 BREAKER, circuit; 8A, 120V
(GTS-2500) 1
114403 BREAKER, circuit; 15A, 120V
(GTS-3800 and GTS-4900) 1
39 192905 PLATE, deflector
(GTS-3800 and GTS-4900) 1
40 193059 GASKET, sensor
(GTS-3800 and GTS-4900) 1
41 192845 GASKET, duct 1
42 192846 GASKET, duct 1
46 114287 FITTING, barbed
(GTS-3800 and GTS-4900) 1
47 192810 HOSE, air
(GTS-3800 and GTS-4900) 1
65 240275 CORD SET, 6 ft
(GTS-2500 and GTS-3800) 1
240281 CORD SET, 15 ft
(GTS-4900) 1
67Y193095 LABEL, danger 1
68Y193096 LABEL, warning 1
69 193126 LABEL, caution 1
75 240078 #4/5 FLUID SET (GTS-4900)
Not shown 1
81 114538 SCREW, mach, pan hd 2
82 194094 PLATE, turbine 1
83 SPACER, turbine
194095 GTS-2500 3
194096 GTS-3800 3
194097 GTS-4900 3
†Pre-filters are available in 5 packs. Order Part No.
240274.
* Turbine Brush Kits are also available. Purchase
separately: 240545 (for GTS-2500), and 240546 (for
GTS-3800 and GTS-4900).
YExtra danger and warning labels are available
for free.

 
Accessories
21/2-Gallon (9.5 liter) Pot Kit PTFERlined 240045
21/2-Gallon (9.5 liter) Pressure Pot M70604
50 psi (345 kPa, 3.5 bar) Maximum Inlet Air Pressure
21/2-gallon (9.5 liter) capacity, steel tank. Includes air
pressure regulator, gauge, and pressure relief valve.
04957
217
202
208
209
212
203
207
212
204
205
216
201 221
21/2-gal (9.5 liter)
paint tank liner
(5 pack) 112077
2-Quart (1.9 liter) Pressure Pot M70962
50 psi (345 kPa, 3.5 bar) Maximum Inlet Air Pressure
2-quart (1.9 liter) capacity, aluminum cup.
Includes air pressure regulator, gauge, pressure relief
valve, and rigid hook handle.
WARNING
Do not use 1,1,1-trichloroethane, methylene chlo-
ride, other halogenated hydrocarbon solvents, or
fluids containing such solvents in the turbine spray
system, which contains aluminum and/or galva-
nized-coated parts. Such use could result in a
serious chemical reaction, with the possibility of
explosion, which could cause death, serious injury,
and/or substantial property damage.
102
103
101
112
02951A
123
122
121
119
118
114
120
124
126
127
*109
128
109
(Handle is
shipped loose,
inside of 2-qt
container.)
Ref.
No. Part No. Description Qty.
201 104655 PRESSURE GAUGE 1
202 151519 REDUCER, 1/4 to 1/8 1
203 M70687 COUPLING 1
204 M70676 O-RING 1
205 M70686 PRESSURE RELIEF VALVE 1
207 M70616 GASKET, standard; EPDM 1
M70617 GASKET, solvent resistant; Thiokol
(optional —must order separately) 1
208 M70678 WING NUT 5
209 M70677 WASHER 5
212 M71433 TANK, paint, 21/2-gal (9.5 liter),
with cover, black powder coat 1
240046 TANK, paint, 21/2-gal (9.5 liter),
with PTFE liner 1
216 169969 QUICK DISCONNECT, male 1
217 104815 PRESSURE REGULATOR 1
221 M71639 HANDLE 1
Ref.
No. Part No. Description Qty.
101 104655 PRESSURE GAUGE 1
102 M70727 SAFETY VALVE 1
103 104815 PRESSURE REGULATOR 1
109 M71144 POT, 2 quart (1.9 liter), aluminum 1
112 M71425 GASKET KIT, polyethylene (5 pak) 1
114 M70725 FITTING 1
118 169969 QUICK DISCONNECT, male 1
119 M71491 HOSE, fluid; 60 in. long; 1/4 in. ID 1
120 240063 HOSE, air; 54 in. (1.37 m) long 1
121 M70854 HOSE CLAMP 1
122 110440 FITTING. tee 1
123 189557 RESTRICTOR 1
124 M70399 QUICK DISCONNECT, male 1
126 M71681 AIR VALVE KIT (o-ring and valve) 1
127 M70402 QUICK DISCONNECT 1
128 M72842 FITTING, air pressure stem 1

 
Accessories
8483A
Pot Length (ft) Number
21/2
gal 2 240074
2 qt 20 240070
30 240071
Compressor Air Hose
240065
Air Valve Kit
Tie Wrap Kit
(10 pack)
103473
Length (ft) Number
30 241423
60 241426
Air & Material Hose
FS Number
3 240773
3 240103
Fluid Set (FS)/Spray Gun
Gun
960P
980P
40 240072
50 240073
60 240074
Length (ft) Number
20 240475
30 240476
Material Hose*
40 240477
50 240478
60 240479
Standard M70604
PTFE Lined 240045
Pressure Pot
Length (ft) Number
Standard Turbine Air Hose
30 241413*
40 241414
50 241415
60 241416
DSee GTS-HVLP Fine Finish Systems
brochure 300477 for all accessories.
DNon-Silicone Lubricant 111265 (4 oz) is
available for fluid seals and wear areas.
Notes:
* Standard on all complete
turbine systems
* Material hose coupler
M70693 may be used to
couple two material
hoses together.

 
Notes
