Graco 234414 User manual

Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441
Copyright 2003, Graco Inc. is registered to I.S. EN ISO 9001
309926C
Instructions - Parts List
2.5 and 5.0 Gallon
Pressure Tank
- Not for use with highly abrasive, corrosive, or rust inducing materials -
80 psi (552 kPa, 5.5 bar) Maximum Fluid Pressure*
*Air pressure loads that are higher than design loads
or alterations to the pressure feed tank, can result in
tank rupture or explosion.
Model Capacity Regulation
234414 2.5 gal. (9.5 liter) single
234415 2.5 gal. (9.5 liter) dual
234416 5 gal. (19 liter) single
234417 5 gal. (19 liter) dual
This manual contains important warnings
and information. Read and keep for
reference.

Manual Conventions
2 309926C
Manual Conventions
Note
WARNING
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
CAUTION
CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in property damage or
destruction of equipment.
A note indicates additional helpful information.
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent
fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources, such as pilot lights, cigarettes, portable electric lamps, and plastic drop
cloths (potential static arc).
• Keep work area free of debris, including solvent, rags, and gasoline.
• Do not plug or unplug power cords or turn lights on or off when flammable fumes are present.
• Ground equipment and conductive objectives. See Grounding in your sprayer manual.
• Use only grounded hoses.
• Hold gun firmly to side of grounded pail when triggering into pail.
• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment
until you identify and correct the problem.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not exceed maximum working pressure or temperature rating of the lowest rated system compo-
nent. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings.
• Check equipment daily. Repair or replace worn or damaged parts immediately.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your Graco distributor for information.
• For professional use only.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Comply with all applicable safety regulations.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or swal-
lowed.
• Read MSDS’s to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the operating
area of the equipment to help protect you from serious injury, including eye injury, inhalation of toxic
fumes, burns, and hearing loss. This equipment includes but is not limited to:
• Protective eye wear
• Gloves, clothing and respirator as recommended by the fluid and solvent manufacturer
• Hearing protection

WARNING
309926C 3

Set-Up
4 309926C
Set-Up
Pressure Relief Procedure
1. Shut off air supply to the tank by closing air valve.
2. Pull ring on safety valve until pressure bleeds down.
Material Preparation
Follow manufacturer’s directions for mixing and
preparing material.
Strain material using a fine mesh screen to prevent
foreign matter from entering and clogging passageways.
Tank Assembly
1. Install tank handle and lock nut by turning handle
clockwise 4-5 turns. Position handle so it is parallel
to safety valve branch tee.
2. Secure in place by tightening lock nut using a 9/16”
open end wrench.
3. Install regulator U10004 by tightening swivel
adapter nut U23040 onto nipple U09993. Position
unit so gauge is facing the same direction as safety
valve ring. Use 11/16” open end wrench to tighten
swivel adapter nut.
WARNING
Pressure tanks remain pressurized until pressure is
manually relieved. To reduce the risk of serious injury
from pressurized fluid or accidental spray from gun,
always follow this procedure to relieve pressure in the
tank:
• Before you check or service any part of the spray
system.
• Before you loosen or remove the pressure tank
cover or fill port.
• Whenever you stop spraying.
Tank handle must be attached before installing
regulator.

Installation
309926C 5
Installation
1. Follow Pressure Relief Procedure, page 4.
2. Slowly loosen thumb screws, tip lid clamps back and
remove lid assembly.
3. Pour material into tank. Use part no. U07050
Disposable Tank Liners for easy clean-up.
4. Replace lid assembly and tighten clamps and thumb
screws securely.
5. Pass air supply line through Air Control Unit to filter
dirt from air and extract water and oil. Connect air
supply hose to air inlet fitting on tank regulator.
6. Attach atomization air hose to the air outlet fitting
which is directly opposite air inlet fitting on tank
pressure regulator.
7. Connect material hose to fluid outlet fitting on top of
tank lid.
WARNING
• A safety valve protects tank from over pressuriza-
tion. During each use, pull ring on safety valve to
check if it operates freely and relieves air pressure.
If the valve is stuck, does not operate freely, or does
not relieve air pressure, it must be replaced.
• Do not discard or make any alterations or substitu-
tions to safety valve.
• Do not make any changes to the pressure tank.
Tampering in the form of drilling, welding, etc., will
weaken the tank.

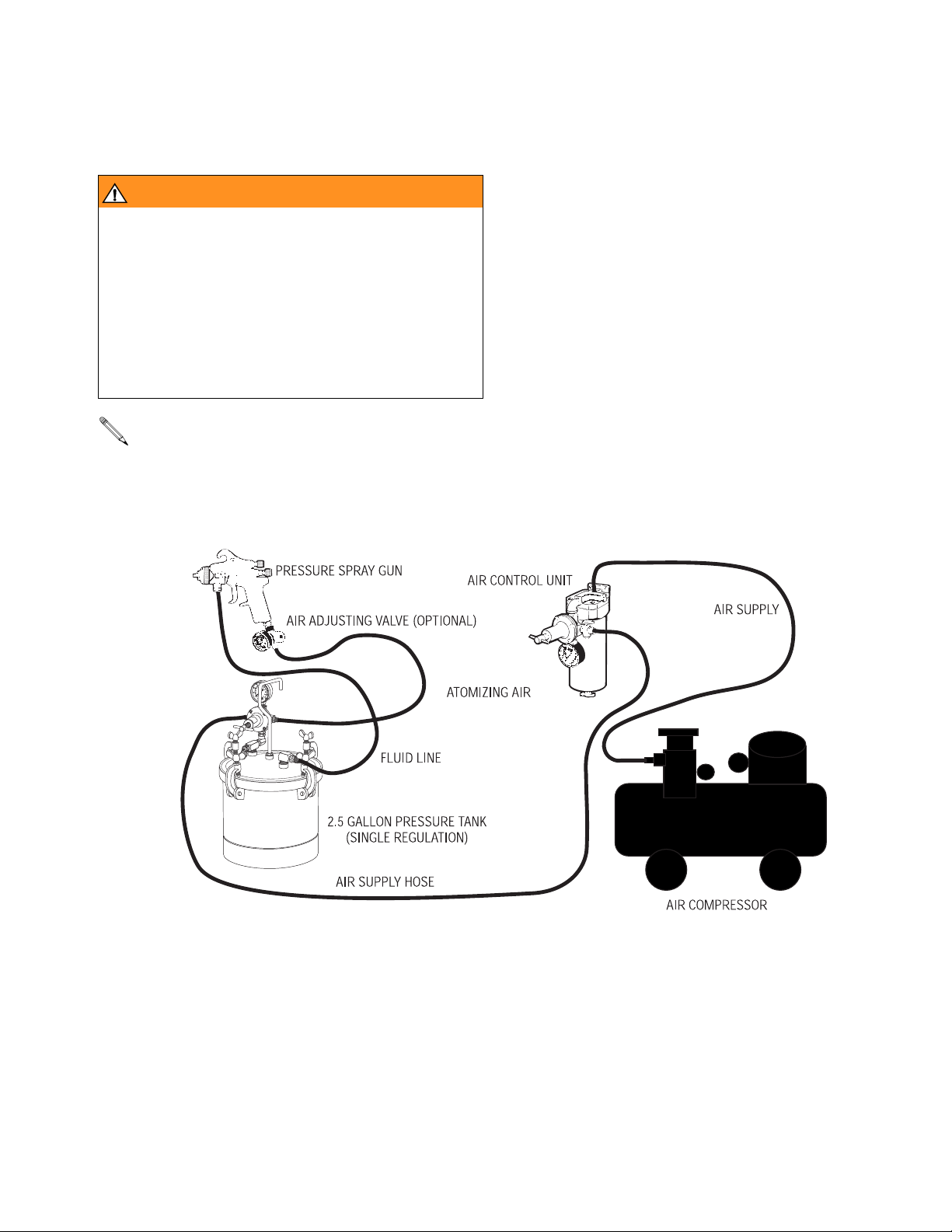

The following information is for a typical
installation.
MADE IN USA
971

Operation
6 309926C
Operation
1. Turn on air supply.
2. Turn T-handle adjusting screw clockwise on the tank
pressure regulator, while pulling the gun trigger fully
back to start material flow.
3. Continue turning T-handle clockwise until desired
material flow is achieved. To decrease pressure turn
T-handle counter-clockwise to a lower setting. Then
relieve pressure in tank by pulling the ring on the
safety valve.
4. Atomization air for the spray gun can be adjusted
using the air adjusting valve on the spray gun or at
the air regulator assembly (Model 234415 only) on
the pressure tank.
5. Operate spray gun according to instructions
accompanying gun.
Maintenance
Cleaning the Tank
1. Turn off main air supply to tank.
2. Follow Pressure Relief Procedure, page 4.
3. Turn T-handle adjusting screw on regulator,
counter-clockwise until no spring tension is felt.
4. Slowly loosen thumb screws, tip clamps back and
tip tank lid to one side.
5. Loosen spray gun air cap ring about three turns.
6. Turn on air supply.
7. Hold a cloth over air cap on gun and pull trigger.
This forces material back through the hose, into the
tank.
8. Empty and clean tank and parts using a suitable
solvent.
9. Pour solvent into tank.
10. Replace lid and tighten thumb screws and clamps.
11. Turn T-handle on tank regulator clockwise while
pulling gun trigger fully back and spray until clean
solvent appears.
12. Repeat steps 1-3.
Decorative powder coating may be affected by
solvent contact. Avoid prolonged exposure of
solvents to powder coated areas. Tank has been
zinc plated underneath the decorative coating for
rust protection.

Troubleshooting
309926C 7
Troubleshooting
Technical Data
Problem Cause(s) Solution(s)
Air escaping from the hose on regula-
tor bonnet.
Broken or damaged diaphragm Replace diaphragm
Pressure creepage registered on
gauge
Dirty or worn valve seat in regulator Clean or replace valve seat
Fluid or air leak at lid gasket Defective lid gasket or thumb screws
not tight
Replace or tighten
Maximum Fluid Pressure . . . . . . . . . . . . . . . . . . . . . . . . . 80 psi (552 kPa, 5.5 bar)
Air Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4” nps
Fluid Outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3/8” nps
Wetted Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PTFE-coated steel bowl, zinc-plated pick-up tube,
nickel-plated fluid fitting

Parts
8 309926C

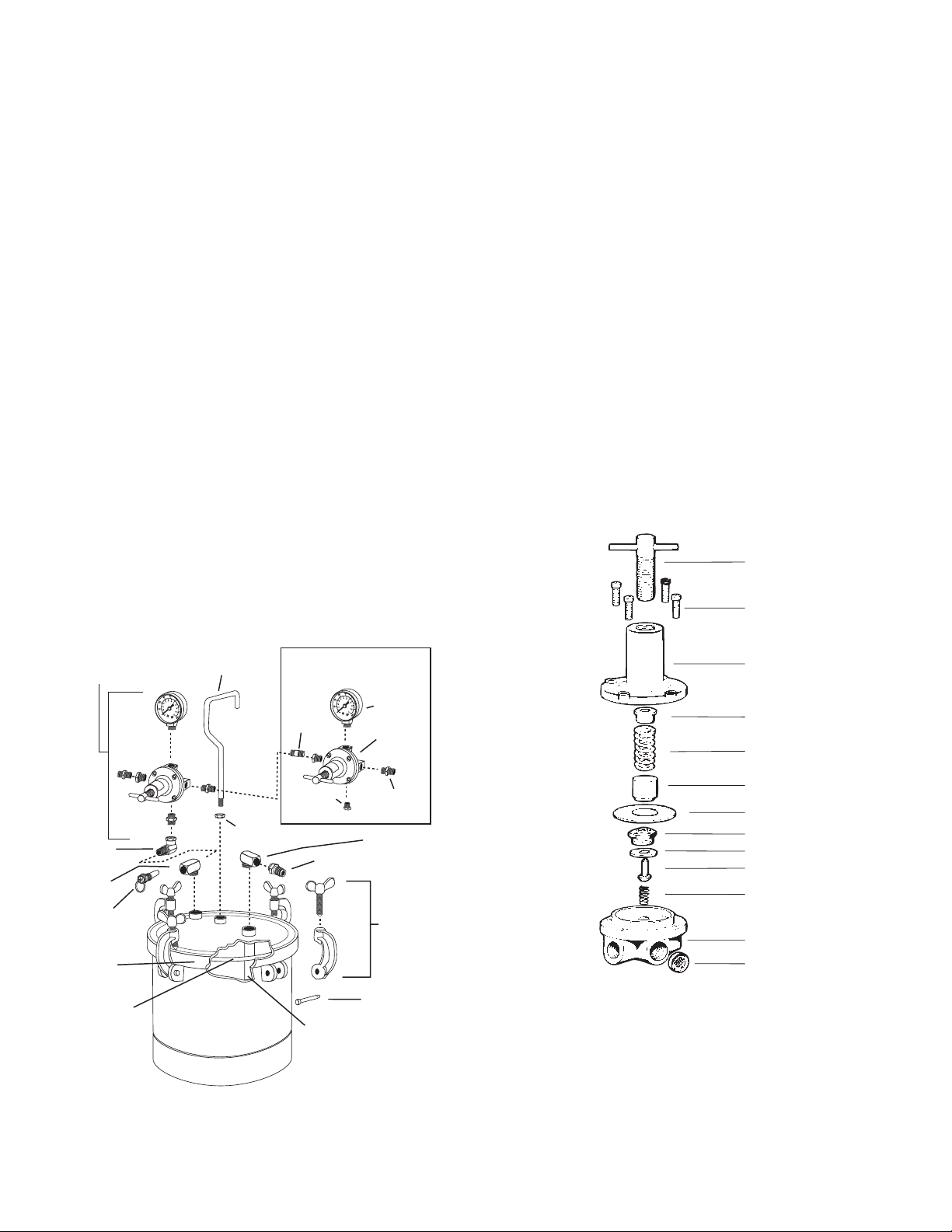

Parts
2.5 and 5 Gallon Pressure Tanks, Models: 234414,
234415, 234416, 234417
U10004 Regulator
Part No. Description
U09993 NIPPLE, 1/4 in.
U10004 REGULATOR, air pressure
U23001 TUBE fluid (234414 & 234415 only)
U23072 TUBE, fluid (234416 & 234417 only)
U23002 LID, assembly
U23007 LID, gasket, thiokiol
116643 VALVE, safety
U23040 ADAPTER, swivel
U23042 TEE, branch
U23050 HANDLE, tank
U23051 NUT, hex, handle
U23060 NIPPLE, fluid, 3/8 in.
U23062 ELBOW, street
U23065 YOKE, assembly, with thumbscrew
U23070 PIN, hinge with “E” clip
234392 REGULATOR, air pressure (234415 &
234417 only)
U08220 GAUGE, air pressure
U10028 PLUG
U23045 NIPPLE, closed, 1/4 in.
u07050 TANK LINERS (not shown)
U10004
U23040
U23042
116643
U23002
U23007
U23001
or
U23072
U23065
U23062
U23060
U10028 U09993
234392
U23045
U23050
U23070
160430
234415 & 234417
additional components
Model 234414 shown
U23051
Part No. Description
160430 GAUGE, fluid pressure
U09993 NIPPLE, 1/4 in.
U10001 REGULATOR, body
U10003 REGULATOR, bonnet
U10005 SEAT, valve
U10006 SPRING, valve
U10008 BODY, valve
U10010 STEM, valve
U10013 SCREEN, wire
U10015 DIAPHRAGM, assembly
U10016 SPRING, pressure
U10018 WASHER, spring
U10019 DAMPER, vibration
U10022 SCREW, adjusting
U10023 SCREW
U10022
U10023
U10003
U10018
U10016
U10019
U10015
U10008
U10005
U10010
U10006
U10001
U10013

Parts
309926C 9

All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
www.graco.com
Printed in USA 309926C
6/2003, Rev. 5/2004
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in material
and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty published by
Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be
defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of
non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or maintenance
of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of
the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned
to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will
be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or
consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to
the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these
warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or
the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the
negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,
given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la
rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite
de ou en rapport, directement ou indirectement, avec les procédures concernées.
Graco Phone Numbers
TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.
Phone: [phone] or Toll Free: 1-800-328-0211, Fax: [phone]
