Gree GWH18MC-K3DNB7G User manual

GREE ELECTRIC APPLIANCES,INC.OF ZHUHAI
Change for Life
Service Manual
GWH18MC-K3DNA2G
GWH18MC-K3DNA3G
GWH18MC-K3DNA5G
GWH18MC-K3DNB3G
GWH18MC-K3DNC9G
GWH18MC-K3DND3G
GWH18MC-K3DNE3G
GWH18MC-K3DNB7G
GWH18MC-K3DNA4G
Models: GWH24MD-K3DNA2G
GWH24MD-K3DNA3G
GWH24MD-K3DNA5G
GWH24MD-K3DNB3G
GWH24MD-K3DNC9G
GWH24MD-K3DND3G
GWH24MD-K3DNE3G
GWH18MC-K3DNA8G
GWH18MC-K3DNC1G
GWH18MC-K3DNC2G
GWH18MC-K3DNC5G
GWH24MD-K3DNA4G
GWH24MD-K3DNA5G
GWH24MD-K3DNA8G
GWH24MD-K3DNC1G
GWH24MD-K3DNC5G
GWH24MD-K3DNC2G
GWH24MD-K3DNA4G
(Refrigerant:R410A)

Service Manual
Table of Contents
Table of Contents
Part Ⅰ: Technical Information........................................................................1
1. Summary.......................................................................................................................1
2. Specications...........................................................................................................3
2.1 Specication Sheet............................................................................................................3

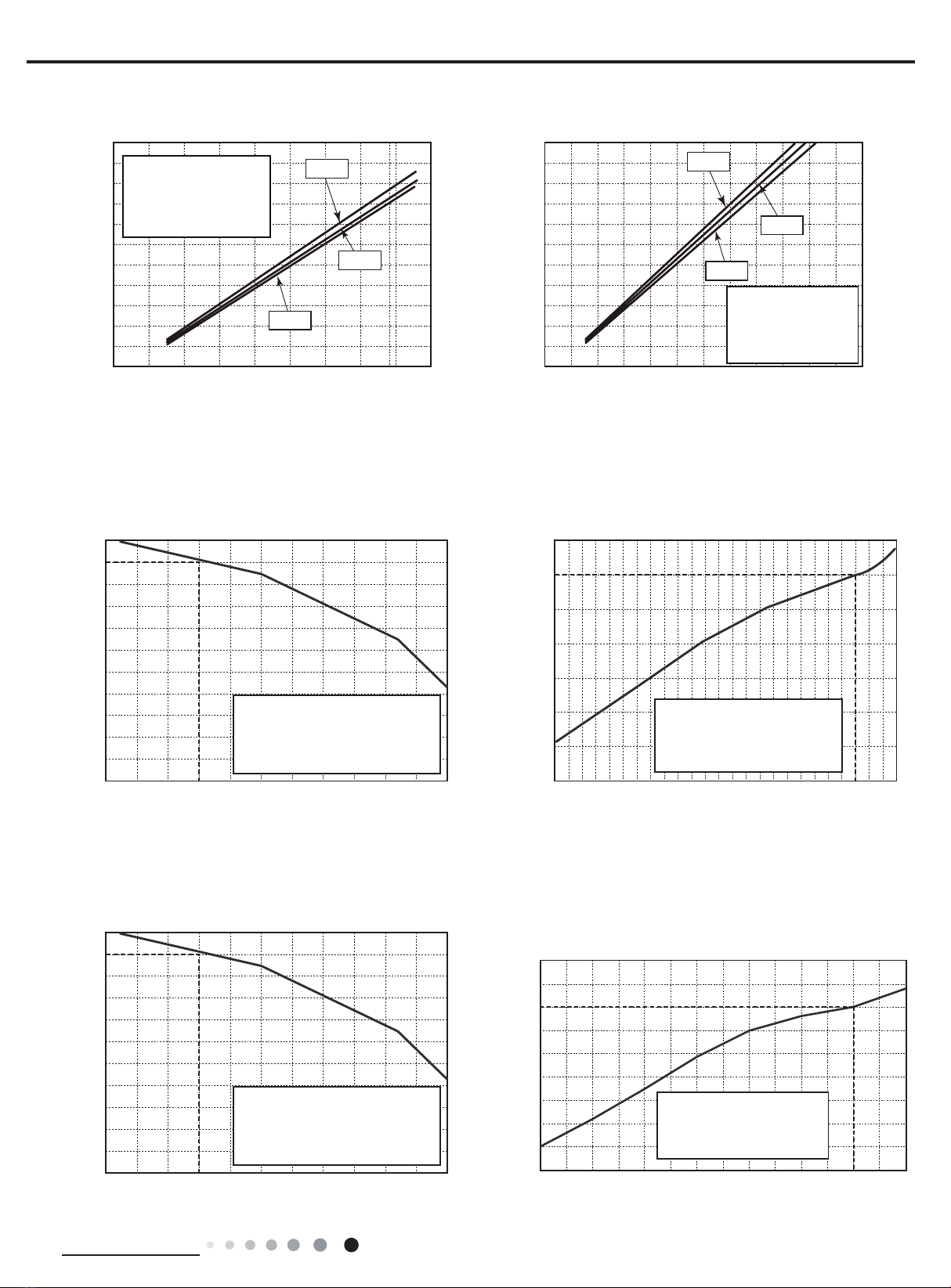

2.2 Operation Characteristic Curve .......................................................................................13
2.3 Capacity Variation Ratio According to Temperature ........................................................13
2.4 Cooling and Heating Data Sheet in Rated Frequency ....................................................14
2.5 Noise Curve.....................................................................................................................14
3. Outline Dimension Diagram.......................................................................15
3.1 Indoor Unit.......................................................................................................................15
3.2 Outdoor Unit ....................................................................................................................16

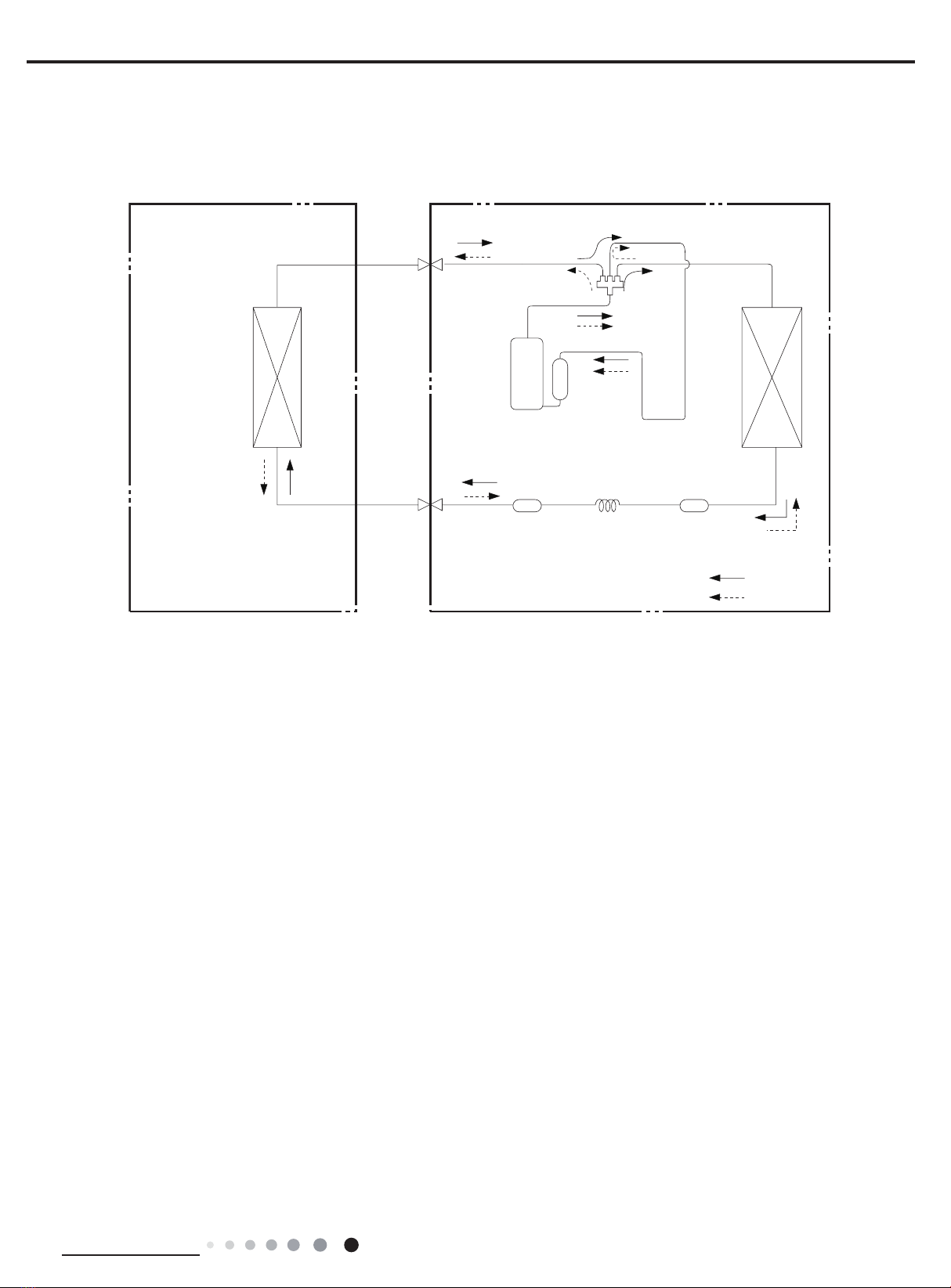

4. Refrigerant System Diagram.....................................................................17
5. Electrical Part..........................................................................................................18
5.1 Wiring Diagram................................................................................................................18
5.2 PCB Printed Diagram......................................................................................................22
6. Function and Control.......................................................................................24
6.1 Remote Controller Introduction ......................................................................................24
6.2 Brief Description of Modes and Functions.......................................................................28
Part Ⅱ: Installation and Maintenance ..................................................37
7. Notes for Installation and Maintenance...........................................37
8. Installation.................................................................................................................39
8.1 Installation Dimension Diagram.......................................................................................39
8.2 Installation Parts-checking .............................................................................................41
8.3 Selection of Installation Location.....................................................................................41
8.4 Electric Connection Requirement ...................................................................................41
8.5 Installation of Indoor Unit.................................................................................................41
8.6 Installation of Outdoor Unit..............................................................................................44
8.7 Vacuum Pumping and Leak Detection ............................................................................45
8.8 Check after Installation and Test Operation ....................................................................45

Service Manual
Table of Contents Table of Contents
9. Maintenance.....................................................................................................................46
9.1 Malfunction Display of Indoor Unit...........................................................................................46
9.2 Procedure of Troubleshooting .................................................................................................48
9.4 Troubleshooting for Normal Malfunction..................................................................................65
10. Exploded View and Parts List.......................................................................67
10.1 Indoor Unit.............................................................................................................................67
10.2 Outdoor Unit ..........................................................................................................................84
11. Removal Procedure................................................................................................88
11.1 Removal Procedure of Indoor Unit ........................................................................................88
11.2 Removal Procedure of Outdoor Unit .....................................................................................93
Appendix:...............................................................................................................................104
Appendix 1: Reference Sheet of Celsius and Fahrenheit ...........................................................104
Appendix 2: Conguration of Connection Pipe............................................................................104
Appendix 3: Pipe Expanding Method ..........................................................................................105
Appendix 4: List of Resistance for Temperature Sensor .............................................................106

1
Technical Information
Service Manual
1. Summary
Part Ⅰ: Technical Information

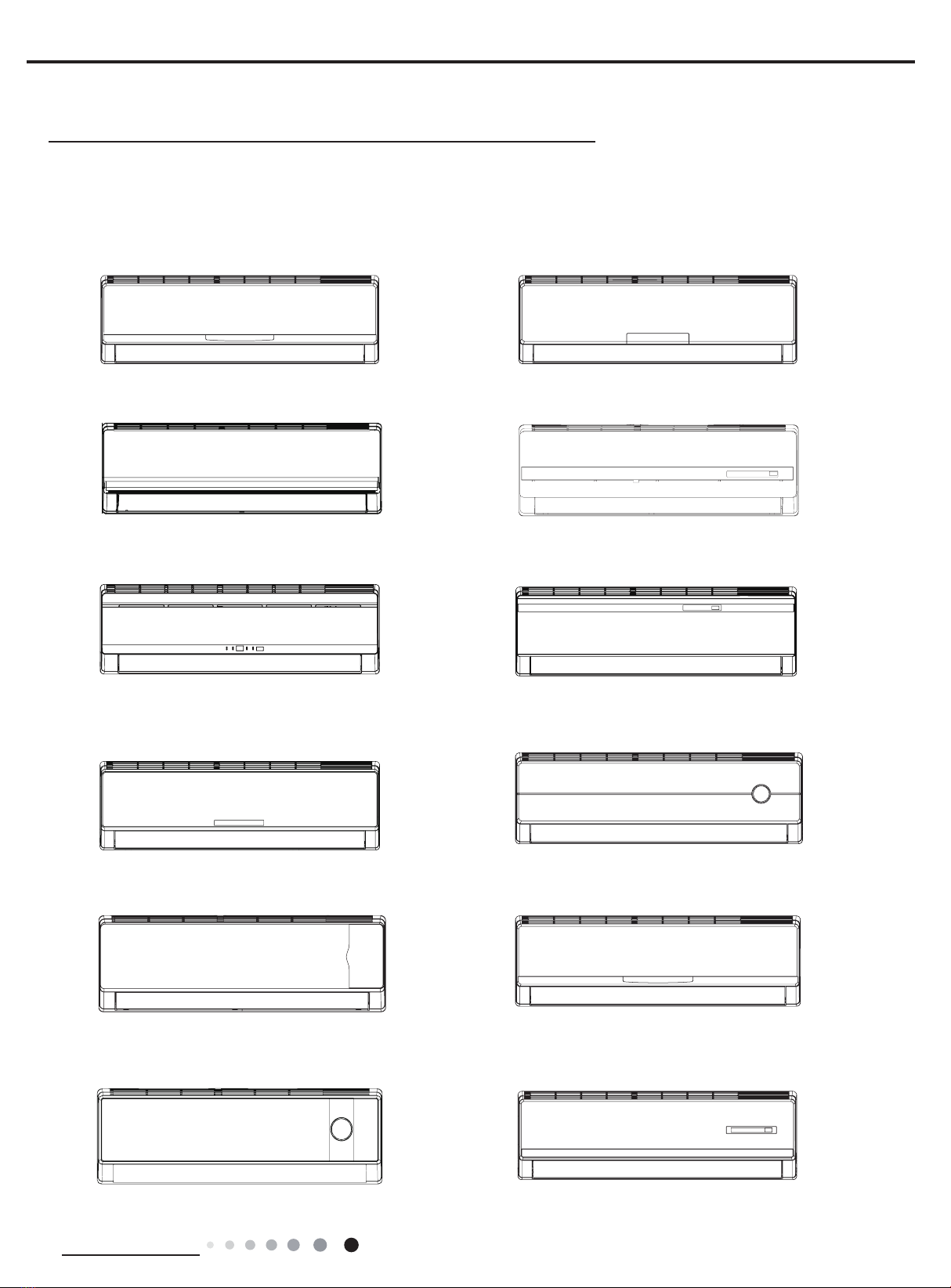

Indoor Unit
E3 panel
C1 panel
B7 panel
C5 panel
C2 panel
D3 panel
A8 panel
C9 panel
B3 panel
A5 panel
A2 panel A3 panel

2Technical Information
Service Manual
Outdoor Unit
GWH18MC-K3DNE3G/O
Remote Controller
YT1F(MOTO)
FAN
MODE
IFEEL
CLOCK TIMER
ON
X-FAN TEMPTIMER
OFF
TURBO SLEEP LIGHT
GWH24MD-K3DNE3G/O
A4 panel

3
Technical Information
Service Manual
2. Specications
2.1 Specication Sheet
Model
1.GWH18MC-K3DNE3G 2.GWH18MC-K3DNC9G 3.GWH18MC-K3DND3G
4.GWH18MC-K3DNA2G 5.GWH18MC-K3DNA3G 6.GWH18MC-K3DNA5G
7.GWH18MC-K3DNB3G 8.GWH18MC-K3DNA8G 9.GWH18MC-K3DNC2G
10.GWH18MC-K3DNC5G 11.GWH18MC-K3DNB7G
Product Code
1.CB404003400 2.CB145005900 3.CB405004300
4.CB181007500 5.CB171011700 6.CB180001400
7.CB163006800 8.CB173005900 9.CB180001500
10.CB179003800 11.CB164002900
Power
Supply
Rated Voltage V~ 220-240
Rated Frequency Hz 50
Phases 1
Power Supply Mode outdoor
Cooling Capacity(Min~Max) W 5275(1260~6600)
Heating Capacity(Min~Max) W 5800(1120~6800)
Cooling Power Input(Min~Max) W 1625(380~2650)
Heating Power Input(Min~Max) W1760(350~2650)
Cooling Power Current A7.2
Heating Power Current A7.8
Rated Input W 2650
Rated Current A 11.8
Air Flow Volume(SH/H/M/L/SL) m3/h 850/780/650/550/-
Dehumidifying Volume L/h 1.80
EER W/W 3.25
COP W/W 3.30
SEER W/W 6.1
HSPF W/W /
Application Area m223-34
Indoor
Unit
Model of indoor unit
1.GWH18MC-K3DNE3G/I 2.GWH18MC-K3DNC9G/I 3.GWH18MC-K3DND3G/I
4.GWH18MC-K3DNA2G/I 5.GWH18MC-K3DNA3G/I 6.GWH18MC-K3DNA5G/I
7.GWH18MC-K3DNB3G/I 8.GWH18MC-K3DNA8G/I 9.GWH18MC-K3DNC2G/I
10.GWH18MC-K3DNC5G/I 11.GWH18MC-K3DNB7G/I
Product Code of Indoor Unit
1.CB404N03400 2.CB145N05900 3.CB405N04300
4.CB181N07500 5.CB171N11700 6.CB180N01400
7.CB163N06800 8.CB173N05900 9.CB18N001500
10.CB179N03800 11.CB164N02900
Fan Type Cross-ow
Diameter Length(DXL) mm Φ98X710
Fan Motor Cooling Speed (SH/H/M/L/SL) r/min 1350/1150/1050/900/-
Fan Motor Heating Speed (SH/H/M/L/SL) r/min 1420/1250/1150/1050/-
Output of Fan Motor W 20
Fan Motor RLA A 0.31
Fan Motor Capacitor μF 1.5
Evaporator Form Aluminum Fin-copper Tube
Pipe Diameter mm Φ7
Row-n Gap mm 2-1.4
Coil Length (LXDXW) mm 715X25.4X304.8

4Technical Information
Service Manual
Coil Length (LXDXW) mm 715X25.4X304.8
Swing Motor Model MP28VB
Output of Swing Motor W 2
Fuse A 3.15
Sound Pressure Level (SH/H/M/L/SL) dB (A) 48/43/40/35/-
Sound Power Level (SH/H/M/L/SL) dB (A) 58/53/50/45/-
Dimension (WXHXD) mm 940X298X200
Dimension of Carton Box (LXWXH) mm 1010X380X285
Dimension of Package (LXWXH) mm 1013X383X300
Net Weight kg 12
Gross Weight kg 15

5
Technical Information
Service Manual
The above data is subject to change without notice; please refer to the nameplate of the unit.
Outdoor Unit
Model of Outdoor Unit GWH18MC-K3DNE3G/O
Product Code of Outdoor Unit CB404W03400
Compressor Manufacturer/Trademark ZHUHAI LANDA COMPRESSOR CO.,LTD
Compressor Model QXA-B141zF030A
Compressor Oil 68EP
Compressor Type Rotary
L.R.A. A 25
Compressor RLA A 7.2
Compressor Power Input W 1440
Overload Protector 1NT11L-6233 or KSD115oC or HPC115/95U1
Throttling Method Capillary
Operation temp oC 16~30
Ambient temp (cooling) oC -15~43
Ambient temp (heating) oC -15~24
Condenser Form Aluminum Fin-copper Tube
Pipe Diameter mm Φ7
Rows-n Gap mm 2-1.4
Coil Length (LXDXW) mm 851X38.1X660
Fan Motor Speed rpm 750
Output of Fan Motor W 60
Fan Motor RLA A /
Fan Motor Capacitor μF /
Air Flow Volume of Outdoor Unit m3/h 3200
Fan Type Axial-ow
Fan Diameter mm Φ520
Defrosting Method Automatic Defrosting
Climate Type T1
Isolation I
Moisture Protection IP24
Permissible Excessive Operating
Pressure for the Discharge Side MPa 4.3
Permissible Excessive Operating
Pressure for the Suction Side MPa 2.5
Sound Pressure Level (H/M/L) dB (A) 56/-/-
Sound Power Level (H/M/L) dB (A) 66/-/-
Dimension (WXHXD) mm 963X700X396
Dimension of Carton Box (LXWXH) mm 1026X455X735
Dimension of Package (LXWXH) mm 1029X458X750
Net Weight kg 45
Gross Weight kg 49.5
Refrigerant R410A
Refrigerant Charge kg 1.35
Connection
Pipe
Length m 5
Gas Additional Charge g/m 20
Outer Diameter Liquid Pipe mm Φ6
Outer Diameter Gas Pipe mm Φ12
Max Distance Height m 10
Max Distance Length m 25
Note: The connection pipe applies metric diameter.

6Technical Information
Service Manual
Model 1.GWH18MC-K3DNC9G 2.GWH18MC-K3DNE3G 3.GWH18MC-K3DNB3G
4.GWH18MC-K3DNA2G 5.GWH18MC-K3DNC1G 6.GWH18MC-K3DNA4G
Product Code 1.CB145005902 2.CB404003401 3.CB163006801
4.CB181007502 5.CB139005801 6.CB161007601
Power
Supply
Rated Voltage V~ 220-240
Rated Frequency Hz 50
Phases 1
Power Supply Mode outdoor
Cooling Capacity(Min~Max) W 5275(1260~6600)
Heating Capacity(Min~Max) W 5800(1120~6800)
Cooling Power Input(Min~Max) W 1625(380~2650)
Heating Power Input(Min~Max) W 1760(350~2650)
Cooling Power Current A 7.2
Heating Power Current A 7.8
Rated Input W 2650
Rated Current A 11.8
Air Flow Volume(SH/H/M/L/SL) m3/h 850/780/650/550/-
Dehumidifying Volume L/h 1.80
EER W/W 3.25
COP W/W 3.30
SEER W/W 6.1
HSPF W/W /
Application Area m223-34
Indoor
Unit
Model of Indoor Unit 1.GWH18MC-K3DNC9G/I 2.GWH18MC-K3DNE3G/I 3.GWH18MC-K3DNB3G/I 4.GWH18MC-K3DNA2G/I
5.GWH18MC-K3DNC1G/I 6.GWH18MC-K3DNA4G/I
Product Code of Indoor Unit
1.CB145N05900 2.CB404N03401
3.CB163N06801 4.CB181N07500
5.CB139N05800 6.CB161N07600
Fan Type Cross-ow
Diameter Length(DXL) mm Φ98X710
Fan Motor Cooling Speed (SH/H/M/L/SL) r/min 1350/1150/1050/900/-
Fan Motor Heating Speed (SH/H/M/L/SL) r/min 1420/1250/1150/1050/-
Output of Fan Motor W 20
Fan Motor RLA A 0.31
Fan Motor Capacitor μF 1.5
Evaporator Form Aluminum Fin-copper Tube
Pipe Diameter mm Φ7
Row-n Gap mm 2-1.4
Coil Length (LXDXW) mm 715X25.4X304.8
Swing Motor Model MP28VB
Output of Swing Motor W 2
Fuse A 3.15
Sound Pressure Level (SH/H/M/L/SL) dB (A) 48/43/40/35/-
Sound Power Level (SH/H/M/L/SL) dB (A) 58/53/50/45/-
Dimension (WXHXD) mm 940X298X200
Dimension of Carton Box (LXWXH) mm 1010X380X285
Dimension of Package (LXWXH) mm 1013X383X300
Net Weight kg 12
Gross Weight kg 15

7
Technical Information
Service Manual
The above data is subject to change without notice; please refer to the nameplate of the unit.
Outdoor Unit
Model of Outdoor Unit GWH18MC-K3DNE3G/O
Product Code of Outdoor Unit CB404W03401
Compressor Manufacturer/Trademark ZHUHAI LANDA COMPRESSOR CO.,LTD
Compressor Model QXA-B141zF030A
Compressor Oil 68EP
Compressor Type Rotary
L.R.A. A 25
Compressor RLA A 7.2
Compressor Power Input W 1440
Overload Protector 1NT11L-6233 or KSD115oC or HPC115/95U1
Throttling Method Capillary
Operation temp oC 16~30
Ambient temp (cooling) oC -15~43
Ambient temp (heating) oC -20~24
Condenser Form Aluminum Fin-copper Tube
Pipe Diameter mm Φ7
Rows-n Gap mm 2-1.4
Coil Length (LXDXW) mm 851X38.1X660
Fan Motor Speed rpm 750
Output of Fan Motor W 60
Fan Motor RLA A /
Fan Motor Capacitor μF /
Air Flow Volume of Outdoor Unit m3/h 3200
Fan Type Axial-ow
Fan Diameter mm Φ520
Defrosting Method Automatic Defrosting
Climate Type T1
Isolation I
Moisture Protection IP24
Permissible Excessive Operating
Pressure for the Discharge Side MPa 4.3
Permissible Excessive Operating
Pressure for the Suction Side MPa 2.5
Sound Pressure Level (H/M/L) dB (A) 56/-/-
Sound Power Level (H/M/L) dB (A) 66/-/-
Dimension (WXHXD) mm 963X700X396
Dimension of Carton Box (LXWXH) mm 1026X455X735
Dimension of Package (LXWXH) mm 1029X458X750
Net Weight kg 45
Gross Weight kg 49.5
Refrigerant R410A
Refrigerant Charge kg 1.35
Connection
Pipe
Length m 5
Gas Additional Charge g/m 20
Outer Diameter Liquid Pipe mm Φ6
Outer Diameter Gas Pipe mm Φ12
Max Distance Height m 10
Max Distance Length m 25
Note: The connection pipe applies metric diameter.
Indoor
Unit
Model of Indoor Unit 1.GWH18MC-K3DNC9G/I 2.GWH18MC-K3DNE3G/I 3.GWH18MC-K3DNB3G/I 4.GWH18MC-K3DNA2G/I
5.GWH18MC-K3DNC1G/I 6.GWH18MC-K3DNA4G/I
Product Code of Indoor Unit
1.CB145N05900 2.CB404N03401
3.CB163N06801 4.CB181N07500
5.CB139N05800 6.CB161N07600
Fan Type Cross-ow
Diameter Length(DXL) mm Φ98X710
Fan Motor Cooling Speed (SH/H/M/L/SL) r/min 1350/1150/1050/900/-
Fan Motor Heating Speed (SH/H/M/L/SL) r/min 1420/1250/1150/1050/-
Output of Fan Motor W 20
Fan Motor RLA A 0.31
Fan Motor Capacitor μF 1.5
Evaporator Form Aluminum Fin-copper Tube
Pipe Diameter mm Φ7
Row-n Gap mm 2-1.4
Coil Length (LXDXW) mm 715X25.4X304.8
Swing Motor Model MP28VB
Output of Swing Motor W 2
Fuse A 3.15
Sound Pressure Level (SH/H/M/L/SL) dB (A) 48/43/40/35/-
Sound Power Level (SH/H/M/L/SL) dB (A) 58/53/50/45/-
Dimension (WXHXD) mm 940X298X200
Dimension of Carton Box (LXWXH) mm 1010X380X285
Dimension of Package (LXWXH) mm 1013X383X300
Net Weight kg 12
Gross Weight kg 15

8Technical Information
Service Manual
Model 1.GWH24MD-K3DNC9G 2.GWH24MD-K3DNE3G 3.GWH24MD-K3DNA2G
4.GWH24MD-K3DNA4G 5.GWH24MD-K3DNC1G
Product Code 1.CB145005802 2.CB404003801 3.CB181007601
4.CB161008001 5.CB139005901
Power
Supply
Rated Voltage V~ 220-240
Rated Frequency Hz 50
Phases 1
Power Supply Mode outdoor
Cooling Capacity(Min~Max) W 6450(2530~6800)
Heating Capacity(Min~Max) W 7000(2530~7600)
Cooling Power Input(Min~Max) W 2180(600~2650)
Heating Power Input(Min~Max) W 2220(600~2800)
Cooling Power Current A 9.7
Heating Power Current A 9.8
Rated Input W 2800
Rated Current A 12.4
Air Flow Volume(SH/H/M/L/SL) m3/h 1000/800/700/550/-
Dehumidifying Volume L/h 2.0
EER W/W 2.96
COP W/W 3.15
SEER W/W 6.1
HSPF W/W /
Application Area m227-42
Indoor
Unit
Model of Indoor Unit 1.GWH24MD-K3DNC9G/I 2.GWH24MD-K3DNE3G/I 3.GWH24MD-K3DNA2G/I
4.GWH24MD-K3DNA4G/I 5.GWH24MD-K3DNC1G/I
Product Code of Indoor Unit 1.CB145N05800 2.CB404N03800 3.CB181N07601
4.CB161N08000 5.CB139N05900
Fan Type Cross-ow
Diameter Length(DXL) mm Φ100X765
Fan Motor Cooling Speed (SH/H/M/L/SL) r/min 1350/1150/950/850/-
Fan Motor Heating Speed (SH/H/M/L/SL) r/min 1400/1200/1000/900/-
Output of Fan Motor W 35
Fan Motor RLA A 0.31
Fan Motor Capacitor μF 2.5
Evaporator Form Aluminum Fin-copper Tube
Pipe Diameter mm Φ7
Row-n Gap mm 2-1.5
Coil Length (LXDXW) mm 765X25.4X342.9
Swing Motor Model MP35XX
Output of Swing Motor W 2.5
Fuse A 3.15
Sound Pressure Level (SH/H/M/L/SL) dB (A) 51/47/42/39/-
Sound Power Level (SH/H/M/L/SL) dB (A) 61/57/52/49/-
Dimension (WXHXD) mm 1007X315X219
Dimension of Carton Box (LXWXH) mm 1073X395X313
Dimension of Package (LXWXH) mm 1076X398X328
Net Weight kg 15
Gross Weight kg 18.5

9
Technical Information
Service Manual
The above data is subject to change without notice; please refer to the nameplate of the unit.
Outdoor Unit
Model of Outdoor Unit GWH24MD-K3DNE3G/O
Product Code of Outdoor Unit CB404W03801
Compressor Manufacturer/Trademark ZHUHAI LANDA COMPRESSOR CO.,LTD
Compressor Model QXA-B141zF030A
Compressor Oil 68EP
Compressor Type Rotary
L.R.A. A 25
Compressor RLA A 7.2
Compressor Power Input W 1440
Overload Protector 1NT11L-6233 or KSD115oC or HPC115/95U1
Throttling Method Capillary
Operation temp oC 16~30
Ambient temp (cooling) oC -15~43
Ambient temp (heating) oC -20~24
Condenser Form Aluminum Fin-copper Tube
Pipe Diameter mm Φ7
Rows-n Gap mm 2-1.4
Coil Length (LXDXW) mm 984X38.1X748
Fan Motor Speed rpm 800
Output of Fan Motor W 90
Fan Motor RLA A /
Fan Motor Capacitor μF /
Air Flow Volume of Outdoor Unit m3/h 4000
Fan Type Axial-ow
Fan Diameter mm Φ552
Defrosting Method Automatic Defrosting
Climate Type T1
Isolation I
Moisture Protection IP24
Permissible Excessive Operating
Pressure for the Discharge Side MPa 4.3
Permissible Excessive Operating
Pressure for the Suction Side MPa 2.5
Sound Pressure Level (H/M/L) dB (A) 58/-/-
Sound Power Level (H/M/L) dB (A) 68/-/-
Dimension (WXHXD) mm 1000X790X427
Dimension of Carton Box (LXWXH) mm 1080X485X840
Dimension of Package (LXWXH) mm 1083X488X855
Net Weight kg 55
Gross Weight kg 60
Refrigerant R410A
Refrigerant Charge kg 1.80
Connection
Pipe
Length m 5
Gas Additional Charge g/m 50
Outer Diameter Liquid Pipe mm Φ6
Outer Diameter Gas Pipe mm Φ16
Max Distance Height m 10
Max Distance Length m 25
Note: The connection pipe applies metric diameter.

10 Technical Information
Service Manual
Model 1.GWH24MD-K3DNE3G 2.GWH24MD-K3DNA2G 3.GWH24MD-K3DNA3G
4.GWH24MD-K3DNA5G 5.GWH24MD-K3DNB3G 6.GWH24MD-K3DNC9G
7.GWH24MD-K3DND3G 8.GWH24MD-K3DNA5G 9.GWH24MD-K3DNA8G
10.GWH24MD-K3DNC5G 11.GWH24MD-K3DNC2G 12.GWH24MD-K3DNA4G
Product Code
1.CB404003800 2.CB181007600 3.CB171011500
4.CB162010100 5.CB163006900 6.CB145005800
7.CB405004200 8.CB162010102 9.CB173006200
10.CB179003900 11.CB180001800 12.CB161008000
Power
Supply
Rated Voltage V~ 220-240
Rated Frequency Hz 50
Phases 1
Power Supply Mode outdoor
Cooling Capacity(Min~Max) W 6450(2530~6800)
Heating Capacity(Min~Max) W 7000(2530~7600)
Cooling Power Input(Min~Max) W 2180(600~2650)
Heating Power Input(Min~Max) W 2220(600~2800)
Cooling Power Current A 9.7
Heating Power Current A 9.8
Rated Input W 2800
Rated Current A 12.4
Air Flow Volume(SH/H/M/L/SL) m3/h 1000/800/700/550/-
Dehumidifying Volume L/h 2.0
EER W/W 2.96
COP W/W 3.15
SEER W/W 6.1
HSPF W/W /
Application Area m227-42

11
Technical Information
Service Manual
Indoor
Unit
Model of indoor unit
1.GWH24MD-K3DNE3G/I 2.GWH24MD-K3DNA2G/I 3.GWH24MD-K3DNA3G/I
4.GWH24MD-K3DNA5G/I 5.GWH24MD-K3DNB3G/I 6.GWH24MD-K3DNC9G/I
7.GWH24MD-K3DND3G/I 8.GWH24MD-K3DNA5G/I 9.GWH24MD-K3DNA8G/I
10.GWH24MD-K3DNC5G/I 11.GWH24MD-K3DNC2G/I 12.GWH24MD-K3DNA4G/I
Product Code of Indoor Unit
1.CB404N03800 2.CB181N07600 3.CB171N11500
4.CB162N10100 5.CB163N06900 6.CB145N05800
7.CB405N04200 8.CB162N10102 9.CB173N06200
10.CB179N03900 11.CB180N01800 12.CB161N08000
Fan Type Cross-ow
Diameter Length(DXL) mm Φ100X765
Fan Motor Cooling Speed (SH/H/M/
L/SL) r/min 1350/1150/950/850/-
Fan Motor Heating Speed (SH/H/M/
L/SL) r/min 1400/1200/1000/900/-
Output of Fan Motor W 35
Fan Motor RLA A 0.31
Fan Motor Capacitor μF 2.5
Evaporator Form Aluminum Fin-copper Tube
Pipe Diameter mm Φ7
Row-n Gap mm 2-1.5
Coil Length (LXDXW) mm 765X25.4X342.9
Swing Motor Model MP35XX
Output of Swing Motor W 2.5
Fuse A 3.15
Sound Pressure Level (SH/H/M/L/SL) dB (A) 51/47/42/39/-
Sound Power Level (SH/H/M/L/SL) dB (A) 61/57/52/49/-
Dimension (WXHXD) mm 1007X315X219
Dimension of Carton Box (LXWXH) mm 1073X395X313
Dimension of Package (LXWXH) mm 1076X398X328
Net Weight kg 15
Gross Weight kg 18.5

12 Technical Information
Service Manual
The above data is subject to change without notice; please refer to the nameplate of the unit.
Outdoor Unit
Model of Outdoor Unit GWH24MD-K3DNE3G/O
Product Code of Outdoor Unit CB404W03800
Compressor Manufacturer/Trademark ZHUHAI LANDA COMPRESSOR CO.,LTD
Compressor Model QXA-B141zF030A
Compressor Oil 68EP
Compressor Type Rotary
L.R.A. A 25
Compressor RLA A 7.2
Compressor Power Input W 1440
Overload Protector 1NT11L-6233 or KSD115oC or HPC115/95U1
Throttling Method Capillary
Operation temp oC 16~30
Ambient temp (cooling) oC -15~43
Ambient temp (heating) oC -15~24
Condenser Form Aluminum Fin-copper Tube
Pipe Diameter mm Φ7
Rows-n Gap mm 2-1.4
Coil Length (LXDXW) mm 984X38.1X748
Fan Motor Speed rpm 800
Output of Fan Motor W 90
Fan Motor RLA A /
Fan Motor Capacitor μF /
Air Flow Volume of Outdoor Unit m3/h 4000
Fan Type Axial-ow
Fan Diameter mm Φ552
Defrosting Method Automatic Defrosting
Climate Type T1
Isolation I
Moisture Protection IP24
Permissible Excessive Operating
Pressure for the Discharge Side MPa 4.3
Permissible Excessive Operating
Pressure for the Suction Side MPa 2.5
Sound Pressure Level (H/M/L) dB (A) 58/-/-
Sound Power Level (H/M/L) dB (A) 68/-/-
Dimension (WXHXD) mm 1000X790X427
Dimension of Carton Box (LXWXH) mm 1080X485X840
Dimension of Package (LXWXH) mm 1083X488X855
Net Weight kg 55
Gross Weight kg 60
Refrigerant R410A
Refrigerant Charge kg 1.80
Connection
Pipe
Length m 5
Gas Additional Charge g/m 50
Outer Diameter Liquid Pipe mm Φ6
Outer Diameter Gas Pipe mm Φ16
Max Distance Height m 10
Max Distance Length m 25
Note: The connection pipe applies metric diameter.

13
Technical Information
Service Manual
2.2 Operation Characteristic Curve
2.3 Capacity Variation Ratio According to Temperature
01020304050607090010 20 30 40 50 60 70 80 90 100 120110
80
11
10
9
8
7
6
5
4
3
2
1
0
Compressor speed (rps)
)A(tnerruC
11
10
9
8
7
6
5
4
3
2
1
0
Compressor speed (rps)
)A(tnerruC
220V
230V
240V
220V
230V
240V
01020304050607090010 20 30 40 50 60 70 80 90 100
120
110
80
11
10
9
8
7
6
5
4
3
2
1
0
Compressor speed (rps)
)A(tnerruC
11
10
9
8
7
6
5
4
3
2
1
0
Compressor speed (rps)
)A(tnerruC
220V
230V
240V
220V
230V
240V
Conditions
Indoor: DB27°C/WB19°C
Outdoor: DB35°C/WB24°C
Indoor air flow: High
Pipe length: 5m
Conditions
Indoor: DB27°C/WB19°C
Outdoor: DB35°C/WB24°C
Indoor air flow: High
Pipe length: 5m
Conditions
Indoor: DB20°C/WB15°C
Outdoor: DB7°C/WB6°C
Indoor air flow: High
Pipe length: 5m
Conditions
Indoor: DB20°C/WB15°C
Outdoor: DB7°C/WB6°C
Indoor air flow: High
Pipe length: 5m
Cooling Heating
Cooling Heating
32 33 34 35 36 37 38 39 43 –15 –10 –5
40 41 42
100
105
95
90
85
80
75
70
65
60
55
50
110
100
90
80
70
60
50
40
05
710
Conditions
Indoor:DB27°C/WB19°C
Indoor air flow:Super High
Pipe length: 5m
Conditions
Indoor:DB20°C/WB15°C
Indoor air flow:Super High
Pipe length: 5m
Outdoor temp.(°C) Outdoor temp.(°C)
Capacity ratio (%)
Capacity ratio (%)
Cooling Heating
Cooling Heating
32 33 34 35 36 37 38 39 43
–15 –10 –5
40 41 42
100
105
95
90
85
80
75
70
65
60
55
50
110
100
90
80
70
60
50
40
05710
Conditions
Indoor:DB27°C/WB19°C
Indoor air flow:Super High
Pipe length: 5m
Conditions
Indoor:DB20°C/WB15°C
Indoor air flow:Super High
Pipe length: 5m
Outdoor temp.(°C) Outdoor temp.(°C)
Capacity ratio (%) Capacity ratio (%)
30
40
50
60
70
80
90
100
110
120
10
750-5-10-15-20
Outdoor temp.(oC)
Capacity ratio(%)
Conditions
Indoor:DB20°C/WB15°C
Indoor air flow:Super High
Pipe length: 5m
Cooling Heating
Heating operation ambient temperature range is -15°C~24°C
Heating operation ambient temperature range is -20°C~24°C

14 Technical Information
Service Manual
2.4 Cooling and Heating Data Sheet in Rated Frequency
Rated cooling
condition(oC)
(DB/WB) Model
Pressure of gas pipe
connecting indoor and
outdoor unit
Inlet and outlet pipe
temperature of heat
exchanger
Fan speed of
indoor unit
Fan speed of
outdoor unit
Compressor
frequency
(Hz)
Indoor Outdoor P (MPa) T1 (oC) T2 (oC)
27/19 35/24 18K 0.8 to 1.0 12 to 14 80 to 40 Super High High 70
24K 0.9 to 1.1 10 to 12 80 to 40 Super High High 83
Rated heating
condition(oC)
(DB/WB) Model
Pressure of gas pipe
connecting indoor and
outdoor unit
Inlet and outlet pipe
temperature of heat
exchanger
Fan speed of
indoor unit
Fan speed of
outdoor unit
Compressor
frequency
(Hz)
Indoor Outdoor P (MPa) T1 (oC) T2 (oC)
20/15 7/6 18K 2.2 to 2.4 70 to 40 1 to 5 Super High High 70
24K 2.5 to 2.7 70 to 40 1 to 5 Super High High 75
Instruction:
T1: Inlet and outlet pipe temperature of evaporator
T2: Inlet and outlet pipe temperature of condenser
P: Pressure at the side of big valve
Connection pipe length: 5 m.
Cooling:
Heating:
2.5 Noise Curve
20
30
40
50
60
200406080
100
Outdoor side noise
Indoor side noise
Compressor frequency/Hz
)A(Bd/esioN
18K 24K 18K 24K
60
50
40
30
20
10
0
Indoor Fan Motor Rotating Speed
Noice/dB(A)
low Middle High Super High

15
Technical Information
Service Manual
3. Outline Dimension Diagram
3.1 Indoor Unit
Unit:mm
Models W H D
18K 940 298 200
24K 1007 315 219
H
W
D
24K
18K
52 694 194
685138 184
Φ70
Φ55
Φ5
5
Φ70
38
90 65
116

16 Technical Information
Service Manual
3.2 Outdoor Unit
Unit:mm
24K
18K
963
892
700
396
341
368
560
4271000
920
610
370
790
395

17
Technical Information
Service Manual
Indoor unit Outdoor unit
COOLING
HEATING
4-Way valve
Discharge
Suction
Heat
exchanger
(evaporator) Heat
exchanger
(condenser)
Valve
Valve
Liquid pipe
side
Gas pipe
side
Strainer CapillaryStrainer
Accumlator
Compressor
4. Refrigerant System Diagram
Connection pipe specication:
Liquid pipe:1/4" (6mm)
Gas pipe:1/2" (12mm)(18K)
Gas pipe:5/8" (16mm)(24K)
