GreenTec HXF Series User manual

1
|GreenTec |Merkurvej 25 |DK-6000 Kolding |Phone: [phone] |[e-mail] |GreenTec.eu |
1. EDITION 2020

|GreenTec |Merkurvej 25 |DK-6000 Kolding |Phone: [phone] |[e-mail] |GreenTec.eu |

|GreenTec |Merkurvej 25 |DK-6000 Kolding |Phone: [phone] |[e-mail] |GreenTec.eu |
GreenTec Multi Carrier HXF Series
Quick start guide
Original edition
This quick start guide shows and describes how to unpack and assemble the GreenTec Multi Carrier
HXF Series on a front loader. The Multi Carrier is then ready to be fitted with a selected attachment
tool.
Remember that the quick start guide does not replace the actual
instruction manual for the Multi Carrier.
(Always read the instruction manual carefully!)
The following guide shows step-by-step instructions dedicated to Multi Carriers in the HXF series, with
accompanying pictures and explanations divided into the following sections:
Contents of this guide:
1. Unpacking of Multi Carrier HXF-series:...................................................................1
2. Attachment of Multi Carrier HXF-series to front loader:.........................................2
3. Connection of hydraulic hoses and optional cable:...............................................3
4. Preparing Multi Carrier HXF-series for mounting of attachment tool:...................5
5. Finishing remarks:....................................................................................................7
Assembly of the HXF Multi Carrier and desired attachment tools must be carried out safely and with
care:
Make sure that the vehicle and front loader can carry the Multi Carrier and
the attachment tool in a safe and stable way, even if it is hanging out on
the side.
The Multi Carrier must only be assembled on a flat and firm surface, with
good conditions of space, so that the vehicle and attachment can be
maneuvered freely without the risk of getting stuck.

1
|GreenTec |Merkurvej 25 |DK-6000 Kolding |Phone: [phone] |[e-mail] |GreenTec.eu |

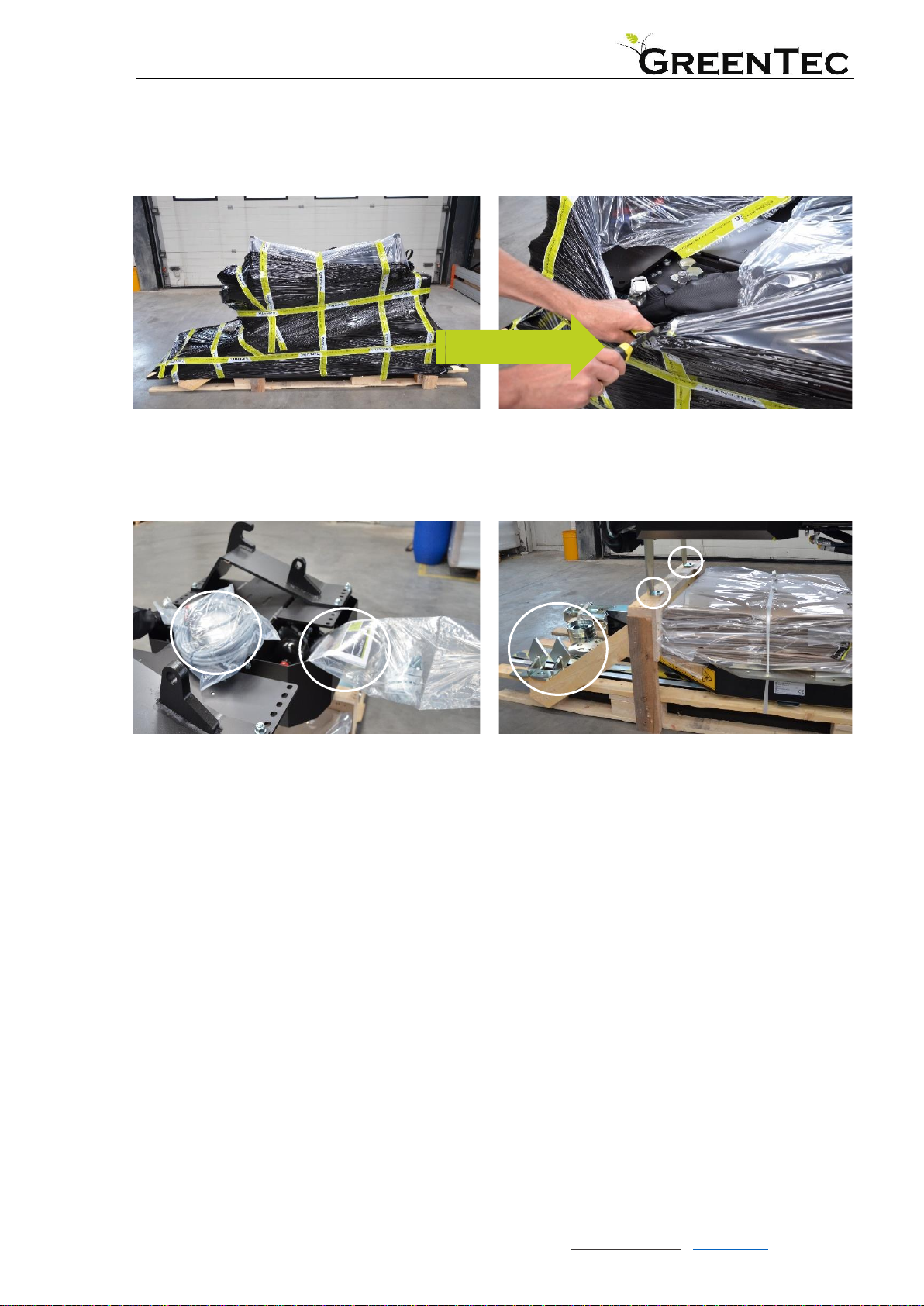

1. Unpacking of Multi Carrier HXF-series:
•Carefully cut off the plastic. Be careful not to cut hoses, wires and not to scratch the paint.
•All loose parts for the Multi Carrier and the attachment tool are packed down together with or
bolted / tied to the transport pallet.

2
|GreenTec |Merkurvej 25 |DK-6000 Kolding |Phone: [phone] |[e-mail] |GreenTec.eu |
2. Attachment of Multi Carrier HXF-series to front loader:
•Unscrew the Multi Carrier from the pallet. (4 Hexagon bolts)
•Carefully drive the front loader into the mounts and slowly lift the Multi Carrier.
•Lock the front loader locking mechanism and lift the Multi Carrier from the transport pallet.
Never walk under a machine or front loader without it being adequately
supported!

3
|GreenTec |Merkurvej 25 |DK-6000 Kolding |Phone: [phone] |[e-mail] |GreenTec.eu |
3. Connection of hydraulic hoses and optional cable:
Depending on the amount of equipment supplied with the Multi Carrier HXF-series, the number of
hoses and cables varies:
Standard HXF:
3 hoses (Pressure, Return and Drain)
Standard HXF with
cylinder for angle
adjustment:
3 hoses (Pressure, Return and Drain)
+ 1 double-acting hydraulic outlet (Pressure and Return)
HXF with electro-
hydraulic
operation:
3 hoses (Pressure, Return and Drain)
+ 1 cable connection to the control box in the cab of the vehicle
Hoses and cables must be routed and mounted so that they can move
freely with the movements of the front loader, without getting squeezed
detached or otherwise damaging the machine or equipment!
For Multi Carriers HXF-series with electro-hydraulic controls, the control panel must be fitted in a
suitable place in the cab of the vehicle.
(See the instruction manual for Multi Carrier: HFX-series)
It must be ensured that all switches on the control box are in the off
position before the power is connected!

4
|GreenTec |Merkurvej 25 |DK-6000 Kolding |Phone: [phone] |[e-mail] |GreenTec.eu |
DRAIN:
•The small hose is for DRAIN: marked in BLUE.
•The hose is connected to a pressure less (0 bar) tank connection.
The drain hose must NOT be connected to RETURN.
Drain pressure must never exceed 2.0 bar outside the engine.
Failure to do so will damage the hydraulic motor and void the warranty.
PRESSURE:
•The mid-size hose is for PRESSURE: marked in RED.
•The hose is connected to the double-acting socket.
RETURN:
•The largest hose is for RETURN: marked in GREEN.
•The hose is connected to the double-acting socket.
•Minimum pressure 5 bar.
(If this pressure is not reached, a non-return valve must be fitted!)
o(Item no.: CA19 / 4)
•Max. back pressure 15 bar by the engine.
Clean the hydraulic quick release couplings before connecting.
Pay attention to the maximum permissible pressures, especially
on the drain hose (BLUE) and the return hose (GREEN)
Return and drain must not be connected in the same tank
connection.
(See the instruction manual for equipped Multi Carrier and /or
attachment tool)
In the case of electro-hydraulic operation (HXF Tele-series), the two
blind plugs are assembled to ensure the blinds are not contaminated.

5
|GreenTec |Merkurvej 25 |DK-6000 Kolding |Phone: [phone] |[e-mail] |GreenTec.eu |

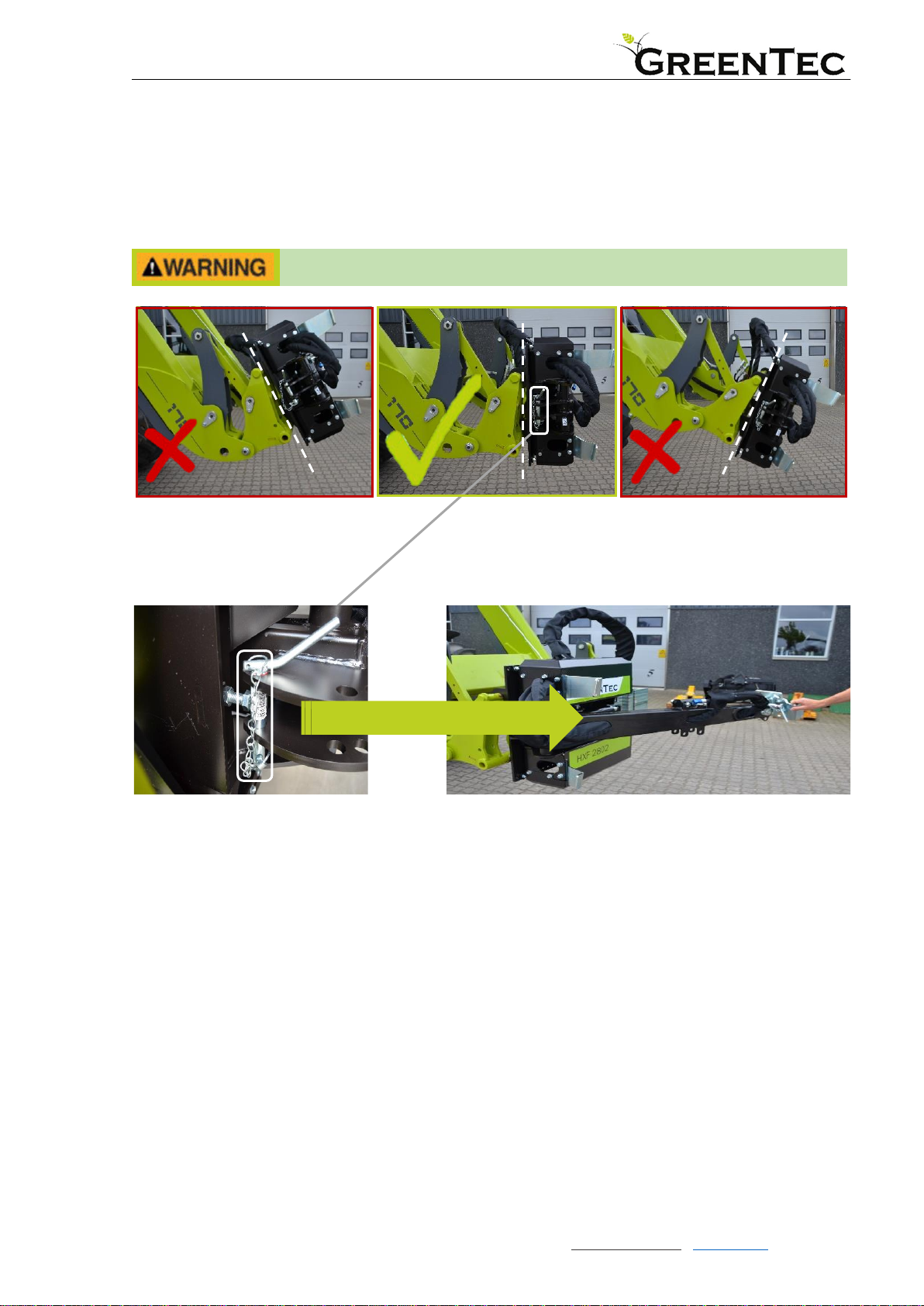

The Multi Carrier leans backwards
and the arm cannot be moved
out.
The Multi Carrier leans forward
and the arm will fall out by itself
(Dangerous!)
4. Preparing Multi Carrier HXF-series for mounting of
attachment tool:
In the folded state, the arm of the Multi Carrier is folded in and secured with the rivet from the collision
safety device.
Always keep the Multi Carrier in a VERTICAL position!
The Multi Carrier is vertical! The
arm is in perfect balance and
can move in and out manually.
With the Multi Carrier in a vertical
position, the safety rivet can be
removed. (Marked above)
With safety rivets removed, the swing-arm can be moved
out and around.
(In the case of a Multi Carrier in the HXF Tele-series,
movement is made via electro-hydraulic operation from the
cab of the vehicle)

6
|GreenTec |Merkurvej 25 |DK-6000 Kolding |Phone: [phone] |[e-mail] |GreenTec.eu |

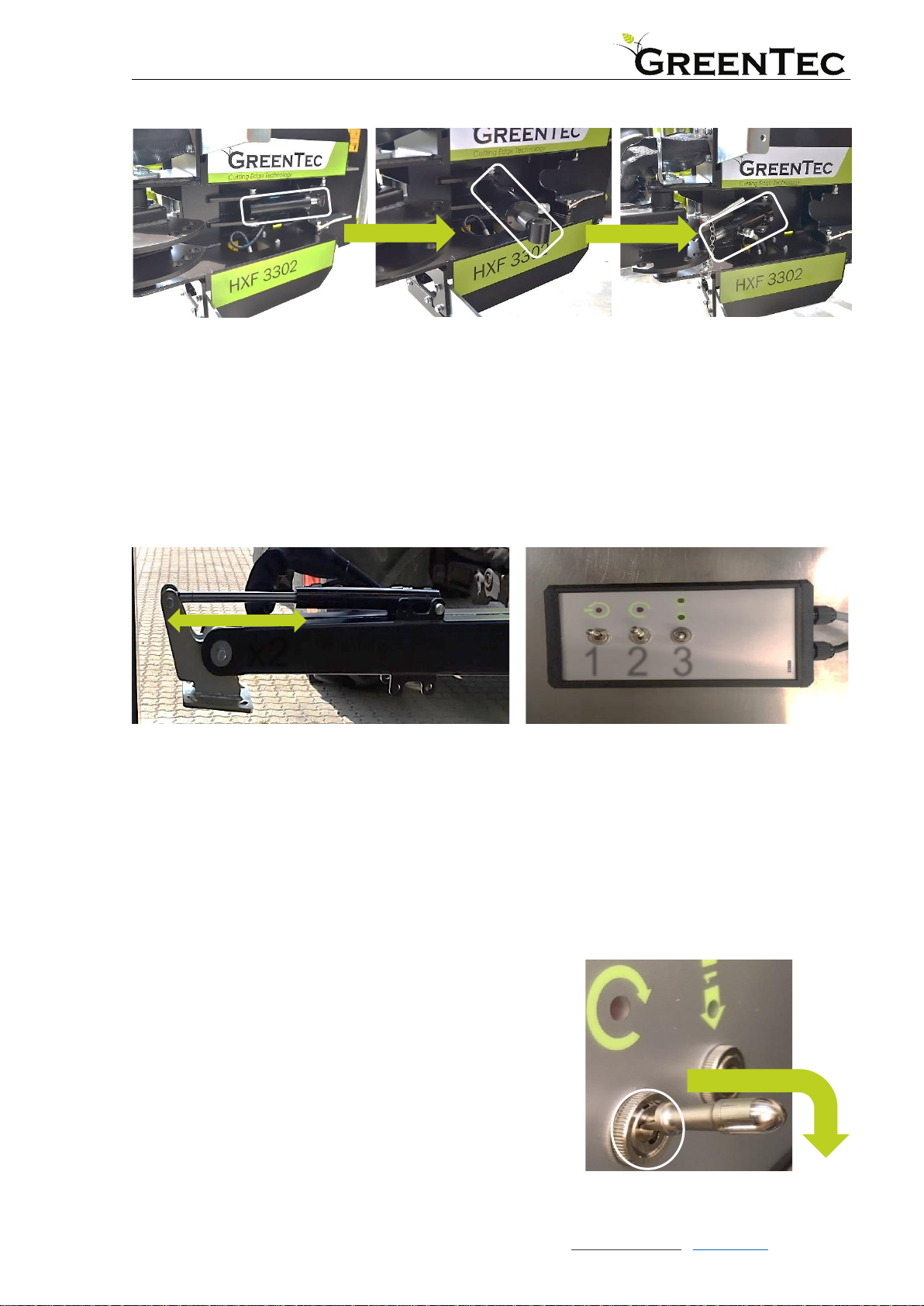

•The collision safety device is located behind the swing-arm. (Marked above)
•The impact cylinder is moved out and around, after which it is mounted on the arm with the
safety rivet which has just been dismantled.
•The hole closest to the cylinder MUST be used for all saws and hedge cutters, as these tools
must point forward in the direction of travel.
oOther holes are for dogwalk or better visibility from the driver's seat for attachment
tools other than saws and hedge trimmers.
o
The hydraulic cylinder for angle adjustment must be
FULLY pulled out, and then pushed FULLY in, at least
twice to ensure that all air is out of the cylinder and
hoses.
1 2 3
x2
For electro-hydraulic operation:
1. Connect the power.
2. Switch on operation.
oThe middle switch turns the
attachment tool on / off.
oThe switch is pulled outwards and
down for activation.
(Child Safety Device)
3. Activate hydraulic cylinder.

7
|GreenTec |Merkurvej 25 |DK-6000 Kolding |Phone: [phone] |[e-mail] |GreenTec.eu |
5. Finishing remarks:
The GreenTec Multi Carrier HXF-series is now ready to be fitted with an attachment tool.
ALWAYS use the attachment tool’s instruction manual to create an overview of installation, safety,
use, adjustment, maintenance etc.
It is hereby important that the operator is given both an instruction manual
for the Multi Carrier and an instruction manual for the attachment tool
before the machine is used for the first time!
It is also important that the operator fully understands the contents before
using the machine!
As our products are constantly evolving and improving, there may be changes in specifications.
If there is information that differs on the current machine, updated instructions can be found on our
Homepage or by contacting GreenTec - Aftersales department.
