Greentouch 2342VA-31-201-925-UM User manual

ASSEMBLY INSTRUCTIONS
31 IN. W X 22 IN. D VANITY
Questions, problems, missing parts?
Before returning to the store, contact Greentouch Home
Customer Service 9 a.m. - 5 p.m., EST, Monday - Friday
1-855-571-1044
[email protected]
Model #2342VA-31-201-925-UM
2342VA-31-242-925-UM

2
Table of Contents
Table of Contents ...................................2
Safety Information ..................................2
Warranty ..........................................3
Limited Lifetime Warranty ...........................3
Minnesota Residents ................................3
Pre-Installation.....................................4
Planning Installation ...............................4
Tools Required ....................................4
Hardware Included.................................4
Package Contents .................................5
Installation ........................................6
Care and Maintenance ..............................13
Service Parts......................................14
Safety Information
DANGER
□Keep small parts away from children during assembly.
□Failure to follow warnings and cautions could result in serious
injury.
□DO NOT use harsh bathroom cleaners or grout cleaners on any
natural stone.
WARNING
□Read these instructions carefully and keep in a safe place.
□Adult assembly required.
□This product should only be used on a at, level surface.
□Do not over tighten connectors (screws, bolts, etc.) Overtightening
can lead to product damage.
□Small parts may present choking hazard prior to assembly.
□Do not stand, step or climb on unit.
CAUTION
□USE preventative cleaning measures to keep your stone pristine.
□USE sealers according to the product specic directions.
□Blot spills quickly, and wash with mild soap and warm water.
□Stone countertop is surprisingly resilient to stains and scratches.
However, as a preventative measure, any spills on the stone
surfaces should be wiped up within a reasonable amount of time.
Do not let liquid sit on the stone overnight. Stones are most prone
to staining by oil and acid, so be sure to blot these spills up as soon
as they happen. Follow up by cleaning the stone with a mild
non-abrasive soap and water.
□Be sure to check all packing materials carefully for small parts that
may have come loose inside the carton during shipment. If parts
are missing, contact [e-mail] to
obtain any missing parts.
□Using abrasive cleansers will damage the surface.

3 [e-mail]
Please contact 1-855-571-1044 for further assistance.
Warranty
LIMITED LIFETIME WARRANTY
The manufacturer warrants this item against defects in materials and workmanship for a period of one (1) year from the date of original
retail purchase. This warranty applies only to the original purchaser. This warranty does not apply to any damage on the product by accident,
misuse, or modied, improper installation or by afxing accessories not produced by the manufacturer. The manufacturer is not accountable
whatsoever for product installation during the warranty period. There is no further expressed warranty. The manufacturer shall not be legally
responsible for incidental, consequential or special damages arising at or in connection with product use or performance except as may
otherwise be accorded by law. The manufacturer disclaims any and all implied warranties.

4
Pre-Installation
PLANNING INSTALLATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents
list. If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 45 minutes (24 hours for silicone caulk to dry).
TOOLS REQUIRED (NOT INCLUDED)
Phillips
Screwdriver Utility Knife Silicone Caulk
Power Drill
With Drill Bit Measuring Tape Level
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
—
AA
—
BB
—
FF
—
GG
—
HH
—
II
—
JJ
Part Description Quantity
AA Touch Up Pen 1
BB Shelf pin 4
FF Bolt 4
GG Sink Bracket 4
HH Nut 4
II Lock Washer 4
JJ Wrench 1

5 [e-mail]
Please contact 1-855-571-1044 for further assistance.
Pre-Installation (continued)

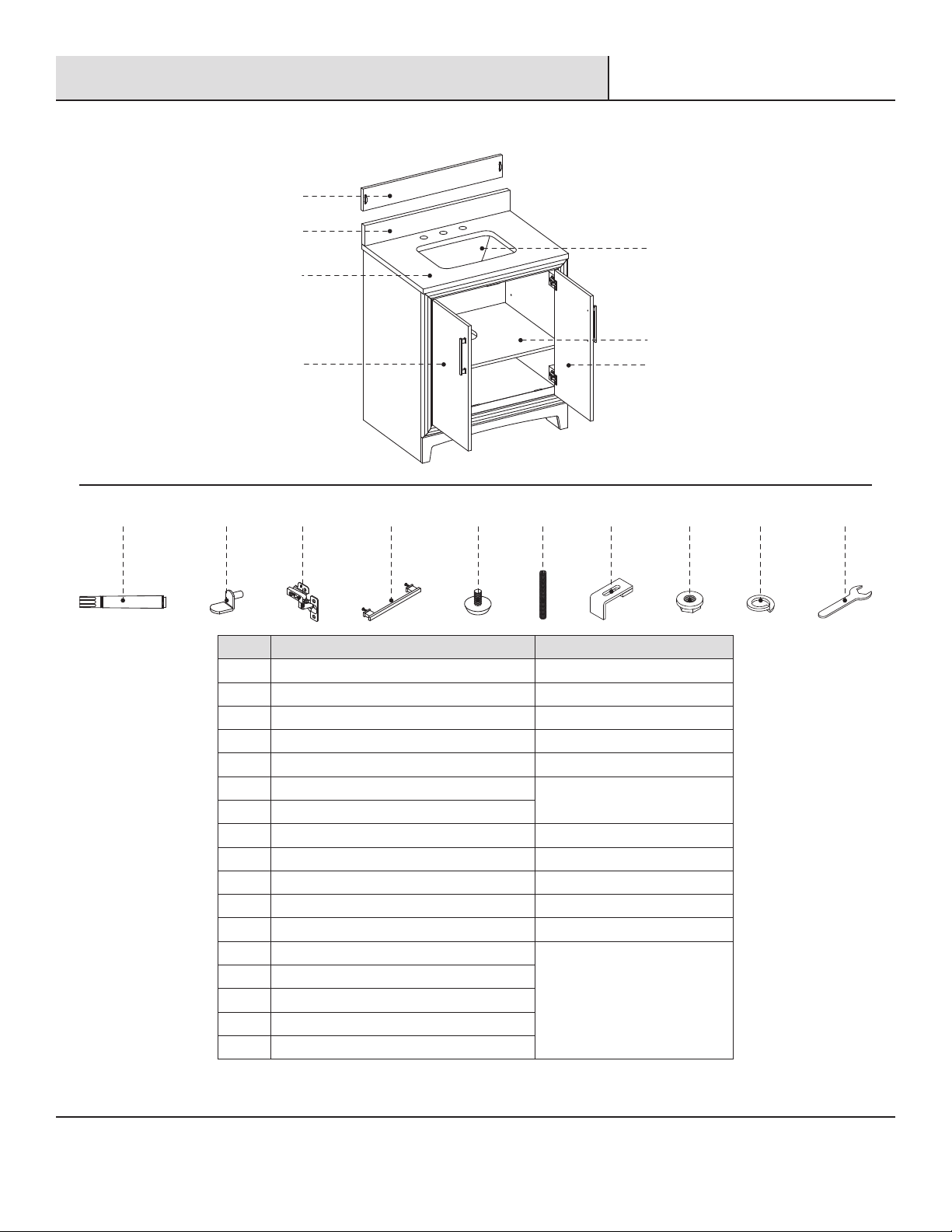

PACKAGE CONTENTS
A
E
F
D
B
C
Part Description Quantity CARTON
A Vanity 1 Box 2 of 3
BTop 1Box 1 of 3
C Backsplash 1
D Sink 1 Box 3 of 3
E Back Stretcher Bar 2 Box 2 of 3
F Shelf 1

6
Installation
1 Installing the side panel
□Place the folded vanity in the upright position. Unfold the left side panel of the vanity (A), and repeat to unfold for the right side
panel.
A
2 Installing the bottom panel
□Flip down the bottom panel to let it rest on wood support blocks located on the side panels.
A

7 [e-mail]
Please contact 1-855-571-1044 for further assistance.
Installation (continued)
3 Installing the back stretcher bar
□Locate one of the back stretcher bar (E) and gently slide the lock pins into the lower slot holes on the side panels.
E
A
1
2
4 Installing the back stretcher bar
□Locate the other back stretcher bar (E) and gently slide the lock pins into the upper slot holes on the side panels.
□Vanity assembly is now complete.
E
A
2
1

8
Installation (continued)
5 Installing vanity cabinet
NOTE: Clean area where the vanity (A) will be permanently located prior to beginning installation, ensuring the vanity (A) will not
interfere with any water supply and drain lines once mounted.
□With two people, carefully place the vanity (A) against the wall in its nal location. Place a level on the unit in both directions,
across the front and on both sides to properly adjust the levelers on the unit. Use preassembled levelers on the feet of the vanity
(A) to level the item. Twisting the levelers counterclockwise will increase the height of the vanity (A), twisting them clockwise will
decrease it.
□Find and mark locations of wall studs behind the permanent location of the vanity (A). From inside the vanity (A), drill a hole
through the vanity mounting area into wall studs.
□Using mounting hardware (not included) appropriate for your installation site, secure the vanity (A) to the wall stud. If possible,
secure the vanity (A) to two wall studs for increased stability.
WARNING:
□Vanity (A) MUST be secured to wall studs.
1 2
A
Vanity
Mounting
Area

9 [e-mail]
Please contact 1-855-571-1044 for further assistance.
Installation (continued)
6 Unpacking the top
□Take out the top (B) and backsplash (C) according to the
steps indicated by the drawings, and place them face down
onto a scratch free surface such as a foam sheet that came
in the packaging.
Remove the top foam sheet
Remove the foam sheet
Remove the cutout foam
sheet & hardware
Remove the top and place it
on a scratch free surface
Remove the backsplash and place
it on a scratch free surface
C
C
Foam sheet
B
BACK
FRONT
Hardware
Pack
B12
BACK
FRONT
B
Foam sheet
BACK
FRONT
7 Mounting the sink
□Apply silicone caulk (not included) to the top edge of the
sink (D). With the help of another adult, lower the sink onto
the back side of the stone top.
NOTE: Make sure the sink over-ow hole is facing the
front of the stone top. Be sure to align the sink well with
the stone top cut out allowing for equal stone overhang
on the front, back and sides of the ceramic sink (D).
NOTE: To install the sink onto the top correctly, ensure
that the two “BACK” stamps on the sink and the top are
aligned on the same sides. Use the guide lines marked
on the sink and bottom side of the stone top to assist
with sink location.
Back
1
D
B
2
2
BACK
BACK
Sink Lip
Top
BACK
BACK

10
Installation (continued)

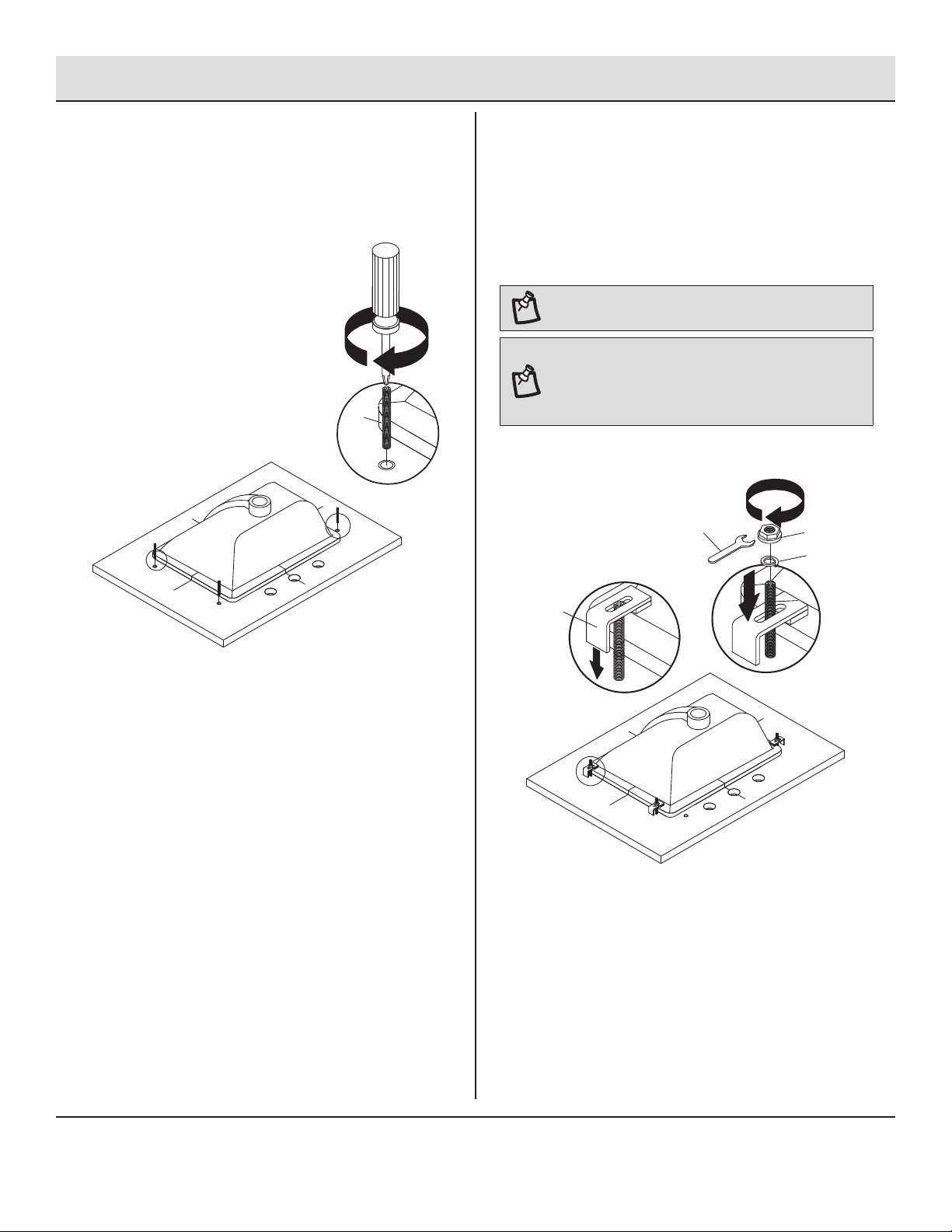

8 Installing the sink
□Screw bolts (FF) into the threaded holes of the stone top
(B).
FF
D
B
BACK
BACK
9 Attaching the sink brackets
□Lower the sink brackets (GG) over the bolts (FF) and allow
to rest on the sink lip.
□Adjust the location of the bracket to rmly grasp the sink
lip.
□Lower lock washers (II) over bolts (FF) and secure with nuts
(HH). Hand tighten nuts (HH) with the included wrench (JJ).
NOTE: DO NOT OVER TIGHTEN!
NOTE: Check that the sink placement is well centered
front to back and side to side of the stone top cut out
before allowing the silicone caulk to dry. If the sink is not
centered well, unscrew sink clamps, re-adjust the sink
position and re-tighten the sink brackets.
1
GG 2
3
JJ HH
II
FF
D
B
BACK
BACK

11 [e-mail]
Please contact 1-855-571-1044 for further assistance.
Installation (continued)
10 Installing the top
□Apply silicone caulk to the top edge of the wood cabinet.
□With the help of another adult, gently lower the stone top with the assembled sink onto the cabinet.
NOTE: Make sure the stone top is ush with the back side of the wood cabinet and the stone overhang is equal on both sides over
the wood cabinet left and right side walls. Remove any excess caulk before allowing to dry.
NOTE: It may be easier to install the faucet and/or drain assembly (not included) before securing the stone top to the wood
cabinet.
1
2
2
A
B
11 Installing the backsplash
□Apply silicone caulk (not included) to the unpolished side and bottom of the backsplash (C).
□Position the backsplash (C) on top (B) and against the wall.
□Clean any excess caulk before allowing to dry.
1
2
2
B
C

12
Installation (continued)
12 Installing the shelf
□Insert shelf pins (BB) at desired height, ensuring they are level. Place shelf (F) on top of shelf pins (BB).
1
BB
2
F
A
13 Aligning the doors (optional)
If you need to adjust the doors, do so in the following manner.
□To adjust the door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws.
□To adjust the door left or right, turn screws (b) on both hinges, in or out.
□To adjust the door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.
1
2
2
2
2
2
2
3
1
2 3
1
1
3
1

13 [e-mail]
Please contact 1-855-571-1044 for further assistance.
Care and Maintenance
□Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product.
□You can clean the vanity with a gentle, non-abrasive household cleaner.
□Make sure to dry the wood immediately with a soft cloth or towel.
□The ceramic sink can be cleaned using standard ceramic cleaning agents available at your local supplier.
□Tips for using touch-up pen (AA): For scratches, stroke in direction of scratch; for worn areas, stroke in direction of wood grain. Rub off
excess colorant promptly with a soft cloth.
IMPORTANT
□Shade variations and patterns are an inherent characteristic of stone (e.g. granite, marble, engineered stone). Stone tops will vary from
product to product. Use caution placing items such as soap or any fragranced material on the stone surface. Use a soap dish, coaster
or similar item to protect the surface if placing any soap or fragranced products on the stone.
□If soap or fragranced products come in contact with the stone top, rinse the surface with water and dry using a soft non-abrasive cloth.
□DO NOT use products to clean the stone top that contain acetone, lemon, vinegar or other acids as these may cause damage to the
stone surface.
□Periodically reseal the stone top using an appropriate stone sealer available from your local home store. Follow the manufacturer’s
directions on how to apply.
WARNING:
□Must use cleaning agents safe for stone. Check your cleaning agents’ use restrictions before using on any stone. Damage to
the stone may result. Vanity Manufacturer not responsible for damage caused by improper cleaning agents or soaps used.
Warranty will not cover damage caused by the use of improper soaps or cleaning agents.

14
Service Parts For 2342VA-31-201
If you are missing parts or if you require replacement parts, please contact our customer service team at 1-855-571-1044, 9:00 am - 5:00 pm,
EST, Monday - Friday. Identify the required part(s) and have the part number(s) ready.
E
C
B
G
D
F
H
AA FF GG HH II JJBB CC DD EE
Part Description Part Number
B Complete Set 31” Engineered Carrara Top 2500VT-31-925
C 31” Engineered Carrara Backsplash PUBS-25-925-31
D Sink PU17-18X14-SQUARE
E Back Stretcher Bar 1342VA-30-201-B BAR
F Shelf 1342VA-30-201-SHELF
G Left Door 1342VA-30-201-DOOR SET
H Right Door
AA Touch-Up Pen OF-0010
BB Shelf Pin B1044
CC Hinge C-90-107
DD Drawer Handle 1342VA-DD HARDWARE
EE Leveler T-1007
FF Bolt
GTC-SINK CLIPS
GG Sink Bracket
HH Nut
II Lock Washer
JJ Wrench

15 [e-mail]
Please contact 1-855-571-1044 for further assistance.
Service Parts For 2342VA-31-242
If you are missing parts or if you require replacement parts, please contact our customer service team at 1-855-571-1044, 9:00 am - 5:00 pm,
EST, Monday - Friday. Identify the required part(s) and have the part number(s) ready.
E
C
B
G
D
F
H
AA FF GG HH II JJBB CC DD EE
Part Description Part Number
B Complete Set 31” Engineered Carrara Top 2500VT-31-925
C 31” Engineered Carrara Backsplash PUBS-25-925-31
D Sink PU17-18X14-SQUARE
E Back Stretcher Bar 1342VA-30-242-B BAR
F Shelf 1342VA-30-242-SHELF
G Left Door 1342VA-30-242-DOOR SET
H Right Door
AA Touch-Up Pen OF-0120R
BB Shelf Pin B1044
CC Hinge C-90-107
DD Drawer Handle 1342VA-DD HARDWARE
EE Leveler T-1007
FF Bolt
GTC-SINK CLIPS
GG Sink Bracket
HH Nut
II Lock Washer
JJ Wrench
